Olive ONE User manual

Olive >User Guide
1. Setting up your Olive ONE
You will find the following connectors on the backside of the ONE:
Audio connectivity
You can connect the ONE in two ways to your amplifier/receiver: !!
Analog: via 3.5 mm-to-RCA cable
The ONE comes with a standard 3.5mm-to-RCA cable for connection to the analog inputs on your
receiver/amplifier. You can use it also to connect a sub-woofer.
Please do not connect headphones to the analog output. Headphones have different impedance
and can damage the ONE’s digital-to-analog converter.
! Digital: via S/PDIF coax cable
The digital out on the Olive ONE is bit-perfect, i.e. you will need to use the volume control on your
amplifier/receiver (adjusting volume via the Olive ONE’s user interface will not work).
Note: To play music via digital out please go to PREFERENCES > AUDIO and turn ON digital
!Alternatively, you can use the built-in dual HD amplifiers and connect ONE directly to your passive
speakers: You can use two unterminated speaker cables or standard banana plugs. The amplifier
has an output of 2x 32W, so we recommend speakers that have at least 40W RMS.
!Ethernet!
The ONE can connect to your network via Gigabit Ethernet or WiFi. More about this in section 2,
“Connecting to your network.”
USB!
The USB port currently supports backup, restore, update and recovery functionality.
!Power
Recently viewed articles
May 6, 2014: Manufacturing & Shipping
update
May 12, 2014: New software release available
for download.
May 8, 2014: How to install your own hard
disk drive.
How do I insert my own hard drive?
Related articles
3. Transferring music to the internal hard disk
drive (HDD)
2. Connecting to your network
May 8, 2014: How to install your own hard
disk drive.
May 6, 2014: Manufacturing & Shipping
update
How do I insert my own hard drive?
Olive ONE Support ▾
Search
Olive ONE Support
December 27, 2013 12:42 Unfollow
"


Facebook

Twitter

LinkedIn

Google+
Please only use the original Olive power supply included with the ONE.
!Service
Allows Olive to run detailed diagnostics without physically opening the unit.
Please do not connect any cables to this port.
Once all connections are established, touch the Power/Sleep button and the Olive ONE will boot
up.
Comments
Article is closed for comments.
Was this article helpful?
0 out of 0 found this helpful
' (

Olive >User Guide
2. Connecting to your network
You can integrate the ONE into your network via wired or wireless connection. Please go to
SETTINGS > CONNECTIVITY and choose one of the following options:
Wireless (WiFi)
For automatic connection via DHCP please touch the SETTINGS button and then select
CONNECTIVITY > WiFi. Turn ON WiFi and select your network. Enter the password and the ONE
will connect automatically to your network.
Note: It might take a few seconds until your network appears in the network list. You can click the
refresh button to load the network list again.
For a manual network connection please select the manual network setup and enter the required
information, such as network name (SSID), Key (Password), IP address etc.
Wired (Ethernet)
Connect the ONE via Ethernet cable to your router and choose DHCP for automatic connection:
Recently viewed articles
1. Setting up your Olive ONE
May 6, 2014: Manufacturing & Shipping
update
May 12, 2014: New software release available
for download.
May 8, 2014: How to install your own hard
disk drive.
Related articles
3. Transferring music to the internal hard disk
drive (HDD)
How do I insert my own hard drive?
Audio playback quality
1. Setting up your Olive ONE
Before setting up your Olive ONE
Olive ONE Support ▾
Search
Olive ONE Support
February 11, 2014 12:46 Unfollow
"


Facebook

Twitter

LinkedIn

Google+

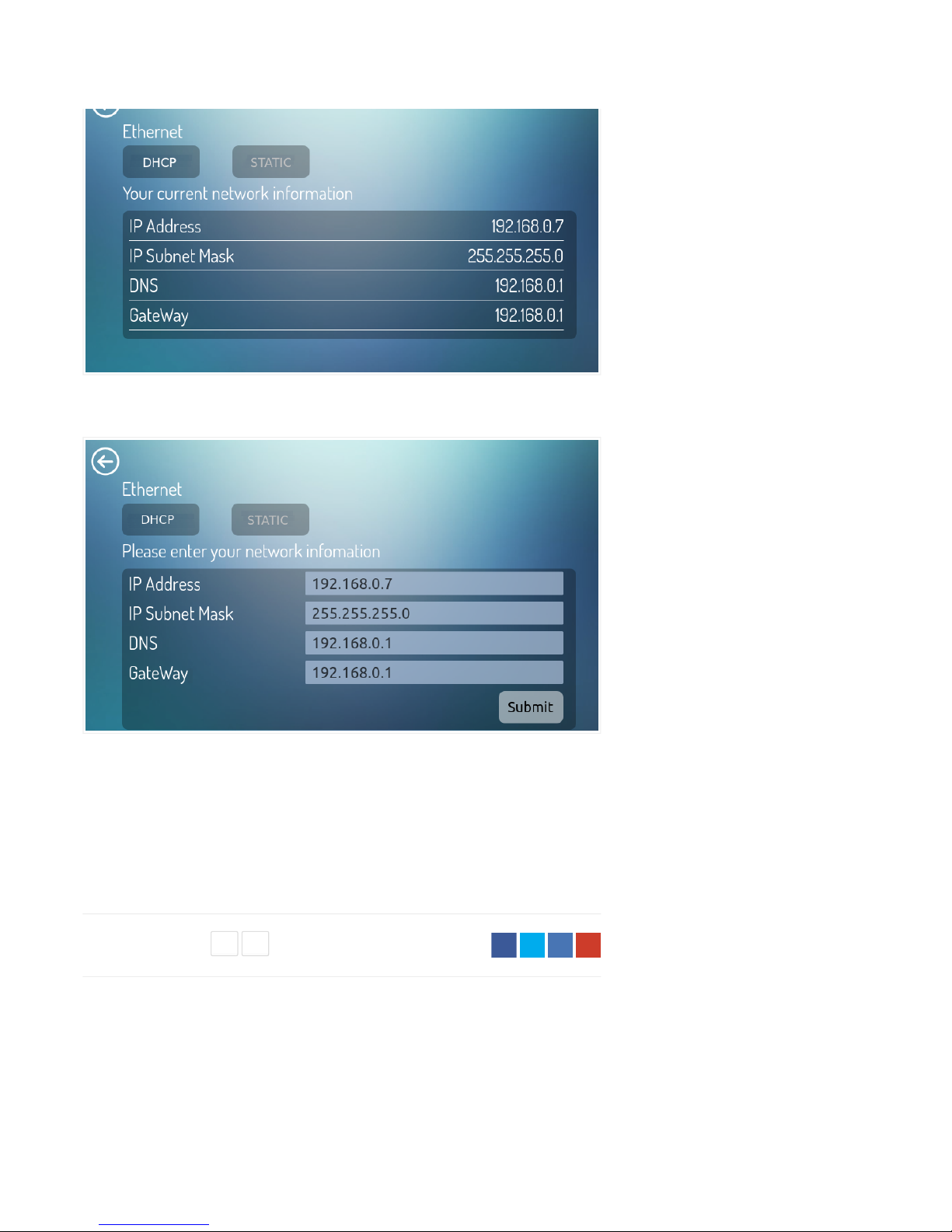

Or choose STATIC for a manual connection with a fixed IP address. Enter the required information
of your router/network setup in the entry mask:
Comments
Article is closed for comments.
Was this article helpful?
0 out of 0 found this helpful
' (

Olive >User Guide
3. Transferring music to the internal hard disk
drive (HDD)
If your ONE has a built-in HDD, you can transfer the music from your Mac or PC. There are two
options:
Option 1: Using the Serial number
1. On your ONE go to ABOUT > YOUR SYSTEM
2. Write down the serial number (for example "1234567890"!)
3. On a PC press the WINDOWS + R keys on your keyboard!.
On a Mac choose GO > CONNECT TO SERVER (from the main menu on
your desktop)
4. Enter "\\ONE" (or "smb://ONE on a Mac) into to the pop-up window, followed
by the last 4 digits of the Olive ONE serial number (for example "\\ONE7890"!)
5. Click OK
Option 2: Using the IP address
1. On your ONE go to CONNECTIVTY > WIRED (or WIFI if you are connected
wirelessly). Or simply tap on the network status icon in the top left corner of
your music library screen.
2. Write down the IP address assigned to the ONE by your network.
3. On a PC press the WINDOWS + R keys on your keyboard!.
On a Mac choose GO > CONNECT TO SERVER (from the main menu on
your desktop)
4. Enter "\\IP Address" (or "smb://IP ADRESS on a Mac) into to the pop-up
window (for example \\192.168.1.100)
5. Click OK (On a Mac please connect as a "Guest")
An import folder named "Olive Music" will appear on your desktop / network environment. Drag and
drop your complete music folder from your Mac/PC into the import folder and the transfer will
begin. A pop-up window on your desktop will indicate the estimated time for the transfer.
As soon as the music transfer has started, the ONE will start importing the transferred
music automatically into its local database. Once the import is complete your music will appear in
the ONE’s local music library.
Recently viewed articles
2. Connecting to your network
1. Setting up your Olive ONE
May 6, 2014: Manufacturing & Shipping
update
May 12, 2014: New software release available
for download.
Related articles
4. Playing music
May 6, 2014: Manufacturing & Shipping
update
Playing & browsing music from the built-in
hard drive
How to configure presentation levels on your
UPnP DMS
Audio playback quality
Olive ONE Support ▾
Search
Olive ONE Support
March 11, 2014 18:24 Unfollow
"


Facebook

Twitter

LinkedIn

Google+
Useful Tips
We recommend using a wired Ethernet connection to transfer larger libraries.
Only supported audio formats (WAV, AIFF, FLAC, MP3, AAC, Apple Lossless, Ogg Vorbis)
will be imported and show up in the ONE’s local music library.
Music in WAV/AIFF format does not have metadata tags and will show up as Unknown
Artist/Album in the ONE’s music library. We recommend converting WAV files to FLAC on
your Mac/PC before you transfer it.
Comments
Article is closed for comments.
Was this article helpful?
0 out of 0 found this helpful
' (

Olive >User Guide
4. Playing music
The ONE allows you to play music from different sources:
Internal Hard Disk Drive
There are two key advantages of playing music from the local HDD:
Faster navigation and playback due to independence from network performance, external
hardware (PC/Mac/NAS), and UPnP software.
More flexibility in browsing and arranging your music library, since the ONE manages the
metadata directly.

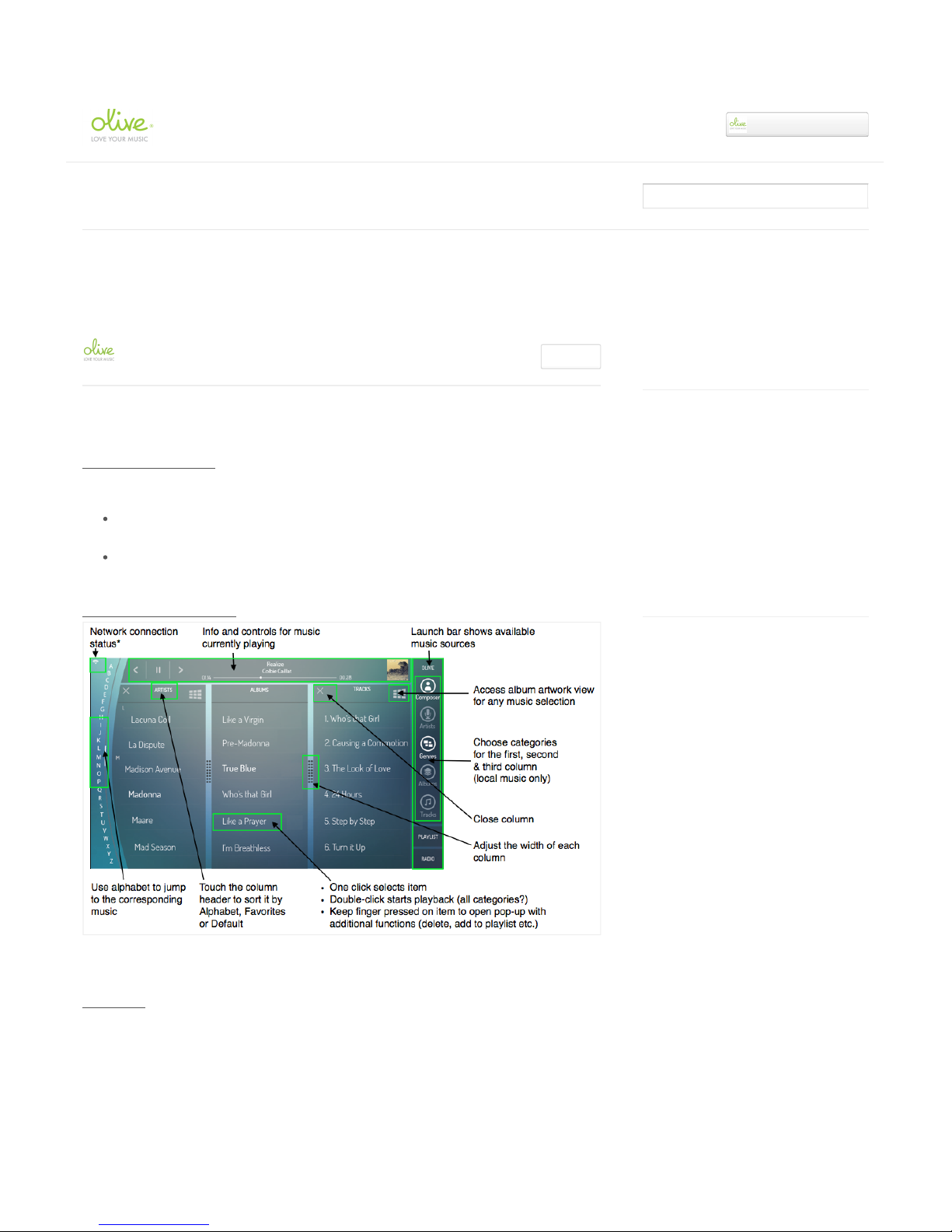

Music Library Browse Screen
* Network connection status: White network icon confirms internet access. Red icon indicates no internet,
Crossed-through icon means no network access
Play Screen
Recently viewed articles
3. Transferring music to the internal hard disk
drive (HDD)
2. Connecting to your network
1. Setting up your Olive ONE
May 6, 2014: Manufacturing & Shipping
update
Related articles
5. Finding the right music quickly
6. Playlists
3. Transferring music to the internal hard disk
drive (HDD)
7. Editing Metadata
May 6, 2014: Manufacturing & Shipping
update
Olive ONE Support ▾
Search
Olive ONE Support
December 24, 2013 17:02 Unfollow
"

UPnP Sources
To stream music from your Mac/PC/NAS, you need to share your music library using UPnP DLNA
software in your network. Your UPnP library will then appear in the Sources screen:
Once you have selected your library the Olive ONE will display the music information in the UPnP
library screen:
Due to the many different ways UPnP software packages provide information about a shared
music library, the Olive ONE provides a standardized view to ensure maximum compatibility. You
can choose to view up to three hierarchy levels of your music library.

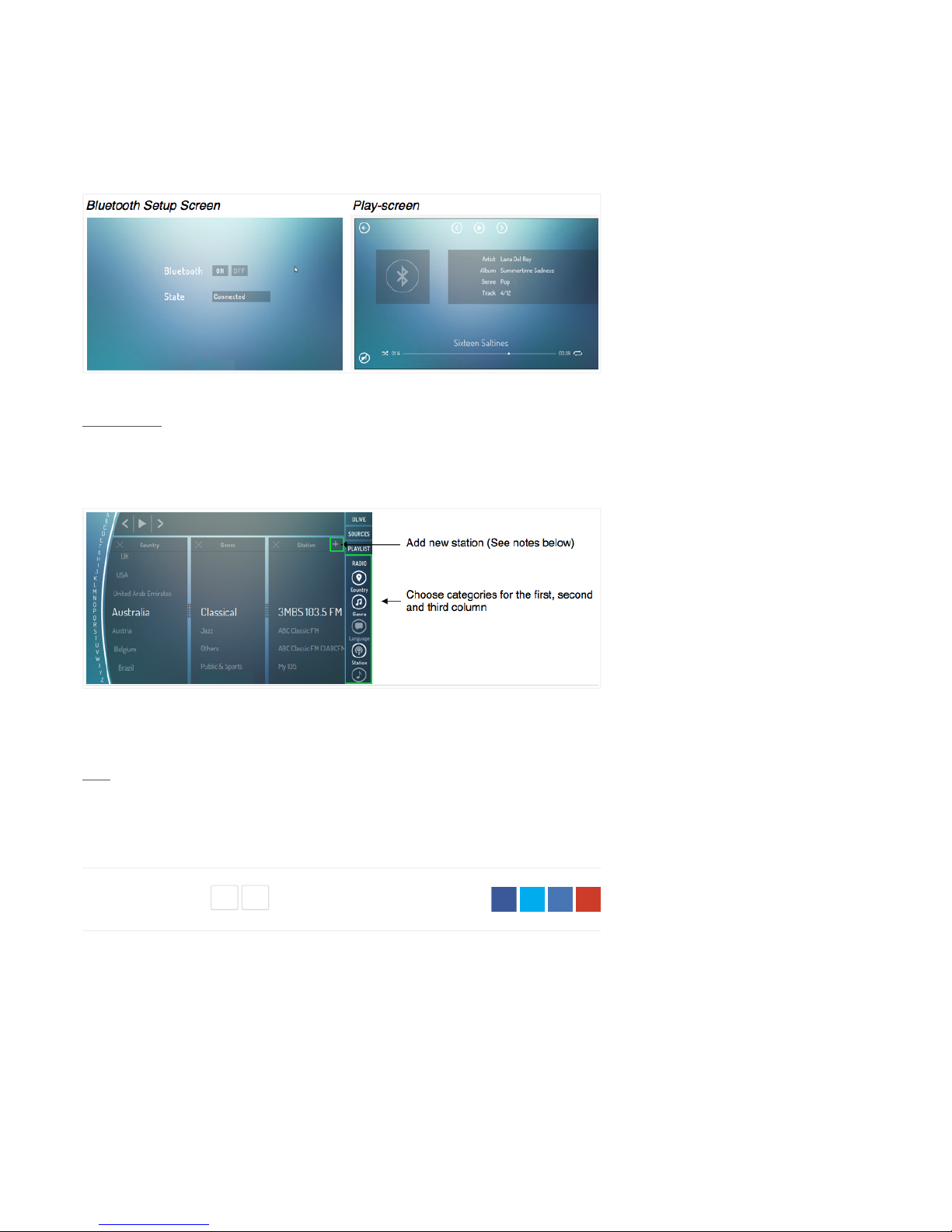

Bluetooth Sources
The ONE can also access and play music from your Bluetooth enabled smartphone:
1) Select SOURCES from the Launch Bar and click on the Bluetooth icon!(or go to
SETTINGS > CONNECTIVITY > BLUETOOTH).
2) Turn ON Bluetooth and wait until the status messages changes to “Initialized.”
3) Turn ON Bluetooth on your smartphone and select the ONE in the device list.


Facebook

Twitter

LinkedIn

Google+
The connection is established when the status on the ONE changes to “Connected.”
4) Start music playback from your phone. The ONE’s user interface will automatically change to the
play-screen and display the music currently playing. You can control playback (skip, pause/play,
volume) from the user interface of your phone or the ONE.
Internet Radio
The ONE comes with a hand-groomed internet radio service with stations from all around the
world. Our proprietary database allows you to conveniently arrange, browse and search stations
by combining key criteria such as country, genre, language, etc
Can’t find your favorite station? The ability to add your own internet radio stations is currently in the
works and will be added shortly.
Note: Internet radio station links must be http or mms. Currently only radio stations that use the
MP3 formats are supported, not the Windows Media Format.
Comments
Article is closed for comments.
Was this article helpful?
0 out of 0 found this helpful
' (

Olive >User Guide

Facebook

Twitter

LinkedIn

Google+
5. Finding the right music quickly
Access the search mask by tapping on the icon.
It allows you to search your music on the built-in HDD, UPnP shared libraries (supported software
packages only), and internet radio stations.
Simply tap on the column (metadata category) that you want to apply your search to, type in your
search term and press “Search”. The music library will dynamically update based on your search
term.
Comments
Article is closed for comments.
Recently viewed articles
4. Playing music
3. Transferring music to the internal hard disk
drive (HDD)
2. Connecting to your network
1. Setting up your Olive ONE
Related articles
6. Playlists
May 6, 2014: Manufacturing & Shipping
update
How to configure presentation levels on your
UPnP DMS
May 8, 2014: How to install your own hard
disk drive.
Olive ONE Support ▾
Search
Olive ONE Support
December 24, 2013 17:06 Unfollow
Was this article helpful?
0 out of 0 found this helpful
& '
(

Olive >User Guide

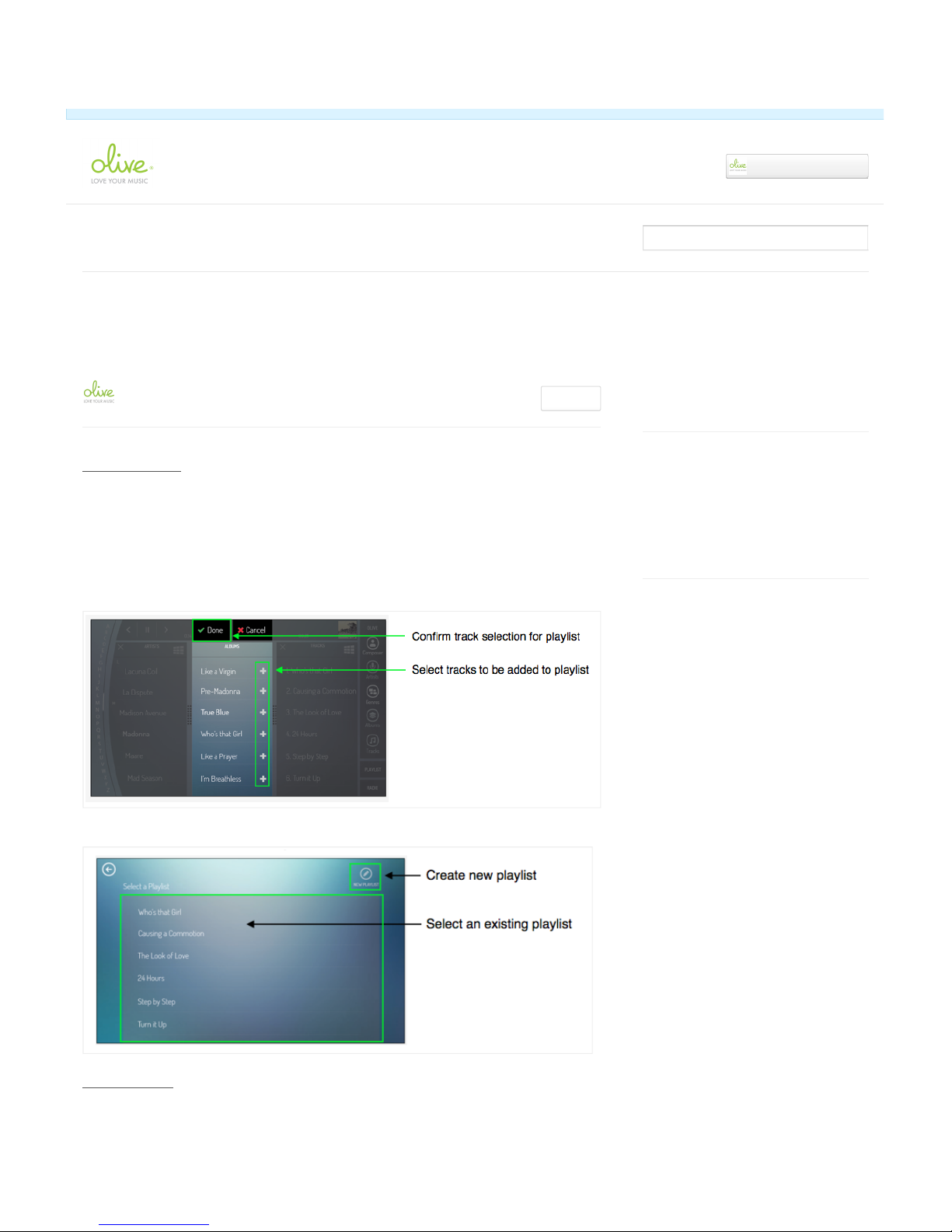

6. Playlists
Creating Playlists!
1) Keep your finger pressed on a track or album name and select “Add to playlist” from the pop-
up. (Note: We are also working on adding complete artists to playlists.)
2) Select the tracks you want to add to the playlist by pressing the “+” next to each track.
3) Confirm your selection by tapping on the “DONE” button.
4) Add the tracks to an existing playlist, or create a new playlist.
Editing Playlists!
Recently viewed articles
6. Playlists
4. Playing music
Related articles
7. Editing Metadata
4. Playing music
8. Settings
Feb 10, 2014: Quick Start Guide available for
download
June 24, 2014: New software release available
for download.
✓Article was successfully updated.
Olive ONE Support ▾
Search
Olive ONE Support
Today at 10:58 Unfollow
#


Facebook

Twitter

LinkedIn

Google+
Keep your finger pressed on one of the tracks in the playlist and select “Delete” or “Sort” in the
pop-up to delete or rearrange the sequence of tracks.
Keep your finger pressed on the name of a playlist and select “Delete” or “Rename” in the pop-up
to delete or rename the playlist itself.
Notes
1) Playlists are stored locally on your ONE and can contain tracks from your local HDD
and/or UPnP sources.
Comments
Be the first to write a comment.
Was this article helpful?
0 out of 0 found this helpful
( )
Add your comment

Olive >User Guide

Facebook

Twitter

LinkedIn

Google+

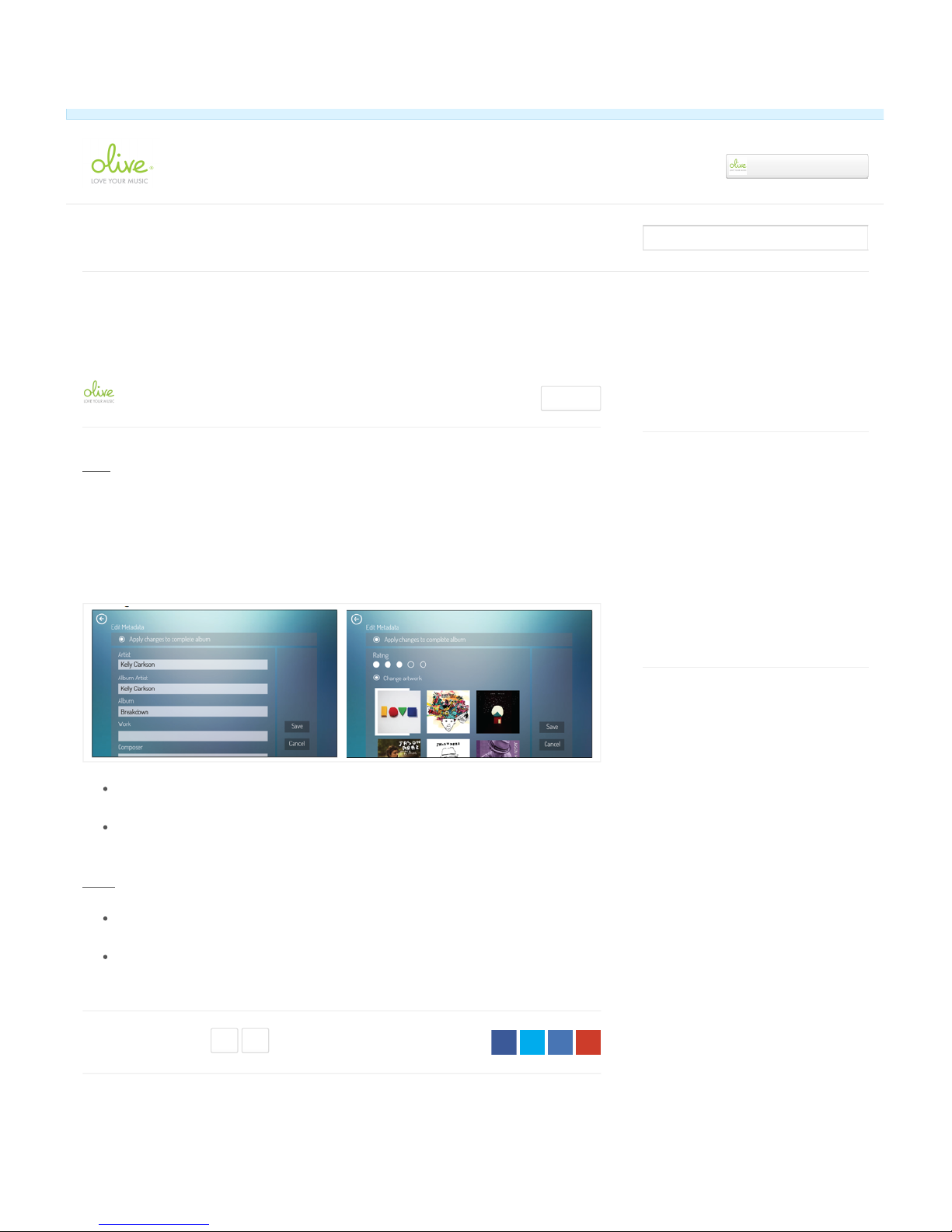

7. Editing Metadata
Note: This feature is currently in progress and not supported yet.
To edit metadata, keep your finger pressed on the track, album or artist name and select
“Rename” in the pop-up. Select the items you want to edit by tapping on the “+” icon next to each
item and confirm your selection with the “Done” button.
Edit Metadata Screen
You have the option to apply changes to the complete album. Track-specific metadata like
track title, track number, and rating will not be applied.
Select “Part of compilation” to make all tracks show up in a combined “compilation” folder,
and not as separate artists
Notes
Metadata can right now only be edited for music stored on your built-in HDD. We are looking
into adding metadata editing for supported UPnP software packages at a later point in time.
Metadata editing is not implemented in the current software, but will be provided in the next
test software update.
Recently viewed articles
7. Editing Metadata
6. Playlists
5. Finding the right music quickly
4. Playing music
3. Transferring music to the internal hard disk
drive (HDD)
Related articles
8. Settings
3. Transferring music to the internal hard disk
drive (HDD)
4. Playing music
✓Article was successfully updated.
Olive ONE Support ▾
Search
Olive ONE Support
Today at 09:01 Unfollow
Was this article helpful?
0 out of 0 found this helpful
' (
)

Olive >User Guide
8. Settings
All SETTINGS are conveniently accessible by tapping on the icon.
Connectivity
Connect your Olive ONE to your network (Wireless or Wired) and Bluetooth device. !
Wireless: The Olive ONE currently supports the following wireless network
encryptions: 802.11 B/G/N, WEP/WPA/WPA2!!
Wired: The current software version does not allow a manual setup of a wired connection.
Simply connect an Ethernet cable to your ONE and it will automatically choose the wired
connection on boot-up.
Bluetooth!: The Olive ONE supports all smartphones with Bluetooth 2.1 (or higher) and that
employ the standard AVRCP protocol for audio streaming.
System
Update/Recovery
Recently viewed articles
7. Editing Metadata
6. Playlists
5. Finding the right music quickly
4. Playing music
Related articles
Playing & browsing music from the built-in
hard drive
May 8, 2014: How to install your own hard
disk drive.
3. Transferring music to the internal hard disk
drive (HDD)
What can I do to improve the touchscreen
performance?
Olive ONE Support ▾
Search
Olive ONE Support
December 24, 2013 17:32 Unfollow
"

Install the latest software update via the internet or USB. Turn on AUTO UPDATE to make your
ONE automatically check for new updates. Installation will require manual approval.
A system recovery should only be performed in a case of serious system malfunction. It
will reinstall the operating system and delete all personal settings as well as favorites, ratings,
playlists, and internet radio stations. If you have a built-in HDD, recovery will also delete all stored
music.
Note: The USB stick needs to be formatted in FAT32 and have at least 1GB memory for the
recovery software package
Backup/Restore
!If you have a built-in HDD, we recommend performing a backup to an external USB HDD regularly.
Simply plug in your USB HDD (with identical capacity to the built-in HDD) and START the backup.
Attention: The ONE will automatically format your USB HDD and delete all preexisting data.
Calibrate Screen
!If the touchscreen does not work properly, we recommend performing a calibration. Simply follow
the on-screen instructions.
We recommend using a fine plastic stylus for the calibration. Do not use any item with a metal tip
as it might damage your LCD. !
Default Settings
!This will reset your Olive ONE to its factory settings. It will delete all personal settings (time, alarm
etc.), but will maintain your favorites, ratings, playlists, and internet radio stations.
Error Logging
!If you have a consistent, replicable problem with your ONE, we recommend sending us an error
log: !
1) Go to SETTINGS > SYSTEM > ERROR LOGGING and turn ON error logging
2) Execute the same operations that lead to the problem, until you can replicate it.
3) Turn OFF error logging
4) Upload the error log to a USB stick and attach it to your support request.
If you are connected to the internet you can also upload the error log directly to the Olive server.


Facebook

Twitter

LinkedIn

Google+
Note: Always turn OFF error logging if you do not need it anymore as it requires system resources
and might slow down your ONE.
Preferences
Language
The user interface is currently available in English. Additional languages are in the works.!
Time!
You can either set your time manually or use the Network Time Protocol (NTP) to set your time
automatically.
Power & Sleep
Set the POWER SAVER TIMER to determine when your Olive ONE should go into power
saving mode after being idle (i.e. no music playback or user interface interactions). The ONE
will turn off all key services and major power consuming peripherals (e.g. LCD). If you have
a built-in HDD, the Olive ONE will continue to provide its music server capabilities. The HDD
will not shut down completely and basic networking capabilities will remain active.
The SLEEP TIMER defines when your ONE goes into sleep mode, even if music is being
played back. One example would be to set your ONE to play music for 30 minutes before
you go to bed. Sleep and Power Saving mode are identical with regard to
power consumption.
Note: A single tap the on the Power/Sleep button will put your Olive ONE into power saving mode.
Alarm!
The Olive ONE can act as your alarm clock. You can set a start and end time and a playlist to wake
up to. If your playlist links to a UPnP library and network connectivity is unavailable, the Olive ONE
will play a standard alarm tone.
About
Your Library!
Provides information about the size of your music library, number of tracks, albums, artists etc. (for
local music library on built-in HDD only).!
Your System!
Displays key information about your Olive ONE such as software version, firmware, serial number
etc.!
Running Services!
Shows all services and operations that are currently running in the background (e.g. music import,
software update download, system check etc.)
Was this article helpful?
0 out of 0 found this helpful
' (
