General Information
General Safety Information
G6
General Information
Please read and observe the following
information and keep this operating
manual in a safe place for future reference!
General Safety Information
Observe the following safety instructions in order to pro
tect yourself from the possibility of personal injury and the
product from damage.
WARNING!
•Risk of electric shock! Never attempt to open and re
pair the device or accessories yourself. Never touch
bare contacts with metallic objects. Never plug-in or un
plug the power cable when your hands are wet.
•Risk of suffocation! Keep out of reach of children!
Keep packaging materials and protective foils out of
reach of children. Keep the device and any accessories
out of reach of children. Small children can swallow
small parts. Seek medical attention immediately if a
small part is swallowed.
CAUTION!
•Risk of hearing damage! The audio signals are emit
ted through a loudspeaker. Pay attention that a reason
able loudspeaker volume is set for transmitting the audio
signals.
ATTENTION!
Avoid the risk of property damage to your device and ob
serve the information!
•Do not use the camera in prohibited areas! Prohibit
ed areas could include public buildings or spaces, for
example. Please observe local laws and regulations!
•Protect the camera from moisture, dust, liquids, chemi
cals, vapours, heat and direct sunlight. The camera is
not waterproof, so ensure you keep it dry.
•Only use original accessories. Only connect acces
sories approved by the manufacturer to the camera and
only us the power adapter supplied.
•Property damage is possible. Only use properly in
stalled, easily accessible power sockets.
•Repairs to this device may only be completed by prop
erly qualified service personnel.

General Information
Intended Use and Notations Used in this Manual
7G
Intended Use
The IP camera (subsequently referred to as the camera)
is designed to perform video surveillance (CCTV) by day
and night. The camera is exclusively intended for use in
closed rooms. When installing and selecting the area of
application of the camera, pay attention to the personal
rights of third-parties and that the respective, applicable
local laws and regulations are not violated.
Unintended Use
The camera is not suitable for use in wet rooms or poten
tially explosive areas.
Monitoring of third-parties is not permitted without the re
spective, explicit authorisation and could have legal con
sequences.
Any use other than that described in Intended Use is con
sidered unintended use. Unauthorised modification
or reconstruction is not permitted.
Under no circumstances open the camera or accessories
or attempt to complete any repair work yourself.
Legal Notice
All the trademarks or brand names on the product and/or
accessories or which appear in this operating manual
serve solely for descriptive purposes and do not imply that
they are freely available. The trademarks and brand
names are the property of the respective proprietor of the
rights.
Notations Used in this Manual
The section below explains the presentations and nota
tions used in this operating manual.
1. This indicates the first step in a set of instructions.
2. This indicates the next step in a set of instructions.
This symbol indicates useful information which will
help you to use the camera and ProHomeIPC App.
Indicates a list.

General Information
System Requirements
G8
System Requirements
This operating manual assumes users have a basic
knowledge of connecting and configuring network-capable
devices and smartphones or tablet PCs.
iOS
In order to exploit the full functional scope of the camera
using the ProHomeIPC App for iOS, you require:
an internet-capable iPhone (from iPhone 4)
operating system iOS 7 or later
ProHomeIPC App
(refer to Chapter Installing the ProHomeIPC App)
Android
In order to exploit the full functional scope of the camera
using the ProHomeIPC App for Android, you require:
an internet-capable smartphone
operating system Android 4.0 or later
ProHomeIPC App
(refer to Chapter Installing the ProHomeIPC App)

General Overview
Checking the Package Contents
9G
General Overview
This section provides information on the package contents
as well as the connections and operating elements on the
camera.
Checking the Package Contents
Unpack the camera and check that the package contents
are complete. The camera package must contain the fol
lowing components:
Camera
Power adapter plug
Receiver
Mounting bracket
Network cable (RJ45/RJ45, Cat.5e)
Operating manual
Check for any visible signs of damage to the camera
packaging or the components supplied. If there are,
do not put the camera into operation.

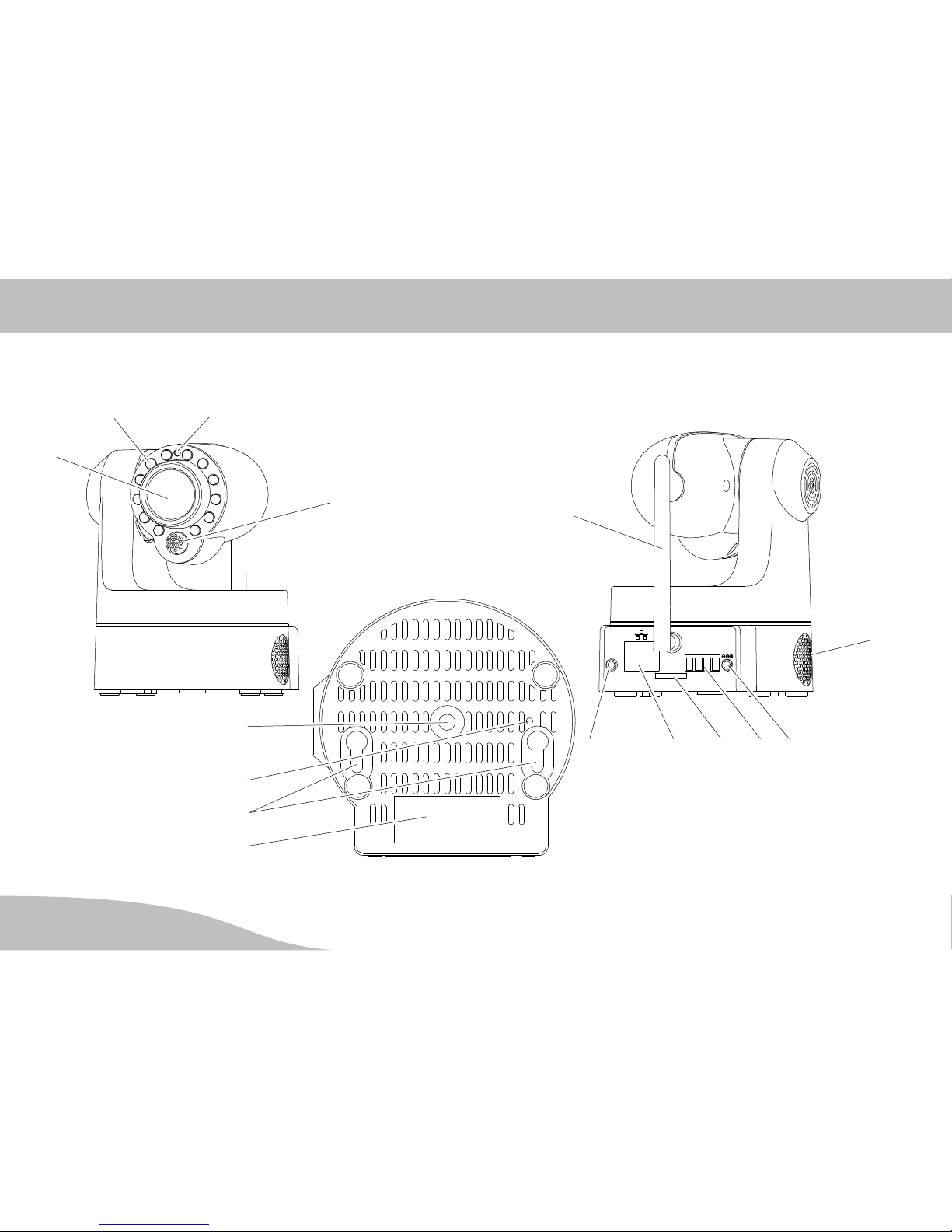

Connections and Operating Elements
Before connecting the camera, familiarise yourself with
the connections and operating elements on it.
1Lens with optical zoom
(model IC 1280 Z only)
2 Infrared LEDs (night vision)
3Brightness sensor
4 Microphone
5WLAN receiving antenna
6 Loudspeaker
7Power adapter connection port
8 Port for receiver
(connection to an alarm system from the Protect
series)
9MicroSD card slot (max. 32 GB)
10 Network connection port
11 Aux output (3.5 mm connector)
12 Internal thread for mounting bracket
13 Reset button
14 Installation holes
15 Rating plate with QR code

General Overview
Connections and Operating Elements
G10
AUDIO
S/D
1 2 3 4 DC 5 V
I/O Alarm
ANT
5
6
789
10
11
12
13
14
15
1
23
4

General Overview
Receiver
11G
Receiver
16
17
18
16 Power cable (connect to power connection port on
the camera)
17 Power adapter connection port
18 I/O port
19 Status LED (not illustrated here)
Pivoting Range and Angle of Vision
A
80°
330°
B
C
67°
AVertical pivoting range
B Horizontal pivoting range
CAngle of vision

Connecting the Camera
Inserting the MicroSD, Positioning or Mounting the Camera
G12
Connecting the Camera
This section provides information on how to position and
connect the camera and insert a microSD memory card in
it.
Inserting a microSD memory card
Positioning the camera or mounting it on a wall
Connecting the camera - network cable
Connecting the camera - power adapter and receiver
Inserting the MicroSD Memory Card
In order to be able to make video recordings and save
them, you must insert a microSD memory card in the
camera. Use a microSD memory card with a maximum
memory capacity of 32 GB.
No microSD memory card is enclosed in the camera
package supplied.
1. Insert a microSD memory card in the microSD memory
card slot at the rear of the camera.
The microSD memory card latches audibly in place.
Positioning the Camera
When the camera is put into operation for the first time, it
must be connected to a network connection port (LAN) on
your router via the network cable. Therefore, when putting
the camera into operation for the first time, it should be
located near your router.
After putting the camera into operation for the first time
and configuring it, you can install the camera at the lo
cation where it should perform the video surveillance.
When doing so, it is essential to observe the applicable
laws and local regulations.
Mounting the Camera on the
Wall/Ceiling
You can mount the camera anywhere using the mounting
bracket contained in the package supplied.
WARNING!
Risk of fatal injury through electric shock or gas ex
plosion!
During installation, pay attention to the possibility of
electrical cables and gas pipes running in the walls.
Pay attention that you do not damage electric cables
or gas pipes.

Connecting the Camera
Connecting the Camera -
13G
1. Drill two sufficiently large holes in the wall.
Use the mounting bracket supplied as the template
for the position of the holes.
2. Insert the dowels in the drill holes.
3. Assemble the mounting bracket using suitable screws.
4. Fit the camera on the mounting bracket.
Use the internal thread on the underside of the cam
era.
Connecting the Camera -
Network Cable
Connect the network cable to the network connection
port (10) on the camera and a free network connection
port (LAN) on the router.
A condition for putting into operation is the unam
biguous identification of your camera within your net
work. If you have not altered the default setting of
your router, this will occur automatically. In the case
of most routers, the DHCP function is activated at
the factory.
More detailed information on the DHCP function is
provided in the operating manual supplied with your
router.
Connecting the Camera -
Power Adapter and Receiver
If you want to integrate the camera in an existing alarm
system, you need the receiver supplied.
If you only want to use the camera to monitor a certain
area, you do not need the receiver supplied.
Operating with an Alarm System
(Protect 6xxx / 9xxx)
If you want to integrate the camera in an alarm system
(Protect Series 6xxx / 9xxx alarm system from Olympia),
you must use the receiver supplied.
1. Connect the receiver to the port (8) on the camera.
ATTENTION!
Property damage is possible!
The camera could be damaged if you use a wrong
power adapter.
Only use the power adapter supplied.
2. Connect the power cable (16) on the receiver to the
power connection port (7) on the camera.

Connecting the Camera
Registering the Receiver on the Alarm System
G14
3. Connect the power adapter to the power connection
port (17) on the receiver and a properly installed, easily
accessible power socket.
The LEDs on the network connection port (10) signal
when a connection exists to the network (lights up
orange) and that data is being transmitted (flashes
green).
ATTENTION!
Property damage is possible!
The camera could be damaged if you move the ser
vomotors by hand or interrupt the movement.
Avoid moving the servomotors by hand or interrupt
ing the movement of the camera.
4. The servomotors of the camera are controlled automati
cally. Wait until the process has finished.
Registering the Receiver on the Alarm
System
After connecting the power supply and network to the re
ceiver, you must register the receiver on the base unit of
the alarm system.
1. Disconnect the power cable of the camera from the
power socket on the receiver.
2. Select the Register menu option on the alarm system.
To configure the alarm system, please refer to the
manual supplied with the alarm system.
3. Connect the power cable of the camera to the power
socket on the receiver.
4. When the message Siren followed by a number ap
pears in the alarm system display, registration on the
alarm system was completed successfully.
Change the Siren entry to Camera, for example, us
ing the alarm system menu.
5. The receiver is now registered on the alarm system and
can receive signals from the alarm system. In the event
of an alarm, the red LED (19) on the rear of the receiver
indicates that an active connection between the alarm
system and receiver exists.

Connecting the Camera
Registering the Receiver on the Alarm System
15G
Communication Alarm System
Camera + Sensor Network Cable Router

Connecting the Camera
Use Without an Alarm System
G16
Use Without an Alarm System
If you want to use the camera without an alarm system
(Protect Series 6xxx / 9xxx alarm system from Olympia),
you do not need the receiver supplied.
ATTENTION!
Property damage is possible!
The camera could be damaged if you use a wrong
power adapter.
Only use the power adapter supplied.
1. Connect the power cable to the power connection
port (7) and a properly installed power socket.
The LEDs on the network connection port (10) signal
when a connection exists to the network (lights up
orange) and that data is being transmitted (flashes
green).
ATTENTION!
Property damage is possible!
The camera could be damaged if you move the
servomotors by hand or interrupt the movement.
Avoid moving the servomotors by hand or interrupt
ing the movement of the camera.
2. The servomotors of the camera are controlled automati
cally. Wait until the process has finished.
Camera Network Cable Router

Connecting the Camera
Installing the ProHomeIPC App
17G
Installing the ProHomeIPC App
1. Download the ProHomeIPC App from the App Store or
Google Play Store.
2. Enable the ProHomeIPC App access to the camera of
your smartphone or tablet PC and mobile internet. This
simplifies connecting the camera and ProHomeIPC
App and also enables remote access to the camera via
the smartphone or tablet PC.
You require access to the camera on your smart
phone or tablet PC when you want to scan the QR
code as described in Section Connecting the
Smartphone/Tablet PC to the Camera.
Access to the camera and mobile internet can also
be enabled or refused later in the setting options pro
vided by your smartphone or tablet PC. More de
tailed information is provided in the operating manual
supplied with your smartphone or tablet PC.

Connecting the Smartphone/Tablet PC to the Camera
Installing the ProHomeIPC App
G18
Connecting the Smartphone/Tablet PC
to the Camera
The following conditions must be fulfilled in order that you
can use the camera:
You have downloaded and installed the ProHomeIPC
App as described in Section Installing the
ProHomeIPC App.
You have set-up and connected the camera as
described in Section Connecting the Camera.
You smartphone or tablet PC is in the same network as
the camera.
1. Start the ProHomeIPC App.
2. Touch Add Device or Click here to add camera.
3. Touch QRCode or Scan.
4. Scan the QR code on the rear of the camera using the
smartphone or tablet PC.

Connecting the Smartphone/Tablet PC to the Camera
Installing the ProHomeIPC App
19G
The ProHomeIPC App automatically searches for all
the cameras available in the network. If your smart
phone or tablet PC is connected in the same network
as the camera, the camera is displayed (together
with the user identifier and IP address). Alternatively,
touch the camera displayed.
5. Enter the camera's password (security code).
When the default settings are set, the password is
admin.
6. Save the settings by touching Save or OK.
Your camera is now listed in the overview of cameras
available.
The first time you attempt to select your camera, you
will be requested to change the camera's password
(security code) for reasons of security. We urgently
recommend that you change the camera's password
in order to prevent unauthorised access to your cam
era, and thus your privacy, by third parties.

Using the ProHomeIPC App
Installing the ProHomeIPC App
G20
Using the ProHomeIPC App
Familiarise yourself with how to use the
ProHomeIPC App.
1. Swipe your finger in any direction over the display of
your smartphones or tablet PC to move the screen sec
tion displayed.
Alternatively, touch the green direction arrows to
move the screen section displayed.
2. Tap your finger on the display of your smartphone or
tablet PC to open the submenus and activate functions.
