●Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and a longer service life. Keep this manual in a
safe place for future reference.
●The application software and instruction manual PDF file are stored on
the internal memory of the camera.
●We recommend that you take test shots to get accustomed to your
camera before taking important photographs.
●In the interest of continually improving products, Olympus reserves the
right to update or modify information contained in this manual.
SP-600UZ
Instruction Manual
DIGITAL CAMERA

2 EN
Contents
Contents
Step 5
Printing
“Direct printing (PictBridge)” (p. 46)
“Print Reservations (DPOF)” (p. 49)
Step 4
How to Use the Camera
“Camera Settings” (p. 3)
Step 3
Shooting and Playing Back Images
“Shooting, Playback, and Erasing” (p. 14)
Step 2
Preparing the Camera
“Preparing the Camera” (p. 10)
Names of Parts .............................. 6
Preparing the Camera ................. 10
Shooting, Playback, and
Erasing ......................................... 14
Using Shooting Modes................ 20
Using Shooting Functions.......... 25
Menus for Shooting Functions... 29
¾
¾
¾
¾
¾
¾
Menus for Playback, Editing, and
Printing Functions....................... 33
Menus for Other Camera
Settings ........................................ 39
Printing ......................................... 46
Usage Tips ................................... 51
Appendix ...................................... 56
¾
¾
¾
¾
¾
Step 1
Checking the contents of the box
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.
Digital camera
USB cable
AV cable
Lens cap and lens cap strap
Four AA batteriesCamera strap

3 EN
Camera Settings
Using the Direct Buttons
Using the Direct Buttons
Frequently used functions can be accessed using the direct buttons.
Zoom lever (p. 15, 18)
Shutter button (p. 14, 51)
Movie record button (p. 15)
qbutton (switching
between shooting and
playback) (p. 15, 16, 40)
mbutton (p. 4)
Ebutton (menu guide/
camera guide) (p. 19)
Operation guide
The symbols FGHI displayed for image selections
and settings indicate that the wheel controller is to
be used by pressing, not turning, the wheel controller
sections shown below.
N
ORM
OK
SINGLE PRINT
PRINT
4/304/30
MORE
’10/02/26 12:30’10/02/26 12:30
N
ORM
12M
FILE
100 0004100 0004
02 26 12 30:..2010
MENU OK
SETCANCEL
X
YMDTIME
Y/M/DY/M/D
Wheel controller
H(left)
G(down) /
Dbutton (erase) (p. 17)
F(up) /
INFO button (changing
information display) (p. 16, 18)
I(right)
Abutton
Operation guides displayed at the bottom of the screen
indicate that the mbutton, Abutton, or zoom lever
be used.
MENU OK
SEL. IMAGE
ERASE/CANCEL
Operation guide
OK
SET
SHADOW ADJUST AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION NORMAL
MENU OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE 12M12M

4 EN
Using the Menu
Using the Menu
Use the menu to change camera settings such as the shooting mode.
Press the mbutton to display the function menu. The function menu can be used to set frequently
used shooting and playback functions such as shooting mode.
Use FG to select a menu and press
the Abutton.
12 M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
PHOTO SURFING
EVENT
BEAUTY FIX
EDIT
ERASE
SETUP
SLIDESHOWSLIDESHOW
Shooting Playback
Selected option
To select the shooting mode
Use HI to select the shooting mode and
press the Abutton.
To select the function menu
Use FG to select a menu and use HI to
select a menu option. Press the Abutton to
set the function menu.
o[SETUP]
menu
Function
menu
Shooting
mode
In the [SETUP] menu, various camera functions can be set,
including shooting and playback functions not displayed in the
function menu, and other settings such as date, time and screen
display.
1Select [SETUP] and then press the A
button.
The [SETUP] menu is displayed.
SHADOW ADJUST AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION NORMAL
MENU OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE 12M12M
2Press Hto select the page tabs. Use FG
to select the desired page tab and press I.
x
--.--.-- --:--X
MENU OK
SETEXIT
WORLD TIME
TV OUT
OFFPOWER SAVE
ONREC VIEW
ONPIC ORIENTATION
1
2
3
1
2
Page tab
MENU OK
SETEXIT
TV OUT
1
2
3
1
2
OFFPOWER SAVE
ONREC VIEW
ONPIC ORIENTATION
x
--.--.-- --:----.--.-- --:--XX--.--.-- --:----.--.-- --:--XX
WORLD TIME
Submenu 1
3Use FG to select the desired submenu 1
and then press the Abutton.
MENU OK
SETEXIT
1
2
3
1
2
--.--.-- --:--X
WORLD TIME
TV OUT
x
OFFPOWER SAVEPOWER SAVE OFF
REC VIEWREC VIEW ON
PIC ORIENTATIONPIC ORIENTATION ON
MENU OK
SETEXIT
1
2
3
1
2
HOME
--.--.-- --:--X
WORLD TIME
VIDEO OUTTV OUT
OFFPOWER SAVEPOWER SAVE
REC VIEW
REC VIEW
PIC ORIENTATION
PIC ORIENTATION
OFF
POWER SAVE
ON
OFFOFF
Submenu 2
●
4Use FG to select the desired submenu 2
and then press the Abutton.
Once a setting is selected, the display returns
to the previous screen.
There may be additional operations.
“Menu Settings” (p. 29 to 45)
MENU OK
SETEXIT
1
2
3
1
2
--.--.-- --:--X
WORLD TIME
TV OUT
x
ON
ONPOWER SAVEPOWER SAVE
ONREC VIEWREC VIEW
ONPIC ORIENTATIONPIC ORIENTATION
5Press the mbutton to complete the
setting.
Some functions cannot be used in some
shooting modes. In such cases, the
following message is displayed after
setting.
SHADOW ADJUST AUTO
AF MODE iESP
ESP/*1 ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION NORMAL
MENU OK
SETEXIT
1
2
3
1
2
CONFLICTING SETTINGS
IMAGE SIZEIMAGE SIZE 12M12M
●

5 EN
Menu Index
Menus for Shooting Functions
1Shooting mode
P(PROGRAM AUTO)....... p. 14
M(iAUTO).................... p. 20
s(SCENE MODE) ...... p. 20
P(MAGIC FILTER) ..... p. 21
A(PANORAMA) ............... p. 22
Q(BEAUTY) ................ p. 24
2Flash.................................. p. 25
3Macro ................................ p. 25
4Self-timer ........................... p. 26
5Exposure compensation.... p. 26
6White balance.................... p. 27
7ISO .................................... p. 27
8Drive .................................. p. 28
9o(SETUP)
IMAGE SIZE
(Still images)...................... p. 29
IMAGE SIZE (Movies) .......p. 29
COMPRESSION
(Still images)...................... p. 29
IMAGE QUALITY
(Movies)............................. p. 29
SHADOW ADJUST ........... p. 30
AF MODE .......................... p. 30
1SLIDESHOW..................... p. 33
2PHOTO SURFING............. p. 33
3EVENT q........................ p. 34
4COLLECTION q............. p. 34
5BEAUTY FIX...................... p. 35
Menus for Playback, Editing, and Printing Functions
6EDIT .................................. p. 36
7ERASE .............................. p. 37
8o(SETUP)
PRINT ORDER ..................p. 38
0(Protect) ..................... p. 38
12 M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
PHOTO SURFING
EVENT
COLLECTION
BEAUTY FIX
EDIT
ERASE
SETUP
SLIDESHOWSLIDESHOW
6
7
3
2
1
5
4
1r(Settings 1)
INTERNAL/SD................... p. 39
MEMORY FORMAT/
FORMAT............................ p. 39
DATA REPAIR ................... p. 39
uCOPY..................... p. 39
D(Language) ................ p. 39
RESET...............................p. 40
USB CONNECTION.......... p. 40
2s(Settings 2)
qPOWER ON ................ p. 40
SAVE SETTINGS .............. p. 40
Menus for Other Camera Settings
PW ON SETUP .................p. 40
SOUND SETTINGS .......... p. 41
FILE NAME ....................... p. 41
PIXEL MAPPING ...............p. 42
s(Monitor) ..................... p. 42
3t(Settings 3)
X(Date/time).................. p. 42
WORLD TIME.................... p. 43
TV OUT ............................. p. 43
POWER SAVE................... p. 45
REC VIEW......................... p. 45
PIC ORIENTATION ........... p. 45
ESP/n............................ p. 30
FINE ZOOM ...................... p. 31
DIGITAL ZOOM ................. p. 31
R(Still images).................. p. 31
R(Movies)......................... p. 31
IMAGE STABILIZER
(Still images)/
IS MOVIE MODE
(Movies)............................. p. 32
FULLTIME AF .................... p. 32
AF ILLUMINAT. ................. p. 32
ICON GUIDE ..................... p. 32
8
9
8
COPY
ENGLISH
RESET
USB CONNECTION PC
MENU
OK
MEMORY FORMAT
SETEXIT
INTERNAL/SD
DATA REPAIR
AUTO
1
2
1
2
3
3
2
1
3
2
1
4
MENU OK
SETEXIT
PRINT ORDER
y
0
R
1
2
3
1
2
SHADOW ADJUST AUTO
AF MODE FACE/iESP
ESP/ ESP
FINE ZOOM OFF
DIGITAL ZOOM OFF
COMPRESSION NORMAL
MENU OK
SETEXIT
1
2
3
1
2
IMAGE SIZEIMAGE SIZE 12M12M
AF ILLUMINAT. ON
ICON GUIDE ON
IMAGE STABILIZER ON
ROFF
MENU OK
SETEXIT
1
2
3
1
2
IMAGE SIZE VGA
IS MOVIE MODE
OFF
FULLTIME AF OFF
ON
IMAGE QUALITY
NORMAL
MENU OK
SETEXIT
R
1
2
3
1
2
6
5
7
y(Rotate).........................p. 38
R(Add sound to still images)
....................................... p. 38

6 EN

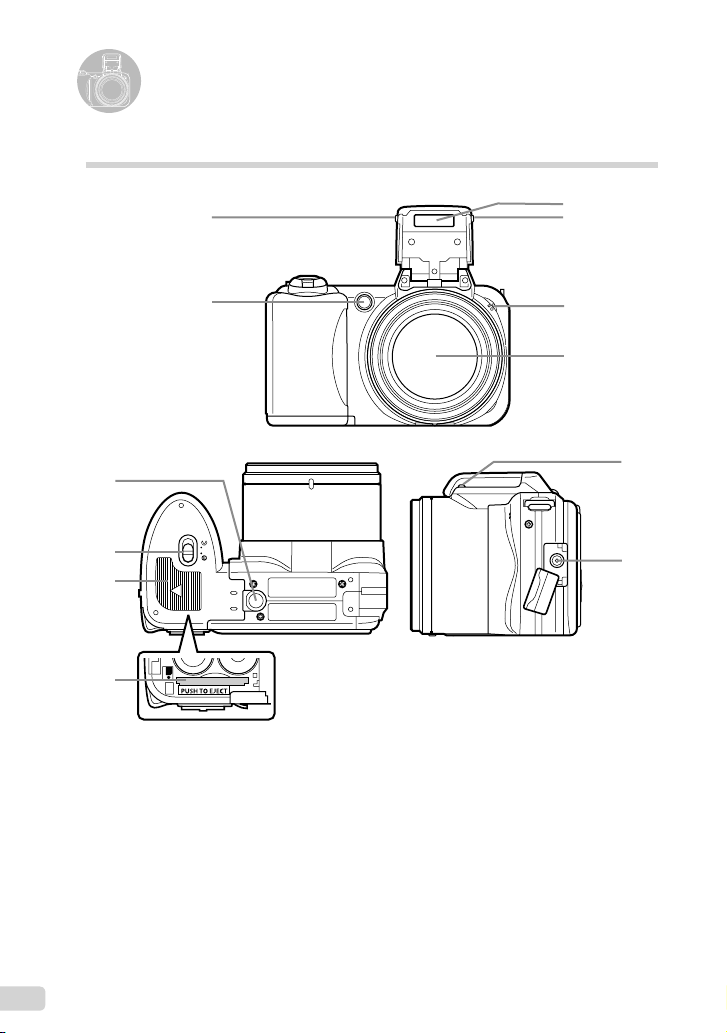

Names of Parts
1Self-timer lamp/
AF illuminator ......................... p. 26, 32
2Flash ............................................p. 25
3Microphone ............................p. 31, 38
4Lens .............................................p. 56
5Tripod socket
Camera unit
1
2
6
7
8
5
3
4
9
1
0
9
9
6Battery/card compartment lock ....p. 10
7 Battery/card compartment cover ... p. 10
8Card slot.......................................p. 13
9Flash knob (Flash flip-up)............. p. 25
10 DC-IN jack

7 EN
2
1
4
3
13
1
4
5
6
7
8
9
15
16
10
11
12
1
1Strap eyelet ..................................p. 10
2Monitor ......................... p. 8, 14, 42, 51
3Indicator lamp
4 Movie record button .....................p. 15
5 qbutton (switching between
shooting and playback) ....p. 15, 16, 40
6 Abutton (OK) ............................... p. 3
7 Wheel controller ............................. p. 3
INFO button (changing
information display) ............. p. 16, 18
Dbutton (erase) ....................... p. 17
8 Ebutton
(camera guide/menu guide) ......... p. 19
9 mbutton .............................. p. 3, 4
10 Connector cover............... p. 11, 44, 46
11 HDMI micro connector .................p. 44
12 Multi-connector................. p. 11, 44, 46
13 Speaker
14 Zoom lever ............................. p. 15, 18
15 Shutter button......................... p. 14, 51
16 nbutton........................ p. 12, 14

8 EN
Monitor
Shooting mode display
1/100 F3.51/100 F3.5
PP
12 M
44
N
ORM
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:34
1 2
3
4
5
6
7
8
9
10
14151617 13 12 11
18
2526
19
22
20
21
23
24
1 Battery check .........................p. 10, 52
2 Shooting mode .......................p. 14, 20
3 Flash ............................................p. 25
Flash standby/flash charge ..........p. 51
4Macro/super macro ...................... p. 25
5 Self-timer...................................... p. 26
6 Exposure compensation............... p. 26
7 White balance ..............................p. 27
8 ISO ............................................... p. 27
9 Drive............................................. p. 28
10 [SETUP] menu ........................... p. 4, 5
11 World time ....................................p. 43
12 Image stabilization (still images)/
Digital image stabilization (movies)
.................................................... p. 32
13 Metering .......................................p. 30
14 Shadow Adjustment Technology
.................................................... p. 30
15 Compression (still images).....p. 29, 58
16 Image size (still images)......... p. 29, 58
17 Number of storable still pictures
(still images) .................................p. 14
18 Current memory ........................... p. 57
19 Movie recording icon ....................p. 15
20 Remaining recording time
(movies) .......................................p. 15
21 Image size (movies) .....................p. 29
22 Histogram..................................... p. 16
23 AF target mark .............................p. 14
24 Camera shake warning
25 Aperture value..............................p. 14
26 Shutter speed...............................p. 14
Still image

9 EN
Playback mode display
Standard display
1010
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
00:12/00:3400:12/00:34
1 65432 1
17
6
Still image Movie
Advanced display
1010
4/304/30
1/1000 F3.5 2.0
AUTO
WB
AUTO
ISO
P
N
ORM
12 M
FILE
100 0004
’10/02/26 12:30
1/1000 F3.5 2.0
AUTO
WB
AUTO
ISO
P
FILE
100 0004
’10/02/26 12:30
N
ORM
12 M
1 6 8 9 11105432
7
12
14
16
17
18
19
20 13
15
22
21
●
●
1 Battery check .........................p. 10, 52
2 Print reservation/
number of prints ..................... p. 49, 48
3 Protect..........................................p. 38
4 Adding sound ......................... p. 31, 38
5 Current memory ........................... p. 57
6 Number of frame/total number of
images (still images) ....................p. 16
Elapsed time/total recording time
(movies) .......................................p. 17
7 Histogram..................................... p. 16
8 Shutter speed...............................p. 14
9 Aperture value..............................p. 14
10 ISO ............................................... p. 27
11 Exposure compensation............... p. 26
12 White balance ..............................p. 27
13 Compression (still images).....p. 29, 58
Image quality (movies) ...........p. 29, 58
14 Image size..............................p. 29, 58
15 Drive............................................. p. 28
16 File number
17 Date and time...............................p. 12
18 Metering .......................................p. 30
19 Shadow Adjustment Technology
...................................................p. 30
20 Flash ............................................p. 25
21 Shooting mode .......................p. 14, 20
22 Macro ...........................................p. 25

10 EN
Preparing the Camera
Inserting the battery
1
3
2
Battery/card
compartment lock
Slide the battery/card compartment lock from )to
=and ensure that the battery/card compartment
cover is securely locked (7). Failure to do so may
cause the battery/card compartment cover to open
during shooting and the batteries to fall out, resulting
in loss of image data.
For the types of batteries that can be used,
see “Battery” (p. 56). If using rechargeable
batteries, charge the batteries.
Turn off the camera before opening the
battery/card compartment cover.
When using the camera, be sure to close
the battery/card compartment cover.
When to replace the batteries
Replace the batteries when the error
message shown below appears.
Monitor top left Error message
Flashes in red
44
BATTERY EMPTY
12 M
●
Attaching the camera strap
and lens cap
4
3
5
1
2
Pull the strap tight so that it does not come
loose.
Attach the strap to the other eyelet in the same manner.●

11 EN
2Select and execute “OLYMPUS
Camera Initialization”, which is
displayed on the computer screen
when the camera is recognized by
the computer.
If nothing is displayed on the camera screen
even after connecting the camera to the
computer, the battery may be exhausted.
In this case, disconnect the camera, and
reconnect after replacing the battery with a
new one.
Even if a computer has USB ports, proper
operation is not guaranteed in the following
cases.
Computers with USB ports installed using an
expansion card, etc.
Computers without a factory-installed OS and
home-built computers
Double-click the icon for the camera drive
(Removable Disk), and then execute
CameraInitialSetup.exe to start the camera
setup.
3Follow the instructions on the
computer screen and setup the
camera.
When using a computer with system
other than Windows XP (SP2 or later)/
Windows Vista / Windows 7
The Instruction Manual PDF file can be
saved on a computer with the following
procedure.
Connect the camera to the computer and copy
the instruction manual PDF file for your language
in the “Manual” folder in the internal memory of
the camera.
●
●
●
Camera setup
Connect the camera to the computer and setup
the camera.
System requirements
Windows XP (SP2 or later) /
Windows Vista / Windows 7
When using another system other
than the above or no computer, see
“Setting the date, time and time zone”
(p. 12)
1Connect the camera to the
computer.
Camera setup
Set the camera date and time, time zone and
display language automatically; install the
camera instruction manual and PC software
(ib); then perform user registration.
Do not insert SD/SDHC memory cards
before the camera setup.
Do not format the internal memory until the
camera setup is complete. Doing so will
erase the camera instruction manual and
the PC software (ib) data that are stored on
the internal memory.
Check that your computer meets the
following system requirements:
Windows XP (SP2 or later) /
Windows Vista / Windows 7
Refer to the PC software (ib) help guide for
details on how to use the PC software (ib).
Multi-connector
Open the connector cover
in the direction of the arrow.
USB cable (supplied)

12 EN
Setting the date, time and
time zone
The date and time set here are saved to image
file names, date prints, and other data.
1Press the nbutton to turn on
the camera.
The date and time setting screen is displayed
when the date and time are not set.
Date and time setting screen
X
Y/M/D
MENU
YMDTIME
CANCEL
-- -- -- --:..--------
2Use FG to select the year for [Y].
-- -- -- --:.
X
.
Y/M/D
MENU
YMDTIME
CANCEL
20102010
3Press Ito save the setting for [Y].
-- -- --:..2010
X
Y/M/D
MENU
YMDTIME
CANCEL
0000
●
4As in Steps 2 and 3, use FGHI
and the Abutton to set [M]
(month), [D] (day), [TIME] (hours
and minutes), and [Y/M/D] (date
order).
For a more accurate setting, press the
Abutton when the time signal hits
00 seconds.
To change the date and time, adjust the
setting from the menu. [X] (Date/time)
(p. 42)
5Use HI to select the [x] time
zone and then press the Abutton.
Use FG to turn daylight saving time ([SUMMER])
on or off.
’10.02.26.12:30
SUMMER
OK
SET
Seoul
Tokyo
Seoul
Tokyo
The menus can be used to change the
selected time zone. [WORLD TIME] (p. 43)
●

13 EN
Changing the display language
The language for the menu and error messages
displayed on the monitor is adjustable.
1Display the [SETUP] menu.
“Using the Menu” (p. 4)
2Use FG to select the r(Settings
1) tab and then press I.
COPY
ENGLISH
RESET
USB CONNECTION PC
MENU
OK
MEMORY FORMAT
DATA REPAIR
SETEXIT
1
2
3
1
2
INTERNAL/SDINTERNAL/SD AUTOAUTO
3Use FG to select [D] and press
the Abutton.
4Use FGHI to select your
language and press the Abutton.
5Press the mbutton.
Inserting the SD/SDHC
memory card (sold separately)
Always use SD/SDHC memory cards with
this camera. Do not insert other types of
memory card. “Using an SD/SDHC memory
card” (p. 57)
Although the camera can store images in
internal memory, SD/SDHC memory cards
(sold separately) can be also used to store
pictures.
1
Write-protect
switch
Insert the card straight until it clicks into
place.
Do not touch the contact area directly.
2
“Number of storable pictures (still images)/
Remaining recording time (movies) in the
internal memory and SD/SDHC memory
cards” (p. 58)
To remove the SD/SDHC memory card
12
Press the card in until it clicks and comes
out slightly, then remove the card.

14 EN
Shooting, Playback, and Erasing
3Hold the camera and compose the
shot.
Horizontal grip
Vertical grip
Monitor
When holding the camera, take care not to
cover the flash with your fingers, etc.
4Press the shutter button halfway
down to focus on the subject.
When the camera focuses on the subject, the
exposure is locked (shutter speed and aperture
value are displayed), and the AF target mark
changes to green.
The camera was unable to focus if the AF target
mark flashes red. Try focusing again.
PP
1/400 F3.51/400 F3.5
AF target mark
Press halfway
Shutter speed Aperture value
“Focusing” (p. 53)
●
●
Shooting with the optimum
aperture value and shutter
speed (Pmode)
In this mode, automatic shooting settings are
activated while also allowing changes to a wide
range of other shooting menu functions, such
as exposure compensation, white balance, etc.
as needed.
1Remove the lens cap.
2Press the nbutton to turn on
the camera.
Pmode indicator
12 M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:34
Number of storable still pictures (p. 58)
Monitor
(standby mode screen)
If Pmode is not displayed, press the m
button to display the function menu screen
and then set the shooting mode to P. “Using
the Menu” (p. 4)
Current shooting mode display
44
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
PROGRAM AUTOPROGRAM AUTO
12 M
PP
Press the nbutton again to turn off
the camera.

15 EN
5To take the picture, gently press
the shutter button all the way down
while being careful not to shake the
camera.
PP
1/400 F3.51/400 F3.5
Image review screen
Press fully
To view images during shooting
Pressing the qbutton enables playback of
images. To return to shooting, either press
the qbutton or press the shutter button
halfway down.
Shooting movies
1Press the movie record button to
start recording.
00:12
00:34
00:1200:12
RECREC
00:3400:34
Lights up red when recording
Recording time
Remaining recording time (p. 58)
The effects of the set shooting mode can
be used when shooting movies (when
Pmode, Amode or Qmode is
set, shooting is performed with the Pmode
setting).
Sound will also be recorded.
During sound recording, only the digital
zoom can be used. To record a movie with
optical zoom, set [R] (movies) (p. 31) to
[OFF].
2Press the movie record button
again to stop recording.
Using the zoom
Turning the zoom lever adjusts the shooting
range.
W side T side
00:3400:3400:34
12 M
4444
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
12 M
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:3400:34
Zoom bar
Optical zoom: 15x, Digital zoom: 5x
To take larger images without reducing
image quality
[FINE ZOOM] (p. 31)
To take larger images
[DIGITAL ZOOM] (p. 31)
The zoom bar appearance identifies the
status of the fine zoom/digital zoom.
Fine zoom
range
Digital zoom
range
When using
optical zoom
When using
fine zoom
When using
digital zoom
Optical zoom range

16 EN
Changing the shooting
information display
The display of the screen information can
be changed to best match the situation, for
example, the need for a clear view of the screen
or for making a precise composition by using the
grid display.
1Press F(INFO).
The displayed shooting information changes in
the order shown below each time the button is
pressed. “Shooting mode display” (p. 8)
12M
44
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
12M
44
N ORM
PP
0.00.0
AUTO
WB
AUTO
WB
AUTO
ISO
AUTO
ISO
00:3400:34
00:3400:34
Normal
Detailed
No information
Reading a histogram
If the peak fills too much of the frame,
the image will appear mostly white.
If the peak fills too
much of the frame,
the image will
appear mostly black.
The green section shows
luminance distribution
within the screen’s center.
●
Viewing images
1Press the q button.
Number of frames/
Total number of images
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
Playback image
2Turn the wheel controller to select
an image.
It can be performed by pressing HI.
Displays
previous
Displays
next image
Keep turning the wheel controller to fast
forward or reverse. It can be performed by
holding HI.
The display size of the images can be
changed. “Index view, close-up view, and
event index” (p. 18)
To play sound recordings
To play sound recorded with an image,
select the image and press the Abutton. A
!icon appears on images with which sound
has been recorded.
[R] (still images) (p. 31)
During audio playback
●

17 EN
Operations while playback is paused
During pause
00:14/00:3400:14/00:34
Cueing
Use Fto display the first
frame and press Gto display
the last frame.
Advancing
and rewinding
one frame at a
time*1
Turn the wheel controller to
advance or rewind by one
frame at a time. Keep turning
the wheel controller for
continuous advance or rewind.
Resuming
playback
Press the Abutton to resume
playback.
To operate with HI
*1 Press Ior Hto advance or rewind one frame
at a time. Hold Ior Hpressed for continuous
advance or rewind.
To stop movie playback
Press the mbutton.
Erasing images during
playback (Single image erase)
1Display the image you want to erase
and press G(D).
MENU OK
ERASE
SEL. IMAGE
ALL ERASE
CANCEL
CANCEL
ERASE
SETBACK
2Press FG to select [ERASE], and
press the Abutton.
[ALL ERASE] (p. 37) and [SEL. IMAGE]
(p. 37) can be used to erase multiple images
at the same time.
To play back movies
Select a movie, and press the Abutton.
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
OK
MOVIE PLAYMOVIE PLAY
Movie
Operations during movie playback
00:12/00:3400:12/00:34
During playback
Elapsed time/
Total recording
time
Pausing and
restarting
playback
Press the Abutton to pause
playback. During pause, fast
forward or reverse, press the
Abutton to restart playback.
Fast forward
Press Ito fast forward. Press
Iagain to increase the fast
forward speed.
Rewind
Press Hto rewind. The speed
at which the recording rewinds
increases each time His
pressed.
Adjusting the
volume
Turn the wheel controller
or use FG to adjust the
volume.

18 EN
Index view, close-up view, and
event index
Index view enables quick selection of a desired
image. Close-up view (up to 10x magnification)
allows checking of image details. In event
index*1, images are grouped by the shooting
dates and representative images for an event
can be displayed.
*1 Pictures with different dates can be grouped into the
same event using the PC software (ib).
1Turn the zoom lever.
W side T side
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
’10/02/26
’10/02/26 12:30’10/02/26 12:30
2
44
’10/02/26
42
WT
WT
W
T
2
24
WT
4/304/30
’10/02/26
Index view
Single-image view Close-up view
Event index
To select an image in index view
Use FGHI to select an image, and press
the Abutton to display the selected image
in single-image view.
To scroll an image in close-up view
Use FGHI to move the viewing area.
To select an image in event index
Use HI to select the representative image
and press the Abutton. The images in the
selected event are played back.
Changing the image
information display
Shooting information settings displayed on the
screen can be changed.
1Press F(INFO).
The displayed image information changes in
the order shown below each time the button is
pressed.
1010
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
1010
4/304/30
1/1000 F3.5 2.0
AUTO
WB
AUTO
ISO
P
FILE
100 0004
’10/02/26 12:30
N
ORM
12 M
Normal
Detailed
No information
“Reading a histogram” (p. 16)
●

19 EN
Playing back panorama
images
Panorama images that were combined together
using [AUTO] or [MANUAL] can be scrolled for
viewing.
“Creating panoramic images (Amode)”
(p. 22)
1Select a panorama image during
playback.
“Viewing images” (p. 16)
’10/02/26 12:30’10/02/26 12:30
4/30
4/30
OK
REPLAY
2Press the Abutton.
Current viewing area
To control panorama image playback
Zoom in/Zoom out: Press the Abutton to
pause playback. Then turn the zoom lever to
enlarge/shrink the image.
Playback direction: Press the Abutton
to pause playback. Then press FGHI
to scroll the image in the direction of the
pressed button.
Pause: Press the Abutton.
Restart scrolling: Press the Abutton.
Stop playback: Press the mbutton.
Using the menu guide
If the Ebutton is pressed while settings are
being adjusted in the playback function or
[SETUP] menus, a description of the selected
option is displayed.
“Using the Menu” (p. 4)
Using the camera guide
Use the camera guide to look up camera
operations.
1Press the Ebutton in the standby
mode screen or the playback
screen.
IN-CAMERA MANUAL
Learn about the camera
OK
History
Message
SET
EXIT
SearchSearch
Submenu 2 Application
Search
Functions or operating methods
can be searched from a term or
shooting objective.
Learn about the
camera
Information is shown about
recommended functions and basic
operating methods for the camera.
History Searches can be performed from
the search history.
Message Messages from the camera can
be viewed.
2Use FG to select the desired item
and press the Abutton to set.
OK
Search
IN-CAMERA MANUAL
History
Message
SET
EXIT
Learn about the cameraLearn about the camera
Follow the on-screen instructions to search the
desired contents.
●

20 EN
Using Shooting Modes
Using the best mode for the
shooting scene (smode)
1Set the shooting mode to s.
12 M
44
SCENE MODESCENE MODE
0.00.0
AUTO
WB
AUTO
WB
2Press Gto go to the submenu.
12 M
44
0.00.0
AUTO
WB
AUTO
WB
PORTRAITPORTRAIT
3Use HI to select the mode and
then press the Abutton to set.
12 M
44
0.00.0
AUTO
WB
AUTO
WB
00:3400:34
Icon indicating the scene mode
that is set
To change the shooting mode
The shooting mode (P, M, s, P,
A, Q) can be changed with using the
function menu.
“Using the Menu” (p. 4)
Shooting with automatic
settings (Mmode)
The camera will automatically select the optimal
shooting mode for the scene. This is a fully
automatic mode that allows you to take a picture
suited to the scene by simply pressing the
shutter button. In Mmode, settings in the
shooting menu can be selected, but the changed
setting is not reflected in the actual shot.
1Set the shooting mode to M.
44
12 M
N
ORM
00:3400:34
The icon changes depending on the scene
that the camera automatically selects.
In some cases, the camera may not select
the desired shooting mode.
When the camera cannot identify the
optimal mode, Pmode will be selected.
