Olympus Camedia D-380 User manual

We’ve included this convenient Quick start guide to show you basic functions and
techniques that will help you quickly master your new camera. For more detailed
descriptions of procedures, as well as for additional information on more sophisticated
features not covered here, please refer to the printed “Basic Manual”, or the primary
“Reference Manual” on the CD-ROM.
Package contents
1 Getting started
Attaching the strap
1
11
1
Thread the short end of the strap through
the strap eyelet.
2
22
2
Thread the long end of the strap through the
loop that has already gone through the
eyelet.
3
33
3
Pull the strap tight, making sure that it is
securely fastened and will not come loose.
Loading the batteries
1
11
1
Make sure that:
2
22
2
Slide the battery compartment cover
in the direction of (the direction
indicated by the mark on the
cover), and lift it up in the direction
of .
3
33
3
Insert the batteries, making sure
that they are correctly oriented as shown in the illustration.
4
44
4
Close the battery compartment cover in
the direction of . While pressing the
mark, slide the cover in the
direction of .
If the battery compartment cover will not close
easily, do not force it. Try pressing [OPEN] and
the mark with both hands.
Inserting the card (SmartMedia)
1
11
1
Make sure that:
2
22
2
Open the card cover.
3
33
3
Insert the card as far as it will go in the
direction shown in the illustration.
There is an arrow inside the card cover,
indicating the direction in which the card
should be inserted.
4
44
4
Close the card cover securely until it
clicks.
z
zz
zRemoving the card
Hold the card with your fingertips and pull it out in
the direction of the arrow.
2 Turning the power on/off
When shooting pictures
When playing back pictures on the camera
C-120/D-380
C-120/D-380C-120/D-380
C-120/D-380

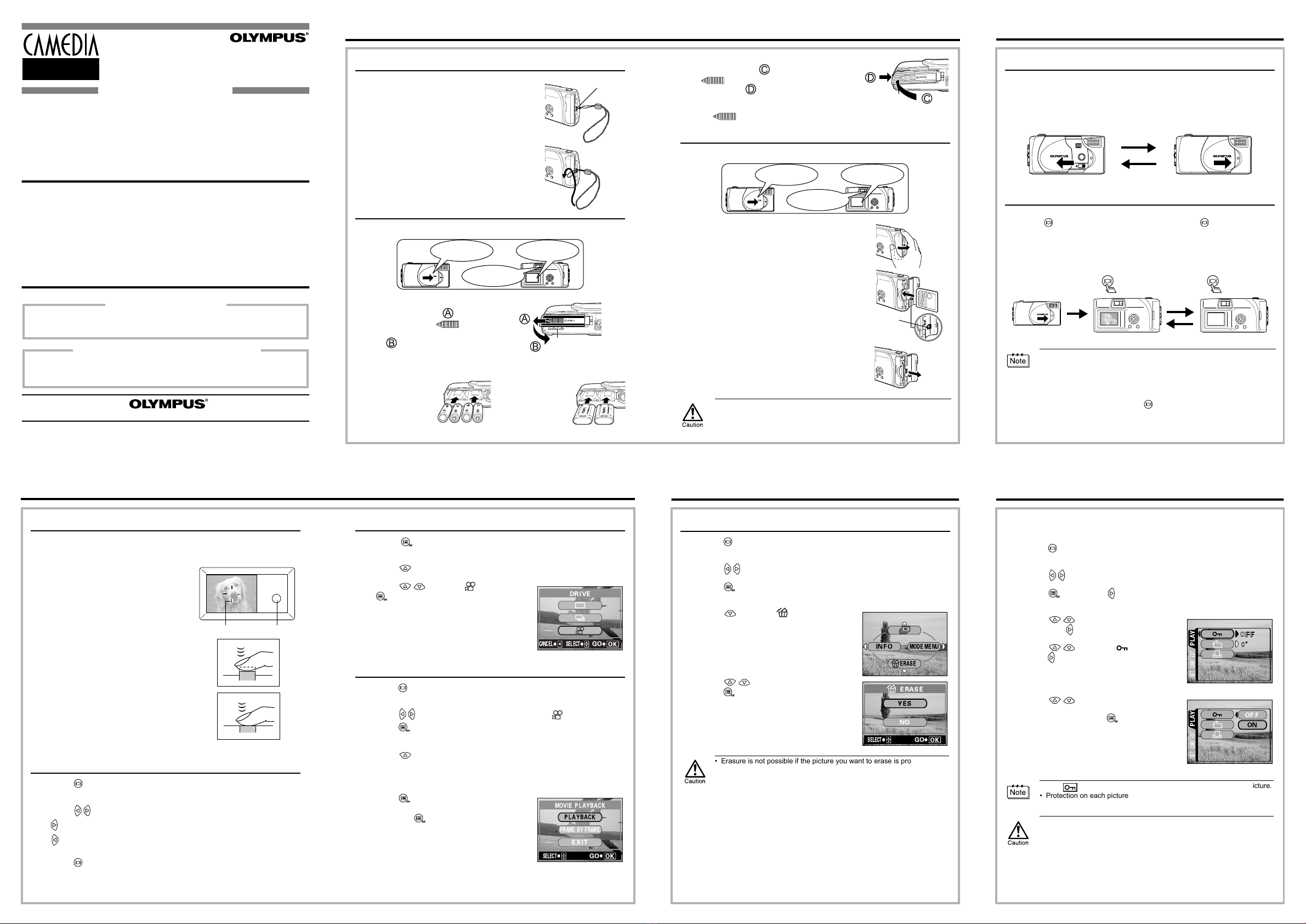

Quick start guide
DIGITAL CAMERA
 Camera
 Strap
 AA (R6) alkaline batteries (4 pieces)
 USB cable
 Basic manual
;Quick start guide
 Software installation guide (included in
the CD-ROM package)
 CD-ROM with Windows 98 USB driver
software, Reference manual, and more.
 Warranty card/Registration card (not
provided in some areas)
 Safety Precautions (booklet)
 SmartMedia
 Static-free case
 Index labels (2 pieces)
 Write-protect adhesive seals (4 pieces)
 SmartMedia instructions
OLYMPUS AMERICA INC.
Two Corporate Center Drive, Melville, NY 11747-3157, U.S.A. Tel. [phone]
24/7 online automated help: http://support.olympusamerica.com/
Phone customer support: Tel. [phone] (Toll-free)
OLYMPUS OPTICAL CO. (EUROPA) GMBH.
Premises/Goods delivery: Wendenstraβe 14-18, 20097 Hamburg, Germany
Tel. [phone]
Letters: Postfach 10 49 08, 20034 Hamburg, Germany
http://www.olympus.com/
Printed in Japan
1AG6P1P1295-- VT348201
Strap eyelet
The lens barrier
is closed.
The green
lamp is off.
The monitor
is off.
Battery insertion
direction mark
When using AA
(R6) batteries
When using
lithium battery
packs
Never open the card cover, or remove the card or the batteries while the
camera is turned on. Doing so could destroy all data on the card. Destroyed
data cannot be restored.
The lens barrier
is closed.
The green
lamp is off.
The monitor
is off.
Card insertion
direction mark
• If you open the lens barrier without the card inside the camera, the NO
CARD appears on the monitor. In this case, you can record pictures in the
camera’s internal memory.
• To save battery power, the camera automatically enters the sleep mode
after about 3 minutes of non-operation. If the monitor is on, it will
automatically turn off. The camera activates again as soon as you lightly
press the shutter button or the button. Whenever possible, turn the
camera off when you do not intend to take any pictures for a while.
Power on Power off
Power on:
Open the lens barrier.
The camera turns on in the
shooting mode.
Power off:
Close the lens barrier.
The camera turns off.
Power ON Power OFF
Power on:
Press the (monitor) button
with the lens barrier closed.
The camera turns on in the
playback mode (the monitor
turns on).
Power off:
Press the (monitor) button.
The camera turns off (the
monitor turns off).
With the lens
barrier closed
3 Shooting/Playback
Taking still pictures
1
11
1
Open the lens barrier.
Slide the lens barrier open until it clicks.
2
22
2
Position the target mark over the
subject in the viewfinder.
3
33
3
Press the shutter button gently
(halfway).
The green lamp on the right of the viewfinder
lights up. The exposure is locked as long as
the shutter button is kept pressed halfway.
4
44
4
Press the shutter button all the way
(fully).
The camera takes the picture.
Playing back still pictures
1
11
1
Press with the lens barrier closed.
The monitor turns on and displays the last picture taken.
2
22
2
Press .
: Displays the previous picture.
: Displays the next picture.
3
33
3
Press to cancel playback.
The monitor and camera turn off.
Recording movies
1
11
1
Press with the lens barrier open.
The top menu in the shooting mode is displayed.
2
22
2
Press to select DRIVE.
3
33
3
Press to select , then press
.
4
44
4
Record the movie while observing your
subject on the monitor.
Press the shutter button fully to start recording.
Press the shutter button fully again to stop
recording.
Playing back movies
1
11
1
Press with the lens barrier closed.
The monitor turns on.
2
22
2
Press to display the desired picture with a indicator, then
press .
The top menu is displayed.
3
33
3
Press to select MOVIE PLAYBACK.
The movie is played back after the green lamp on the right of the viewfinder
blinks and the movie data is downloaded to the camera. When the movie
reaches the end, the display returns automatically to the beginning of the movie.
4
44
4
Press to display the MOVIE PLAYBACK
menu. Then select the desired opreation
and press .
PLAYBACK : Plays back the entire
movie again.
FRAME BY FRAME : Plays back the movie
manually one frame at a
time.
EXIT : Leaves the movie playback mode.
4 Erasing pictures
Single-frame erase
1
11
1
Press with the lens barrier closed.
The monitor turns on.
2
22
2
Press to select the picture you want to erase.
3
33
3
Press .
The top menu is displayed.
4
44
4
Press to select ERASE.
5
55
5
Press to select YES, then
press .
The picture is erased and the menu is closed.
5 Protecting pictures
You are recommended to protect important pictures to avoid accidentally erasing
them.
1
11
1
Press with the lens barrier closed.
The monitor turns on.
2
22
2
Press to select the picture you want to protect.
3
33
3
Press , then press .
The mode menu is displayed.
4
44
4
Press to select the PLAY tab,
then press .
5
55
5
Press to select , then
press .
6
66
6
Press to select ON.
The selected picture is protected.
To close the menu, press twice.
Target mark Green lamp
DRIVE
CANCEL GO
SELECt
FRAME BY FRAME
EXIt
MOVIE PLAYBACK
PLAYBACK
SELECt GO
• Erasure is not possible if the picture you want to erase is protected or a
write-protect seal is attached to the card. Before erasing, unprotect the
picture or remove the write-protect seal from the card.
• Once erased, pictures cannot be restored. Check each picture before
erasing to avoid accidentally erasing pictures you want to keep.
MODE MENU
INFO
ERASE
YES
NO
SELECt GO
ERASE
• The indicator is displayed at the top right of the protected picture.
• Protection on each picture remains even when the camera is turned off.
• Protected pictures cannot be erased by the single-frame/all-frame erase
function, but they can be all erased with the format function.
• Protection cannot be applied to pictures stored on a card with a write-
protect seal.
CARDSEt EDIt
PLAY
CARDSEt EDIt
PLAY
OFF
ON
qsge_quick.fm Page 1 Thursday, February 7, 2002 7:14 PM

How to use the menus Mode menus
Mode menu functions are categorized into 4 tabs. Use to select a tab
and display the respective functions.
Shooting mode
Playback mode
MODE MENU
DRIVE
FUNCtION
CARDSEt PIC
CAMERA
MEtERING
CARDSEt
CAM
WB
SEt
CAM
PIC
CARD
CARD SEtUP
ALL RESEt
REC VIEW
1
11
1
Press to display
the top menu, then
press .
2
22
2
Press to select
a tab, then press to
display the menu.
Top menu CAMERA tab
PICTURE tab
CARD tab
SETUP tab
CARDSEt PIC
CAMERA
MEtERING
CARDSEt PIC
CAMERA
MEtERING
CARDSEt PIC
CAMERA
MEtERING
ESP
CARDSEt PIC
CAMERA
MEtERING
ESP
3
33
3
Press to select the
desired item, then press
to display the available
setting selections.
4
44
4
Press to
select the setting.
Setting is completed
when the setting has
been changed.
The green frame moves
to the selected item.
To close the menu,
press twice.
or
To return to
select an item,
press or .
CAMERA tab
Adjusts the brightness of the image (Exposure
compensation).
METERING
Selects the area of the image that will be used to
determine exposure or image brightness from the two
available settings: ESP or (spot metering).
PICTURE tab
WB Sets the appropriate white balance according to the light
source.
CARD tab
CARD SETUP Formats a card.
SETUP tab
ALL RESET Selects whether to save the current camera settings when
you turn off the power.
Turns the beep sound (used for warnings, etc.) on and off.
REC VIEW Selects whether to display pictures on the monitor while
saving them.
Adjusts the brightness of the monitor.
Sets the date and time.
CARDSEt PIC
CAMERA
MEtERING
CAMERA tab
PICTURE tab
CARD tab
SETUP tab
PLAY tab
Protects pictures from accidental erasure.
Rotates pictures 90 degrees clockwise or counterclockwise.
Stores printing information on the card required for DPOF
printers.
EDIT tab
BLACK & WHITE Creates black and white pictures.
SEPIA Creates sepia-toned pictures.
Makes the file size smaller.
INDEX Creates an index picture of a movie in 9 frames.
CARD tab
CARD SETUP Formats a card.
Erases all image data stored on the card.
BACKUP Copies images stored in the internal memory to the card.
SETUP tab
ALL RESET Selects whether to save the current camera settings when
you turn off the power.
Turns the beep sound (used for warnings, etc.) on and off.
Selects the number of frames in the index display.
Adjusts the brightness of the monitor.
Sets the date and time.
CARDSEt EDIt
PLAY
PLAY tab
EDIT tab
CARD tab
SETUP tab
To return to select
a tab, press .
Names of parts Using the menus and tabs
When you turn on the camera and press the (OK/Menu) button, the top
menu is displayed on the monitor. The functions of this camera are set from the
menus.
Shortcut menus
Shooting mode
DRIVE
FUNCTION
Playback mode
MOVIE PLAYBACK
INFO
ERASE
Lens barrier
Turns the camera on
and off in the shooting
mode.
Shutter button Flash Lens
Self-timer lamp
Connector cover
DC-IN jack
USB
connector
Macro lever
(Monitor) button
Turns the camera on and off in the playback mode.
Card cover
Strap eyelet
Monitor
Arrow pad
Battery
compartment
cover
Tripod socket
Green lamp
Target mark
Viewfinder
(OK/Menu) button
MODE MENU
DRIVE
FUNCtION
CARDSEt PIC
CAMERA
MEtERING
Shortcut Menus
• Let you quickly access the most
frequently used menu settings.
• Display operational buttons at
the bottom of the screen, and let
you select items by pressing
.
Select each menu using
the arrow pad.
Press .
SHQ 1600*1208
HQ 1600*1200
SQ1 1024*768
SQ2 640*480
CANCEL
GO
SELECt
The top menu is displayed.
Mode Menu
• Lets you access the menu
selections to set the metering,
white balance, etc.
• Categorizes the settings into 4
tabs.
• Displays the CAMERA,
PICTURE, CARD and SETUP
tabs. Select the desired tab on
the left of the screen by pressing
.
Tabs
Lets you shoot one frame at a time (normal shooting).
Lets you shoot pictures in succession.
Lets you shoot movies.
Lets you select the resolution and the quality of the image.
Still picture :SHQ, HQ, SQ1, SQ2
Movie : HQ, SQ
2 IN 1 Lets you combine two still pictures taken in succession
into one picture.
Self-Portrait mode:
Lets you take a picture of yourself while holding the
camera.
PANORAMA Allows panorama pictures to be taken with Olympus
CAMEDIA-brand SmartMedia cards.
MODE MENU
DRIVE
FUNCtION
MODE MENU
DRIVE
When the still picture
shooting mode is selected
When the movie recording
mode is selected
Displays all recorded pictures in slide-show fashion.
Plays back a movie.
Displays all the shooting information on the monitor.
Erases a selected picture.
MODE MENU
INFO
ERASE
MODE MENU
MOVIE PLAYBACK
INFO
ERASE
When a still picture is
played back
When a movie is played
back
qsge_quick.fm Page 2 Thursday, February 7, 2002 7:14 PM
