Olympus Stylus-7000 User manual

OLYMPUS®
DIGITAL CAMERA
Stylus-70001U-7000
Instruction Manual
•Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and alonger service life. Keep this manual
in a
safe place for future reference.
•We recommend that you take test shots to get accustomed to your
camera before taking important photographs.
•
In the interest of continually improving products. Olympus reserves the
right to update or modify information contained
in this manual.
•The screen and camera illustrations shown
in this manual were produced
during the development stages and may differ from the actual product.

Step 1
L1-41 CBattery ChargerLI-42B Lithium-Ion BatteryStrap
Digital Camera
Checking the contents of the box
USB Cable AV Cable OLYMPUS Master 2
CD-ROM microSD Attachment
Other accessories not shown: Instruction Manual (this manual), warranty card
Contents may vary depending on purchase location.
Step 2
Preparing the Camera
"Preparing the Camera" (p. 10)
Step 3
Shooting and Playing Back Images
"Shooting, Playback, and Erasing" (p. 14)
Step 4
How to Use the Camera
"Three Ways to Adjust Settings" (p. 3)
Step 5
Printing
"Direct printing (PictBridge)" (p. 43)
"Print Reservations (DPOF)" (p. 46)
ClJntlJnts
);0 Names of Parts 6
);0 Preparing the Camera 10
"; Menus for Playback, Editing,
and Printing Functions 32
);0 Shooting, Playback,
and Erasing 14
"; Menus for Other Camera
Settings 37
);0 Using Shooting Modes 17
);0 Printing 43
);. Using Shooting Functions 19
"; Using OLYMPUS Master 248
);0 Using Playback Features 23
);0 Usage Tips 50
);. Menus for Shooting Functions . ... 25
);0 Appendix 55
);0 Index 68
2 EN

Please read "Menu Settings" (p. 25 to 42) while referring to this page.
Three Ways to Adjust Settings
(!) Some menus may not be selectable due to
combinations
of functions that have been set or
the selected SCN mode (p. 17).
MENU button
I MENU I
o button
lOISp./@1
Buttons In use
Arrow pad
4Use ~ ~ to select the desired
submenu
1, and press the ~ button.
1Set the mode dial to
one
of the selections.
t71 -
'-';)' The G~·:) symbol in
"Menu Settings" (p. 25 to
42) indicates available shooting modes.
2Press the MENU button.
Page tab
Submenu 2
Shooting
mode top menu
3Use '\l7~~8 to select the desired
menu, and press the
~ button.
f1\ To quickly move to the desired submenu,
.J press ~ to highlight the page tab, and then
use
<;I7 cu to move the page tab. Press 8
to return to the submenu 1.
/~~,
r.{) Some menus include submenus that
appear by pressing the
~ button.
5Use ~ ~ to select the submenu 2,
and press the ~ button.
•Once asetting is selected, the display
returns to the previous screen.
oThere may
be additional
operations. "Menu
Settings" (p. 25 to
42)
6Press the MENU button to complete
the setting.
Submenu 1
(l) ~~~~~i~~h~n~
button displays
an explanation
(menu guide)
of the selected
option.
•This example describes how to use the
menus to set the [DIGITAL ZOOM).
·j;,,",:~liIIllU··:
'. ,"/' :~ .. " "::
<:},.. ~., ~
.";,,J 6~ ":i
~~ft
EXIT.iiEii1 SET.lQKI
3 EN

~ /5 Shutter button (p. 14)
~ Zoom button (p. 19)
~
181 ~
~.
lB button (exposure compensation) (p. 20)
I
~ ~l ~ ~ button (macro) (p. 20)
_(i). ~ button (flash) (p. 19)
~ button (self-timer) (p. 21)
••••• " < •• <. > •••• > ••• ,., ••••••••••••••••••••••••• , <. < •• > ••• <> ••••• , ••
[E button (playback) (p. 32)
DISP.18 button (change information display/
menu guide/check date and time) (p. 21,
p. 3,
p. 13)
OR/lID button (panorama/Shadow Adjustment
Technology/multi window/backlight boosUerase)
(p. 22,
p. 16)
~ button (p. 3, p. 22)
4 EN
Buttons in use
Arrow pad

Menu Index
Menus for Shooting Functions
When the mode dial is set to ashooting mode position
(1fJ!lij) 0SCN BEAUTY 1i5'), settings can be adjusted. CAMERA MENU
Shooting mode top menu
CD ~> IMAGE QUALITY p.25
® - CAMERA MENU
WB.. .p.26
ISO...... .p.26
DRIVE p.26
FINE ZOOM
.. p.26
DIGITAL ZOOM p.27
ESP/0 p.27
AF MODE......
.. .. p.27
'" (Sound recording) .... p.27
IMAGE STABILIZER
(Still images)1
DIS MOVIE MODE
(Movies) p.28
SHADOW ADJ p.28
@ 1?ll SCENE MODE p.28
(4) E?;J PANORAMA p.29
® ~ RESET.. . p.31
® Slit SETUP
MEMORY FORMATI
FORMAT p.37
BACKUP p.37
• .@J (Language) p.37
PW ON SETUP p.37
MENU COLOR....
.. p.38
SOUND SETTINGS p.38
REC VIEW........... .. p.38
FILE NAME ... . .
.. p.39
PIXEL MAPPiNG p.39
~S'J (Monitor) pAD
<2) (Date/time) pAD
DUALTlME... pAD
PIC ORIENTATION pAD
VIDEO OUT pA1
HDMI...
.. pA2
POWER SAVE pA2
([) fJlJ SILENT MODE pA2
Menus for Playback, Editing, and Printing Functions
When the mode dial is set to the lEI position, settings can be
adjusted. PLAYBACK MENU
Playback mode top menu
. .. p.36
CD ~ SLiDESHOW p.32
®0PERFECT FIX p.32
@@BEAUTY FIX. .p.33
@ JI, EDIT
5iiI (Resize).. ... p.33
-P (Crop) . .. p.33
COLOR
EDIT. p.34
CALENDAR p.34
FACE FOCUS p.34
INDEX p.35
EDIT p.35
® 10 PLAYBACK MENU
o-n (Protect) p.35
EJ (Rotate) p.35
'" (Add sound to still
images).......
® l' ERASE p.36
([) lib PRINT ORDER p.36
® Slit SETUP'
·Same as "Menus for
shooting functions"
® fJlJ SILENT MODE pA2
EN 5

Names of Parts
Camera unit
1 -------"""""\
6-----..J
2
3
4
5
~
I
~@
-
~
@
r
~----10
11
o®r::;
000
o
7 -------+II--4l!\!--
~~~
1Self-timer lamp p.21
2Connector cover p.41, 43, 48
3HOMI mini connector p.41
4Multi-connector p.41, 43, 48
5Strap eyelet. p.1 0
6Flash p.19
7Battery/card compartment cover. p.11
8Lens p.55
9Microphone p.36
10 Tripod socket
11 Speaker
6 EN

\
\
0
C) ()
/ON f OFF
4
5
6
(WIITl
" _" V
GQ.,,,
~/
-0 -"':)\\\ _
o 'Ii> /'
.,.-
-
M£HulilB
./
V
~
~ OJ
D$P!QlloA"ffij
8
9
10
11
7
12
1Shutter button p.14
2 ON/OFF button p.14
3Zoom button p.19
4Monitor p.8, 40
5Card access lamp p.56
6MENU button p.3, 5
7DISP,/6 button (change information
display/menu guide/
check date and time) p.3, 13,
21
8 M~ed~I p.3
9 ~ button (playback)...........•.......... p.32
10 ~ button (OK/FUNC) p.3, 22
11 Arrow pad p.3
Ii\! button (exposure compensation)
............pW
o!o button (macro) p.20
~ button (self-timer) p.21
~ button (flash) p.19
12 ORfoD button (panorama/Shadow
Adjustment Technology/multi window/
backlight boost/erase) p.16, 22
EN 7

Monitor
Shooting mode display
123456 7
m
;:L,-I-I-I-I-I--.l
il
Lf.J l@~ftM~ ~Jr8
23 -~ ,~ 'h~IL9
221
S. \
21i~ ......
20 il@ <I}-10
19~ ,~/ ,.~~ t:)
L
11
18 ~ ~ '~j' ~ .ciib 4lJ
=-~--I-~I--'I'
17 16 15 14 13 12
Still image
1Shooting mode..... p.14, 17
2Flash mode.. .p.19
3Silent mode... .p.42
4Image stabilization(still picture)/
Digital image stabilization(movie)
.. p.28
5Macro/super macro..... p.20
6ShadowAdjustment Technology
..... p.22, 28
7Battery check..... . P 10
8Flash standby/
camera shake warning/
flash charge...... .p.19
9AF target mark .p.14
10 Recording with sound p.18, 27
8 EN
123456 7
~ ~ ~-Jm-~~ ~l
23-~ ---.....:1~9
,J _,
Movie
11 Dualtime .pAO
12 Number of storable still pictures/
remaining recording time
.... p.57
13 Current memory... .. p.57
14 Self-timer p.21
15 Aperture value p.14
16 Shutter speed p.14
17 Exposure compensation. .p.20
18 Compression/frame rate p.25
19 Image size .p.25
20 Metering .p.27
21 Drive .p.26
n ISO..............p~
23 White balance .p.26

Playback mode display
1 2 3 4 5
,...----1-1 ' 1-1-1--1
~ @l:I\Xj)rn~ I1ll
151~~
1 234
16
15
,@q-11
1
12
5
6
7
8
9
10
-",--~11
1
12
3 4 5
11
14
13
9
15
10
11
14 13 12
Still image Movie
12
1Silent mode p.42
2Print reservation/
number
of prints p.46
3Recording with sound p.18, 27, 36
4Protect p.35
5Battery check p.1 0
6Exposure compensation p.20
7Shutter speed p.14
8Aperture value p.14
9Image size p.25
10 File number p.39
11 Frame number/elapsed time/
total recording time p.15, 16
12 Current memory p.57
13 Compression/frame rate p.25
14 White balance p.26
15 Date and time p.13, 40
16 ISO p.26
EN 9

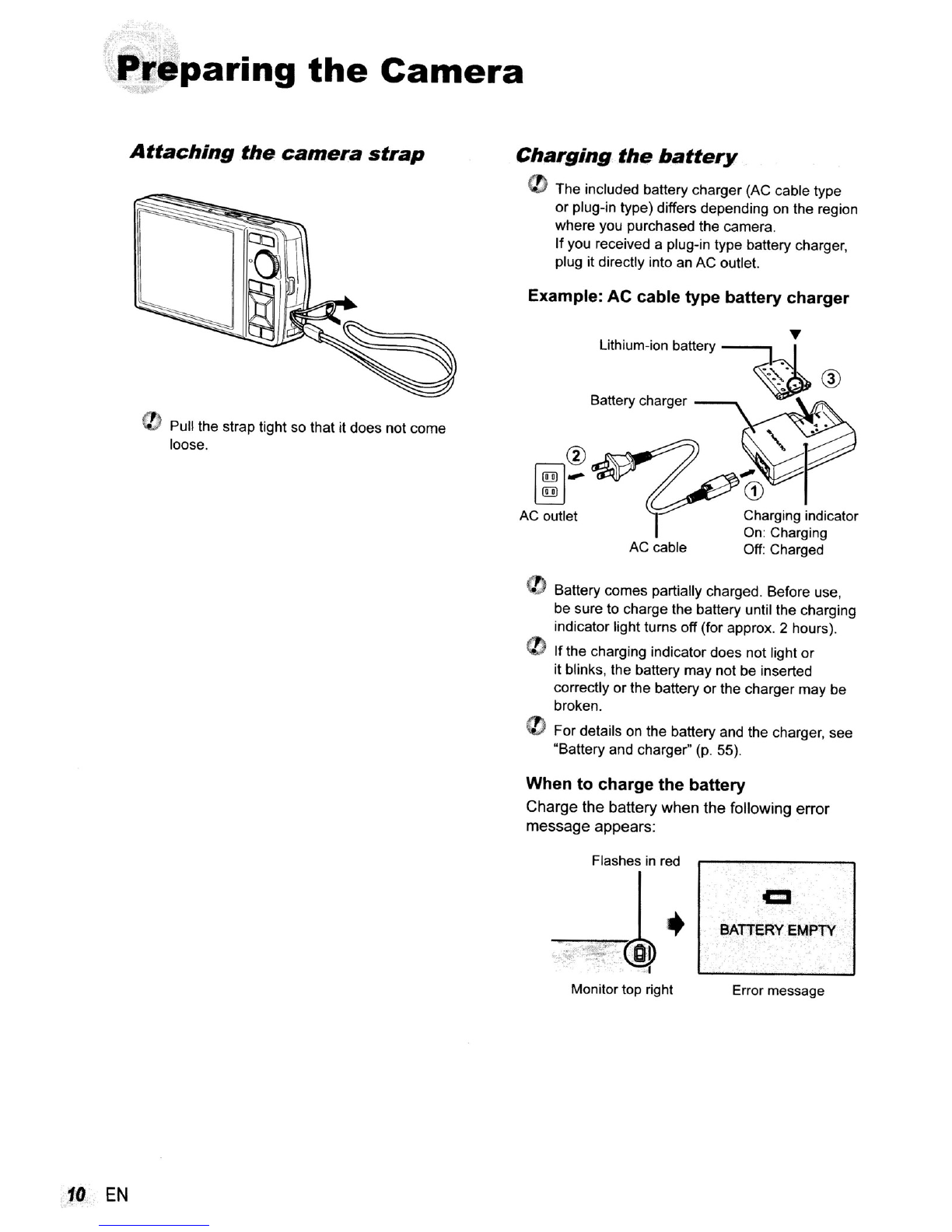

Preparing the Camera
Attaching the camera strap
Charging the battery
Example: AC cable type battery charger
Charging indicator
On: Charging
Off: Charged
T
LithIum-Ion battery ~
~@
Battery charger --"\
The included battery charger (AC cable type
or plug-in type) differs depending on the region
where you purchased the camera.
If you received aplug-in type battery charger,
plug it directly into an AC outlet.
AC cable
@ .J§;:$l~])
I~I-
AC outlet
Pull the strap tight
so that it does not come
loose.
Battery comes partially charged. Before use,
be sure to charge the battery until the charging
indicator light turns off (for approx. 2hours).
If the charging indicator does not light or
it blinks, the battery may not
be inserted
correctly
or the battery or the charger may be
broken.
For details on the battery and the charger, see
"Battery and charger"
(p. 55).
When to charge the battery
Charge the battery when the following error
message appears:
Flashes in red
CI
.. BATTERY EMPTY
01
I
Monitor top right Error message
10 EN

Loading the battery and
the xD-Picture Card™ (sold
separately) into the camera
@i it(
:=
~,~
Insert the card straight in until it clicks into
place.
00 not touch the contact area directly with your
hand.
•
•
•
3
00 not insert anything other than an xD-Picture
Card or the microSD Attachment into the
camera.
~
~=(j)(8J ----
~l"~n~~~~~~g'~~:~"~' ~:in, L
I(~~ iI Battery/card
'0 1Ucompartment
cover
1
24
This camera can take pictures using the
internal memory when no xD-Picture Card
(sold separately) is inserted. "Using an xD-
Picture Card"
(p. 56)
fJ) "Number of storable pictures (still pictures)1
continuous recording length (movies) in the
internal memory and xD-Picture Card" (p. 57)
Battery lock knob To
remove the xD-Picture Card
The battery has afront side and aback side.
Insert the battery from Tso that the 0
is in
the direction of the battery lock knob.
Insert the battery while sliding the battery lock
knob in the direction of the arrow.
(/) Sliding the battery lock knob in the direction
of the arrow to unlock, and then remove the
battery.
If you insert the battery incorrectly, you will not
be able to remove it. Do not use force. Contact
authorized distributors/service centers.
Damage to the battery exterior (scratches. etc.)
may produce heat or an explosion.
(/) Turn off the camera before opening or closing
the battery/card compartment cover.
12
Press in the card until it clicks and comes out
slightly. Then grasp the card and pull it out.
EN 11

1Insert the microSD card into the
microSD Attachment.
2Insert the microSD Attachment into
the camera.
Arrow pad and operation guide
The symbols 6 Q<ll>, EJ ~ EJ Gdisplayed
on various settings and movie playback screens
indicate that the arrow pad
is to be used.
Insert the card
entirely into
the microSD
Attachment.
[:!~g:~;~£] <J
I'
Using the microSD card/
microSDHC card (sold
separately)
AmicroSD card or microSDHC card (hereafter
both will be referred
to as microSD card) is also
compatible with this camera using the microSD
Attachment.
"Using amicroSD Attachment" (p. 58)
To remove the microSD card
Pull the card straight out.
tl:~ Do not touch the contact area of the microSD
Attachment or microSD card directly with your
hand. Operation guide
Arrow
pad
Operation guides displayed at the bottom of the
screen indicate that the
MENU button, ~ button,
zoom button, or
1iD button is to be used.
..
Notch
12 EN

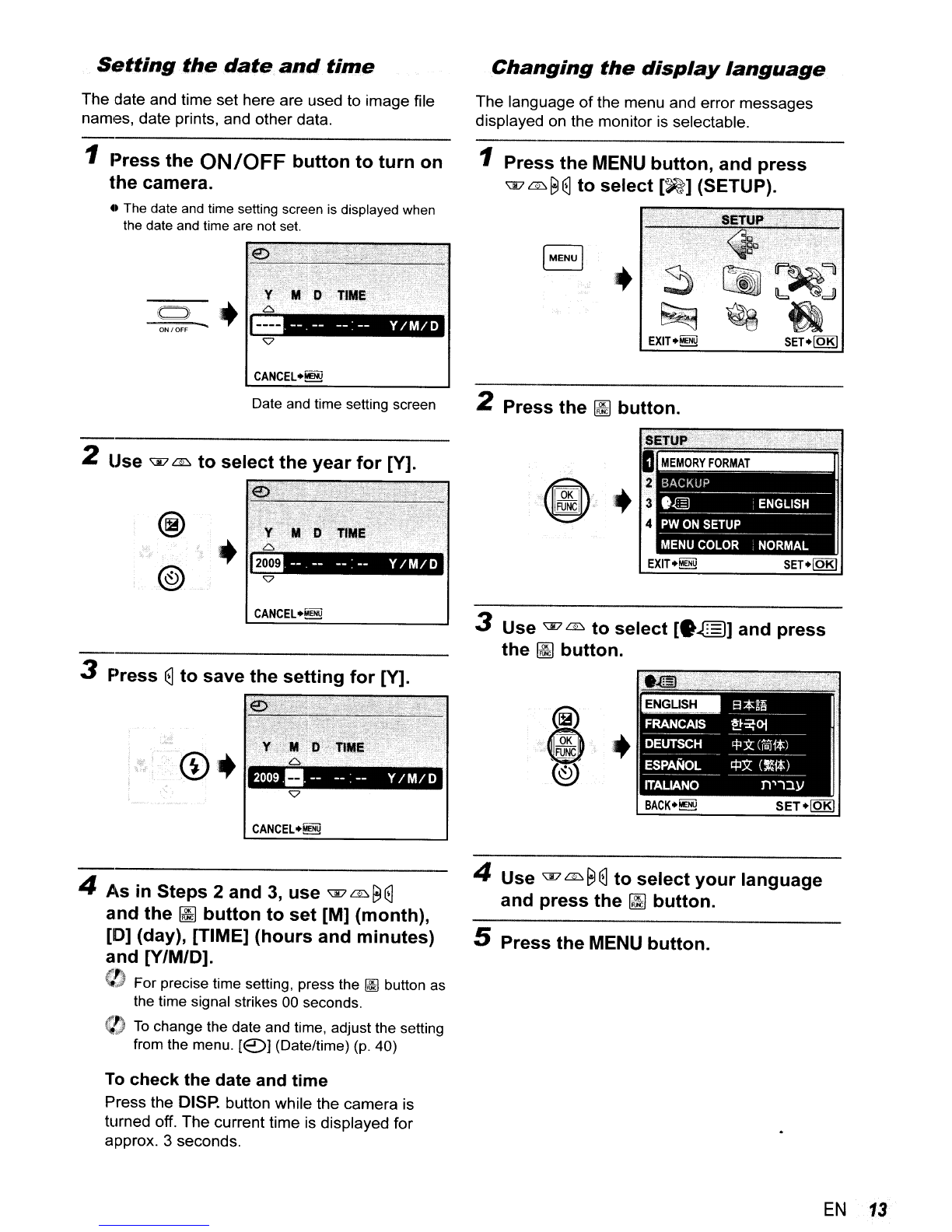

Setting the date and time
The date and time set here are used to image file
nam9S, date prints, and other data.
1Press the ON/OFF button to turn on
the camera.
• The date and time setting screen is displayed when
the date and time are not set.
• --.-- --:-- Y/M/O
Date and time setting screen
2Use '\I7 LID. to select the year for [V].
@
Em -- -- -_. -- Y/ MID
3Press ~ to save the setting for [V].
CANCEL.~
4As in Steps 2and 3, use ~ LID. ~ ~
and the ~ button to set [M] (month),
[0] (day), [TIME] (hours and minutes)
and [V/M/O].
".1)
~,;;. For precise time setting, press the ~ button as
the time signal strikes 00 seconds.
(':J To change the date and time, adjust the setting
from the menu. [<2)] (Date/time) (p. 40)
To check the date and time
Press the DISP. button while the camera is
turned off. The current time is displayed for
approx. 3seconds.
Changing the display language
The language of the menu and error messages
displayed on the monitor is selectable.
1Press the MENU button, and press
'@~~~ to select [~] (SETUP).
EXIT.~
2Press the ~ button.
3Use '\D LID. to select [.z~)] and press
the
~ button.
4Use ~ LID. ~ ~ to select your language
and press the
~ button.
5Press the MENU button.
EN 13

~'~Doting, Playback, and Erasing
Shooting with optimum aperture
value and shutter speed
(0 mode)
3Hold the camera, and compose the
shot.
Monitor
Horizontal grip
1Set the mode dial to o.
In this mode, automatic camera shooting can
be used while also allowing changes to awide
range
of other shooting menu functions, such as
exposure compensation, white balance and so on
as needed.
2Press the ON/OFF button to turn on
the camera.
Monitor
(standby mode screen)
C) +
ON/OFF .......
Number of storable still pictures (p. 57)
oPress the ON/OFF button again to turn off
the camera.
Vertical grip
(/) When holding the camera, take care not to
cover the flash with your fingers. etc.
4Press the shutter button halfway
down to focus
on the subject.
•When the camera focuses on the subject, the
exposure
is locked (shutter speed and aperture value
are displayed),
and the AF target mark changes to
green.
•The camera was unable to focus ifthe
AF target mark
flashes
red. Try focusing again.
Press halfway
Shutter speed
Aperture value
AF target mark
o"Focusing" (p. 52)
14 EN

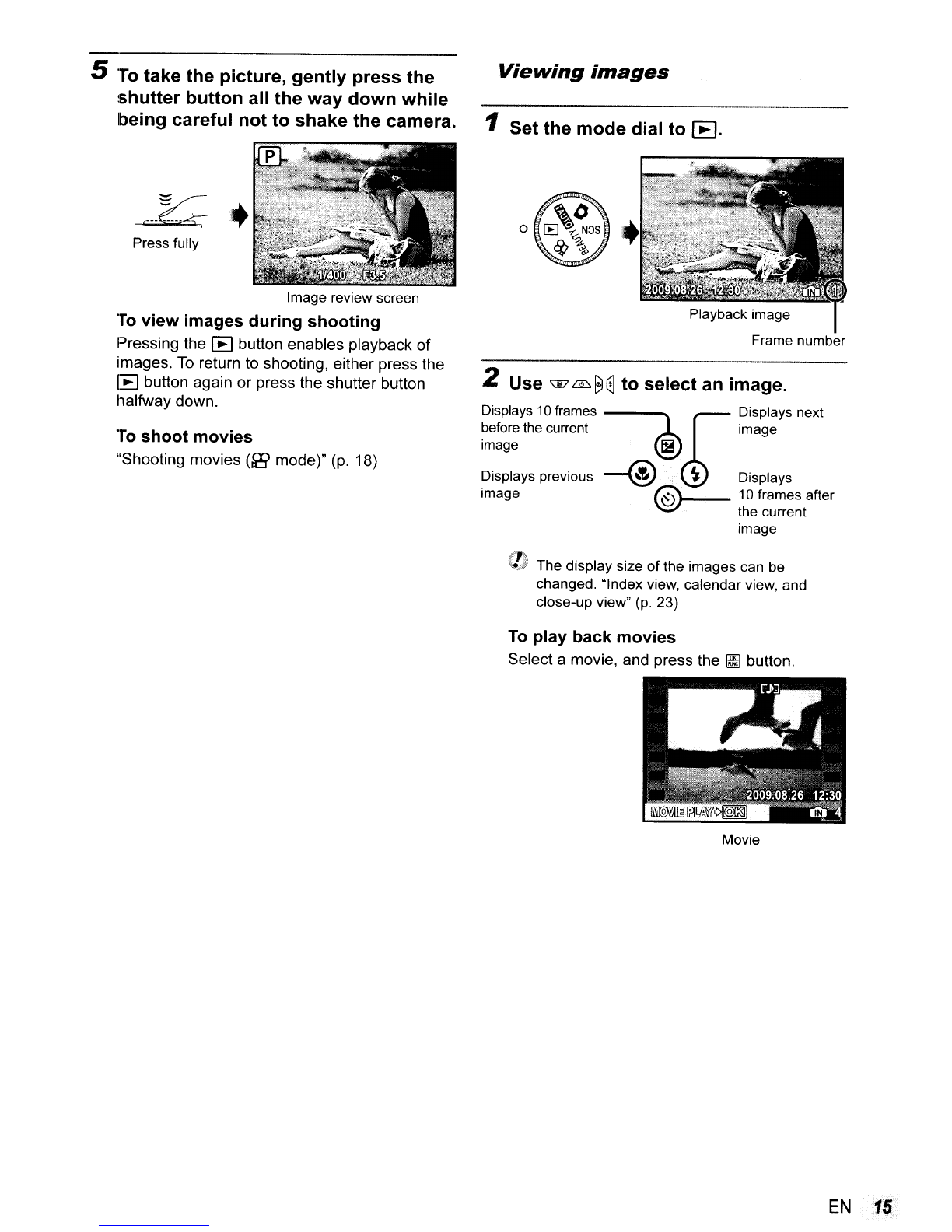

5 To take the picture, gently press the
:shutter button all the way down while
being careful not to shake the camera.
Press fully
Image review screen
To view images during shooting
Pressing the [E] button enables playback of
images. To return to shooting, either press the
IE button again or press the shutter button
halfway down.
To shoot movies
"Shooting movies (f8 mode)" (p. 18)
Viewing images
1Set the mode dial to [E.
Frame number
2Use \I7 an ~ ~ to select an image.
Displays 10 frames ®. rDisplays next
before the current image
IB
Displays previous -@ . ~ Displays
@,,1 0frames after
the current
(1) The display size of the images can be
changed. "Index view, calendar view, and
close-up view" (p. 23)
To play back movies
Select amovie, and press the ~ button.
Movie
EN 15

Operations during movie playback
Volume: During playback, press 'Qi7 =..
Fast-forward/rewind: Select with ~ ~. Each
time abutton is pressed, the playback speed
cycles through 2x,20x,and standard
(1 x)
speed in the direction of the pressed button.
Pause: Press the II!I button.
Erasing images during playback
(Single image erase)
1Press the lID button when the
playback image to
be erased is
displayed.
Elapsed time/
Total recording time
16 EN
During playback
First (last) frame/frame advance:
While paused, press '\V to display the first
frame, and press
=. to display the last frame.
Pressing
~ makes the camera play back in
areverse motion, and pressing ~ makes the
camera play back normally. Press the
II!I button
to resume playback.
During pause
To stop movie playback
Press the MENU button.
2Press '\V to select [yES], and press
the
~ button.
o[fj ERASE] (p. 36)

g Shooting Modes
Shooting with automatic
settings (ElJ!IIjJ mode)
Using the best shooting mode
for the scene (SCN mode)
•Press and hold the 6button to display adescription
of
the selected mode.
To change to another scene mode, use the
menu.
[~ SCENE MODEj (p. 28)
Shooting mode
indicator
o
1Set the mode dial to SCN.
2Use '\E' ~ to select the best shooting
mode for the scene, and press the
~ button.
4. Press the shutter button halfway down or press the
DISP. button
to check which shooting mode the
camera has automatically selected.
~1J Depending on the shooting scene, the camera
_. may not select the intended shooting mode.
If the camera cannot determine the best
shooting mode, the picture will be taken in 0
mode.
The indicator changes to
the icon for the scene mode
selected by the camera.
1Set the mode dial to mnmJ.
The camera automatically selects the best
shooting mode for the scene from [PORTRAIT],
[LAt\IDSCAPE], [NIGHT+PORTRAIT], [SPORT]
and [MACRO]. This is afully automatic mode that
allows you to take apicture suited to the scene by
simply pressing the shutter button. Camera menu
settings are not available
in mmm mode.
EN 17

Smoothing out skin tone and
texture (BEAUTY mode)
The camera finds aperson's face and gives the
skin asmooth, translucent look for taking the
picture.
1Set the mode dial to BEAUTY.
BEAUTY mode indicator
2Point the camera toward the subject.
Check the frame appearing around
the face detected by the camera, and
then press the shutter button to take
the picture.
•The unedited image and edited image are both
saved.
•If
the image cannot be retouched, only the unedited
is saved.
([) The frame may not appear or may take some
time to appear for some subjects.
In addition,
this function may have no visible effect on
some subjects.
The [IMAGE SIZE] of the retouched image is
limited to
[I]M)J or lower.
~;,18 EN
Shooting movies (g> mode)
Audio is recorded simultaneously.
1Set the mode dial to ~.
Using the zoom
You cannot use the optical zoom while shooting
amovie. Please use the [DIGITAL ZOOM]
(p.27)
2Press the shutter button halfway
down to focus
on the subject, and
gently press the button all the way
down to start recording.
Lights red during shooting
pre: halfway •
(m~
Press fully
Remaining recording time
(p. 57)
3Gently press the shutter button all the
way down to stop recording.

g Shooting Functions
Using the optical zoom
Pressing the zoom button adjusts the shooting
range.
Pressing the wide Pressing the telephoto
(W) button (T) button
0ITl
~ 0..
+
+
Using the flash
The flash functions can be selected to best match
the shooting conditions and render the desired
image.
1Press the ~ button.
2Use ~8 to select the setting option,
and press the
~ button to set.
Zoom bar
(~>' Optical zoom: 7x /Digital zoom: 5x
(J..., Use of [IMAGE STABILIZER] (still images)/
[DIS MOVIE MODE] (movies) (p. 28) is
recommended when shooting with the
telephoto zoom.
To take larger images without reducing
image quality
[FINE ZOOM] (p. 26)
To take larger images
[DIGITAL ZOOM] (p. 27)
~!> The zoom bar appearance identifies the status
of the fine zoom/digital zoom.
When using
optical zoom
Optical zoom range
FLASH AUTO
REDEYE
FILL IN
FLASH OFF
The flash fires automatically in low-
light or backlight conditions.
Pre-flashes are emitted to reduce the
occurrence
of red-eye in your photos.
IThe flash fires regardless of the
available light.
The flash does not fire.
When using
fine zoom w
•
'ii'~
;
When using
digital zoom
~--"""TJ
Fine zoom
range
Digital zoom
range
EN f9.

Adjusting the brightness
(Exposure compensation)
The exposure value automatically set by the
camera can be adjusted brighter or darker to obtain
adesired shot. This function is not available
in the
lBYmJ shooting mode.
1Press the ~ button.
@
Exposure compensation value
Shooting close-ups
(Macro shooting)
This function enables the camera to focus and
shoot subjects at close distances.
1Press the ~ button.
'+
2Use ~ ~ to select the setting option,
and press the
~ button to set.
2Use '\V ~ ~ ~ to select the image
showing the desired brightness, and
then press the ~ button.
OFF
MACRO
SUPER
MACRO'3
Macro mode is deactivated.
This enables shooting as close as
10 cm/3.9 in." (60 cm/23.6 in."2) to
the subject.
This enables shooting as close as
2cm/0.8 in. to the subject. Subjects
at 70 cm/27.6 in. or farther cannot be
brought into focus.
20 EN
"When the zoom is at the widest (W) position.
'2 When the zoom is at the most telephoto (T) position.
'3 The zoom is automatically fixed.
. i# The flash (p. 19) and zoom (p. 19) cannot be
set in
super macro mode.
