Olympus u TOUGH-6010 User manual

DIGITAL CAMERA
STYLUS TOUGH-6010 /
μ TOUGH-6010
●Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and a longer service life. Keep this manual in a
safe place for future reference.
●We recommend that you take test shots to get accustomed to your
camera before taking important photographs.
●In the interest of continually improving products, Olympus reserves the
right to update or modify information contained in this manual.
●The screen and camera illustrations shown in this manual were produced
during the development stages and may differ from the actual product.
Instruction Manual

2 EN
Step 5
Step 2
Step 4
Step 3
How to Use the Camera
“Four Types of Setting Operations” (p. 3)
Printing
“Direct printing (PictBridge)” (p. 48)
“Print Reservations (DPOF)” (p. 51)
Shooting and Playing Back Images
“Shooting, Viewing, and Erasing” (p. 15)
Preparing the Camera
“Preparing the Camera” (p. 10)
Names of Parts ......................................6
Preparing the Camera.........................10
Shooting, Viewing, and Erasing.........15
Using Shooting Modes........................18
Using Shooting Functions..................20
Using Playback Features....................25
Menus for Shooting Functions...........27
¾
¾
¾
¾
¾
¾
¾
Menus for Playback, Editing, and
Printing Functions...............................35
Menus for Other Camera Settings .....40
Printing.................................................48
Using OLYMPUS Master 2...................54
Usage Tips ...........................................56
Appendix..............................................61
Index.....................................................80
¾
¾
¾
¾
¾
¾
¾
Contents
Contents
Step 1

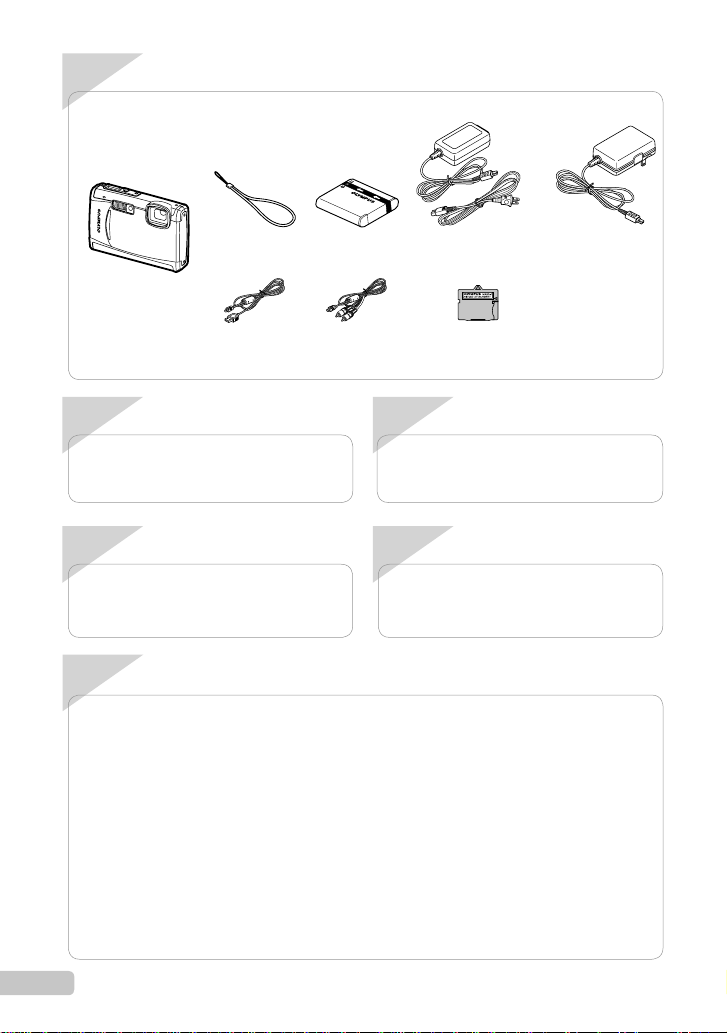

Checking the contents of the box
Digital camera
or
Strap LI-50B Lithium Ion
Battery AC adapter (F-1AC)
USB cable AV cable microSD Attachment
Other accessories not shown: Instruction Manual (this manual), OLYMPUS Master 2, warranty card
Contents may vary depending on purchase location.

1Set the mode dial to a position other
than A.
The symbol in “Menu
Settings” (p. 27 to 47)
indicates available shooting
modes.
2Press the mbutton.
This example describes how to set the
[DIGITAL ZOOM].
MENU
EXIT SET
OK
CAMERA MENU
Shooting mode top menu
3Use ABCD to select the desired
menu, and press the obutton.
Pressing and
holding the E
button displays
an explanation
(menu guide) of the
selected option.
ISO
OFF
OFF
1
2
CAMERA MENU
SET
OK
AUTO
o
FINE ZOOM
DIGITAL ZOOM
DRIVE
AUTOWB
MENU
EXIT
Submenu 1
●
Please read “Menu Settings” (p. 27 to 47) while referring to this page.
mbutton Arrow pad
obutton
Buttons in use
4Use AB to select the desired
Submenu 1, and press the obutton.
1
2
ISO
OFF
OFF
CAMERA MENU
AUTO
o
FINE ZOOM
DIGITAL ZOOM
DRIVE
AUTOWB
MENU
EXIT SET
OK
1
2
ISO
OFF
OFF
CAMERA MENU
AUTO
o
FINE ZOOM
DIGITAL ZOOM
DRIVE
AUTOWB
MENU
SET
OK
BACK
DIGITAL ZOOM
OFF
ON
Page tab Submenu 2
To quickly move to the desired submenu,
press Cto highlight the page tab, and then
use AB to move the page tab. Press Dto
return to the Submenu 1.
Some menus include submenus that appear
by pressing the obutton.
5Use AB to select the Submenu 2, and
press the obutton.
Once a setting is adjusted, the display returns to
the previous screen.
There may be
additional operations.
“Menu Settings” (p. 27
to 47)
6Press the mbutton to complete the
setting.
●
Four Types of Setting Operations
Ebutton
UsingtheMenu
UsingtheMenu
Various camera settings can be accessed through the
menus, including functions used during shooting and
playback and the date/time and screen display.
There may be unavailable menus depending on the
other related settings or the selected smode
(p. 31).
1
2ISO
OFF
ON
CAMERA MENU
AUTO
o
FINE ZOOM
DIGITAL ZOOM
DRIVE
AUTOWB
MENU
EXIT SET
OK
3 EN

4 EN
UsingtheFUNCMenu(p.23)
UsingtheFUNCMenu(p.23)
Frequently used shooting menu functions can be set with less
steps using the FUNC menu.
UsingtheDirectButtons
UsingtheDirectButtons
Frequently used shooting functions can be accessed using the direct
buttons.
Shutter button (p. 15)
Zoom button (p. 20, p. 25)
Fbutton (exposure compensation) (p. 21)
&button (macro) (p. 21)
#button (flash) (p. 20)
Ybutton (self-timer) (p. 22)
qbutton (playback) (p. 16)
g/E/Ybutton (information display
change/menu guide/date and time check/LED
illuminator) (p. 3, p. 14, p. 23)
o/Dbutton (panorama/magic filter/
Shadow Adjustment Technology/multi window/
erase) (p. 17, p. 24)
obutton (p. 3, p. 23)
Arrow pad
obutton
Buttons in use
Operatingthecamerabytappingthe
Operatingthecamerabytappingthe
body
body
(p.46)
(p.46)
You can operate the camera by tapping the body when [TAP CONTROL]
is [ON].
To set [TAP CONTROL] to [ON]
1Tap the top surface of the camera twice.
The [TAP CONTROL] settings screen displays.
2Tap the top surface of the camera twice.
The setting is confirmed.
●
●
x2
&
ONOFF
TAP CONTROL
Tap the camera body to operate
the camera.

5 EN 5
1GSLIDESHOW............... p.35
2HPERFECT FIX ............. p.35
3MBEAUTY FIX................ p.35
4IEDIT
Q(Resize) ................ p.36
P(Crop) .................... p.36
COLOR EDIT............... p.36
Menus for Playback, Editing, and Printing Functions
When the mode dial is set to the qposition, settings can be
adjusted.
MENU
EXIT SET
OK
PLAYBACK MENU
1
2
3
4
5
6
7
8
9
Playback mode top menu
CALENDAR................. p.37
INDEX.......................... p.37
5JPLAYBACK MENU
0(Protect) ............... p.37
y(Rotate)................... p.38
R(Add sound to still
images) .................... p.38
6KERASE......................... p.38
7LPRINT ORDER............ p.39
8ESETUP*
*Same as “Menus for
Shooting Functions”
9FSILENT MODE ............ p.47
1AIMAGE QUALITY......... p.27
2BCAMERA MENU
WB............................... p.28
ISO .............................. p.28
DRIVE.......................... p.28
FINE ZOOM................. p.29
DIGITAL ZOOM........... p.29
ESP/n....................... p.29
AF MODE.................... p.29
R(Sound recording).... p.30
IMAGE STABILIZER
(Still images)/
DIS MOVIE MODE
(Movies) ................... p.30
SHADOW ADJ............. p.30
3 Os............................ p.31
4NPANORAMA................. p.32
5DRESET......................... p.34
6 QMAGIC FILTER............ p.34
7 ESETUP
MEMORY FORMAT/
FORMAT .................. p.40
BACKUP...................... p.40
W(Language)........ p.40
PW ON SETUP...........p.41
MENU COLOR............ p.41
SOUND SETTINGS..... p.42
REC VIEW................... p.42
FILE NAME.................. p.43
PIXEL MAPPING......... p.43
s(Monitor)............... p.44
X(Date/time)............ p.44
DUALTIME................... p.44
VIDEO OUT................. p.45
POWER SAVE............. p.46
LED ILLUMINATOR..... p.46
TAP CONTROL........... p.46
8FSILENT MODE ............ p.47
Menu Index
Menus for Shooting Functions
When the mode dial is set to a shooting mode position
(AKsbn), settings can be adjusted.
MENU
EXIT SET
OK
CAMERA MENU
5
1
2
3 8
7
4
6
Shooting mode top menu

6 EN
Names of Parts
1Microphone............................p.30, 38
2Multi-connector................p.45, 48, 54
3Connector cover ........p.45, 48, 54, 67
4Strap eyelet..................................p.10
5 Speaker .......................................... —
6Battery/card compartment cover
.........................................p.10, 57, 67
Camera unit
2
3
4
6
5
9
10
17
8
7 Flash............................................p.20
8Self-timer lamp/LED illuminator
.........................................p.22, 31, 46
9Lens.............................................p.61
10 Tripod socket .................................. —

7 EN
4
2
8
7
5
6
3
11
12
9
10
1
1nbutton.............................p.13
2Zoom button...........................p.20, 25
3Monitor.........................p.8, 15, 44, 56
4Card access lamp/
charging indicator ..................p.12, 63
5mbutton..............................p.3, 5
6g/E/Ybutton
(information display change/
menu guide/date and time check/
LED illuminator).................p.3, 14, 23
7Shutter button........................p.15, 56
8Mode dial.................p.3, 5, 15, 16, 18
9qbutton (playback)...................p.16
10 obutton (OK/FUNC)..............p.3, 23
11 o/Dbutton (panorama/magic filter/
Shadow Adjustment Technology/
multi window/erase)...............p.17, 24
12 Arrow pad ............................p.3, 4, 13
Fbutton
(exposure compensation)........p.21
&button (macro)....................p.21
Ybutton (self-timer) ...............p.22
#button (flash).......................p.20

8 EN
Monitor
Shooting mode display
12 M
+2.0 1/30 F3.3
P
4
IN
ISO
1600
AFL
N ORM
1
10
12
13
11
15171819 1416
25
24
23
22
21
20
2 54 98763
+2.0
IN
00:34
VGA
15
1
12
13
11
15 141619
25
22
21
20
2 54 983 6
Still image Movie
1Shooting mode.......................p.18, 19
2Flash mode..................................p.20
3Silent mode..................................p.47
4Image stabilization (still images)/
Digital image stabilization (movies)
.....................................................p.30
5Macro/super macro/
S-macro LED mode.....................p.21
6
Shadow Adjustment Technology ...p.30
7AF lock.........................................p.18
8Tap control.........................p.4, 31, 46
9Battery check.........................p.12, 57
10 Flash standby/camera shake warning/
flash charge.................................p.54
11 AF target mark.............................p.15
12 Sound record.........................p.19, 30
13 Dual time......................................p.44
14 Number of storable still pictures/
remaining recording time
.........................................p.15, 19, 64
15 Current memory...........................p.63
16 Self-timer .....................................p.22
17 Aperture value .............................p.15
18 Shutter speed ..............................p.15
19 Exposure compensation..............p.21
20 Compression/Frame rate.............p.27
21 Image size ...................................p.27
22 Metering.......................................p.29
23 Drive ............................................p.28
24 ISO...............................................p.28
25 White balance..............................p.28

9 EN
Playback mode display
12 M
2009.10.26 12:30 4
+2.0
F3.3
10
IN
x
100-0004
N ORM
1/1000
ISO 1 600
2
10
11
9
7
8
12
34 61
16
17
131415
2009.10.26 12:30
100-0004
00:14 / 00:34
IN
VGA
15
11
16
9
10
12
34 61
1314
5 5
Still image Movie
1Silent mode..................................p.47
2Print reservation/
number of prints...................p.51/p.50
3Sound record.............p.19, 30, 38, 60
4Protect .........................................p.37
5Tap control.........................p.4, 31, 46
6Battery check.........................p.12, 57
7Aperture value .............................p.15
8Exposure compensation..............p.21
9White balance..............................p.28
10 Image size ...................................p.27
11 File number..................................p.43
12 Frame number
Elapsed time/total recording time
.....................................................p.17
13 Current memory...........................p.63
14 Compression/Frame rate.............p.27
15 ISO...............................................p.28
16 Date and time ........................p.13, 44
17 Shutter speed ..............................p.15

10 EN
Preparing the Camera
2
The battery has front side and back side.
Insert the battery in the correct direction
as illustrated. If the battery is not inserted
correctly, the camera does not operate.
Insert the battery while sliding the battery
lock knob in the direction of the arrow.
Sliding the battery lock knob in the direction
of the arrow to unlock, and then remove the
battery.
Be sure to turn off the camera when you
open or close the battery/card compartment
cover.
When using the camera, be sure to close
the battery/card compartment cover.
3
Battery lock knobBattery lock knob
NotchIndex area NotchIndex area
Attaching the camera strap
Pull the strap tight so that it does not come
loose.
Loading the battery and
the xD-Picture Card™ (sold
separately) into the camera
Do not insert anything other than an
xD-Picture Card or the microSD Attachment
into the camera.
112
Battery/card compartment cover
12
Battery/card compartment cover

11 EN
Charging the battery
The included AC adapter (F-1AC/with an
AC cable or plug-in type) differs depending
on the region where you purchased the
camera. If you received a plug-in type AC
adapter, plug it directly into an AC outlet.
The included AC adapter (F-1AC) has been
designed to be used only for charging.
Make sure that operations such as shooting,
viewing images and so on are not being
used while the AC adapter is connected to
the camera.
Example: AC adapter with an AC cable
1
2
AC outlet AC cable
AC adapter
AC outlet AC cable
AC adapter
Multi-
connector
Connector cover
Multi-
connector
Connector cover
Insert the card straight in until it clicks into
place.
Do not touch the contact area on the card.
4
Please ensure that foreign material such
as dirt and sand, etc, does not stick to the
gasket of battery/card compartment cover
and that there are no cracks and scratches.
This camera allows the user to take pictures
using the internal memory even when
no xD-Picture Card (sold separately) is
inserted. “Using an xD-Picture Card” (p. 62)
“Number of storable pictures (still pictures)/
continuous recording length (movies) in
the internal memory and xD-Picture Card”
(p. 64)
To remove the xD-Picture Card
12
Press in the card until it clicks and comes
out slightly, and then grasp the card to pull it
out.

12 EN
3
Battery comes partially charged. Before
use, be sure to charge the battery until the
charging indicator turns blue (for approx.
longest 2.5 hours).
If the charging indicator does not light or it
lights in both blue and orange, there may
be cases in which the connections are not
correct, or the battery, camera, and/or AC
adapter may be damaged.
For details on the battery and the AC
adapter, see “Battery, AC adapter (included),
Charger (sold separately)” (p. 61).
When to charge the battery
Charge the battery when the error message
shown below appears.
BATTERY EMPTY
Monitor top right Error message
Flashes in red
Charging indicator
Lights (orange) : Charging
Lights (blue) : Charged
Charging indicator
Lights (orange) : Charging
Lights (blue) : Charged
Using a microSD card/
microSDHC card
(sold separately)
microSD card/microSDHC card (hereinafter
referred to as “microSD card”) is also compatible
with this camera by using the microSD
Attachment.
“Using the microSD Attachment” (p. 65)
1Insert the microSD card into the
Attachment.
Insert the card to
the end.
2Insert the microSD Attachment into
the camera.
Notch
To remove the microSD card
Pull the microSD card straight out.
Do not touch the contact area on the
microSD Attachment and microSD card.

13 EN
Arrow pad and operation guide
The symbols 1243, displayed
on various setting and movie playback screens
indicate that arrow pad are used.
2009.10.26 12:30
100-0004
00:14 / 00:34
IN
/
2008 08 26 12 30
OK
X
YMD
TIME
MENU
CANCEL SET
Y M D
0.0 +0.3
+0.7 +1.0
EXPOSURE COMP.
Arrow pad
4
2
1
3
Operation guides displayed at the bottom of the
screen indicate that the mbutton, obutton,
zoom button, or Dbutton is used.
1
4
2
5
3
6
IN
OK
D
MENU
BACK GO
SEL. IMAGE
T
WSET
OK
MENU
EXIT SET
OK
CAMERA MENU
Operation guide
Setting the date and time
The date and time set here are saved to image
file names, date prints, and other data.
1Press the nbutton to turn on
the camera.
The date and time setting screen is displayed
when the date and time are not set.
X
YM
YMD
D TIME
---- -- -- -- --
MENU
CANCEL
Date and time setting screen
2Use AB to select the year for [Y].
2009
-- -- -- --
X
YM
YMD
D TIME
MENU
CANCEL
3Press Dto save the setting for [Y].
2009
-- -- -- --
X
YM
YMD
D TIME
MENU
CANCEL
●

14 EN
4As in steps 2 and 3, use ABCD
and the obutton to set
[M] (month), [D] (day), and
[TIME] (hours and minutes), and
[Y/M/D] (date order).
For precise time setting, press the obutton
as the time signal strikes 00 seconds.
To change the date and time, adjust the
setting from the menu. [X](Date/time)
(p. 44)
To check the date and time
Press the gbutton while the camera is
turned off. The current time is displayed for
approx. 3 seconds.

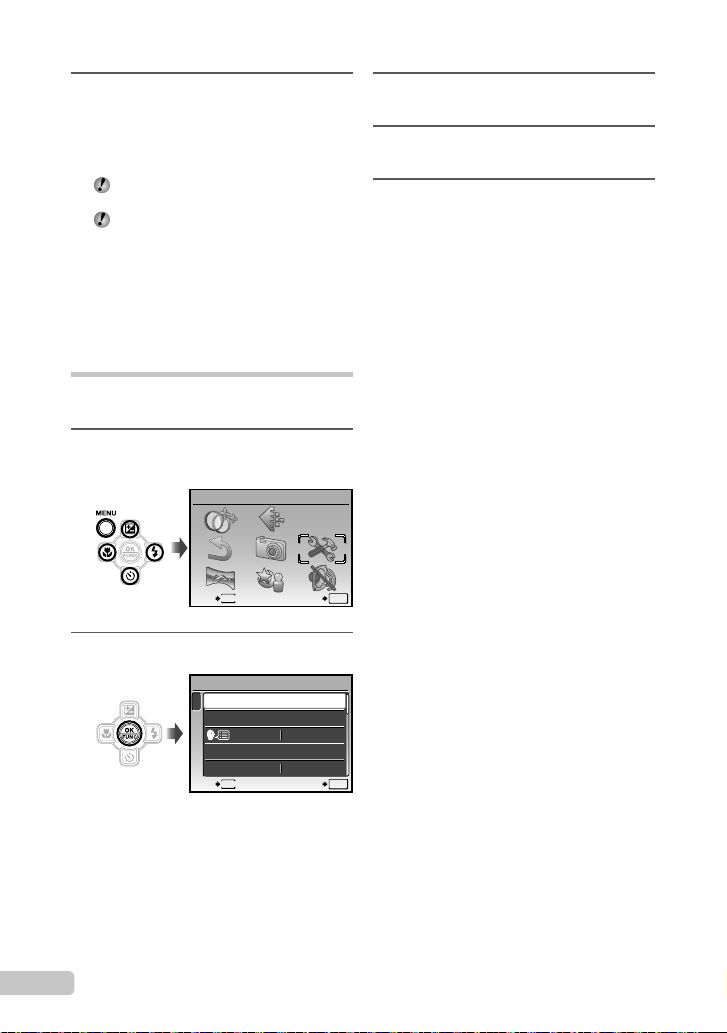

Changing the display language
The language for the menu and error messages
displayed on the monitor is selectable.
1Press the mbutton, and press
ABCD to select [E] (SETUP).
MENU
EXIT SET
OK
SETUP
2Press the obutton.
1
2
3
4
BACKUP
NORMAL
SETUP
ENGLISH
PW ON SETUP
MENU COLOR
MEMORY FORMAT
MENU
EXIT SET
OK
3Use AB to select [W] and
press the obutton.
4Use ABCD to select your
language and press the obutton.
5Press the mbutton.

15 EN

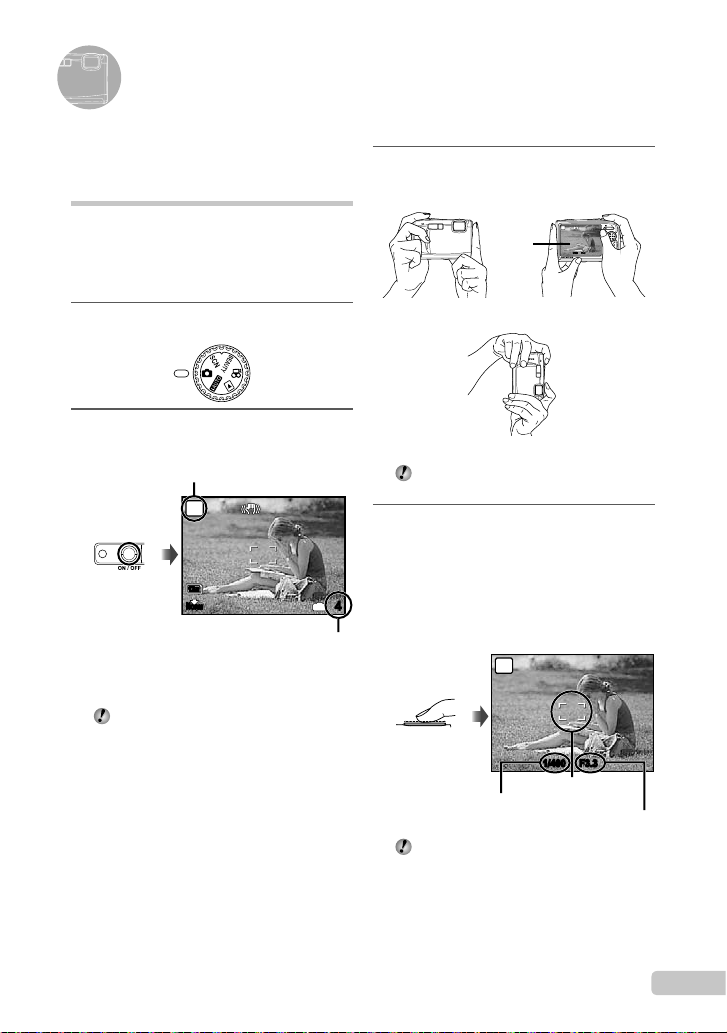

Shooting, Viewing, and Erasing
3Hold the camera, and compose the
shot.
1/400 F3.3
P
Horizontal grip
Vertical grip
Monitor
When holding the camera, take care not to
cover the flash with your fingers, etc.
4Press the shutter button halfway
down to focus on the subject.
When the camera focuses on the subject, the
exposure is locked (shutter speed and aperture
value are displayed), and the AF target mark
changes to green.
The camera was unable to focus if the AF target
mark flashes red. Try focusing again.
1/400 F3.3
P
AF target mark
Press halfway
Shutter speed Aperture value
“Focusing” (p. 58)
●
●
Shooting with optimum
aperture value and shutter
speed (Kmode)
In this mode, automatic camera shooting can
be used while also allowing changes to a wide
range of other shooting menu functions, such as
exposure compensation, white balance, and so
on when needed.
1Set the mode dial to K.
2Press the nbutton to turn on
the camera.
12 M
P
4
IN
N ORM
Monitor
(standby mode screen)
Number of storable still pictures
(p. 63)
Pmode indicator
Press the nbutton again to turn off
the camera.

16 EN
5To take the picture, gently press
the shutter button all the way down
while being careful not to shake the
camera.
P
1/400 F3.3
Image review screen
Press fully
To view images during shooting
Pressing the qbutton enables playback of
images. To return to shooting, either press
the qbutton again or press the shutter
button halfway down.
You can operate the camera by tapping the
body when [TAP CONTROL] is [ON].
[TAP CONTROL] (p. 46)
To shoot movies
“Shooting movies (Amode)” (p. 19)
Viewing images
1Set the mode dial to q.
1
IN
12 M
2009.10.26 12:30 100-0001
N ORM
Playback image
Frame number
2Use ABCD to select an image.
Displays
10 frames before
the current image
Displays next
Displays previous
image Displays 10 frames after
the current
The display size of the images can be
changed. “Index view, calendar view, and
close-up view” (p. 25)

17 EN
To play back movies
Select a movie, and press the obutton.
2009.10.26 12:30
100-0004
4
IN
MOVIE PLAY
OK
Movie
Operations during movie playback
Volume: During playback, press AB.
Fast-forward/rewind: Select with CD.
Each time a button is pressed, the playback
speed cycles through 2x, 20x, and standard
(1x) speed in the direction of the pressed
button.
Pause: Press the obutton.
2009.10.26 12:30
100-0004
00:12 / 00:34
IN
During playback
Elapsed time/
Total recording time
First (last) frame/frame advance:
During pause, press Ato display the first
frame, and press Bto display the last
frame. Playback is reversed while Cis
pressed, playback occurs normally while D
is pressed. Press the obutton to resume
playback.
2009.10.26 12:30
100-0004
00:14 / 00:34
IN
/
During pause
To stop movie playback
Press the mbutton.
Erasing images during
playback (Single image erase)
1Press the Dbutton when the
playback image to be erased is
displayed.
ERASE
ERASE
OK
IN
NO
NO
YES
SETCANCEL
MENU
2Press Ato select [YES], and press
the obutton.
[KERASE] (p. 38)

18 EN
“Important information about water and
shock resistant features” (p. 65)
To lock the focus distance for
underwater shoots (AF lock)
When [TUNDERWATER SNAPSHOT],
[kUNDERWATER WIDE1], or,
[HUNDERWATER MACRO] is selected,
press B.
AFL
12 M
4
IN
N ORM
^mark
To cancel, press Bagain to clear the
^mark.
Enhancing skin tone and
texture (bmode)
The camera finds a person’s face and gives the
skin a smooth, translucent look for taking the
picture.
1Set the mode dial to b.
12 M
4
IN
N ORM
bmode indicator
This section describes the available shooting
modes. Depending on the mode, some settings
can be changed. For details on the functions
that can be adjusted, see “Menus for Shooting
Functions” on page 27.
Using the best mode for the
shooting scene (smode)
1Set the mode dial to s.
PORTRAIT
SET
OK
MENU
EXIT
An explanation of the selected mode is displayed
while the Ebutton is pressed and held.
2Use AB to select the best
shooting mode for the scene, and
press the obutton.
12 M
4
IN
N ORM
Icon indicating
the scene mode
that is set
To change to another scene mode, use the
menu. [Os] (p. 31)
To take underwater photos
Select [TUNDERWATER SNAPSHOT],
[kUNDERWATER WIDE1],
[lUNDERWATER WIDE2]*1,
[HUNDERWATER MACRO].
*1 When set to [lUNDERWATER WIDE2],
the focus distance is automatically fixed to
approx. 5.0 m (16.4 ft.).
Be sure to use an underwater case when
using the camera at depths exceeding 3 m
(9.8 ft.).
●
Using Shooting Modes

19 EN
2Point the camera toward the
subject. Check the frame appearing
around the face detected by the
camera, and then press the shutter
button to take the picture.
The unedited image and edited image are both
saved.
If the image cannot be retouched, only the
unedited image is saved.
For some subjects, the frame may not
appear, may take some time to appear, or
the editing may not be effective.
The [IMAGE SIZE] of the retouched image
is limited to [J] or lower.
Shooting with automatic
settings (Amode)
The camera will automatically select the optimal
shooting mode for the scene. This is a fully
automatic mode that allows you to take a picture
suited to the scene by simply pressing the
shutter button. Settings in the shooting function
menu are not available in Amode.
1Set the mode dial to A.
12 M
4
IN
N ORM
i AUTO
The indicator changes to
the icon for the scene mode
selected by the camera.
Press the shutter button halfway down or press the
gbutton to check which shooting mode the
camera has automatically selected.
In some cases, the camera may not select
the desired shooting mode.
When the camera cannot identify which is
the optimal mode, Pmode will be selected.
●
●
●
Shooting movies (nmode)
Audio is recorded with the movie.
1Set the mode dial to n.
00:35
00:35
QVGA
QVGA
15
15
IN
Amode indicator
To zoom while shooting a movie
The optical zoom is not available while
shooting a movie.
Use [DIGITAL ZOOM] (p. 29).
To shoot a movie with digital image
stabilization
[DIS MOVIE MODE] (p. 30)
2Press the shutter button halfway
down to focus on the subject, and
gently press the button all the way
down to start recording.
Press halfway
Press fully
00:34
00:34
REC
REC
Lights red during shooting
Remaining recording time (p. 64)
3Gently press the shutter button all
the way down to stop recording.

20 EN
The zoom bar appearance identifies the
status of the fine zoom/digital zoom.
Fine zoom range
Digital zoom range
When using
optical zoom
When using
fine zoom
When using
digital zoom
Optical zoom range
Using the flash
The flash functions can be selected to best
match the shooting conditions and render the
desired image.
1Press the #button.
You can operate the camera by tapping the
body when [TAP CONTROL] is [ON].
[TAP CONTROL] (p. 46)
P
OKOK
AUTO
SET
FLASH AUTO
AUTO
!#$
In addition to the wide variety of shooting modes,
the camera has functions that broaden the
expressive range and shooting options available
to the photographer.
Using the optical zoom
Pressing the zoom button adjusts the shooting
range.
Pressing the wide (W)
button Pressing the telephoto (T) button
12 M
P
4
IN
N ORM
12 M
P
4
IN
N ORM
W T
W T
Zoom bar
Optical zoom: 3.6×, Digital zoom: 5.0×.
Use of [IMAGE STABILIZER] (Still images)/
[DIS MOVIE MODE] (Movies) (p. 30) is
recommended when shooting with the
telephoto zoom.
To take larger images without reducing
image quality
[FINE ZOOM] (p. 29)
To take larger images
[DIGITAL ZOOM] (p. 29)
Using Shooting Functions
