Omcan Cm-cn-0002-d User manual

Revised - 03/10/2022

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Commercial Coee Brewers

Models CM-CN-0002-D, 0002-A, 0002-T

Items 44313, 44314, 44315

Instruction Manual

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

-------------------------------------------------------------------------- 6

-------------------------------------------------------------------------------------------- 6

--------------------------------------------------------------------------------------------- 7

------------------------------------------------------------------------------------ 8 - 9

---------------------------------------------------------------------------- 10 - 13

---------------------------------------------------------------------- 14 - 15

------------------------------------------------------------------------------------------- 16 - 18

---------------------------------------------------------------------------- 19

Table of Contents

Section

General Information

Safety and Warranty

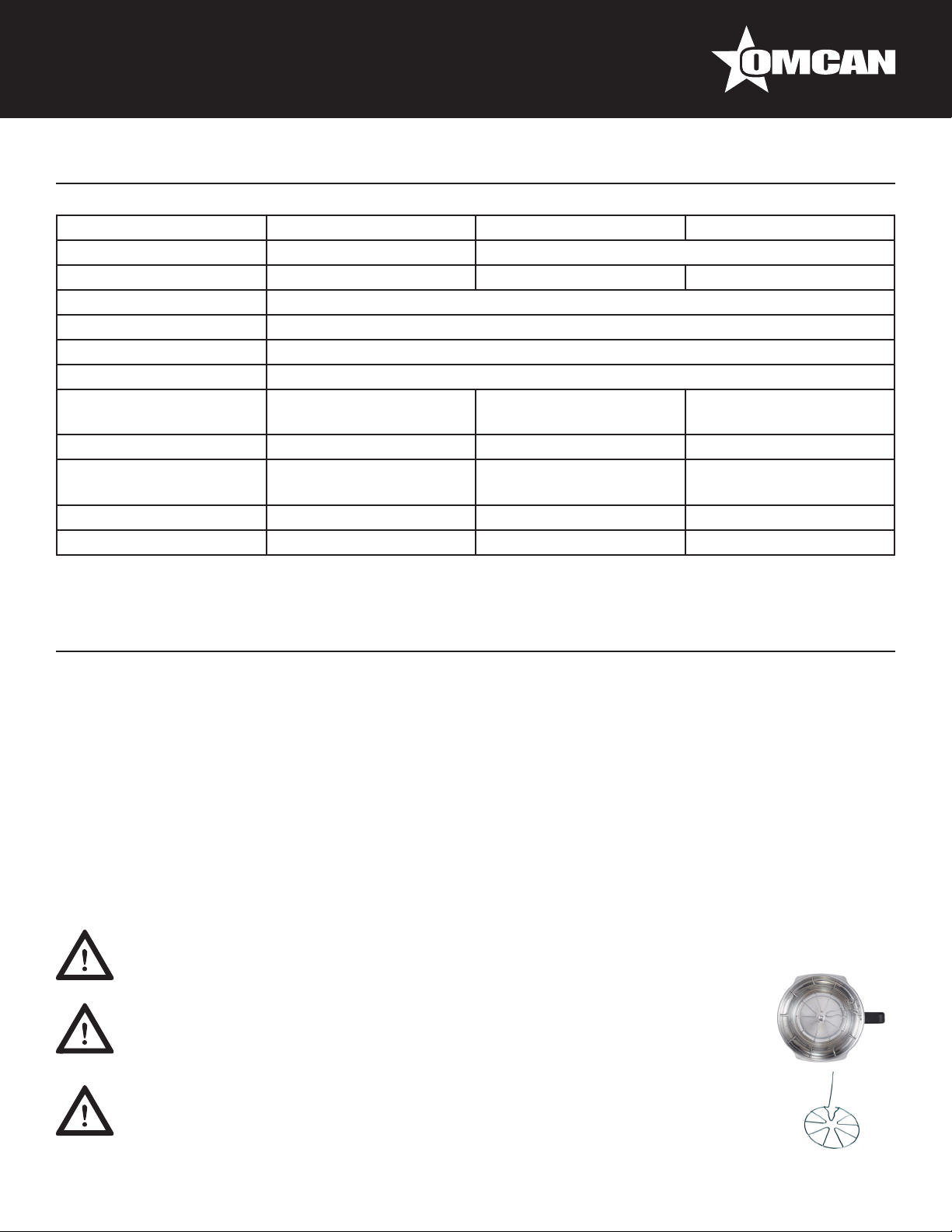

Technical Specications

Installation

Operation

Maintenance

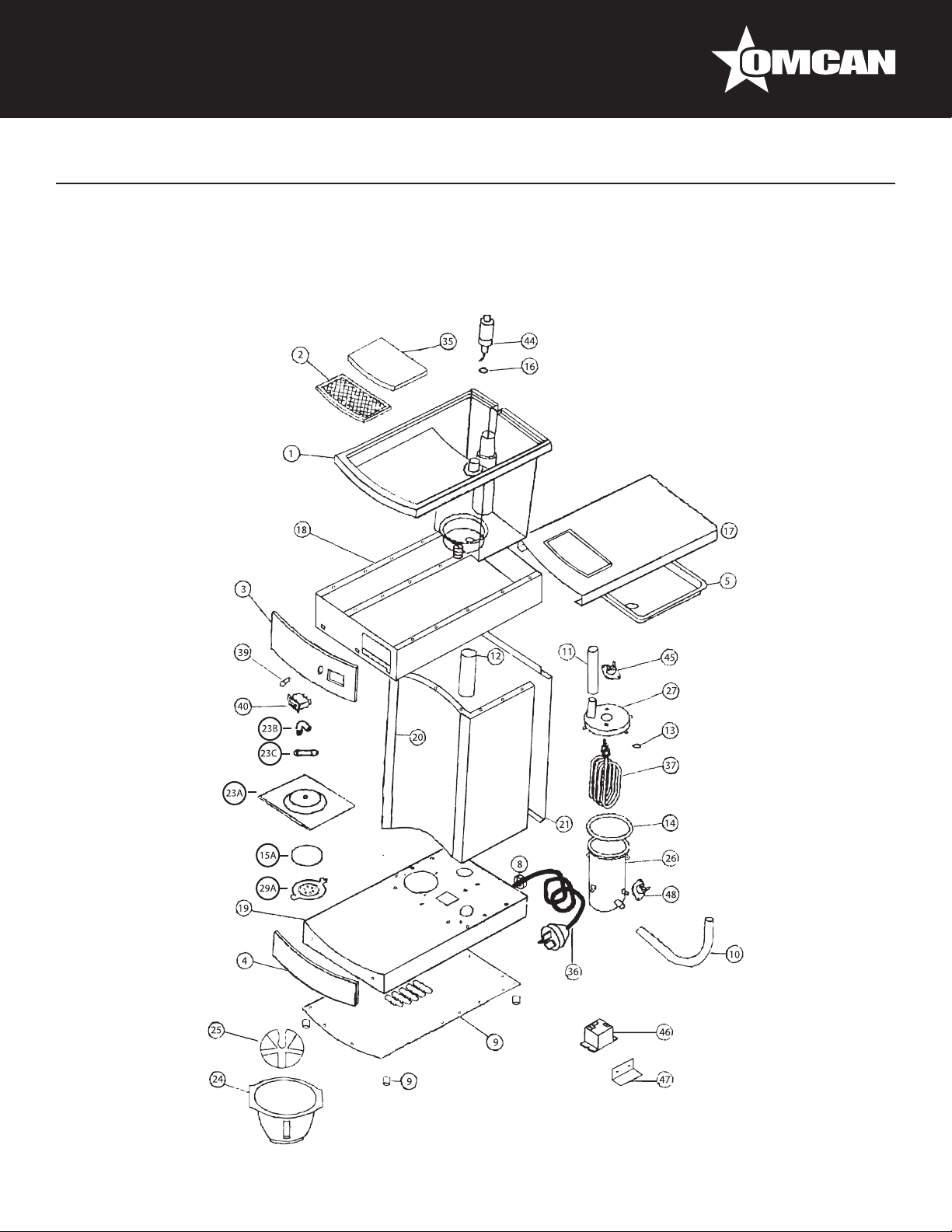

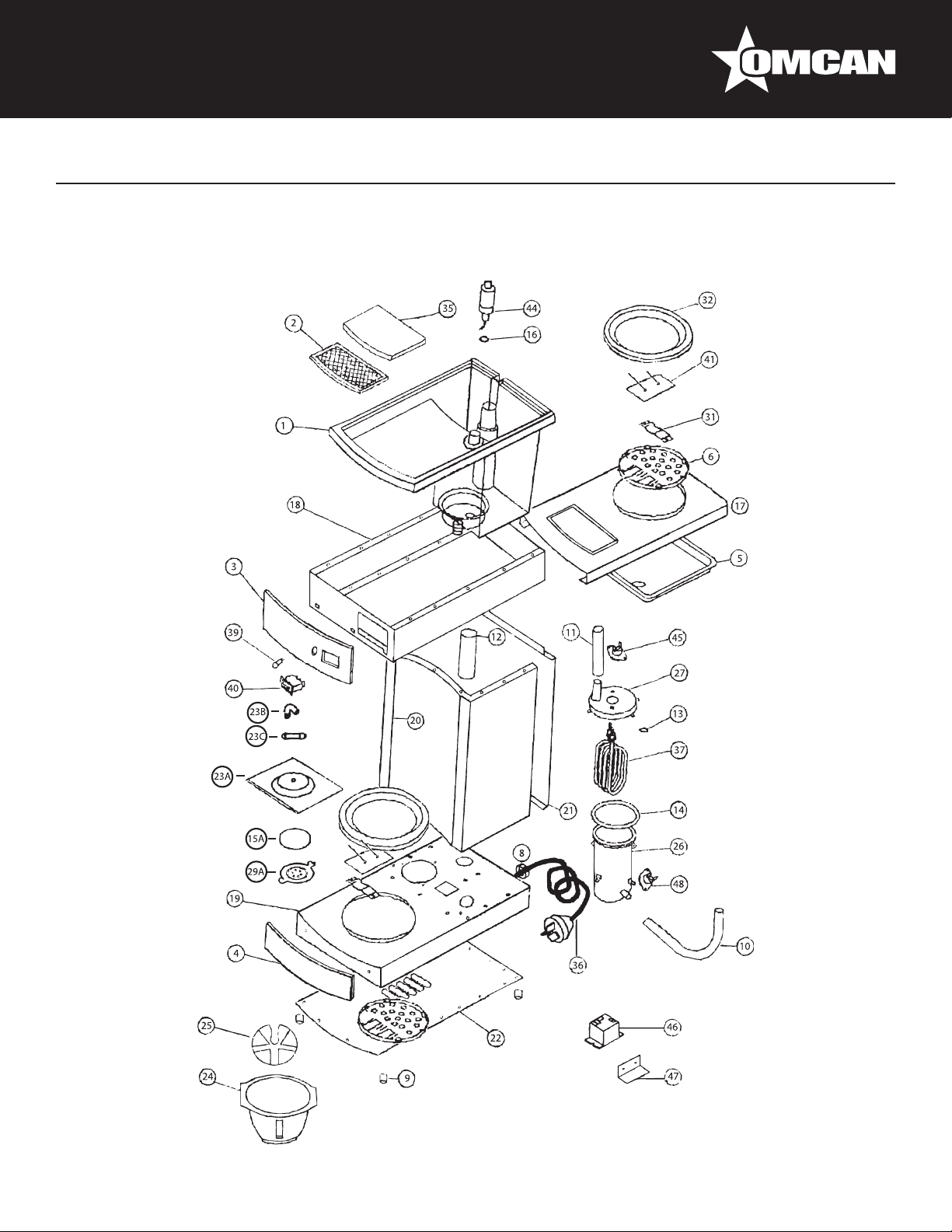

Parts Breakdown

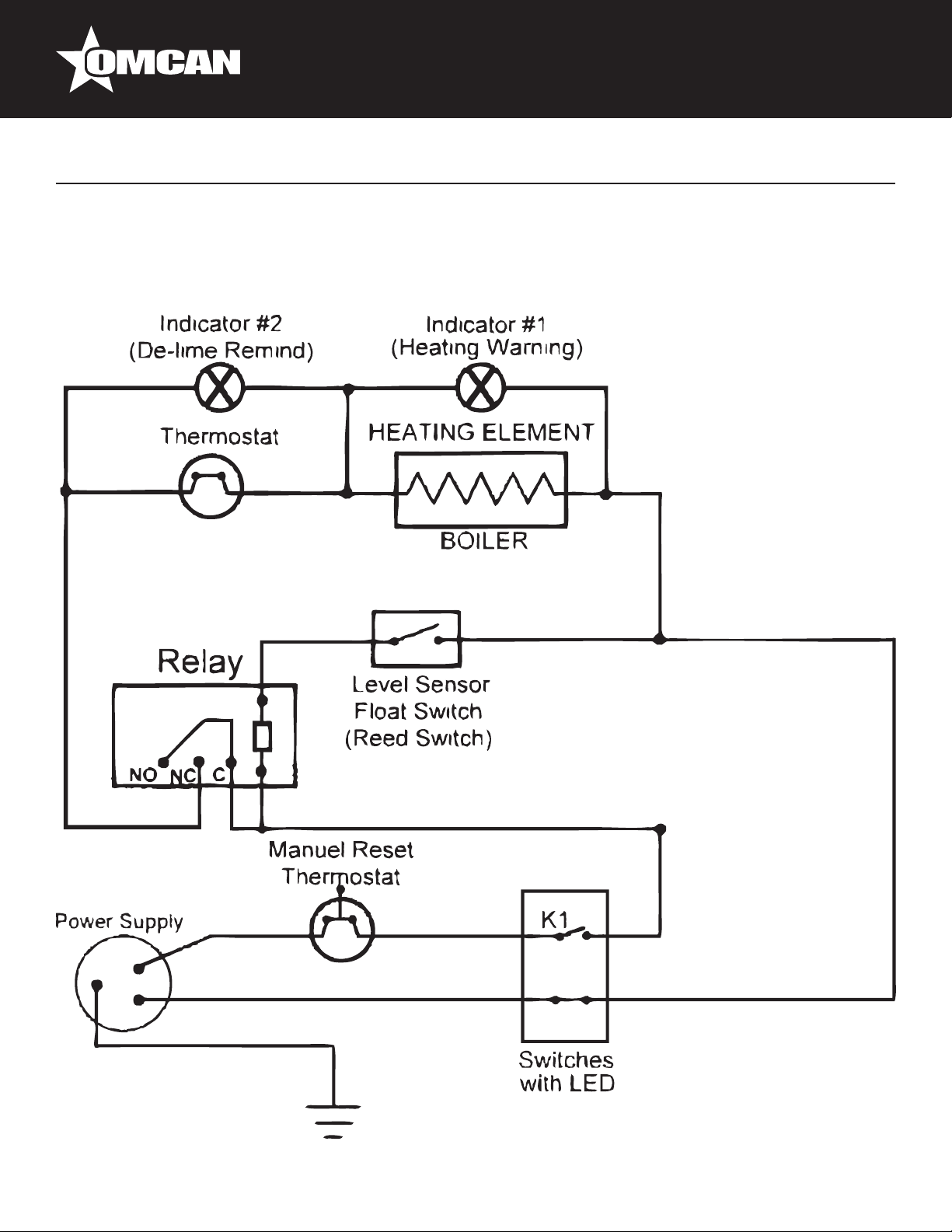

Electrical Schematics

Notes

Warranty Registration

Model CM-CN-0002-D / Model CM-CN-0002-A / Model CM-CN-0002-T

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

General Information

Safety and Warranty

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

WARNING

The following warnings and precautions must be observed.

• Never immerse the machine in the water. If the machine has been soaked, it must be dried and checked by

specialist before using it again.

• Never pour hot water into the Water Reservoir.

• Never pour more than 2.2 liter of water into the Water Reservoir.

5

Safety and Warranty

• When working, the unit has to be placed in a horizontal position.

• Unit only suitable for indoor and countertop to use.

• Before installation, you should conrm the rating plate on the machine is suitable for your electric outlet.

• When the machine is in use, some parts of the machine are very hot. Ensure the power cord does not

touch the hot parts. The use should also be careful not to touch the hot parts.

• Remain in the vicinity of the machine while machine is in operation.

• Don’t disconnect appliance with wet hands and Don’t pull the supply cord.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

qualied persons in order to avoid a hazard.

• Please stop to use unit when power cord damaged, the power cord should be replaced by qualied person

with specied type, please contact with the service agent or the Sales Rep. of distributor.

• In the following pages, all the important items are marked by to attract your attention.

Disclaimer: The Manufacturer will accept no liability for any injury or damage caused by

incorrect usage of the machine or by improper operation contrary to information given in this

Instruction Manual.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure

or other damages resulting from installation in non-commercial or residential applications. The right

is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as

possible.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop o󰀨 to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without di󰀩culty.

In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

6

Technical Specications

Installation

Model CM-CN-0002-D CM-CN-0002-A CM-CN-0002-T

Power 1650W 1450W

Tank Capacity 1.8L - Glass Decanter(x2) 2L - Air Pot 2L - Thermal Carafe

Cups per Hour up to 100 Cups per Hour

Brewing Time 5 minutes per Jug

Brewing Temperature 93 - 96°C / 199.4 - 204.8°F

Electrical 120V / 60hZ

Dimensions 14.4” x 7.7” x 17.5”

365 x 195 x 445mm

14.4” x 7.7” x 21.9”

365 x 195 x 555mm

14.4” x 7.7” x 18.5”

365 x 195 x 470mm

Weight 17.4 lbs. / 7.9 kgs. 15.8 lbs. / 7.2 kgs. 18.7 lbs. / 8.5 kgs.

Packaging Dimensions 18” x 9.4” x 19.7”

457 x 239 x 500mm

20” x 11” x 25”

508 x 279 x 635mm

18.3” x 9.8” x 20”

465 x 250 x 508mm

Packaging Weight 17.4 lbs. / 7.9 kgs. 18.5 lbs. / 8.4 kgs. 21.4 lbs. / 9.7 kgs.

Item Number 44313 44314 44315

1. Place the machine on a rm and horizontal table.

2. Wedge the spring well and slide the lter pan into position of machine.

3. Pour of cold water (no more then 2.2 liter / 2.3QT) into the water reservoir, wait for 1 minute for water to

force the air out of the machine.

4. Place an empty glass decanter, vacuum pot or thermos at correct position under the lter pan.

5. Turn the switch ON and the “Brewing” indicator lights up.

6. HOT WATER starts to ow into glass decanter, vacuum pot or thermos.

7. 4-5 minutes later, the “Brewing” indicator will turn o󰀨; the brewing process has ended.

8. You should repeat the above process 2 to 3 times to clean the internal parts of the machine before brewing

co󰀨ee for rst time.

9. During above operation, it is normal to hear some hissing and sounds of water and to see some water

vapor coming out.

DO NOT pour hot water into the reservoir.

The ring spring must always wedge well on the bottom of lter pan. Otherwise

co󰀨ee will overow from the lter pan.

The spring may loss its elastic after used for awhile. To expand it little bit, than it

can be resume again.

7

Operation

1. Assembly the lter pan and put appropriate amount of co󰀨ee on a lter paper

(between 50-60g).

2. Slide the lter pan into position.

3. Pour a pot of cool water into the water tank.

4. Place an empty decanter or pots at the correct position under lter pan.

5. Switch the power ON, the “Brewing” indicator lights up; a process of brewing

has begun.

6. Co󰀨ee start ows into the decanter or pots.

7. When “Brewing” indicator lights turn o󰀨, there is no more co󰀨ee ows out from

the unit; a brewing cycle has completed.

8. The warmer on the base will continue to heat up, until the user turn the switch

o󰀨.

9. For the unit without warmers, please turn power OFF, and lock the cap of pot

or thermos. A pot of co󰀨ee can now be served.

10. Although the machine has an overow pipe in the reservoir, just in case the

amount of water in reservoir exceeds; the user still should be careful not let the

water exceeds 2.2 liter (2.3 QT) in order to avoid over ow.

11. Since there is always some remaining water in the hoses or boiler of the

machine; if the machine will not be used for some time, or if the machine

needs to be removed, please pour out the remaining water and clean it before

storage.

12. When the machine is to be used again after a long period, please repeat steps

of installation.

13. If the machine is not to be used for a short time, please clean the machine with fresh water before using

again.

14. When the warning indicator lights up, it reminds the user to de-scale in time.

Caution! Remove the brew chamber carefully and slowly when it hot!

Caution! Hot Surface!

DO NOT keep EMPTY decanter on warming plate.

8

Maintenance

CLEANING

It is important for the machine and its accessories be kept clean after using.

• Unplug the co󰀨ee maker and allow to cool.

• Wipe all external surfaces including the hotplate with a damp cloth and dry thoroughly.

• The glass jug, pots and lter basket should be washed in warm soapy water than rinse and dry all parts

thoroughly.

No parts are suitable for cleaning in a dishwasher.

Never use harsh or abrasive cleaners.

DE-SEDIMENTS

If you operate in a hard water area, we recommend to de-scaling at regular intervals, e.g. every 2-3 months or

as required.

If the brewing cycle takes time longer than usual, or the steam condition is bigger than normally, it is a signal

that de-scale is necessary.

• Add 300 ml fresh lemon juice or condensed lemon juice to 1 liter of warm water (below 50°C).

• Slide lter pan and place an empty decanter or receptacles at the correct position under the lter pan.

• Pour solution of lemon juice into water reservoir and turn the switch ON.

• Some of hot water will drop into the decanter or receptacles until the solution of lemon juice push out the

waters remained in the machine. When there are some solutions of lemon juice drop into the decanter or

receptacles, then turn the switch OFF.

• Wait for 5~6 minutes to enable the rest of solution to run through with sediments, then turn the switch ON

again.

• When the indicator lights o󰀨, set switch OFF and ush the solution away.

• Since some solution will still remain in the machine, we must run brewing process several times, until there

is no more smell of lemon juice in the hot water which ow out from the machine.

• The machine is ready for service again.

Failure to de-scale will invalidate your guarantee.

RE-SETTING

In case, if the brew cycle fails to operate switch the appliance o󰀨 and unplug

from the power supply. Remove the rear cover and check to see if you can

press the button down on the side of the boiler. If the button presses down

and clicks, then descale the unit before next operation. If problem persists,

then contact Omcan.

9

Maintenance

Pour out water remained inside of machine before stock or remove.

10

Parts Breakdown

Model CM-CN-0002-D 44313

11

Parts Breakdown

Model CM-CN-0002-D 44313

Item

No. Description Position Item

No. Description Position

67725 Reservoir for 44313 1 67741 Upper Cover for 44313 17 67756 Warming Plate for 44313 32

67726 Grill Reservoir for 44313 2 67742 Upper Frame for 44313 18 67757 Lid of Reservoir for 44313 35

67727 Indicate Panel for 44313 3 67743 Base Frame for 44313 19 67758 Power Cable and Cord for 44313 36

67728 Lower Panel for 44313 4 67744 Body Frame for 44313 20 67759 Heating Element for 44313 37

67729 Plastic Mist Partition for 44313 5 67745 Rear Frame for 44313 21 67760 Indication Lamp Red for 44313 39

67730 Stainless Steel Mist Partition for 44313 5 67746 Bottom Cover for 44313 22 68297 Indication Lamp Green for 44313 39

67731 Fever Partition for 44313 6 AJ483 Sprinkler Plate for 44313 23A 67761 Power Switch Twin for 44313 40

67772 Warming Plate Complete Set for 44313 6, 32, 41 AJ481 Sprinkler Water Out Tube for 44313 23B 67762 Power Switch Single for 44313 40

67732 Power Cable Protector (Wire Clip)

for 44313 8 AJ482 Stainless Steel Connected Tube for

44313 23C 67763 Mica Warmer Plate 230V 80W for

44313 41

67733 Bottom Heel for 44313 9 67748 Stainless Steel Filter Pan for 44313 24 67764 Float Switch for 44313 44

67734 Silicon Pipe Water In for 44313 10 67771 Filter Pan and Spring Complete Set

for 44313 24, 25 67765 Float Switch for Auto Serial for 44313 44

67736 Spillway Tube (Reservoir) for 44313 12 67749 New Spring for 44313 25 67766 Thermostat Auto 105 Degrees C

for 44313 45

67737 Sealing Washer of Heater for 44313 13 67750 Boiler Tank for 44313 26 67767 Thermostat Manual 145 Degrees C

for 44313 48

67770 Boiler Tank Complete Set for 44313 13, 14, 26, 27,

38, 48 67751 Lid Boiler for 44313 27 67768 Relay for 44313 46

67738 Sealing Washer of Boiler for 44313 14 AJ485 Sprinkler Cover (6 Holes) for 44313 29A 67769 Relay Holder for 44313 47

AJ484 Sealing Washer of Sprinkler for 44313 15A 67754 Support Frame for 44313 30

67740 Sealing Washer of Float for 44313 16 67755 Mica Warmer Plate Holder for 44313 31

12

Parts Breakdown

Model CM-CN-0002-A 44314

Model CM-CN-0002-T 44315

13

Parts Breakdown

Model CM-CN-0002-A 44314

Model CM-CN-0002-T 44315

Item

No. Description Position Item

No. Description Position

67725 Reservoir for 44314, 44315 1 67741 Upper Cover for 44314, 44315 17 67754 Support Frame for 44314, 44315 30

67726 Grill Reservoir for 44314, 44315 2 67742 Upper Frame for 44314, 44315 18 67757 Lid of Reservoir for 44314, 44315 35

67727 Indicate Panel for 44314, 44315 3 67743 Base Frame for 44314, 44315 19 67758 Power Cable and Cord for 44314,

44315 36

67728 Lower Panel for 44314, 44315 4 67744 Body Frame for 44314, 44315 20 67759 Heating Element for 44314, 44315 37

67729 Plastic Mist Partition for 44314, 44315 5 67745 Rear Frame for 44314, 44315 21 67760 Indication Lamp Red for 44314,

44315 39

67730 Stainless Steel Mist Partition for 44314,

44315 5 67746 Bottom Cover for 44314, 44315 22 68297 Indication Lamp Green for 44314,

44315 39

67732 Power Cable Protector (Wire Clip) for

44314, 44315 8 AJ483 Sprinkler Plate for 44314, 44315 23A 67761 Power Switch Twin for 44314, 44315 40

67733 Bottom Heel for 44314, 44315 9 AJ481 Sprinkler Water Out Tube for 44314,

44315 23B 67762 Power Switch Single for 44314,

44315 40

67734 Silicon Pipe Water In for 44314, 44315 10 AJ482 Stainless Steel Connected Tube for

44314, 44315 23C 67764 Float Switch for 44314, 44315 44

67736 Spillway Tube (Reservoir) for 44314,

44315 12 67748 Stainless Steel Filter Pan for 44314,

44315 24 67765 Float Switch for Auto Serial for 44314,

44315 44

67737 Sealing Washer of Heater for 44314,

44315 13 67771 Filter Pan and Spring Complete Set for

44314, 44315 24, 25 67766 Thermostat Auto 105 Degrees C for

44314, 44315 45

67770 Boiler Tank Complete Set for 44314,

44315

13, 14, 26, 27,

38, 48 67749 New Spring for 44314, 44315 25 67767 Thermostat Manual 145 Degrees C

for 44314, 44315 48

67738 Sealing Washer of Boiler for 44314,

44315 14 67750 Boiler Tank for 44314, 44315 26 67768 Relay for 44314, 44315 46

AJ484 Sealing Washer of Sprinkler for 44314,

44315 15A 67751 Lid Boiler for 44314, 44315 27 67769 Relay Holder for 44314, 44315 47

67740 Sealing Washer of Float for 44314,

44315 16 AJ485 Sprinkler Cover (6 Holes) for 44314,

44315 29A

14

Electrical Schematics

Model CM-CN-0002-D 44313

15

Electrical Schematics

Model CM-CN-0002-A 44314

Model CM-CN-0002-T 44315

16

Notes

________________________________________________________________________________________

17

Notes

________________________________________________________________________________________

18

Notes

________________________________________________________________________________________

19

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour di󰀨usion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

https://omcan.com/warranty-registration/

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 6,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 6500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 6,500 productos con origen a nivel mundial.

Omcan CM-CN-0002-D User manual

Popular Coffee Maker manuals by other brands
