OMEGA AIR WFIf User manual

Omega Air User Manual Filter Housing WFIf v1.30 eng
Installation and operating manual
WFIf
Please read the following instructions carefully before installing filter housing unit into service. Trouble
free and safe operating of the unit can only be guaranteed if recommendations and conditions stated in
this manual are respected.

WFIf - Installation and operating manual
2

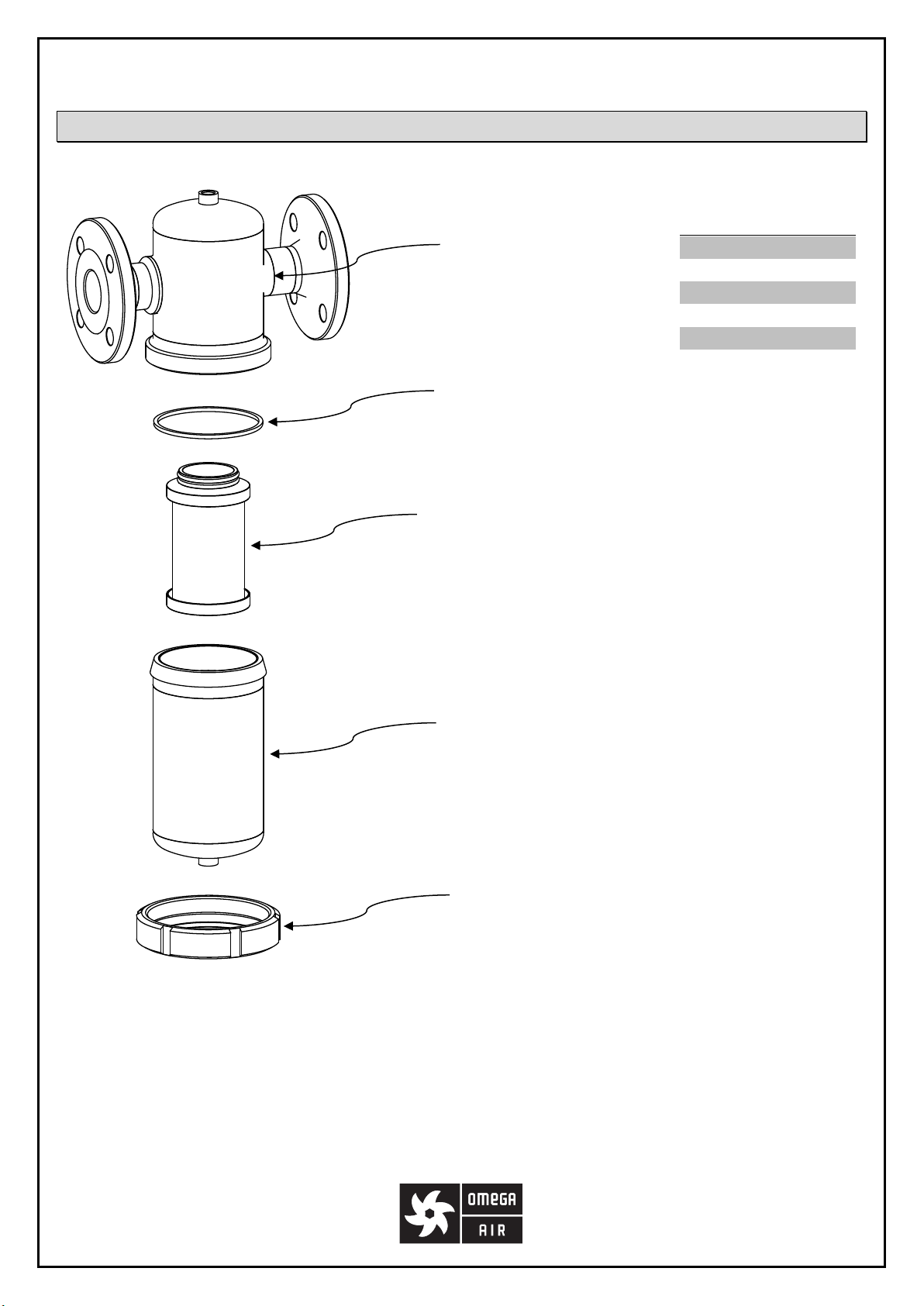

Components
Part
1
Filter head
2
Sealing
3
Filter element
4
Filter bowl
5
Nut
3
2
1
4
5

WFIf - Installation and operating manual
3
Technical data
FILTER
HOUSING
PIPE
SIZE-D
[inch]
FILTER
ELEMENT
OPERATING
PRESSURE
FLOW CAPACITY
DIMENSIONS [mm]
VOLUME
[l]
WEIGHT
[kg]
[Nm3/h]
[scfm]
A
B
B*
C
E
WFIF 010
DN15
1X0420
14
150
88
230
195
217
76,1
1/2”
0,84
3,5
WFIF 018
DN20
1X0520
14
225
132
263
201
219
76,1
1/2”
0,93
4,3
WFIF 030
DN25
1X0525
14
315
185
279
216
244
88,9
1/2”
1,4
5,7
WFIF 047
DN32
1X0725
14
420
247
343
235
267
88,9
1/2”
1,74
6,6
WFIF 070
DN40
1X0730
14
600
353
391
260
290
114,3
1/2”
3,4
8,0
WFIF 094
DN50
1X1030
14
900
530
444
270
304
114,3
1/2”
4,1
9,8
WFIF 150
DN50
1X1530
14
1260
742
571
270
304
114,3
1/2”
5,3
11,0
WFIF 175
DN65
1X2030
14
1680
989
752
295
340
139,7
1/2”
10,2
14,2
WFIF 200
DN80
1X3030
14
2400
1.413
978
306
340
139,7
1/2”
14
21,2
WFIF 240
DN80
1X3050
14
3600
2.119
1041
332
368
168,3
1/2”
21
22,9
WFIF 450
DN100
3X2030
10
5040
2.966
981
410
/
219,1
1”
36
55
WFIF 600
DN100
3X3030
10
6720
3.955
1288
410
456
219,1
1”
43
64
WFIF 900
DN150
4X3030
10
9600
5.650
1310
480
/
273,0
1”
77
87
WFIF 1200
DN150
6X3030
10
13440
7.910
1351
540
598
323,9
1”
104
110
WFIF 1800
DN200
8X3030
10
17280
10.171
1496
660
/
406,4
1”
180
200
WFIF 2000
DN200
10X3030
10
21120
12.431
1496
660
/
406,4
1”
180
200
B = flange connection EN 1092-1/11 PN16
B* = flange connection ANSI B16.5 WN Cl 150
Flow capacity at 7 bar(g), 20°C
MATERIALS
CORRECTION FACTORS
To calculate the correct capacity of a given filter based on actual operating
conditions, multiply the nominal flow capacity by the appropriate correction
factor(s).
CORRECTED CAPACITY = NOMINAL FLOW CAPACITY x COP
[bar]
2
3
4
5
6
7
8
9
10
11
12
13
14
[psi]
29
44
58
72
87
100
115
130
145
160
174
189
203
COP
0,38
0,5
0,63
0,75
0,88
1
1,13
1,25
1,38
1,50
1,63
1,75
1,88
* Actual operating temperature depends on sealing material and type of filter element.
Housing material
Stainless steel
Sealing
FKM
Housing finishes
Polished down to grade Ra1.6
Lubricant
(Optional Shell cassida grease RLS 2)
Operating temperature
-20 / + 150 °C *
-4 / + 302 °F *
Operating pressure
0 –14 bar(g)
0 –203 psi
A
B
ØC
E
E

WFIf - Installation and operating manual
4
PRESSURE EQUIPMENT DIRECTIVE PED 2014/68/EU (Fluid group 1)
WFIf 010 - 047
Article 4.3
WFIf 070
Category 1, Module A
WFIf 094 - 200
Category 2, Module H
WFIf 240- 900
Category 3, Module H
WFIf 1200- 2000
Category 4, Module H1
PRESSURE EQUIPMENT DIRECTIVE PED 2014/68/EU (Fluid group 2)
WFIF 010 - 070
Article 4.3
WFIF 094 - 200
Category 1, Module A
WFIF 240 - 600
Category 2, Module H
WFIF 900- 2000
Category 3, Module H
There is Technical datasheet available. For additional technical specification, contact manufacturer.

WFIf - Installation and operating manual
5
Safety instructions
The relevant safety at work and accident prevention regulations, plus operating instructions, shall apply
for operating the filter. The filter has been constructed in accordance with the generally recognized
rules of engineering. It complies with the requirements of directive 2014/68/EU concerning pressure
equipment.
Ensure that installation complies with local laws for operation and routine testing of pressure
equipment at the place of installation.
Operator/user of the filter should make himself familiar with the function, installation and start-up of
the unit. All the safety information is always intended to ensure your personal safety.
Do not exceed max. operating pressure or operating temperature range (see data label).
The permissible working temperatures and pressures for ad-on parts and filter elements
are given under Technical data for those ad-ons. Maximum temperature and pressure for
assembled system is the lowest of any individual part.
It is necessary to ensure that the unit is equipped with the corresponding safety and test
devices to prevent the permissible operating parameters from being exceeded.
Filter has been designed for a primarily static pressure. Rapid changes of pressure are not
allowed.
The medium used may not have any corrosive components that could attack the
materials of the filter in a way that is not permitted. Do not use the filter in hazardous
areas with potentially explosive atmospheres.
All installation and maintenance work on the filter may only be carried out by trained and
experienced specialists.
It is forbidden to carry out any kind of work on the filter and piping, including welding and
constructional changes, etc.
A pressure gauge, which shows the operational pressure, must be installed in the unit,
respectively in the pipeline.
Depressurize the system before carrying out the installation work. The unit must be
installed vertically in the piping.
Ensure that filter is installed without any stresses.
Use original spare parts only.
Use the device for appropriate purpose only.
There shouldn’t be any tension between filter and installation. Filter shouldn’t be subject
to any stress, vibration or other influence that could cause damage to the unit.

WFIf - Installation and operating manual
6
Appropriate use
WFIf series filters are intended for applications in process industry, where the risk for
corrosion of compressed air system components is very high. This appliance must be used
only for the purpose for which it was specifically designed. All other uses are to be
considered incorrect.
Specifically:
filter is not intended for human breathing without proper additional equipment.
Warning: internal corrosion can seriously reduce the safety of installation: check it during changing the
cartridge.
The manufacturer will under no circumstances be responsible for any damage resulting from improper,
incorrect or unreasonable use.
Use genuine spare parts only. Any damage or malfunction caused by the use of ungenuine parts is not
covered by Warranty or Product Liability.

WFIf - Installation and operating manual
7
Installation
For oil removal, coalescing filter element must be installed. Flow direction inside-out must be provided.
1
2
3
4
5
6
7
8
9
10
11
12

WFIf - Installation and operating manual
8

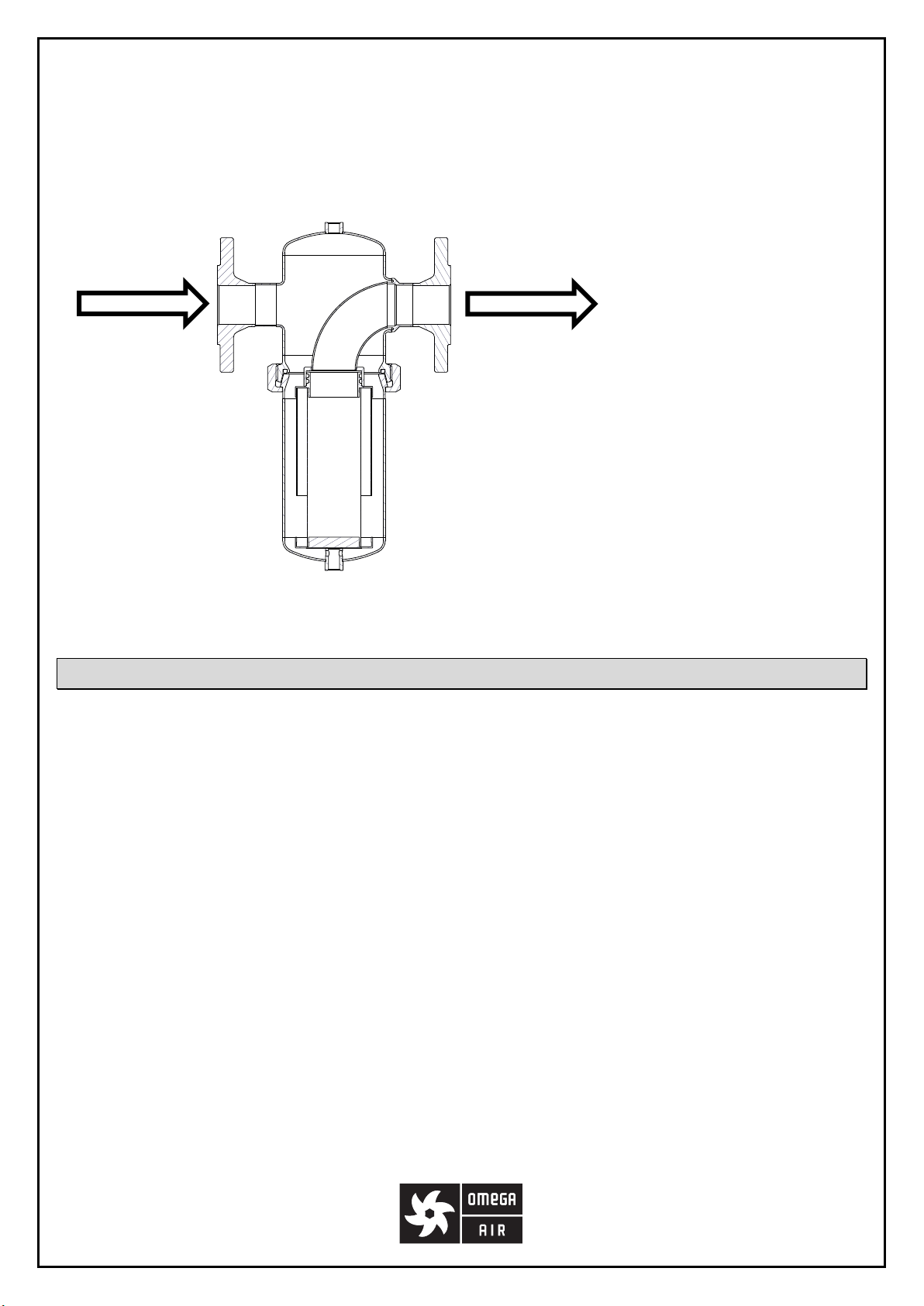

For bulk water vapour cyclonic separator must be installed. Flow direction outside-in must be provided
as shown in the picture. General arrangement is filter head on top and filter bowl on bottom.
Maintenance
Filter elements are subject to wear. In order to maintain system efficiency, optimal performance and
best air quality, these rules of proper maintenance should be followed:
PI, PN25 and PN5 filter element can be cleaned with ultrasonic bath or with back flushing.
Intervals of cleaning depend on application. If necessary replace filter element with new one.
Replace PP, PR, PM, PS filter at least element every 12 months or when pressure drop reaches
350 [mbar].
Replace PA filter element at least every 6 months.
The housing O-ring can be damaged during filter element change. To prevent air leakage and
malfunction replace housing O-ring if necessary. For replacement contact manufacturer.
Damaged components are to be replaced by new ones. If a marked degree of damage is found,
the entire filter is to be replaced.
Filter has been designed for a life of 10 years in normal operating environment. After 10 years
periodical checks of filter integrity are strongly recommended for safe operation.
Carry out a check for leaks once the maintenance work has been finished.
Cyclonic separator
Output
Input

WFIf - Installation and operating manual
9
Warranty exclusion
The guarantee shall be void if:
The operating instructions were not followed with respect to initial commissioning and
maintenance.
The unit was not operated properly and appropriately.
The unit was operated when it was clearly defective.
Non-original spare parts or replacement parts were used.
The unit was not operated within the permissible technical parameters.
Unauthorised constructional changes were made to the unit or if parts of the unit that may not
be opened were dismantled.

WFIf - Installation and operating manual
10
