MAGNETIC ROWER

2
INTRODUCTION
Thank you for purchasing the CO-R130 programmable magnetic rower. Please take
time to read these instructions which have been written to ensure that you get the very
best from your purchase.
SAFETY PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following
important precautions before using the programmable magnetic rower.
1. Use the programmable magnetic rower only in the way described in this instruction book.
2. Ensure that the voltage of the electrical supply is the same as that indicated on the rating
plate of the AC Adapter.
3. It is the responsibility of the owner to ensure that all users are adequately informed of all
precautions.
4. Use the programmable magnetic rower indoors on a level surface. Keep the programmable
magnetic rower away from excessive moisture and dust.
5. The safety level of the programmable magnetic rower can be maintained only if it is
examined regularly for damage and wear. Replace defective components immediately. If
there are any defective components, do not use the programmable magnetic rower.
6. Keep unsupervised children away from the programmable magnetic rower at all times.
7. The programmable magnetic rower should not be used by persons weighing more than
150kg or 300lb.
8. Wear appropriate clothing and athletic shoes when exercising; do not wear loose clothing
or jewelry that may get caught in moving parts.
9. Do not arch your back when using the programmable magnetic rower, always try to keep
your back straight.
10. If you feel pain or dizziness while exercising, stop immediately and cool down.
11. The programmable magnetic rower is intended for home use only.
!
OMEGA FITNESS

3
3
INTRODUCTION ...............................................................................2
SAFETY PRECAUTIONS .................................................................2
PARTS LIST .....................................................................................4
TOOLS LIST .....................................................................................5
ASSEMBLING ..................................................................................6
Left and right supports ..............................................................................6
Foot plates ................................................................................................ 8
Seat bar ..................................................................................................... 9
Seat .........................................................................................................10
Rear feet ................................................................................................. 11
Console ................................................................................................12
USING THE PROGRAMMABLE MAGNETIC ROWER ...................13
Making adjustments ................................................................................13
Storage ....................................................................................................13
Using the console .................................................................................14
AC adapter ..........................................................................................14
CONDITIONING GUIDELINES ........................................................19
TARGET HEART RATE..................................................................19
BEGINNER’S GUIDE ......................................................................20
Work-out tips ........................................................................................... 20
How to begin ...........................................................................................20
STRETCHING GUIDE .....................................................................21
SPECIFICATIONS ...........................................................................28
CONTENTS
OMEGA FITNESS

4
PARTS LIST
1 Main body
2 Left support
3 Right support
4 Front cover, top
5 Front cover, bottom
6 Foot plate with toe strap x 2
7 Spindle
8 Seat bar
10 Seat
11 Seat rollers
12 Rear feet
13 Rear cover, top
14 Rear cover, bottom
15 Console
16 Cover
9 Seat bar securing knob
17 Buttom support stand plate
OMEGA FITNESS
2
4
1
3
5
6
7
8
9
10
11
6
12
13
14
15
16
17

19
18
20
5
OMEGA FITNESS
TOOLS LIST
18 Hexagonal key
19
20
Hexagonal key
Tool

6
OMEGA FITNESS
ASSEMBLING
STEP 1 OF 6
LEFT AND RIGHT SUPPORTS
1. Slide the right support (3) into the left support (2) (fig 1).
Note: The right support (3) and left support (2) both have two round plastic feet on
2. Tilt the main body (1) forwards and secure the right support (3) and left support (2) to the
back of the main body (1) with the two bolts and curve washer provided. Leave the two
bolts loose.
FIG 1
the underside.
3
2
1
2
3
1
The screws and washers may be prefitted to the spindle.

7
ASSEMBLING
STEP 1 OF 6 (CONT’D )
LEFT AND RIGHT SUPPORTS (CONT’D)
3. Tilt the main body (1) backwards and secure the bottom support stand plate (17) with
bolts and washers provide (bolts and washers are prefitted).
4. Tilt the main body (1) backwards and secure the right support (3) and left support (2) to
the front of the main body (1) with the two bolts provided. Tighten the four bolts using the
combination tool (18).
5. Fit the front cover, top (4) to the main body (1). Fit the front cover, bottom (5) to the
underside of the main body (1), align the holes and, secure with the four screws provided
using the combination tool (20).
FIG 1 (CONT’D)
3
2
1
1
1
4
5
5
4
17
The screws and washers may be prefitted to the spindle.
OMEGA FITNESS

8
ASSEMBLING
STEP2OF6
FOOT PLATES
1. Attach the two toe strap brackets to the foot plate (6) in the appropriate position (fig 2).
2. Repeat step 1 for the other foot plate (6).
3. Adjust the toe straps.
4. Locate the spindle (7) in the main body (1).
5. Assemble the foot plates (6) on the spindle (7). The foot plates (6) are handed and should
be assembled with the flat edge inside.
6. Secure the foot plates (6) on the spindle (7) with the two screws and washers provided.
Tighten the screws using the combination tool (18).
OMEGA FITNESS
FIG 2
6
6
6
7
The screws and washers may be prefitted to the spindle.

9
9
ASSEMBLING
STEP3OF6
SEAT BAR
1. Line up the thread and corresponding hole in the seat bar location stub (A) on the main
body (1) (fig 3).
2. Fit the seat bar securing knob (9) and tighten.
Note: The seat bar securing knob (9) is loosened and tightened by turning counter
clockwise or clockwise respectively.
3. Fit the seat bar (8) to the seat bar location stub (B) on the main body (1). Secure the seat
bar (8) in place with the four screws and washers provided. Tighten the screws using the
combination tool (18).
FIG 3
The screws and washers may be prefitted to the main body.
9
1
1
1
8
8
A
B
OMEGA FITNESS

10
ASSEMBLING
STEP4OF6
SEAT
1. Position the seat (10) to the seat rollers (11) and secure in place with the four screws
provided (fig 4). Tighten the screws using the combination tool (18).
2. Fit the seat (10) and the seat roller (11) assembly onto the seat bar (8).
3. Connect the sensor cable (A) to the sensor cable (B).
FIG 4
The screws may be prefitted to the seat.
10
810
A
B
A
B
11
11
OMEGA FITNESS

11
OMEGA FITNESS
ASSEMBLING
STEP5OF6
REAR FEET
1. Fit the rear feet (12) to the seat bar (8) and secure in place with the four screws and
washers provided (fig 5). Tighten the screws using the combination tool (18).
2. Fit the rear cover, top (13) to the rear feet (12). Fit the rear cover, bottom (14) to the
underside of the rear feet (12), align the holes, and secure with the two screws provided
using the combination tool (18).
3. Fit the four end stops (A) to the seat bar (8) and tighten using the combination tool (18).
Note: There is an alternative end stop (A) position at the rear feet (12)
end of the programmable magnetic rower.
14
A
12
8
13
The screws and washers may be prefitted to the rear feet.
8
A
FIG 5
A
A

12
ASSEMBLING
STEP 6 OF 6
CONSOLE
FIG 6
1. Connect the console cable (A) to the console (15) (fig 6).
2. Position the console(15) carefully onto the bracket and secure in place with the two screws
provided. Tighten the screws using the combination tool (18) .
3. Fit the cover (16) to the underside of the console (15), align the holes and secure in place
with the four screws provided. Tighten the screws using the combination tool (18).
15
A
The screws may be prefitted to the computer.
16
OMEGA FITNESS

13
USING THE PROGRAMMABLE
MAGNETIC ROWER
MAKING ADJUSTMENTS
CONSOLE
1. The console (A) can be tilted forwards or
backwards as required.
LEVEL ADJUSTMENT
1. To level the programmable magnetic
rower, screw the adjustable pads (B), on
the rear feet, in or out accordingly.
STORAGE
WARNING: When the
programmable magnetic rower
is stored with the seat bar (8)
and rear feet (12) in the vertical
position, make sure that the
seat bar securing knob (9) is
positively located and tightened
to avoid serious injury owing to
the seat bar/rear feet falling.
To save space, the programmable magnetic
rower can be stored with the seat bar (8) and
rear feet (12) in the vertical position as shown on
the right.
1. Loosen the seat bar securing knob (9).
2. Move the seat bar (8) to the vertical
position and line up the thread and
corresponding hole in the seat bar (8)
location (A- fig 3-page 9) on the main
body (1).
3. Tighten the seat bar securing knob (9).
B
A
8
12
9
1
OMEGA FITNESS

14
USING THE CONSOLE
The programmable magnetic rower is equipped with a digital console to help you
reach your fitness goals. The console provides different programs designed to meet your
exercise requirements. In addition, the console has a wide variety of modes that enable you
to monitor your performance as you exercise.

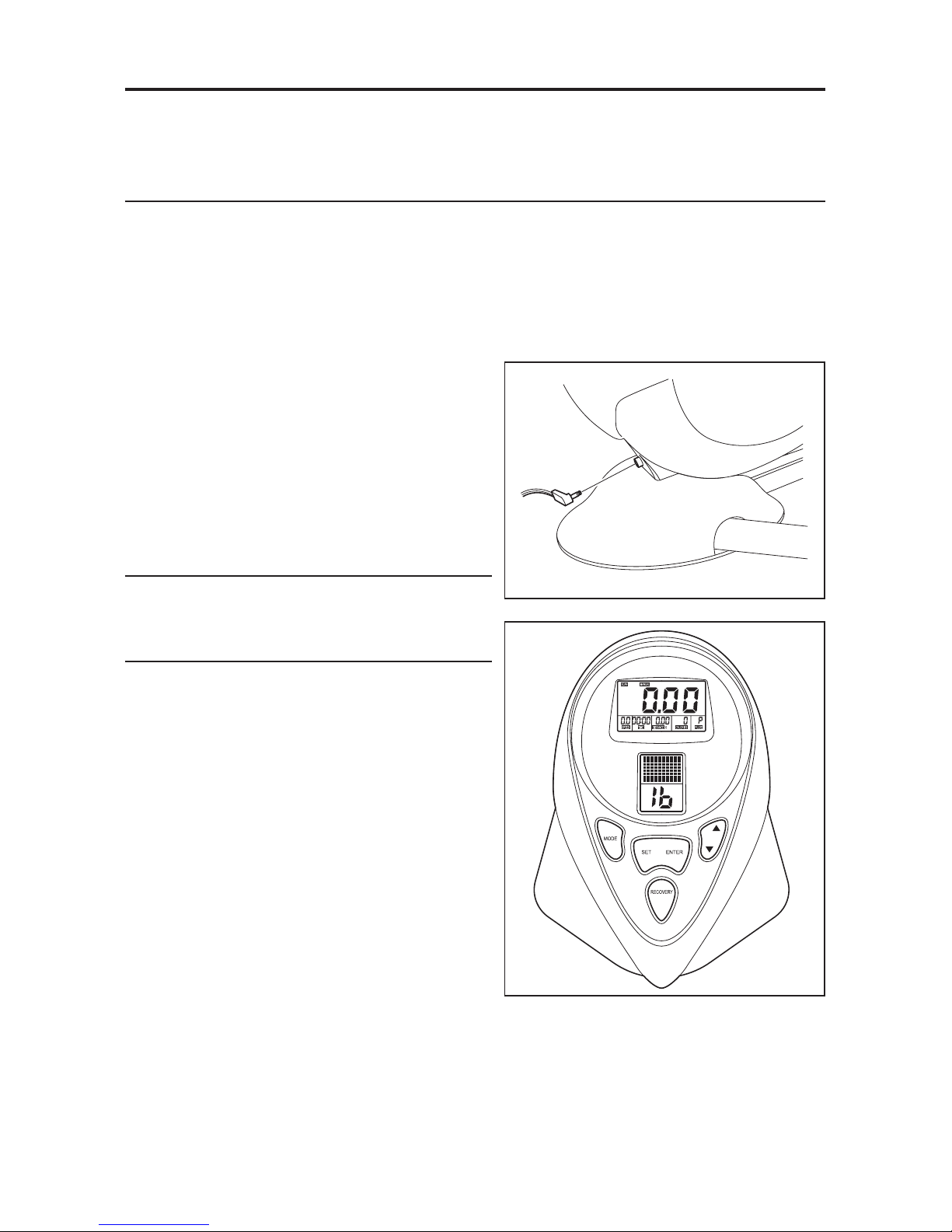

The console is powered from the AC supply
via a AC adapter.
AC ADAPTER
Plug the AC adapter lead into the DC IN jack
at the front of the programmable magnetic rower.
Connect the 2 pin plug to the AC socket and
switch on
Note: When pressed, the up and down
buttons switch between the MANUAL and
PROGRAM modes.
SWITCHING ON
• Switch on the AC supply. The console
emits a BEEP and resets itself.
SWITCHING OFF
• If the console is not used for several
minutes, it switches off automatically. Press
the MODE,SET or RECOVERY buttons to
switch the console back on again.
•To switch the console off, switch off from
the AC supply and unplug the adaptor .
TRAINING WITH NO PRESET
FUNCTION
• Switch on the console. The console
beeps. M is shown at the top of the lower display.
• Press the ENTER button to select MANUAL with no preset functions.
•The lower display shows ‘1’ and the corresponding resistance row pattern is shown. While
you are training you can change the resistance level using the UP/DOWN buttons.
USING THE PROGRAMMABLE
MAGNETIC ROWER
OMEGA FITNESS

•When you start training, the upper screen is set to SCAN mode. To select a particular
function use the MODE button. The selected display flashes at the bottom of the top display.
•To start a new training program, press the MODE button for more than 2 seconds to clear
the previous program.
TRAINING WITH MANUAL PRESET FUNCTION
• Switch on the console. The console beeps. M is shown at the top of the lower display.
• Press the ENTER button to enter the selection.
•The lower display shows ‘1’ flashing and the corresponding resistance row pattern is
shown. Press the UP button to increase the resistance level and press the ENTER button
to enter. The resistance levels go from 1 (lowest) to 16 (highest).
•The TIME on the upper display flashes. Press the MODE button until the parameter you
wish to enter (Calories, Pulse or Count) flashes at the bottom of the upper display. Press
the UP/DOWN buttons to set the required value. Press the MODE button to move to the
next function.
Note: The Pulse mode is not applicable to this programmable magnetic rower.
•To start training, press the SET button. The preset functions count down from the preset
(time) or up from zero (count and calories).
•During training, pressing the UP/DOWN buttons changes the resistance level.
•During training, you can stop at any time by pressing the SET button. When a preset target
is reached, the console beeps and a flashing Pappears in the top left hand corner of the
upper display. The display stops. The manual preset functions show the accumulated data
for the session. The preset function returns to its preset value.
•You can use the same preset function again by pressing the SET button or you can press
the MODE button to select a function to set a new preset value.
USING THE PROGRAMMABLE
MAGNETIC ROWER
15
/-%'!&ITNESS

16
TRAINING WITH PROGRAM FUNCTION
• Switch on the console. The console beeps. M is shown at the top of the lower display.
• Press the MODE button for 2 seconds to clear the previous program.
• Press the UP/DOWN button to select ‘P’ and press the ENTER button to enter.
• The lower display flashes ‘P1’ and the corresponding pre-programmed resistance row
pattern is shown. Press the UP/DOWN buttons to select a program profile between 1
and 10.
•The TIME on the upper display flashes. Press the MODE button until the parameter you
wish to enter (Calories, Pulse or Count) flashes at the bottom of the upper display. Press
the UP/DOWN buttons to set the required value. Press the MODE button to move to the
next function.
Note: The Pulse mode is not applicable to this programmable magnetic rower.
• To start training, press the SET button. The preset functions count down from the preset
(time) or up from zero (count and calories).
• During training, pressing the UP/DOWN button changes the resistance level.
• During training you can stop at any time by pressing the SET button. When a preset target
is reached the console beeps and a flashing P appears in the top left hand corner of the
upper display. The display stops. The non preset functions show the accumulated data for
the session. The preset function returns to its preset value
.• You can use the same preset function again by pressing the SET button or you can press
the MODE button to select a function to set a new preset value.
• To clear the program, press the MODE button for 3 seconds, the console beeps and you
can return to the initial display with the TIME flashing.
USING THE PROGRAMMABLE
MAGNETIC ROWER
/-%'!&ITNESS

17
FUNCTION BUTTON
MODE
• To have each function of count, Time, Total count, Calories display on the LCD or for
presetting the target.
SET
• To preset functions of Count, Time, Calorie to the target.
ENTER
• To enter program presetting datas, or hold on pressing the button to reset the training
profiles under STOP MODE.
UP
• To UP-ADJUST load (level) of training resistance ofr select the program.
MAGNETIC ROWER
SELECTING MODES
The computer’s mode function enables you to monitor your performance as you exercise and
input values for specific exercise parameters.
• Press the MODE button to display the following modes. The mode name flashes on
the display to indicate that it is the selected mode.
• If not already selected, press the MODE button until SCAN appears on the display, to
scan the modes automatically as you exercise.
DOWN
• To DOWN-ADJUST load (level) of training resistance or select the program.
Note: The training resistance can be adjusted any time during exercising.
SCAN
• Automatically scans LOAD function in sequence so that you can monitor your progress
without pressing the MODE button each time.
PULSE
• Not applicable to this programmable magnetic rower.
RECOVERY
• This function is not applicable to this programmable magnetic rower.
STROKE/MIN PROGRAMS
• Display the stroke per minute on the bottom LCD display when exercising.
LOAD (LEVEL)
• As soon as exercise starts, the bottom display will show the current load of training
resistance. The figure will change depends on the resistance changes of the training
profiles accordingly.
USING THE PROGRAMMABLE
/-%'!&ITNESS

18
USING THE PROGRAMMABLE
MAGNETIC ROWER
TIME
• Time mode displays the elapsed work-out time in minutes and seconds. The console
automatically counts up from 0:00 to 99:00 in one second intervals. You can set the
time to count down from a preset value to zero. Refer to ‘Training with program
function’ for how to enter preset time.
CALORIES
• Calories mode displays the estimated number of calories burned at any given time
during your work-out. The console counts up in increments of 1.0. After the console
reaches 9999, it resets to zero and starts counting up again.
• You can set the calories to count up from zero to a preset value. Refer to ‘Training with
program function’ for how to enter preset calories.
COUNT
• Count mode displays the cumulative number of strokes during each work-out. You can
set the distance to count up from zero to a preset distance. Refer to ‘Training with
program function’ for how to enter preset count.
EXPLAINING PROGRAM PROFILES
• The program profiles illustrate how the work resistance changes during the program.
The more black blocks the higher the work resistance.
• If you have a preset time target, each column of the program profile lasts for 1/10 of the
total time.
PROGRAMS
The console has manual program and three different training profiles. Please reger to
the following steps to preset the training programs:
Use UP/DOWN to select “M” (TRAINING IN MANUAL) or “P” (TRAINING IN
PROFILES), then press ENTER to start.
1. TRAINING IN MANUAL: Use UP/DOWN to select the training resistance level.
2. TRAINING IN PROFILES: Use UP/DOWN to select the training profiles.
PROFILES), then press ENTER to select.
3. Repeat the process as above to select training resistance level, after the resistance
level has been seleted, press ENTER to start training.
NOTE:
Without any signal for period of 4 minutes, the main and buttom LCD displays will
shut off automatically. All function values and training profiles will not be kept.
To restart, press MODE or SET button or start exercising. All funtions will start from
0, and training with MANUAL program as the initial mode.
•
•
When anyone of preset function values count from 0, the console alarm starts for 8
seconds.To stop the alarm, press any buttons.
/-%'!&ITNESS

19
WHY EXERCISE?
Exercise has been proven essential for good health and general wellbeing. Regular
exercise will :
•Relieve tension and stress
•Provide enjoyment and fun
•Stimulate the mind
•Help maintain stable weight
•Control appetite
•Boost self-image
•Improve muscle tone and strength
•Improve flexibility
•Lower blood pressure
•Relieve insomnia
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember that
proper nutrition and adequate rest are essential for successful results.
WARNING: Before beginning this or any exercise program, consult your
doctor. This is especially important for people over the age of 35 or those
with health problems.
TARGET HEART RATE
Note: This is a guide only and
performance will depend on
the fitness and condition
(health) of the person using
the programmable magnetic
rower.
ENOZGNINIART
EGA )MPB(XAM-NIM
02761-331
52661-231
03461-031
53261-921
04161-721
54951-521
05651-421
55551-221
06351-121
56151-911
07051-811
5
7741-711
08641-511
58441-411
/-%'!&ITNESS

20
If you’re beginning an exercise
program, you should check with your
doctor if:
You have been diagnosed with heart
problems, high blood pressure or
other medical conditions.
You have not exercised for over a
year.
If you are over 35 and do not
currently exercise.
You are pregnant.
You have diabetes.
You have chest pain, or experience
dizziness or fainting spells.
You are recovering from an injury or
illness.
WORK-OUT TIPS
Always perform stretching exercises
both before and after your work-out
see page 22.
Start slowly, doing too much too soon
can lead to injuries.
If you are sore or tired, give yourself
a few extra days to recover.
HOW TO BEGIN
Start with two or three 15 minute
sessions per week with a rest day
between work-outs.
Warm-up for 5 to 10 minutes with
gentle movements like walking or
swinging your arms in a circle and
then stretch the muscles you’ll use
during your work-out. Seated cycling
works mainly the quadriceps (thighs)
and hamstrings.
Increase the pace and resistance to
slightly harder than comfortable and
exercise for as long as you can. You
may only be able to exercise for a
few minutes at a time, but that will
change quickly if you exercise
regularly.
End each work-out with a 5-minute
cool down with the resistance set to a
low level. You should then stretch the
muscles you’ve just worked to
prevent injury and cramp.
Increase your work-out time by a few
minutes each week until you can
work continuously for 30 minutes per
session.
Don’t worry about distance or pace.
For the first few weeks, focus on
endurance and conditioning.
BEGINNER’S GUIDE
How hard should you work?
When exercising, you should try to stay within your Target Heart Rate (THR) zone.
The table on the previous page will tell you the THR for your age. This is only a
guide and will depend on the fitness and condition (health) of the person using
the programmable magnetic rower.
Always be aware of how you feel when you exercise. If you feel dizzy or light-
headed, stop immediately and rest. If you’re not breaking a sweat, speed it up!
/-%'!&ITNESS
