Omegalink OL-BLADE-AL(DL)-CH7-EN User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2016
U.S. PATENT NO. 8,856,780
Automotive Data Solutions Inc.
INSTALL GUIDE
OL-BLADE-AL(DL)-CH7-EN
AVAILABLE FOR: OL-BLADE-AL
CH7
Rev. Date: August 03, 2016
Doc. No.: ##29198##
20160803
Alarms & Remote Start

U.S. Patent No. 8,856,780
INSTALL TYPE SELECTION
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE DOOR STATUS OUTPUT TRUNK STATUS OUTPUT BRAKE PEDAL STATUS OUTPUT TACHOMETER OUTPUT RAP SHUTDOWN CTRL GLOW PLUGS STATUS E-BRAKE OUTPUT SECURE TAKEOVER
CHRYSLER
300 PTS AT 11-16 2 • • • • • • • • • • • • • •
DODGE
Challenger PTS AT 15-16 8 • • • • • • • • • • • • • •
Charger PTS AT 11-16 8 • • • • • • • • • • • • • •
Dart PTS AT 13-16 5 • • • • • • • • • • • • • •
Dart PTS MT 13-16 6 • • • • • • • • • • • • • •
Durango PTS AT 14-16 7 • • • • • • • • • • • • •
Journey PTS AT 11-16 1 • • • • • • • • • • • • •
JEEP
Grand Cherokee PTS AT 14-16 4 • • • • • • • • • • • • •
Grand Cherokee Diesel PTS AT 14-16 4 • • • • • • • • • • • • • •
RAM
1500 PTS AT 13-16 3 • • • • • • • • • • • •
1500 Diesel PTS AT 13-16 3 • • • • • • • • • • • • •
2500 PTS AT 13-16 3 • • • • • • • • • • • •
2500 Diesel PTS AT 13-16 3 • • • • • • • • • • • • •
3500 PTS AT 13-16 3 • • • • • • • • • • • •
3500 Diesel PTS AT 13-16 3 • • • • • • • • • • • • •
NOTE
I WARNING: All vehicle doors
must be closed and locked prior
to remote start sequence.
Page 2 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
COMPONENT LOCATORCOMPONENT LOCATOR
A
DE
F
G
H
I
BC
Page 3 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Journey
PTS
AT
11-16
12V ~ Black 06 pin 6 Red (+) Push button F
CanH ~ Black 16 pin 6 Gray/White (DATA) OBDII connector ~
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~
Ground ~ Black 06 pin 3 Black (-) Push button F
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
Ignition ~ ~ ~ ~ Pink/White (+) Driver kick panel B
Imo Lin ~ Black 06 pin 5 White/Green (DATA) Push button F
Parking light ~ Black 06 pin 3 White/Brown (MUX) Parking light switch A
PTS ~ Black 06 pin 4 Purple/Blue (+) Push button F
Rap shutdown C6 White 48 pin 25 Purple (-) BCM behind glove box G
Page 4 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780

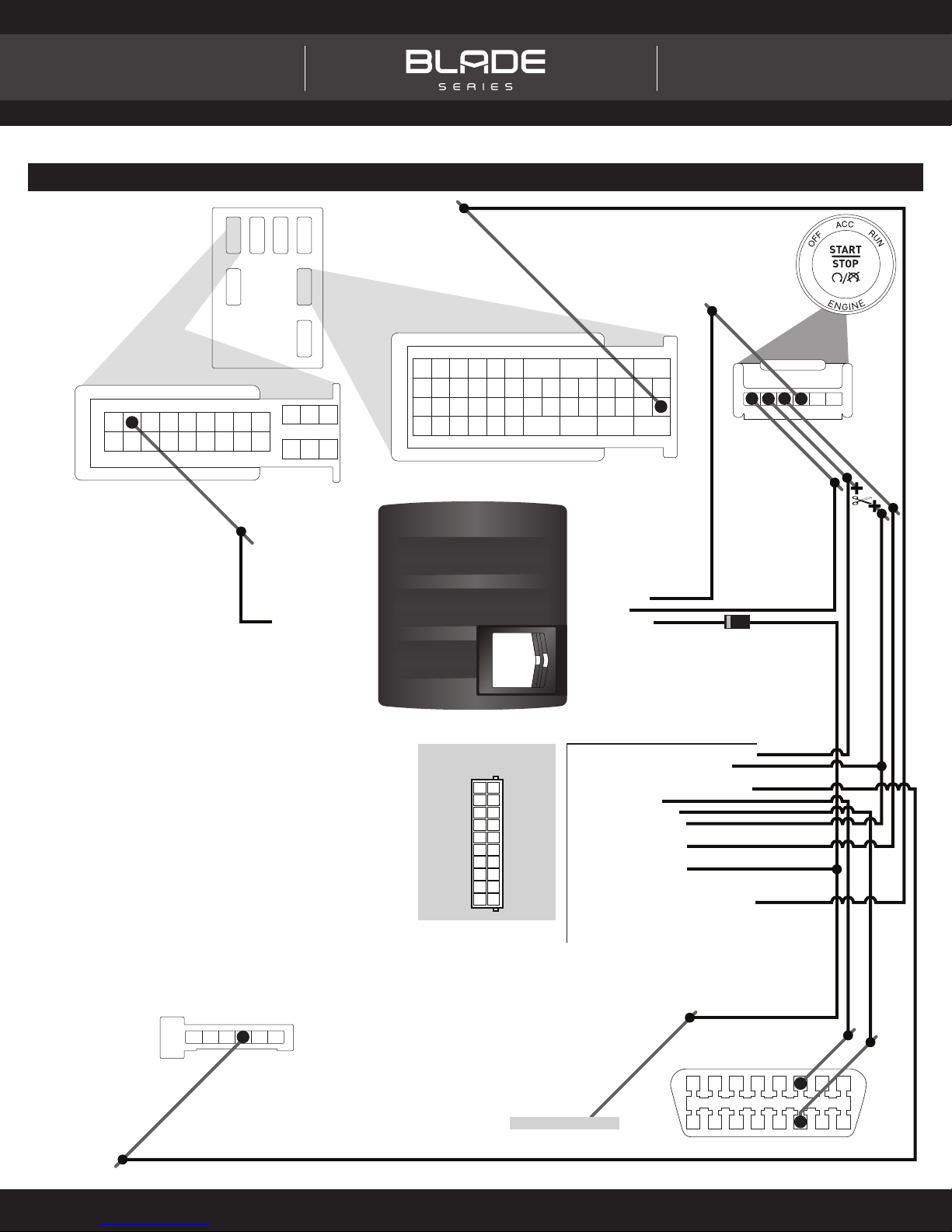

TYPE 1 - WIRING DIAGRAM
10 11 12 13 14 15 16
12345678
9
6
14
123456
123456
6543
3
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
2 15 437 69 8
12 11
10
14 1316 1519 18 1721 2023 2224
40 39
33
42 41
35 3437 36 26 2538 28 2730 29
43
32 31
45 4447 4648
25
11
1N4001
DIODE
CANH
CANL
IGNITION (+)
HARNESS IN
RUNNING BOARD
DRIVER SIDE OBDII CONNECTOR
BROWN/RED - CANH
BROWN/RED - CANHBROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PARKING LIGHT (MUX) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - PTS (+) OUTPUT
ORANGE - PTS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
PTS (+)
PARKING LIGHT (MUX)
GROUND (-)
RAP SHUTDOWN (-)
HOOD STATUS (-)
12V (+)
IMO LIN
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
WHITE/RED - LIN CUT IGNITION SIDE
WHITE (NC)
WHITE (NC)
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
PARKING LIGHT SWITCH
BLACK
C1 CONNECTOR - BLACK
C6 CONNECTOR - WHITE
BCM
WHITE
BLACK
PTS CONNECTOR
BLACK
Page 5 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 2 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
CHRYSLER
300
PTS
AT
11-16
12V ~ Black 06 pin 6 Red (+) Push button F
CanH ~ Black 16 pin 6 Gray/White (DATA) OBDII connector ~
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~
Ground ~ Black 06 pin 3 Black (-) Push button F
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
Ignition ~ ~ ~ ~ Pink/White (+) Passenger kick panel H
Imo Lin ~ Black 06 pin 5 White/Green (DATA) Push button F
Parking light ~ Black 06 pin 3 White/Brown (MUX) Parking light switch A
PTS ~ Black 06 pin 4 Purple/Blue (+) Push button F
Rap shutdown C6 White 48 pin 25 Purple (-) BCM behind glove box G
Page 6 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780

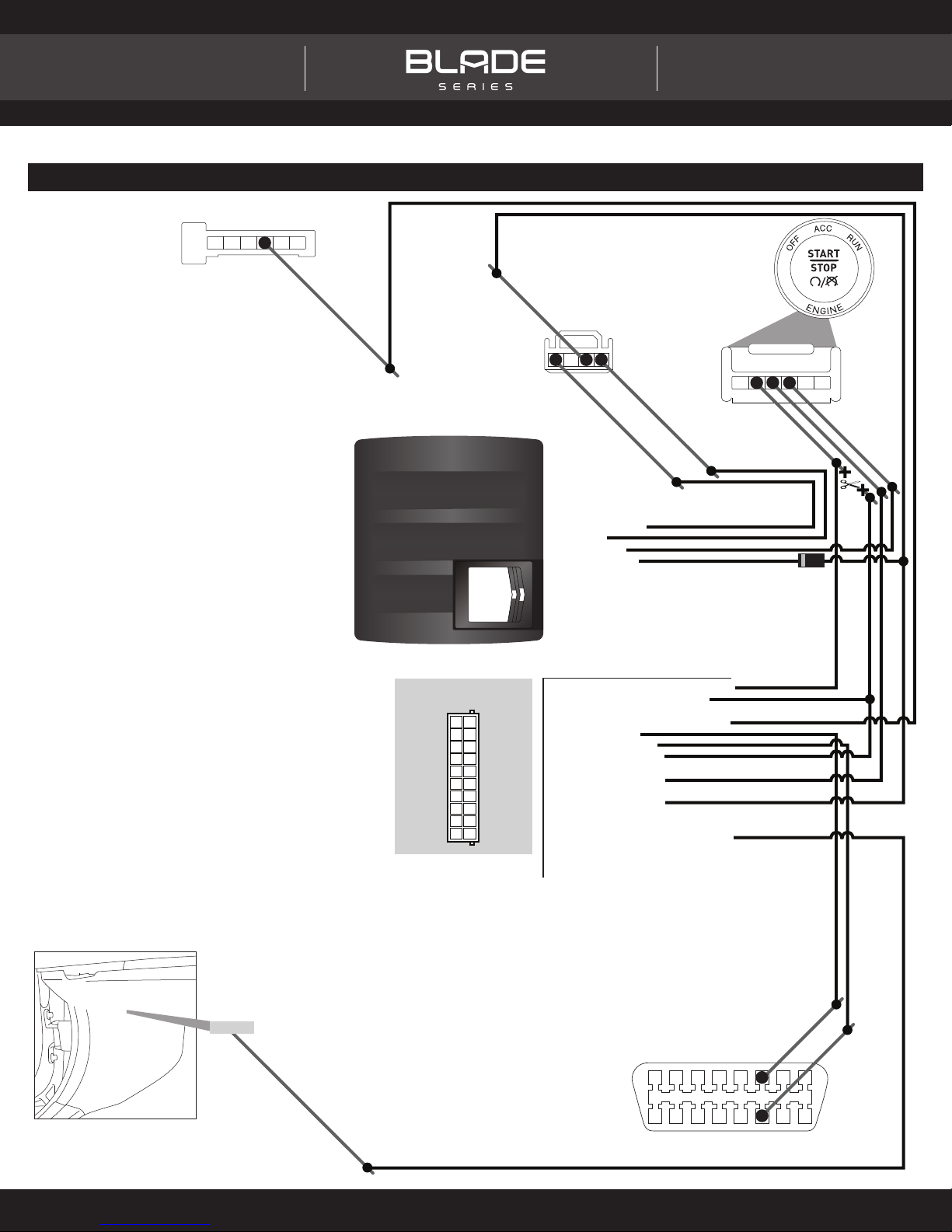

TYPE 2 - WIRING DIAGRAM
10 11 12 13 14 15 16
12345678
9
6
14
123456
123456
6543
3
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
2 15 437 69 8
12 11
10
14 1316 1519 18 1721 2023 2224
40 39
33
42 41
35 3437 36 26 2538 28 2730 29
43
32 31
45 4447 4648
25
11
1N4001
DIODE
CANH
CANL
IGNITION (+)
OBDII CONNECTOR
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PARKING LIGHT (MUX) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - PTS (+) OUTPUT
ORANGE - PTS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
PTS (+)
PARKING LIGHT (MUX)
GROUND (-)
RAP SHUTDOWN (-)
HOOD STATUS (-)
12V (+)
IMO LIN
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
WHITE/RED - LIN CUT IGNITION SIDE
WHITE (NC)
WHITE (NC)
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
PARKING LIGHT SWITCH
BLACK
C6 CONNECTOR - WHITE
BCM
WHITE
C1 CONNECTOR - BLACK
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
BLACK
PTS CONNECTOR
BLACK
PASSENGER KICK PANEL
Page 7 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 3 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
RAM
1500/
1500
Diesel
PTS
AT
13-16
12V D2664A Black 06 pin 6 Red (+) Ignition connector F
CanH D7405A Black 16 pin 6 Gray/White (DATA) OBDII connector ~
CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector ~
Ground D2664A Black 06 pin 3 Black (-) Ignition connector F
Ignition ~ Gray 04 or 10 pin 2 or 10 Pink/Green (+) Trailer pack connector, right of steering ~
Imo Lin D2664A Black 06 pin 5 White/Green (DATA) Ignition connector F
Parking Light D2242A Black 10 pin 1 White/Brown (MUX) Parking light switch A
PTS D2664A Black 06 pin 4 Purple/Brown (+) Ignition connector F
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
2500/
2500
Diesel
PTS
AT
13-16
12V D2664A Black 06 pin 6 Red (+) Ignition connector F
CanH D7405A Black 16 pin 6 Gray/White (DATA) OBDII connector ~
CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector ~
Ground D2664A Black 06 pin 3 Black (-) Ignition connector F
Ignition ~ Gray 04 or 10 pin 2 or 10 Pink/Green (+) Trailer pack connector, right of steering ~
Imo Lin D2664A Black 06 pin 5 White/Green (DATA) Ignition connector F
Parking Light D2242A Black 10 pin 1 White/Brown (MUX) Parking light switch A
PTS D2664A Black 06 pin 4 Purple/Brown (+) Ignition connector F
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
3500/
3500
Diesel
PTS
AT
13-16
12V D2664A Black 06 pin 6 Red (+) Ignition connector F
CanH D7405A Black 16 pin 6 Gray/White (DATA) OBDII connector ~
CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector ~
Ground D2664A Black 06 pin 3 Black (-) Ignition connector F
Ignition ~ Gray 04 or 10 pin 2 or 10 Pink/Green (+) Trailer pack connector, right of steering ~
Imo Lin D2664A Black 06 pin 5 White/Green (DATA) Ignition connector F
Parking Light D2242A Black 10 pin 1 White/Brown (MUX) Parking light switch A
PTS D2664A Black 06 pin 4 Purple/Brown (+) Ignition connector F
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
Page 8 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780

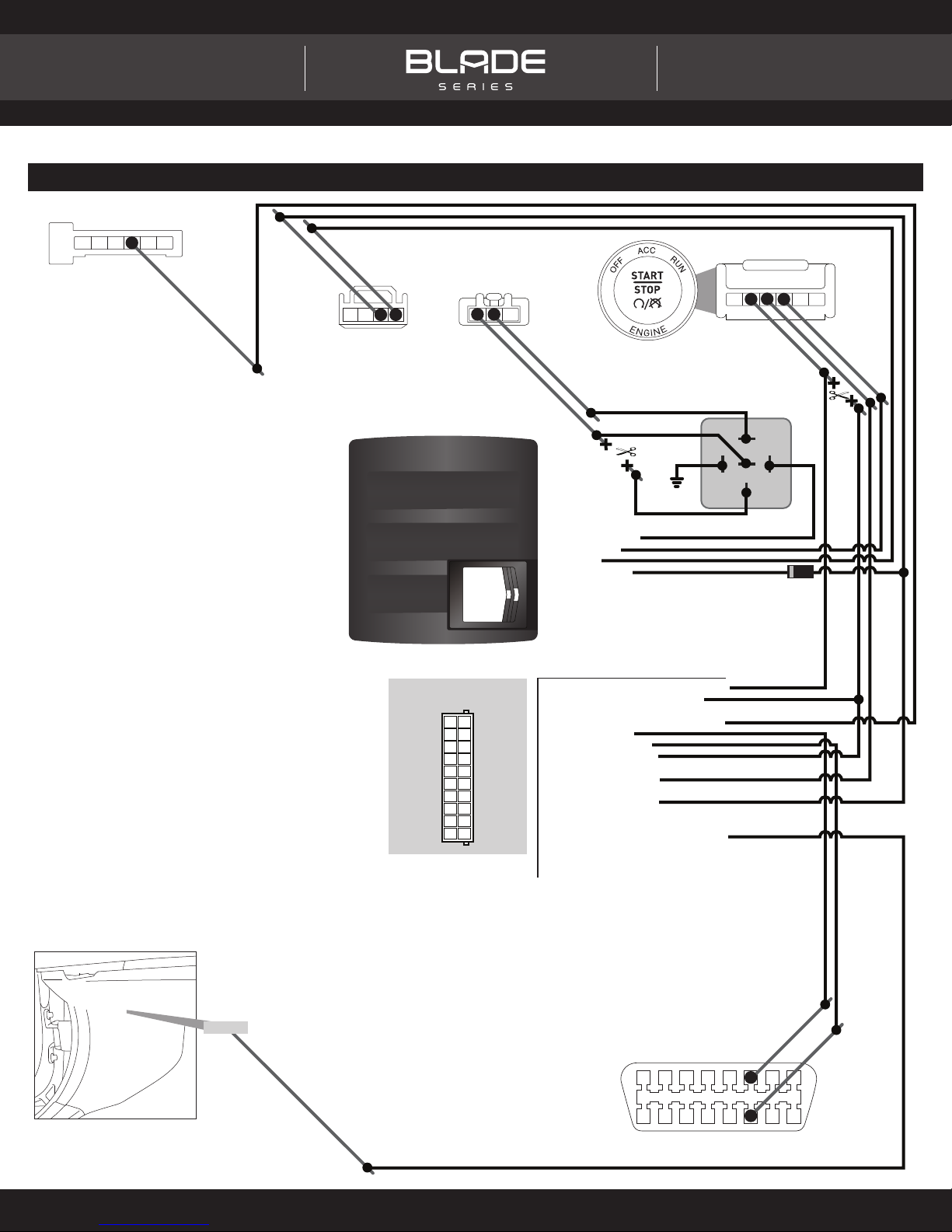

TYPE 3 - WIRING DIAGRAM
11 22
33 44
123456
6543
10 11 12 13 14 15 16
12345678
9
6
14
2
12345
6 7 8 9 10
1
1
6
2
7
3
8
4
9
5
10
10
1N4001
DIODE
BLACK (NC)BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PTS (+)
IGNITION (+)
GROUND (-)
12V (+)
IMO LIN
BROWN/RED - CANHBROWN/RED - CANH
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
WHITE/RED - LIN CUT VEHICLE SIDE
WHITE (NC)
WHITE (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE - GLOW PLUG (-) OUTPUT
ORANGE - PTS (+) OUTPUT
ORANGE - PTS (+) OUTPUT
PINK/BLACK - GLOW PLUG (+) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
CANL
CANH
OBDII CONNECTOR
IGNITION NODE CONNECTOR
BLACK
BLUE/RED (NC)
BLUE/YELLOW (NC)
RAP SHUTDOWN (-)
HARNESS
DRIVER KICK PANEL
YELLOW - PARKING LIGHT (MUX) OUTPUTYELLOW - PARKING LIGHT (MUX) OUTPUT
PARKING LIGHT (MUX)
PARKING LIGHT SWITCH
BLACK
GLOW PLUG (+) INPUT
GLOW PLUG (+) INPUT
GLOW PLUG (-) INPUT
GLOW PLUG (-) INPUT
FOR DIESEL
MODELS ONLY:
CONNECT (+) OR (-)
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
TRAILER PACK
CONNECTOR
GRAY
IGNITION (+)
OR
Page 9 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 4 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
JEEP
Grand
Cherokee/
Grand
Cherokee
Diesel
PTS
AT
14-16
12V D2664A Black 06 pin 6 Red (+) Push button F
CanH D7405A Black 16 pin 6 Gray/White (DATA) OBDII connector C
CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector C
Ground D2664A Black 06 pin 3 Black (-) Push button F
Ignition ~ Gray 10 pin 2 Red/Green (+) Driver kick panel B
Imo Lin D2664A Black 06 pin 5 White/Green (DATA) Push button F
Parking Light D2442A Black 10 pin 1 White/Green (MUX) Parking light switch A
PTS D2664A Black 06 pin 4 Purple/Green (+) Push button F
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
Page 10 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 4 - WIRING DIAGRAM
10 11 12 13 14 15 16
12345678
9
6
14
11 22
66 77
33 44
88 99
55
1010
123456
6543
2
12345
6 7 8 9 10
1
1N4001
DIODE
CANL
CANH
OBDII CONNECTOR
PTS PTS (+)
IGNITION (+)
GROUND (-)
RAP SHUTDOWN (-)
12V (+) IMO LIN
BROWN/RED - CANHBROWN/RED - CANH
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
WHITE/RED - LIN CUT VEHICLE SIDE
WHITE (NC)
WHITE (NC)
YELLOW - PARKING LIGHT (MUX) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
PTS
ORANGE - PTS (+) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
HARNESS
CONNECTOR
GRAY
DRIVER KICK PANEL
BLACK
PTS CONNECTOR
BLACK
BLUE/RED (NC)
BLUE/YELLOW (NC)
FOR
DIESEL
MODELS
ONLY:
CONNECT
(+) OR (-)
PARKING LIGHT (MUX)
PARKING LIGHT SWITCH
BLACK
ORANGE/WHITE - GLOW PLUG (-) OUTPUT
PINK/BLACK - GLOW PLUG (+) OUTPUT
GLOW PLUG (+) INPUT
GLOW PLUG (+) INPUT
GLOW PLUG (-) INPUT
GLOW PLUG (-) INPUT
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 11 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 5 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Dart
PTS
AT
13-16
12V ~ White 04 pin 4 Gray/Red (+) Brake switch D
Brake ~ White 04 pin 1 DkGreen/LtGreen (+) Brake switch D
CanH ~ Black 16 pin 6 Gray/White (DATA) OBDII connector C
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector C
Ground ~ Black 06 pin 3 Black (-) PTS connector F
Ignition ~ White 04 pin 3 Purple/Brown (+) Brake switch D
Imo lin ~ Black 06 pin 5 White/Green (DATA) PTS connector F
Parking Light ~ Black 06 pin 3 White/Brown (MUX) Parking light switch A
PTS ~ Black 06 pin 4 Purple/Brown (+) PTS connector F
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
Page 12 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 5 - WIRING DIAGRAM
3 421
123456 543
10 11 12 13 14 15 16
12345678
9
6
14
1 3 4
123456 3
1N4001
DIODE
GROUND (-)
RAP SHUTDOWN (-)
IMO LIN
BROWN/RED - CANHBROWN/RED - CANH
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
GROUND (-) INPUT
GROUND (-) INPUT
12V (+) INPUT
12V (+) INPUT
STARTER 1 (+) OUTPUTSTARTER 1 (+) OUTPUT
WHITE/RED - LIN CUT IGNITION SIDE
WHITE (NC)
WHITE (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - PTS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
BLACK (NC)
BLACK (NC)
HARNESS
DRIVER KICK PANEL
CANL
CANH
OBDII CONNECTOR
BLUE/RED (NC)
BLUE/YELLOW (NC)
12V (+) BRAKE (+)
IGNITION (+)
BLACK
PTS CONNECTOR
BLACK
BRAKE SWITCH
WHITE
PTS (+)
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
PARKING LIGHT (MUX)
PARKING LIGHT SWITCH
BLACK
YELLOW - PARKING LIGHT (MUX) OUTPUT
Page 13 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 6 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Dart
PTS
MT
13-16
12V ~ White 04 pin 4 Gray/Red (+) Brake switch D
CanH ~ Black 16 pin 6 Gray/White (DATA) OBDII connector C
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector C
Clutch ~ Black 03 pin 2 LtGreen/Yellow (-) Clutch Switch D
Clutch interruption ~ Black 03 pin 3 Black (-) Clutch Switch D
Ground ~ Black 06 pin 3 Black (-) PTS connector F
Ignition ~ White 04 pin 3 Purple/Brown (+) Brake switch D
Imo Lin ~ Black 06 pin 5 White/Green (DATA) PTS connector F
Parking Light ~ Black 06 pin 3 White/Brown (MUX) Parking light switch A
PTS ~ Black 06 pin 4 Purple/Brown (+) PTS connector F
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
Page 14 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 6 - WIRING DIAGRAM
321 21
86
30
87
87A
85
123456 543
10 11 12 13 14 15 16
12345678
9
6
14
123456 3
3 421 3 4
1N4001
DIODE
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
CLUTCH INTERRUPTION (-)
CLUTCH (-)
CLUTCH SWITCH
BLACK
GROUND (-)
RAP SHUTDOWN (-)
IMO LIN
PTS (+)
BROWN/RED - CANHBROWN/RED - CANH
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
WHITE/RED - LIN CUT IGNITION SIDE
WHITE (NC)
WHITE (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - PTS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
HARNESS
PARKING LIGHT (MUX)
PARKING LIGHT SWITCH
BLACK
BLACK
PTS CONNECTOR
BLACK
DRIVER KICK PANEL
CANL
CANH
OBDII CONNECTOR
BLUE/RED (NC)
BLUE/YELLOW (NC)
12V (+)
IGNITION (+)
BRAKE SWITCH
WHITE
STARTER 1 (+) OUTPUT
STARTER 1 (+) OUTPUT
YELLOW - PARKING LIGHT (MUX) OUTPUT
Page 15 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 7 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Durango
PTS
AT
14-16
12V ~ Black 06 pin 06 Red (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ Gray 10 pin 02 Red/Green (+) Driver kick panel B
PTS ~ Black 06 pin 04 Purple/Green (+) Push button F
Imo Lin ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ Black 16 pin 06 Gray/White (DATA) OBDII connector C
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector C
Parking Light ~ Black 06 pin 03 White/Green or
White/Brown
(MUX) Parking light switch A
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
Hood Status ~ Black 24 pin 11 Purple/LtBlue (-) BCM above passenger kick panel I
Page 16 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 7 - WIRING DIAGRAM
123456
10 11 12 13 14 15 16
12345678
9
6
14
1122
6677
3344
8899
55
1010
123456
6543
2
3
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
11
1N4001
DIODE
CANL
CANH
OBDII CONNECTOR
PTS PTS (+)
IGNITION (+)
GROUND (-)
RAP SHUTDOWN (-)
12V (+)
IMO LIN
IGNITION (+) OUTPUTIGNITION (+) OUTPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
HOOD STATUS (-) INPUTHOOD STATUS (-) INPUT
HARNESS
PARKING LIGHT SWITCH
BLACK
CONNECTOR
GRAY
DRIVER KICK PANEL
PARKING LIGHT (MUX)
BLACK
PTS CONNECTOR
BLACK
REMOTE STARTER
BROWN/RED - CANHBROWN/RED - CANHBROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
BROWN/YELLOW - CANLBROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - PTS (+) OUTPUT
ORANGE - PTS (+) OUTPUT
BLUE/YELLOW (NC)BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
WHITE/BLACK - LIN CUT CONNECTOR SIDE
WHITE/RED - LIN CUT VEHICLE SIDE
WHITE (NC)
WHITE (NC)
YELLOW - PARKING LIGHT (MUX) OUTPUT
(NC)
PINK/BLACK (NC)
HOOD STATUS (-)
C1 CONNECTOR - BLACK
BCM
WHITE
Page 17 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 8 - WIRE CROSS REFERENCE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Challenger
PTS
AT
15-16
12V ~ Black 06 pin 6 Red/LtGreen (+) Push button F
CanH ~ Black 16 pin 6 Gray/White (DATA) OBDII connector ~
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~
Ground ~ Black 06 pin 3 Black (-) Push button F
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box I
Ignition ~ ~ ~ ~ Pink/White (+) Passenger kick panel H
Imo Lin ~ Black 06 pin 5 White/Green (DATA) Push button F
Parking light ~ Black 06 pin 3 White/Brown (MUX) Parking light switch A
PTS ~ Black 06 pin 4 Purple/Blue (+) Push button F
Rap shutdown C6 White 48 pin 9 Purple (-) BCM behind glove box I
Charger
PTS
AT
11-16
12V ~ Black 06 pin 6 Red (+) Push button F
CanH ~ Black 16 pin 6 Gray/White (DATA) OBDII connector ~
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~
Ground ~ Black 06 pin 3 Black (-) Push button F
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
Ignition ~ ~ ~ ~ Pink/White (+) Passenger kick panel H
Imo Lin ~ Black 06 pin 5 White/Green (DATA) Push button F
Parking light ~ Black 06 pin 3 White/Brown (MUX) Parking light switch A
PTS ~ Black 06 pin 4 Purple/Blue (+) Push button F
Rap shutdown C6 White 48 pin 9 Purple (-) BCM behind glove box G
Page 18 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
TYPE 8 - WIRING DIAGRAM
10 11 12 13 14 15 16
12345678
9
6
14
123456
123456
6543
3
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
2 15 437 69 8
12 11
10
14 1316 1519 18 1721 2023 2224
40 39
33
42 41
35 3437 36 26 2538 28 2730 29
43
32 31
45 4447 4648
11
9
1N4001
DIODE
CANH
CANL
IGNITION (+)
OBDII CONNECTOR
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PARKING LIGHT (MUX) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - PTS (+) OUTPUT
ORANGE - PTS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN (-) OUTPUT
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
PTS (+)
PARKING LIGHT (MUX)
GROUND (-)
HOOD STATUS (-)
12V (+)
IMO LIN
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
WHITE/RED - LIN CUT IGNITION SIDE
WHITE (NC)
WHITE (NC)
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
PARKING LIGHT SWITCH
BLACK
BCM
WHITE
C1 CONNECTOR - BLACK
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
BLACK
PTS CONNECTOR
BLACK
PASSENGER KICK PANEL
RAP SHUTDOWN (-)
C6 CONNECTOR - WHITE
Page 19 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##

U.S. Patent No. 8,856,780
CARTRIDGE INSTALLATION
1Slide cartridge into unit. Notice
button under LED. 2Ready for Module Programming Procedure.
8Push start button once [1x] to
OFF position.
x1
Æ
MODULE PROGRAMMING PROCEDURE - WITH KLON - 1 OF 2
ÈIMPORTANT: READ NEXT PAGE !
7Wait, LED will turn solid RED.
3Wait, LED will fl ash BLUE once
[1x].
x1
1Close driver door.
Re-open driver door to wake up
data bus.
2Press UNLOCK on keyfob 1.
6Push start button twice [2x] with
keyfob 1 to ON position.
(No battery)
Æ
x2
9Push start button twice [2x] with
keyfob 1 to ON position.
(No battery)
Æ
x2
4Remove valet key from keyfob 1.
Æ
11 Push start button once [1x] to
OFF position.
x1
Æ
5Remove batteries from keyfob 1.
Æ
10 Wait, if LED fl ashes BLUE
rapidly, proceed to step 11.
If LED turns solid RED, repeat
steps 8 to 10.
12 Disconnect all connectors from
remote starter except the power
connector.
   
   
13 Disconnect the power
connector.
Page 20 of 23 OL-BLADE-AL(DL)-CH7-EN 20160803
INSTALL GUIDE
Automotive Data Solutions Inc. © 2016
ALL IN ONE
Chrysler/DoDge/Jeep/rAM
Doc. No.: ##29198##
