Omegalink OL-BLADE-TB-CH6 User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
PLEASE VISIT www.BLADEUPDATE.COM FOR COMPLETE PRODUCT DETAILS
Omega R&D Inc.
INSTALL GUIDE
OL-BLADE-TB-CH6
AvAiLABLE fOr : OL-BLADE-TB
CH6
The brand names and logos found in this guide are property of their respective owners. Omega R&D Inc. © 2011
Rev. Date: January 06, 2012
Doc. No.: ##7989##
20110915

INSTALL TYPE SELECTION
XX-XX PAGE X-XADS-TB-CH6 PAGE 2-4
MAKE MODEL YEAR INSTALL TYPE DATA IMMOBILIZER BYPASS DATA/MUX STARTER CTRL
CHRYSLER
300M 99-04 1 •
Concorde 99-04 1 •
LHS 99-01 1 •
Neon 00-05 1 •
Pacifi ca 04-08 1 • •
PT Cruiser 01-05 1 •
Sebring Sedan/Convertible 01-06 1 •
Town & Country 01-03 2 •
Town & Country 04-07 1 • •
Voyager 01-03 2 •
DODGE
Caravan/Grand Caravan 01-03 2 •
Caravan/Grand Caravan 04-07 1 • •
Dakota 01-04 1 •
Durango 01-03 1 •
Intrepid 99-04 1 •
Ram Pickup 02-05 1 •
SRT 4 03-05 1 •
Stratus Sedan 01-06 1 •
SX 2.0 03-05 1 •
JEEP
Grand Cherokee 99-04 1 •
Liberty 02-07 1 •
TJ 01-06 1 •
Wrangler 01-06 1 •
PLYMOUTH
Neon 00-01 1 •
Page 2 of 7 OL-BLADE-TB-CH6 20110915
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2011
TRANSPONDER BYPASS
Chrysler/DoDge/Jeep
Doc. No.: ##7989##

XX-XX PAGE X-XADS-TB-CH6 T1 PAGE X-X
TYPE 1 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR
IGNITION J1850
WIRE COLOR WIRE COLOR
CHRYSLER
300M 99-04 Blue/White Violet/Yellow
Concorde 99-04 Blue/White Violet/Yellow
LHS 99-01 Blue/White Violet/Yellow
Neon 00-05 Blue/White Violet/Yellow
Pacifi ca 04-08 Pink/Gray White/Violet
PT Cruiser 01-05 Blue/Black Violet/Yellow
Sebring Sedan/Convertible 01-06 Blue/White Violet/Pink
Town & Country 01-07 Pink/White White/Violet
Voyager 01-03 Pink/White White/Violet
DODGE
Caravan/Grand Caravan 01-07 Pink/White White/Violet
Dakota 01-04 LtGreen/Black Violet/Yellow
Durango 01-03 LtGreen/Black Violet/Yellow
Intrepid 99-04 Blue/White Violet/Yellow
Ram Pickup 02-03 LtGreen/Black Violet/White
Ram Pickup 04-05 Pink/Gray White/Violet
SRT 4 03-05 Blue/White Violet/Yellow
Stratus Sedan 01-06 Blue/White Violet/Pink
SX 2.0 03-05 Blue/White Violet/Yellow
JEEP
Grand Cherokee 99-04 Blue/White Yellow/Violet or Violet/Black
Liberty 02-04 Blue Yellow/Violet or Violet/Black
Liberty 05-07 Pink/LtGreen White/Violet
TJ 01-04 Blue Violet/Yellow
TJ 05-06 Pink/White White/Violet
Wrangler 01-04 Blue Violet/Yellow
Wrangler 05-06 Pink/White White/Violet
PLYMOUTH
Neon 00-01 Blue/White Violet/Yellow
Page 3 of 7 OL-BLADE-TB-CH6 20110915
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2011
TRANSPONDER BYPASS
Chrysler/DoDge/Jeep
Doc. No.: ##7989##

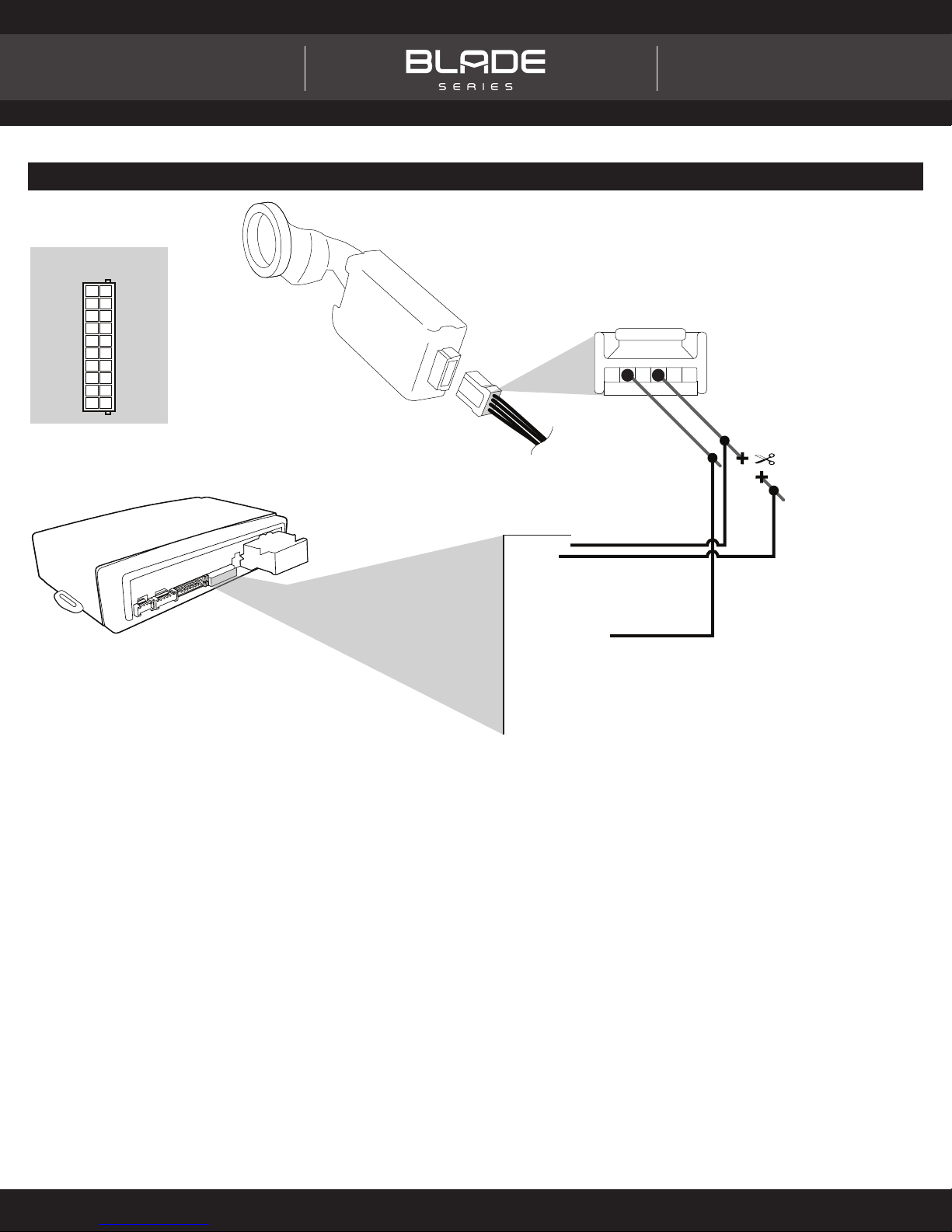

TYPE 1 - WIRING DIAGRAM
Page 4 of 7 OL-BLADE-TB-CH6 20110915
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2011
TRANSPONDER BYPASS
Chrysler/DoDge/Jeep
123456
2 4
SKIM
IMMOBILIZER MODULE
IGNITION
J1850
BROWN/RED (NC)BROWN/RED (NC)
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW (NC)
BROWN/YELLOW (NC)
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - DATA (J1850)
ORANGE - DATA (J1850)
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK (NC)
PINK (NC)
WHITE/BLACK
WHITE/BLACK
WHITE/RED
WHITE/RED
WHITE (NC)
WHITE (NC)
REMOTE STARTER
BLADE CONNECTOR*
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Doc. No.: ##7989##

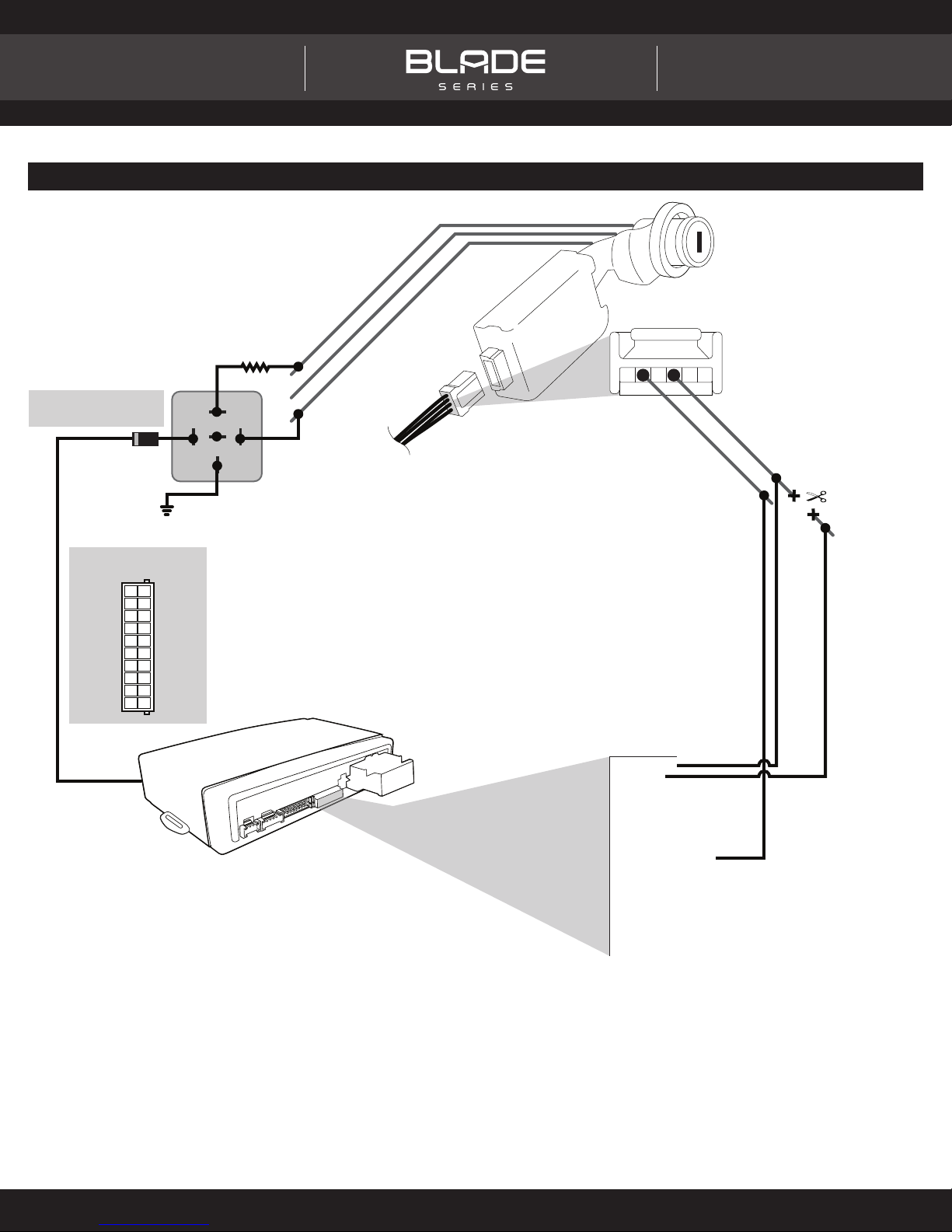

TYPE 2 - WIRING DIAGRAM
Page 5 of 7 OL-BLADE-TB-CH6 20110915
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2011
TRANSPONDER BYPASS
Chrysler/DoDge/Jeep
86
30
87
87A
85
123456
2 4
SKIM
IMMOBILIZER MODULE
1N4001
DIODE
BROWN/RED (NC)BROWN/RED (NC)
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW (NC)
BROWN/YELLOW (NC)
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - DATA (J1850)
ORANGE - DATA (J1850)
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK (NC)
PINK (NC)
WHITE/BLACK
WHITE/BLACK
WHITE/RED
WHITE/RED
WHITE (NC)
WHITE (NC)
REMOTE STARTER
BLADE CONNECTOR*
GWR (-) OUTPUTGWR (-) OUTPUT
RESISTOR
BETWEEN 180-210 0HMS
RESISTOR
BETWEEN 180-210 0HMS
VIOLET/BROWN - SWITCH (MUX*)
PINK/WHITE - IGNITION (+)
YELLOW - STARTER (+)
IGNITION - PINK/WHITE
J1850 - WHITE/VIOLET
USE ISOLATED GROUND WHEN
RUNNING FROM REMOTE
STARTER TO POWER RELAY
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Doc. No.: ##7989##

Page 6 of 7 OL-BLADE-TB-CH6 20110915
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2011
TRANSPONDER BYPASS
Chrysler/DoDge/Jeep
MODULE PROGRAMMING
XX-XX PAGE X-XBLADE-AL(TB)-CH6 PAGE X-X
5Turn key to OFF position.
MODULE PROGRAMMING PROCEDURE
7Module Programming
Procedure completed.
OFF
1Insert key into ignition.
2Turn key to ON position.
ON
4Wait, it may take up to
20 seconds. LED will turn solid
GREEN then will turn OFF.
3LED will turn solid RED.
6Remove key.
CARTRIDGE INSTALLATION
2Ready for Module Programming
Procedure.
1Slide cartridge into unit. Notice
button under LED.
BLADE-TB-CH6 106
Doc. No.: ##7989##

Page 7 of 7 OL-BLADE-TB-CH6 20110915
INSTALL GUIDE
WWW.BLADEUPDATE.COM Omega Research & Development Inc. © 2011
TRANSPONDER BYPASS
Chrysler/DoDge/Jeep

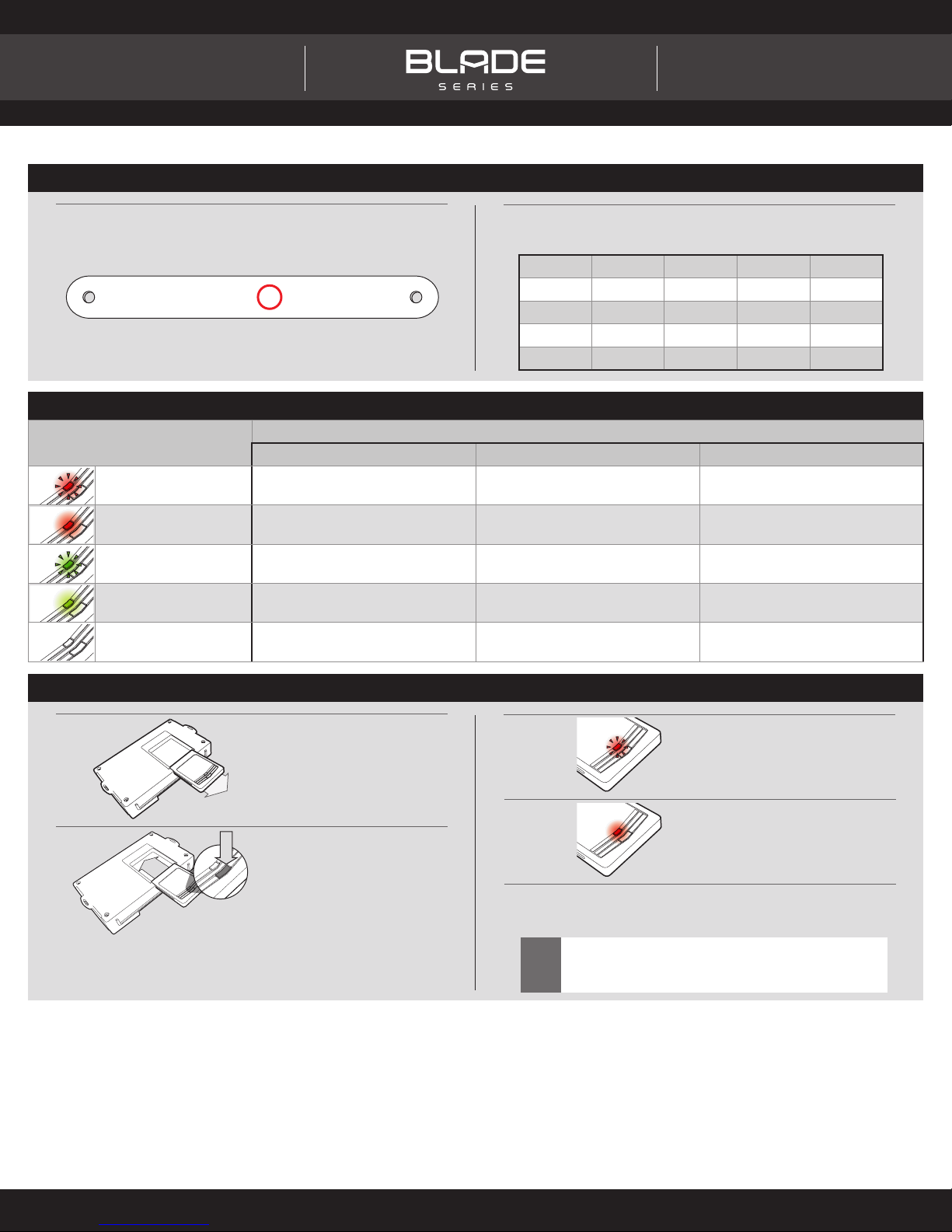

BLADE-TB PAGE 1-1
LED STATUS
DIAGNOSTICS
DURING PROGRAMMING DURING REMOTE START WITH IGNITION OFF
Flashing RED Missing/wrong information from
fi rmware or vehicle Incorrectly programmed Incorrectly programmed or connected
Solid RED Waiting for more vehicle information Incorrectly programmed Not programmed waiting for more
vehicle information
Flashing GREEN Additional steps required to complete
programming
Correctly programmed and
operational
False ground when running status
from remote starter
Solid GREEN then OFF Correctly programmed Reset in progress Reset in progress
OFF No activity or already programmed Invalid ground when running status
from remote starter
At rest and ready for a remote start
sequence
MODULE DIAGNOSTICS
IDENTIFY VEHICLE YEAR
1Locate the Vehicle Identifi cation
Number (VIN) and identify the
10th character.
2Match the VIN’s 10th character
to its corresponding year.
L > 1990 S > 1995 Y > 2000 5 > 2005 A > 2010
M > 1991 T > 1996 1 > 2001 6 > 2006 B > 2011
N > 1992 V > 1997 2 > 2002 7 > 2007 C > 2012
P > 1993 W > 1998 3 > 2003 8 > 2008 D > 2013
R > 1994 X > 1999 4 > 2004 9 > 2009 E > 2014
4 Y 1 N53 A 5 T A L 8 D 5 R 0 X

FACTORY RESET PROCEDURE
5RECONNECT all connectors.
Repeat programming procedure.
!Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
1DISCONNECT cartridge from
remote starter.
2PRESS AND HOLD programming
button while re-connecting
cartridge to remote starter.
3LED will fl ash red. Immediately
RELEASE programming button.
4LED will turn solid red for 2
seconds.
RESET COMPLETED.
Doc. No.: ##7989##
