Omegalink OL-RS-NI5 User manual

REVISION DATE
20160302
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
U.S. Patent No. 8,856,780
INSTALL GUIDE
OLNIRSNI6OLRSNI5EN
HARDWARE
OLRSNI5
ACCESSORIES
OLLOADER REQUIRED
RF10/30/50EDP OPTIONAL
OMEGACARLINKGPS OPTIONAL
FIRMWARE
OLNIRSNI6OLRSNI5
Automotive Data Solutions Inc. © 2016
27546
Alarms & Remote Start

U.S. Patent No. 8,856,780
VEHICLE LIST - 1 OF 1
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS SECURE TAKE OVER DISARM OEM ALARM DOOR LOCK DOOR UNLOCK 3X LOCK START/STANDALONE MOD. POWER LIFT GATE POWER SLIDING DOORS (L) POWER SLIDING DOORS (R) TRUNK/HATCH RELEASE DOOR STATUS OUTPUT TRUNK STATUS OUTPUT HOOD STATUS OUTPUT** TACHOMETER OUTPUT BRAKE PEDAL STATUS OUTPUT * E-BRAKE STATUS OUTPUT
INFINITI
M35 Hybrid PTS AT 12-13 1 • • • • • • • • • • • • •
M37 PTS AT 10 3 • • • • • • • • • • • • •
M37 PTS AT 11-13 1 • • • • • • • • • • • • •
M56 PTS AT 10 3 • • • • • • • • • • • • •
M56 PTS AT 11-13 1 • • • • • • • • • • • • •
Q70 PTS AT 14-15 1 • • • • • • • • • • • • •
Q70L PTS AT 15 1 • • • • • • • • • • • • •
QX56 PTS AT 11-13 1 • • • • • • • • • • • • •
QX80 PTS AT 14-15 1 • • • • • • • • • • • • •
NISSAN
Cube PTS AT 09-14 1 • • • • • • • • • • • •
Juke PTS AT 11-16 1 • • • • • • • • • • • •
Quest PTS AT 11-16 1 • • • • • • • • • • • •
Quest (with power sliding doors) PTS AT 11-16 2 • • • • • • • • • • • • • • •
Sentra PTS AT 13-16 4 • • • • • • • • • • • •
Versa Sedan PTS AT 13-16 1 • • • • • • • • • • • •
Versa Note PTS AT 14-16 4 • • • • • • • • • • • •
* Available only when ignition is in the ON position.
** Available only if vehicle is equipped with factory hood switch.
Automotive Data Solutions Inc. © 2016 OLNIRSNI6OLRSNI5EN
PAGE 2 OF 25
• 20160302
DOC.: #27546

U.S. Patent No. 8,856,780
BOX CONTENTS - 1 OF 1
3
6
4
1
2
5
C
B
A
F
G
E
D
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
7
9
3
10
8
11
12
6
4
1
2
5
2
1
3
7
9
3
10
8
6
4
12
5
2
1
3
4
2
1
3
4
MS3MS3
MS1MS1
VS2VS2
VS1VS1
VS11VS11
VS12VS12
VS10VS10
VS9VS9
VS7VS7
VS8VS8
VS3VS3
VS4VS4
VS5VS5
VS6VS6
MS2MS2
BOX CONTENTS
T-HARNESS 1
AFTERMARKET HOOD SWITCH AND CABLE
WARNING STICKER
10 PIN CONNECTOR
12 PIN CONNECTOR
OPTIONAL TERMINALS (OEM ALARM CONTROL)
BLUE
PROGRAMMING
BUTTON
LED 2
LED 1
MODULE
BLACK
BLACK
BLACK
RF PORT/
WEBLINK PORT
BLACK
BLUE
TELEMATIC
PORT
WHITE
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
WEBLINK PORT
Automotive Data Solutions Inc. © 2016 OLNIRSNI6OLRSNI5EN
PAGE 3 OF 25
• 20160302
DOC.: #27546

U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2016 OLNIRSNI6OLRSNI5EN
PAGE 4 OF 25
• 20160302
COMPATIBLE ACCESSORIES - 1 OF 1
OMEGA RF KIT
RF KIT (accessories sold separately)
ANTENNA
(NC)
MODULE
RF PORT
OLCLLINK
TELEMATIC KIT (accessories sold separately)
(NC)
CARLINK
MODULE
TELEMATIC PORT
DOC.: #27546

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CHART - 1 OF 2
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
INFINITI
M35 Hybrid
PTS
AT
12-13
Lock/Arm M120 Black 40 pin 12 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Unlock/Disarm M120 Black 40 pin 13 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Driver Door Pin M121 Black 15 pin 47 LtGreen (-) BCM, left of steering column ~
Parking Light B8 ~ 12 pin 02 Blue (+) Driver kick panel ~
M37
PTS
AT
11-13
Lock/Arm M120 Black 40 pin 12 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Unlock/Disarm M120 Black 40 pin 13 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Driver Door Pin M121 Black 15 pin 47 LtGreen (-) BCM, left of steering column ~
Parking Light B8 ~ 12 pin 04 Blue (+) Driver kick panel ~
M56
PTS
AT
11-13
Lock/Arm M120 Black 40 pin 12 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Unlock/Disarm M120 Black 40 pin 13 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Driver Door Pin M121 Black 15 pin 47 LtGreen (-) BCM, left of steering column ~
Parking Light B8 ~ 12 pin 04 Blue (+) Fuse box, rear side ~
Q70
PTS
AT
14-15
Lock/Arm M120 Black 40 pin 12 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Unlock/Disarm M120 Black 40 pin 13 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Driver Door Pin M121 Black 15 pin 47 LtGreen (-) BCM, left of steering column ~
Parking Light B8 ~ 12 pin 04 Blue (+) Driver kick panel ~
Q70L
PTS
AT
15
Lock/Arm M120 Black 40 pin 12 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Unlock/Disarm M120 Black 40 pin 13 Empty (-) BCM, left of steering column (use provided terminal for connection) ~
Driver Door Pin M121 Black 15 pin 47 LtGreen (-) BCM, left of steering column ~
Parking Light B8 ~ 12 pin 04 Blue (+) Driver kick panel ~
QX56
PTS
AT
11-13
Lock/Arm M68 Black 40 pin 12 Empty (-) BCM, behind cluster (use provided terminal for connection) ~
Unlock/Disarm M68 Black 40 pin 13 Empty (-) BCM, behind cluster (use provided terminal for connection) ~
Driver Door Pin M69 Black 15 pin 47 Gray/Red (-) BCM, behind cluster ~
Parking Light M2 White 10 pin 8B Blue/Orange (+) Fuse box ~
QX80
PTS
AT
14-15
Lock/Arm M68 Black 40 pin 12 Empty (-) BCM, behind cluster (use provided terminal for connection) ~
Unlock/Disarm M68 Black 40 pin 13 Empty (-) BCM, behind cluster (use provided terminal for connection) ~
Driver Door Pin M69 Black 15 pin 47 Gray/Red (-) BCM, behind cluster ~
Parking Light M2 White 10 pin 8B Blue/Orange (+) Fuse box ~
NISSAN
Cube
PTS
AT
09-14
Lock/Arm M68 Black 40 pin 08 White/Black (-) BCM, driver kick panel ~
Unlock/Disarm M68 Black 40 pin 07 White/Red (-) BCM, driver kick panel ~
Driver Door Pin M69 Black 15 pin 47 Brown/Yellow (-) BCM, driver kick panel ~
Parking Light M80 ~ 16 pin 13 Brown/white (+) Driver kick panel ~
Automotive Data Solutions Inc. © 2016 OLNIRSNI6OLRSNI5EN
PAGE 5 OF 25
• 20160302
DOC.: #27546

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CHART - 2 OF 2
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
NISSAN
Juke
PTS
AT
11-16
Lock/Arm M68 Black 40 pin 08 Red (-) BCM near A pillar, driver side ~
Unlock/Disarm M68 Black 40 pin 07 Blue (-) BCM near A pillar, driver side ~
Driver Door Pin B10 Black 15 pin 47 LtBlue (-) BCM near A pillar, driver side ~
Parking Light M77 ~ 100 pin 70 Violet (+) Driver kick panel ~
Quest*
PTS
AT
11-14
Lock/Arm M121 Black 40 pin 08 Yellow (-) BCM, behind cluster ~
Unlock/Disarm M121 Black 40 pin 07 White (-) BCM, behind cluster ~
Driver Door Pin M122 Black 15 pin 47 Green (-) BCM, behind cluster ~
Parking Light M2 ~ 10 pin 8B LtBlue (+) Fuse box ~
Quest*
PTS
AT
15-16
Lock/Arm M121 Black 40 pin 08 Gray (-) BCM, behind cluster ~
Unlock/Disarm M121 Black 40 pin 07 Brown (-) BCM, behind cluster ~
Driver Door Pin M122 Black 15 pin 47 Green (-) BCM, behind cluster ~
Parking Light M2 ~ 10 pin 8B Pink (+) Fuse box ~
Versa Sedan
PTS
AT
13-16
Lock/Arm M68 Black 40 pin 08 Gray (-) BCM near A pillar, driver side ~
Unlock/Disarm M68 Black 40 pin 07 White (-) BCM near A pillar, driver side ~
Driver Door Pin B10 Black 15 Pin 47 LtBlue (-) BCM near A pillar, driver side ~
Parking Light B12 ~ 16 pin 04 Blue (+) Driver kick panel ~
* Model without power sliding doors
Automotive Data Solutions Inc. © 2016 OLNIRSNI6OLRSNI5EN
PAGE 6 OF 25
• 20160302
DOC.: #27546

U.S. Patent No. 8,856,780
A
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
C
7
9
3
10
8
11
12
6
4
1
2
5
D
7
9
3
10
8
6
4
1
2
5
C
B
A
F
G
E
D
MS3MS3
MS1MS1
VS2VS2
VS1VS1
VS11VS11
VS12VS12
VS10VS10
VS9VS9
VS7VS7
VS8VS8
33
11
44
22
11 22 33
44 55 66 77 88
L
O
C
K
A
C
C
O
N
E
N
G
I
N
E
START
STOP
10 11 12 13 14 15 16
12345678
9
E38
E38
VS5VS5
VS6VS6
MS2MS2
VS4VS4
VS3VS3 11 22 33 44
44 55 66 77 88 9911 22 33 1313 1414 1515 1616 1717 18181010 1111 1212 1919 2020
2424 2525 2626 2727 2828 29292121 2222 2323 3333 3434 3535 3636 3737 38383030 3131 3232 3939 4040
4444 4545 4646 47 4848 4949
5050 5151 5252 5353 5454 5555
4141 4242 4343
A
B
B
B
A
A
SEE WIRE
CHART
PARKING LIGHT (+) SEE WIRE CHART
DRIVER DOOR PIN (-) - 47

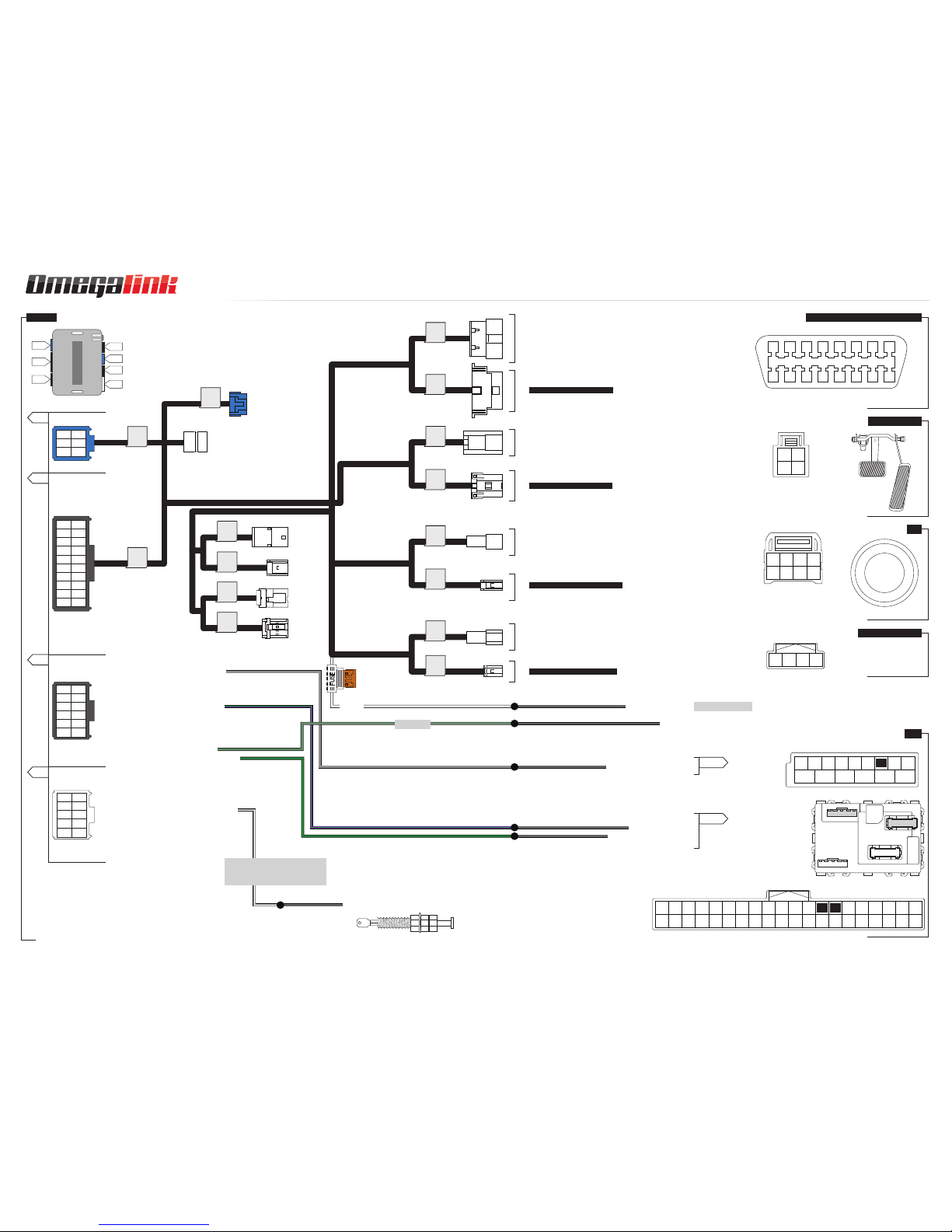

TYPE 1 - WIRING DIAGRAM - 1 OF 1
MODULE
04 GRAY/WHITE - HOOD STATUS (-) INPUT
AFTERMARKET HOOD SWITCH (-)
TELEMATIC PORT
RF PORT/WEBLINK PORT 16 PIN OBDII CONNECTOR
4 PIN BRAKE CONNECTOR
4 PIN BRAKE HARNESS
8 PIN PTS CONNECTOR
8 PIN PTS HARNESS
16 PIN OBDII HARNESS
OBDII (UNDER DRIVER SIDE DASH)
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
RELAY
01 BROWN/BLACK (NC)
(NC)
(NC)
(NC)
(NC)
02 GRAY - RAP SHUTDOWN (-) OUTPUT
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN (NC)
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
BRAKE SWITCH
BCM
(NC)
WHITE
† UNLOCK/DISARM (-)
† LOCK/ARM (-)
† THERE MAY BE NO WIRE CONNECTED TO
THESE PINS, USE PROVIDED TERMINALS.
PTS
IMMO CONNECTOR
4 PIN IMMO CONNECTOR
4 PIN IMMO HARNESS
HORN (-)
OPTIONAL
11 GRAY/GREEN - HORN (-) OUTPUT
