Preface & General Safety Instructions
This user manual provides information about the OTMC 100 series grandmaster clocks, their possible
fields of application and how to install and operate them. It furthermore provides information about
how to access and configure the devices using a computer.
Following the instructions given in this user manual will help you avoid danger, repair costs and down
time, and help maintain the reliability and life of the OTMC 100.
In addition to the user manual, the applicable safety and lightning protection regulations in the country
and at the site of operation as well as the usual technical procedures for safe and competent work
should be observed.
General safety instructions
Before operating the OTMC 100, carefully read the following general safety instructions:
• The OTMC 100 may only be used in a safe technical condition taking into account its defined
purpose, safety requirements and possible risks as well as the operating instructions given in this
user manual!
• The OTMC 100 is exclusively intended for the application areas specified in chapter "Introduction
and Designated Use" on page 7. The manufacturer or the distributors are not liable for damage
resulting from unintended usage. The user alone assumes all responsibility and risks.
• Do not open the OTMC 100! Opening the device invalidates all warranty claims!
• The OTMC 100 is an SELV device (Safety Extra Low Voltage) which is supplied with power by
Power over Ethernet (PoE according to IEEE 802.3af). It may only be connected to Ethernet
network ports or Power over Ethernet power supplies.
• Always use the waterproof RJ45 Ethernet connector supplied with the OTMC 100 in order to
maintain the watertightness of the device. Do not use the OTMC 100 outdoors without a waterproof
connector inserted.
• For outdoor installation always use shielded Ethernet cable. The cable shield has to be connected
to the shield of the Ethernet connectors.
OTMC 100 Series User Manual
6

1 Introduction & Designated Use
The OTMC 100 is an antenna-integrated GPS controlled time reference. It provides high-precision
time to synchronize intelligent electronic devices (IEDs), computers and measurement equipment in
Ethernet (TCP/IP) based networks. The OTMC 100 series products can be used as a PTP (Precision
Time Protocol) grandmaster clock according to the IEEE 1588-2008 standard and as an NTP
(Network Time Protocol) time server for NTPv4 compliant equipment according to RFC 5905.
The fields of application for the OTMC 100 series products include applications in industrial production
involving automatic test equipment (ATE), time critical banking and telecom applications as well as
protection and control applications in the electrical power industry. The OTMC 100 is the right choice
wherever accurate time in a computer based network is needed.
Due to the unique combination of GPS antenna, GPS receiver and time signal processing, the
OTMC 100 can be directly connected to Ethernet networks without the need of additional RF cable
installation.
The OTMC 100 series is designed for outdoor use in lightning protected areas. It is intended for fixed
installation on masts. For installation requirements, please refer to the Quick Start Guide provided with
the product or chapter "Mounting" on page 14.
The following OTMC 100 models are available:
OTMC 100i: Time reference for use in industrial applications supporting the IEEE 1588-2008 default
profiles.
OTMC 100p: Time reference for use in the electrical power industry. In addition to the
IEEE 1588-2008 default profiles, the OTMC 100palso supports the power profile according to
IEEE C37.238-2011 (IEEE Profile for Use of IEEE 1588-2008 Precision Time Protocol in Power
System Applications) specifically used in the electrical power industry.
For reasons of simplicity this manual uses the general term "OTMC 100" if the features and
functionality described are common for all products of the OTMC 100 series. The complete names
OTMC 100iand OTMC 100pare only used to indicate differences between the models.
The unique design of the OTMC 100 series offers many advantages:
• Web browser interface (called Web Interface) allowing for intuitive and straight forward setup and
control. The use of DHCP/Auto IP and the OMICRON Device Browser tool allows for easy remote
access to all functions and features from a computer.
• Outstanding precision. Synchronized to the GPS satellite navigation system, the OTMC 100's
internal clock achieves a time accuracy of +/- 100 ns to reference time (UTC).
• No need for rack space in server rooms due to outdoor mounting.
• Extremely low power consumption < 2 W.
• Full compliance with IEEE 1588-2008 (IEEE 1588 version 2).
• Easy installation. No additional power supply required through PoE (Power over Ethernet).
Introduction & Designated Use
7

• Ethernet cable length up to 100 m (standard Ethernet). Can be increased to up to 2 km by using
fiber optic Ethernet and media converters.
• Automatic cable length compensation compensates errors due to propagation delays on the
network.
• Automated configuration. The possibility to upload configuration files enables easy exchange and
configuration of the hardware.
• The OTMC 100 enables redundant configurations as defined in IEEE 1588-2008. The best master
clock algorithm (BMCA) guarantees that the best clock in the system is used as the master clock.
An automatic changeover to another clock is performed if the active master clock no longer
provides sufficient time accuracy.
• Due to its integrated NTP server functionality the OTMC 100 can also be used in networks
containing devices that are not yet ready for PTP. The OTMC 100 is able to simultaneously operate
as NTP server and PTP grandmaster clock.
The following features are supported by the OTMC 100 software:
• Time:
• IEEE 1588-2008 version 2 support:
Default E2E (end-to-end) and P2P (peer-to-peer) profile
Power profile acc. to IEEE C37.238-2011 (OTMC 100ponly)
One step and two step operation
Multicast transport
IPv4, IPv6 and layer 2
PTP management interface
High performance (up to 512 messages per second)
• NTPv4 (according to RFC 5905)
• Time (according to RFC 868)
• Daytime (according to RFC 867)
• Networking:
• 10Base-T/100Base-TX Ethernet
• IPv4 and IPv6
• DHCP/Autoconf
• Zeroconf (mDNS/DNS-SD)
• OMICRON OMFind service
OTMC 100 Series User Manual
8

• Linux operating system:
• TFTP, FTP and SSH access
• Syslog (local and remote)
• E-Mail notification
• Configuration:
• Web Interface (HTTP & HTTPS)
• Automated configuration via SSH and XML files
• SNMP (for IEEE C37.238-2011)
• Failsafe software upgrades in the field
OTMC 100 series products are exclusively intended for the applications stated in this chapter. Any
other use is considered improper.
Introduction & Designated Use
9

2 Scope of Delivery, Ordering Information, Accessories
Description Part No. Figure
OTMC 100p: PTP grandmaster clock for application in
power system environments.
OTMC 100i: PTP grandmaster clock for application in
industrial environments.
The delivered set includes in addition:
• 1 mast mounting kit for mast diameters of
25 to 70 mm (see OL000350 for details)
• 1 waterproof RJ45 connector
• 1 standard Ethernet patch cable (3 m)
• 1 OTMC 100 Quick Start Guide (printed)
• 1 CD ROM containing the OMICRON Device Browser
software, the PDF versions of the OTMC 100 Series
User Manual and the OTMC 100 Series Quick Start
Guide, and the source code of the Open Source
products used in the OTMC 100 software
OL000300
OL000301
OTMC 100pOTMC 100i
OTMC 100 Series User Manual
10

Mast mounting kit for mast diameters of 25 to 70 mm
(accessory). Kit consisting of:
• 2 clamping blocks (1)
• 2 clamping jaws (2)
• 1 connection pipe 20 x 300 mm (3)
• 4 screws M6 x 110 with 4 lock washers (4)
• 4 screws M6 x 16 with 4 lock washers (5)
OL000350
1
2
3
45
Waterproof RJ45 connector acc. to IEC 61076-3-106,
variant 4 (accessory) OL000351
Scope of Delivery, Ordering Information, Accessories
11

3 Device Overview
36 mm
2 threaded holes
for clamping block
M6 x 9 mm
Waterproof RJ45 connector
acc. to IEC 61076-3-106,
variant 4
LED
Protective cap
Base plate
106.2 mm
Ø 115.5 mm
14.5 mm
Threaded hole
1/4" BSW x 6.5 mm
for temporary mounting
on a stand
Membrane vent covering the pushbutton
(tightening torque: 0.6 - 0.8 Nm)
Type plate with
product name
and serial number
Degree of protection:
IP65 (for outdoor use) if the waterproof
RJ45 connector is inserted properly
Weight: < 500 g
The OTMC 100 does not provide an ON/OFF switch! The device automatically powers up after supply
voltage is provided via Ethernet (PoE).
The LED indicates the device status:
LED continuously off The OTMC 100 is not supplied with power via the RJ45 Ethernet
connector.
LED lights red Device reboot is in progress.
LED flashes red Software update is in progress.
ATTENTION: Do not disconnect the OTMC 100 from its PoE source
(Ethernet network) during a software update!
LED lights orange Intermediate state when entering the recovery mode manually or
when initiating a factory reset (see also "Operating Procedures
Performed Directly on the Device" on page 31).
LED flashes green The OTMC 100 is in the recovery mode, waiting for new software. In
the recovery mode, the device provides only a rudimentary Web
Interface just allowing for the upload of a software image (see also
"Operating Procedures Performed Directly on the
Device" on page 31).
OTMC 100 Series User Manual
12

LED lights green The OTMC 100 is ready for operation.
The green LED does not provide information about the
number of satellites received or the actual time accuracy
provided by the OTMC 100. Such information are
displayed in the Status pages (see page 39) of the Web
Interface.
The pushbutton can be accessed after unscrewing the water-tight membrane vent.
Membrane vent
detached
Pushbutton
LED
Pushbutton
The pushbutton can be used to:
• Initiate a device reboot.
• Initiate a factory reset to reset the device configuration to the factory defaults (for example, if you
forgot your password).
• Enter the recovery mode in order to upload software to the device (for example, after a software
update process failed).
Please refer to "Operating Procedures Performed Directly on the Device" on page 31 for more
detailed descriptions.
Device Overview
13

4 Mounting
4.1 Safety Instructions
A position with good view to the sky will usually be located in a lightning endangered zone outside of a
building. The OTMC 100 must not be exposed to direct lightning strokes and thus has to be protected
sufficiently. Therefore, the OTMC 100 has to be mounted in an area protected by a lightning protection
system according to the relevant standards and regulations. The user is responsible for sufficient
lightning protection of the device and the observance of all lightning protection regulations relevant for
the site of installation.
Always use the waterproof RJ45 Ethernet connector supplied with the OTMC 100 in order to maintain
the watertightness of the device. Do not use the OTMC 100 outdoors without a waterproof connector
inserted.
CAUTION! Risk of injury or damage due to high voltages caused by lightning stroke.
• The installation of the OTMC 100 and the implementation of lightning protection
measures have to be performed by accordingly qualified experts.
• Always observe all relevant lightning protection regulations.
• The local lightning protection regulations and the protection concept of the building and
the electrical installation may require a suitable surge protection device for the Ethernet
network cable leading into the building.
• For outdoor installation always use shielded Ethernet cable. The cable shield has to be
connected to the shield of the Ethernet connectors.
4.2 Suitable Mounting Positions
The OTMC 100 receives the time information from the satellites of the GPS system. However, GPS
reception generally requires a plain line of sight between the antenna and the satellites.
For proper function, the OTMC 100 requires signal reception from at least 4 GPS satellites. The more
satellites it can receive, the more reliable the time information the OTMC 100 can deliver.
The OTMC 100 should generally be mounted outdoors at a location that provides free view in a range
of 180° vertically to the sky and 360° horizontally around the device. The view to the sky must not be
blocked by any objects. This is usually given when mounting the OTMC 100 on a roof or a sufficiently
high mast. Refer to the figure below.
You should furthermore consider that GPS signals may be reflected by large buildings and structures
around the OTMC 100, which may deteriorate the timing accuracy of the OTMC 100.
Always mount the OTMC 100 in an upright position with the protective cap to the top, as shown in the
figure below. The RJ45 connector on the base plate of the OTMC 100 must point vertically
downwards. Do not mount the OTMC 100 inclined to any side or with the base plate to the top!
OTMC 100 Series User Manual
14

2
BAD position.
Will not work properly!
BEST position.
Recommended!
Possible if no alternative position is
available. Not recommended!
Possible position.
Mount the OTMC 100 in an upright position
with the protective cap to the top only!
Provide a suitable surge
protection device to the Ethernet
cable leading into the building!
Always observe all relevant
lightning protection regulations!
Use shielded Ethernet cable only!
4
1
3
1
Recommended mounting position with best possible reception of GPS signals.
This mounting position provides direct view to the sky. The view is not hindered by any
objects and the GPS signals are not influenced by any reflections.
2
Possible mounting position providing sufficient reception of GPS signals under most
conditions. This mounting position provides direct view to the sky in a range of nearly 180°.
The view is only partly hindered and there is negligible danger of reflections that could
influence the GPS signals.
3
Possible mounting position if no other mounting position is available. Not recommended!
This mounting position provides direct view to the sky for a range of more than 90° but much
less than 180°. The view to the right is hindered by the taller part of the building and there is
an increased danger of reflections that could influence the GPS signals.
4
Bad mounting position. Do not use!
This mounting position provides direct view to the sky for a range of only 90°. Half the sky is
blocked by the taller part of the building and the reception of GPS signals will be considerably
influenced by reflections. The OTMC 100 will not work properly!
Mounting
15

4.3 Mounting Instructions
There are two possible ways for mounting the OTMC 100. Refer to the subsections below for detailed
mounting instructions.
Mast mounting using the delivered mast
mounting kit. Temporary mounting using the 1/4" BSW (British Standard Whitworth) thread for
mounting on a stand, for example.
4.3.1 Mounting Instructions for Mast Mounting
The mast mounting kit delivered with the OTMC 100 contains the following parts:
• 1 mast clamp consisting of 2 clamping jaws and 4 fastening screws M6 x 110 with lock washers
• 2 clamping blocks and 4 fastening screws M6 x 16 with lock washers
• 1 connection pipe 20 x 300 mm
Proceed as follows:
Assemble the mast clamp and attach it to the mast
as shown in the figure.
The mast clamp is suitable for mast diameters of 25
to 70 mm.
Use a tightening torque of 5 Nm for the fastening
screws of the clamping block (1). The tightening
torque for the fastening screws of the mast clamp (2)
depends on the material and diameter of the mast.
1 2
OTMC 100 Series User Manual
16

Attach the clamping block (3) to the base plate of the
OTMC 100 as shown in the figure.
Use a tightening torque of 5 Nm for the fastening
screws.
Exclusively use the two M6 x 16 screws delivered
with the mast mounting kit! Do not use longer
screws! The threaded holes in the base plate are
only 9 mm deep.
3
Insert the connecting pipe (4) to the clamping blocks
on the mast clamp and the OTMC 100 as shown in
the figure.
5
4
Align the OTMC 100 in an upright position as shown
in the figure and tighten both clamping screws (5) of
the clamping blocks evenly with a tightening torque
of 5 Nm.
Assemble the delivered waterproof RJ45 connector
to the Ethernet cable according to the accompanying
assembly instructions and insert it to the RJ45
connector on the base plate of the OTMC 100. Use
suitable cable ties to fasten the Ethernet network
cable to the connecting pipe and the mast.
Always use the waterproof RJ45 Ethernet
connector supplied with the OTMC 100 in
order to maintain the watertightness of the
device. Do not use the OTMC 100 outdoors
without a waterproof connector inserted.
The clamping blocks provide holes for
horizontal and vertical mounting of the
connecting pipe. Therefore, it is also
Mounting
17

possible to mount the OTMC 100 on the
top of a vertically mounted connecting pipe,
as shown in the figure on the right.

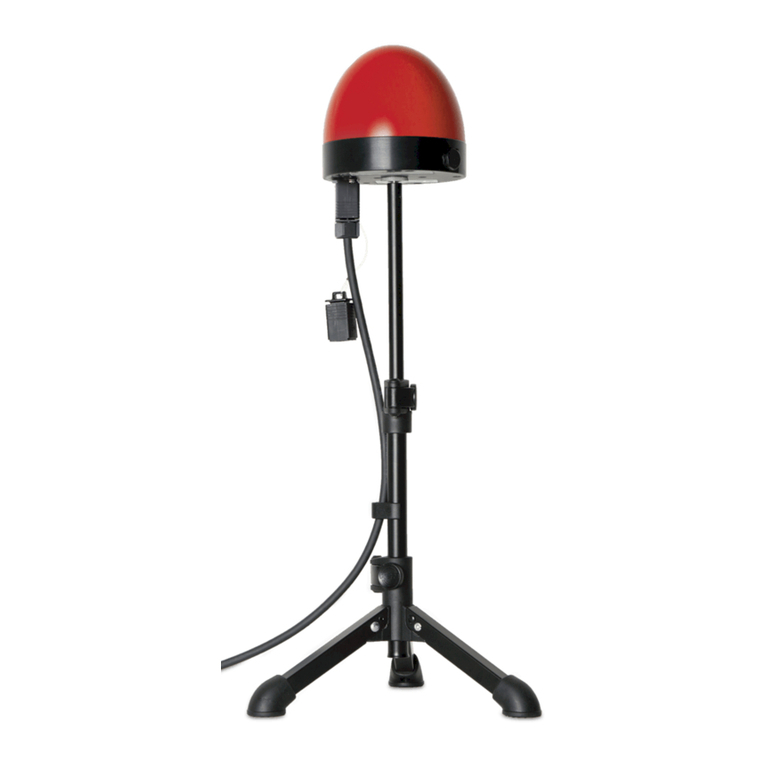

4.3.2 Mounting Instructions for Temporary Mounting Using the 1/4" BSW
Thread
Screw the grub screw of the stand into the 1/4" BSW
(British Standard Whitworth) thread (1) on the base
plate of the OTMC 100 and tighten it sufficiently.
The threaded hole in the base plate is 6.5 mm deep.
Make sure not to screw in the grub screw too deep!
Assemble the delivered waterproof RJ45 connector
to the Ethernet cable according to the accompanying
assembly instructions and insert it to the RJ45
connector on the base plate of the OTMC 100. If
necessary, use suitable cable ties to fasten the
Ethernet network cable to the stand.
1
Do not move the OTMC 100 during operation. Changing the position of the OTMC 100
during operation causes time errors.
OTMC 100 Series User Manual
18

5 Connection, Access & Initial Setup
5.1 Connecting the OTMC 100 to an Ethernet Network
Note regarding network switches:
The precise synchronization of clocks via Ethernet networks requires that the propagation
delay times for data packets is constant on the entire network. Network switches that do not
provide transparent clock functionality may introduce jitter and thus influence the propagation
delay. Therefore, the OTMC 100 will only be able to provide highly accurate time
synchronization in networks that that are equipped with network switches providing
transparent clock functionality as specified in IEEE 1588-2008 or that do not have a network
switch at all.
Do not connect conventional RJ45 connectors that are equipped with a locking tab to the
OTMC 100! The locking tab of such connectors cannot be accessed directly anymore after
inserting the plug to the OTMC 100. In this case, a small screwdriver must be used to
carefully unlock the RJ45 connector in the socket. Use the waterproof RJ45 connector
supplied with the OTMC 100 instead or, when using a cable with a conventional RJ45
connector (for test purposes only!), break off the locking tab at the RJ45 connector before
inserting it to the OTMC 100.
The OTMC 100 is supplied with power by Power over Ethernet (PoE) according to IEEE 802.3af. If the
network port the OTMC 100 is connected to does not provide PoE, a PoE injector has to be used as
shown in the figure below.
The OTMC 100 supports Ethernet cable lengths of up to 100 m without the need of repeaters. By
using additional media converters the use of optical Ethernet is possible, which allows much longer
distances. Depending on the used variant it is possible to cover distances up to 2000 m. For further
details, please refer to the user manual of the media converters used.
The OTMC 100 automatically powers up after inserting the RJ45 plug and providing supply voltage to
the OTMC 100. After the device is supplied with voltage, the LED first lights up red for approx. 15 s
during the boot process and then changes to green to indicate operational readiness.
The OTMC 100 is a class 1 powered device (PD) as defined in IEEE 802.3af (power
consumption < 3.84 W). The network port the OTMC 100 is connected to must be able to
supply a class 1 powered device.
CAUTION! Risk of injury or damage due to high voltages caused by lightning stroke.
The local lightning protection regulations and the protection concept of the building and the
electrical installation may require a suitable surge protection device for the Ethernet network
cable leading into the building.
Connection, Access & Initial Setup
19

The following figure shows the general arrangement of the OTMC 100, the surge protection device
and the PoE injector (if necessary).
Ethernet network port
providing PoE
Surge protection device
Ethernet network port
not providing PoE
PoE injector
Surge protection device
Mains
The following figure shows a typical network with one OTMC 100, a network switch providing
transparent clock functionality, and several PTP slaves.
Network switch
(transparent clock)
PTP slavePTP slave PTP slave PTP slave
OTMC 100 Series User Manual
20
