Omni 24K Repair manual

Owner’s Manual &
Installation Manual
ELECTRIC AIR HANDLER
IMPORTANTNOTE:
Read this manual carefully before installing
or operating your new HVAC system.
Make sure to save this manual for
future reference.
Please check the applicable models, technical
data, F-GAS (if any) and manufacturer informa-
tion from the “Owner's Manual - Product Fiche”
in the packaging of the outdoor unit.

Indoor Unit Parts And Major Functions .............................................09
Owner’s Manual
Table of Contents
Safety Precautions ............................................................................05
Care and Maintenance...................................................................12
Troubleshooting..............................................................................14
1. Unit Parts...............................................................................................................................................................................09
2. Operating Conditions.......................................................................................................................................................09
3. Features ................................................................................................................................................................................10
4. Energy Saving Tips.............................................................................................................................................................10
5. Static pressure selection..................................................................................................................................................11

Installation Manual
........................................................................................17
....................................................................18
.....................................................................................................................................................................18
................................................................................................................................18
..............................................................................................................22
........................................................................26
...........................................................................................................................................26
.............................................................................................................................................26
........................................................28
..............................................................................................................................28
...............................................................................................................28
..................................................................................................................................................................................29
.......................................................................................................................................................................29
.....................................................................................................................................................................29
......................................................................................................................................................................30
..............................................................................................31
..............................................................................................................................................................32
..................................................................................................................................................................33
.............................................................................................................................................................35
...................................................................................36
........................................................................................................................................................36
.........................................................................................................................37
..............................................................................................38
Accessories
Indoor Unit Installation
1. Indoor Unit Parts
2. Indoor Unit Installation Instructions
3. Installation of ElectricAuxiliary Heat Module
Drainpipe Installation
1.NOTEONPURCHASINGPIPES
2. Indoor Drainpipe Installation
Refrigerant Piping Connection
A. NotesOnPipeLengthandElevation
B. Connection Instructions –Refrigerant Piping
1.Cutpipe
2.Removeburrs
3.Flarepipeends
4.Connectpipes
Wiring
1. Outdoor Unit Wiring
2. Indoor Unit Wiring
3.PowerSpecifications
Air Evacuation
1. Evacuation Instructions
2.NoteonAddingRefrigerant........................
Test Run

Read Safety Precautions Before Operation and Installation
The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.
Incorrect installation due to ignoring instructions can cause serious damage or injury.
WARNING
This appliance can be used by children aged from 8 years and above and persons with reduced
This appliance is not intended for use by persons(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the appliance.
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
WARNINGS FOR PRODUCT USE
•
If an abnormal situation arises (like a burning smell), immediately turn o the unit and disconnect
the power. Call your dealer for instructions to avoid electric shock, re or injury.
•
Do not
insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since
the fan may be rotating at high speeds.
•
Do not
use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause
fire or combustion.
•
Do not
operate the air conditioner in places near or around combustible gases. Emitted gas may
collect around the unit and cause explosion.
•
Do not
•
•
Do not
expose your body directly to cool air for a prolonged period of time.
•
•
If the air conditioner is used together with burners or other heating devices, thoroughly ventilate
the room to avoid oxygen deficiency.
Safety Precautions
Do not
allow children to play with the air conditioner. Children must be supervised around the
unit at all times.
operate your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
In certain functional environments, such as kitchens, server rooms, etc., the use of specially
designed air-conditioning units is highly recommended.
WARNING
This symbol indicates the possibility
of personnel injury or loss of life.
CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
 Page 5
Safety
Precautions

• Do not
clean the air conditioner with combustible cleaning agents. Combustible cleaning agents
can cause re or deformation.
CLEANING AND MAINTENANCE WARNINGS
• Turn o the device and disconnect the power before cleaning. Failure to do so can cause
electrical shock.
• Do not
clean the air conditioner with excessive amounts of water.
CAUTION
• Turn o the air conditioner and disconnect the power if you are not going to use it for a long time.
• Turn o and unplug the unit during storms.
• Make sure that water condensation can drain unhindered from the unit.
• Do not operate the air conditioner with wet hands. This may cause electric shock.
• Do not use device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows open,
or if the humidity is very high.
ELECTRICAL WARNINGS
• Only use the specified power cord. If the power cord is damaged, it must be replaced by the
manufacturer , its service agent or similarly qualied persons in order to avoid a hazard.
• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty
plugs can cause re or electric shock.
•
•
•
•
•
•
•
Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling
directly on the cord can damage it, which can lead to fire or electric shock.
Do not modify the length of the power supply cord or use an extension cord to power the unit.
Do not share the electrical outlet with other appliances. Improper or insucient power supply
can cause re or electrical shock.
If connecting power to xed wiring, an all-pole disconnection device which has at least 3mm
clearances in all poles, and have a leakage current that may exceed 10mA, the residual current
device(RCD) having a rated residual operating current not exceeding 30mA, and disconnection
must be incorporated in the xed wiring in accordance with the wiring rules.
For all electrical work, follow all local and national wiring standards, regulations, and the
Installation Manual. Connect cables tightly, and clamp them securely to prevent external forces
from damaging the terminal. Improper electrical connections can overheat and cause re, and may
also cause shock.
All electrical connections must be made according to the Electrical Connection
Diagram located on the panels of the indoor and outdoor units.
All wiring must be properly arranged to ensure that the control board cover can close properly. If
the control board cover is not closed properly, it can lead to corrosion and cause the connection
points on the terminal to heat up, catch re, or cause electrical shock.
The product must be properly grounded at the time of installation, or electrical shock may occur.
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent protection.
The specifications of the fuse are printed on the circuit board ,examples of such are T5A/250VAC and
T10A/250VAC.
 Page 6
Safety
Precautions

WARNINGS FOR PRODUCT INSTALLATION
1. Installation must be performed by an authorized dealer or specialist. Defective installation can
cause water leakage, electrical shock, or re.
2. Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or re.
(In North America,installation must be performed in accordance with the requirement of NEC
and CEC by authorized personnel only.)
3.
Contact an authorized service technician for repair or maintenance of this unit. This appliance
shall be installed in accordance with national wiring regulations.
4.
Only use the included accessories, parts, and specied parts for installation. Using non-standard
parts can cause water leakage, electrical shock, re, and can cause the unit to fail.
5.
6.
Install the unit in a rm location that can support the unit’s weight. If the chosen location cannot
support the unit’s weight, or the installation is not done properly, the unit may drop and cause
serious injury and damage.
7.
8.
9.
10.
11.
Do not turn on the power until all work has been completed.
When moving or relocating the air conditioner, consult experienced service technicians for
disconnection and reinstallation of the unit.
How to install the appliance to its support, please read the information for details in "indoor unit
installation" and "outdoor unit installation" sections .
For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of
any combustible materials.
Do not install the unit in a location that may be exposed to combustible gas leaks. If
combustible
gas accumulates around the unit, it may cause re.
Install drainage piping according to the instructions in this manual. Improper drainage may
cause water damage to your home and property.
Note about Fluorinated Gasses(Not applicable to the unit using R290 Refrigerant)
1.
This air-conditioning unit contains fluorinated greenhouse gasses. For specic information on the
type of gas and the amount, please refer to the relevant label on the unit itself or
the
“Owner's Manual - Product Fiche ” in the packaging of the outdoor unit. (European
Union products only)
.
2. Installation, service, maintenance and repair of this unit must be performed by a certified
technician.
Note
3.
Product uninstallation and recycling must be performed by a certified technician.
4. For equipment that contains uorinated greenhouse gases in quantities of 5 tonnes of CO2
equivalent or more, but of less than 50 tonnes of CO2equivalent, If the system has a leak-
detection system installed, it must be checked for leaks at least every 24 months.
5. When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.
Page 7 
Safety
Precautions
MODEL
PRESSURE
The allowed static pressure range of the air conditioner on site is 0-200Pa.
Test static pressure
24K
25Pa 37Pa 50Pa
36K 48K

European Disposal Guidelines
This appliance contains refrigerant and other potentially hazardous materials. When disposing of
this appliance, the law requires special collection and treatment. Do not dispose of this product as
household waste or unsorted municipal waste.
When disposing of this appliance, you have the following options:
•Dispose of the appliance at designated municipal electronic waste collection facility.
•When buying a new appliance, the retailer will take back the old appliance free of charge.
•The manufacturer will take back the old appliance free of charge.
•Sell the appliance to certied scrap metal dealers.
Special notice
Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad
for the environment. Hazardous substances may leak into the ground water and enter the food chain.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that waste electrical and
eletrical equipment should not be mixed with general household waste.
Page 8 
Safety
Precautions

COOL mode HEAT mode DRY mode
Outdoor
Temperature
Page 9 
Indoor Unit Parts And Major Functions
Unit Parts Operating Conditions
Use the system under the following temperatures for safe and
eective operation. If the air conditioner is used under dierent
conditions, it may malfunction or become less ecient.
Air outlet
Air inlet
Drain hose
Refrigerant
connecting
pipe
FOR OUTDOOR UNITS WITH AUXILIARY ELECTRIC HEATER
Inverter Split Type
Fixed-speed Type
Indoor Unit
Parts And
Major Functions
COOL mode HEAT mode DRY mode
RoomTemperature 62°F-90°F 32°F-86°F 50°F-90°F
(17°C-32°C) (0°C-30°C) (10°C-32°C)
32°F-122°F
(0°C-50°C)
5°F-122°F
(-15°C-50°C)
(For models with
low temp. cooling)
5°F-75°F
(-15°C-24°C) 32°F-122°F
(0°C-50°C)
32°F-126°F
(0°C-52°C)
(Fortropical
models)
32°F-126°F
(0°C-52°C)
(For tropical
models)
When outside temperature is below 32°F (0°C ), we strongly
recommend keeping the unit plugged in at all time to ensure
smooth on going performance.
52°F-109°F(11°C-43°C)64°F-109°F(18°C-43°C)
Room 0°C-30°C
Temperature 62°F-90°F (17°C-32°C) (32°F-86°F) 10°C-32°C (50°F-90°F)
Outdoor 19°F-109°F (-7°C-43°C) 64°F-109°F (18°C-43°C)
Temperature (Formodelswith low-tempcooling)
64°F-126°F (17°C-32°C) 64°F-126°F (17°C-32°C)
(Fortropicalmodels) (Fortropicalmodels)
19°F-75°F
(-7°C-24°C)
NOTE: Keep the room's relative humidity at less than 80%. If the system operates in excess
of this figure, the surface of the system may attract condensation. Please set the vertical air
flow louver to its maximum angle (vertically to the floor),andsetHIGHfanmode.

To further optimize the performance of your unit, do the following:
• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air lters.
Page10 
Features
Refrigerant Leak Detection System
(some models)
In the event of a refrigerant leak, the LCD screen
will display “EC” and the LED indicator light will
ash.
Closing curtains during heating also
helps keep the heat in Doors and windows should be kept closed
Indoor Unit
Parts And
Major Functions
The default temperature of thfirst power-on
is set to 62.6°Fand 86°Fforheating.
NOTE:
1. Under normal working conditions,
the switch, wind speed and temperature can
not be adjusted by remote control.
2. Requirements of wire controller:
ControlAUX function for live heating
Energy Saving Tips
•DO NOT set the unit to extreme temperature levels.
•While cooling, close the curtains to avoid direct sunlight.
•Doors and windows should be kept closed to keep cool or warm air in the room.
•DO NOT place objects near the air inlet and outlet of the unit.
•Cleanthe air lter every two weeks.
•Adjust louvers properly and avoid direct airflow.

Static Pressure EXTERNAL STATIC PRESSURE (in.w.c.)
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
Model
24K
48K
36K
SP1 9751076 675853 /502 / //
11751250 9651075 650815 / //
14151490 12501334 10281156
17561825 15921670 14501515
12701335 10621165 810950
14051475 12301320 9901125
15851648 14401515 12351354
17331815 16051663 14351528
15301611 13751462 11701276
17011774 15701642 14201504
18051868 16751736 15321604
19742024 18501919 17261795
750
1250
450
715
990
1235
925
1202
1330
1560
600
1120
240
570
875
1130
831
1081
1211
1466
880
1360
645
855
1125
1346
1025
1313
1433
1652
SP2
SP3
SP4
SP1
SP2
SP3
SP4
SP1
SP2
SP3
SP4
Page 11 
Indoor Unit
Parts And
Major Functions
Static pressure selection ( For RG57 Remote Controller )
•
•
MODE
FAN
TEMP
SLEEP
L
SWING DIRECT
ED
TURBO
ON/OFF
TIMER
ON
TIMER
OFF
SHORT
CUT
The indoor unit should be operated within 10 minutes after
installation.
During the first 30 seconds after power on, press and hold the
following threebuttons: MODE,FAN, andTIMERON; or the two
buttonsofMODEandTIMERONfor 5seconds.
Step1 :Press“△”or“▽ ” to select the E9.
Step2 :Press“MODE” tosettheair ow rate in the range of 1~4.
“1”~“4”：Air ow increase progressively
Step3:Press“MODE”toconfirm,thanPress“TIMERON”tofinish the air flow setting.
Step4 : Remove the remote controller battery, and then assemble the battery after the remote
controller screen is not displayed. The remote controller exits the modification mode.
Afterrestarting, the machine will keep the setting's value.
AIR FLOW DATA (CFM)
NOTE:
1. This function is only suitable for debugging the machine with the RG57 remote controller. Changing
this only allows for professional installers to operate.
2. During the static pressure test, it is necessary to assemble the upper cover of the unit, otherwise
there may be deviations in the calculated data.
3. The remote controller is only allowed for static pressure debugging and static pressure test functions.
4. Illustrations in this manual are for explanatory purposes.The actual shape of your remote controller
may be slightly different.
5. Sp1 appliesstaticpressureof 0~0.2 inw.c
Sp2 appliesstaticpressureof0.2~0.4in w.c
Sp3 appliesstaticpressureof0.4~0.6in w.c
Sp4 appliesstaticpressureof0.6~0.8in w.c

Care and Maintenance
Cleaning Your Indoor Unit
BEFORE CLEANING OR
MAINTENANCE
ALWAYS TURN OFF YOUR AIR CONDITIONER
SYSTEM AND DISCONNECT ITS POWER SUPPLY
BEFORE CLEANING OR MAINTENANCE.
CAUTION
Only use a soft, dry cloth to wipe the unit clean.
If the unit is especially dirty, you can use a cloth
soaked in warm water to wipe it clean.
• Do notuse chemicals or chemically treated
cloths to clean the unit
• Do not use benzene, paint thinner,
polishing powder or other solvents to clean
the unit. They can cause the plastic surface
to crack or deform.
•
•
Do not use water hotter than 40°C (104°F)
to clean the front panel. This can cause the
panel to deform or become discolored.
DO NOT wash the unit under running water.
Doing so creates an electrical hazard.
Clean the unit using a damp, lint-free cloth
and neutral detergent. Dry the unit with a
dry, lint-free cloth.
WARNING: DO NOT REMOVE OR
CLEAN THE FILTER BY YOURSELF
Removing and cleaning the filter can be
dangerous. Removal and maintenance must be
performed by a certified technician.
If using a vacuum cleaner,
the inlet side should face
the vacuum.
If using water, the inlet side
should face down and away
from the water stream.
2. Remove the air lter.
3. Clean the air lter by vacuuming the surface
or washing it in warm water with mild
detergent.
Page 12 
1. Remove lter cover.
• Contact an authorized service technician for
repair or maintenance. Improper repair and
maintenance may cause water leakage,
electrical shock, or re, and may void your
warranty.
• DO NOT substitute a blown fuse with a
higher or lower amperage rating fuse, as this
may cause circuit damage or an electrical re.
• Make sure the drain hose is set up according
to the instructions. Failure to do so could
cause leakage and result in personal
property damage, re and electric shock.
• Make sure that all wires are connected
properly. Failure to connect wires according
to instructions can result in electrical shock
or re.

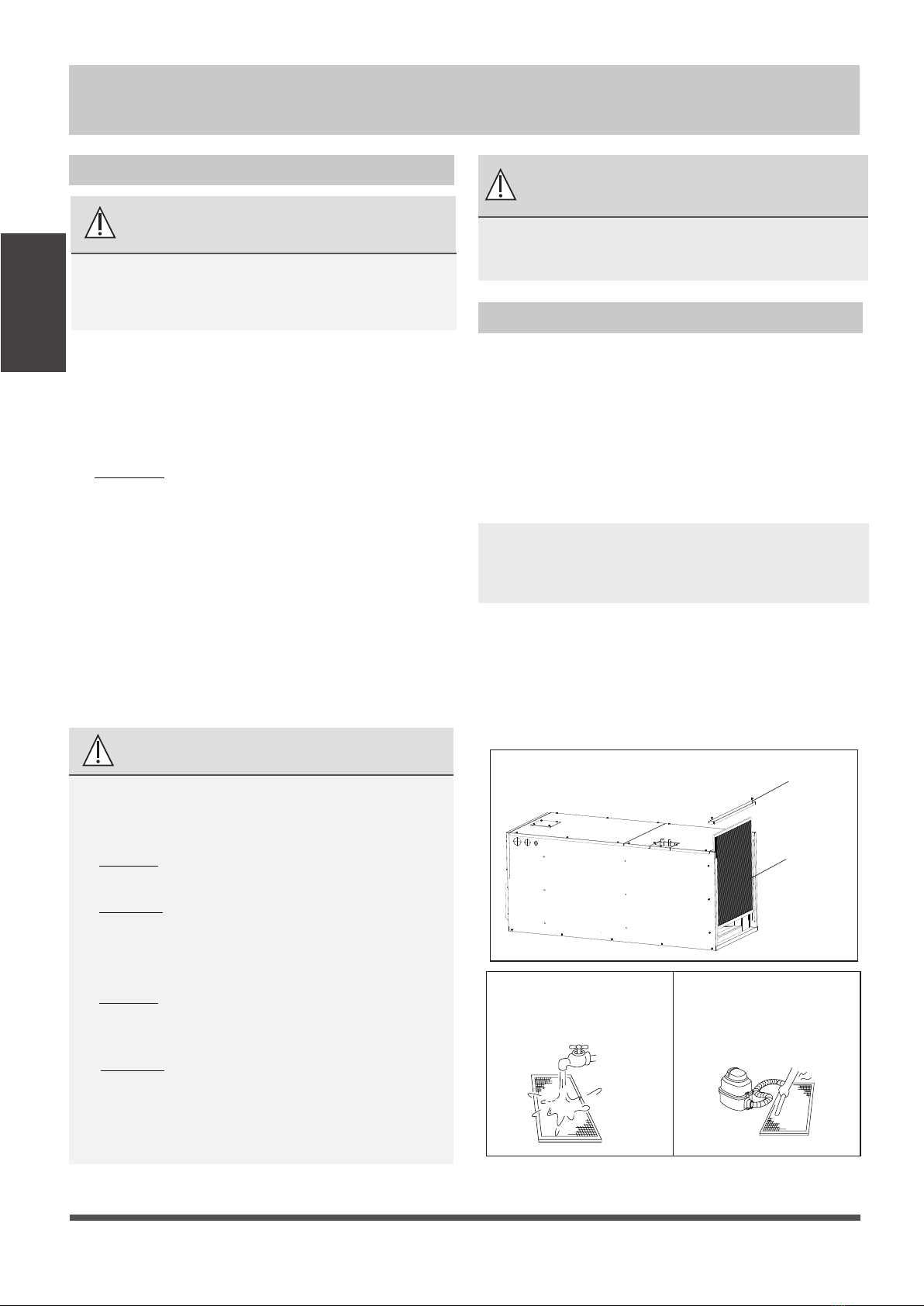

How To Clean The Air Filter
The lter prevents dust and other particles from
entering the indoor unit. Dust buildup can reduce
the eciency of the air conditioner. For optimum
eciency, clean the air lter every two weeks or
more frequently if you live in a dusty area.
Replace the lter with a new one if it’s heavily
clogged and cannot be cleaned.
NOTE: In households with animals, you will
have to periodically wipe down the grille to
prevent animal hairblocking airow.
Air lter
cover
Air lter
Care and
Maintenance

Maintenance –
Long Periods of Non-Use
If you plan not to use your air conditioner for an
extended period of time, do the following:
Clean all lters Turn on FAN function until
unit dries out completely
Turn o the unit and
disconnect the power
Maintenance –
Pre-Season Inspection
After long periods of non-use, or before periods
of frequent use, do the following:
Check for damaged wires Clean all lters
Check for leaks
Make sure nothing is blocking all air inlets and outlets
Page 13 
Care and
Maintenance
CAUTION
• Before changing the filter or cleaning,
turn on the unit and disconnect its power
supply.
• When removing the filter, do not touch
metal parts in the unit. The sharp metal
edges may hurt you.
• Do not use water to clean the inside of the
indoor unit. This can destroy insulation and
causeelectricalshock.
• Do not expose the filter to direct sunlight
when drying. This can shrink the filter.
CAUTION
• Any maintenance and cleaning of outdoor
unit should be performed by an authorized
dealer or a licensed service provider.
• Any unit repairs should be performed
by an authorized dealer or a licensed
service provider.

Troubleshooting
Common Issues
The following problems are not a malfunction and in most situations will not require repairs.
Issue Possible Causes
Unit does not turn
on when pressing
ON/OFF button
The unit may change its setting to prevent frost from forming on the unit.
Once the temperature increases, the unit will start operating in the
previously selected mode again.
The set temperature has been reached, at which point the unit turns o the
compressor. The unit will continue operating when the temperature
fluctuates again.
The indoor unit
emits white mist
In humid regions, a large temperature dierence between the room’s air
and the conditioned air can cause white mist.
Both the indoor and
outdoor units emit
white mist
When the unit restarts in HEAT mode after defrosting, white mist may be
emitted due to moisture generated from the defrosting process.
Troubleshooting
The unit changes from
COOL/HEAT mode to
FAN mode
The indoor unit makes
noises A squeaking sound may occur after running the unit in HEAT mode due to
expansion and contraction of the unit’s plastic parts.
Both the indoor unit
and outdoor unit make
noises
Low hissing sound during operation: This is normal and is caused by refrigerant
gas flowing through both indoor and outdoor units.
Low hissing sound when the system starts, has just stopped running, or is
defrosting: This noise is normal and is caused by the refrigerant gas stopping or
changing direction.
Squeaking sound: Normal expansion and contraction of plastic and metal parts
caused by temperature changes during operation can cause squeaking noises.
A squeaking sound is heard when the system is OFF or in COOL mode. The
noise is also heard when the drain pump (optional) is in operation.
Page 14 
SAFETYPRECAUTIONS
If any of the following occurs, turn off your unit immediately:
•The power cord is damaged or abnormally warm
•You smell a burning odor
•The unit emits loud or abnormal sounds
•Apower fuse blows or the circuit breaker frequently trips
•Water or other objects fall into or out of the unit
DO NOTATTEMPT TO FIX THESE YOURSELF! CONTACTANAUTHORIZED
SERVICEPROVIDERIMMEDIATELY!
The Unit has a 3-minute protection feature that prevents the unit from overloading.
The unit cannot be turned back on within three minutes of being turned off.
Cooling and Heating Models: If the Operation light and PRE-DEF (Pre-heating/
Defrost) indicators are lit up, the outdoor temperature is too cold and the unit’s
anti-cold wind function is activated in order to defrost the unit.
In Cooling-only Models: If the “Fan Only” indicator is lit up, the outdoor
temperature is too cold and the unit’s anti-freeze protection is activated in
order to defrost the unit.

Troubleshooting
Issue Possible Causes
The outdoor unit
makes noises
The unit will make dierent sounds based on its current operating mode.
Dust is emitted from
either the indoor or
outdoor unit
The unit may accumulate dust during extended periods of non-use, which will be
emitted when the unit is turned on. This can be mitigated by covering the unit during
long periods of inactivity.
The unit emits a
bad odor
The unit may absorb odors from the environment (such as furniture, cooking,
cigarettes, etc.) which will be emitted during operations.
The unit’s filters have become moldy and should be cleaned.
The fan of the outdoor
unit does not operate
During operation, the fan speed is controlled to optimize product operation.
NOTE: If problem persists, contact a local dealer or your nearest customer service center. Provide
them with a detailed description of the unit malfunction as well as your model number.
Poor Cooling
Performance
Temperature setting may be higher
than ambient room temperature Lower the temperature setting
The heat exchanger on the indoor
or outdoor unit is dirty
Clean the aected heat exchanger
The air lter is dirty Remove the filter and clean it according to
instructions
The air inlet or outlet of either
unit is blocked
Turn the unit o, remove the obstruction
and turn it back on
Doors and windows are open Make sure that all doors and windows are
closed while operating the unit
Excessive heat is generated
by sunlight
Close windows and curtains during periods
of high heat or bright sunshine
Too many sources of heat in the
room (people, computers,
electronics, etc.)
Reduce amount of heat sources
Low refrigerant due to leak
or long-term use
Check for leaks, re-seal if necessary and
top o refrigerant
Page 15 
Troubleshooting
When issues occur, please check the following points before contacting a repair company.
Problem Possible Causes Solution

Problem Possible Causes Solution
The unit is not
working
The unit starts and
stops frequently
There’s too much or too little
refrigerant in the system
Check for leaks and recharge the
system with refrigerant.
Incompressible gas or moisture
has entered the system.
Evacuate and recharge the system
with refrigerant
Poor heating
performance
The outdoor temperature is
extremely low
Use auxiliary heating device
Cold air is entering through
doors and windows Make sure that all doors and
windows are closed during use
Low refrigerant due to leak or
long-term use Check for leaks, re-seal if necessary
and top o refrigerant
System circuit is blocked
Determine which circuit is blocked and
replace the malfunctioning piece of
equipment
Page 16 
Troubleshooting
Powerfailure Wait forthepowertoberestored
The power is turned o Turn on the power
Thefuseisburnedout Replacethefuse
The Unit’s 3-minute protection
Wait three minutes before starting
hasbeenactivated
theunit
Timerisactivated Turntimeroff
The voltage is too high or Install a manostat to regulate the
toolow voltage

Owner’s Manual & Installation Manual
Accessories
Page 17 
The air conditioning system comes with the following accessories. Use all of the installation parts
and accessories to install the air conditioner. Improper installation may result in water leakage,
electrical shock and re, or equipment failure.
Name Shape Quantity
1
Accessories
NOTE:
The remote controller is only allowed for static pressure debugging and static pressure test functions.
Remote controller
1
2
Battery

Indoor Unit Installation
Page 18 
Safety Precautions
Indoor Unit Parts
WARNING
•Securely install the indoor unit on a
structure that can sustain its weight. If the
structure is too weak, the unit may fall and
cause personal injury, unit and property
damage, or death.
• DO NOT install the indoor unit in a
bathroom or laundry room as excessive
moisture can short the unit and corrode
the wiring.
locations:
RECOMMENDED DISTANCES BETWEEN THE
INDOOR UNIT
The distance between the mounted indoor unit
should meet the specications illlustrated in the
following diagram.
Plenum Clearances
MINIMUM CLEARANCE
OF 25.4mm/1″ALL SIDES
FLEXIBLE
DUCT COLLAR
1m/3.2′
coil compartment
(Access panel Removed)
Upow drain pan
Horizontal drain pan
Indoor Unit Installation
Indoor Unit Installation Instructions
The indoor unit should be installed in a location
that meets the following requirements:
Enough room for installation and maintenance.
Enough room for the connecting pipe and
drainpipe.
The ceiling is level and its structure can
sustain the weight of the indoor unit.
The air supply and return are not impeded.
CAUTION
DO NOT install the unit in the following
Areas with oil drilling or fracking
Coastal areas with high salt content in the air
Areas with caustic gases in the air, such as
near hot springs
Areas with power uctuations, such as
factories
Enclosedspaces,suchascabinets
Areas with strong electromagnetic waves
Areas that store ammable materials or gas
Rooms with high humidity, such as
bathrooms or laundry rooms
CAUTION
•Install the indoor and outdoor units, cables
and wires at least 3.2' (1m) from televisions
or radios to prevent static or image
distortion. Depending on the appliances,
a 3.2' (1m) distance may not be sufficient.
•If the indoor unit is installed on metal,
it must be electrically grounded.
Fixing instructions: The supply and return air
of the unit needs to be connected by duct work and
fixed with screws.


Page 19

Mount positions
Installation place
Indoor parts installation size
MODEL(Btu/h) Length of A (mm/inch) Length of B (mm/inch)
24K~48K 1224/48.2 533/21
Length of C (mm/inch) Length of D (mm/inch) Length of E (mm/inch)
498/19.6 461/18.2 261/10.3
Indoor Unit Installation
Vertical up installations
24 inch
24inch
Vertical installations Horizontal installations
The units can be installed in a vertical (down
and up) and Horizontal (right and left)
configuration.
NOTE: Vertical up and horizontal right
installations, no need to change the
direction of evaporator coil.
Please follow these steps to perform Vertical
up installation and Horizontal right installation:
1. Open the upper cover.
2. Open the cover of the electronic control box.
3. Connect the wire according to the wiring
diagram.
4. Connect the pipes.
5. Install the drainage pipes.
DUCT CONNECTIONS：Air supply and return may
be handled in one of several ways best suited to the
installation (See table for dimensions for duct inlet
and outlet connections). The vast majority of
problems encountered with combination cooling
systems can be linked to improperly designed or
installed duct systems, it is therefore highly
important to the success of an installation that the
duct system is properly designed and installed.
Useflexible duct collars to minimize the transmission
of vibration/noise into the conditioned space.
Where return air duct is short, or where sound is
likely to be a problem, sound absorbing fiberglass
should be used inside the duct.
Insulation of duct work is a must where it runs through
an uncooled space during the cooling season. The use
of a vapor barrier is recommended to prevent
absorption of moisture from the surrounding air into
the insulation.The supply air duct should be properly
sized by use of a transition to match unit opening.All
ducts should be suspended using flexible hangers and
never fastened directly to the structure.This unit is not
designed for non-ducted applications. Duct work
should be fabricated and installed in accordance with
local and/or national codes.

Page 20 
Indoor Unit Installation
3. Remove the drain pan xed plate and supporting
plate.
4. Remove pipe temperature sensor and room
temperature sensor.
Remove the lter plate
Room temperature
sensor
Pipe temperature
sensor
Filter
Horizontal right installations
Auxiliary
drain pan
Take out the evaporator
and rotate it 180°
NOTE: For horizontal installation, a
drain pan(not supplied) must be installed.
For the Horizontal left installation and Vertical
down installation, the direction of the evaporator
should be changed and the drain pan should be
removed first.
1.Removethefixed plate of the filter, then
remove the filter.
2. Open the evaporator cover and remove the
drain plug.
5. Take out the evaporator and drain pan and
rotatethem180°.
