ONE MK-E18 User manual

USER
MANUAL
VERSION 2.0
PRODUCT: COLD SPARK MACHINE
MODEL: MK-E18

USER MANUAL (MK-E18)
1
1. PRECAUTIONS
Dear customers:
Thanks for choose our cold spark machines, pls read the user
manual careful before used to get better user experience.
1)Due to the manual content limited, pls understand missed some
of detail and safety direction in using, and not undertake the
responsible of the use result for missing.
2)We will continue to focus on products’ research, development
and technical improvement to create better experience effects，so
we reserve the right to make changes to the products, not do
inform, the manual just for your reference, the nal based on the
products you received.
Package Contents

1 x spin spark machine;

1 x remote controller;

1 x power cord;

1 x signal cable.

2
2. Product diagram
，
Working Height 1-5m Control mode DMX
Fountain direc-
tion
360° Housing material Aluminum
Working Tem-
perature
-10-50， N.W 20kgs
Power 1300W Dimension 365*365*400mm
Fuse 110V/16A,
220V/10A Warranty 1 year
Interface Double DMX input,
Double AC power
1Display 4Power port 7Spray hole
2Parameter label 5 Power switch 8Powder hole
3DMX port 6Fuse
AMAZING BOOSTER FOR STAGE

USER MANUAL (MK-E18)
3
3. Operation Panel

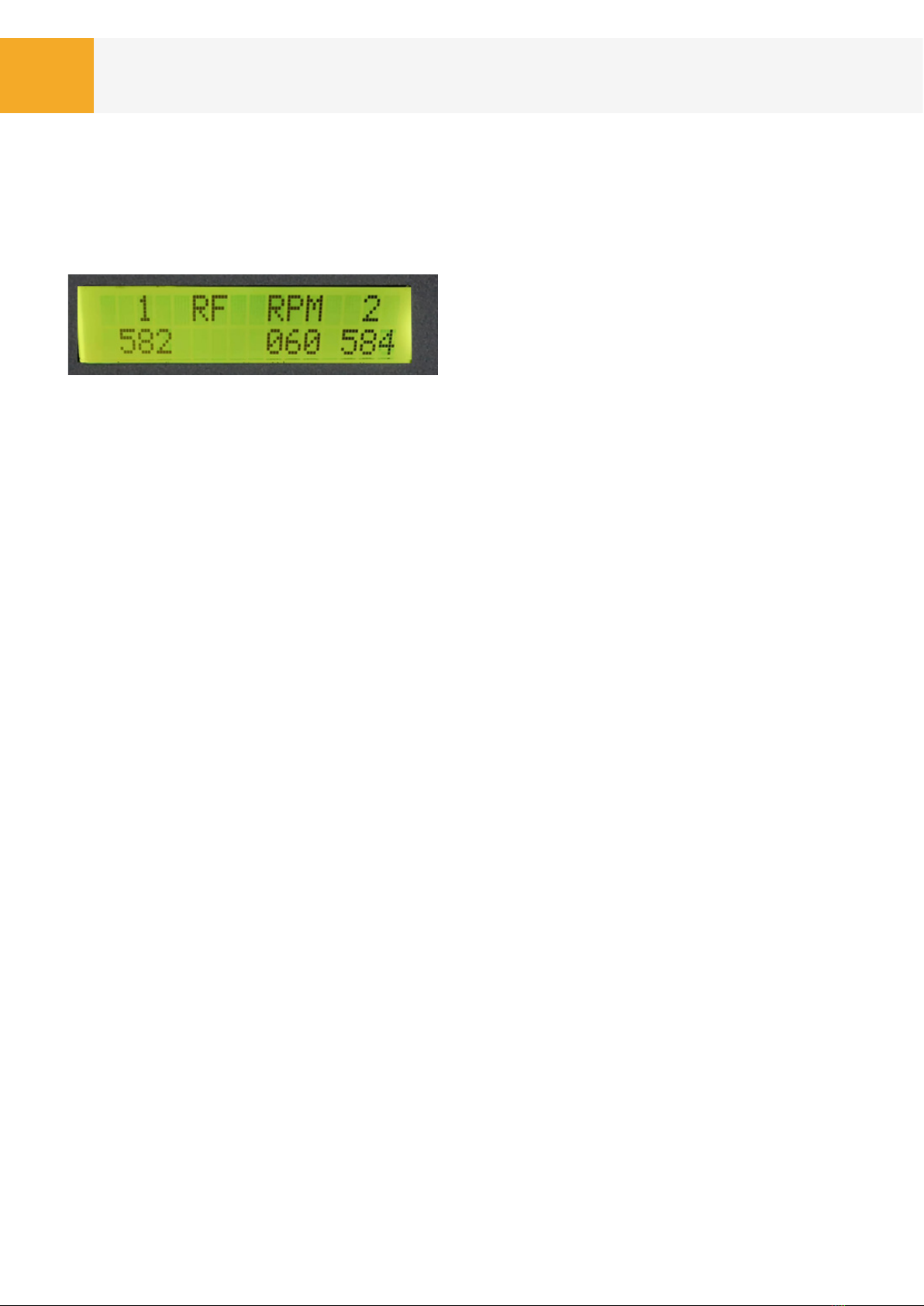

1)LCD Display Area，
1---Means nozzle 1 fountain, the following number is heating temp. of nozzle 1.
DMX/RF---Show “DMX”, then be controlled by console, the following number is
DMX address code; If show “RF”, then in remote control mode.
RPM---Spinning speed, the following number is R/M(within 60-100).
2--Means nozzle 2 fountain, the following number is heating temp. of nozzle 2.
2)Control Button Area:
MENU: menu DOWN: down
UP: up
ENTER: conrm and save
Press ENTER each time you make a selection

4
3)Indicator Description
READY: Green light When the “READY” green light always light
on, can start to do fountain.
DMX:Blue light Flashing shows that DMX signal is connected,
otherwise no signal.
FAULT: Yellow light: The light is on with any malfunction.
HEAT: Red light When the machine is heating, signal light is on;
once reach to working temp., will light off.
Operation Instructio Please ensure sufcient consumables
before use; After added consumables, cover the rubber plug (don’t

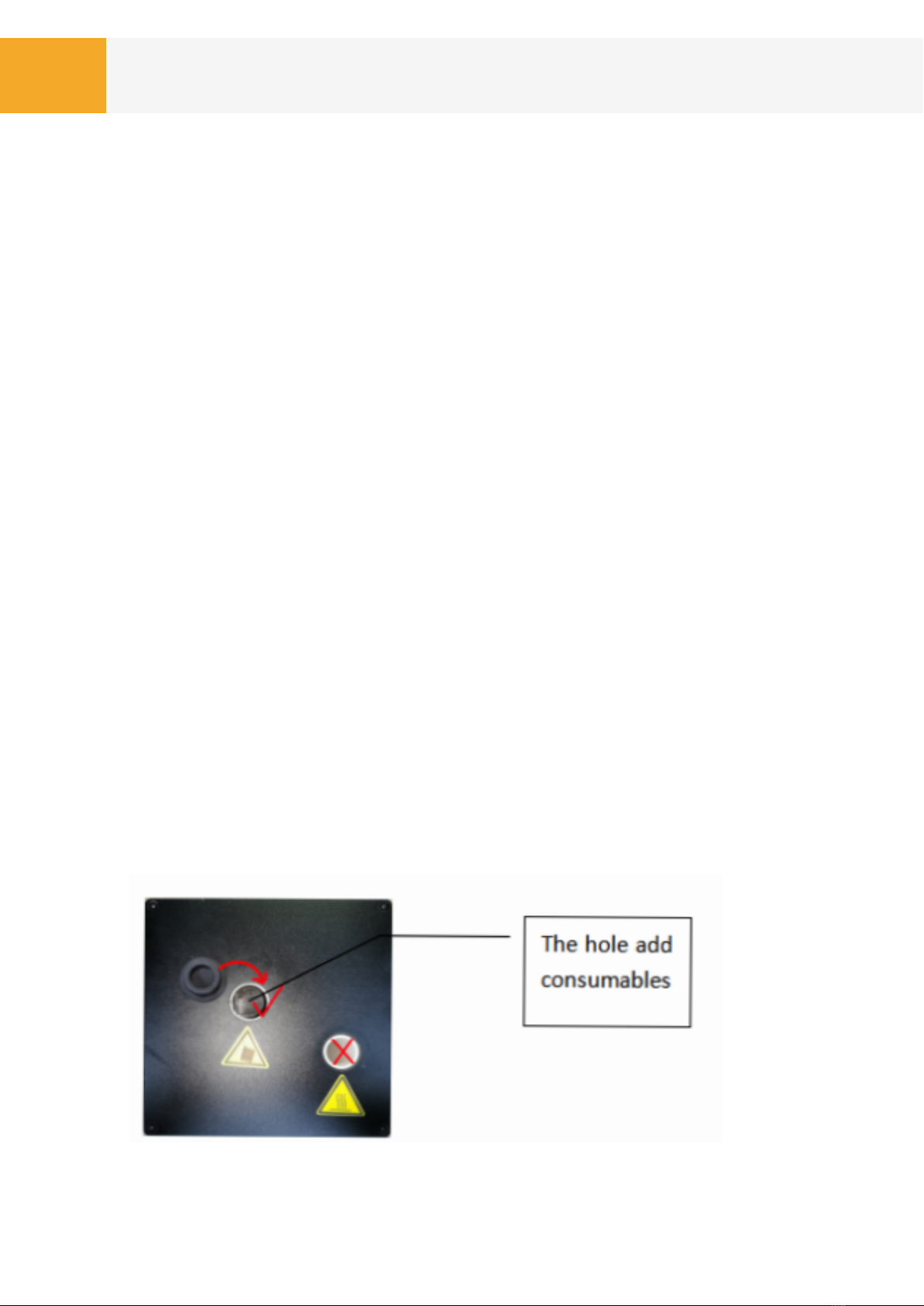

add to wrong fountain
hole)
This product support DMX console and remote control two
operation modes.
AMAZING BOOSTER FOR STAGE

USER MANUAL (MK-E18)
5
1)DMX 512 Operation :
1.The machine adopts 3-pin signal wire connection, with DMX IN
and DMX OUT double interfaces, which can be used for multiple
connections and is suitable for standard 512 signal control.
DMX control included two channel modes (common mode occupied
2 channel, professional mode occupied 4 channel).
2-channel common mode
1st channel Function
0-10 Pre-heat turn off
11-220 Emergency stop
221-239 Clear Powder
240-255 Pre-heat turn on
2nd channel Function
0-15 Fountain off
16-55 Not spin, Fountain 1
56-95 Not spin, Fountain 2
96-135 Not spin, Fountain 3
136-175 spin, Fountain 1
176-215 spin, Fountain 2
216-255 spin, Fountain 3

6
4-channel common mode
1st channel Function
0-10 Pre-heat turn off
11-220 Emergency stop
221-239 Clear Powder
240-255 Pre-heat turn on
2nd channel Function (Nozzle 1)
0-15 Nozzle 1 fountain off
16-31 Not spin, Fountain 1
64-111 Not spin, Fountain 2
112-159 Not spin, Fountain 3
160-207 Not spin, Fountain 4
208-255 Not spin, Fountain 5
216-255 spin, Fountain 3
3rd channel Function (Nozzle 2)
0-15 Nozzle 2 fountain off
16-31 Not spin, Fountain 1
AMAZING BOOSTER FOR STAGE

USER MANUAL (MK-E18)
7
64-111 Not spin, Fountain 2
112-159 Not spin, Fountain 3
160-207 Not spin, Fountain 4
208-255 Not spin, Fountain 5
4th channel Function (Spinning adjust)
0-15 Not spin
16-135 Clockwise spin (60-100BPM)

8
2.Console operation
1.，，，Connect the power cable and DMX signal cable of machine, turn
on green power button, DMX blue indicator light keep in ashing,
means DMX signal connected successful.
，2.The rst channel push to top start heating, till the green
indicator light always in lighting, then can do fountain.
AMAZING BOOSTER FOR STAGE

USER MANUAL (MK-E18)
9
1.Power(remote signal connect/unconnected): short press 1s con-
nect to machines, the display will show from “DMX” become to
“RF” if connected successful; long press 3s unconnected, display
show “DMX”.
2.HEAT ON/OFF: after 1s do heating, red indicator will light, dis-
play will show dynamic temperature value, till green indicator al-
ways keep light on, then nished heat.
3.Press spray buttons do spray effects.
4.CLE (clear powder): Press CLE, then machine do clear powder
30s, press HEAT button if need stop. (The operation clear powder
refer to item six)
5.STOP: stop doing spray.
Consumables
1)The consumables are classified as:
SMALL: the spark fountain height 1.0-3.5m (error 0.5m), and the
spot is rarely dropped,use for indoor.
LARGE: the spark fountain height 2.0-5.0m (error 0.5m), and the
sprayed spot has dropped ground,use for outdoor.
2)Consumables choice: Consumables are the customized for-
mula for the test of our machines. Please select our consumables
to avoid affecting the effect of the machine; (No warranty service
is provided for machines damage caused by consumables not from
our company).
3)Consumables save: Consumables should be kept in a dry and
sealed environment to prevent moisture.(wet and sundry consuma-
bles should not be used)
4)Consumables add: Pls stop running the machines before add
the consumables, to avoid accidental injury.

10
2)Remote Operation
1Connect/
Unconnected 5Nozzle 2 not spin, do high spray 92 nozzles spin, do high spray
2 Clear Powder 6 Nozzle 2 not spin,
do low spray 10 Nozzle 1 not spin, do high spray
3 Stop spray 7 HEAT ON/OFF 11 Nozzle 1 not spin,
do high spray
42 nozzles spin,do
low spray 82 nozzles not spin, do high spray 12 2 nozzles not spin, do low spray
AMAZING BOOSTER FOR STAGE

USER MANUAL (MK-E18)
11
4. Clean and Maintenance
，Clear powder ，Pls empty the remaining consumables after used,
and power on use Clear Powder process to clear the remaining
material by remote controller or DMX controller. (Note: problems
caused by improper cleaning will not be covered by the free war-
ranty).
Dust net cleaning ，Please clean the dust net regularly, to avoid
block the dust net and inuence heat dissipation of machine. (The
dust screen can be removed directly from the outside)
3
，External cleaning，Please wipe the machine gently with soft cotton,
to avoid scratch the machine housing.
4，Internal cleaning，There have clear hole at the bottom of the ma-
chine, through which the internal dust can be poured out.

12
6. After-sales
Display
content Fault causes Solution
E01 Heating failure
1，Check if the heat dissipation plate is
normal. 2: Replace the heat dissipation
plate or heating board.
E02 Heating is not
controlled Replace the heating board.
E03
The internal
temperature of
the machine is
extremely high
1，Check the cooling fan. 2: stop heating
and operating, restart after 10 minutes.
E04 The air blower
does not work
1，Check if there is any foreign object
falling into the nozzle. 2: Replace the
air blower motor.
E05 The sensor is
faulty
1，Check sensor socket. 2: replace the
sensor.
E6
Anti-tilt safety
function is
enabled
1: Pls restart the machine, don’t tilt
machine again after power on.
E07 Safety protection
of blower motor
Shut down the machine to check
whether the blower motor is working
properly
Warranty，1 Year (Subject to the date of manufacture)
Each machine is afxed with the factory code. The factory code
shall be provided when enjoying the warranty service. It is invalid
if torn
It’s may need provide some videos or pictures to conrm the
problems.
Fault light (yellow) display and processing method
AMAZING BOOSTER FOR STAGE

USER MANUAL (MK-E18)
13
5. Warnings and Cautions
Warning: High temperature warning, high temperature at exit.
The sign is to remind users of paying attention to risk and security.
Please note that the machines are not meant to be a continuous
duration effect. The maximum running time is 30 second and can
be repeated but should not be done to overheat the machine.
Eye protection warning sign is to remind you of protecting the
eyes during the machine operation.
Warning: Dangerous voltages are present in this machine when
electrical power is applied. There is a danger of injury from electric
shock. Under no circumstances are you to attempt to open the
machine or attempt to remove or adjust any components tted
within the machine.
Only fully trained engineers can open the equipment.
Use caution so that any liquids do not wet the machine.
Keep the machine and controller dry and not use rainy or snowy
days unless covered.
Cleaning Please inspect fountain nozzle before use and conrm whether
there are accumulation granulates.If it does, please clean out by
inverting the machine to clean out port.
1)Do not shoot more than 30 seconds each time. If the continuous shooting time is
too long, the internal temperature will rise sharply and cause permanent damage. Af-
ter a single long-time shooting, the machines should have a short pause to cool down.
2)The spark shooting will stop automatically after 30 seconds. If users need it to
work again, please operate the second channel again.
3) Max connection is 6 pieces via power connecting cables，too many devices work
together can cause damage or re，
4) If there is no spark out with enough consumables, it is possible that the chain is
stuck and please open the side rubber and rotate the chain manually. Please contact
after-sale service for help if it does not work.
5) After use the machines, do not immediately turn off the power. The heat-dissipat-
ing fan should take out the internal air when the power is on. Otherwise, the internal
heat is quickly transmitted to the surface of the casing.
6) Please place the equipment in an open place and keep a safe distance of more
than 5 meters from the personnel.
7) Make sure the device is off before lling the consumables
8) If the consumables are accidentally ignited, please use the sand to extinguish, do
not use water.
9) Damage caused by improper use or human factors is not covered by the warranty.
10) The nal interpretation right belongs to our company.

14
11)The machine built-in protection procedures, will stop auto. once
do fountain over 30s each time. If need it to work again, please
operate the second channel again. The continuous shooting time is
too long, the internal temperature will rise sharply and cause per-
manent damage. Suggest not do continuous shooting over 1min-
utes.
