CS-IO3200 User Manual
CS-IO3200
Serial IO Controller
Manual

2
/ 13
CS-IO3200 User Manual
1PRODUCT INTRODUCTION............................................................................................... 5
1.1 Features ...........................................................................................................................................5
1.2 Parameter.........................................................................................................................................5
1.3 Item Selection .................................................................................................................................6
1.4 Dimension........................................................................................................................................6
2.1 Terminal Definition.........................................................................................................................6
2.2 Communication Wiring..................................................................................................................9
2.2.1 RS485 Wiring.....................................................................................................................................9
2.2.2 RS232 Wiring.....................................................................................................................................9
2.3 DO Wiring.......................................................................................................................................10
2.3.1 Low Load Wiring..............................................................................................................................10
2.3.2 AC 220V Load Device Wiring ........................................................................................................ 10
2.3.3 AC 380V Load Device Wiring 【With Zero Line】.....................................................................11
2.3.4 AC 380V Load Device Wiring【Without Zero Line】.................................................................11
2.3.5 DC Load Device Wiring ..................................................................................................................12
3PARAMETERS AND WORKING MODE CONFIGURATION.................................12
3.1 Device and PC Connection Settings.........................................................................................12
3.2 Device Address.............................................................................................................................12
3.2.1 Introduction.......................................................................................................................................12
3.2.1 Device Communication Address Reading ................................................................................... 13
3.2.2 Software Address Setting and Reading .......................................................................................13
3.2.3 Baud Rate Reading and Setting....................................................................................................14
4DEVELOPMENT DATA INSTRUCTION........................................................................14
4.1 Communication Protocol Instruction .......................................................................................14
4.2 Modbus Register Instruction......................................................................................................14
4.3 Command List...............................................................................................................................17
4.4 Command Details.........................................................................................................................19
4.4.1 Control DO........................................................................................................................................ 19
4.4.2 Query DO Status ............................................................................................................................. 20
4.4.3 Flash ON Flash OFF Command.................................................................................................... 20
4.4.4 All ON and All OFF Command.......................................................................................................22
4.4.5 Active Reporting Protocol............................................................................................................... 22
5PRODUCT MAINTENANCE..............................................................................................23
5.1 Device Usage Environment ........................................................................................................23

3
/ 13
CS-IO3200 User Manual
5.2 FAQ.................................................................................................................................................23
5.2.1 RS485 /RS232 communication, no response when device control .........................................23
5.2.2 The relay can only be turned on but not turned off.....................................................................24
5.2.3 485 interface cannot be used to establish communication and control After the relay
powered on....................................................................................................................................................24
5.2.4 Multiple devices on the 485 bus and close operation failed to send the broadcast address
254. 24
5.2.5 PLC and the device cannot communicate normally................................................................... 24
5.2.6 How to restore the factory settings ............................................................................................... 24
6AFTER-SALE SERVICE.....................................................................................................25
6.1 Commitment..................................................................................................................................25
6.2 Disclaimer......................................................................................................................................25
7UPDATE HISTORY...............................................................................................................25

4
/ 13
CS-IO3200 User Manual
Notice
❖Please read this manual carefully before use and save it for reference.
❖Please follow to the operating procedures and precautions in this manual.
❖Please open the package carefully and check whether the device and
accessories have been damaged due to transportation when you receive the device.
Please contact us for return processing once damage occurs.
❖Please do not repair it yourself, and contact our technical support department
directly if the device fails.

5
/ 13
CS-IO3200 User Manual
1 Product Introduction
CS-IO series products are IO controller using standard Modbus-RTU protocol,
supporting RS485/232. Support wide voltage power supply, multi-channel input and
output control, which can be widely used in various application scenarios such as
industrial production, agriculture, smart city and office buildings.
1.1 Features
◆DC 12/24V power supply, support anti-reverse connection;
◆32* DO contact isolation, normally ON and normally OFF, 10A 250VAC / 10A
30VDC;
◆LED indication: 1 for power and working status; 32 for DO status;
◆SupportsRS485 +RS232Communicationinterface,powerisolation plussignal
isolation, reliablecommunication;
◆Communication baud rate: 300bps~38400bps (, It is 9600 by default and
can be modified by software);
◆Support standard Modbus RTU protocol, read and write by register address;
◆0-255; Built-in address DIP switch; Set address codes by software
◆Support input and output linkage, such as local linkage or dual-computer
linkage, which is convenient for multi-terminal control;
◆Support flash ON flash OFF;
◆Supporting setting software for setting parameters and IO control;
◆Support software and hardware customization.
1.2 Parameter
Paremater
Contact capacity
10A/30VDC
10A/250VAC
Durability
100,000 times (Electrical）
10,000,000 times (Mechanical)
Data interface
RS485/RS232
Working voltage
DC 12/24V
Power / work indication
1 LED
(power: always on; working: flashing)
Output indication
32 LEDs (relay on and off)
Working temperature
-40℃～85℃, Industrial Grade
Size
300*110*60mm
Weight
500g
Default communication format
9600,n,8,1
Baud rate
300~38400bps
Software support
Setting and control software;
Support various configuration software;
support Labviewd, etc.

6
/ 13
CS-IO3200 User Manual
Din Rail Installation
35mm Din Rail Mounting / Screw Holes
1.3 Item Selection
Item #
DO
DI
Analog
RS485
Address Dial
CS-IO101
1
1
0
RS485 * 1
Address Dial
CS-IO204
2
4
0
RS485 * 1
Address Dial

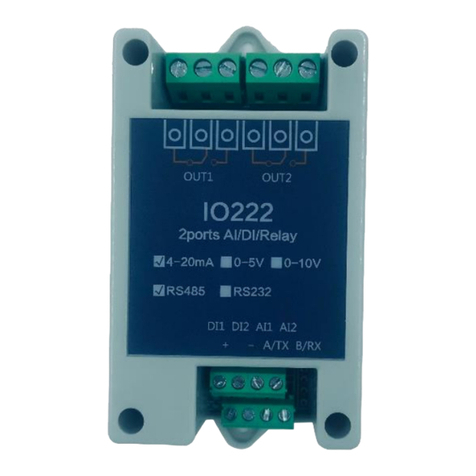

CS-IO222A
2
2
2(0-20mA)
RS485 * 1
Address Dial
CS-IO404A
4
0
4(0-20mA)
RS485 * 1
Address Dial
CS-IO404
4
4
0
RS485 * 1
Address Dial
CS-IO606
6
6
0
RS485 * 1
Address Dial
CS-IO808
8
8
0
RS485 + RS232
CS-IO1600DI
0
16
0
RS485 + RS232
Address Dial
CS-IO1600
16
0
0
RS485 + RS232
Address Dial
CS-IO3200
32
0
0
RS485 + RS232
Address Dial
1.4 Dimension
300*110*60mm
2 Wiring Instructions
2.1 Terminal Definition
No.
Pin
Instruction
1
+
Positive Power Supply
2
-/GND
Negative Power Supply /RS232 ground wire
3
Shielded
Shielded wire
4
A+
RS485 communication A+
5
B-
RS485 communication B-
6
Normally ON
The 32th DO normally ON terminal
7
Public
The 32th DO public terminal
8
Normally OFF
The 32th DO normally OFF terminal
9
Normally ON
The 31th DO normally ON terminal
10
Public
The 31th DO public terminal
11
Normally OFF
The 31th DO normally OFF terminal
12
Normally ON
The 30th DO normally ON terminal
13
Public
The 30th DO public terminal
14
Normally OFF
The 30th DO normally OFF terminal
15
Normally ON
The 29th DO normally ON terminal
16
Public
The 29th DO public terminal

7
/ 13
CS-IO3200 User Manual
17
Normally OFF
The 29th DO normally OFF terminal
18
Normally ON
The 28th DO normally ON terminal
19
Public
The 28th DO public terminal
20
Normally OFF
The 28th DO normally OFF terminal
21
Normally ON
The 27th DO normally ON terminal
22
Public
The 27th DO public terminal
23
Normally OFF
The 27th DO normally OFF terminal
24
Normally ON
The 26th DO normally ON terminal
25
Public
The 26th DO public terminal
26
Normally OFF
The 26th DO normally OFF terminal
27
Normally ON
The 25th DO normally ON terminal
28
Public
The 25th DO public terminal
29
Normally OFF
The 25th DO normally OFF terminal
30
Normally ON
The 24th DO normally ON terminal
31
Public
The 24th DO public terminal
32
Normally OFF
The 24th DO normally OFF terminal
33
Normally ON
The 23th DO normally ON terminal
34
Public
The 23th DO public terminal
35
Normally OFF
The 23th DO normally OFF terminal
36
Normally ON
The 22th DO normally ON terminal
37
Public
The 22th DO public terminal
38
Normally OFF
The 22th DO normally OFF terminal
39
Normally ON
The 21th DO normally ON terminal
40
Public
The 21th DO public terminal
41
Normally OFF
The 21th DO normally OFF terminal
42
Normally ON
The 20th DO normally ON terminal
43
Public
The 20th DO public terminal
44
Normally OFF
The 20th DO normally OFF terminal
45
Normally ON
The 19th DO normally ON terminal
46
Public
The 19th DO public terminal
47
Normally OFF
The 19th DO normally OFF terminal
48
Normally ON
The 18th DO normally ON terminal
49
Public
The 18th DO public terminal
50
Normally OFF
The 18th DO normally OFF terminal
51
Normally ON
The 17th DO normally ON terminal
52
Public
The 17th DO public terminal

8
/ 13
CS-IO3200 User Manual
53
Normally OFF
The 17th DO normally OFF terminal
54
Normally ON
The 16th DO normally ON terminal
55
Public
The 16th DO public terminal
56
Normally OFF
The 16th DO normally OFF terminal
57
Normally ON
The 15th DO normally ON terminal
58
Public
The 15th DO public terminal
59
Normally OFF
The 15th DO normally OFF terminal
60
Normally ON
The 14th DO normally ON terminal
61
Public
The 14th DO public terminal
62
Normally OFF
The 14th DO normally OFF terminal
63
Normally ON
The 13th DO normally ON terminal
64
Public
The 13th DO public terminal
65
Normally OFF
The13th DO normally OFF terminal
66
Normally ON
The 12th DO normally ON terminal
67
Public
The 12th DO public terminal
68
Normally OFF
The12th DO normally OFF terminal
69
Normally ON
The 11th DO normally ON terminal
70
Public
The 11th DO public terminal
71
Normally OFF
The11th DO normally OFF terminal
72
Normally ON
The 10th DO normally ON terminal
73
Public
The 10th DO public terminal
74
Normally OFF
The 10th DO normally OFF terminal
75
Normally ON
The 9th DO normally ON terminal
76
Public
The 9th DO public terminal
77
Normally OFF
The 9th DO normally ON terminal
78
Normally ON
The 8th DO normally ON terminal
79
Public
The 8th DO public terminal
80
Normally OFF
The 8th DO normally OFF terminal
81
Normally ON
The 7th DO normally ON terminal
82
Public
The 7th DO public terminal
83
Normally OFF
The 7th DO normally OFF terminal
84
Normally ON
The 6th DO normally ON terminal
85
Public
The 6th DO public terminal
86
Normally OFF
The 6th DO normally OFF terminal
87
Normally ON
The 5th DO normally ON terminal
88
Public
The 5th DO public terminal

9
/ 13
CS-IO3200 User Manual
89
Normally OFF
The 5th DO normally OFF terminal
90
Normally ON
The 4th DO normally ON terminal
91
Public
The 4th DO public terminal
92
Normally OFF
The 4th DO normally OFF terminal
93
Normally ON
The 3rd DO normally ON terminal
94
Public
The 3rd DO public terminal
95
Normally OFF
The 3rd DO normally OFF terminal
96
Normally ON
The 2nd DO normally ON terminal
97
Public
The 2nd DO public terminal
98
Normally OFF
The 2nd DO normally OFF terminal
99
Normally ON
The 1st DO normally ON terminal
100
Public
The 1st DO public terminal
101
Normally OFF
The 1st DO normally OFF terminal
2.2 Communication Wiring
By default, its address is 1, and the DIP switches are in the off state.
The host computer software can use the default address 1 to
communicate with the device (or broadcast address 254, which is only
applicable when one device is mounted on the network).
2.2.1 RS485 Wiring
2.2.2 RS232 Wiring

10
/ 13
CS-IO3200 User Manual
2.3 DO Wiring
The relay is single-pole, double-throw, and each circuit has three terminals, one
group is normally ON and the other is normally OFF (normally ON contacts are
generally used), and the terminal identification is subject to the indications on the
film.
2.3.1 Low Load Wiring
2.3.2 AC 220V Load Device Wiring

11
/ 13
CS-IO3200 User Manual
2.3.3 AC 380V Load Device Wiring 【With Zero Line】
2.3.4 AC 380V Load Device Wiring【Without Zero Line】
Please add an AC contactor/intermediate relay between this device and the load in
the following four cases:
1. Load rated voltage>30VDC
2. Load rated voltage>250VAC
3. Non-Resistive Load Current>3A
4. Resistive load current>5A

12
/ 13
CS-IO3200 User Manual
2.3.5 DC Load Device Wiring
3 Parameters and Working Mode Configuration
3.1 Device and PC Connection Settings
The USB end of the USB to RS485/RS232 converter is directly connected to the
USB port of computer, and 485/232 end is wired according to the wiring method in
"Chapter 2.2 Communication Wiring".
Serial port number query method: Open "My Computer - Device Manager - Port
(COM and LPT)" and the COM number that appears after the USB to 485/232
device is inserted is the serial port number.
3.2 Device Address
3.2.1 Introduction
The Offset Address of this device is 1 by default, and the broadcast address is
254 to communicate, but 0 cannot be used.
Communication address = Hardware address (DIP switch address) + Offset
address.
The device’s Factory default settings of communication address is 1.
With DIP switch, users can quickly modify the device address.
（1）The address is "31" when all 5 dial codes are dialed above;
（2）The address is "0" When all t5 dial codes are dialed below;
（3）The leftmost 1 is the lowest digit in binary;；
（4）DIP address table:

13
/ 13
CS-IO3200 User Manual
3.2.1 Device Communication Address Reading
After the device is connected normally, click "read address" on the serial relay
debugging software to read the current address of the device [only support
broadcast read address when there is one device on the bus].
3.2.2 Software Address Setting and Reading
Click "Read" or "Set" to read or set the software address of the device (address
parameters stored in the device).

14
/ 13
CS-IO3200 User Manual
3.2.3 Baud Rate Reading and Setting
Click "Read" and "Set" to read and set the baud rate and address respectively,
which will take effect immediately after the operation.
4 Development Data Instruction
4.1 Communication Protocol Instruction
This product supports standard Modbus commands. For detailed command
generation and parsing methods, you can refer to "MODBUS Protocol English
Version" based on the register table in this article.
This product supports Modbus RTU format.
4.2 Modbus Register Instruction
This control card supports communication of various function codes, please
refer to the below.
Instruction code
Meaning
1
Read coil register [DO]
5
write a single coil
15
write multiple coils
Register address table:
Register name
PLC Register
address
Explaination
Coil Control
Coil Control 1
00001
The 1st DO
Coil Control 2
00002
The 2nd DO
Coil Control 3
00003
The 3rd DO
Coil Control 4
00004
The 4th DO
Coil Control 5
00005
The 5th DO
Coil Control 6
00006
The 6th DO

15
/ 13
CS-IO3200 User Manual
Coil Control 7
Write coil
Command 1
00007
The 7th DO
Coil Control 8
00008
The 8th DO
Coil Control 9
00009
The 9th DO
Coil Control 10
00010
The 10th DO
Coil Control 11
00011
The 11th DO
Coil Control 12
00012
The 12th DO
Coil Control 13
00013
The 13th DO
Coil Control 14
00014
The 14th DO
Coil Control 15
00015
The 15th DO
Coil Control 16
00016
The 16th DO
Coil Control 17
00017
The 17th DO
Coil Control 18
00018
The 18th DO
Coil Control 19
00019
The 19th DO
Coil Control 20
00020
The 20th DO
Coil Control 21
00021
The 21th DO
Coil Control 22
00022
The 22th DO
Coil Control 23
00023
The 23th DO
Coil Control 24
00024
The 24th DO
Coil Control 25
00025
The 25th DO
Coil Control 26
00026
The 26th DO
Coil Control 27
00027
The 27th DO
Coil Control 28
00028
The 28th DO
Coil Control 29
00029
The 29th DO
Coil Control 30
00030
The 30th DO
Coil Control 31
00031
The 31th DO
Coil Control 32
00032
The 32th DO
Parameters Configuration
Communication
baud rate
Read register
function code 03
Write register
function code 06
03E8H
See the below
corresponding table of
baud rate values, the
default value is 0, and
supports 0-5. This register
determines the
communication baud rate
of RS232 and RS485 at
the same time.
Spare
03E9H
Spare, user cannot write
any value.
Offset address
03EAH
Communication address =
software address + DIP
switch address
Woring Mode
03EBH
Working mode storage
Spare
03ECH
Spare

16
/ 13
CS-IO3200 User Manual
Parameters Configuration
Holding
register
Modbus
Register
address
PLC
Register
address
Explaination
Communication
baud rate
03E8H
41001
See the below corresponding
table of baud rate values, the
default value is 0, and supports
0-5. This register determines the
communication baud rate of
RS232 and RS485 at the same
time.
Spare
03E9H
41002
Spare, user cannot write any
value.
Offset Address
03EAH
41003
Device address= Offset Address
+ DIP switch address
Workng Mode
03EBH
41004
User can use, store user data
Delay
03ECH
41005
User can use, store user data
（1）The Modbus device command supports the following Modbus addresses:
00001 to 09999 are discrete outputs (coils)
10001 to 19999 are discrete inputs (contacts)
30001 to 39999 are input registers (usually analog inputs)
40001 to 49999 are holding registers (usually store device configuration information)
In 5-bit code format, the first character determines register type, and the remaining 4
characters represent address.
Address 1 starts from 0, such as 00001 corresponds to 0000.
（2）Baud rate value corresponding table
Value
Baud rate
1
2400
2
4800
3
9600
4
19200
5
38400
（3）The DO status can be queried through 30002 address or through 00001-
00002 address, but the control can only use 00001-00002 address. 30002 address
data length is 16bit. Up to 16 relays can be represented.
The responding results as follow:
Bite
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Relay
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
The bit 8 of the data of register 30009 is the same as the data of register 00001.
The same is true for the optocoupler input. Bit8 and bit9 of register 30003 and
registers 10001 and 10002 all correspond to the specified hardware.
The register address is in accordance with the PLC naming rules, the real address is
to remove the highest bit, and then subtract 1

17
/ 13
CS-IO3200 User Manual
4.3 Command List
Scene
RTU format (send in hexadecimal)
Query 32 DOs ‘status
FE 01 00 00 00 20 29 DD
Return query information
FE 01 04 00 00 00 00 F4 DE
Control the 1st DO on
FE 05 00 00 FF 00 98 35
Return control information
FE 05 00 00 FF 00 98 35
Control the 1st DO off
FE 05 00 00 00 00 D9 C5
Return control information
FE 05 00 00 00 00 D9 C5
Control the 2nd DO on
FE 05 00 01 FF 00 C9 F5
Control the 2nd DO off
FE 05 00 01 00 00 88 05
Control the 3rd DO on
FE 05 00 02 FF 00 39 F5
Control the 3rd DO off
FE 05 00 02 00 00 78 05
Control the 4th DO on
FE 05 00 03 FF 00 68 35
Control the 4th DO off
FE 05 00 03 00 00 29 C5
Control the 5th DO on
FE 05 00 04 FF 00 D9 F4
Control the 5th DO off
FE 05 00 04 00 00 98 04
Control the 6th DO on
FE 05 00 05 FF 00 88 34
Control the 6th DO off
FE 05 00 05 00 00 C9 C4
Control the 7th DO on
FE 05 00 06 FF 00 78 34
Control the 7th DO off
FE 05 00 06 00 00 39 C4
Control the 8th DO on
FE 05 00 07 FF 00 29 F4
Control the 8th DO off
FE 05 00 07 00 00 68 04
Control the 9th DO on
FE 05 00 08 FF 00 19 F7
Control the 9th DO off
FE 05 00 08 00 00 58 07
Control the 10th DO on
FE 05 00 09 FF 00 48 37
Control the 10th DO off
FE 05 00 09 00 00 09 C7
Control the 11th DO on
FE 05 00 0A FF 00 B8 37
Control the 11th DO off
FE 05 00 0A 00 00 F9 C7
Control the 12th DO on
FE 05 00 0B FF 00 E9 F7

18
/ 13
CS-IO3200 User Manual
Control the 12th DO off
FE 05 00 0B 00 00 A8 07
Control the 13th DO on
FE 05 00 0C FF 00 58 36
Control the 13th DO off
FE 05 00 0C 00 00 19 C6
Control the 14th DO on
FE 05 00 0D FF 00 09 F6
Control the 14th DO off
FE 05 00 0D 00 00 48 06
Control the 15th DO on
FE 05 00 0E FF 00 F9 F6
Control the 15th DO off
FE 05 00 0E 00 00 B8 06
Control the 16th DO on
FE 05 00 0F FF 00 A8 36
Control the 16th DO off
FE 05 00 0F 00 00 E9 C6
Control the 17th DO on
FE 05 00 10 FF 00 99 F0
Control the 17th DO off
FE 05 00 10 00 00 D8 00
Control the 18th DO on
FE 05 00 11 FF 00 C8 30
Control the 18th DO off
FE 05 00 11 00 00 89 C0
Control the 19th DO on
FE 05 00 12 FF 00 38 30
Control the 19th DO off
FE 05 00 12 00 00 79 C0
Control the 20th DO on
FE 05 00 13 FF 00 69 F0
Control the 20th DO off
FE 05 00 13 00 00 28 00
Control the 21th DO on
FE 05 00 14 FF 00 D8 31
Control the 21th DO off
FE 05 00 14 00 00 99 C1
Control the 22th DO on
FE 05 00 15 FF 00 89 F1
Control the 22th DO off
FE 05 00 15 00 00 C8 01
Control the 23th DO on
FE 05 00 16 FF 00 79 F1
Control the 23th DO off
FE 05 00 16 00 00 38 01
Control the 24th DO on
FE 05 00 17 FF 00 28 31
Control the 24th DO off
FE 05 00 17 00 00 69 C1
Control the 25hDO on
FE 05 00 18 FF 00 18 32
Control the 25th DO off
FE 05 00 18 00 00 59 C2
Control the 26th DO on
FE 05 00 19 FF 00 49 F2
Control the 26th DO off
FE 05 00 19 00 00 08 02
Control the 27th DO on
FE 05 00 1A FF 00 B9 F2

19
/ 13
CS-IO3200 User Manual
Control the 27th DO off
FE 05 00 1A 00 00 F8 02
Control the 28th DO on
FE 05 00 1B FF 00 E8 32
Control the 28th DO off
FE 05 00 1B 00 00 A9 C2
Control the 29th DO on
FE 05 00 1C FF 00 59 F3
Control the 29th DO off
FE 05 00 1C 00 00 18 03
Control the 30th DO on
FE 05 00 1D FF 00 08 33
Control the 30th DO off
FE 05 00 1D 00 00 49 C3
Control the 31th DO on
FE 05 00 1E FF 00 F8 33
Control the 31th DO off
FE 05 00 1E 00 00 B9 C3
Control the 32th DO off
FE 05 00 1F FF 00 A9 F3
Control the 32th DO off
FE 05 00 1F 00 00 E8 03
4.4 Command Details
4.4.1 Control DO
Control 1 DO (take the first DO OFF as an example, other channels refer to this)
Sending code: FE 05 00 00 FF 00 98 35
Field
Meaning
Note
FE
Device address
It is the broadcast address
05
05 command
Single control command
00 00
Address
Register address of the DO to control
FF 00
Command
DO OFF action
98 35
CRC16
CRC16 checksum of the first 6 bytes of data
Relay return information:：
Return code：FE 05 00 00 FF 00 98 35
Field
Meaning
Note
FE
Device address
It is the broadcast address
05
05 command
Single control command
00 00
Address
Register address of the DO to be controlled
FF 00
Command
DO OFF action
98 35
CRC16
CRC16 checksum of the first 6 bytes of data

20
/ 13
CS-IO3200 User Manual
4.4.2 Query DO Status
Sending Code：FE 01 00 00 00 20 29 DD
Field
Meaning
Note
FE
Device address
It is the broadcast address
01
01 command
Query DO status command
00 00
Starting address
Register address of the first DO to be queried
00 20
Number of queries
The number of DOs to be queried
29 DD
CRC16
CRC16 checksum of the first 6 bytes of data
DO return information:
Return code: FE 01 04 00 00 00 00 F4 DE
Field
Meaning
Note
FE
Device address
01
01 command
Return command: If the query is wrong,
return 0x81
04
Number of bytes
All bytes of return status information. 1+(n-
1)/8
00 00 00 00
Status of the query
Returns the DO status.
The return value is hexadecimal, converted
to binary data, 0 means off, 1 means on.
F4 DE
CRC16
CRC16 checksum of the first 6 bytes of data
4.4.3 Flash ON Flash OFF Command
Flash OFF sending code：FE 10 00 03 00 02 04 00 04 00 0A 41 6B
Flash ON sending code：FE 10 00 03 00 02 04 00 02 00 0A A1 6A
Field
Meaning
Note
FE
Device address
10
10 Command
Write multiple register function codes
00 03
Relay address
3+5(n-1), n represents which channel to control,
the decimal needs to be converted to
hexadecimal system
00 02
Number of control
commands
2+5(n-1), n represents the number of controlled
channels, only supports controlling the DO
action of a channel individually
04
Bytes
4+10(n-1), n represents the number of
controlled channels, only supports controlling
the DO action of a channel individually
00 04 / 00 02
Command
00 04: flash OFF command
00 02: flash ON command
