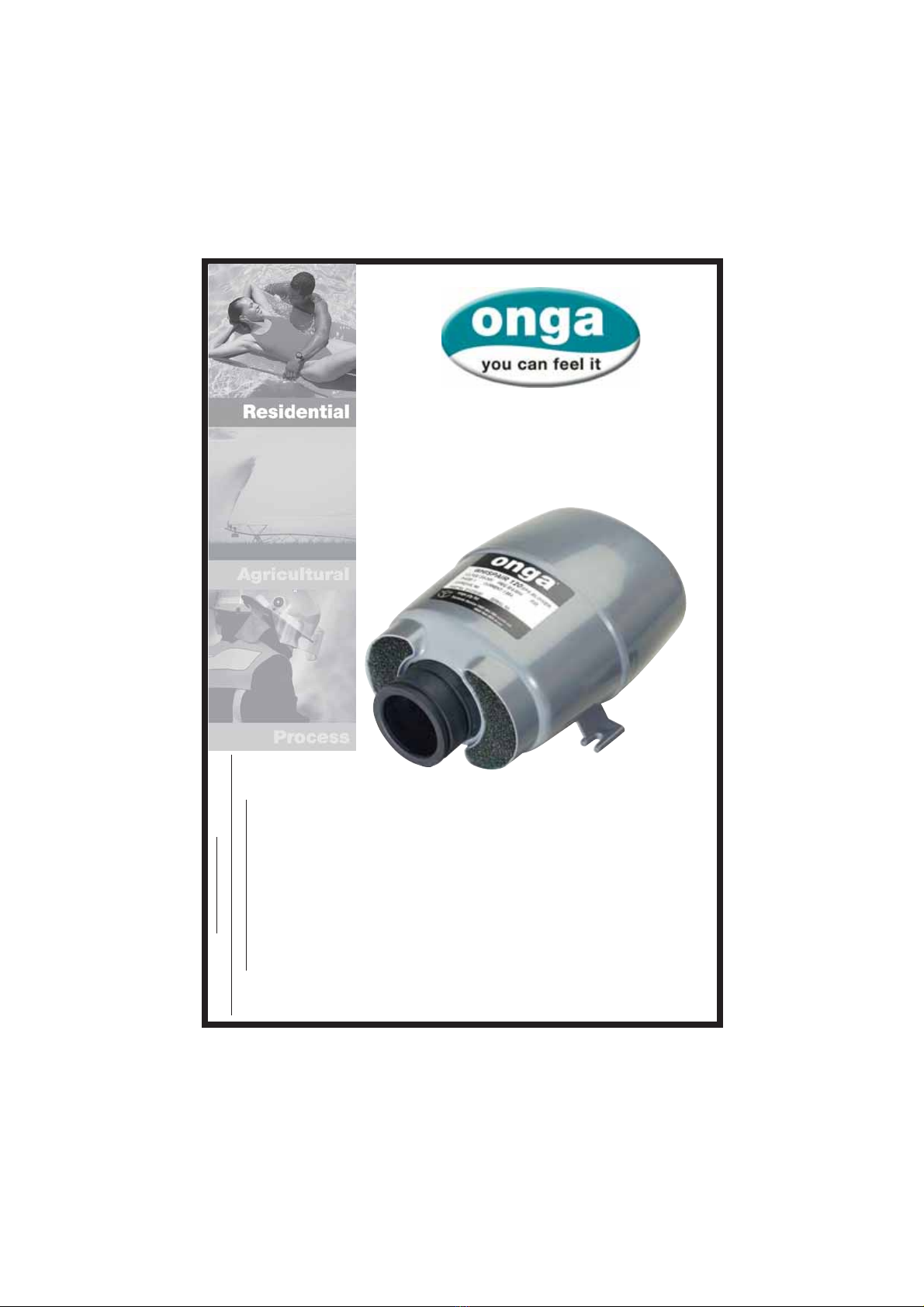

onga Whispair Series User manual

1
Whispair &Whispair &
Whispair &Whispair &
Whispair &
WhispairWhispair
WhispairWhispair
WhispairPlus
Air Blowers
Should the installer or owner be unfamiliar
with the correct installation or operation of this type of equipment you should contact
the distributor/manufacturer for the
correct advice before proceeding with the
installation or operation of the product.
An earth leakage or residual
current protection device must be fitted to
all installations.
Owner’s Manual

2
Relax - you’ve bought an Onga ...
Congratulations on your decision to purchase an Onga
product. Onga is one of the best known brands in its field,
with a proud local and International reputation.
Onga is a brand for reliability, value for money and technological
innovation.
You will find Onga product wherever people need to move water in 3
broad markets covering:
Technologically advanced solutions
for moving and treating water in the
Home, Garden, Pool and Spa.
Innovative Stock and Crop water
management solutions for Primary
Industries.
Water movement products for
Building services, Emergency
services and Original Equipment
manufacturers.

3
1. Continual Product Improvement
We employ the best engineers both in Australia and
around the world to develop new and better ways to take
water further.
2. Operational Excellence
There is only one standard that we set ourselves for both
product quality and the quality of our service. That
standard is excellence... to have no-one better than us at
what we do... nothing short of that is acceptable. Our
commitment to quality is reinforced with our
ISO 9001:2000 accreditation.
3. A Fair Price
Onga products are neither the cheapest nor the most
expensive in their field. Our products do, on the other
hand, always represent very good value for money - they
always have and they always will.
4. Our Team of Dealers
The hand picked authorised Onga dealer network
throughout Australia and worldwide are second to none.
We invest considerable time and resources training and
supporting them through the Onga Training Academy.
S
Y
S
T
E
M
C
E
R
T
I
F
I
C
A
T
I
O
N
I
S
O
9
0
0
1
:
2
0
0
0

4
IMPORTANT!
The operator must be provided with this owner’s manual. This must be read before
operation and followed during operation.
These instructions are a guide only. Users not familiar with spa equipment should
seek advice from people with experience in spa equipment and installation.
Technical Data - Model: Whispair 120 & WhispairPlus 120
Outlet:
Designed to suit 40mmNB PVC pipe in accordance with AS/NZS 1477: 1999 -
PVC Pipes and Fittings for Pressure Applications.
AND
ISO 727: 1985(E) - Fittings of Unplasticized Polyvinyl Chloride (PVC-U),
Chlorinated Polyvinyl Chloride (PVC-C) or Acrylonitrile / Butadiene / Styrene
(ABS) with Plain Sockets for Pipes Under Pressure - The outlet socket has
been designed to suit the 50mm nominal O.D. pipe in this standard.
Minimum Ventilation Area 50 sq. cm (free space around
Blower) in accordance with
AS/NZS 2023:1995
Maximum Ambient Temperature 550C
Electrical Approval Approved in accordance with AS/
NZ3136:2001
IP Rating IPX5 to AS/NZS 3350:2:60
Mounting Maximum 6mm fastner x 2 (not
supplied, refer installation section for
mounting positions).
Installation Zoning For domestic applications in
accordance with Zone 1
AS/NZS 3000:2000
Minimum no. of air jets 9

5
The blower must not be externally insulated and must have sufficient air space (minimum area is 50cm2) to prevent
the blower from overheating. Surrounding air should be able to reach the blower enclosure.
Pipe length must not exceed 5 metres, doing so will reduce the performance of the blower. Ensure the blower is on
a stable footing and mounted securely before operating (to prevent personal injury).
All glued fittings and pipe work should be allowed to dry to atmosphere for 24 hours before closing installation.
Failure to follow this procedure could cause injury or installation failure.
The blower must be isolated from the potential for water to enter the blower outlet as failure may occur. For longer
product life, Onga recommends the use of a weather-proof protective housing for outdoor installations. The
protective housing should extend below the blower air intake by at least 150mm and provide adequate ventilation.
BLOWER APPLICATION
Your Onga Spa Blower is designed for use with air management systems in
residential spa baths or portable spa pools only. Use within commercial (communal)
spa baths or spa pools may result in rapid wear and tear.
It should not be used for any other purpose without prior consent from the
distributor.
The Whispair and WhispairPlus airswitch models are designed to operate
with the Onga range of air buttons.
BLOWER INSTALLATION

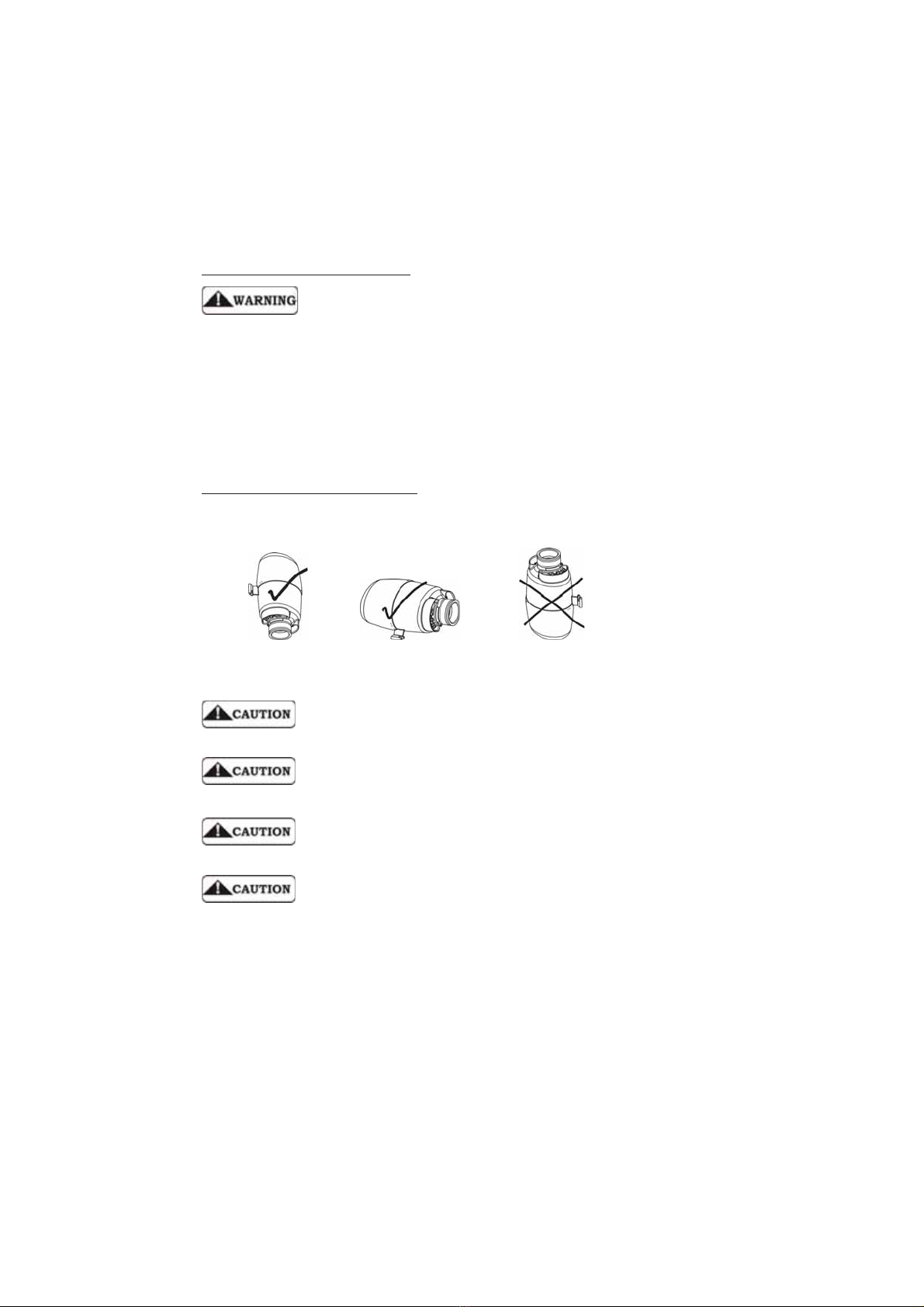

Blower Mounting:
INDOOR OR
OUTDOOR
INDOOR ONLY DO NOT MOUNT
IN THIS
POSITION

6
BLOWER INSTALLATION (Continued)
FOR SPA BATHS:
- Unless already fitted by your spa bath supplier, Onga recommend the
installation to follow either Diagram 1 or 2, dependant upon the blower
positioning.
- Place the Whispair blower rubber connection over the PVC pipe. DO
NOT glue the spa blower rubber connection to the PVC pipe.
- Tighten the hose clamp (supplied), be careful not to overtighten.
- Fix blower to mounting frame or base.
- Insert the blower power lead into a correctly rated wall socket.
- Allow adequate access for servicing blower & piping.
AIRSWITCH MODELS
-A roll of 6 metre air tube is supplied (Australia / New Zealand models only),
attach one end of the tube onto the nipple of the air button fitted on the spa bath,
attach the other end of the air line onto the blower (remove Left-hand filter pad;
insert air tube through the slot provided; insert air tube onto air switch; replace
filter pad).
Trim excess tube. Do not wrap around pipework.

7
FOR PORTABLE SPAS
Your portable spa will already
have the Onga Whispair blower
installed. Refer to spa provider
for further information.
OPERATION
Pre-Startup Checks
1. Check hose clamp at blower outlet is tight and blower is firmly connected
to the outlet pipe.
2. Check that all Airjet connecting hoses are securely fitted at Airjets and
manifold. Ensure that the tubing/hose is not kinked.
3. Check Airjet caps are clean and free of debris, such as tile grout and
plaster.
4. Fill spa with water and check Airjet connections for leaks which may
have developed as a result of transit or handling damage.
Manual Version
Your Onga Whispair may be operated directly from
your power outlet or alternatively from a touchpad/
controller fitted by your spa provider.
Airswitch Version
Ensure power outlet is switched ON. Press the
designated blower air button fitted to your spa to turn
the Whispair ON. Press again to turn the Whispair
OFF.
BLOWER INSTALLATION (Continued)
Operating your Whispair

8
Operating your WhispairPlus
Airswitch Models
1. Ensure power outlet is switched ON.
The WhispairPlus works on a 3 step sequence of the designated air
button:
PRESS 1. ON; continuous Vari-speed cycle begins.
•Highest speed to lowest speed to highest speed again.
•4 speed steps at 8 second intervals.
•High to Low = 32 seconds.
PRESS 2. preferred airflow is selected and maintained.
PRESS 3. OFF. Blower stops and moves into sanitation mode (Spa
bath models only).
Press the designated air button fitted to your spa to turn the
WhispairPlus ON.
The vari-speed technology incorporated into your WhispairPlus allows
maximum air flow at initial startup. Your WhispairPlus automatically
ramps down to a light relaxing air flow and then ramps up to the maximum
air flow. This vari-flow cycle is continuous and repeats itself
approximately every 30 seconds.
2. Your choice of air flow can be obtained by simply pressing the
designated air button a second time when the air flow is at your
preferred setting.
3. Press the designated air button a third time to stop the WhispairPlus.
The inbuilt technology returns the settings to the start sequence again.
Sanitation ( Spa bath versions only)
Your WhispairPlus has been programmed to aid hygiene.
Once the WhispairPlus is turned off by the dedicated air button, it will auto-
matically start approximately 10 minutes later (allows time for the water to drain
from the bath) to expel water from the air lines. This sanitary purge will last for
approximately 30 seconds and then shut down completely. You can manually
stop the purge cycle by pressing the dedicated air button. Your WhispairPlus
returns to the standby mode, waiting for your next spa experience.
Note: the WhispairPlus sanitary purge begins at the softest airflow and
increases to the maximum airflow minimising the water splash purged from the
jets..

9
Operating your WhispairPlus (Continued)
ThermalAir ( Spa bath version only – where fitted)
Some models incorporate ThermalAir to regulate the temperature of the air
flow.
ThermalAir technology automatically adjusts itself to maximise air flow com-
fort levels.
Note: initial air flow may be cool air remaining in the air tubes. Extended periods
of operation may reduce the bathwater temperature. We recommend the use of
an Onga HOT pump in conjunction with dual hydro/air systems.
Automatic Timer
The WhispairPlus has an in-built automatic timer that switches the blower off
after 30 minutes of operation to prevent unnecessary nuisance, wear and tear on
the product.
When the automatic timer turns the blower off, the sanitation mode will begin
within the prescribed time.

10
SERVICE & MAINTENANCE
Blower service should be performed by suitably qualified personnel.
If the power supply cord is damaged, it must be replaced by the manufacturer or
it’s service agent.
Ensure the power is switched off and the unit unplugged from the power supply
prior to removing the blower for service to prevent personal injury. Your
Whispair blower has special filters to reduce debris entering the blower and
affecting performance.
Periodically check the Whispair air intake filters and ensure they are clear of
obstructions. Remove and clean the filters if dirty (used compressed air to blow
out debris). Replace filters prior to operation.
WhispairPlus vari-speed & sanitised models
The WhispairPlus has an in-built red LED that communicates several fault conditions.
The LED is located within the left hand air intake (viewed from the pipe connection
end). When lit, the LED can be viewed through the foam filter pad or more brightly
beneath the filter pad.
A solid light indicates worn motor brushes requiring the complete purchase of a new
blower.
A single flash indicates the motor has stopped on over-temperature. The unit can be
restarted when the temperature has been reduced.
A two flash sequence indicates low voltage power supply conditions. The unit can be
restarted only when the power supply is within limits > 200V.
A three flash sequence indicates high voltage power supply conditions. The unit can
be restarted only when the power supply is within limits < 260V.

11
TROUBLE SHOOTING
If servicing of the unit is required at anytime, a service record should be kept
listing details of the problem.
Onga stands by its quality products, however if a fault occurs and cannot be
rectified by following the trouble shooting guide on page 12, please contact
Onga on 1800 664 266 (Australia) or 0800 664 269 (New Zealand) where our
locator service will direct you to your nearest sales stockist or service agent.
Please be aware that a service fee will be applicable if a fault occurs
other than that as described in the product guarantee as being due to
defects in materials or faulty manufacture.
Blower service should be performed by suitably qualified personnel.
Always unplug power lead prior to service to prevent personal injury.
The electrical components of Whispair are non-servicable, fair wear and tear
will result in the need for complete unit replacement.

12
TROUBLE SHOOTING
–
ALL MODELS
SYMPTOM CAUSE REMEDY
No Power at power point. Use another known good electrical
appliance to check power outlet.
Check fuse box / circuit breaker.
Moisture/water present
inside black rubber
housing.
Check mounting of blower is in
accordance with instructions.
Remove blower and inspect inside of
outlet for presence of moisture. If
present jet plumbing is faulty.
Plumbing must be rectified before
replacing blower.
Moisture/water/vermin
damage in the blower’s
grey housing cavity/casing.
Check mounting of blower is in
accordance with instructions.
Visually inspect surrounding for
undue water. Remove blower and
remove filter screens (crescent
shape) and inspect inside of intakes
for presence of moisture. If present
and unit is inoperable blower needs
replacing.
Prior to installing new blower, verify
that there is no source of water
spraying at the blower.
Air line not connected.
(Airswitch model only).
Check that air line is connected from
the air button to the spa blower.
Kink in air line.
(Airswitch model only).
Check that the air line is not kinked.
If kinks are visible remove them
otherwise this will stop the pulse of
air that operates the micro switch
inside the spa blower.
In-built thermal overload
blown.
Check ventilation requirements.
Ensure air intake is free of debris.
Call your nearest Onga service agent
for a replacement.
Damaged power cord. Turn of power at switch; inspect full
length of cord for kinks, abrasions,
etc.
Cord is not field serviceable. Cord
must be replaced by manufacturer or
service agent.
Worn motor brushes from
fair wear & tear.
Full unit replacement required –
contact your Onga spa retailer or
service agent. Your Whispair blower
has performed more than a total of
one hundred and sixty hours of
intermittent usage.
Blower will not
operate.
(Replacement
Whispair blowers may
be purchased from
your Onga spa retailer
or authorised Onga
service dealer).
Water ingress to blower. Use weather proof housing and/or
relocate irrigation system (outdoor).
Ensure installation meets the
specifications supplied by Onga.
Blower starts of its on
accord.
Sanitisation cycle is in
progress.
This is standard on all WhispairPlus
spa bath models. Refer Operation
section.
Blower works but
there is no, or
insufficient, air coming
into the spa.
Blocked Air jets. Ensure that all air lines to the air jets
are clear from obstructions and that
all air jet supply tube connections are
connected. Check filter pads on
blower and clean if necessary.

13
SAFE USE OF YOUR SPA
Your air management system provides you with a gentle overall hydromassage.
The massage effect is obtained by injecting warm air through air jets into the
bath water. Using the blower for too long a period at too high a water tem-
perature will cause drowsiness. When you first begin to use your spa, switch
the blower on for a maximum of five minutes. Regulate the water temperature
to a moderately warm level. These levels can be later increased for additional
massaging effects.
Your physiological response to a hot massage spa depends on your age, health
and medical history. If you develop a headache or become dizzy or nauseous,
get out of the spa at once and cool off under the shower. Seek medical
assistance if the symptoms persist.
Consult your doctor or physician before you use the spa for physical therapy
of an injury or disorder. Do not take a spa without your doctor’s consent if
you are ill or pregnant, or if you suffer from high blood pressure, heart dis-
ease, or other health problems. Never take a spa while under the influence of
medication, drugs or alcohol.
Children or infirm persons should not use the spa unattended. Your
spa water temperature should not exceed 40oC (104oF).

14

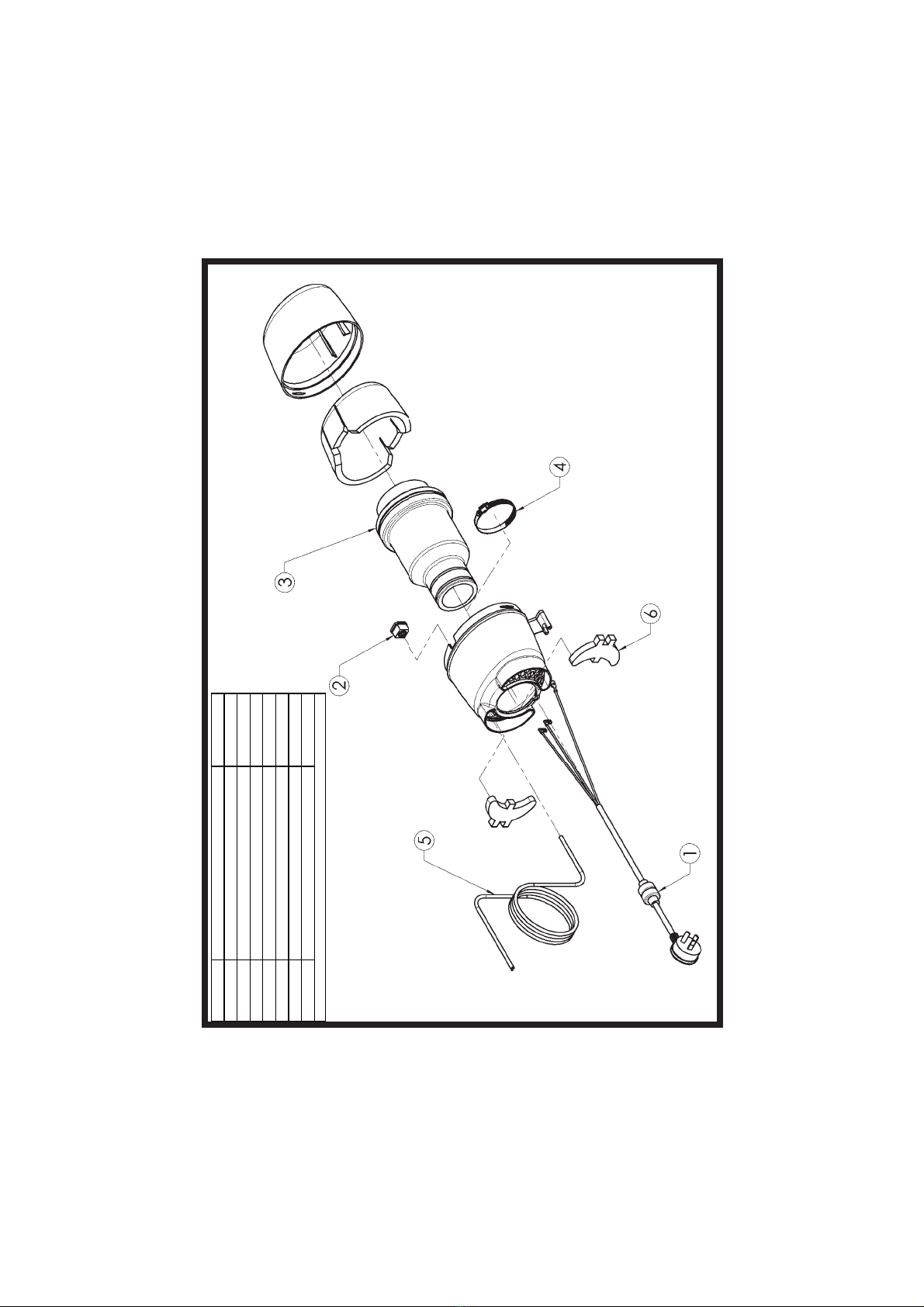

Item Description Quantity
1 Lead - Power 1 2 Airswitch Assembly 1 3 Motor - blower 1 4 Hose Clamp 1 5 Air Tube 1 6 Filter Pads 2
Model and serial number of blowers must be given when ordering spare parts.

15
Onga Product Warranty
Onga warrants that, when this product is used for the purpose it was designed, is correctly housed and vented
against weather, vermin, dust etc., that it will be free of material and manufacturing defects at the time of the
original purchase.
This warranty is limited to the cost of the product and does not cover third party costs including the
costs of electricians, plumbers, etc. unless authorised by Onga pumps.
TERMS AND CONDITIONS APPLICABLE INTERNATIONALLY
How long the warranty is effective Internationally
1) This Onga product is warranted for 12 months for all parts from the date of the first consumer
purchase. Should any parts fail as a result of such defects within the specified period, the part will be
replaced free of charge. (This does not include travel charges, removal and reinstallation charges.)
TERMS AND CONDITIONS APPLICABLE IN AUSTRALIA AND
NEW ZEALAND
1) YOU SHOULD CAREFULLY READ THE INSTRUCTIONS SUPPLIED PRIOR TO USING THIS ONGA
PRODUCT.
This product is to be installed and operated in accordance with the instructions provided. This
warranty will not apply if it is used in a manner other than in accordance with the
instructions.
What the warranty covers:
Onga warrants its products to be free of defects in material and workmanship during the warranty
period. If a product proves to be defective in material or workmanship during the warranty period,
then Onga will, at its sole option repair or replace the product with a like product. Replacement product
or parts may include re-manufactured or refurbished parts or components.
How long the warranty is effective:
1) This Onga product is warranted for 12 months for all parts from the date of the first consumer
purchase.
2) Where this Onga product is sold for commercial application as defined in the relevant Trade
Practices and Consumer Protection legislation the warranty shall be for a period of three months
from the date of purchase by the end user.
Who the warranty protects:
This warranty is valid only for the consumer purchaser.
What the warranty does not cover:
1) Damage, deterioration or malfunction resulting from:
a) accident, misuse, negligence, fire, water, lightning, or other acts of nature, unauthor-
ised product modification or failure to follow instructions supplied with the product;
b) repair or attempted repair by anyone not authorised by Onga;
c) any damage to the product due to shipment;
d) removal or installation of the product;
e) causes external to the product such as electric power fluctuations or failure;
f) use of supplies or parts not meeting Onga specifications;
g) normal wear and tear;
h) water ingression or exposure to abnormal corrosive conditions or “run dry” conditions;
i) any other cause which does not relate to a product defect.
2) Damage caused to the product as a consequence of use of another manufacturer’s product
used in conjunction with Onga and affiliate companies.
3) Swimming pools or spa equipment will not be warranted where the Langelier saturation
index ‘pH’ range is outside 7.2 to 7.6 and they have not been regularly treated with
chlorine or bromine based sanitising systems, or other recognised sanitising systems.
Spare Parts:
Spare parts are usually stocked for a reasonable period of time following last production.
Onga does not warrant that spare parts will be made available for the whole of the reasonable
period and reserves its right to cease supplying spare parts or providing facilities for repair
of spare parts in circumstances which are beyond its control including the requirement to
remove spare parts from sale as a consequence of changes in the law or otherwise as it
deems fit.

16
Onga Product Warranty (Continued)
How to get service:
In Australia please contact 1800 664 266 In New Zealand please contact 0800 664 269
Claims under this warranty must give evidence of date of purchase, model and serial number of the
product and the claimants name, address and telephone number.
1) To obtain warranted service, you will be required to provide to either Onga state office
or recommended service agent:-
a) the product;
b) confirmation in writing specifying the nature of your claim;
c) proof providing date of original purchase;
d) full contact details including name and address;
e) the serial number of the product if any.
2) The product is to be forwarded by the customer freight paid to an Authorised Onga service
agent.
Infield service by an authorised Onga Service Agent will incur a travel, removal & reinstalla-
tion fee to adjudicate on warranty issues.
Authorised warranty will be free of charge for the first 12 month period from date of the first
consumer purchase.
3) Warranty service work will be denied or suspended, on equipment not readily accessible to
service personnel, that is products that are behind barriers, tiled or bricked in, installed in
roofs or second story external walls including inaccessible power points.
4) Any service of any product which is found to be faulty due to abuse, fair wear & tear,
misuse or improper installation will be charged to the owner at the service agents
current servicing hourly rate.
Limitation of implied warranties:
THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION
CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
Exclusion of damages:
ONGA’S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. ONGA SHALL
NOT BE LIABLE FOR:
1) DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED
UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS
OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE OF BUSINESS RELATION-
SHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
2) ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
3) ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.
Effective law:
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Nothing in this warranty limits or restricts, or is intended to derogate from, any right
or remedy which the purchaser or ultimate user of the product may have pursuant to Australian
state and/or Australian federal consumer protection legislation, New Zealand Sale of Goods Act,
Consumer Guarantees Act, Fair Trading Act or any other relevant and applicable New Zealand
legislation or authority and where necessary shall so be read and construed.

17
IMPORTANT
Please attach your sales invoice/docket here as proof of purchase should
warranty service be required.
Please do not return Warranty - Retain for your records.
Purchased From
Purchase Date Serial No Model No

18
L300039C- 1004
