Onida Sparkle 62P User manual

Before operating the Washing Machine, Please read
this Guide thoroughly, and retain for future reference.
USER'S MANUAL
Fully Automatic
WASHING MACHINE
62P/62B

SAFETY PRECAUTION
FEATURES
FAMILIARISATION WITH CONTROL PANEL
PARTS LOCATION AND IDENTIFICATION
INSTALLATION & PREPARATION
CONNECTING THE DRAIN HOSE
PREPARATION BEFORE WASH
WASHING PROCEDURE
SELECTABLE WASHING METHODS
MAINTENANCE
TROUBLE SHOOTING
GUIDELINES FOR SAFETY AND DURABILITY
ONIDA SERVICE CENTRES
WARRANTY CARD
SPECIFICATIONS
1
2-3
4
5
6
7
8
9-10
11
12
13
14
15
16
Contents :
Dear Customer ,
Once again, Welcome to the happy ONIDA family.
SPARKLE 62P/62B
Proper use of Washing Machine Saves Electricity & Time
Congratulations! You are now a proud owner of Onida
SPARKLE 62P/62B Fully automatic Washing Machine. We would
particularly advise you to study the User's manual carefully to get
the best out of your Onida Machine and please take the precautions
mentioned on the following pages.

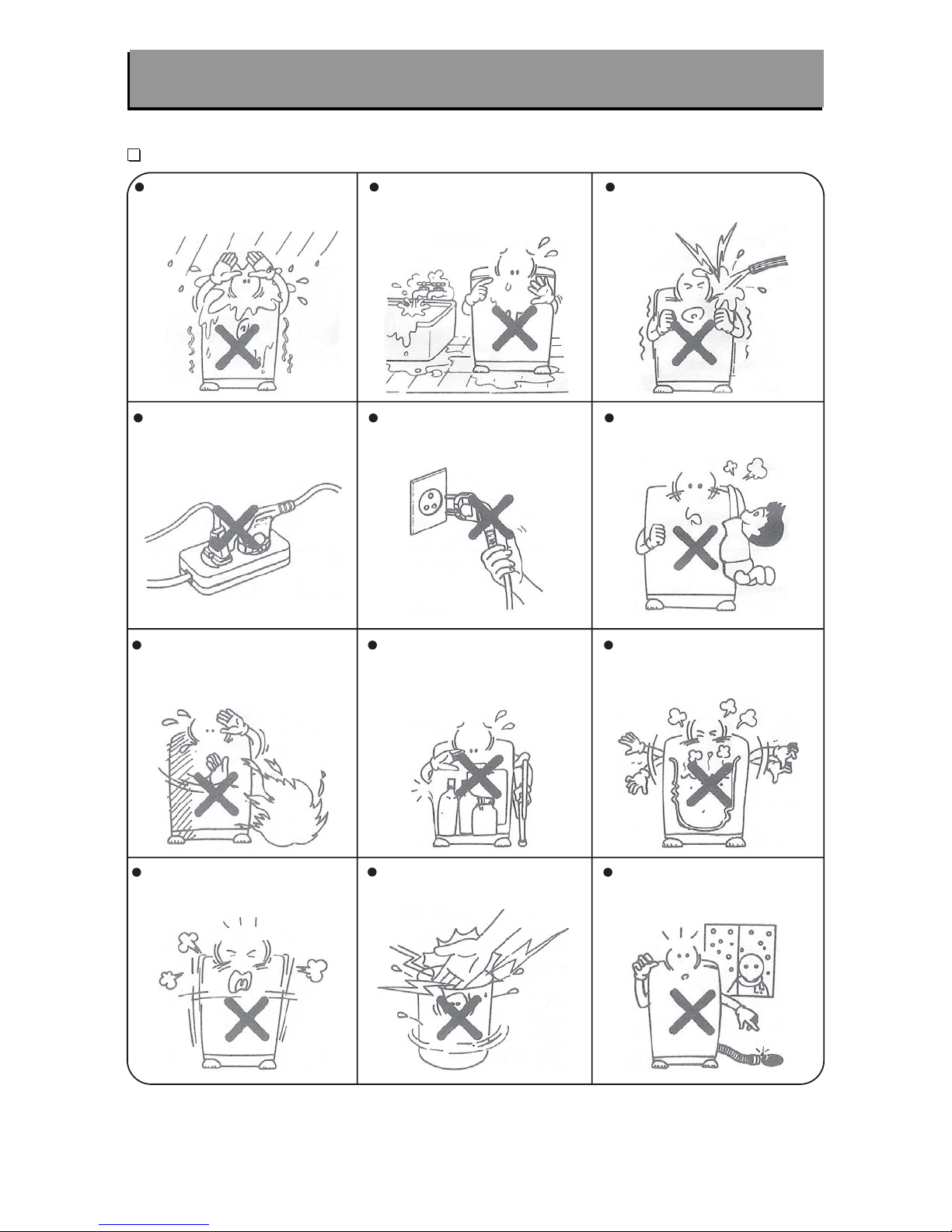

Safety Precautions
Safety Precautions
-1-
Do not use water with temperature exceeding 50 C, as this deforms the
plastic parts in the machine. If you desire to use warm water add hot water
to cold water in the wash tub. Do not pour hot water in an empty tub.
0
Keep the machine away from flames and inflammable material. Do not
expose the washing machine to direct sunlight or rain. Also avoid placing it
in humid locations.
Make sure that the washing machine is plugged to a 5A
electrical outlet and earth terminal is provided on the outlet.

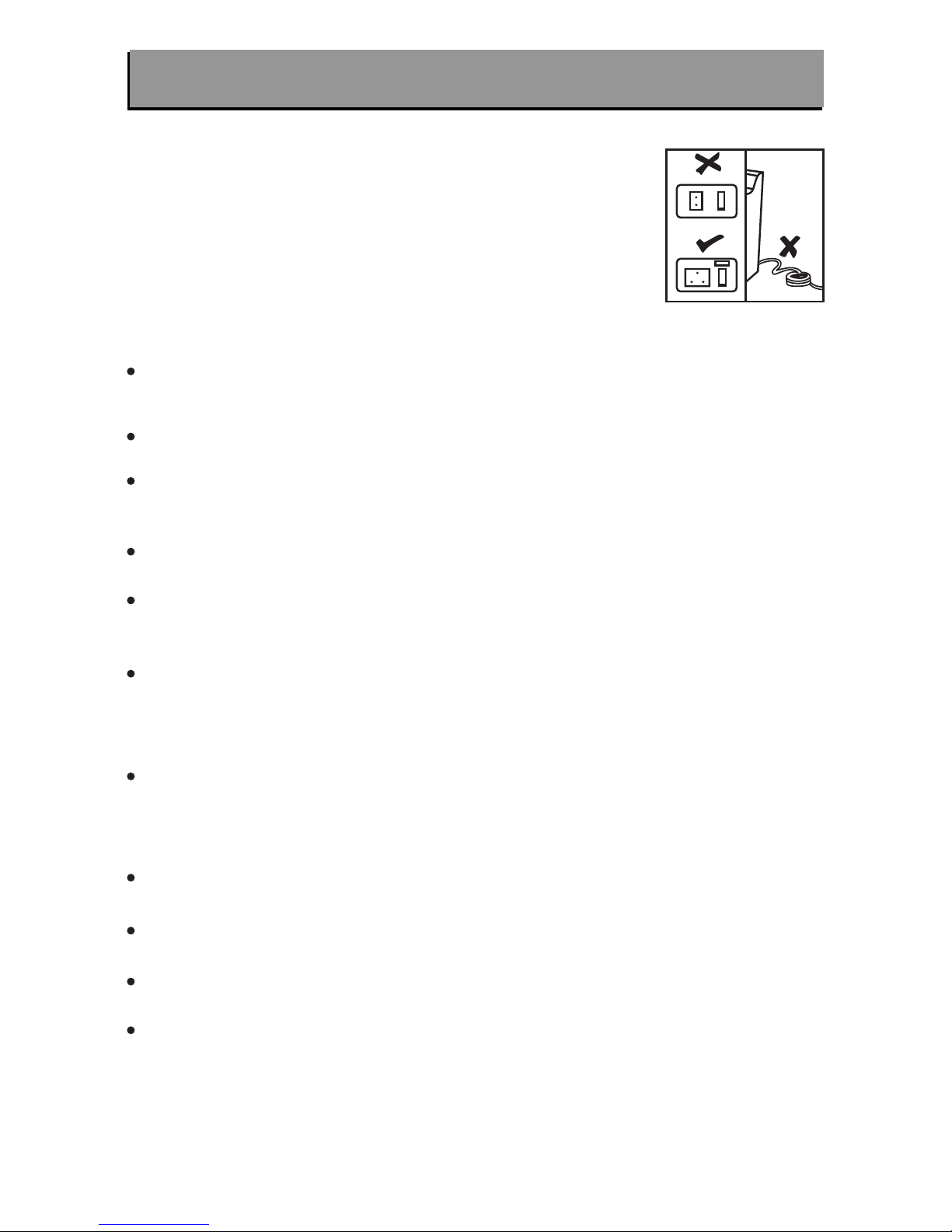

Please note that the following precautions for safety intend to
prevent unpredictable danger and damage by helping the
Proper use in safety.
Unplug the power supply cord when you do not use it.
To disconnect the washing machine from electrical mains completely, pull out
the plug and never pull it from the mains cord.
Don't allow your kids to look into the inside of the washing machine.
This washing machine is meant for washing clothes with water as a medium.
Do not use petrol or other chemicals. This can result in fire and damage.
Take caution not to pierce the control panel membrane sheet.
Never connect the earth wire to a phone wire, lightning rod.
Do not press the button with an awl or pin.
Never wash the washing machine or spread the water on machine top.
Clean with just wet cloth or cloth soaked in soap water.

Features
Features
-2-
Brush (Applicable for only Sparkle 62B)
With an actual Brush fitted on the inside of your drum, your clothes are treated
gently with a cleaning system which is very much like a real person giving it a
“hand wash”
Water Saver Program
Magic Filter
In this Program the rinse function combines the spin and water spray features
to help save energy and reduce water consumption by approximately 35%.
(Applicable for only Sparkle 62B)
(Applicable for only Sparkle 62B)
The strategically placed box-type Magic Filter makes excess lint on your
clothes history. It is positioned on the lower level of the tub which means that
even in small wash loads the fluff will be captured in the Magic Filter and your
clothes will remain lint-free.
Waterfall
Fuzzy Logic Control
Active Soak
Just like a Waterfall dropping from great heights, this feature creates turbulence
inside the wash tub which results in better dissolution of detergents within the
water helping it to spread evenly throughout the clothes. It also produces greater
movement of the wash load to give you enhanced cleaning action.
Advanced technology features means that now your machine can do the
thinking for you. With the Fuzzy Logic Control, the machine will indicate the
required detergent level and will automatically decide the water level and wash
time needed based on the load of the wash you put in and the temperature of
the water you choose.
The Active Soak function is there for those stubborn stains that cannot be
removed with regular washing. It allows the clothes to be immersed in the
detergent infused water and sends quivers through the wash from time to
time so that it can attack the deepest dirt on your clothes and remove it.

Features
Features
-3-
Features
Features
With consumers desiring more water and energy saving washing machines, we
have a Water Level Selection feature which allows you to choose from a variety
of water levels depending on the wash load. This means there will be no more
wastage!
Water Level Selection
Delay Start
Child Lock
The Delay Start option will allow you to set the machine to start at a later time
or date so that your washing will be scheduled around your day and not your
day around your washing!
This is an important feature if you have children in the house. The Child Lock
option will disengage all the buttons on the machine so that your child is safe
from harm and the wash cycle cannot be tampered with.
Memory Back-up
The Memory Backup ability in your machine means that if you are going out or
want to stop the cycle in the middle of a wash, you will be able to restart it from
that particular point whenever you want.

Familiarisation with Control Panel
Familiarisation with Control Panel
-4-
The unit will indicate
the Remaining time to
complete the selected
program. Also indicates
the error signals whenever
they occur.
Power button is
used to switch ON
and switch OFF the
machine.
In Fuzzy program according
to the cloth load the Detergent
level will be shown on the
panel and Water level will
automatically get selected
internally and in other programs
select the water level manually.
Max High Medium
Low Min
Display Unit
Display Unit
As you press this button
washing program changes
as follows.
Fuzzy + Rinse Hold
Heavy + Rinse Hold
Gentle/Wool Gentle/Wool
+ Rinse Hold Quick Wash
Quick Wash + Rinse Hold
Water Saver Water Saver +
Rinse Hold Jeans Jeans
+ Rinse Hold Sari Sari +
Rinse Hold Turbo Clean
Turbo Clean + Rinse Hold
Tub Clean
Heavy
Programs Selector
Programs Selector
This button is used to start,
pause the operation and to
set the delay time. To change
the washing course during
operation, press this button to
pause and press the button to
restart the operation after
changing the course. To
set the delay time press this
button with delay function
selected. The delay time will
change from 1 hr to 99 hrs
with each press of the button
with increment of 1 hr.
Start/Pause/Delay Selector
Start/Pause/Delay Selector
Note : This machine is equipped with memory backup function. This helps to retain same program in case of power failure.
If any program is running
or after starting any
program the Water
Level Button & Program
Selection Button are
simultaneously pressed for
2 seconds, machine will
go into Child lock mode.
This feature inactivates the
control panel keypad.
Press the same buttons for
5 Seconds to de-activate
the Child lock.
With each press of this
button combination of
Soak, Wash, Rinse and
Spin functions can be
done for selecting the
washing course. This
button can also be used
to select the Delay
function.
Water Level Selector
Water Level Selector
Power Button
Power Button
Function Selector
Function Selector
Child Lock
Child Lock

-5-

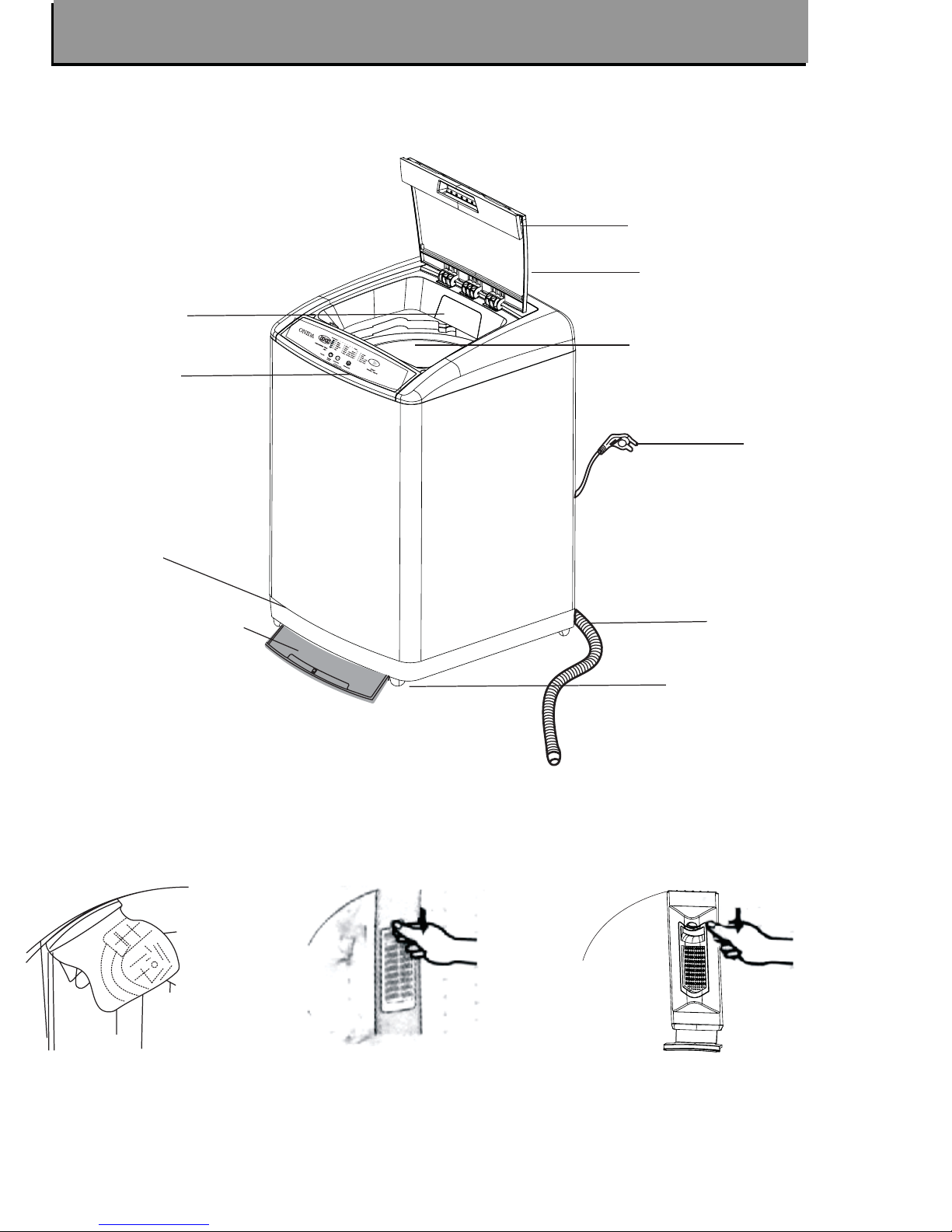

Parts Location And Identification
Parts Location And Identification
CONTROL PANEL
DETERGENT DRAWER
PLASTIC BASE
SOUND ABSORPTION PLATE
LEVEL ADJUSTMENT LEG
DRAIN HOSE
POWER PLUG
LID
INNER TUB
HANDLE - LID
LINT FILTER NET
(Applicable for only Sparkle 62P)
MAGIC LINT FILTER
(Applicable for only Sparkle 62B)
BRUSH
(Applicable for only Sparkle 62B)

Installation & Preparation
Installation & Preparation
-6-

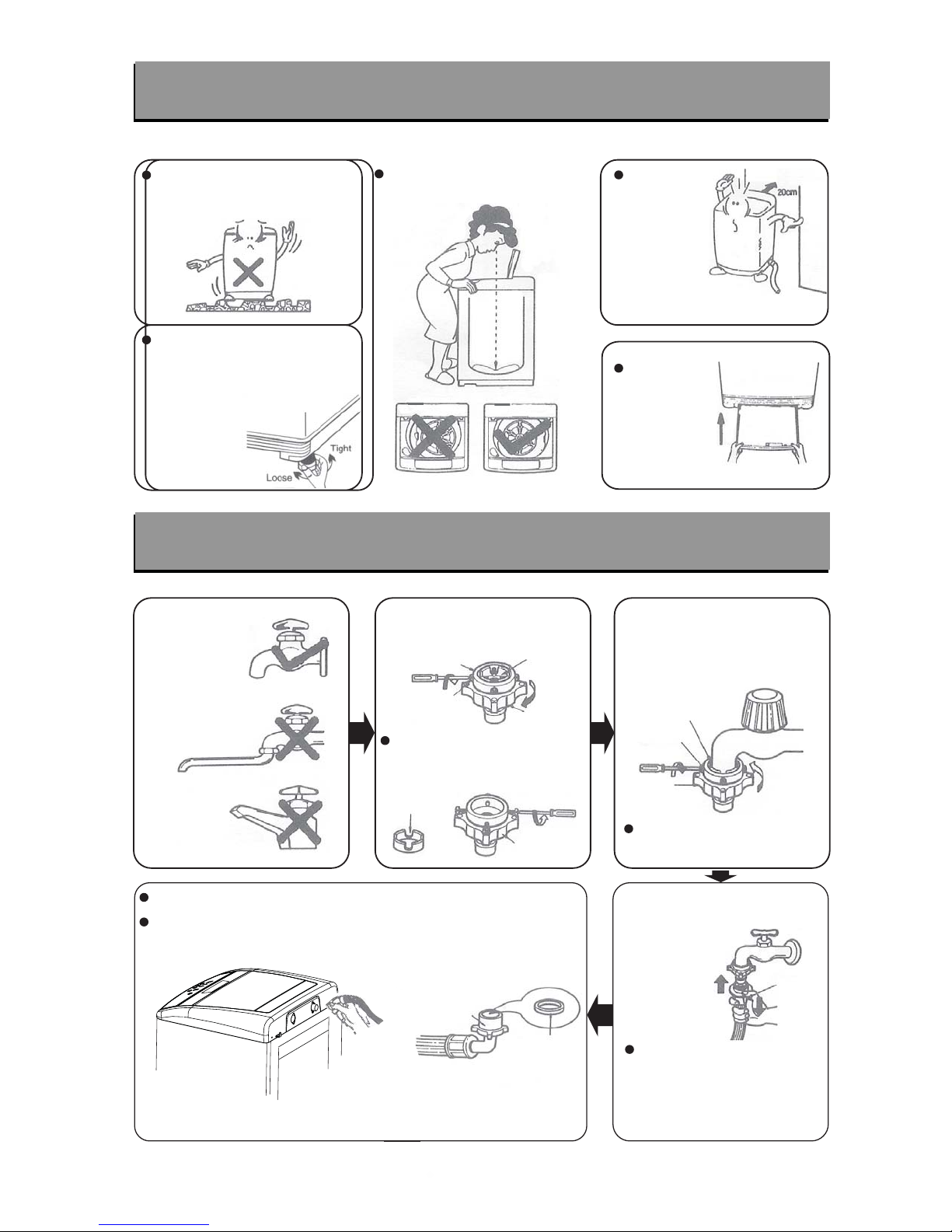

Install the washing machine
on a leveled and firm space.
Adjust washing machine
level by loosening or
tightening the leg adjuster
provided on the right hand
side of the bottom of the
washing machine.
See if the level on the washing
machine is correct.
Keep the
machine
more than
20 cm away
from the
walls to
prevent
noise.
Insert sound
absorption
plate into
the slot at
the Bottom
of the machine.
Horizontal tap
Extension tap
Square tap
Untighten the upper
connector screw and
the middle connector.
In case the diameter of
the tap is large remove
the guide plate
Connector
Fixing screw
Rubber
packing
Middle
Connector
Guide plate
Connector
Push the upper connector
up till the rubber packing is
in tight contact with the Tap.
Then tighten the 4 screws.
Turn the middle connector to
ensure no water leakage.
Inside rubber
packing
Connector
Middle
connector
Check to see if there is a rubber seal inside the connector.
Check the water hose to the inlet valve of the washing
machine, and then lock it by turning the hose connecting part.
To separate the water supply
hose from middle connector
shut off the tap. Then pull the
inlet hose down, pushing the
plate down.
Connect the water supply hose
to the middle connector, pushing
the plate up.
Pusher
Connect the Inlet Hose
Connect the Inlet Hose
Hose
Connector
Inside rubber
packing

Connecting the Drain Hose
Connecting the Drain Hose
-7-
Connect the drain hose to the outlet of the
washing machine.
Fix the drain hose with the clip, and then push
the clip toward the body of the washing machine
as shown below.
Additional hose is connected.
Place the drain hose over a threshold.
Never let the end of the drain hose be
immersed in water.
Less than 3m
Less than 2m
Less than
6 cm.

Preparation before Wash
Preparation before Wash
Check if laundry is
washable in water.
Be sure to remove things
such as keys, pins and
coins from the laundry.
Wash oily or dyed laundry
separately.
Shake loose dirt off
before washing.
Wash laundry with loose lint
by turning it inside out.
Wash delicate clothes,
wrapping them in a nylon
net.
READY?
Plug the power cord into
the electrical outlet.
Lay the drain hose on the
drain hole.
Connect the inlet
hose with the tap.
Drain hole.
-8-
