Onn 100014268 User manual

FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. Modifications not
authorized by the manufacturer may void user’s authority to operate this device.
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum distance between 20cm the radiator your body:
Use only the supplied antenna.
1 December 31, 2019_V1

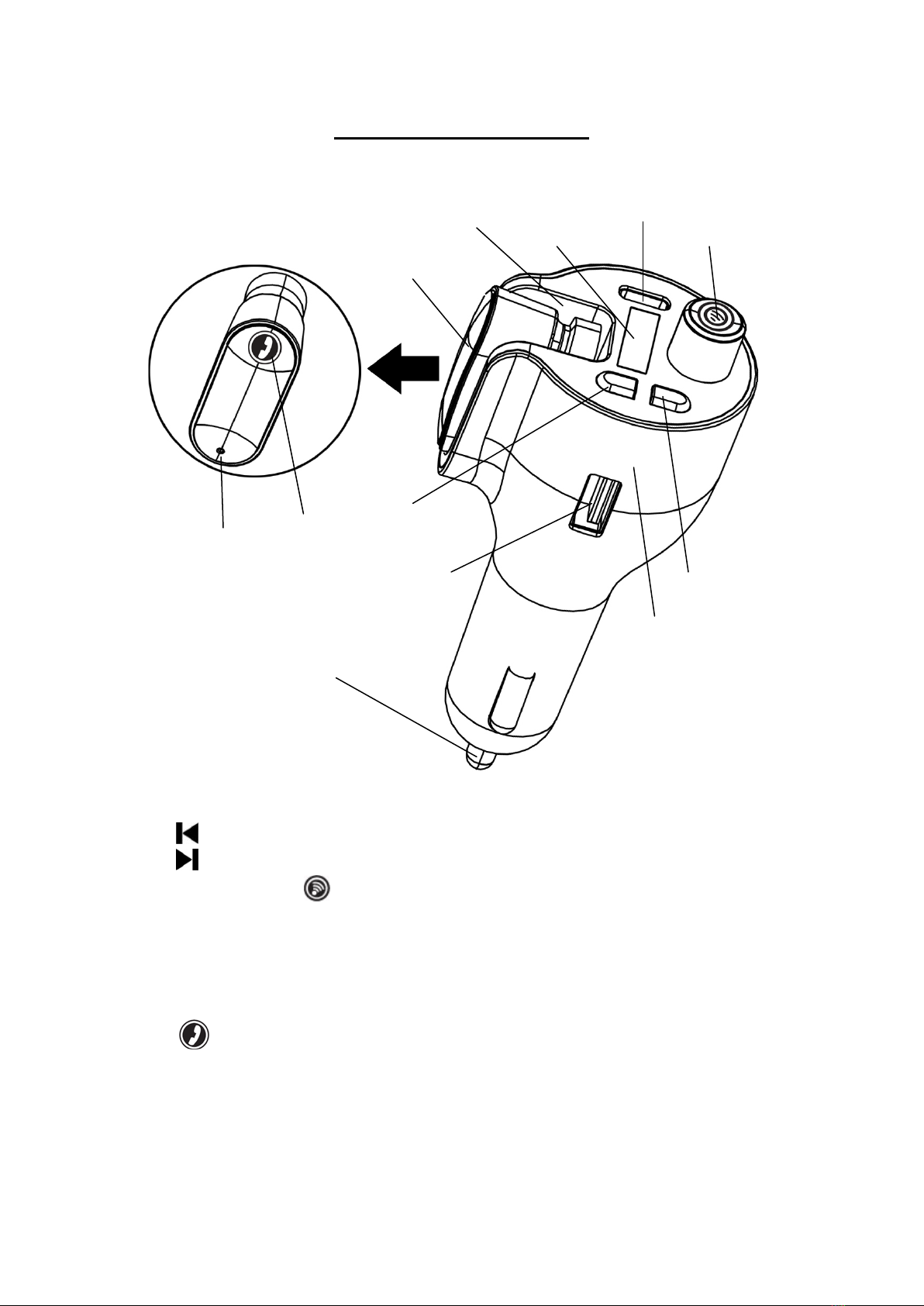

LOCATION OF CONTROLS
1. LED Display
2. Button
3. Button
4. Volume Control/ Knob
5. USB Type-C Port
6. USB QC3.0 Port
7. Headset
8. Headset Base
9. FM Transmitter
10. Button
11. Indicator
12. Car Cigarette Plug
2 December 31, 2019_V1
9
7
8
11
10
2
6 3
4
5
12
1

OPERATION
For listening to music from your BT Device through the unit and your Car Radio,
follow the steps below:
PAIRING:
Step1:
Pairing the unit to your Car Radio:
1. Connect the unit to the car cigarette lighter socket as illustrated below:
2. The unit will automatically power on and the LED Display on the Unit will
illuminate & blink. The voltage of the car battery will appear on the LED Display
at first.
3December 31, 2019_V1

3. Then a default FM Channel will appear on the unit as illustrated below (For
example: 88.1MHz)..
4. The Headset on the Unit will start to charging and the Red Indicator on it will
illuminate (When charging is complete, the Red Indicator will turn off).
5. Turn on your Car Radio and enter the radio FM mode as usual. Search for a
blank FM channel without any radio signal received (For example: 107.0 MHz).
6. Press and hold the Volume Control/ Knob on the unit until the LED Display
on the unit start to blink. Then, press the / Button on the unit
repeatedly (or turn around the Volume Control/ Knob on the unit) until the
same channel frequency appear on the LED Display as illustrated below (For
example: 107.0 MHz):
4 December 31, 2019_V1

Step 2:
Pair your BT (Bluetooth) Device to the FM Transmitter on the unit:
In first time use or re-pairing the FM Transmitter on the unit to a new BT Device,
pairing it as below:
1. Power on and pair the unit to Car Radio as step 1 above.
2. Power on the external BT Device and enter to BT mode. Start pairing the FM
Transmitter on the unit following the screen instruction from the external BT
Device.
Note:
When the external BT Device searches for the FM Transmitter on the unit,
the BT Device name “Onn BT/FM” will appear on the BT Device Name List on
your external BT Device. Pair your BT Device with it.
3. After the FM Transmitter on the unit paired, you will hear an audible prompt
from Car Radio to say “Paired”
Step 3:
Pair your BT (Bluetooth) Device to the Headset on the unit:
In first time use or re-pairing the Headset on the unit to a new BT Device, pairing it as
below:
1. Power on and pair the unit to Car Radio as step 1 above.
2. Pair your BT (Bluetooth) Device to the FM Transmitter on the unit as step 2
above.
3. Pick up the Headset from the unit, the Blue & Red LED indicator on the Headset
will illuminate and blink.
4. Power on the external BT Device and enter to BT mode. Start pairing the Headset
on unit following the screen instruction from the external BT Device.
Note:
When the external BT Device searches for the Headset, the BT Device name
“Onn BT/Headset” will appear on the BT Device Name List on your external
BT Device. Pair your BT Device with it.
5. After the Headset paired, you will hear an audible prompt from headset to say
“Connected”, then the Red LED indicator will turn off, and the Blue LED indicator
will turn to slow blink.
* Above step 2 and 3 can be reversed.
5 December 31, 2019_V1

LISTENING TO MUSIC THROUGH PAIRED BT DEVICE
1. After step 1 & 2 & 3, now you can play the music or answer the incoming call
with the paired BT Device as usual.
2. During playback:
Turn the Volume Control/ Knob on the unit to adjust volume level as
desire. (Or, use the Volume Controls on the Car Radio or paired BT Device
to adjust volume level).
Press the Volume Control / Knob to pause; press again to resume
normal playback.
Press the or Buttons repeatedly to skip tracks.
3. If the unit is paired to a Cell Phone and a call is incoming during an active music
session:
Pick up the Headset from unit and hang to your ear, then you can answer the
call as normal. When your call is complete, press the Button on Headset
or put the Headset back to Headset Base directly to disconnect or end the
call. Then Press the Volume Control / Knob to resume to music playback.
Or, pick up the Headset from the unit and put it back to the Headset base
after 2-3 seconds to decline the incoming call, then resume to music
playback.
Quick press the Button twice to redial the last telephone number your
cell phone called.
4. To shut off the unit, unplug the unit from car cigarette lighter socket.
Notes:
When the external BT Device searches the FM Transmitter & Headset on the unit,
our model number “Onn BT/FM” & “Onn BT/Headset” will appear on the display
of external BT Device.
If while pairing you are asked for a code please try "0000" or "1234".
During playback, If keep the Headset on the unit, music can be listened from
your car radio. If take the Headset apart from the unit, music can be listened
from your Headset.
6 December 31, 2019_V1

The Headset can be used as a independent BT Headset, once paired with the
external BT Device, you can play the music or answer the incoming call with the
paired BT Device as usual.
NORMAL OPERATION AFTER PAIRED
1. Power on the external BT Device and enter to BT mode.
2. Power on the Car Radio and previously receiving the preset FM frequency same
as the preset of unit (For example: 107.0 MHz).
3. Connect the unit to the car cigarette lighter socket. The LED Display on the Unit
will start to illuminate and blink until the preset FM frequency appeared.
4. Wait a few seconds, the unit will automatically pair to the external BT Device.
After paired, you will hear an audible prompt from Car Radio to say “Paired”.
5. If pairing is complete you may now play music and answer the incoming call with
your external BT Device.
7 December 31, 2019_V1

BUILT‐IN USB QC3.0 FAST CHARGER
The unit has a built-in USB QC3.0 Fast Charger. Use it to charge the external Device
as below:
1. Connect the unit to the car cigarette lighter socket to power on the unit.
2. Connect the full size USB Plug of the charging cable (not included, to realize fast
charging, the USB charging cable must be a fast charging cable) from the USB QC
3.0 Port to the external Device.
3. Fast charging will automatically start. Monitoring the charging status by the
Charging Indicators on the external Device as usual.
4. When finished charging, disconnect the external Device from the USB QC3.0
Fast Charger Port.
BUILT‐IN USB TYPE-C CHARGER
The unit has a built-in USB Type-C Charger. Use it to charge the external Device as
below:
1. Connect the unit to the car cigarette lighter socket to power on the unit.
2. Connect the USB Type-C Plug of the charging cable (not included) from the USB
Type-C Port to the external Device
3. Charging will automatically start. Monitoring the charging status by the Charging
Indicators on the external Device as usual.
4. When finished charging, disconnect the external Device from the USB Type-C
Charging Port.
Note:
The unit has a built-in overload/overheats protector. If the output of the unit is
overload (or short circuit). The charger will auto shut off. Unplug the external
Device from the USB QC3.0 or Type-C Port. The charger will auto reset.
8 December 31, 2019_V1

TROUBLESHOOTING
Check the following before requesting service:
SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION
Car Radio no
sound
The radio frequency between the
unit and Car Radio mismatch
Found and set the radio frequency
of the Car Radio and unit in the
same frequency
No sound or
sound weak
Volume of the unit was
set to minimum
position
Increase the volume by turn
the Volume Control/ Knob on
the unit clockwise.
Volume level of paire
d device is in low
level
Rise the volume level of
the paired device
Sound distortion Volume level too high Reduce the volume level by turn
the
Volume Control/ Knob on the unit
counterclockwise
Volume level of the
paired device too
high
Reduce the volume level of the
paired device
BT not functioning
The external BT Device had NOT paired
to the unit
Pair the external BT device
to the
unit as page 5
The external BT device too far from the
unit
Place the external BT device close to
the unit
SPECIFICATIONS
Power Source
FM Transmitter: DC 12 or 24 V, 1300 mAh
(Max.) from car cigarette lighter socket
Headset: DC 3.7V, 30mAh (0.111 WH) Built-in
rechargeable Li-ion Battery; Recharge by the FM
Transmitter
Output
Built-in USB QC3.0 Fast Charger: DC 5 V, 3A
or 9V / 2A or 12V / 1.5A
Built-in USB Type-C Charger: DC 5 V, 3A
FM Transmitting Frequency:
88.1-107.9 MHz
BT Version:
5.0
BT Operation Distance:
32 Feet in open area
PACKAGE INCLUDES
1. Wireless FM Transmitter with Headset
2. User Manual
3. Quick Start Guide
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE
9 December 31, 2019_V1

For customer service on this product,
Please call 1-888-516-2630
