Opel MOKKA User manual

OPEL MOKKA
 

Introduction............................................٢
In brief....................................................٦
Keys, doors and windows.....................١٩
Seats, restraints.....................................٣٣
Storage..................................................٥٢
Instruments and controls......................٦٨
Lighting..............................................١٠٣
Climate control...................................١١٢
Driving and operating........................١١٨
Vehicle care........................................١٥٤
Service and maintenance....................١٩٣
Technical data....................................١٩٦
Customer information........................٢٠٧
..................................................٢١٢


٢Introduction
Introduction

Introduction٣
Vehicle specific data
Please enter your vehicle's data on the
previous page to keep it easily accessible.
This information is available in the sections
"Service and maintenance" and "Technical
data" as well as on the identification plate.
Introduction
Your vehicle is a designed combination of
advanced technology, safety,
environmental friendliness and economy.
This Owner's Manual provides you with all
the necessary information to enable you to
drive your vehicle safely and efficiently.
Make sure your passengers are aware of the
possible risk of accident and injury which
may result from improper use of the vehicle.
You must always comply with the specific
laws and regulations of the country that you
are in. These laws may differ from the
information in this Owner's Manual.
Disregarding the description given in this
manual may affect your warranty.
When this Owner's Manual refers to a
workshop visit, we recommend your Opel
Service Partner. For gas vehicles we
recommend an Opel Repairer authorised for
servicing gas vehicles.
All Opel Service Partners provide first-class
service at reasonable prices. Experienced
mechanics trained by Opel work according
to specific Opel instructions.
The customer literature pack should always
be kept ready to hand in the vehicle.
Using this manual
●
This manual describes all options and
features available for this model.
Certain descriptions, including
those for display and menu
functions, may not apply to your
vehicle due to model variant,
country specifications, special
equipment or accessories.
●
The "In brief" section will give you an
initial overview.
●
The table of contents at the beginning
of this manual and within each section
shows where the information is
located.
●
The index will enable you to search for
specific information.
●
This Owner's Manual depicts left-hand
drive vehicles. Operation is similar for
right-hand drive vehicles.
●
The Owner's Manual uses the engine
identifier code. The corresponding
sales designation and engineering code
can be found in the section "Technical
data."
●
Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
●
The vehicle display screens may not
support your specific language.
●
Display messages and interior
labelling are written in bold letters.
Danger, Warnings and
Cautions
9
    9   
     .   
    .
9

   9   
      .  
     .

٤Introduction

      
     .  
      .
Symbols
Page references are indicated with 2. 2
means "see page."
Page references and index entries refer to
the indented headings given in the section
table of content.
We wish you many hours of pleasurable
driving.
Adam Opel AG

Introduction٥

٦In brief
In brief
Initial drive information
Vehicle unlocking
Press c to unlock the doors and load
compartment. Open the doors by pulling the
handles. To open the tailgate, push the
touchpad switch below the handle.
Radio remote control 2 ٢٠, Central
locking system 2 ٢١, Load compartment
2 ٢٤.
Seat adjustment
Longitudinal adjustment
Pull handle, slide seat, release handle. Try
to move the seat back and forth to ensure
that the seat is locked in place.
Seat position 2 ٣٤, Seat adjustment
2 ٣٥.

In brief٧
Backrest inclination
Pull lever, adjust inclination and release
lever. Allow the seat to engage audibly.
Seat position 2 ٣٤, Seat adjustment
2 ٣٥.
Seat height
Lever pumping motion
up:seat higher
down:seat lower
Seat position 2 ٣٤, Seat adjustment
2 ٣٥.
Seat inclination
Press switch
top:front end higher
bottom:front end lower
Seat position 2 ٣٤, Seat adjustment
2 ٣٥.

٨In brief
Head restraint adjustment
Pull the head restraint upwards. Press the
catch (1) to release and push the head
restraint downwards.
Head restraints 2 ٣٣.
Seat belt
Pull out the seat belt and engage in belt
buckle. The seat belt must not be twisted and
must fit close against the body. The backrest
must not be tilted back too far (maximum
approx. 25°.(
To release belt, press red button on belt
buckle.
Seat position 2 ٣٤, Seat belts 2 ٣٨,
Airbag system 2 ٤٠.
Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the
underside of the mirror housing.
Interior mirror 2 ٢٨, Automatic anti-
dazzle interior mirror 2 ٢٨.

In brief٩
Exterior mirrors
Select the relevant exterior mirror and adjust
it.
Convex exterior mirrors 2 ٢٧, Electric
adjustment 2 ٢٧, Folding exterior mirrors
2 ٢٧, Heated exterior mirrors 2 ٢٨.
Steering wheel adjustment
Unlock the lever, adjust the steering wheel,
then engage the lever and ensure it is fully
locked.
Do not adjust the steering wheel unless the
vehicle is stationary and the steering wheel
lock has been released.
Airbag system 2 ٤٠, Ignition positions
2 ١٢٠.

١٠In brief
Instrument panel overview

In brief١١
1Central locking system...............٢١
2Power windows..........................٢٩
3Exterior mirrors..........................٢٧
4Light switch................................١٠٣
5Cruise control.............................١٣٣
Speed limiter...............................١٣٤
Forward collision alert................١٣٥
6Side air vents..............................١١٦
7Turn and lane-change signals.....١٠٨
Headlight flash............................١٠٤
Low beam and high beam...........١٠٤
Buttons for Driver Information
Centre.........................................٨٦
8Instruments.................................٧٥
9Steering wheel controls .............٦٩
10Windscreen wiper, windscreen
washer system.............................٧٠
Rear window wiper, rear
window washer system...............٧٢
11Centre air vents...........................١١٦
12Electronic Stability Control
(ESC(..........................................١٣١
Hazard warning flashers ............١٠٨
Control indicator for airbag
deactivation ................................٨١
13Anti-theft alarm system status
LED ...........................................٢٥
14Info-Display ...............................٨٩
15Instrument panel storage.............٥٢
16Glovebox ...................................٥٣
17Infotainment system
18Climate control system...............١١٢
19Stop-start system........................١٢١
Fuel selector................................٧٦
20AUX input, USB input, SD card slot
21Selector lever, manual
transmission ...............................١٢٨
Automatic transmission .............١٢٥
22Parking brake..............................١٣٠
23Power outlet................................٧٤
24Parking assist .............................١٣٧
Descent control system...............٨٢
25Ignition switch with steering
wheel lock ..................................١٢٠
26Horn ...........................................٧٠
Driver airbag ..............................٤٣
27Steering wheel adjustment .........٦٩
28Bonnet release lever ...................١٥٦
29Instrument panel storage.............٥٢
Fuse box .....................................١٧٠

١٢In brief

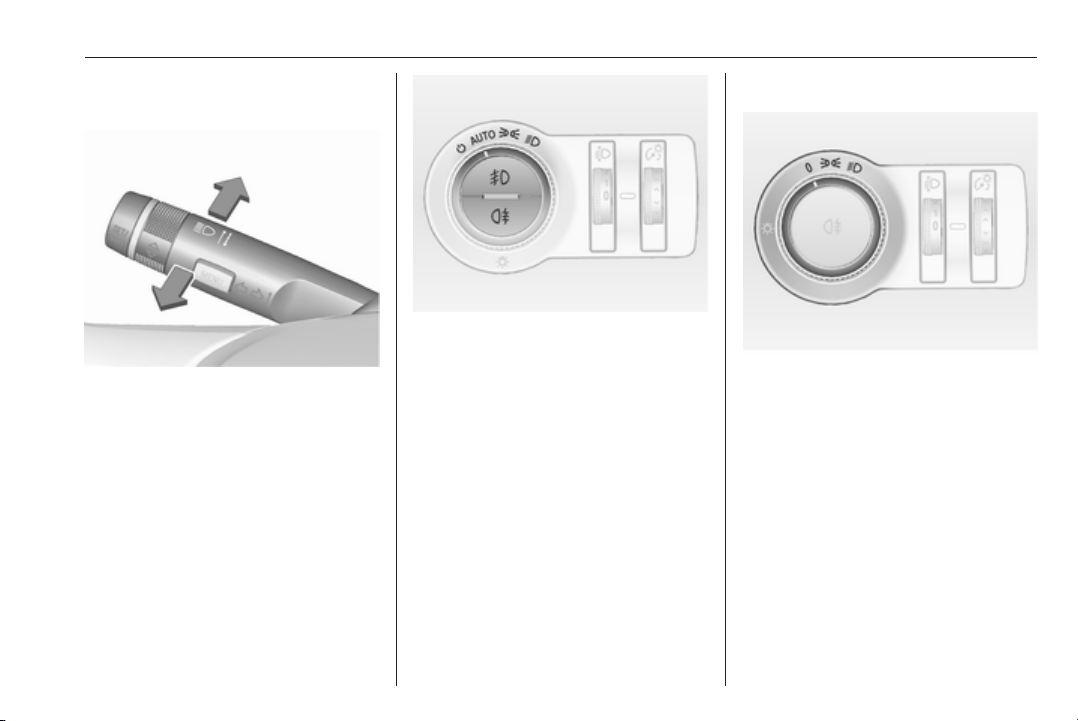

Exterior lighting
Turn light switch:
7
:lights off
8
:sidelights
9
:low beam
Automatic light control
AUTO:automatic light control: exterior
lighting is switched on and off
automatically
m
:activation or deactivation of the
automatic light control
8
:sidelights
9
:low beam
Fog lights
Press light switch:
>
:front fog lights
r
:rear fog light
Lighting 2 ١٠٣.
Headlight flash, high beam and low
beam
headlight flash:pull lever
high beam:push lever
low beam:push or pull lever
Automatic light control 2 ١٠٤, High beam
2 ١٠٤, Headlight flash 2 ١٠٤, Adaptive
forward lighting 2 ١٠٦.

In brief١٣

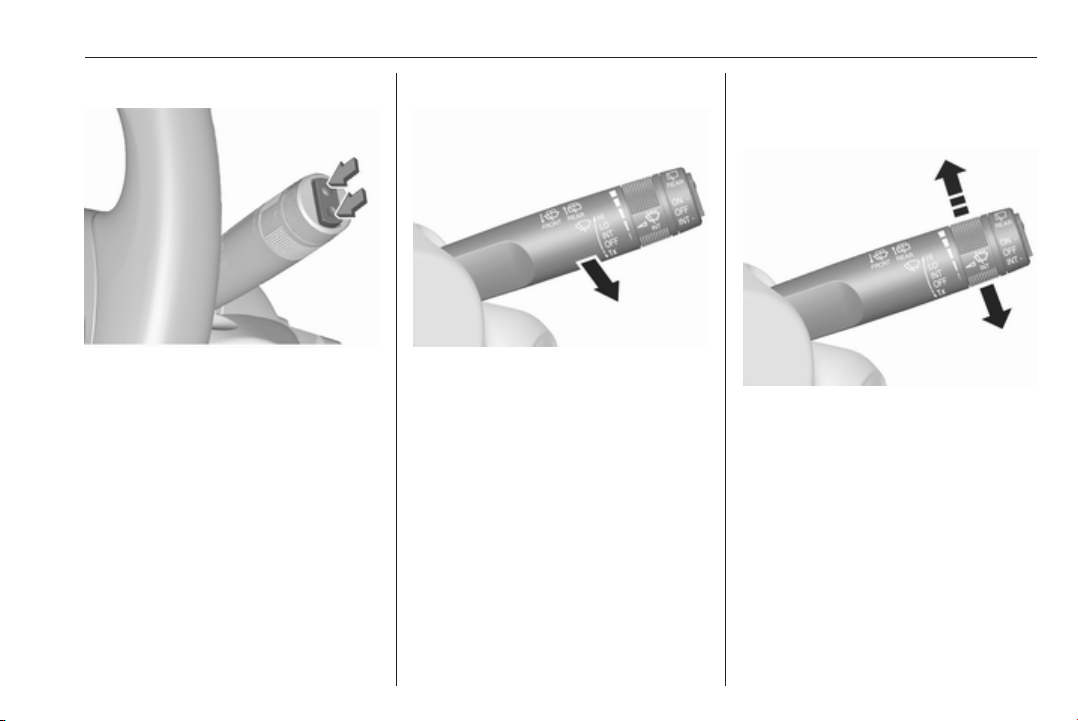

Turn and lane-change signals
lever up:right turn signal
lever down:left turn signal
Turn and lane-change signals 2 ١٠٨.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 2 ١٠٨.
Horn
Press j.

١٤In brief
Washer and wiper systems
Windscreen wiper
HI:fast
LO:slow
INT:interval wiping or automatic
wiping with rain sensor
OFF:off
For a single wipe when the windscreen
wiper is off, press the lever down to position
1x.
Windscreen wiper 2 ٧٠, Wiper blade
replacement 2 ١٦١.
Windscreen washer system
Pull lever.
Windscreen washer system 2 ٧٠, Washer
fluid 2 ١٥٨.
Rear window wiper
Press the rocker switch to activate the rear
window wiper:
upper switch:continuous operation
lower switch:intermittent operation
middle position:off

In brief١٥
Rear window washer
Push lever.
Washer fluid is sprayed on the rear window
and the wiper wipes a few times.
Rear window wiper/washer 2 ٧٢.
Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing Ü.
Heated rear window 2 ٣٠.
Demisting and defrosting the
windows
Press V.
Set the temperature control to the highest
level.
Heated rear window Ü on.
Climate control system 2 ١١٢.

١٦In brief
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the release
button on the selector lever and engage the
gear.
If the gear does not engage, set the lever to
neutral, release the clutch pedal and depress
again; then repeat gear selection.
Manual transmission 2 ١٢٨.
Automatic transmission
P:park
R:reverse
N:neutral
D:drive
Manual mode: Move selector lever to M.
<
:higher gear
]
:lower gear
The selector lever can only be moved out of
P when the ignition is on and the brake pedal
is applied. To engage P or R, press the
release button.
Automatic transmission 2 ١٢٥.
Starting off
Check before starting off
●
Tyre pressure and condition 2 ١٧٤,
2 ٢٠٦.
●
Engine oil level and fluid levels
2 ١٥٦.
●
All windows, mirrors, exterior lighting
and number plates are free from dirt,
snow and ice and are operational.
●
Proper position of mirrors, seats, and
seat belts 2 ٢٧, 2 ٣٤, 2 ٣٩.
●
Brake function at low speed,
particularly if the brakes are wet.

In brief١٧
Starting the engine
●
Turn key to position 1.
●
Move the steering wheel slightly to
release the steering wheel lock.
●
Operate clutch and brake.
●
Automatic transmission in P or N.
●
Do not operate accelerator pedal.
●
Diesel engines: turn the key to position
2 for preheating and wait until control
indicator ! extinguishes.
●
Turn key to position 3 and release.
Starting the engine 2 ١٢٠.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as follows:
●
Depress the clutch pedal.
●
Shift the selector lever to N.
●
Release the clutch pedal.
An Autostop is indicated by the needle at the
AUTOSTOP position in the tachometer.
To restart the engine, depress the clutch
pedal again.
Stop-start system 2 ١٢١.
Parking
9
●
Do not park the vehicle on an easily
ignitable surface. The high
temperature of the exhaust system
could ignite the surface.
●
Always apply the parking brake.
Activate the parking brake without
pressing the release button. Apply as
firmly as possible on a downhill
slope or uphill slope. Depress brake
pedal at the same time to reduce
operating force.
●
Switch off the engine.
●
If the vehicle is on a level surface or
uphill slope, engage first gear or set
the selector lever to position P before
removing the ignition key. On an
uphill slope, turn the front wheels
away from the kerb.
If the vehicle is on a downhill slope,
engage reverse gear or set the
selector lever to position P before
removing the ignition key. Turn the
front wheels towards the kerb.

١٨In brief
●
Close the windows and the sunroof.
●
Remove the ignition key from the
ignition switch. For vehicles with
automatic transmission, the key can
only be removed when the selector
lever is in position P.
Turn the steering wheel until the
steering wheel lock is felt to engage.
●
Lock the vehicle with e on the radio
remote control.
Activate the anti-theft alarm system
2 ٢٥.
●
The engine cooling fans may run after
the engine has been switched off
2 ١٥٥.

After running at high engine speeds or
with high engine loads, operate the
engine briefly at a low load or run in
neutral for approx. 30 seconds before
switching off, in order to protect the
turbocharger.
Keys, locks 2 ١٩, Laying the vehicle up
for a long period of time 2 ١٥٤.
