Opel 2011 Corsa User manual

OPEL Corsa
Owner’s Manual
Back to overview

Back to overview

OPEL Corsa
Operation, Safety, Maintenance
Back to overview

Data specific to your vehicle
Please enter your vehicle’s data here so that it is readily accessible. Please refer to the sections "Servicing and maintenance" and "Technical
data" and the identification plate.
Fuel
Designation
Engine oil
Grade
Viscosity
Tyre pressure
Tyre size Front Rear
Summer tyres
Winter tyres
Weights
Gross vehicle weight rating
– ECkerbweight
=Loading
Back to overview

Introduction
Your vehicle is an intelligent combination
of forward-looking technology, impressive
safety, environmental friendliness and
economy.
It now lies with you to drive your vehicle
safely and to see it performs perfectly. This
Owner’s Manual provides you with all the
necessary information to that end.
Make sure your passengers are aware of
the possible risk of accident and injury
which may result from improper use of the
vehicle.
You must always comply with the specific
laws of the country that you are in. These
laws may differ from the information in this
Owner’s Manual.
When this Manual refers to a workshop visit,
we recommend your Opel Service Partner.
All Opel Service Partners provide first-class
service at reasonable prices. Experienced
mechanics trained by Opel work according
to specific Opel instructions.
The Owner’s Manual, infotainment system
instructions and the vehicle Service and
Warranty Booklet should always be kept
ready to hand in the vehicle glove
compartment.
Make use of the Owner’s Manual
zThe "In Brief" section will give you an
initial overview.
zThe table of contents at the beginning of
the owner’s manual and within the
individual chapters will show you where
everything is.
zIts index will help you find what you
want.
zYellow arrows in the illustrations serve as
points of reference or indicate some
action to be performed.
zBlack arrows in the illustrations indicate
a reaction or a second action to be
performed.
zThis Owner’s Manual depicts left-hand
drive vehicles. Right-hand drive vehicles
are operated in the same way.
zThe Owner’s Manual uses the internal
engine codes. The corresponding sales
designations are found in the chapter
"Technical data".
zDirectional data, e.g. left or right, or
front or back, in the descriptions always
relate to the direction of travel.
Symbols
6Continue reading on next page.
3signifies equipment not fitted to all
vehicles (model variants, engine options,
models specific to one country, optional
equipment, Genuine Opel Parts and
Accessories).
Page references are indicated with 3 .
3means "see page".
9 Danger, 9Warning, Caution
Safe driving!
Adam Opel GmbH
9 Danger
Text marked 9Danger provides
information on risk of endangering life.
Failure to comply with the instructions
could endanger life.
9 Warning
Text marked 9Warning provides
information on risk of accident or injury.
Failure to comply with the instructions
could lead to injury.
Caution
Text marked Caution provides
information on possible damage to the
vehicle Failure to comply with the
instructions could lead to vehicle
damage.
Back to overview

Back to overview

Contents In Brief ....................................................... 2
Keys, doors, windows, sun roof ............ 26
Seats, Interior .......................................... 48
Instruments, controls .............................. 84
Lighting ................................................. 108
Infotainment system ............................ 118
Climate control .................................... 120
Driving and operation ........................ 136
Self-help, vehicle care .......................... 190
Opel Service, maintenance ................. 231
Technical Data .................................... 250
Index ...................................................... 270
Back to overview

2InBrief
In Brief
Picture no: 18398s.tif
Unlocking the car: Turn the key in
the driver’s door lock towards the
front or press the button q
Open the door by pulling on the door
handle. To open the tailgate, press in the
button under the handle recess and pull
the tailgate upwards.
Key 326,
Electronic immobiliser 327,
Personalised key 339,
Central locking with key 332,
Remote control 331,
Central locking 332,
Anti-theft device 3333,
Alarm system 337,
Child lock 339.
Picture no: 18159s.tif
To adjust front seat leg room:
Pull handle, slide seat,
release handle
Seats 348, Seat position 350.
Back to overview

3In Brief
Picture no: 18160s.tif
To adjust front seat backrests:
Turn handwheel
Do not lean on seat backrest whilst
adjusting it.
Seats 348,
Seat position 350,
Folding down the front passenger
seat 349.
Picture no: 18161s.tif
Front seat height 3: Operate lever
on the door side of seat
Pump action of lever
Seats 349, Seat position 350.
Picture no: 18480s.tif
To fold the front seat backrests
forward 3: Lift the locking lever,
fold the backrest forward, lower
the locking lever, backrest
engages folded forward 3,
slide the seat forward 3
To push the seat back to upright, it
engages in its original position 3. Lift the
locking lever 3, move the backrest back to
upright, lower the locking lever, backrest
engages.
Folding the backrest forwards is possible
only when the backrest is in an upright
position.
Front seats 348.
Upwards: Seat higher
Downwards: Seat lower
Back to overview

4InBrief
Picture no: 16976t.tif
To adjust front seat head
restraint height: press button to
unlock, adjust height, engage
Head restraint 351,
rear head restraint adjustment 352,
head restraint position 352.
Picture no: 18533t.tif
Extend the seat belt and clip it
into the buckle
The seat belt must not be twisted and must
lie snugly against the body. The backrest
must not be tilted back too far (maximum
approx. 25).
To release belt, press red button on belt
buckle.
Three-point seat belts 359,
Airbag system 369,
Seat position 350.
Picture no: 18283s.tif
To adjust interior mirror by
swivelling
Swivel lever on underside of mirror housing
to reduce dazzle at night.
Mirrors 342,
Autodimming interior mirror 344.
Back to overview

5In Brief
Picture no: 18284s.tif
Exterior mirror adjustment
Select the mirror to be adjusted using the
rocker switch and adjust using the
four-way switch.
Mirror 342,
Aspherical exterior mirrors 342,
Swinging in exterior mirrors 342,
Heated exterior mirrors 313, 343.
Picture no: 18162s.tif
Exterior mirror adjustment on
vehicle fitted with electronic
windows 3
Select the mirror to be adjusted using the
rocker switch and adjust using the
four-way switch.
Mirror 342,
Aspherical exterior mirrors 342,
Swinging in exterior mirrors 342,
Heated exterior mirrors 313, 343.
Picture no: 18163s.tif
Steering wheel adjustment:
Swivel lever down, adjust height
and distance, swivel lever up,
engage
Adjust steering wheel only when vehicle is
stationary and steering column lock is
released.
Airbag system 369
Back to overview

7In Brief
1Side air vents .............................. 3120
2 Parking lamps, dipped beam ... 3106
Instrument illumination .............. 3112
Fog tail lamp .............................. 3108
Fog lamps 3 ............................... 3108
Headlamp range
adjustment 3 .............................. 3109
3Turn signal .....................................311
Headlamp flash
dipped beam, main beam .......... 311
Interior lighting 3........................ 3111
Parking lamps 3 ......................... 3112
Cruise control 3.......................... 3158
4 Steering wheel
remote control 3......................... 3116
5Horn ................................................312
Driver’s airbag ...............................367
6Instruments ....................................382
7 Windscreen wipers,
windscreen washer system,
rear window washer system .........312
Trip computer 3............................399
8Centre air vents .......................... 3120
9Central information display for
time, date, outside temperature,
infotainment system 3,
check control 3.............................392
Trip computer 3............................399
Climate control system 3.......... 3126
10 Left seat heater 3 .........................348
Steering wheel heater 3................349
Tyre pressure loss
monitoring system 3...................3162
Central locking button ..................332
Warning lights ...............................312
Passenger airbag off switch ........373
Ultrasonic parking sensor ..........3160
Electronic stability 3 ...................3157
Right seat heater 3.......................348
11 Front passenger airbag .............. 367
12 Glove compartment ..................... 380
13 Infotainment system 3............... 3116
14 Climate control .......................... 3118
15 Accessory socket 3....................... 378
Cigarette lighter 3....................... 378
16 Ashtray ......................................... 379
17 Ignition switch .......................................
with steering wheel lock .............. 316
18 Accelerator pedal........... 3147, 3148
19 Brake pedal ........ 3148, 3163, 3165
20 Clutch pedal 3............................ 3142
21 Steering wheel adjustment ........... 35
22 Releasing the bonnet ..................3188
Back to overview

8InBrief
Back to overview

6InBrief
Back to overview

9In Brief

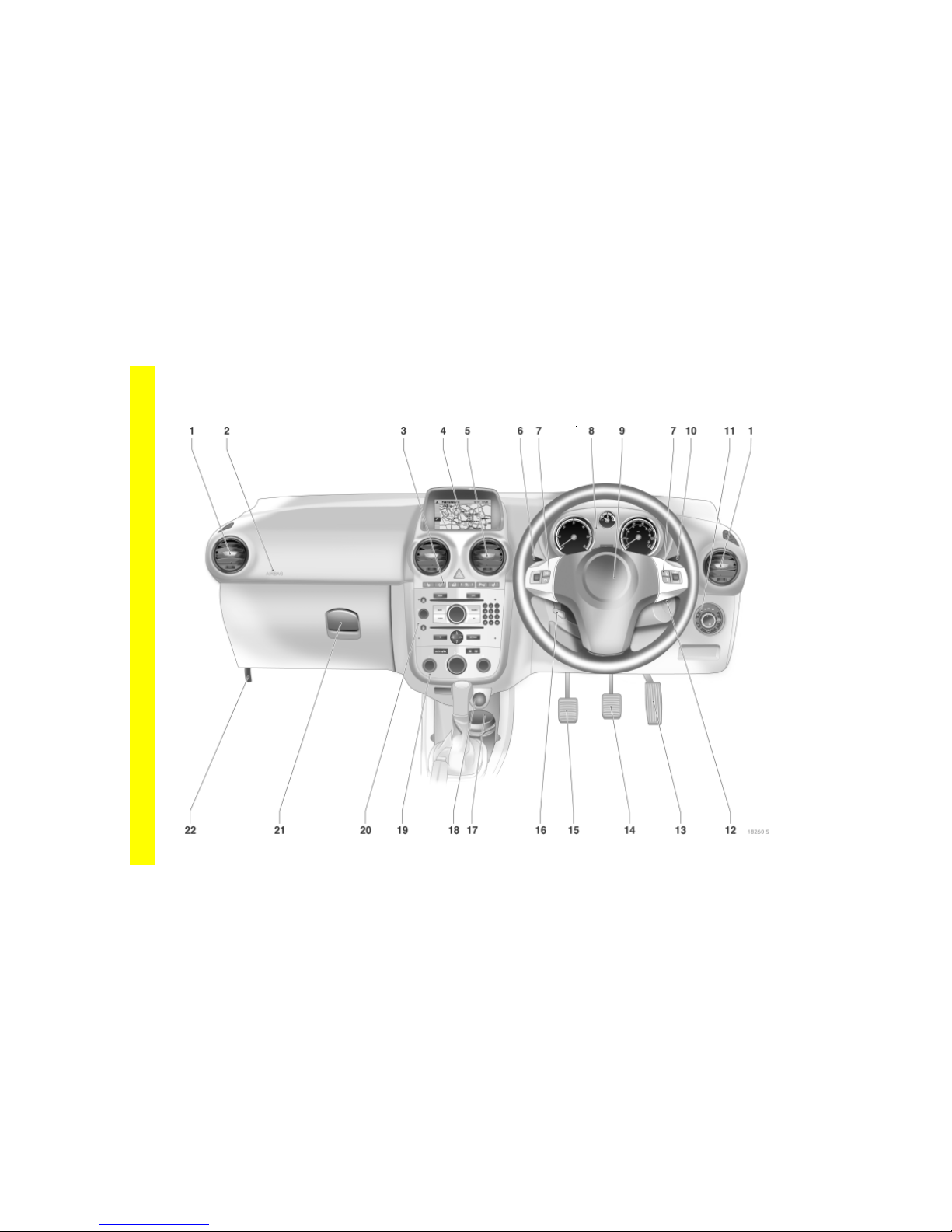

1Side air vents .............................. 3120
2Front passenger airbag ............... 367
3Left seat heater 3 .........................348
Steering wheel heater 3................349
Tyre deflation
detection system 3..................... 3162
Central locking button ..................332
Warning light .................................312
Passenger airbag off switch .........373
Ultrasonic parking sensor ......... 3160
Electronic stability3 ................... 3157
Right seat heater 3........................348
4Central information display for
time, date, outside temperature,
infotainment system 3,
check control 3.............................392
Trip computer 3...........................399,
Climate control system 3......... 3126
5Centre air vents ......................... 3120
6Turn signal .....................................311
Headlamp flash
dipped beam, main beam .......... 311
Ambient lighting 3...................... 3111
Parking lamps 3 ......................... 3112
Cruise control 3.......................... 3158
7 Steering wheel
remote control 3..........................3116
8Instruments ....................................382
9Horn ................................................312
Driver’s airbag ..............................367
10 Windscreen wipers,
windscreen washer system,
rear window washer system .........312
Trip computer 3............................399
11 Parking lamps, dipped beam ....3106
Instrument illumination ..............3112
Fog tail lamp ...............................3108
Fog lamps 3 ................................3108
Headlamp range
adjustment 3 ..............................3109
12 Ignition switch
with steering wheel lock .............. 316
13 Accelerator pedal........... 3147, 3148
14 Brake pedal ........ 3148, 3163, 3165
15 Clutch pedal 3............................ 3142
16 Steering wheel adjustment ........... 35
17 Ashtray ......................................... 379
18 Accessory socket 3....................... 378
Cigarette lighter 3....................... 378
19 Climate control .......................... 3118
20 Infotainment system 3 .............. 3116
21 Glove compartment .................... 380
22 Releasing the bonnet ..................3188
Back to overview

10 In Brief
Control indicators
wDeflation detection system 3,
384, 3164.
rUltrasonic parking sensors 3,
fault,
3162.
BAdaptive driving light 3, fault,
3112, 3117.
jManual transmission
automated 3, starting the
engine 3,
385, 3137.
!Preheating system 3,
Diesel particle filter 3,
385.
ZExhaust gases 3,
385, 3156.
AEngine electronics, transmission
electronics 3, immobiliser, diesel
fuel filter 3, fault,
327, 386, 3142, 3148, 3156.
SEngine oil level 3,
386, 3242.
IEngine oil pressure,
386.
pAlternator,
387.
pElectro-hydraulic power
assisted steering,
387.
OTurn signal lamps,
311, 387.
YFuel level,
387, 390.
CMain beam,
311, 387.
WCoolant temperature,
387, 3244.
*Deactivate front passenger
airbag systems,
375.
TWinter setting for automatic
transmission 3or automated
transmission 3,
3140, 3146.
1Manual transmission
automated SPORT mode 3,
3139, 3146.
qHeadlamp range adjustment,
375.
8Exterior lights,
388, 3108.
>Fog lamps 3,
388, 3110.
vAirbag systems, belt tensioners,
361, 374.
XSeat belt 3,
389, 362.
rFog tail lamp,
388, 3110.
RBrake system, clutch system,
389, 3167, 3246.
uAnti-lock brake system,
3166.
vElectronic Stability Programme
(ESP®Plus) 3,
3151.
mCruise control 3,
3161.
Back to overview

11In Brief
Picture no: 18164s.tif
Exterior lights
Rotate
Press
Lighting 3108,
headlamp warning device 3105.
Picture no: 18165s.tif
Headlamp flash, main beam and
dipped beam
Main beam, headlamp flash 3109.
Picture no: 18167s.tif
Switch turn signal on
Turn signals 3109.
7=Off
8= Parking lamps
9= Dipped or main beam
A Automatic dipped beam
activation 3
>=Foglamps3
r= Fog tail lamp
Headlamp flash = Pull stalk towards
steering wheel
Main beam = Push stalk forwards
Dipped beam = Lever forward again
or toward steering
wheel
Right = Lever upwards
Left = Lever downwards
Back to overview

12 In Brief
Picture no: 18169s.tif
Hazard warning flashers
Operated with the ¨button.
Hazard warning lamps 3111.
Picture no: 18170s.tif
Activate horn:
Press jin centre of steering wheel
Airbag system 369,
Steering wheel remote control 33118.
Picture no: 18171s.tif
Windscreen wiper:
Gently tap lever upwards
For a single swipe when the windscreen
wipers are off, press the stalk down.
Windscreen wipers 3106,
adjustable intermittent setting 3106,
further information 3228, 3248,
trip computer 392.
&=Fast
%=Slow
$= Timed interval wipe or automatic
wiping with rain sensor 3
§=Off
Back to overview

13In Brief
Picture no: 18174s.tif
Operating windscreen washer
system: Stalk toward steering
wheel
Windscreen washer system 3248,
further information 3228, 3248.
Picture no: 18175s.tif
Rear window wiper 3and
Rear window washer system 3
operation
Rear window wipers and rear window
washer system 3107,
further information 3228, 3248.
Picture no: 18176s.tif
Heated rear window, heated
exterior mirrors
Operated with the Übutton.
Climate control 3120,
heated rear window 346.
Wiper on = Push stalk forwards
Wiper off = Push stalk forwards
again
Washing = Push lever forward
and hold
Back to overview

14 In Brief
Picture no: 18177s.tif
To clear fogged or icy windows
Air distribution to l, turn rotary switch for
temperature and air flow; climate control 3:
Button nmust also be pressed; automatic
climate control 3: button Vmust also be
pressed.
Climate control 33120.
Picture no: 18178s.tif
To set automatic mode of climate
control system 3
Press AUTO button, select temperature
with rotary knob, open air vents.
6Climate control system 33128.
Picture no: 18179s.tif
Manual transmission
Reverse gear: With vehicle stationary, wait
3 seconds after depressing the clutch, then
lift the ring below the gear knob and
engage gear.
If the gear does not engage, set the lever in
neutral, release the clutch pedal and
depress again; then repeat gear selection.
Manual transmission 3144.
Back to overview
