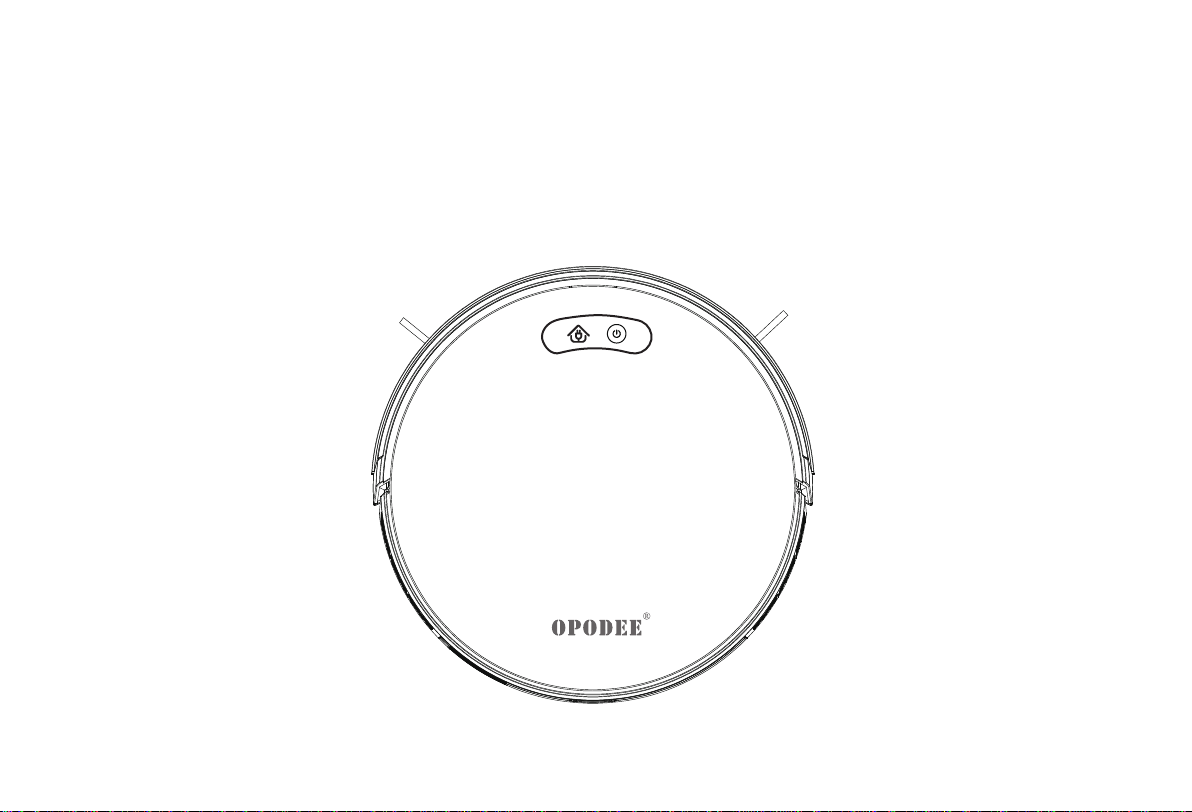

OPODEE E31B User manual

Robotic 9acuum &leaner
Instruction Manual
SHENZHEN ZAPADOS TECHNOLOGY CO.,LTD
Email:[email protected]
www.opodee.com
Service support:

Important Safety Instructions
To reduce the risk of injury or damage, read these safety instructions carefully and
keep them at hand when setting up, using, and maintaining this device.
WARNING SYMBOLS USED
This is the safety alert symbol. This symbol alerts you to
potential hazards that could result in property damage and/or
serious bodily harm or death.
• This device can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of this
device in a safe way and understand the hazards involved.
• Children should be supervised to ensure they do not play with this device.
• Cleaning and maintenance shall not be performed by children without adult
supervision.
• This device is only to be used with the power supply unit provided.
• For the purposes of recharging the battery, only use the detachable power supply
unit provided with this device.
• The battery must be removed from this device before this device is disposed of. To
remove the battery from this device, first remove the screws on the bottom, then
remove the battery by disconnecting the quick connector.
• The used battery should be placed in a sealed plastic bag and disposed of safely
according to local environmental regulations.
• The external flexible cable or cord of the power supply unit cannot be replaced; if the
cord is damaged, the power supply unit shall be disposed of.
• This device is for indoor use only.
• This device is not a toy. Do not sit or stand on this device. Small children and pets
should be supervised when this device is operating.
• Store and operate this device in room temperature environments only.
• Clean with a cloth dampened with water only.
• Do not use this device to pick up anything that is burning or smoking.
• Do not use this device to pick up spills of bleach, paint, chemicals, or anything wet.
• Before using this device, pick up objects like clothing and loose paper. Lift up cords
for blinds or curtains, and move power cords and fragile objects out of the way. If
this device passes over a power cord and drags it, an object could be pulled off a
table or shelf.
• If the room to be cleaned has a balcony, a physical barrier should be used to prevent
access to the balcony and to ensure safe operation.
• Do not place anything on top of this device.
• Be aware that this device moves around on its own. Take care when walking in the
area where this device is operating to avoid stepping on it.
• Do not operate this device in areas with exposed electrical outlets on the floor.
• Do not expose the electronics of this device, its battery, or the integrated Charging
Base. There are no user-serviceable parts inside.
• Do not use this device on an unfinished, unsealed, waxed or rough floor. It may
result in damage to the floor and this device. Use only on hard floor surfaces or low-
pile carpet.
• This device has been designed to be used on floors without scratching them. We
still recommend that you test this device on a small area of the room to be cleaned
to ensure no scratches are made before cleaning the whole room.
NoticeThis symbol on the device or its packaging indicates: Do not dispose of
electrical appliances as unsorted municipal waste; use separate collection
facilities. Contact your local authority for information regarding the collection
systems available. If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the groundwater and get into
the food chain, damaging your health and well-being. When replacing old
appliances with new ones, the retailer is legally obliged to take back your old
appliance for disposal at least free of charge.
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Statement
1

Contents
Product Composition / Package Contents 3
Product Composition / Part Name 4
Product Usage / Preparation 6
Product Use/ Charge Robot 7
Product Use / Turn On / Turn Off 8
Product Use / Start Pause, Wake up 8
Product Usage / Select a Cleaning Mode 9
Component Use the Boundary Strip 11
Component Time Scheduling Setting 11
Component Cleaning and Maintenance 12
Product Parameter 17
Troubleshooting 16

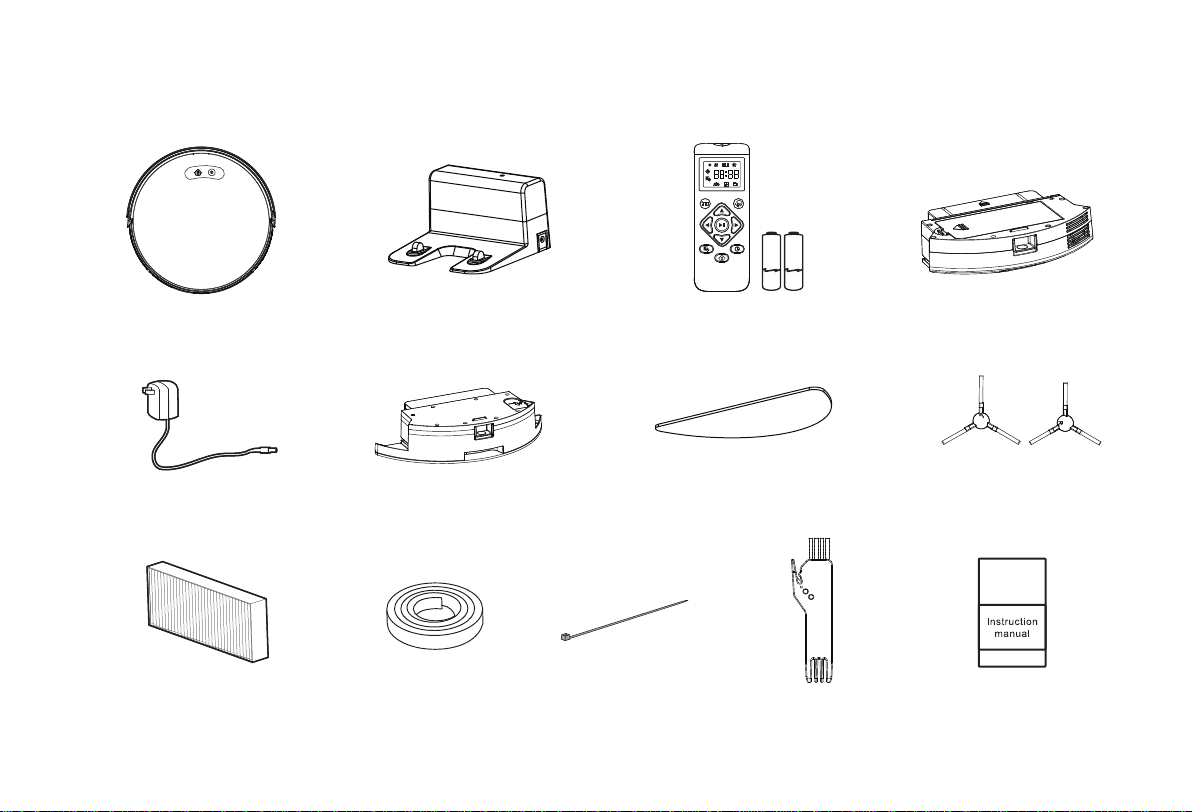

Product Composition / Package Contents
3
Charging Base Dust Box
Side Brush x4
Remote Control (with battery x2)
Robot
Cleaning Brush
Mopping Pad x2
Instruction Manual
Power Adapter
HEPA Filter x2 Boundary Strips
3.3 ft/1 m length Cable Ties x5
Water Tank

Product Composition / Part Name
Front Robot Back Robot
4
Cleaning / Power ON/OFF Button
Bumper
Recharge Button
* Short press to recharge/pause
* Hold for 3 seconds to connect Wi-Fi
* Press and hold for 3 seconds to turn on/off
* Short press to start sweeping/puase
Rolling Brush
Side Brush
Drop Sensor
Surface Cover
Infrared sensor
Battery Compartment
Dust Collector
Brush Guard
Charging Contact Pins
Hall Sensor
Swivel Wheel

Dust Box
Charging Base
Remote Control
Remote Control Display
5
Vent
Charging Base Pins
Schedule Auto Cleaning start time
Mode Switching:
Control cleaning direction manually
Start Auto Cleaning
Start Auto Cleaning / Mopping
Stop Cleaning
Adjust suction power level in Auto Cleaning Mode
Adjust the hour and minute
Adjust time
Return to Charging Base
Spot Cleaning Mode
Single Room Cleaning Mode
Edge Cleaning Mode
1
1
44
5
5
6
6
7
7
2
2
3
1
2
3
Schedule cleaning time
Strong suction power
Standard suction power
Auto Cleaning / Mopping Mode
Time Setting
Returning to Charging Base
Clock
Single Room cleaning Mode
Edge Cleaning Mode
Spot Cleaning Mode
1
4
5
6
8
7
9
10
2
3
7
9
3
10 8
65
4
Install 2 AAA batteries before using the remote control for the first time. Make sure
The positive and negative ends are facing the correct polarity direction as marked in
The battery compartment.
T
DC Socket
Water Tank and Mopping Pad Assembly
Mopping Pad
Power Indicator

Product Usage / Preparation
APP
Show Map
Robot Status
Schedule Auto Cleaning start time
Function Select (Slide left or right to select more)
Auto cleaning
Recharge mode
Room cleaning
Edge cleaning
Spot cleaning
Positioning of robot
Cleaning record
Control cleaning direction manually
Battery status
Adjust suction power level in Auto Cleaning Mode
Edit Device info
1
4
5
6
7
8
2
3
Important Tips Before Use
Remove power cords and small objects from the floor that may entanglHRobot. You
can use the supplied cable ties to organize your wires and power cords.
Fold tasseled edges of area rugs underneath to prevent tangling Robot. Avoid
cleaning very dark-colored high-pile rugs or rugs thicker than 1.02in/26mm as they
may cause Robot to malfunction.
Keep Robot away from spaces lower than 2.87in/73mm to prevent Robot from
getting stuck. If necessary, place a physical barrier to block off the problem areas.
Keep Robot away from wet areas.
Robot may climb on top of objects less than 0.63 in/16 mm in height. Remove these
objects if possible.
Anti-drop sensors prevent Robot from tumbling down stairs and steep drops. They
may work less effectively if dirty or used on reflective/very dark-colored floors. It is
recommended to apply the Boundary Strip(s) to block off areas where Robot may fall.
Place physical barriers or Boundary Strips in front of fireplaces and areas that
may cause damage to Robot if entered.
a
d
b
e
c
f
f
e
d
c
b
a
T
1
2
4
3
5
7
6
8

Remove Protection
Before using the Robot, remove the protective strip
on the Robot.
Install the side brushes before use, please make sure the
mark of the side brush,if “L”, please install it at the position
marked “L” on the machine. 7he other side is the same “R”.
1
24
3Place the Charging Base on a hard, horizontal surface and
against a wall.
Remove objects within 3 ft/1 m on both sides and
within 6 ft/2 m in front of the charging base.
6ft/2m
3ft/1m 3ft/1m
67

5
6
Plug the adapter into the a wall outlet and pulg the DC jack
into the DC socket of the Charging Base.
3ft/1m
When the Charging Base connects to AC power, the LED
indicator on the Charging Base is flashing green.
Install the Charging Base in a location that Robot
can easily access. Please place the Charging Base
against a wall, and on a hard-level surface rather
than on rugs or carpets.
- Always keep the Charging Base plugged in,
otherwise Robot will not automatically return to it.
Power on and Charge Your Robot 7Download the mobile phone APP
If the battery is low, the robot will not turn on .Please
refer to “Method 2”
The power of the robot should be >30% before it can work.
Method 1
T
T
Please pay attention to
align the robot with the
charging electrode plates.
T
please refer to “Quick Start Guide” to configure the network.
T
Place the robot on the charging dock and align it with the
charging electrode plates. The power indicator on the robot
is flashing green
Method 2
Method 1
Method 2
Search”Smart Life ”or ”Tuya smart ” in Google Play or Apple
Store,then find its APP and download it.
Press on the Robot until the indicator light on and
the “welcome to use robot vacuum cleaner” Prompt Tone
Place the Robot within one meter of the charging dock.
By tapping the Home button, the device will automatically
search for the charging dock and go to charging.
Scan the QR code below by using mobile phone to download
the APP.

Product Usage / Clean / Pause
Make sure the Robot is turned on before use.
Press on the Robot to start cleaning (press any key to
pause while cleaning).
Press on the remote control to start cleaning.
Press on the remote control to pause.
- Robot will return to the Charging Base automatically
when the battery level becomes low or when Robot
finishes cleaning.
-Turn off the Robot if it will not be used for a long period
of time. To preserve the battery’s lifespan,recharge at
least once every 6 months.
- The robot will go back to the charging base alongside
the walls in a slow pace, which may take some time
wandering. Please do not worry about it.
Method 1
Method 2
T
T
Click in the APP to start cleaning.
Click in the APP to pause the current task.
Method 3

A
Auto cleaning
Press on the remote control or click in the APP
to start cleaning in Auto Mode
You can use the remote control or APP to select a cleaning
Mode.
Select a Cleaning ModeAdjust the suction
1. Auto Cleaning
Robot optimizes its cleaning path by selecting different
cleaning modes automatically until cleaning is complete.
This is the most commonly used cleaning mode.
Adjust the suction power to ensure the best cleaning performance.
Turbo mode is ideal for cleaning thicker carpets and hard-to-sweep
messes, which will reduce the total cleaning time but increase the
noise level.
Press on the remote control repeatedly to adjust the
suction power level.
Cleaning strength
Energy-saving
Standard
Turbo
-This feature only works in Auto cleaning modes.
2. Spot Cleaning
Robot intensively cleans a specific area in a spiral pattern
within the 5 ft radius. It is rather useful when there is a
concentrated area of dust or debris.
Press on the remote control repeatedly,until the icon of
Spot Cleaning Mode is displayed on the screen.
Click “Cleaning strength in the APP to adjust the suction
power level.
Method 1
Method 2
TClick in the APP.
or
9
A
Auto cleaning
Spot cleaning

3. Edge Cleaning
Press on the remote control repeatedly,until the icon of
Edge Cleaning Mode is displayed on the screen
4. Single Room Cleaning
Select this mode only when one specific room needs to
be cleaned. Make sure to confine Robot to the room by
closing the door. Robot will also clean the edges before
finish.
Press on the remote control repeatedly,until the icon
of Single Room Cleaning Mode is displayed on the screen
Robot reduces the moving speed when detects a wall and
then followsthe wall to ensure the edge is cleaned thoroughly.
Robot will return to the Charging Base when finishHG.
5. Manual Cleaning
You can direct Robot to clean a particular area by using
the directional buttons on the remote control or click the
pad in the APP.
Move backward
Turn left
Turn right
Move forward
Spot cleaning
Edge cleaning
Room cleaning
Edge cleaning
Click in the APP
or
Click in the APP
or
Room cleaning

Use the Boundary Strip Set Time and Scheduled Cleaning
Set a Scheduled Cleaning
With the Boundary Strip, you can keep Robot away from any
area or item you do not want Robot to clean. Robot will recognize
the Boundary Strip and will not cross into the blocked-off area. Set Time
1. Identify the area or item you do not want Robot to get close to.
2. If necessary, use scissors to cut the Boundary Strip to a shorter
length. Be sure to correctly measure the length before cutting.
3. Apply adhesive tape to lay the Boundary Strip flat on the floor.
Make sure the strip is placed FLAT on the floor or under an area
rug.
- If the Boundary Strip is rolled up, remove and then re-apply on the floor
with adhesive tape. Otherwise the Boundary Strip may not work well.
- Make sure the Boundary Strip is placed on the same surface plane
Robot is used on.
- Be careful not to damage the floor when using adhesive tape. It is not
recommended for use on carpets.
- Keep the Boundary Strip away from objects that emit excessive heat.
-Make sure the time is set LQDFFRUGDQFHZLWK your local time
before setting a scheduled cleaning.
1. Press on the remote control. The time will blink on the
display
2. Press to set the “hour” and “minute”
1 2 3
1 2 3
3. Press to save the setting.
1. Press on the remote control. The time will blink on the
display
2. Press to set the “hour” and “minute”
3. Press to save the setting.
You can schedule Robot to start cleaning at a specific time.
To cancel a previously scheduled cleaning, press and hold for
3 seconds
Method 1 --Setting in the remote control
T
-Make sure the Robot is turned on
T
10
11

Step 1:
Click “Schedule cleaning”
Step 3:
3.1 Select a specified time
3.2 Click “Save”
Finish
The schedule time will display in the APP.
If you want to set more than one scheduled task,
you can repeat from step 2.
Step 2:
Click “Add Schedule”
Click “Show map ” in the APP to check the current cleaning
status.
Method 2 --Setting in the APP Show Map
Schedule
cleaning
Add Schedule
Tap the button to turn off or
turn on the schedule.
Tap it to set the Repeat
times.
Cleaning Area Cleaning Time
Real-time Map

Do not use the floor mopping function on carpets.
After mopping the floor, please empty the water tank in time and remove the mopping pad.
Product Use/ Water Tank Use
Add water
Install Mopping Pad Start Mopping the Floor
Install the Water Tank Assembly

Cleaning and Maintenance Clean the Dust Collector and Filters
For optimal performance, follow the instructions below to clean
and maintain Robot regularly. The cleaning/replacement frequency
will depend on your usage habits of Robot.
Recommended cleaning/replacement frequency:
Robot Part
Filters Once every week Every 2 months
Every 6-12 months
Every 3-6 months
(or when visibly worn)
Every 3-6 months
(or when the silicone
rubber strip on the
brush guard becomes
visibly worn)
Once every week
Once every month
Once every month
Once every month
Once every month
Once every month
Rolling Brush
Side Brushes
Brush Guard
Sensors
Charging Pins
Swivel Wheel
Cleaning Frequency Replacement Frequency
1. Press the dust collector release button to pull the dust
collector out.
2. Open and empty the dust collector.
3. Take out the foam filter and high-performance filter.
12

6. The dust box can be scrubbed clean with dishcloth.
7. Dry the dust box and filter assembly, and keep the
robot dry to ensure its service life.
-It is recommended to clean the primary strainer with water
every 15 - 30 days after been used. The use life of the high
efficiency filter screen is 3 months.
1. Before installing the filter screen, please ensure that the
high efficiency filter screen and the primary filter screen
are dry.
2. Do not expose the high efficiency strainer and primary
strainer into the sun.
4. Clean the dust collector and filters with a vacuum cleaner
or a cleaning brush.
8. Put the filters and pre-filter back together in the dust collector.
5. Use water to rinse the primary filter screen.
Do not allow water into the fan port when you
clean the dust box.
T
13

Clean the Rolling Brush
Clean the Side Brushes
Replace the Side Brushes
Pull on the release tabs to unlock the brush guard as shown.
Reinstall the rolling brush by inserting the fixed protruding
end first and then clicking into place.
Press down to snap the brush guard into place
Clean the rolling brush with the provided cleaning tool or a
vacuum cleaner.
Lift the rolling brush to remove.
([WHUsubstances such as human hair, can easily get tangled in
the side brushes, and dirt may adhere to them. Be sure to clean
them regularly
Remove the side brushes.
Carefully unwind and pull off any hair or string that is
wrapped between the main unit and the side brushes.
Use a cloth dampened with warm water to remove dust
from the brushes or to gently reshape them.
Only use the side brushes when WKH\DUHWRWDOly dried.
The side brushes may become bent or damaged after being
used for a period of time. Follow the instructions below to
replace them
Pull off the old side brushes and snap the new ones into place
1
4
5
2
3
1
2
3
1
45
23T
14

3lease use dry cloth WR cleaQ 'o not useZHWFORWK
to prevent DQ\damage caused by water.
Clean up charging dock pins
Clean the down-view sensor
Clean drive wheels and swivel wheel.
Clean the Sensors and Charging Pins
To maintain the best performance, clean the drop sensors and
charging pins regularly.
Dust off the drop sensors and charging contact pins using a
cloth or cleaning brush.
15

Clean the water tank and mopping pad
1.Take out the water tank assembly
2.Remove the mopping pad
3.Empty the Water Tank
4.Cleaning Cloth
5. Airing
6. Dry or naturally dry the water tank
