OPODEE E30W User manual

Robotic vacuum cleaner
Instruction Manual
For FAQs and more information please visit :
www.opodee.com

Important Safety Instructions
To reduce the risk of injury or damage, read these safety instructions carefully and
keep them at hand when setting up, using, and maintaining this device.
WARNING SYMBOLS USED
This is the safety alert symbol. This symbol alerts you to
potential hazards that could result in property damage and/or
serious bodily harm or death.
• This device can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of this
device in a safe way and understand the hazards involved.
• Children should be supervised to ensure they do not play with this device.
• Cleaning and maintenance shall not be performed by children without adult
supervision.
• This device is only to be used with the power supply unit provided.
• For the purposes of recharging the battery, only use the detachable power supply
unit provided with this device.
• The battery must be removed from this device before this device is disposed of. To
remove the battery from this device, first remove the screws on the bottom, then
remove the battery by disconnecting the quick connector.
• The used battery should be placed in a sealed plastic bag and disposed of safely
according to local environmental regulations.
• The external flexible cable or cord of the power supply unit cannot be replaced; if the
cord is damaged, the power supply unit shall be disposed of.
• This device is for indoor use only.
• This device is not a toy. Do not sit or stand on this device. Small children and pets
should be supervised when this device is operating.
• Store and operate this device in room temperature environments only.
• Clean with a cloth dampened with water only.
• Do not use this device to pick up anything that is burning or smoking.
• Do not use this device to pick up spills of bleach, paint, chemicals, or anything wet.
• Before using this device, pick up objects like clothing and loose paper. Lift up cords
for blinds or curtains, and move power cords and fragile objects out of the way. If
this device passes over a power cord and drags it, an object could be pulled off a
table or shelf.
• If the room to be cleaned has a balcony, a physical barrier should be used to prevent
access to the balcony and to ensure safe operation.
• Do not place anything on top of this device.
• Be aware that this device moves around on its own. Take care when walking in the
area where this device is operating to avoid stepping on it.
• Do not operate this device in areas with exposed electrical outlets on the floor.
• Do not expose the electronics of this device, its battery, or the integrated Charging
Base. There are no user-serviceable parts inside.
• Do not use this device on an unfinished, unsealed, waxed or rough floor. It may
result in damage to the floor and this device. Use only on hard floor surfaces or low-
pile carpet.
• This device has been designed to be used on floors without scratching them. We
still recommend that you test this device on a small area of the room to be cleaned
to ensure no scratches are made before cleaning the whole room.
Notice
This symbol on the device or its packaging indicates: Do not dispose of
electrical appliances as unsorted municipal waste; use separate collection
facilities. Contact your local authority for information regarding the collection
systems available. If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the groundwater and get into
the food chain, damaging your health and well-being. When replacing old
appliances with new ones, the retailer is legally obliged to take back your old
appliance for disposal at least free of charge.
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Statement
1

Contents
Product Composition / Package Contents 3
Product Composition / Part Name 4
Product Usage / Preparation 6
Product Use/ Charge Robot 7
Product Use / Turn On / Turn Off 8
Product Use / Start Pause, Wake up 8
Product Usage / Select a Cleaning Mode 9
Component Use the Boundary Strip 11
Component Time Scheduling Setting 11

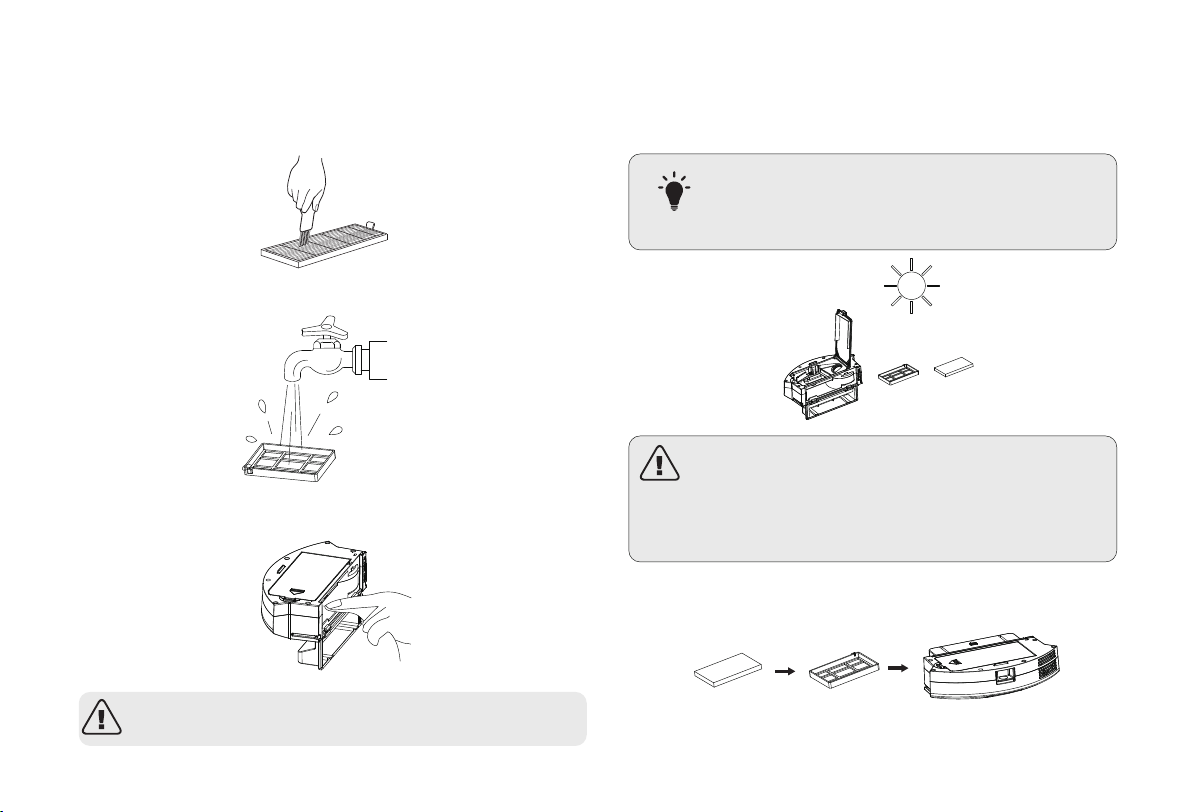

Component Cleaning and Maintenance 12
Product Parameter 17
Troubleshooting 16

Product Composition / Package Contents
3
Charging Base Dust Box
Side Brush x4
Remote Control (with battery x2)
Robot
Cleaning Brush
Instruction Manual
Power Adapter
HEPA Filter x2 Boundary Strips
3.3 ft/1 m length Cable Ties x5

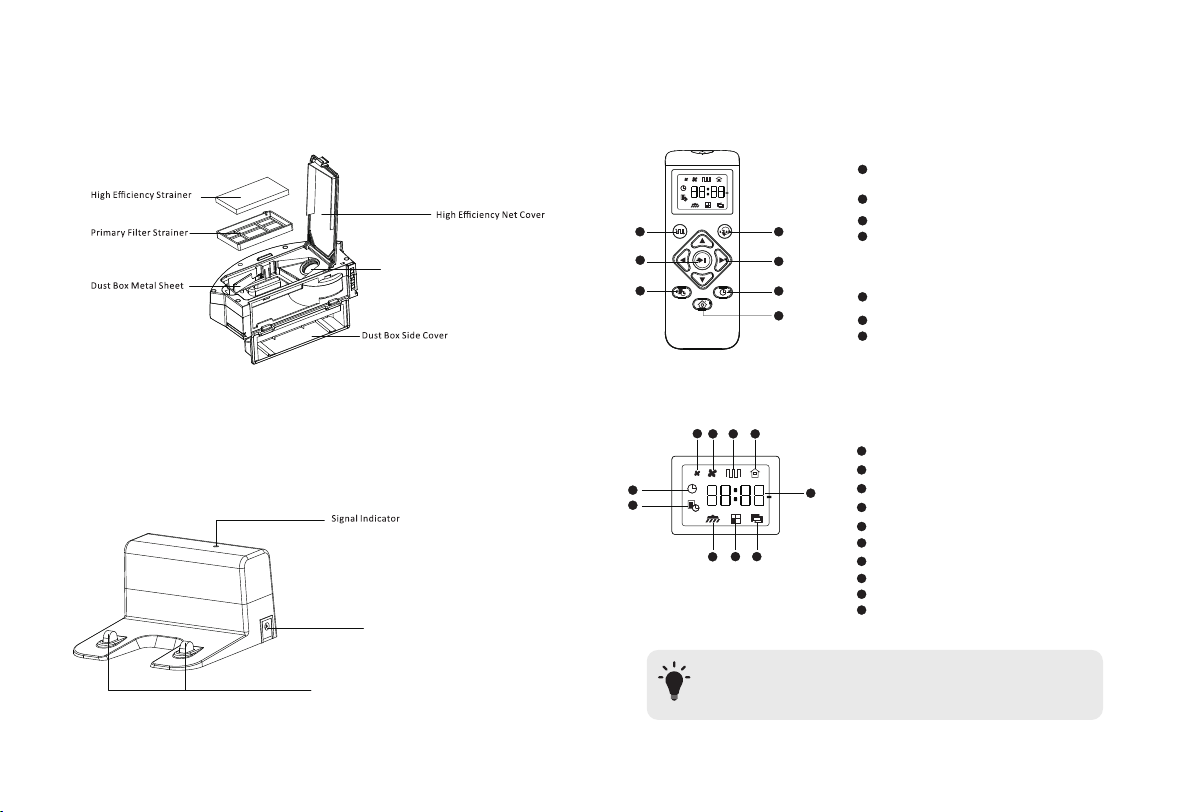

Product Composition / Part Name
Front Robot Back Robot
4
Power ON/OFF Button
Bumper
Rolling Brush
Side Brush
Drop Sensor
Auto Cleaning Start/Stop Button
Surface Cover
Infrared sensor
Battery Compartment
Dust Collector
Brush Guard
Charging Contact Pins
Hall Sensor
Swivel Wheel

Dust Box
Charging Base
Remote Control
Remote Control Display
5
Vent
Charging Base Pins
Schedule Auto Cleaning start time
Mode Switching:
Control cleaning direction manually
Start Auto Cleaning
Start Auto Cleaning
Stop Cleaning
Adjust suction power level in Auto Cleaning Mode
Adjust the hour and minute
Adjust time
Return to Charging Base
Spot Cleaning Mode
Single Room Cleaning Mode
Edge Cleaning Mode
1
1
44
5
5
6
6
7
7
2
2
3
1
2
3
Schedule cleaning time
Strong suction power
Standard suction power
Auto Cleaning Mode
Time Setting
Returning to Charging Base
Clock
Single Room cleaning Mode
Edge Cleaning Mode
Spot Cleaning Mode
1
4
5
6
8
7
9
10
2
3
7
9
3
10 8
65
4
Install 2 AAA batteries before using the remote control for the first time. Make sure
The positive and negative ends are facing the correct polarity direction as marked in
The battery compartment.
T
DC Socket

Product Usage / Preparation
Remove Protection
Before using the Robot, remove the protective strip
on the Robot.
Important Tips Before Use
Remove power cords and small objects from the floor that may entangle Robot. You
can use the supplied cable ties to organize your wires and power cords.
Fold tasseled edges of area rugs underneath to prevent tangling Robot. Avoid
cleaning very dark-colored high-pile rugs or rugs thicker than 1.02 in/26 mm as they
may cause Robot to malfunction.
Keep Robot away from spaces lower than 2.87 in/73 mm to prevent Robot from
getting stuck. If necessary, place a physical barrier to block off the problem areas.
Keep Robot away from wet areas.
Robot may climb on top of objects less than 0.63 in/16 mm in height. Remove these
objects if possible.
Anti-drop sensors prevent Robot from tumbling down stairs and steep drops. They
may work less effectively if dirty or used on reflective/very dark-colored floors. It is
recommended to apply the Boundary Strip(s) to block off areas where Robot may fall.
Place physical barriers or Boundary Strips in front of fireplaces and areas that
may cause damage to Robot if entered.
Install the side brushes before use.
1
2
a
d
b
e
c
f
f
e
d
c
b
a
T
6

4
3Place the Charging Base on a hard, level surface and
against a wall.
Remove objects within 3 ft/1 m on both sides and
within 6 ft/2 m in front of the charging base.
5Plug the adapter into the a wall outlet and pulg the DC jack
into the DC socket of the Charging Base.
6ft/2m
3ft/1m 3ft/1m
When the Charging Base connects to AC power, the LED
indicator on the Charging Base is SOLID GREEN
Install the Charging Base in a location that Robot
can easily access. It is recommended to place the
Charging Base against a wall, and on a hard-level
surface rather than on rugs or carpets.
- Always keep the Charging Base plugged in,
otherwise Robot will not automatically return to it.
Charge Your Robot
Robot has a pre-installed rechargeable battery that has to
be fully charged before use.
Robot returns to the Charging Base at the end of a cleaning
cycle or when its battery is running low
Attach Robot to the Charging Base by aligning its charging
pins with the charging pins on the base.
Method 1
T
7

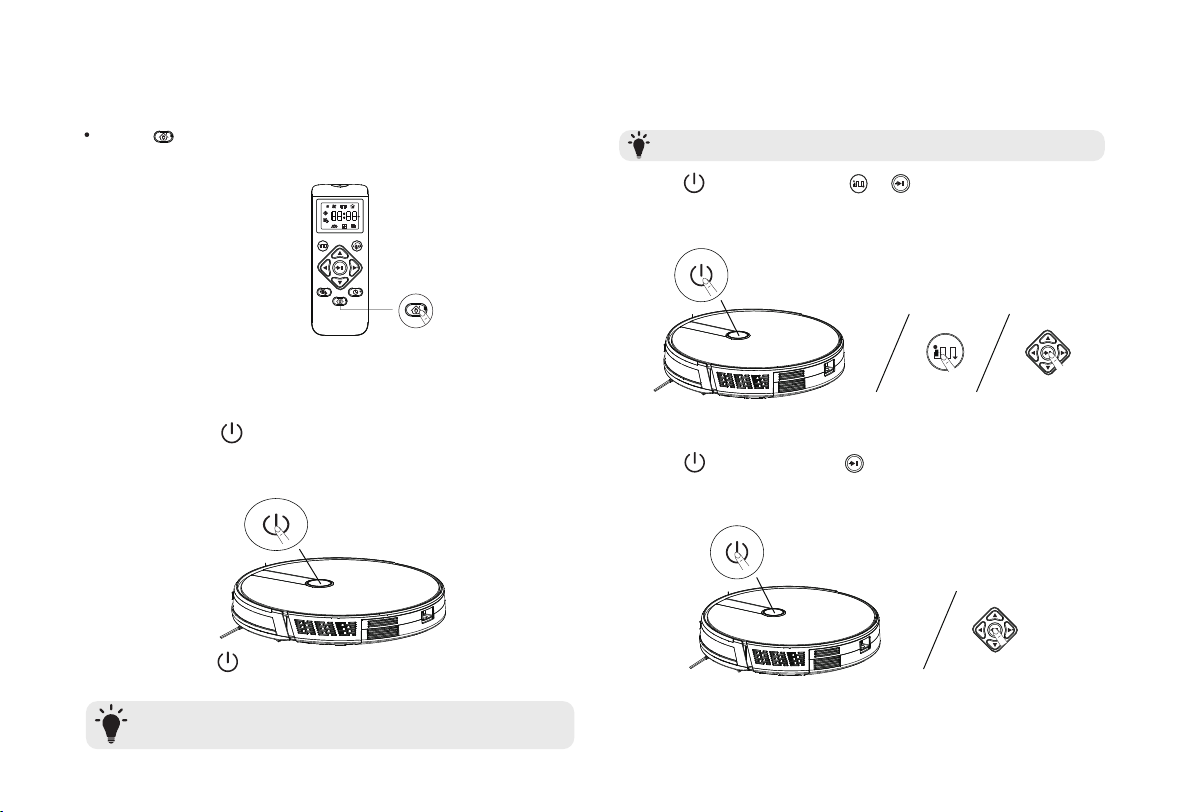

Turn On and Turn Off
Start / Stop / Wake up
Method 2
Press on the remote control to return Robot to the
Charging Base
Turn off the Robot if it will not be used for a long period of time. To preserve
the battery’s lifespan,recharge at least once every 6 months.
Make sure the Robot is turned on before use.
Press on the Robot until the indicator light on
the Robot turns on and the “welcome to use sweeping
robot” Prompt Tone
Turn On:
Press on the Robot until the indicator light on
the Robot turns off.
Turn Off:
1. Press on the Robot or / on the remote control to
start cleaning in Auto Mode
2. Press on the Robot or on the remote control to stop
cleaning
T
T
8

If the Robot stops working for more than ten minutes, it will
automatically enters the sleep mode ( all the lights on the robot
will turn off)
Press on the Robot or / on the remote control to
start cleaning in Auto Mode
3. Press on the Robot or any key on the remote control to
wake up
Select a Cleaning Mode
1. Auto Cleaning
Robot optimizes its cleaning path by selecting different
cleaning modes automatically until cleaning is complete.
This is the most commonly used cleaning mode.
- Robot will return to the Charging Base automatically
when the battery level becomes low or when Robot finishes
cleaning.
- By default, Robot starts in Auto Cleaning mode when it is
turned on.
Adjust the suction power to ensure the best clean.
It is ideal for cleaning thicker carpets and hard-to-sweep messes,
which will reduce the total cleaning time, but increase the noise
level.
Press on the remote control repeatedly to adjust the
suction power level.
-This feature only works in Auto cleaning modes.
T
T
T
9

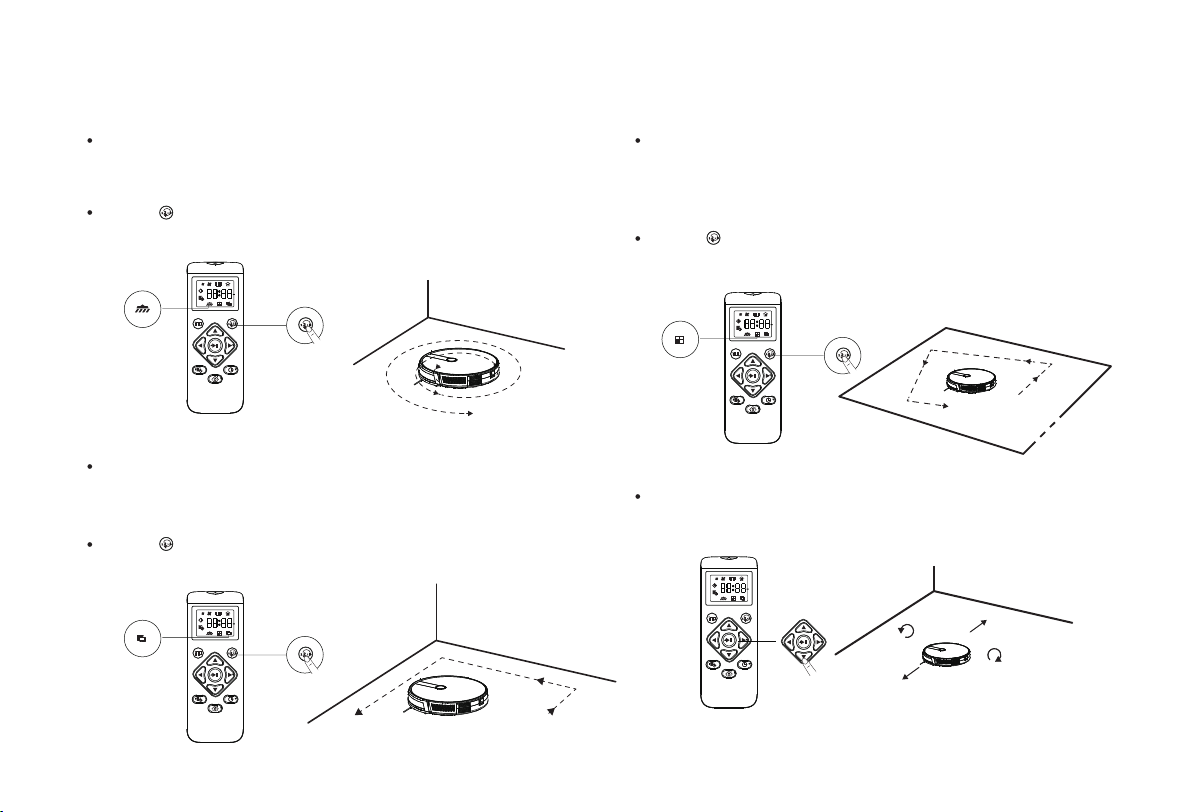

2. Spot Cleaning
3. Edge Cleaning
Robot intensively cleans a specific area in a spiral pattern
within the 5 ft radius,useful if there is a concentrated area of
dust or debris.
Press on the remote control repeatedly,until the icon of
Spot Cleaning Mode is displayed on the screen
Press on the remote control repeatedly,until the icon of
Edge Cleaning Mode is displayed on the screen
4. Single Room Cleaning
Select this mode only when one specific room needs to
be cleaned. Make sure to confine Robot to the room by
closing the door. Robot will also clean the edges before
finish.
Press on the remote control repeatedly,until the icon of
Single Room Cleaning Mode is displayed on the screen
Robot reduces the moving speed when detects a wall and
then followsthe wall to ensure the edge is cleaned thoroughly.
Robot will return to the Charging Base when finish.
5. Manual Cleaning
You can direct Robot to clean a particular area by using
the directional buttons on the remote control.
Move backward
Turn left
Turn right
Move forward
10

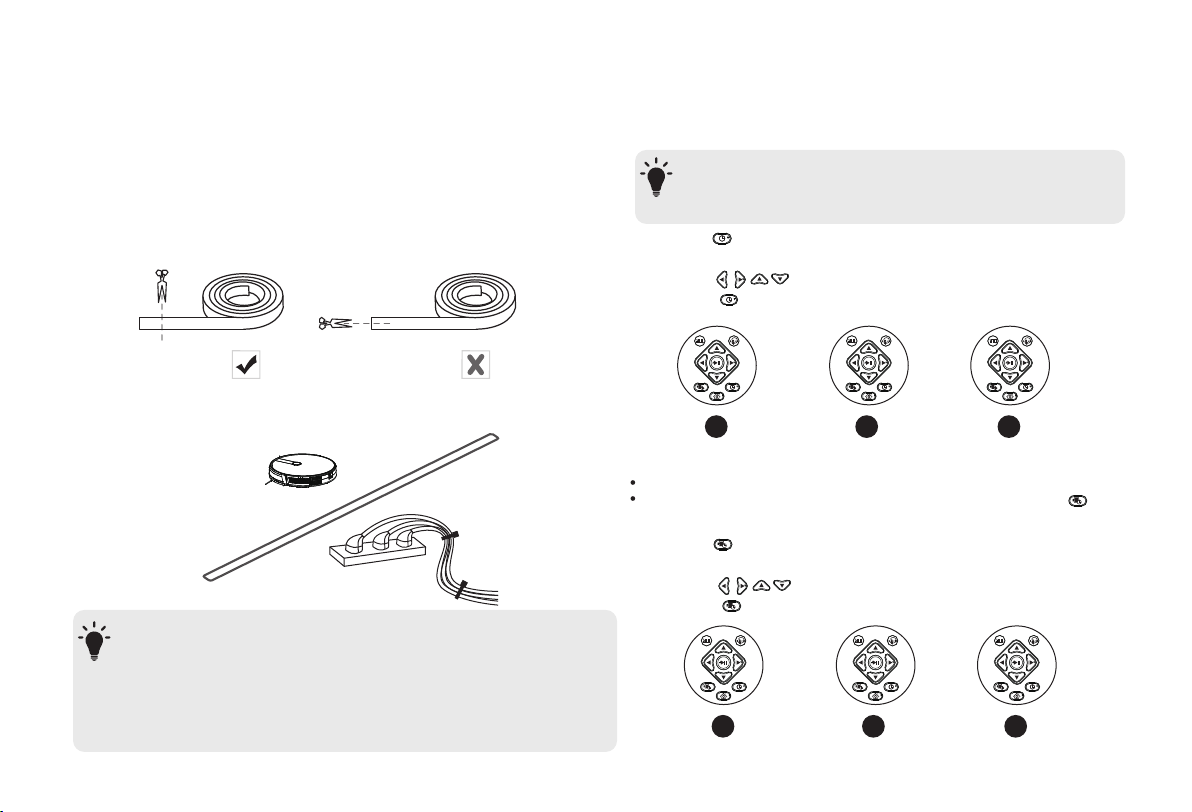

Use the Boundary Strip Set Time and Scheduled Cleaning
Set a Scheduled Cleaning
With the Boundary Strip, you can keep Robot away from any
area or item you do not want Robot to clean. Robot will recognize
the Boundary Strip and will not cross into the blocked-off area.
Set Time
1. Identify the area or item you do not want Robot to get close to.
2. If necessary, use scissors to cut the Boundary Strip to a shorter
length. Be sure to correctly measure the length before cutting.
3. Apply adhesive tape to lay the Boundary Strip flat on the floor.
Make sure the strip is placed FLAT on the floor or under an area
rug.
- If the Boundary Strip is rolled up, remove and then re-apply on the floor
with adhesive tape. Otherwise the Boundary Strip may not work well.
- Make sure the Boundary Strip is placed on the same surface plane
Robot is used on.
- Be careful not to damage the floor when using adhesive tape. It is not
recommended for use on carpets.
- Keep the Boundary Strip away from objects that emit excessive heat.
-Make sure the time is set correctly to your local time before
setting a scheduled cleaning.
1. Press on the remote control. The time will blink on the
display
2. Press to set the “hour” and “minute”
1 2 3
1 2 3
3. Press to save the setting.
1. Press on the remote control. The time will blink on the
display
2. Press to set the “hour” and “minute”
3. Press to save the setting.
You can schedule Robot to start cleaning at a specified time.
To cancel a previously scheduled cleaning, press and hold for
3 seconds
T
-Make sure the Robot is turned on
T
11

Cleaning and Maintenance Clean the Dust Collector and Filters
For optimal performance, follow the instructions below to clean
and maintain Robot regularly. The cleaning/replacement frequency
will depend on your usage habits of Robot.
Recommended cleaning/replacement frequency:
Robot Part
Filters Once every week Every 2 months
Every 6-12 months
Every 3-6 months
(or when visibly worn)
Every 3-6 months
(or when the silicone
rubber strip on the
brush guard becomes
visibly worn)
Once every week
Once every month
Once every month
Once every month
Once every month
Once every month
Rolling Brush
Side Brushes
Brush Guard
Sensors
Charging Pins
Swivel Wheel
Cleaning Frequency Replacement Frequency
1. Press the dust collector release button to pull the dust
collector out
2. Open and empty the dust collector
3. Take out the foam filter and high-performance filter
12

6. The dust box can be scrubbed clean with dishcloth.
7. Dry the dust box and filter assembly, and keep the
robot dry to ensure its service life.
-It is recommended to clean the primary strainer with water
every 15 - 30 days after been used. The use life of the high
efficiency filter screen is 3 months.
1. Before installing the filter screen, please ensure that the
high efficiency filter screen and the primary filter screen
are dry.
2. Do not expose the high efficiency strainer and primary
strainer into the sun.
4. Clean the dust collector and filters with a vacuum cleaner
or a cleaning brush.
8. Put the filters and pre-filter back together in the dust collector.
5. Use water to rinse the primary filter screen
Do not allow water into the fan port during
cleaning the dust box
T
13

Clean the Rolling Brush
Clean the Side Brushes
Replace the Side Brushes
Pull on the release tabs to unlock the brush guard as shown.
Reinstall the rolling brush by inserting the fixed protruding
end first and then clicking into place.
Press down to snap the brush guard into place
Clean the rolling brush with the provided cleaning tool or a
vacuum cleaner.
Lift the rolling brush to remove.
Foreign substances, such as hair, can easily get tangled in the
side brushes, and dirt may adhere to them. Be sure to clean
them regularly
Remove the side brushes
Carefully unwind and pull off any hair or string that is
wrapped between the main unit and the side brushes
Use a cloth dampened with warm water to remove dust
from the brushes or to gently reshape them.
Only use the side brushes when completely dried.
The side brushes may become bent or damaged after being
used for a period of time. Follow the instructions below to
replace them
Pull off the old side brushes and snap the new ones into place
1
4
5
2
3
1
2
3
1
45
23T
14

please use dry dishcloth for cleaning, and do not use
wet dishcloth to prevent damage caused by water.

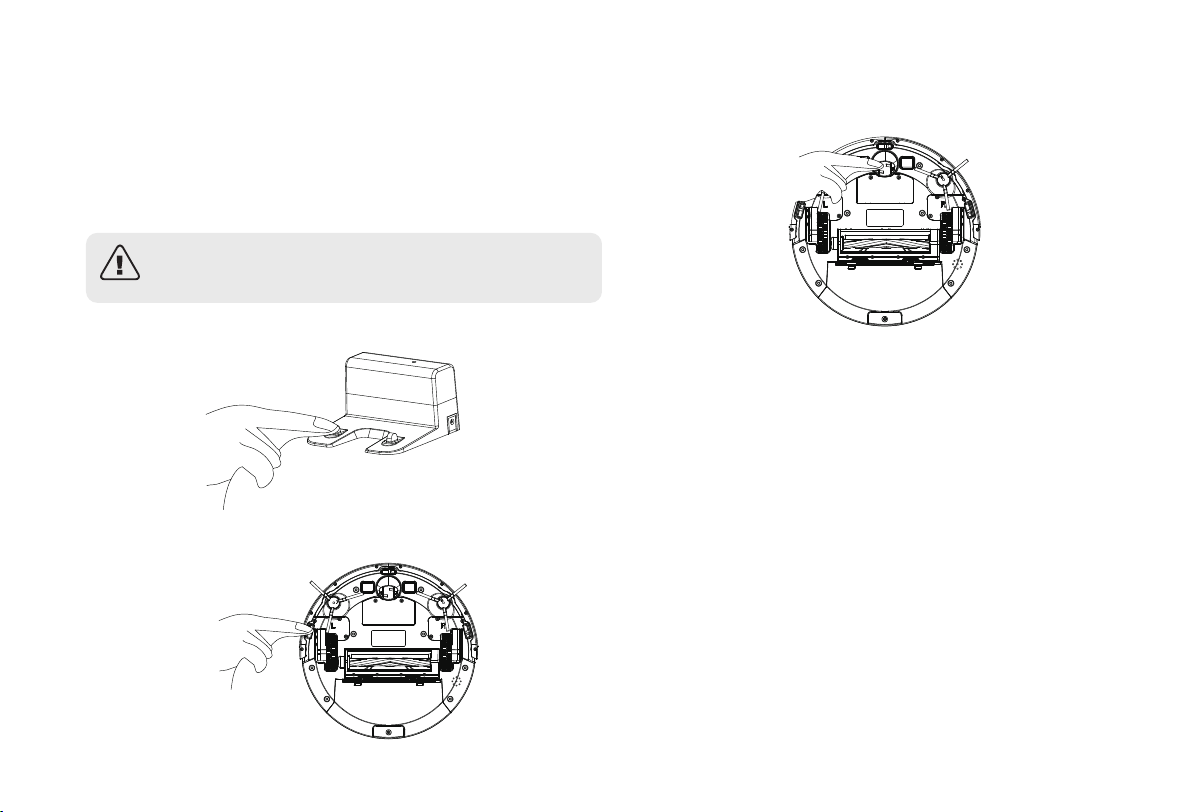

Clean up charging dock pins
Clean the down-view sensor
Clean drive wheels and swivel wheel
Clean the Sensors and Charging Pins
To maintain the best performance, clean the drop sensors and
charging pins regularly.
Dust off the drop sensors and charging contact pins using a cloth
or cleaning brush.
15

Troubleshooting
No. Prompt Tone Cause of Failure Solution
1Wheels off the ground Robot suspended Please put the Robot back to the ground and press the
cleaning key again.
2Dust box not installed Dust box removed and not installed Return the dust box to the Robot and press the cleaning
key again.
3Battery failure Abnormal battery charging Contact our cutomer service department to test battery.
4Please check if the wheel is stuck Wheel jammed Check whether the wheel is entangled with foreign objects
and clean up the entangled objects.
5Please check if the front collision
is stuck Front impact bracket stuck Check whether the front collision can rebound normally
6
7
The battery is low, please charge
the machine Battery power less than 20 % The machine automatically enters the recharge mode
8
Please check whether the side
brush is tangled or jammed Abnormal edge brushing Check whether the side brush is wound by wire and clean up the wound
Please move the machine to the
open area.
The machine failed to get out
of trouble.
Please move the Robot to an empty place and press the
cleaning key again.
16

Battery 2500 mAh rechargeable lithium battery pack
Voltage 14.4 volts
Diameter 330 mm / 1.08 ft
Product Parameter
Structural class
parameter
Cleaning mode Auto / Single Room / Edge / Spot
Working time About 100 minutes
Robot
Operating voltage ( v ) 14.4v
* Due to the continuous improvement of the product, this information product is subject to the physical object, and our company reserves the right to update the product.
17
Battery
Classification Projects Parameter
Height 76mm / 0.25 ft
Net weight 3.0 kg / 6.61 lbs
Dust box capacity 600 ml
Charging type Automatic charging / Manual charging
Primary charging time About 5 hours
Rated power (w) 28w
SHENZHEN ZAPADOS TECHNOLOGY CO.,LTD
Email:[email protected]
Hotline: [phone]
