Optics M1-1P0E User manual

User’s Manual
(For M1-1P0E)
Doc No. : OEC-D150102-E / Rev2.4
Stretch DVITM

Manual Contents
__________________________________________
Manual Contents 1-0
Welcome!, Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting, Maintenance, Technical Support 1-5
Product Specifications 1-6
Warranty Information 1-7
Pictorials
Figure 1 –Optical DVI Cable, M1-1P0E 1-1
Figure 2 –Tx Module of M1-1P0E Cable 1-3
Figure 3 –Rx Module of M1-1P0E Cable 1-3
Figure 4 –Connection of AC/DC Power Adaptor 1-4
1- 0 Manual Contents
Welcome!
Congratulations on your purchase of the Stretch DVITM M1-1P0E Optical DVI
(Digital Visual Interface) Extension Cable. This manual contains information
that will assist you in installing and operating the product.
Product Description
Shipping Group
M1-1P0E Optical DVI Cable: One (1) unit
+5V AC/DC power adapter: One (1) unit
User’s Manual
Quick Installation Note
M1-1P0E model and +5V AC/DC power adaptor

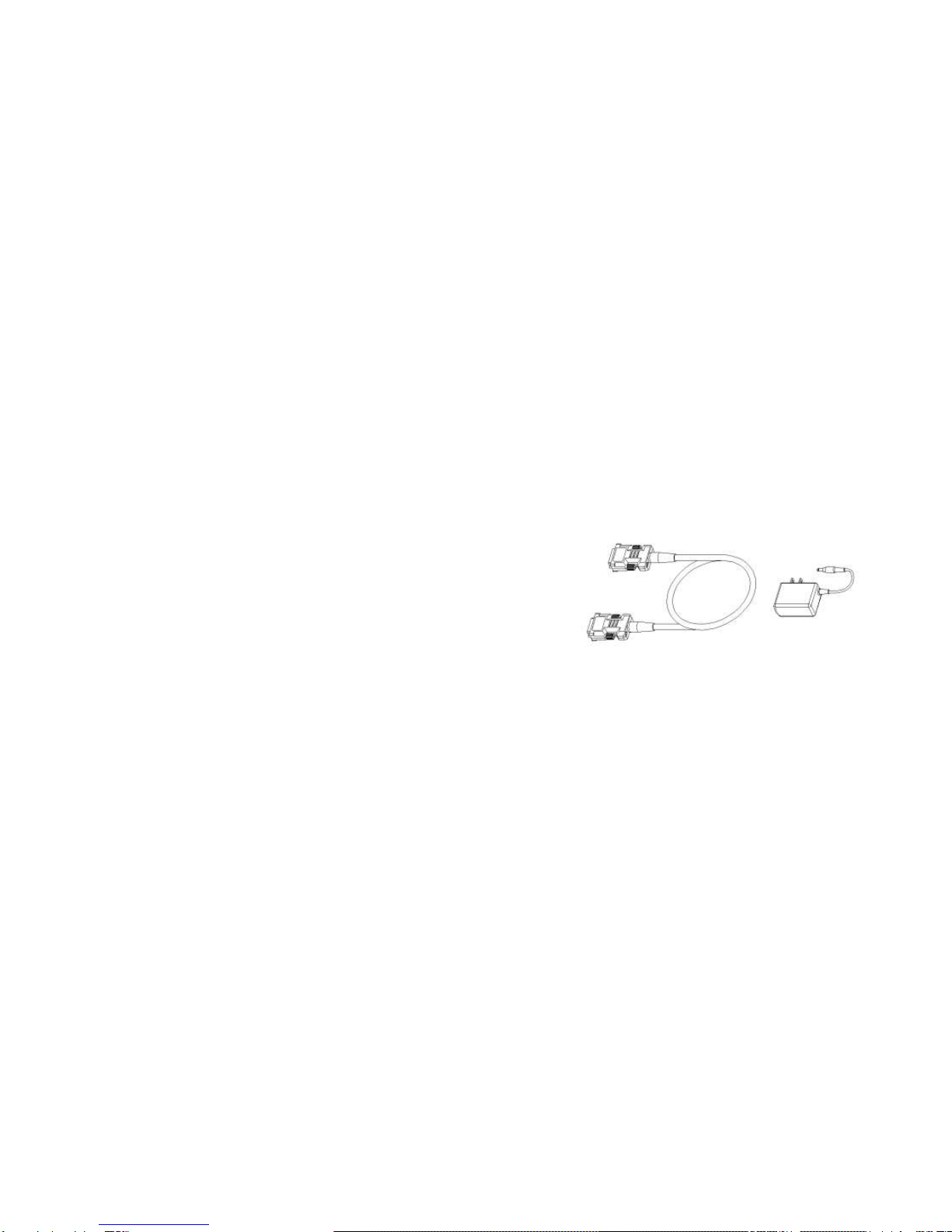

Figure 1 –Optical DVI Cable, M1-1P0E
1-1 Welcome, Product Description

System Requirements for Setup
Hardware requirements
You have to have a DVI graphic controller or card having a DVI
port in your PC, SUN or Mac systems. It should support the
maximum graphic resolution feature of displays to be
connected.
No special requirements memory size, CPU speed and
chipsets, if you’ve already properly installed your DVI graphic
controllers or cards.
Software requirements
No special restrictions, if you’ve already properly installed your
DVI graphic controller in your OS.
AC/DC Power Adapter Technical Advisory
The M1-1P0E is designed to use +5V internal power supplied
through a DVI pin (#14) from the graphic card.
However, the M1-1P0E requires one external +5V AC/DC power
adaptor to drive the Tx/Rx modules if the power supplied from the
graphic card is not enough to operate the M1-1P0E. To plug the
power into one of two modules (Tx and Rx) makes the other
supplied over the hybrid cable.
Tips: In general, most of note PCs is not capable to supply sufficiently
DC powers for two modules.
Tips: In general, most of laptops or desktop PCs with PCI Express
graphic card require using an AC/DC power adaptor.
1-2 System Requirements for Setup
Installation
Important: Please use the installation procedure below. Improper, or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2
Plug directly the Tx module of M1-1P0E in the DVI receptacle of PC. Do NOT
use any intermediate cable or adapter between them.

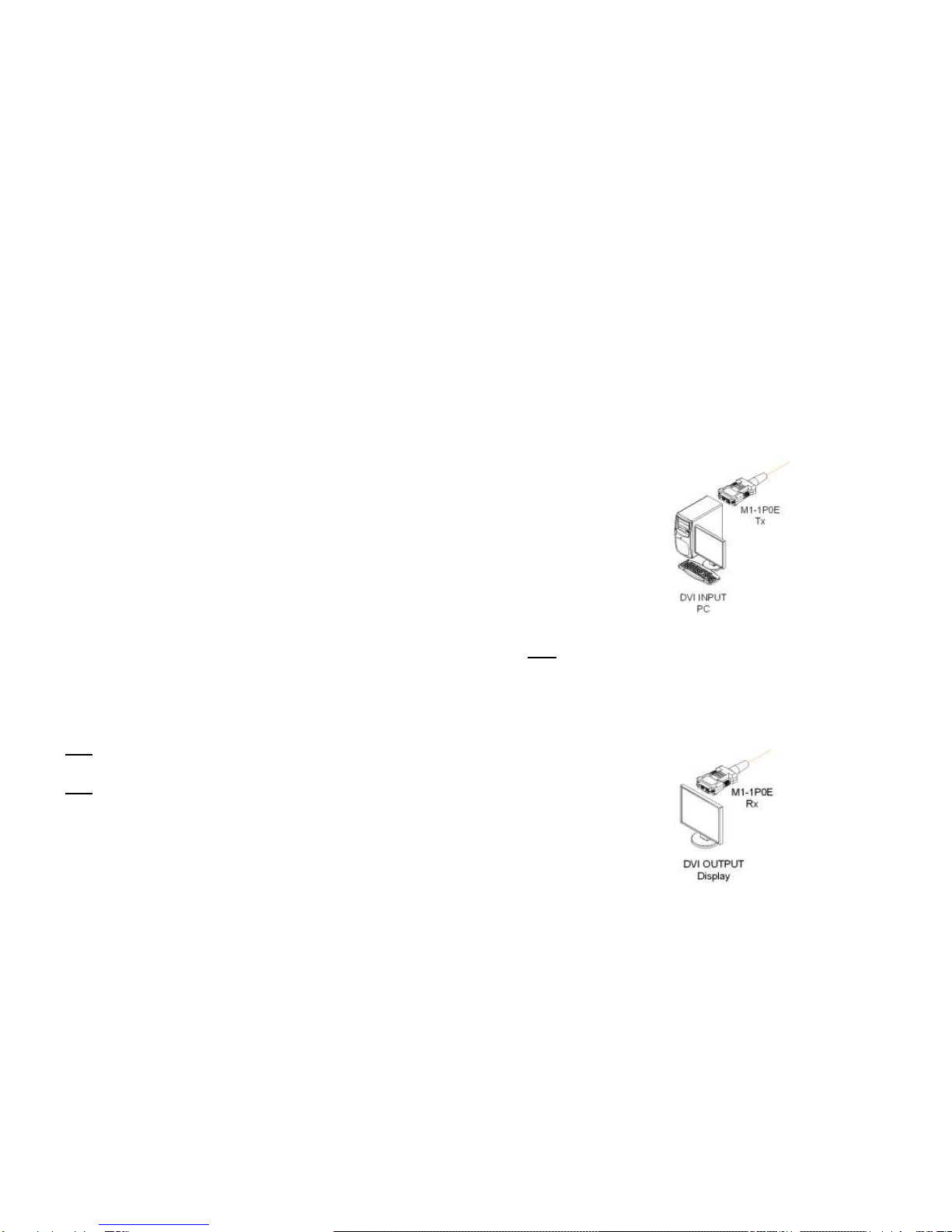

Figure 2 –Tx Module of M1-1P0E Cable
Note: M1-1P0E uses basically the power +5V supplied through a DVI pin
(#14) from the graphic cards. After completing the installation instruction, if
the system doesn’t work properly, you have to confirm the power capable to
supply more than 500mA.
Step 3
Plug the Rx module of M1-1P0E in the DVI receptacle of display. Do NOT use
any intermediate cable or adapter between them.
Figure 3 –Rx Module of M1-1P0E Cable
1-3 Installation

Step 4
Power on the PC and display.
Note: You can replace any DVI cable or an M1-1P0E into another M1-1P0E
by following the Step1 to 3, while all powers of PC and display are ON.
Step 6
You can see processing of the system boot-up. Installation process is finished
if the display works normally.
Step 7
If you can’t get the picture on display, connect an AC/DC power adapter to
either Tx or Rx module of M1-1P0E. Then, follow the Step2 to Step6.
Figure 4 –Connection of AC/DC Power Adaptor
Tips: In general, most of note PCs is not capable to supply
sufficiently DC powers for two modules.
Tips: In general, most of laptops or desktop PCs with PCI Express
graphic card require using an AC/DC power adaptor.
1-4 Installation
Troubleshooting
The display displays only black screen.
Ensure that all AC and DC plugs and jacks used by external power supplies
(both Opticis and others) are firmly connected. Ensure that power bars are
live.
Ensure that the DVI ports are firmly plugged in to the PC and display. Ensure
that the Tx and Rx modules plug correctly to the PC and display, respectively.
Check if the PC and display are powered on and properly booted.
Reset the system by de-plugging and re-plugging the Tx DVI port or Rx DVI
port, or by de-plugging and re-plugging the power cord plugs of Tx and Rx
modules.
Re-boot up the system while connecting the optical DVI cable system.
Screen is distorted or displays noises.
Check if the graphic resolution is properly set. Go to the display properties of
Windows and tap the settings. Ensure that the resolution sets less than
WUXGA (1900x1200) at 60Hz refresh ratio.
Reset the system. Disconnect and reconnect the optical DVI cables or DC
power adapters.
Maintenance
No special maintenance is required for the optical DVI cables and power
supplies. Ensure that the cables and power modules are stored or used in a
benign environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email techsu[email protected] or visit its
website at www.opticis.com
1-5 Troubleshooting, Maintenance, Technical Support

Product Specifications
M1-1P0E Optical DVI Extension Cable
Compliance with DVI standard: support DVI1.0 and DDC2B, fully
implemented by fiber-optic communication.
Extension limit: 2K resolution at 60Hz and 1080p up to 100m
(328feet).
Graphic Transmission Bandwidth: support WUXGA at 60Hz, or
1.65Gbps bandwidth per graphic channel.
Hybrid Fiber-optic (H-PCF) Cable: Riser Jacket of retardant PVC
employing 4 strands H-PCF (Hard Polymer Cladding Fiber) having
200/225m core/clad.
Tensile load: 1,800N
Minimum bend radius: 25mm
Outer diameter of cable: 7.2mm
Mechanical specifications of Tx and Rx modules
Dimensions (WDH): 29 x 53 x 15mm
Clamping strength to cable: 14kgf
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: - 30°C to 70°C
Humidity: 10% to 85%
Certifications: CE / FCC
AC/DC Power Adapter
Power Input: AC 100-240V, 50/60Hz 0.1A
Power Output: +5 V, 600 mA SMPS DC-power Adapter
Cord DC Jack: Core is 5 V and outer is GND.
1-6 Product Specifications
Warranty Information
1 (One) Year Warranty
Opticis warrants this optical DVI extension cable to be free from defects in
workmanship and materials, under normal use and service, for a period of
one (1) year from the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part,
deliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the Product in the
application for which said Product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-7 Warranty Information

© 2015 Opticis Co., Ltd. All Rights Reserved
Revision 2.4. 2, Jan, 2015
Opticis Locations
Headquarters
Opticis Co., Ltd.
# 16Fl, Kins Tower
8 Sungnam-daero, 331 beon-gil,
Bundang-gu,
Seongnam-si, Gyunggi-do, 463-844
South Korea
Te l: [phone]
Fax: [phone]
www.opticis.com
For order support, please contact your Distributor or Reseller.
For technical support, check with the Opticis web site www.opticis.com or
contact [email protected]om
