1
Welcome
Thank you for choosing the Optium™Xceed™
Diabetes Monitoring System.
Important steps for using the System are inside this
guide. Please read it carefully.
Your new Optium Xceed Diabetes Monitoring
System is an important tool that can help you better
manage your diabetes. The System measures both
blood glucose (sugar) and blood ß-Ketone. Blood
glucose and blood ß-Ketone results can help you
understand your diabetes and what happens with:
•Food
•Exercise
•Stress and illness
•Diabetes medications
Always monitor your blood glucose and
blood ß-Ketone according to your healthcare
professional’s recommendations.
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 4

Call Customer Service in Australia at 1800 801 478,
or in New Zealand at 0800 106 100 with any
questions you may have about the Optium Xceed
Diabetes Monitoring System. If you cannot
reach Customer Service, contact your
healthcare professional.
Outside Australia and New Zealand, please contact
your local Abbott Laboratories, MediSense Products
office or distributor.
Please read the following items before using your
Optium Xceed Diabetes Monitoring System:
•User guide
•Blood glucose electrode instructions for use
•Blood ß-Ketone electrode instructions for use
•Lancing device instructions for use and
other information
•Warranty card
2
IMPORTANT:
Any user guide text shown
in a shaded box like this one
is important information.
Please pay special attention
to these boxes.
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 5

Questions? Call
Customer Service.
See page 87.
▼
Important
Information
CHAPTER 1
3
Important Things
to Know about
Your Optium
Xceed Diabetes
Monitoring System
Intended Use
Your Optium Xceed System:
•Is indicated for home (lay user)
or professional use in the
management of Patients
with diabetes.
•Is for self testing or healthcare
professional use outside the
body (in vitro diagnostic use).
•Is for monitoring glucose
in fresh whole blood (for
example, from the fingertip).
•Is for monitoring ß-Ketone
in fresh whole blood from
the fingertip.
•Measures ß-hydroxybutyrate
(ß-Ketone), the most
important of the three
ketone bodies circulating in
the bloodstream.
•Is for use only with
MediSense®OptiumTM
Blood Glucose Electrodes and
MediSense®OptiumTM Ketone
Blood ß-Ketone Electrodes.
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 6

Healthcare professionals:
Please refer to the electrode
instructions for use for
more information about
sample types.
Potential Infection Risk:
Healthcare professionals
performing blood tests with
this system on multiple patients
must always wear gloves and
should follow the infection
control policies and procedures
approved by their facility.
How Your Optium Xceed
Diabetes Monitoring
System Works
When you insertan electrode
into your monitor, the Apply
Blood message shows on your
monitor’s display window.
When a blood sample or
control solution sample is
applied to the electrode, the
glucose or ß-Ketone reacts with
the chemicals on the electrode.
This reaction produces a
small electrical current that is
measured. The result shows on
your monitor’s display window.
Important
Information
▼
4
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 7

Optium Xceed
Kit Contents
Optium Xceed Monitor
Optium Xceed User’s Guide –
Contains system information
and directions.
Carrying Case
–Use this to store and carry
your monitor and other
monitoring supplies.
Your kit may also contain:
Optium Xceed Quick
Reference Guide
–Gives the basic steps to
calibrate your monitor and
monitor your blood glucose.
Lifetime Warranty Card
–Please fill this out and return
to the address provided to start
your warranty.Filling out this
cardhelps to ensurethat you
receive any updates regarding
your Optium Xceed monitor.
Lancing Device, Lancets,
Instructions for Use and
Other Information
Important
Information
5
▼
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 8

Important
Information
Display Check
Back
Button
Backlight
Button
Electrode
Port
Mode
Button Forward
Button
Display
Window
▼
Items not included:
MediSense Control Solutions
Blood Glucose Electrodes
and Instructions for Use
Blood ß-Ketone Electrodes
and Instructions for Use
Data Management System
Getting to Know Your
Monitor’s Features
Display Window
This shows:
•Blood glucose and blood
ß-Ketone results
•Glucose LOT numbers and
ß-Ketone calibration CODEs
•Previous test results and
error messages
•Blood glucose averages
IMPORTANT:
Each time you turn your monitor
on, a full display shows. This is
called a Display Check. Look at
the Display Check each time it
appears on your monitor’s
display window, especially
before you monitor your blood
glucose or blood ß-Ketone. The
Display Check shows on the
display window briefly.
6
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 9

7
Do not use the monitor if the
monitor Display Check does
not exactly match the picture
here (for example, if you see a
"3" instead of an "8"). The
monitor may show an incorrect
result when you use it.
Please call Customer Service
for assistance.
Electrode Port
This is where you insert:
•A blood glucose electrode
•Ablood ß-Ketone electrode
•A glucose calibrator
•A ketone calibrator
•Data cable (not included)
for uploading results to
acomputer
Mode Button
Use this button to:
•Turn monitor ON and OFF
•Access monitor setup options
•Access and save
monitor settings
•Access previous results
and averages
Important
Information
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 10

8
Forward Button
Back Button
Use these buttons to:
•Review and select
monitor settings
•Review results and averages
Backlight Button
Use this button to:
•Turn backlight ON and OFF
Battery Compartment
This is where the battery
is installed.
•If your monitor does not turn
on, check that your battery is
installed properly.
•For new battery installation,
see Chapter 10.
Important
Information
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 11

CHAPTER 2
Questions? Call
Customer Service.
See page 87.
▼ ▼
Setting Up
Your Monitor
Setting Up Your
Optium Xceed Monitor
Buttons to Use
Mode Button
Forward Button
Back Button
Setup Options
Set Beeper
If the beeper is set ON, it will
beep when:
•The calibrator is fully inserted
•The test countdown starts
•The test countdown finishes
Set Time, Set Date
Important: Set the correct
time and date beforeyou use
the monitor for the first time.
This will help you keep records
of when you monitor and will
help you and your healthcare
professional make informed
decisions about your care.
You must set the time and
date to review averages.
9
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 12

10
You may need to re-set the
time and date:
•After you replace the battery.
•When you travel between
time zones or when the time
zone you are in changes.
In "Set Date", you set the year,
month, and day.
Set Time Format
In "Set Time Format", you
choose how the time shows on
the monitor’s display window.
Set Date Format
In "Set Date Format", you
choose how the month and
day show on the monitor’s
display window.
Set Measurement Units
Consult your healthcare
professional before changing
the blood glucose
measurement units. Blood
glucose measurement units are
in mg/dL or mmol/L.
Blood ß-Ketone measurement
units are in mmol/L only.
Setting Up
Your Monitor
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 13

11
How to Set the Beeper,
Date, Time, &
Measurement Units
To begin, pull the battery tab
out. Your monitor should
be turned OFF. You will
automatically be prompted to
set the time and date the
first time you press the mode
button to turn your monitor on
(see Set Time and Set Date
sections in this chapter).
Beforeyou start, please
note: "Press and Hold" means
that you press the button in for
at least 2 seconds. "Press and
Release" means that you press
the button and let it go quickly.
Press and Hold the button
to turn the monitor off and
save your settings at any time.
The monitor automatically
turns offafter 30 seconds of
no action.
If you like the setting that you
see on your monitor and do
not want to change it, Press
and Release the button to
move to the next setup option.

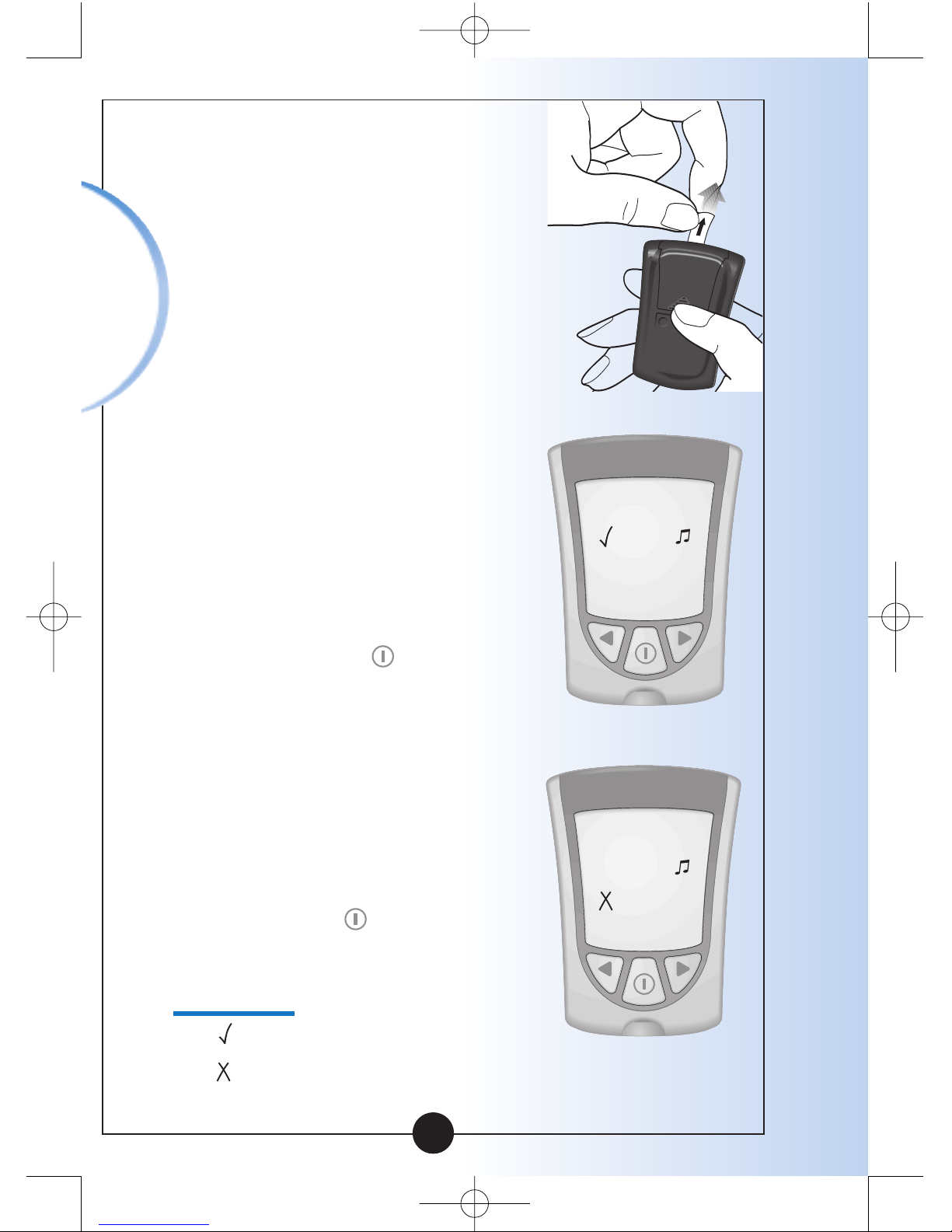

Set Beeper
The means the beeper is ON.
The means the beeper is OFF.
Setting Up
Your Monitor
Beeper ON
Beeper OFF
▼
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 14

1To turn your monitor ON,
Press and Hold the button.
The beeper ON message
shows on the display
window. The musical
notes flash on and off,
and the monitor beeps.
2To change the beeper setting,
Press and Release the
button or the button
once.
3Press and Release the
button to save the beeper
setting and to move to Set
Time (Hour).
12
Setting Up
Your Monitor
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 15

Set Time
Hour:
The Hour flashes on and off.
1Press and Release the
button to move the
hour forward.
2If you go past the correct
hour, Press and Release
the button to move the
hour back.
3Press and Release the
button to save the
hour and to move to
Set Minutes.
Setting Up
Your Monitor
13
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 16

Minutes:
The Minutes flash on
and off.
1Press and Release the
button to move the
minutes forward.
2If you go past the correct
minute, Press and Release
the button to move the
minutes back.
3Press and Release the
button to save the minutes
and to move to Set Date.
14
Setting Up
Your Monitor
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 17

Set Date
Year:
The Year flashes on and off.
1Press and Release the
button to move the
year forward.
2If you go past the correct
year, Press and Release the
button to move the
year back.
3Press and Release the
button to save the year
and to move to Set Month.
Setting Up
Your Monitor
15
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 18

Month:
The Month flashes on
and off.
1Press and Release the
button to move the
month forward.
2If you go past the correct
month, Press and Release
the button to move the
month back.
3Press and Release the
button to save the month
and to move to Set Day.
Setting Up
Your Monitor
16
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 19

Day:
The Day flashes on and off.
1Press and Release the
button to move the
day forward.
2If you go past the correct
day, Press and Release the
button to move the
day back.
3Press and Release the
button to save the day
and to move to Set
Time Format.
Setting Up
Your Monitor
17
133-221 Manual,G3b,Aus 3/17/05 11:15 AM Page 20
