Optoma HD25 User manual

The Optoma HD25 delivers stunning
high-denition 1080p video with
unsurpassed color accuracy and
incredibly sharp detail. It’s the ideal
projector for today’s big-screen home
theater experience.
It offers full 3D compatibility for
seamless integration with your
favorite 3D Blu-ray player, Xbox,
PS3 and other gaming consoles.
Designed for maximum performance
and reliability, the Optoma HD25
features industry-leading energy
saving features and whisper quiet
operation to help recreate a true
cinematic experience in the comfort
of your own home.
DIGITAL
CAMERAS
CAMCORDERS
GAME
CONSOLES
TABLETS
SMART
PHONES
COMPUTERS SET TOP BOXES
3D BLU-RAY/DVD PLAYERS
3D HOME THEATER PROJECTOR
HD25
TRUE CINEMATIC EXPERIENCE
CONNECTIVITY (May require optional accessories)
Create the ultimate Home Theater
experience with unsurpassed image
quality and color delity
Native 1080p resolution for the
sharpest, most visually stunning
image quality
Full 3D compatibility; immerse
yourself in your favorite 3D movie
or video game
Comprehensive connectivity to
satisfy your current and future needs

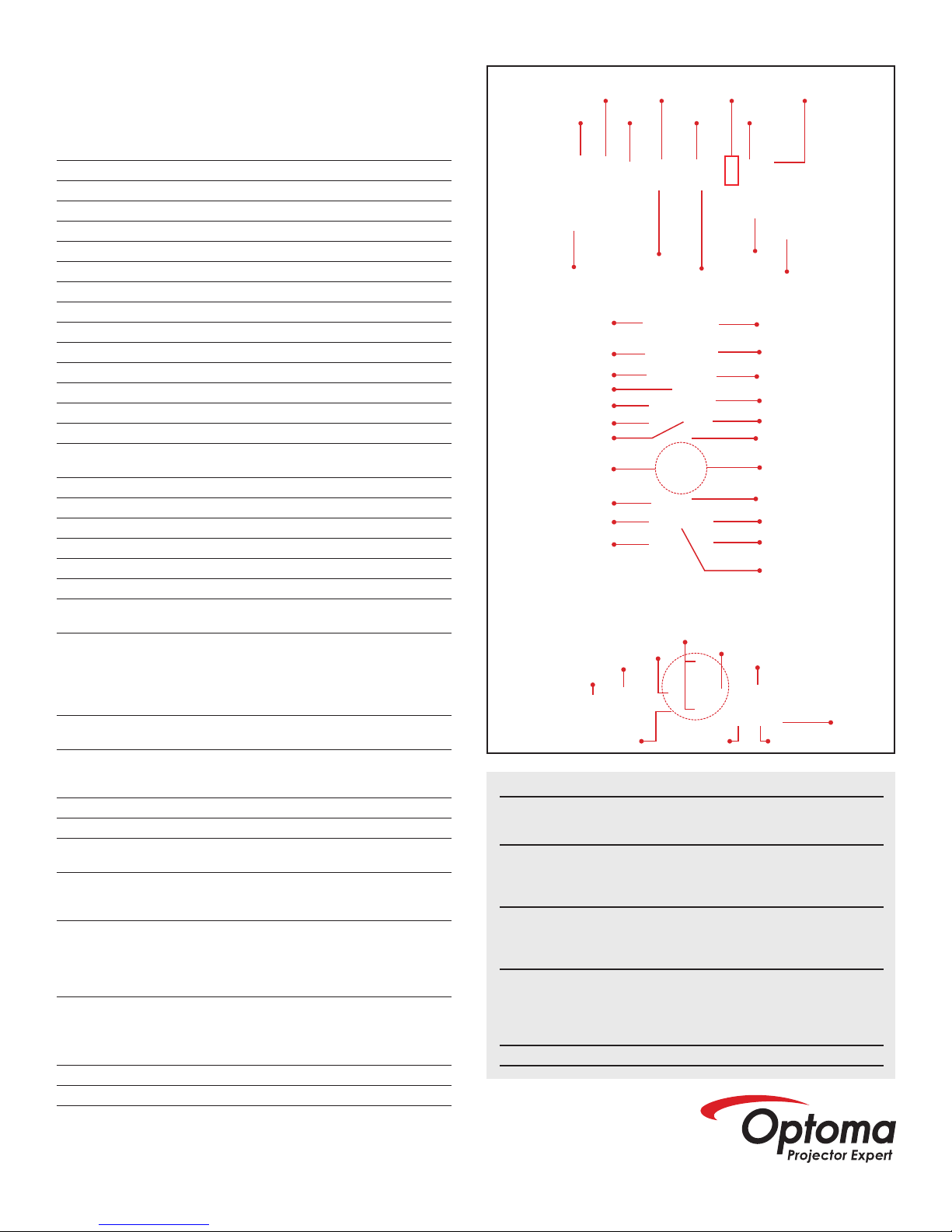

HD

Four Directional Select Keys
Resync
Source
Power LED Lamp LED
Temp LED
Power and Standby
AV Mute
Keystone Correction
Menu
Power On Power Off
Native
Re-sync/
Four Directional
Select Keys
Gamma
3D Format
16:9
VGA1
HDMI2
Video
LBX
4:3
Lamp Mode
Brightness
Contrast
Mode
HDMI
Menu
VGA2
Volume Up
Volume Down
Source
VideoHDMI 1
HDMI 2 3D VESA
Audio1-in
Audio2-in
VGA1-in/
YPbPr
VGA2-in/
YPbPr RS-232C
VGA-Out Audio-out
AC Power
Kensington
Lock Security Bar
3D HOME THEATER PROJECTOR — HD25
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology Single 0.65ʺ DC3 DMD DLP®Technology by
Texas Instruments™
Native Resolution HD 1920 x 1080
Maximum Resolution WUXGA 1920 x 1200
Brightness 2000 ANSI lumens
Contrast Ratio 20,000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life* 6000/5000/3500 Hours (ECO+/ECO/normal)
Projection Method Front, rear, ceiling mount, table top
Keystone Correction ±20° Vertical
Uniformity >80%
Offset 116%
Aspect Ratio 16:9 Native, 4:3 compatible
Throw Ratio 1.5–1.8 (distance/width)
Projection Distance 3.9ʹ–32.8ʹ (1.5–10 m)
Image Size 37.6ʺ–301.1ʺ (0.7–7.62 m)
Projection Lens F=2.55–2.86, f=22.37–26.73 mm,
1.2x manual zoom and focus
Digital Zoom 1.0 ~ 2.0
Audio 10-Watt speaker
Noise Level 26dB
Remote Control Backlit IR remote control
Operating Temperature 41–113°F (5–45°C), 85% max humidity
Power Supply AC Input 100–240V, 50–60Hz, auto-switching
Power Consumption Max 339W (Normal), Min 241W
(Eco+), <0.5W (standby-ECO)
COMPATIBILITY SPECIFICATIONS
Computer Compatibility WUXGA, UXGA, SXGA+, WXGA+, WXGA,
SXGA, XGA, SVGA, VGA resized, VESA,
PC and Macintosh compatible
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
3D Compatibility** Supports all HDMI 1.4a mandatory 3D
format, side-by-side format and top and
bottom format
Vertical Scan Rate 24–85Hz, 120Hz
Horizontal Scan Rate 15.375–91.146KHz
User Controls Complete on-screen menu, adjustments
in 28 languages
I/O Connection Ports Two HDMI v1.4a, two VGA-in, VGA-out, 3D
VESA Port, composite video, two audio-in,
audio-out, RS-232C, USB-B
Loop Through (Audio, VGA) Monitor: D-Sub 15 pin VGA output
(functional in both normal and standby modes)
Audio: VAO audio out, HDMI VAO audio out
supported (VAO in normal mode,
xed in Standby)
PHYSICAL SPECIFICATIONS
Security Kensington® lock, security bar and
keypad lock
Weight 6.4 lb (3.1 kg)
Dimensions 12.7ʺ x 3.8ʺ x 9.2ʺ
**3D content can be viewed with active LCD shutter glasses or RF glasses when
projector is used with compatible 3D player. Please visit www.optoma.com for
more information.
*Lamp life is dependent on many factors, including lamp mode, display mode,
usage, environmental conditions and more. Lamp brightness can decrease over time.
www.OptomaUSA.com
Copyright © 2013 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks
of Texas Instruments™. All other trademarks are the property of their respective owners.
All specications subject to change at any time.
Warranty
1-Year Limited Parts and Labor, 90-Days on Lamp
In the Box (Standard Accessories)
AC power cord, remote control, batteries for remote, lens cap, multilingual
CD-ROM user’s manual, quick start card, and warranty card
Optional Accessories
HDMI cable, ceiling mount, component to VGA cable, composite video cable,
RS-232 cable, Optoma screen, DLP Link 3D glasses
Accessory Part Numbers
Lamp: BL-FU240A Remote: BR-3067B
RF Emitter: BG-BC100B RF Glasses: BG-ZF2100GLS
Power Cord (11M): BC-PUPIXY11 DLPLink Glasses: BG-ZD301
VGA to component adaptor: BC-VGCRXY00 Mount: BM-5001U
UPC: 796435 81 104 4
