Optoma Eh1060i User manual

1080p

Full HD 1080p for detail and clarity

Bright projection – 3500 ANSI Lumens

Digital connectivity, dual HDMI – perfect Full HD display

Crestron RoomView®– RJ45 control and monitoring

30dB

Quiet operation – less than 30dB

Portable – carry bag provided for easy transportation

Environmentally friendly design <1W standby mode

�

Optoma EH1060i ﬁlter-free design – virtually no maintenance

EH1060i

DLP®Projector Make a bright

detailed impact

1080p

Full HD

1080p

Full HD

www.optoma.eu

Full HD, the EH1060i produces crystal clear, bright images, perfect for projection for a broad range

of applications including technical, advertising media and medical uses where detail really matters. The

versatile EH1060i also incorporates networking and extensive connectivity.

The environmentally friendly EH1060i has energy saving features including <1W standby mode and auto

power off saving you both time and money. Our unique Optoma Colour and Imager guarantees ensure

hassle-free, long-lasting projection.

4:3 16:9

EH1060i

CRESTRON ROOMVIEW®- NETWORK CONTROL

RoomView®software provides a custom configurable interface

to monitor, manage and control every device in every room

remotely from any computer.

Manage up to 250 projectors at the same time (via master PC)

Control and alter the projector settings using a simple web

browser page, including OSD menu control.

Set up email alerts for warning messages

Ideal for large installations in both in the educational and

business environments

RS232 CONTROL

The extensive RS232 command set makes it simple and easy

to control the EH1060i with any control system.

AMX Compatibility – Dynamic Discovery

Protocol is incorporated into the EH1060i. This feature

allows for easy installation with AMX control systems.

EXTENSIVE CONNECTIVITY

This native 1080p projector accepts a wide variety of computer and

video input signals.

Connectivity includes: dual HDMI, VGA (SCART/ YPbPr via adaptor),

Component video, S-Video, Composite, VGA-Out, RS232 , RJ45

and +12V trigger.

Two audio inputs for individual PC and video connections enable

the EH1060i to function as an audio switcher and volume controller,

thereby eliminating complicated and costly additional audio hardware

and cabling.

FULL HD

Full HD (1920 x 1080) has twice the resolution of standard HD.

EH1060i is compatible with HDTV broadcasts and high–definition

media to project impressive full 1080p images and video in their

original digital brilliance.

XGA (1024 x 768) 1080p (1920 x 1080)

RESOLUTION COMPARISION

PC Compatibility Video

Compatibility

XGA 1024 x 768

WXGA 1280 x 800

SXGA 1280 x 1024

SXGA+ 1400 x 1050

HD Ready (720p)

Full HD (1080p)

Projector Resolution

XGA 1024 x 768 - - - - -

720p 1280 x 720 ---- -

WXGA 1280 x 800   - - -

1080p 1920 x 1080      

Projector 2

Projector 1

Centralised

management PC

Projector 3

Example:

Corporate LAN

Download Crestron RoomView®Express software from:

www.crestron.com/getroomview

STUNNING IMAGE QUALITY

Full HD 1080p technology delivers impeccable image quality

associated with the best digital cinema performance around the world.

Digital HDMI or DVI signals create a true digital projection system that

produces a spectacular High Deﬁnition display. This unprecedented

combination ensures natural, life-like images with crystal clarity.

XGA Resolution

0.5

1.0

1.5

2.0

1.5 1.50

1.65

1.4

1.2

0.90.9

0.8

1.0

1.2

0.9

1.35

1.5

1.50

1.65

1.5

0.5

1.0

1.5

2.0

1.5 1.50

1.65

1.4

1.2

0.90.9

0.8

1.0

1.2

0.9

1.35

1.5

1.50

1.65

AMAZING COLOURS

The EH1060i incorporates BrilliantColor™ technology to produce

stunningly bright images with perfectly balanced life-like colours.

COLOUR AND IMAGER GUARANTEE

Bright colours and fantastic image quality are guaranteed for

an amazing 5 years after purchase - giving piece of mind that

the technology inside the Optoma EH1060i projector won’t fade

or degrade.

VIRTUALLY MAINTENANCE FREE = LOWER COST

OF OWNERSHIP

EH1060i provides lower cost of ownership, longer life and improved

reliability. The ﬁlter-free projector design does not require regular ﬁlter

cleaning or ﬁlter replacement, saving you time and money.

ENVIROMENTALLY FRIENDLY

The EH1060i incorporates energy saving features to conserve power

and extend the lamp life:

To achieve the maximum 3000hrs2lamp life time the projector

should be operating in STD mode and the shut down timer

should be enabled to automatically switch off the projector

if it is accidentally left on when no longer required. Enabling

the <1W Standby mode will ensure the minimum energy

consumption when the projector is not being used.

EH1060i

1080p Resolution

EXTRA FEATURES

Easy lamp replacement from the top cover

Direct power on – start up time is signiﬁcantly reduced

as standby mode is bypassed when the power cable is inserted

into an active power outlet. This eliminates the need to use the

‘Power’ button on the remote control or the projector keypad.

Signal Power On – The projector will power on when it receives

a signal. This eliminates the need to use the ‘Power’ button

on the remote control or the projector keypad.

Auto power off – if after a pre-determined time the projector

does not receive a signal, it will turn itself off automatically,

conserving power and extending the life of the lamp.

Key pad lock – once enabled prevents unauthorised

adjustments ensuring the projector can only be controlled via

the remote control.

+12v Trigger – electric screen control

Logo capture – customise your start up screen

Easy to use remote with laser pointer, mouse control and direct

source selection

EH1060I SPECIFICATIONS

Native Resolution 1080p 1920 x 1080

Brightness - BRIGHT mode13500 ANSI Lumens

Contrast 2500:1

Noise Level 28/30dB (STD/BRIGHT mode)

Display Technology Single 0.65” 1080p DC2 DMD chip DLP®Technology

by Texas Instruments

Throw Ratio 1.59 - 1.91:1 (Projection Distance:Image Width)

Projection Lens F/2.5~2.76; f=23.5~28.2mm, 1.2x Manual Zoom

Projection Distance 1.2 - 12m

Image Size 0.72 – 8.67m (28.41” - 341.28”) Diagonal 16:9

Weight / Dimensions (W x D x H) 3.5 kg / 326 x 259 x 109mm

Lamp Life23000/2000 (STD/BRIGHT mode)

Remote Control Full function remote with laser pointer, mouse control

and direct source selecting

INPUTS 2 x HDMI (HDCP) - audio supported

15 Pin D-Sub VGA (SCART/Component via adaptor)

Component Video RCA

S-Video 4 Pin Mini Din

Composite RCA

3.5mm Audio Mini Jack - Audio computer inputs

Stereo RCA - Audio video inputs

USB (remote mouse)

CONTROL RS232 - 9 Pin D-sub

RJ45

[Operation during standby mode - ECO standby must

be set to off]

OUTPUT 15 Pin D-Sub VGA

[Operation during standby mode - ECO standby must

be set to off]

Stereo Audio Mini Jack

+12v Trigger

Audio 3W Speaker

Aspect Ratio 16:9 Native, 16:10/4:3 Compatible

Keystone Correction ± 15° Vertical

On Screen Display 17 Languages: English, German, French, Italian, Spanish,

Portuguese, Polish, Dutch, Russian, Finnish, Swedish,

Greek, Norwegian/Danish, Hungarian, Czech, Turkish

& Arabic

Compatible Resolutions UXGA, SXGA+, WXGA, HD, XGA, SVGA

Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p

Uniformity 85%

Displayable Colours 1.07 Billion

Horizontal Scan Rate 15 - 91kHz

Vertical Scan Rate 25 - 85Hz

Power Supply 100 - 240V, 50 - 60Hz

Power Consumption 350W BRIGHT mode < 1W Standby mode

290W STD mode < 1W Standby mode

Operating Conditions Operating: 5 - 40˚C, 85% Humidity

(Max), 3000m Altitude (Max)

Security Kensington Lock Port, Password Protection, Keypad Lock

Standard Accessories Soft Carry Bag, Lens Cover, AC Power Cord, VGA Cable,

Full Function Remote, Batteries x 2, Quick Start Guide,

CD User Manual, Warranty Card, WEEE Card

RoHS Compliant

Lamp Warranty 6 months or 1000 hours - whichever comes sooner

Warranty Warranty may vary by country.

Please see www.optomaeurope.com or ask

your local supplier for details

Colour Guarantee35 Years

Imager Guarantee45 Years

Optoma Europe Ltd.

42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ

www.optoma.eu

1Brightness and lamp lifetime will vary depending on selected projector mode, environmental conditions and usage.As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. 2Typical lamp life achieved through testing.Will vary

according to operational use and environmental conditions. 3Optoma guarantees that in normal use, Optoma DLP®colour quality will be indistinguishable from when new. Exclusions: (a) Guarantee is voided if the projector is subject to damage through misuse.

(b) Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is excessive (c) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other faults. (d) Over time worn

lamps within all projector types will show a slight colour variance. 4Optoma guarantees that in normal use, the DLP®imager will retain image quality for at least 5 years and provide consistent pixel performance. Exclusions: (a) Guarantee is voided if the projector

is subject to damage through misuse. (b) Guarantee may be void in industrial or commercial environments where dust or smoke is excessive. Copyright © 2010, Optoma Europe Ltd. All other product names and company names used herein are for identiﬁcation

purposes only and may be trademarks or registered trademarks of their respective owners. Crestron®, the Crestron and RoomView®logo are registered trademarks of Crestron Electronics, Inc. Errors and omissions excepted, all speciﬁcations are subject

to change without notice. DLP®, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments.

EH1060i

EASY TO USE REMOTE CONTROL

EH1060i Projection Distance 1.2 - 12m (16:9 Aspect Ratio)

Projection Distance (m) Max. Horizontal Image

Size (m)

Min. Horizontal Image

Size (m) Max. Vertical Image Size (m) Min. Vertical Image Size (m) Max Diagonal Image Size (m) Max Diagonal Image

Size (inch) Max. Image Offset (m)

1.20

2.00

2.50

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

11.00

12.00

0.75

1.26

1.57

1.89

2.52

3.14

3.77

4.40

5.03

5.66

6.29

6.92

7.55

0.63

1.05

1.31

1.57

2.09

2.62

3.14

3.66

4.19

4.71

5.24

5.76

6.28

0.43

0.71

0.89

1.07

1.42

1.78

2.13

2.49

2.84

3.20

3.55

3.91

4.26

0.35

0.59

0.74

0.89

1.18

1.48

1.77

2.07

2.37

2.66

2.96

3.25

3.55

0.87

1.44

1.81

2.17

2.89

3.61

4.33

5.06

5.78

6.50

7.22

7.95

8.67

34.13

56.88

71.10

85.32

113.76

142.20

170.64

199.08

227.52

255.96

284.40

312.84

341.28

0.06

0.11

0.13

0.16

0.21

0.27

0.32

0.37

0.43

0.48

0.53

0.59

0.64

For guide purposes only

EH1060i is capable of 4:3/16:10 aspect ratio projection. When projecting a 4:3/16:10 image the image sizes, screen height and offset information will differ from

the above.

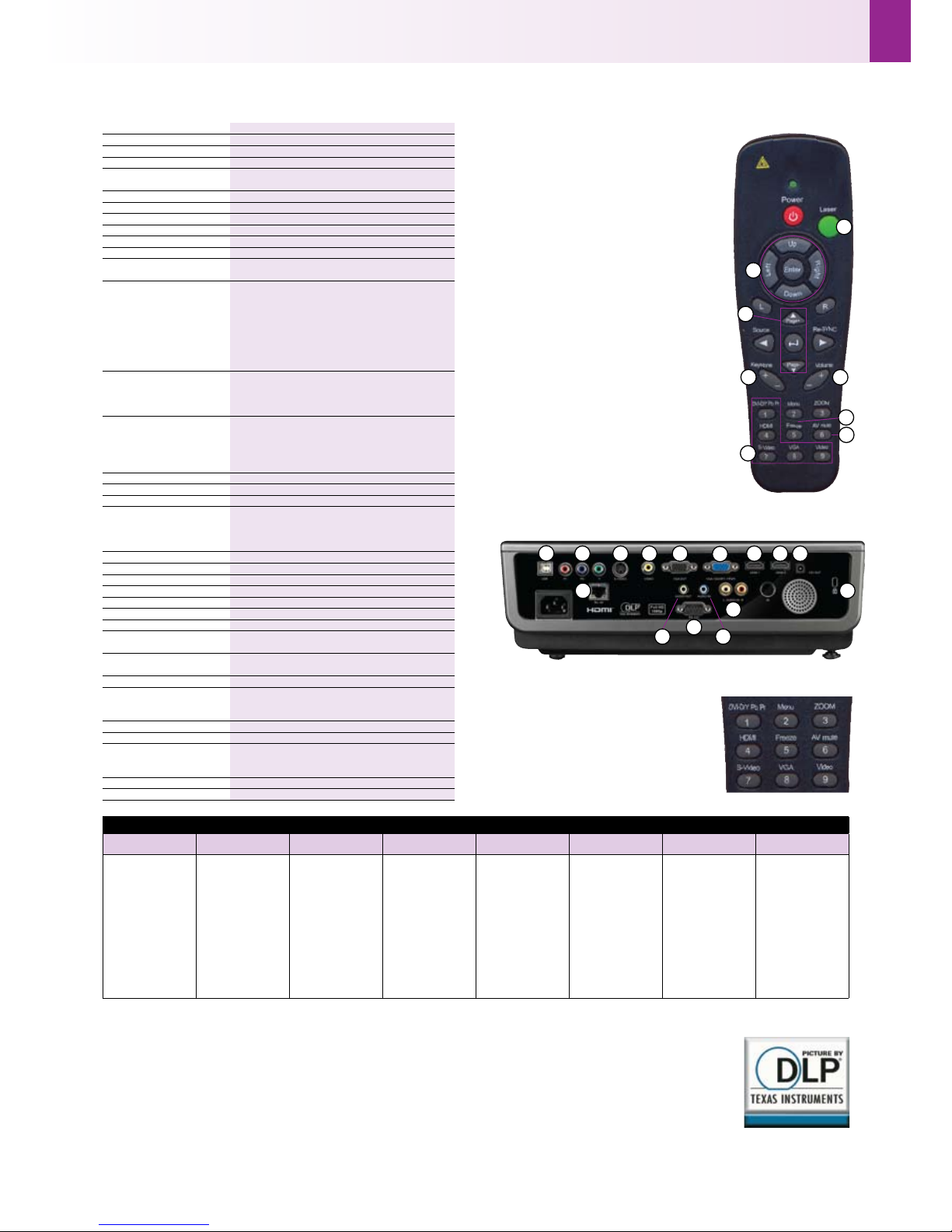

EH1060i Remote Control

1Laser

2Remote Mouse

3Page Up/Down Control

4Vertical Keystone Correction

5Volume Control

6Freeze

7AV Mute

8Direct Input Source Selection

EH1060i Connections

9USB (Remote Mouse)
