Optoma HD81 User manual

Optoma Technology, Inc.
715 Sycamore Drive, Milpitas CA 95035 • Tel: [phone] • Fax: [phone] • For more information, please visit www.OptomaUSA.com.
Specifications subject to change without notice. Copyright 2007 Optoma Technology, Inc. DLP®and the DLP logo are registered trademarks of Texas Instruments. All other names mentioned herein are property of their respective owners. [Data-HD81-003-121106]
LIVE THE HIGH-DEFINITION LIFESTYLE
HD81 Home Theater Projector

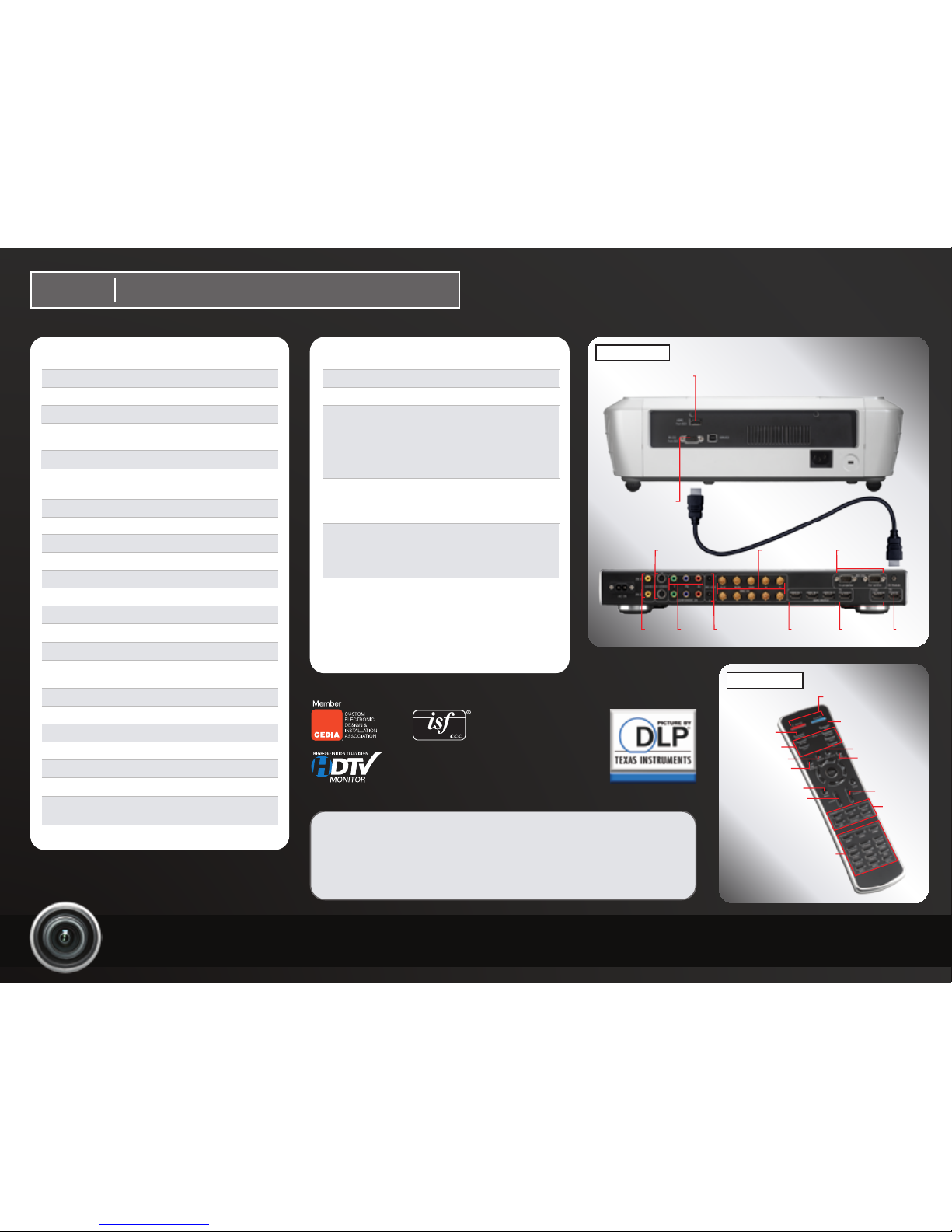

Projector Specifications
Weight:
ANSI Lumens:
Contrast (Full On/Off):
Iris Control:
Native Resolution:
Technology:
Size (W x H x D):
Lamp Type:
Lamp Life:
Scaler:
HDTV:
Focus:
Zoom Lens:
Digital Zoom:
Keystone Correction:
Vertical Refresh Rate:
Offset:
Noise:
Throw Ratio:
Throw Distance:
Image Size (Diagonal):
Security:
Warranty:
UPC:
10 lbs
1400
10,000:1
16-Step Auto-Iris
Manual and Auto Mode
1080p (1920x1080)
Single 0.95” DarkChip3™ DLP®
Technology by Texas Instuments
16.2” x 4.5” x 12.2”
300W UHP
2000 / 3000 (STD / ECO)
Gennum VXP
480i/p, 576i/p, 720p, 1080i/p
Manual
Manual, 1.2x
Yes
Vertical ±15°
Input: 24 to 85Hz
Output: 48, 50, 60Hz
136%
32dB
1.85 – 2.22:1 (Distance/Width)
4.92’ to 32.8’
30” to 300”
One Kensington®Lock Port
3 Years Limited Parts and Labor
90 Days on Lamp
796435 11 124 3
Weight:
Size (W x H x D):
Image Processing:
Color Management:
CEDIA Features:
I/O Connectors:
9.2 lbs
17” x 2.5” x 12”
Motion Adaptive 480i, 576i and
1080i HD De-Interlacing, 10-bit
Image Processing, Advanced 3D
Comb Filter, Three Presets plus
Two Programmable Display
Formats, Advanced Noise
Reduction and Sharpening
User Definable Gamma,
RGBCYM 6-Color, 16-Region
Adjustment, 3 User Defined
Modes plus ISFccc Color Settings
ISFccc, Discrete IR Commands
(On/Off, Sources, Formats, User
Settings), External IR Input Pod,
RS-232 Control, Programmable
12V Trigger
Three HDMI Inputs plus One
External HDMI Expansion Input,
Two BNC Component
YPbPr/RBGHV, Two RCA
Component, Three S-Video,
Three Composite, One VGA
(RGB/YPbPr/SCART),
RS-232, Two 12V Triggers, One
IR Port Extension
Video Processor Specifications
HDMI Cable
HDMI from
Video Processor
HDMI Out
to Projector
HDMI Loop Out
to AV Receiver
HDMI In
RS-232 Control
RS-232 Control from
Video Processor
Composite
Video
S-Video
Component
Video
12V Trigger
BNC
I/O Connectors
Remote Control
Power
IRIS Control
Lamp Control
Settings Control
Gamma
Edge Enhancement
B/W Extension
OSD Menu
Vertical Shift
Overscan
Aspect Ratio
Selection
Direct Source
Input Selections
Color Vivid
HD81 Home Theater Projection System
Available from:

HD81 Home Theater Projection System
Definitive Color…Incredible Resolution…Ultimate Performance
HD81 Home Theater Projection System
Advanced Video Processing
The HD81’s video enhancement processor delivers an advanced three-stage process
flow (decoding, image enhancement and color reproduction enhancement) that offers
impressive, personalized adjustment settings at each stage. With a full-range of
adjustments for both digital and analog inputs, the video processor provides the
power and control to satisfy the most demanding video connoisseur.
The video processor features an abundance of advanced connectivity options,
including three HDMI inputs, up to five component inputs and one external HDMI
expansion port, as well as RS-232 and discrete IR remote control functionality. With
the power of the Gennum VXP and the support of ISFccc modes, the video processor
is one of the highest quality scaler/motion adaptive HD de-interlacer in the market.
The Optoma HD81 is a distinctive two-piece projection system that includes a native 1080p DLP®projector and a video
enhancement processor. Featuring Texas Instruments’ DarkChip3™ DMD chipset and a variety of advanced video
enhancement technologies, the Optoma HD81 projection system delivers remarkable color saturation and subtle details
for the best in 1080p image quality.
The HD81 also features an active 16-step, auto-Iris function that boosts the contrast ratio up to 10,000:1. With 10-bit
color per channel color processing and a 7-segment color wheel, the Optoma HD81 delivers great color saturation and
subtle color details for the best image quality.
The HD81’s video enhancement processor delivers an advanced three-stage process flow (decoding, image enhancement
and color reproduction enhancement) that offers an impressive, personalized adjustment setting at each stage.
The two-piece design of the HD81 eliminates the need for multiple cables; all that is needed for the projector to be
connected is a single HDMI video cable and a single control cable. With the processor’s extensive inputs, there are more
than enough connections to up-convert sources to 1080p for optimal viewing.
Optoma’s innovative cable management system makes wire-filled installations a thing of the past. Optoma developed an
easy-to-install cabling solution to deliver a loss- and interference-free signal from the video enhancement processor to the
1080p projector. This fully digital source-to-display link is connected through a high-speed digital cable signal; and then
transmits data to more than 100 feet.
The HD81 offers the best, all-around, high-quality display experience for home theater enthusiasts.
The HD81 Delivers True Performance
• The ultimate image-quality with 1080p (1920 x 1080) resolution
• Astonishing 10,000:1 contrast (true full on/off contrast ratio)
•Easy installation with only one video cable from the image
enhancement processor to the 1080p projector
• The HD81’s sleek design includes Optoma’s innovative wind
tunnel shield design that lends itself to quieter operation
•10-bit color per channel processing and 7-segment color wheel
delivers deeper color saturation
The Optoma HD81 Home Theater Projector Video Processing Enhancement for the Optoma HD81
A studio-grade professional Video Scaler and Color Management System
• The processor possesses the power of the Gennum VXP, the
highest quality scaler and 10-bit 480i/576i/1080i
motion adaptive HD de-interlacer
Dedicated engine for video enhancement
and color management of images
• Advanced 10-step Gamma color
enhancement
• RGBCYM 6-color with 16 region
adjustments
Extensive inputs
• Three HDMI + external HDMI expansion
• Four components (two RGBHV, two RCA)
• One VGA (RGB/YPbPr/SCART)
• Three composite
ISFccc (Imaging Science Foundation's Certified Calibration Configuration)
• Three s-video
• RS-232
• Two 12V triggers
• IR port extension
Optoma’s innovative cable management solution makes
bulky, wire-filled installations a thing of the past.
Simplified cabling solution delivers
a loss- and interference-free signal
from the video/color enhancement
box to the HD81 1080p projector
HD81 1080p projector
Video enhancement
processor
Multimedia and video
sources such as DVD
players, computers,
digital satellite, gaming
consoles and PVRs.

HD81 Home Theater Projection System
Definitive Color…Incredible Resolution…Ultimate Performance
HD81 Home Theater Projection System
Advanced Video Processing
The HD81’s video enhancement processor delivers an advanced three-stage process
flow (decoding, image enhancement and color reproduction enhancement) that offers
impressive, personalized adjustment settings at each stage. With a full-range of
adjustments for both digital and analog inputs, the video processor provides the
power and control to satisfy the most demanding video connoisseur.
The video processor features an abundance of advanced connectivity options,
including three HDMI inputs, up to five component inputs and one external HDMI
expansion port, as well as RS-232 and discrete IR remote control functionality. With
the power of the Gennum VXP and the support of ISFccc modes, the video processor
is one of the highest quality scaler/motion adaptive HD de-interlacer in the market.
The Optoma HD81 is a distinctive two-piece projection system that includes a native 1080p DLP®projector and a video
enhancement processor. Featuring Texas Instruments’ DarkChip3™ DMD chipset and a variety of advanced video
enhancement technologies, the Optoma HD81 projection system delivers remarkable color saturation and subtle details
for the best in 1080p image quality.
The HD81 also features an active 16-step, auto-Iris function that boosts the contrast ratio up to 10,000:1. With 10-bit
color per channel color processing and a 7-segment color wheel, the Optoma HD81 delivers great color saturation and
subtle color details for the best image quality.
The HD81’s video enhancement processor delivers an advanced three-stage process flow (decoding, image enhancement
and color reproduction enhancement) that offers an impressive, personalized adjustment setting at each stage.
The two-piece design of the HD81 eliminates the need for multiple cables; all that is needed for the projector to be
connected is a single HDMI video cable and a single control cable. With the processor’s extensive inputs, there are more
than enough connections to up-convert sources to 1080p for optimal viewing.
Optoma’s innovative cable management system makes wire-filled installations a thing of the past. Optoma developed an
easy-to-install cabling solution to deliver a loss- and interference-free signal from the video enhancement processor to the
1080p projector. This fully digital source-to-display link is connected through a high-speed digital cable signal; and then
transmits data to more than 100 feet.
The HD81 offers the best, all-around, high-quality display experience for home theater enthusiasts.
The HD81 Delivers True Performance
• The ultimate image-quality with 1080p (1920 x 1080) resolution
• Astonishing 10,000:1 contrast (true full on/off contrast ratio)
•Easy installation with only one video cable from the image
enhancement processor to the 1080p projector
• The HD81’s sleek design includes Optoma’s innovative wind
tunnel shield design that lends itself to quieter operation
•10-bit color per channel processing and 7-segment color wheel
delivers deeper color saturation
The Optoma HD81 Home Theater Projector Video Processing Enhancement for the Optoma HD81
A studio-grade professional Video Scaler and Color Management System
• The processor possesses the power of the Gennum VXP, the
highest quality scaler and 10-bit 480i/576i/1080i
motion adaptive HD de-interlacer
Dedicated engine for video enhancement
and color management of images
• Advanced 10-step Gamma color
enhancement
• RGBCYM 6-color with 16 region
adjustments
Extensive inputs
• Three HDMI + external HDMI expansion
• Four components (two RGBHV, two RCA)
• One VGA (RGB/YPbPr/SCART)
• Three composite
ISFccc (Imaging Science Foundation's Certified Calibration Configuration)
• Three s-video
• RS-232
• Two 12V triggers
• IR port extension
Optoma’s innovative cable management solution makes
bulky, wire-filled installations a thing of the past.
Simplified cabling solution delivers
a loss- and interference-free signal
from the video/color enhancement
box to the HD81 1080p projector
HD81 1080p projector
Video enhancement
processor
Multimedia and video
sources such as DVD
players, computers,
digital satellite, gaming
consoles and PVRs.

Optoma Technology, Inc.
715 Sycamore Drive, Milpitas CA 95035 • Tel: [phone] • Fax: [phone] • For more information, please visit www.OptomaUSA.com.
Specifications subject to change without notice. Copyright 2007 Optoma Technology, Inc. DLP®and the DLP logo are registered trademarks of Texas Instruments. All other names mentioned herein are property of their respective owners. [Data-HD81-003-121106]
LIVE THE HIGH-DEFINITION LIFESTYLE
HD81 Home Theater Projector
Projector Specifications
Weight:
ANSI Lumens:
Contrast (Full On/Off):
Iris Control:
Native Resolution:
Technology:
Size (W x H x D):
Lamp Type:
Lamp Life:
Scaler:
HDTV:
Focus:
Zoom Lens:
Digital Zoom:
Keystone Correction:
Vertical Refresh Rate:
Offset:
Noise:
Throw Ratio:
Throw Distance:
Image Size (Diagonal):
Security:
Warranty:
UPC:
10 lbs
1400
10,000:1
16-Step Auto-Iris
Manual and Auto Mode
1080p (1920x1080)
Single 0.95” DarkChip3™ DLP®
Technology by Texas Instuments
16.2” x 4.5” x 12.2”
300W UHP
2000 / 3000 (STD / ECO)
Gennum VXP
480i/p, 576i/p, 720p, 1080i/p
Manual
Manual, 1.2x
Yes
Vertical ±15°
Input: 24 to 85Hz
Output: 48, 50, 60Hz
136%
32dB
1.85 – 2.22:1 (Distance/Width)
4.92’ to 32.8’
30” to 300”
One Kensington®Lock Port
3 Years Limited Parts and Labor
90 Days on Lamp
796435 11 124 3
Weight:
Size (W x H x D):
Image Processing:
Color Management:
CEDIA Features:
I/O Connectors:
9.2 lbs
17” x 2.5” x 12”
Motion Adaptive 480i, 576i and
1080i HD De-Interlacing, 10-bit
Image Processing, Advanced 3D
Comb Filter, Three Presets plus
Two Programmable Display
Formats, Advanced Noise
Reduction and Sharpening
User Definable Gamma,
RGBCYM 6-Color, 16-Region
Adjustment, 3 User Defined
Modes plus ISFccc Color Settings
ISFccc, Discrete IR Commands
(On/Off, Sources, Formats, User
Settings), External IR Input Pod,
RS-232 Control, Programmable
12V Trigger
Three HDMI Inputs plus One
External HDMI Expansion Input,
Two BNC Component
YPbPr/RBGHV, Two RCA
Component, Three S-Video,
Three Composite, One VGA
(RGB/YPbPr/SCART),
RS-232, Two 12V Triggers, One
IR Port Extension
Video Processor Specifications
HDMI Cable
HDMI from
Video Processor
HDMI Out
to Projector
HDMI Loop Out
to AV Receiver
HDMI In
RS-232 Control
RS-232 Control from
Video Processor
Composite
Video
S-Video
Component
Video
12V Trigger
BNC
I/O Connectors
Remote Control
Power
IRIS Control
Lamp Control
Settings Control
Gamma
Edge Enhancement
B/W Extension
OSD Menu
Vertical Shift
Overscan
Aspect Ratio
Selection
Direct Source
Input Selections
Color Vivid
HD81 Home Theater Projection System
Available from:
