HD82
Purity of Vision
The HD82†has the highest ANSI contrast we have yet measured on any projector.
Evan Powell, Editor, ProjectorCentral.com
❛ ❜

Purity is Key
PureEngine
The PureEngine contains the finest collection of signal processing
technologies expertly blended to enhance the image on the screen whilst
maintaining the purity of the original image. Pure technologies included
in the HD82: PureMotion, PureShift, Pure Colour and PureDetail.
PureMotion
With Without
PureMotion technology ensures you see all the detail in fast moving
sequences. Traditional projection systems often suffer from “motion
blur” or “judder” in moving images. These issues are not just distracting
they also lower the resolution of the image – PureMotion eliminates
these issues and ensures all of the detail from any source, especially
High Definition, is preserved leaving a crystal clear image with pure
natural motion.
HD82
The astonishing HD82 Full HD projector brings to your home a paradigm shift; a truly astounding cinematic experience.
New revolutionary PureEngine technologies combine to create the clearest and sharpest ever 1080P images with the purest, deepest colours, even with the
highest speed action pictures; enhanced by our stunning new motion control processing.
Easy to install with Pureshift and zoom there is absolutely no routine maintenance and because Optoma are the projector experts, we guarantee that the vibrant
colours will be just as incredible after five years as they are out of the box.
3
PureColour
With Without
PureColor provides vivid, perfectly balanced colour with impeccable
colour uniformity for vibrant natural looking images. Deep Color makes
it possible for the HD82 to reproduce billions of colours ensuring smooth
tonal transitions and subtle graduations between hues.
PureShift
The PureShift lens system enables the vertical and horizontal position
of the projected image to be adjusted without moving the position of
the projector. PureShift is an image shift system for purists. By using
an innovative Non-Telecentric lens system the contrast ratio, uniformity
and brightness of the shifted image is maintained at a much higher
level than is possible with traditional systems.
PureDetail
With Without
PureDetail uses sophisticated motion adaptive edge enhancement
algorithms to ensure that all the information contained in an image is
faithfully reproduced on the screen giving a stunning crystal clear, pin
sharp picture.
Pure Optics
Nothing affects the image quality more than the lenses. Designed and
manufactured in our own factory, specifically for this projector, each HD82
Pure Optics lens system is individually tested and evaluated to the most
stringent standards of resolution, uniformity and focus. The result is a first-
class lens of unquestionable quality.

Optoma guarantees colour quality will
remain as new for 5 years*
For Home Cinema colour accuracy is critical. We are
so confident that, unlike competing technologies,
the HD82 colour will not change in use that we
have guaranteed it will stay the same as the day
you bought it, for at least 5 years.
The HD82 projector based on an all-digital DLP®chip delivers
stunning picture quality again and again. Unlike competing analogue
technologies, the semiconductor that makes DLP®projection possible
is virtually immune to environmental factors that can cause an image to
degrade over time.
5
Latest DLP™ technology
The latest DarkChip3 technology from Texas Instruments ensures an
invisible pixel structure from normal viewing distances and provides
the highest ANSI contrast ratios available.
HD82 – High contrast
lm-like images
Conventional – Visible
pixel structure mars image
quality and reduces the
contrast ratio
ANSI Contrast
ANSI Contrast is a way of measuring the true “real world” contrast
performance you can expect from a projector. Only ANSI contrast has a
documented, reproducible procedure that can be used to compare the
performance of projectors using different display technologies.
With an ANSI contrast ratio significantly higher (in some cases 2-3
times) than many LCD, LCOS or SXRD based projectors, the HD82 is
the only choice for Home Cinema purists that expect the ultimate image
fidelity in their home.
High ANSI Contrast Low ANSI Contrast
24P
PureMotion works in harmony with 1080P24. Most
movies are shot at 24 frames per second. To preserve
the purity of the original image the HD82 can accept
High Definition sources at 24 frames per second and
so display movies exactly as the director intended.
5
HD82
24
FPS
Clarity of vision
The HD82
†
has the highest ANSI
contrast we have yet measured on
any projector.
Evan Powell, Editor, ProjectorCentral.com
❛
❜

Natural Light
The HD82 incorporates VIDI, a Philips lighting technology that further
improves image quality, brightness and contrast. VIDI technology
enables the HD82 colour performance to be fine tuned directly from the
lamp – this unprecedented control makes it possible to achieve vibrant,
perfectly saturated colours across the whole light spectrum resulting in
stunningly natural and life-like images.
A large aperture
for natural contrast
during bright scenes
Bright scenes
are crisp and
clear
MAX MIN
DynamicBlack modulates the lamp output automatically based on the
brightness information of each scene
A smaller aperture
for dynamic dark
scenes
Dark scenes
are detailed with
deep blacks
DynamicBlack
Improved Colour
VIDI technology enables the HD82 to be fine tuned to provide vibrant
natural colour, accurate greyscale performance and virtually eliminates
dither noise.
With Without With Without
VIDI
technology
RYGCMBRYGCMB
Brilliant Pulse Dark Pulse Tuned Plateau
Lamp Current
Rotation 2Rotation 1
I video frame
UHP Lamp
Emmy award winning UHP
lamp technology is used in the
HD82. This advanced lighting
technology provides an optimal
colour spectrum and ultra reliable
operation.
7
HD82

Projection
Distance (m)
Diagonal Image
Size (inch)
Max Vertical
optical shift (m)
Max Horizontal
optical shift (m)
3.00 60.2 - 90.3 0.06 - 0.22 0.2 - 0.3
4.00 80.3 - 120.4 0.07 - 0.3 0.27 - 0.40
5.00 100 - 150 0.09 - 0.37 0.33 - 0.50
FLEXIBLE PLACEMENT
The combination of PureShift and a wide 1.5 zoom range enables
a wider range of projector placement possibilities. This remarkable
combination makes it easier to position the projector in your viewing
room and allows a wider range of screen size options.
The shaded pyramids show the positions in which the projector can be
placed to fill the screen (90").
Diagrams are for illustration only.
For detailed information please refer to the User Manual
9
Projection Distance
HD82
Installation is a breeze

FULLY AUTOMATED CONSTANT
HEIGHT PROJECTION
The optional Optoma BX-AL133-B Anamorphic Projection Kit, combined
with the HD82 projector, provides a unique “fit and forget” solution for
Constant Height projection. Most major movie titles are released in
the 2.35:1 format and the BX-AL133-B Kit provides uncompromised
widescreen reproduction of this format. When a change from a 1.78:1
(16:9) to a 2.35:1 movie is detected the image simply gets wider - the full
screen height is maintained and so eliminates black bars. The resulting
2.35:1 image is bigger, brighter, higher resolution and completely
immersive - exactly as it would be at the cinema.
The BX-AL133-B Anamorphic Projection Kit Comprises:
Anamorphic Lens
• Fiveelement,100%glass,fullymulticoatedopticaldesigncorrected
for chromatic aberration and astigmatism
• Optics designed to exceed the resolution requirements for
1080P projection
Motorised Lens Mount
• Integrateswith theThemeSceneAuto235 featureto automatically
detect 2.35:1 presentations and configure the projector and
anamorphic lens accordingly
• HighPrecisionmaintenancefreemechanism
Mounting Plate
• Allows the lens and the motorised lens mount to be mounted
perfectly in relation to the projector
• EnablestheprojectorandtheAnamorphicProjectionKittobe
mounted as one
CEILING MOUNT ASSEMBLY

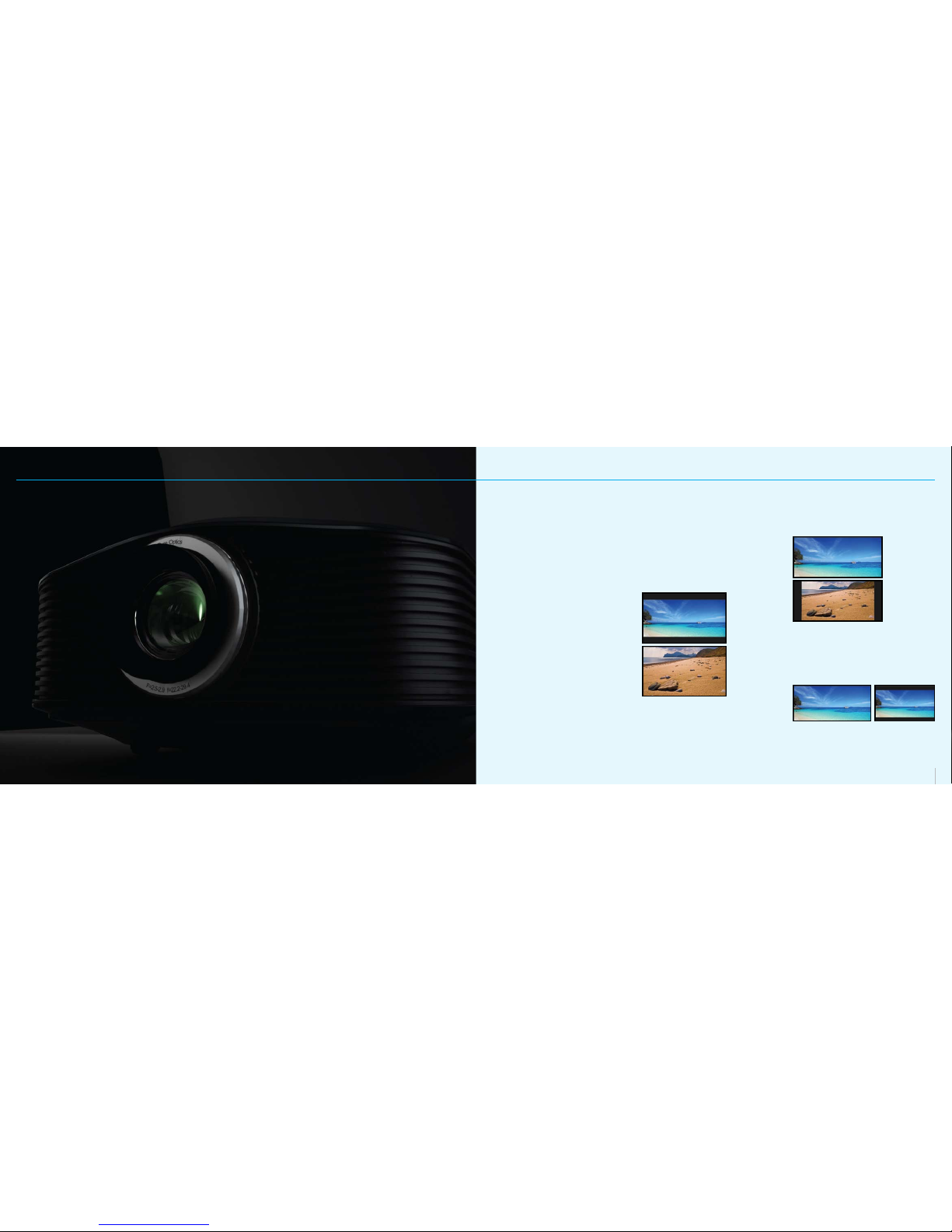

What is Constant Height Projection?
Many movies are presented in 2.35:1 aspect ratio. When these are
viewed on a 16:9 projector with a 16:9 screen black bars are visible
at the top and bottom of the image as below. A 16:9 source – like TV
fills all of a 16:9 screen with no black bars. This is called Constant
Width projection as with both formats the width of the image stays
the same.
2.35:1 Movie
16:9 TV
Constant Height projection uses a 2.35:1 aspect ratio screen. A 2.35:1
movie is displayed with no black bars top and bottom. 16:9 TV is
displayed with black bars at the sides.
2.35:1
16:9
Constant Height projection is optimised for watching movies. When using
the Optoma Anamorphic Kit the full potential of the projector is used when
displaying 2.35:1 movies. This enables a brighter, higher resolution image.
Image Sizes
For the same throw distance the Optoma Anamorphic Lens Kit
increasesthe horizontalsizeofa2.35:1imageby 33%relative tothe
same 2.35:1 image being displayed on a 16:9 screen. The vertical
height stays the same.
B
r
i
n
g
i
n
g
t
h
e
c
i
n
e
m
a
e
x
p
e
r
i
e
n
c
e
h
o
m
e
11
HD82

Technical Specifications
Highlights
Full HD Native 1080P
Display Technology DLP 1080P
ANSI Contrast 680:1
Contrast 20,000:1
Audible Noise 22dB Standard mode
Optical Image Shift Vertical:+105%~+130%,Horizontal:-15%~+15%
Brightness 1300 Video Optimised Lumens
Connections
Signal Type Input Connector
HDMI 2 x HDMI (V1.3 with Deep Color)
Component 3 x RCA
SCART RGB VGA via supplied adaptor
S-Video (Y/C) 3 Pin Mini DIN
Composite Video (CVBS) RCA
DVI-D Computer DVI connector
RGB Computer VGA
Screen triggers 1 x Standard 12v screen trigger, 1 x Programmable 12v trigger
RS232 9 pin D-Sub
Video Compatibility PAL, SECAM (576i/p), NTSC (480i/p), HD1080P60\50\24, 1080i, 720p)
Display
Aspect Ratio 16:9
Throw Ratio 1.50-2.28 (Projection Distance/Image Width)
Manual zoom x1.5
Projection Distance 1.5m – 12.5m
Image Size 0.76 - 7.67m (16:9 Diagonal)
Keystone Correction Vertical
Projection Types Front, Ceiling, Rear, Rear ceiling
Lamp Type 220w
Lamp Life Standard mode 3000 hours
General
Dimensions 490 x 372 x 194 mm
Weight 8.5 kg
Power Consumption 330W Max, <1W standby
Operating Temperature 5-35°CMax,80%Humidity
Mounting Ceiling mount points
Warranty Warranty may vary by country. Please see www.optomaeurope.com or ask
your local supplier for details
Lamp Warranty 6 months or 1000 hours whichever is the sooner
OSD Languages English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish,
Finnish, Greek, Danish, Norwegian, Polish, Russian, S Chinese, T Chinese,
Korean, Japanese, Hungarian, Czech, Arabic & Turkish
Supplied accessories AC power cord, 1 x HDMI cable 1.8m, SCART RGB to VGA 15 Pin D-Sub
adaptor, VGA cable, Main Remote control with backlight, Backup remote
control, Batteries for Remote controls, Lens cap, Users guide, 2 x 12v trigger
connectors, 4 x M6 screws for use with ceiling mount
Optional accessories Ceiling Mount Kit, Anamorphic Projection Kit BX-AL133-B
EAN Number 5060059043637
†The HD82 is supplied in the USA as the HD8200. *Optoma guarantees that in normal use, Optoma DLP® colour quality will be indistinguishable from when new. Please note that worn lamps will
give slight variance. Exclusions: *(1) Guarantee is voided if the projector is subject to damage through mis-use. (2) Guarantee may be void in industrial or commercial entertainment environments
where dust or smoke is particularly excessive (3) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other fault.
DLP®, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments. TrueVivid™ and Image AI™ are registered trademarks of Optoma Technology, Inc. VIDI is a registered
trademark of Philips. All other product names and company names used herein are for identifications purposes only and may be trademarks or registered trademarks of their respective owners.
All images have been simulated. Errors and omissions excepted, all specifications are subject to change without notice. Copyright © 2008, Optoma Europe Ltd.
Optoma Europe Limited
42 Caxton Way,
Watford Business Park,
Watford, Hertfordshire.
WD18 8QZ
Tel: [phone]
Fax: [phone]
www.optoma.co.uk
HD82 Connections
112V Trigger A
212V Trigger B
3RS232
4Composite Video
5S-Video
6Component Video
7VGA Input
8DVI-D Input
(PC Digital and DVI-HDCP)
9HDMI 1
10 HDMI 2
11 Power Socket
1 2 3
4 76 8 9 10
11
5
V1.3 with DeepColor
Main Remote Control
Backup Remote Control

Typical lamp life achieved through testing.Will vary according to operational use and environmental conditions

Optical Image Shift – Both extremes of the horizontal and vertical shift can not be used simultaneously. See user manual for future details.
