Orec Fl 500 User manual

Orec FL500 Owner’s manual 08/2010

INSTRUCTION MANUAL

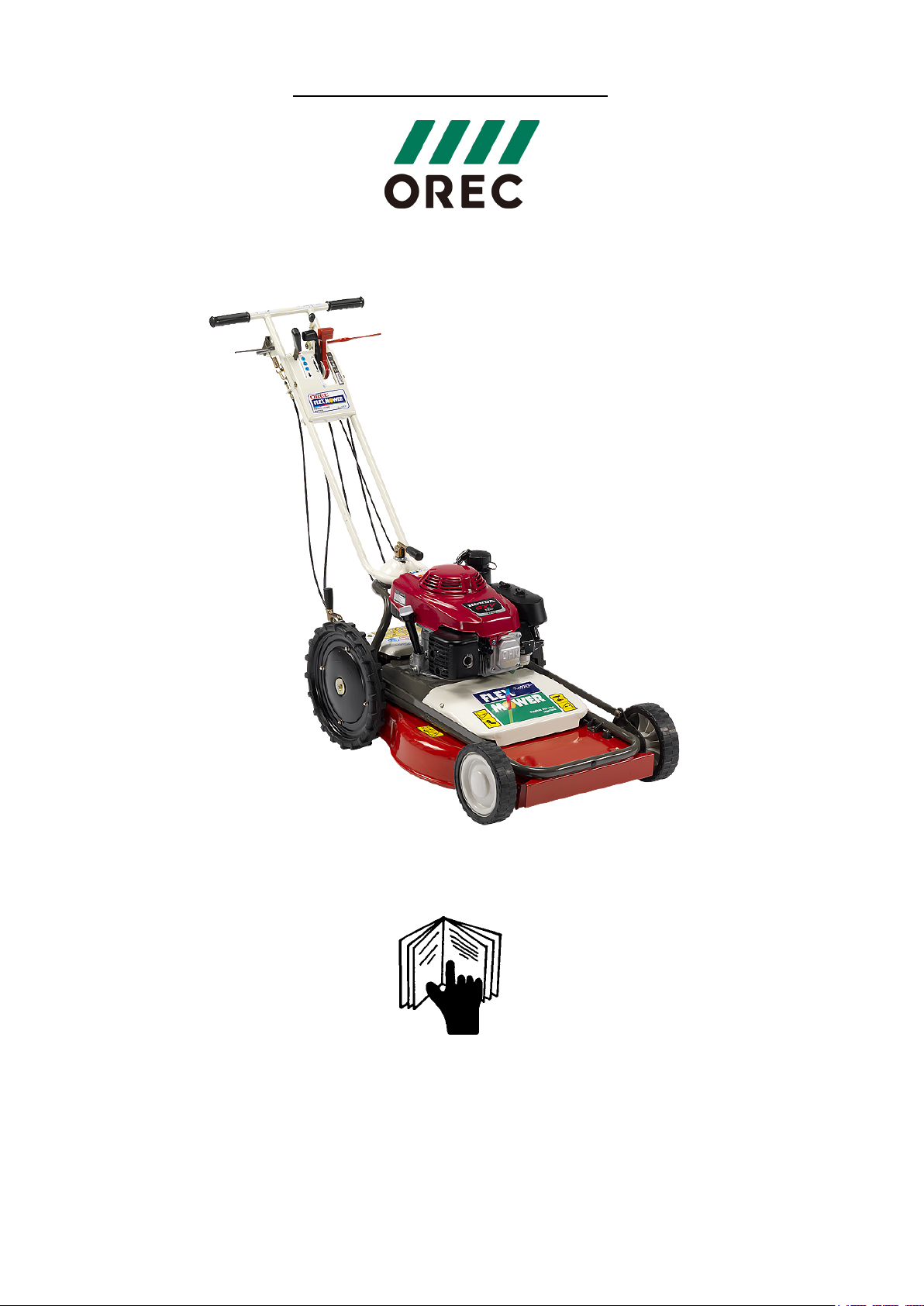

LAWN MOWER FL 500

Read this instruction manual carefully before any use of the machine, keep it as a reference.

For any question about this manual, please report to your OREC dealer or to the distributor of

your country or to :http://www.orec-jp.com.

Update : September 2018

OREC FL500A - © SAT 03/03

2

“only the English version of this maual can be used as a reference.”

INTRODUCTION

Forword to the user

Read this manual before any use of your mower, only the herein instructions shall help you to achieve

an efficient and safe work.

A safe use will only result from the manner you will use the machine in accordance with the

restrictions described in this manual. Thus, you must know and follow all the safety measures in this

manual and those relating to the use of your mower.

The MOWER that you have just bought has been designed and manufactured for your entire

satisfaction. As any other mechanical machine, it requires a proper maintenance and must be kept

clean. Grease the machine like indicated. Follow the rules and safety indications as described in this

manual and as showed on the preventive instruction stickers.

About maintenance, always mind that your OREC dealer has the skills, the genuine parts and the

necessary tools to solve the possible problems.

Use only the OREC original parts : “ non genuine ” parts will not assure you of a correct and safe

working and are likely to make the guarantee null and void. Write the name and the serial number of

your machine hereunder :

MODEL :.......................................................................................

SERIAL NUMBER (refer to the pictures herein) :.........................

Always mention these informations to your dealer in order to obtain the right parts.

Concerned about constant progress, OREC keeps the right to modify the machines without being

compelled to modify those already sold.

The illustrations and characteristics in this manual might lightely differ from your machine because of

the constant improvements made by our production department.

In this manual, the left and the right hand or the rear and the front position are determined according

to the mower handlebar.

All along this manual the word IMPORTANT is used to indicate that a fault might cause damage to

the machine. The words WARNING, CAUTION and DANGER are used with the “ safety/warning ”

pictogram (triangle with an exclamation mark) in order to indicate a hazard for your safety.

This symbol indicates that you must be very attentive because your safety is at stake. It reminds that

you must follow the safety instructions and pay attention to hazardous operations that might cause

injuries.

WARNING

Reminds the safety rules that might cause injury if they are not respected

CAUTION

Remembers to pay attention to a real danger that is likely to cause injury or even death if no proper

precaution is taken.

DANGER

Indicates a major hazard that is most likely to cause irremediable injury or death if the right

precautions are not taken.

OREC FL500A - © SAT 03/03

3

CONTENTS

INTRODUCTION.............................................................................................................................2

CONTENTS ....................................................................................................................................3

CARACTERISTICS .........................................................................................................................3

CHECK LIST ...................................................................................................................................3

SAFETY RULES .............................................................................................................................4

DESCRIPTION OF THE MACHINE.................................................................................................6

SAFETY STICKERS .......................................................................................................................7

CONTROLS ....................................................................................................................................8

OPERATION ...................................................................................................................................9

MAINTENANCE OPERATIONS TO BE CARRIED OUT BY THE USER.......................................11

BREAKDOWNS AND SOLUTIONS ..............................................................................................17

TIGHTENING TORQUES (Nm).....................................................................................................17

EC CONFORMITY DECLARATION ..............................................................................................18

MEASUREMENT OF VIBRATIONS ..............................................................................................18

EC CONFORMITY DECLARATION ..............................................................................................19

MEASUREMENT OF VIBRATIONS ..............................................................................................19

LIMITED WARRANTY...................................................................................................................20

NOTES..........................................................................................................................................20

CARACTERISTICS

Model

FL500BC

FL500BC-Hi

Engine

HONDA GXV160

Transmission

Belts

Forward speed (km/h)

(1) 1,5 (2) 2,5 (3) 4.0

Reverse speed (km/h)

1,7

Cutting width (mm)

500

Height of cut (mm)

20-80

Weight (kg)

68

Fuel tank capacity (liters)

1.4

Blade transmission

Belt

blade speed (rpm)

2268

2968

Over all width (mm)

580

CHECK LIST

INSTRUCTIONS TO THE DEALER

• The assembling, the installation and the first application of the machine is under the OREC dealer’s

responsability.

• Read the instruction manual as well as the safety measures. Check that all the before delivery and

at delivery check points specified in the following lists have been verified and possibly modified

before delivering the machine to its owner.

OREC FL500A - © SAT 03/03

4

CHECKS BEFORE DELIVERY

• Check that all the shields, grids and safety guards are in place and in a good state.

• Check that the hydraulic hoses are in place and in a good state. Replace them if necessary.

• Check that there is no oil leak, repair if necessary.

• Check that the safety instruction stickers are in place and in a good state. Replace them if

necessary.

• Check that all the bolts and screws are properly tightened with the right torque (refer to torque

chart).

• Protect the grease nipples by coating them with grease and lubricate the machine.

• Check that the machine can work properly.

CHECKS ON DELIVERY

• Show the user how to perform the adjustments.

• Explain to the user the importance of the lubrication and show him the different greasing points on

the machine.

• Show him the safety devices, grids, guards and the optional equipments.

• Give the instruction manual to the customer, ask him to read it carefully.

SAFETY RULES

CAUTION

Some of the illustrations show the machine with no guard, no shield. Never use the machine

without these devices.

• Learn to stop the machine in case emergency.

• Read this manual.

• Do not let anybody use the machine before having read and understood

this manual.

• Do not let children use the machine.

• Do not wear loose clothes. They might be grasped by moving parts.

• Always wear protection equipments for when using the machine.

• Only work during daylight or with a good artificial light.

• Check that the safety instruction stickers are in place and in a good condition.

• Keep the machine free from debris or mud.

• Check that the machine can work properly before any use.

• Check that all the shields, grids and safety guards are in place and in a good state.

• It is strictly forbidden to carry persons or animals onto the machine during the work or during the

transportation.

• Never stop or start roughly when working on a slope. Never use the machine to work on a

stepping terrain.

• Reduce the ground speed when running on a slope and when turning

straight in order to prevent from any risk of losing control.

• Be very careful when bordering ditches.

• Stop the engine, and remove the sparking plug ignition cover before

any intervention on the machine.

• Never work under the machine or its parts when lifted, unless they are

blocked and maintained into position with sufficient security.

• When running on a slope, always work going up or down but never

across the slope.

• Steer clear of unsteady embankments, holes or rocks. They might be

OREC FL500A - © SAT 03/03

5

dangerous during manœuvres or transport.

• Keep away from electric wires and obstacles. A contact with electric wires cause electrocution

and death.

• Stop the machine progressively when lifting or lowering the machine.

• When stopping the work, stop the engine and remove the sparking plug ignition cover before

leaving the mower.

• Engage all the safety equipments.

• Move the controls only when correctly sat down in the mower

• Visually check hydraulic leaks and if some parts are faulty or missing. Repair before use.

• Never change the adjusment of the regulator, it is set in the factory. Unsetting this valve would

cause failures.

• Ensure that the user of the machine has already read and understood

this manual and that he is aware of all the safety instructions before

any use.

• Always use a chuck and bronze hammer when replacing or intervening

on the pins and bolts at the end of rams, rod … etc in order to avoid the

projection of metal fragments.

• Clear the mowing path from foreign objects, stones, woods, cans,

bottle, pieces of steel, wich can ne thrown by the mower.

•

OREC FL500A - © SAT 03/03

6

DESCRIPTION OF THE MACHINE

Left

Fuel cock

front

Driving lever

2 action

lever

Air filter

Starter

Speed lever

Blade clutch

lever

Handlebar

adjustment

Fuel tank

Rear

right

Throttle lever

Diff lock

lever

Figure１

OREC FL500A - © SAT 03/03

7

SAFETY STICKERS

Note their location and replace them immediately in case of damage or when missing

Read owner’s manual

Beware of hot surfaces

near engine

Beware of toxics

exhaust gases

No hands or feet under

the mowing deck

Beware of rotative

blade under the shield

Keep away from the

machine

Do not exceed 15°

slopes

Unplug sparking wire

before maintening the

machine

Beware of thrown

objects

Always wear prrotective

equipment for dust,

noise and wear glasses

Keep away from the

machine

Read owner’s manual

OREC FL500A - © SAT 03/03

8

CONTROLS

DRIVING LEVER (1, FIGURE 2)

Push the lever forward to the handlebar 1, figure 2 to make the

machine moving. Release the lever, then the machine stops.

SPEED LEVER (2, FIGURE 2)

The lever allowed to select the speed ratio needed. The

machine offer 3 forward speed (1, 2, 3) and, 1 reverse speed

(R).

Never change speed while driving.

In the case of changing speed, travel lever must be released (OFF).

DIFFERENCIAL LOCK LEVER (3, FIGURE 2,)

Push the lever forward to drive the rear wheel together in slipping condition.

Never turn the machine with the differential locked.

Throttle lever and Choke lever (4, figure 2)

Push the lever completely forward to operate the choke to start cold engine, when engine has start

release it. Push the throttle lever forward to « HI » to increase

engine speed, pull the throttle lever rearward to « LO » to decrease

engine speed to idle rpm. Always operate mower at full engine

speed.

IMPORTANT

Do not use the choke when the engine is hot, it did not start

CUTTING BLADE CLUTCH LEVER

Cutting blade Clutch lever make the engine drive the blade to mow.

Push the 2 action lever (6, figure 2), then pull the blade clutch lever

(5, figure 2) rearward to the handlebar to make the blade turning.

Release the lever, then the blade stops.

WARNING

Never try to start or stop the engine with blade engaged.

FUEL COCK

The fuel cock (1, Figure 3) is closed when machine is not use. Fuel

cock is closed pushed rearward and open pushed forward.

HEIGHT OF CUT CONTROL

Height of cut can be setted by turning the crank-lever 1 Figure 4,

clockwise to increase the height of cut and anti- clockwise decrease

the height of cut.

WARNING

Always perform this adjustment engine off and sparking plug

cover unplug

When cutting in low position, power needed and thrown objects are more important. Cutting

low can cause damage to the machine and injury.

Figure 2

３

６

５

１

２

４

Figure 3

Figure 4

OREC FL500A - © SAT 03/03

9

OPERATION

CAUTION

Check the tightening of bolts, refering to the tightening torque charts

The safety is one of our main worry when designing and manufacturing this machine. Therefore,

negligence in the use of the machine should reduce our efforts to nothing. The prevention strictly

depends on the care and on the skill of the user when applying and maintaining the machine.The

best safety method remains a careful and skilled user ; we wish you to be this kind of user.

The user of this machine is responsible for its safe use. He must be a skilled user specially trained for

the use of this machine. Read the safety instructions. This machine has been designed to mow grass.

It is not designed for any other operation. It is no designed to transport other tools or materials that

might damage it and cause injuries to the user. It must not be used to carry persons.

DANGER

Never use the machine without having priorly carried out all the maintenance operations as described

in the daily maintenance chapter.

CAUTION

Never let children or unskilled persons use the machine. Check that nobody or no object stands near

the machine when at work. They could be hit by the moving parts.Nobody must stand on the machine

except the driver. Never put your hands under moving parts.

STARTING OF THE ENGINE

Turn the fuel cock "ON".

Check than cutting blade and travel lever are disengaged.

Pull choke lever if engine is cold or push throttle lever half of his stroke if the engine is hot.

Pull the starter rope. When the engine has started, push back the choke lever. Select a speed

ratio, then, move to the mowing path.

MOWING

Start the engine

Adjust the height of cut control bar as needed.

WARNING

Do not forget that it is better to mow a few grass often than an important quantity in one

operation. Short grass do not resist to dry weather, and athe blade can hit the grown with

damage and trhown objects. Working in slopes is very dangerous. Never work in slopes more

than 15°.

Push slowly cutting blade control lever in engage position and the travel lever, increase engine

speed to the maximum, then go forward in the grass to mow.

The best cutting speed depends of quantity and the density of the grass. Usually it is asked to

mow between 2,5 and 6 Km/H. A tall grass will be cut slowly and a low grass will be cut faster.

OREC FL500A - © SAT 03/03

10

CAUTION

Clear the mowing path from foreign objects, stones, woods, cans, bottle, pieces of steel, wich

can ne thrown by the mower. They can cause injury to the operator or the bystanders.

HOW TO STOP THE MACHINE

Release driving lever and blade clutch lever.

Pull backward the throttle lever to stop.

Close the fuel cock

Lock the parking brake lever

CAUTION

Never park the machine on slopes. Stop it on a level and flat surface.

STORING THE MACHINE

Thoroughly clean the machine. Use touch up paint to prevent rust. Check for worn and damage parts,

install new parts as required. Preform the normal maintenance of the machine according to

maintenance chart. Store the machine in a dry protected area. Remove sparking ignition wire from

the sparking plug.

TRANSPORT

Check that the cutting rotor is disengaged.

Check that the sprking plug cover is disconnected.

Check that the fuel cock is closed.

CAUTION

Take care of hot surfaces of the machine, especially around the engine.

OREC FL500A - © SAT 03/03

11

MAINTENANCE OPERATIONS TO BE CARRIED OUT BY THE USER

DANGER

BEFORE perform any maintenance operation on the machine, cut off the engine, and remove

the spark wire from the sparking plug

If maintenance operation are not realized, damages can occur to the machine and personnal injuries

to the user and/or spectators. These damages and injuries will not be covered by the warranty.

Daily maintenance will be performed by the user.

Maintenance opérations for first 20 hours, 100 et 300 should be realized by the dealer.

Ask your dealer to check the machine if you meet some problems.

Ask your distributor the name of your dealer.

DAILY MAINTENANCE BEFORE START MOWING

FUEL (FIGURE 5)

Check tank level is full before start to work. Check that tank

plug is fully closed, and check for leaks. Use only a good

quality unleaded gasoline.

DANGER

Check fuel tank is closed, wipe fuel spillages before

start the machine. Check there is no fire, electric sparks,

cigarettes near the machine when refuelling.

SAFETY STICKERS

Check safety stickers are sticked at their place. Replace them if they

are worn, damage or missing.

Blade and blade holder condition

CAUTION

You can be cutted and injuried by cutting blade. Always wear gloves when holding blades.

Check rotary blades are in good condition, change worn or damage blade (figure 6).

Changing blade : unscrew hexagonal screws and washer from the blade holder.

Check the blade condition. Change it if it is worn bend or crackle.

Check thightening of hexagonal screws according to the chart at the end of the manual.

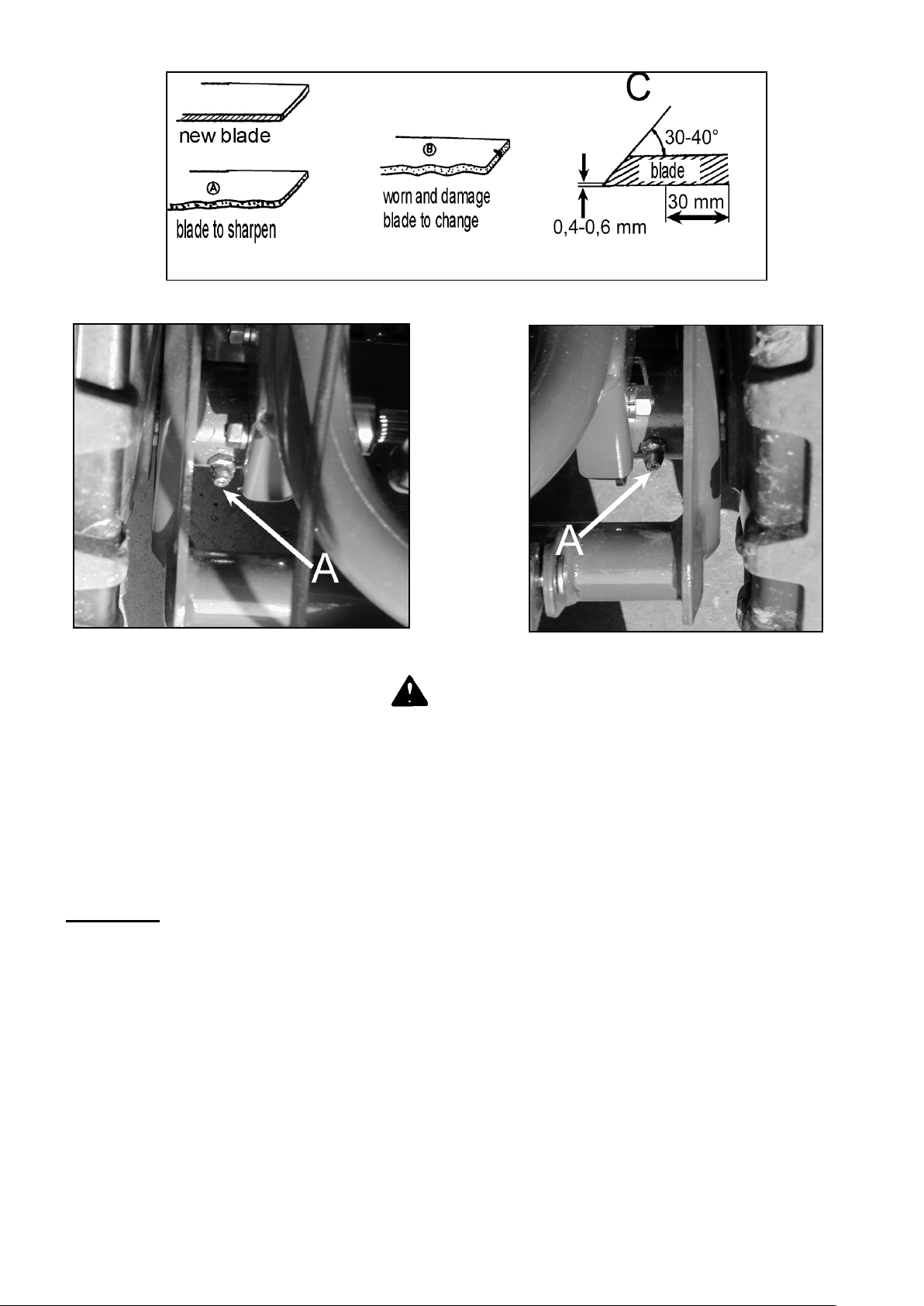

Sharpen as shown in C figure 6, follow the angle of 30-40°, keep a sharpen hedge of 0,4 to 0,6

mm. Always keep 30 mm of width.

•

Figure 5

OREC FL500A - © SAT 03/03

12

CAUTION

Only use original genuine OREC parts. Other parts may be dangerous for your health and for

the bystanders and the machine.

If some vibration occur. If you feel vibrations in the handlebar, check the blade. Vibrations

may cause loosening of the bolt and nuts and may crack the steel of the machine.

Lubrication

Grease at the rear of the wheel shaft. Do not let the grease in excess, particuliary in sandy areas

grease the niples with a gease pump, use only a good quality grease NLGIn°0.

AIR FILTER

Dismant the air filter by the two wing nuts (A Figure 9). blow the cartrige "B" with low air pressure

from the inside to the outside, oposite to the normal air flow. Change the cartridge if it is too

dusty or after five cleaning.

Clean the foam “C” with water and soap. Dry the foam before and oil slightly with engine oil, then

assembling again.

Figure 6

Figure 7

Figure 8

OREC FL500A - © SAT 03/03

13

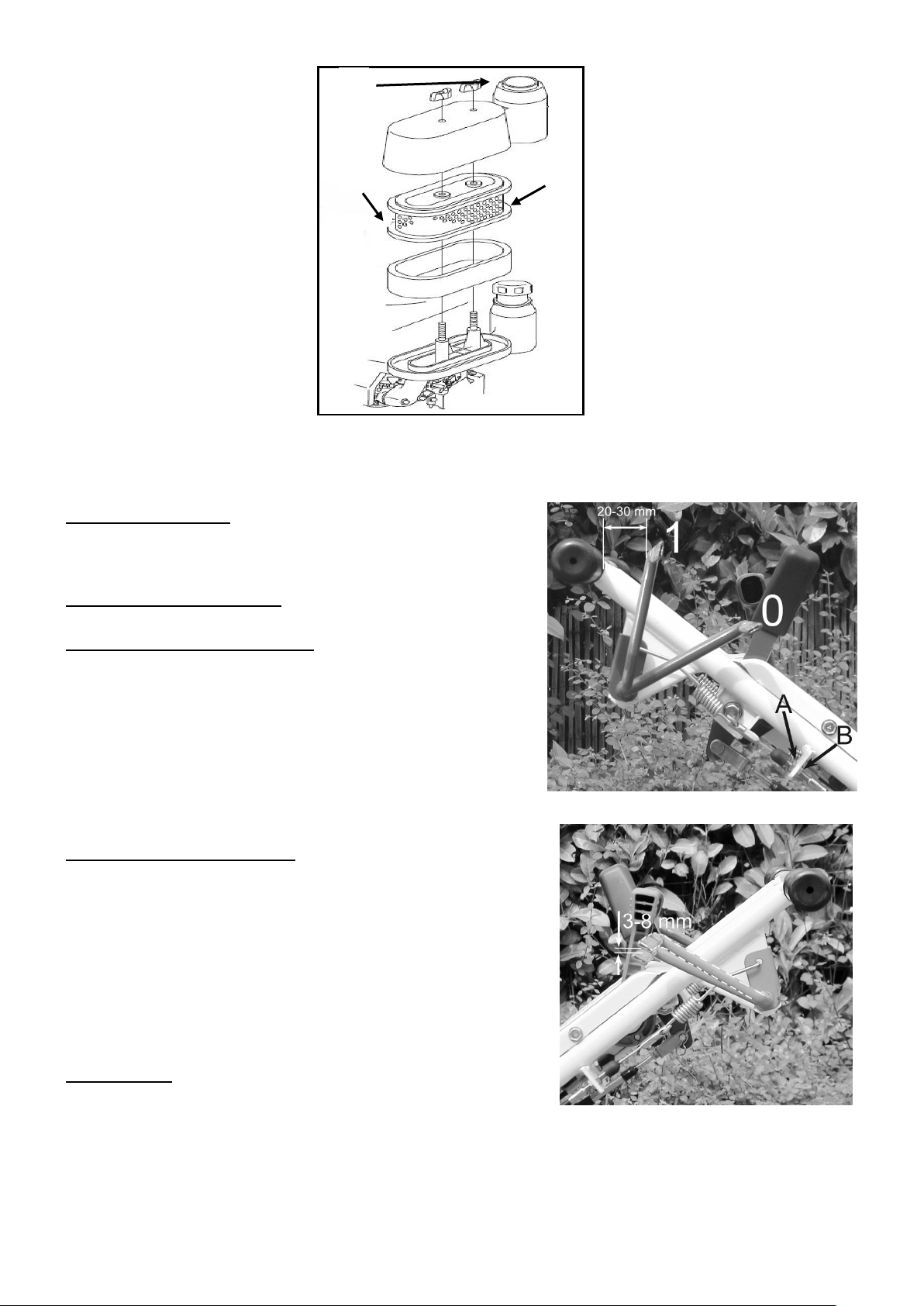

Figure 9

ENGINE OIL LEVEL:

Refer to engine manual

MONTHLY MAINTENANCE

DRIVING WIRE ADJUSTMENT:

When you pull the lever for driving (Figure10, 1) the machine

start to move, there must be a distance of between 20 and 30

mm (Figure 10).

If this is not the case, adjust the tension of the change wire

by first loosening the idler adjustment nut (Figure 10,A) and

then by screwing the idler adjustment nut (Figure 10,B) until

the distance is correct. Repeat the procedure if it is incorrect.

BLADE WIRE ADJUSTMENT

Play of the blade wire:

This wire must set the blade lever between 3-8 mm (Figure

11).If this is not the case, adjust the tension of the blade wire

by first losing the tension adjustment nut (A, Figure 10), and

then by adjusting the tension adjustment nut (B, Figure 10)

until the play is correct. Tighten the tension adjustment nut to

secure it then check if the setting is correct. Repeat the pro-

cedure if it is incorrect.

CHANGE WIRE:

If the machine does not stop when the driving lever is released,

unscrew the tension adjusting nut of the change wire (B, Figure

12). Adjust the tension adjustment nut of the change wire if

necessary. Tighten the adjustment nut to secure it then check if the machine is operating normally.

Repeat the procedure if the machine does not function normally.

If, despite the adjustment of the change and driving lever to the correct settings, the machine does

not move, do the following.

Figure 10

Figure 11

A

B

C

OREC FL500A - © SAT 03/03

14

Unscrew the nut (A, Figure 12) and screw change cable adjustment nut (B, Figure 12) and adjust the

change wire nut (B, Figure12). Tighten the lock to secure it then check if the machine is operating

normally. Repeat the adjustment procedure if the machine does

not function normally.

DIFFERENTIAL LOCK WIRE

It is necessary to tighten the wire if the differential is not engaged

or slacken the wire if the differential lock is not adjustable.

To tighten the wire, loosen the tensioner (C, Figure 12) and tight-

en the lock nut against (C, Figure 12).

To slacken the wire, loosen the tensioner, adjust the tensioner,

then tighten the lock nut to secure. Refer to the engine manual

supplied with the machine.

BELTS ADJUSTMENT :

WARNING

A loosen belt may slips and worn quickly, a too tighten belt may worn bearings.

Check for belt condition, cracks and wear. Replace if necesary.

Transmission belt

Blade belt

Stop engine and disconnect sparking cover, clutch the blade.

Engage blade lever and push the belt with a finger on the belt

must move from 10 to 12 mm. If the belt does not move accord-

ingly, adjust the tension wire near the lever.

Check that the belt guides are close 4 or 6 mm from the tighten

belt.

Fit the belt cover with the bolts.

Stop engine and disconnect sparking cover.

Unscrew the bolts of the transmission cover to reach the belts.

Engage travel lever and push the belt with a finger on the belt

must move from 10 to 12 mm. If the belt does not move

accordingly, adjust the tension wire near the lever.

Check that the belt guides are close of 3 or 5 mm from the

tighten belt.

Fit the belt cover with the bolts

TIGHTENING OF BOLT AND NUTS

Check for tightening of bolt and nuts according to the chart. Vibrations of the machine may

loosen bolt and nuts.

Engine:

Refer to the engine manual, supplied with the machine.

Protection:

Make sure the rubber protections are in good condition. Change them immediately if damaged

Figure 12

Figure 13

E

A

B

C

D

OREC FL500A - © SAT 03/03

15

ANNUAL MAINTENANCE

Change engine oil:

Drain oil early in the season or once a year.

Drain the oil when the engine is hot to facilitate the flow of oil.

Unscrew the drain plug and the oil filler cap (Figure 14).

Once all the previous oil, replace the drain plug.

Topped up with oil 0.65 L semi-synthetic oil SAE 10W30 or API SL class.

Check the oil level. It should be between 1 and 2 (Figure 15). If the level is low, add oil, remove in if

you exceed the maximum level.

Apply and tighten the oil filler cap.

NOTE: Do not discard the used oil anywhere. Bring it to a recycling canter or to the nearest depot.

Engine oil replacement frequency.

First replacement :

After 20 hours of operation

Later replacement:

Each 100 hours or Every year whichever comes first.

Figure 15

oil drain bolt

oil filter cap

Figure 14

MAX

MIN

OREC FL500A - © SAT 03/03

16

MAINTENANCE CHART

Ask your dealer to realize this operation needing special tools and knowledge.

⊕Inspection to realize by the owners before starting the engine

⊗Inspection to realize by the owners after starting the engine

Part to inspect

Inspection

Every

use

first

20

hours

Every

100

hours

Every 300

hours or

Every year

Blade belt

Check belt tension



Check wear



Fuel

refuelling

⊕

Fuel cock

⊕

Flammables

materials

Clean the machine from flammables

materals

⊕

Drive clutch lever

check machine do not move when

lever is on “N”

⊗

Check travel lever goes on “N” when

applying brake

⊗

Chasis

Check for rust, and cracks

Safety stickers Check they are in place and in good

condition

⊕

Safety switches

Check for efficiency

⊗

Guards & shields

Check they are bolted in their place

and in good condition

⊕

Tank and fuel

hoses

Check for leaks and good condition

Replace if needed

⊕

Throttle lever

Check for efficiency

⊗

Blades

Check they are bolted in their place

and in good condition

⊕

Blade clutch

control lever

Check the adjustment of the wire

⊕



Blade brake

Check the adjustment

⊕



Blade belt

Check they tensionned and in good

condition



Engine

Refer to engine manual

Rear Wheel

Clean inside of wheel

Check if gears are properly greased.

⊕

17

BREAKDOWNS AND SOLUTIONS

PROBLEM

CAUSE

SOLUTIONS

No fuel

Refuel the tank

Battery is empty

Load or replace the battery

Engine does not start

Safety switches are working

Check brakes, blade clutch and seat

and travel lever

The machine does not drive

Parking brake is locked

unlock parking brake

The machine does not stop

Drive clutch lever is not on

« N »

Move the drive clutch lever to « N »

The blade does not rotate

Blade clutch lever is not

engage

engage Blade clutch lever

Safety switches are working

Check brakes, blade clutch and seat

and travel lever

TIGHTENING TORQUES (Nm)

Diameter

of

screw(mm)

Mark on the screw head

4

or without mark

7 8 9 11

3

0.3~0.5

---

4

0.8~1.0

---

5

2.5~3.4

5.4~6.4

6.4~7.4

8.8~9.8

6

4.9~6.9

9.8~11.8

11.8~13.7

14.7~16.7

8

11.8~16.7

24.5~29.4

29.4~34.3

34.3~36.2

36.3~41.2

10

20.6~29.4

39.2~44.1

49~53.9

72.6~82.4

12

44.1~53.9

83.4~93.2

93.2~107.9

122.6~137.3

14

63.7~78.5

117.7~132.4

132.4~147.1

147.1~166.7

205.9~225.6

16

88.3~107.9

152~171.6

176.5~196.1

215.8~245.2

313.8~343.2

18

117.7~137.3

205.9~235.4

245.2~274.6

313.8~343.2

441.3~470.7

20

147.1~166.71

235.4~274.6

313.8~353

441.3~480.5

617.8~657.1

22

176.5~205.9

421.7~451.1

539.4~578.6

608~647.2

843.4~882.6

24

235.4~264.8

539.4~568.8

706.1~745.3

784.5~823.8

1098.4~1137.6

18

EC CONFORMITY DECLARATION

Business name and full address of the manufacturer:

OREC CO LTD

548-22 HIYOSHI HIROKAWA-MACHI

YAME-GUN FUKUOKA JAPAN

S.A.T. sarl - Force 7 – ZA –

38110 ROCHETOIRIN France

owner of the technical documents

Designation : walk behind rotary mower

Mark : OREC

Type : FL500BC

Serial Identification :

Engine :

- Manufacturer : HONDA

- type : GXV160

- Power : 3,5 kW

Width of cut : 500 mm

Conforms to directives: 2000/14/EC, 2006/42/EC, 2004/108/EC

Conformity assessment : 2006/42/EC Annex VIII

Measured acoustic power level : 93.55 dB(A)

Granted acoustic power level : 96 dB(A)

Conformity assessment : 2000/14/EC Annex VI part 1

Notified body n°0088 : Lloyd’s Register Quality Assurance

71 Fenchurch street London EC3S 4BS UK

Acoustic pressure level at operator’s ears : 81.3 dB(A)

Harmonized standards used : EN ISO 5395-2013, EN ISO 14982-2009,

EN ISO 3744-2010, EN ISO 3746-2010,

EN1032-2003+A1-2008, EN ISO 20643-2008

made at : Fukuoka, 24 August 2016

Signed : Haruhiko Imamura

Function : Managing director

MEASUREMENT OF VIBRATIONS

Mark : OREC Type : FL500BC

Engine : GXV160

Accelerometer Position

100mm from external side of handlebar(Left side)

2,42 m/s²

100mm from external side of handlebar(Right side)

2,24 m/s²

19

EC CONFORMITY DECLARATION

Business name and full address of the manufacturer:

OREC CO LTD

548-22 HIYOSHI HIROKAWA-MACHI

YAME-GUN FUKUOKA JAPAN

S.A.T. sarl - Force 7 – ZA –

38110 ROCHETOIRIN France

owner of the technical documents

Designation : walk behind rotary mower

Mark : OREC

Type : FL500BC-Hi

Serial Identification :

Engine :

- Manufacturer : HONDA

- type : GXV160

- Power : 3,5 kW

Width of cut : 500 mm

Conforms to directives: 2000/14/EC, 2006/42/EC, 2004/108/EC

Conformity assessment : 2006/42/EC Annex VIII

Measured acoustic power level : 93.55 dB(A)

Granted acoustic power level : 96 dB(A)

Conformity assessment : 2000/14/EC Annex VI part 1

Notified body n°0088 : Lloyd’s Register Quality Assurance

71 Fenchurch street London EC3S 4BS UK

Acoustic pressure level at operator’s ears : 81.3 dB(A)

Harmonized standards used : EN ISO 5395-2013, EN ISO 14982-2009,

EN ISO 3744-2010, EN ISO 3746-2010,

EN1032-2003+A1-2008, EN ISO 20643-2008

made at : Fukuoka, 24 August 2016

Signed : Haruhiko Imamura

Function : Managing director

MEASUREMENT OF VIBRATIONS

Mark : OREC Type :FL500BC-HI

Engine : GXV160

Accelerometer Position

100mm from external side of handlebar(Left side)

2,42 m/s²

100mm from external side of handlebar(Right side)

2,24 m/s²

20

LIMITED WARRANTY

Each new product manufactured by OREC is guaranteed under the cope of the following terms. The

warranty applies to defective parts due to defect in assembling and construction or/and in material

imputable to us. It is valid for a period of one year and for normal use of the machine. It does not

apply to engines manufactured by other companies that also guarantee their materials and whose

guarantee is supplied with the machine.

1° This guarantee is limited to the sole replacement of the defective parts during one year

commencing with the purchasing date of the machine. The guarantee is limited to the parts that are

previously shown to and acknowledged by OREC.

2° Each part concerned by a guarantee claim must be returned to OREC’s in order to be inspected,

repaired or replaced. The part(s) must be returned with freight prepaid and must be accompanied

with a proof of the purchase. The part(s) must be packed with the greatest of care to ensure their

protection.

3° The machine must not have been worn out, repaired or maintained by anyone without OREC’s

previous authorization. The machine must not have been damaged in a road accident, roughly

handled or unproperly used.

This guarantee does not compell OREC or its dealer to reimburse the labour costs or the carriage

costs to the repairer.

NO OTHER GUARANTEE SHALL BE APPLIED TO THIS MACHINE EXCEPT THE LEGAL

GUARANTEE. OREC SHALL NOT BE LIABLE FOR ANY DAMAGE OR COST INVOLVED BY THE

MACHINE, FOR EXAMPLE :

1. HIRING COSTS

2. TURNOVER LOSSES

3. WORK DONE BY A REPLACING MACHINE

OREC DOES NOT TAKE ON ANY OTHER OBLIGATION AND DOES NOT AUTHORIZE ANYBODY

TO TAKE ON ANY OTHER OBLIGATION THAN THOSE MENTIONED IN THE 3 PARAGRAPHS

ABOVE.

To know the name of your dealer, report to: OREC

NOTES

..............................................................................................................................................................

OREC FL 500 User manual

Popular Lawn Mower manuals by other brands
