Oregon Scientific EW92 User manual

C8312A Size: A4

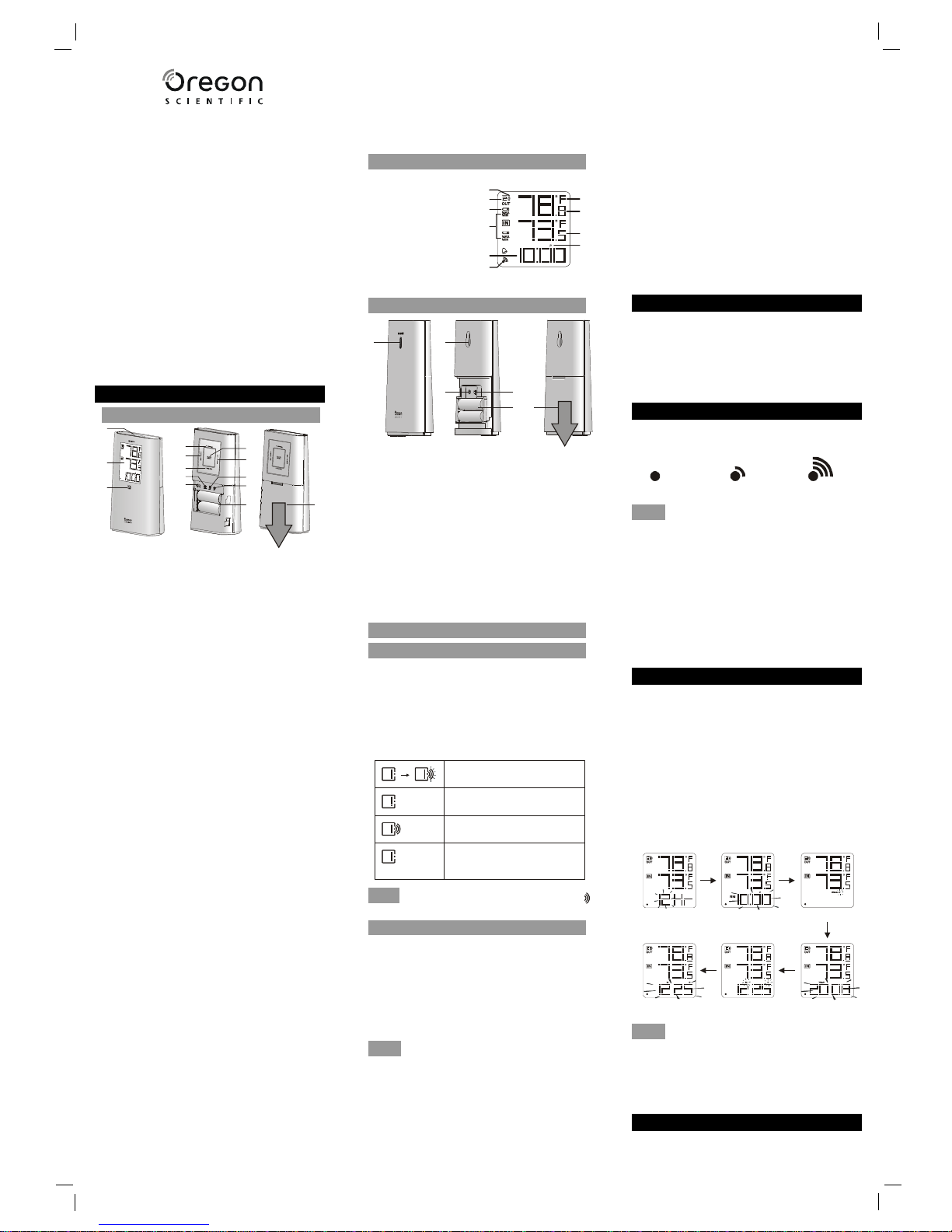

OVERVIEW
RECEIVER
1.SNOOZE/LIGHT key:
•In normal time mode, press it once to turn on the
backlight for 5 seconds.
•Press it to silence the current alarm when it is
going and enter the snooze mode for 8 minutes.
2.LCD display:
•Displays outdoor & indoor temperature.
Automatically switches Time and Date in 5
seconds interval.
3.Ice Alert indicator light:
•Flashes when the outdoor temperature is
between -2.0°C (28 °F) and 3.0°C (37 °F).
4.+/CHANNEL key:
•Press it once to switch between Channel 1, 2
and 3.
•Press and hold it for 2 seconds to view the
channels automatically. Press it again to exit
the automatic display mode.
•In time setting mode, press it to increase the
setting values.
5.SET CLOCK key:
•In normal time mode, press it once to enter the
normal time setting mode.
•In normal time setting mode, press it to step
the setting items. Press and hold it to exit the
setting mode in any step.
6.-/MIN.MAX. key:
•Press it to show the minimum and maximum
temperature records in the past 24 hours.
•Press and hold it for 3 seconds to delete the
minimum and maximum temperature records.
•In time setting mode, press it to decrease the
setting values.
7.SENSOR key:
•Press it once to search a sensor.
•During the reception period, press and hold it
for 3 seconds to stop the reception.
8.°C/°F slide switch:
•SlideittoswitchbetweenCelsiusandFahrenheit.
9.ALARM ON/OFF key:
•Press it once to turn on the backlightand display
the alarm time for 5 seconds.
•Press it again to turn on/off the alarm.
10.SET ALARM key:
•Press it once to turn on the backlight for 5
seconds, and press it again to enter the alarm
time setting mode.
•In alarm time setting mode, press it to step the
setting items.
11.RESET key:
•Press it to return all values to default values.
•In case of malfunction, the unit may be required
to reset.
12.RCC key:
•In normal time mode, press it once to receive
the RC signal for reception testing.
13.BATTERYCOMPARTMENT:
•Accommodates 2 AA size batteries.
14.BATTERY DOOR
LCD DISPLAY
1. Sensor signal
2. Channel
3. Low battery indicator
4. Min and Max temperature
5. Time and Calendar
6. Signal reception indicator
7. °C & °F
8. Outdoor temperature
9. Indoor temperature
10.Time Zone indicator
SENSOR
1.LED indicator:
•Flasheswhentheremoteunittransmitsareading.
2.Wall-mounting holder:
•Supports the sensor on the wall.
3.RESET key:
•Press it to restart thesensor and return all values
to default values.
4.CHANNEL slide switch:
•Assign the sensor to channel 1, 2 or 3.
5.BATTERYCOMPARTMENT:
•Accommodates 2 AAA size batteries.
6.BATTERY DOOR
RECEPTION OF SENSOR SIGNAL
OPERATING THE MAIN UNIT
1. Remove the battery door and insert 2 new AA
size batteries as per the polarity information
marked on the battery compartment.
2. Press “RESET” key to restart the clock.
3. Slide “°C/°F” switch to select between Celsius
and Fahrenheit.
4. Slide the battery door back on.
5. Press “+/CHANNEL” key to select the desired
channel.
Note When the sensor signal is received, the icon “ ”
will be displayed on the LCD.
OPERATING THE SENSOR
1. Remove the battery door and slide “CHANNEL”
switch to CH 1. (When using additional sensors,
make sure each sensor is assigned a different
CHANNEL number.
2. IInsert 2 new AAA batteries, matching polarities
(+/-).
3. Press the “RESET” key.
4. Slide the battery door back on.
Note
•Place the sensor in location away from direct
sunlight and rain.
•Do not place the sensor more than 30 m (100 ft)
from the main (indoor) unit.
•Position the sensor so that it faces the main
(indoor) unit, minimizing obstructions such as
doors, walls, and furniture.
•Place the sensor in a location with a clear view to
the sky, away from metallic or electronic objects.
•Position the sensor closer to the main unit during
1 2
34
5
6
1
4
6
3
2
9
8
5
7
10
Main unit is searching for the sensor(s)
(the icon will be flashing)
The sensor(s) cannot be found
Sensor 1 has been found
(the icon will be displayed,
but won't flash)
The sensor(s) cannot be found after
operating the main unit for 15 minutes
and “--.-”
(Outdoor
temperature
Area)
cold winter months as below-freezing
temperatures may affect battery performance
and signal transmission.
The transmission range may vary depending on many
factors. You may need to experiment with various
locations to get the best results.
Standard Alkaline batteries contain significant amounts
of water. Because of this they will freeze in low
temperatures of approximately -12°C (10°F).
Disposable Lithium batteries have a much lower
threshold for temperature with an estimated freezing
range of below -30°C (-22°F).
Wireless ranges can be impacted by a variety of
factors such as extremely cold temperatures. Extreme
cold may temporarily reduce the effective range
between the sensor and the base station. If the unit’s
performance fails due to low temperature, the unit will
resume proper functioning as the temperature rises to
within the normal temperature range (i.e. no permanent
damage will occur to the unit due to low temperatures).
RECEPTIONOFRADIOCONTROLLED TIME SIGNAL
The time and calendar are radio-controlled. The current
time and calendar are automatically synchronized with
the atomic clock signal from Fort Collins, Colorado.
When used for the first time (after inserting batteries
or pressing “RESET” key), the clock will start to search
for the atomic clock signal and the signal reception
icon will flash for 5 minutes.
SIGNAL RECEPTION INDICATOR
The wave segment flashing means time signals are
being received. The signal quality could be classified
into 3 types:
Note
1. The unit will automatically search for the time
signal at 2:00am (3:00am or 4:00am is also
available if the signal is not received at 2:00am),
8:00am, 2:00pm, and 20:00 each day.
2. Always place the unit away from electrical
devices such as televisions, computers,
telephones, etc.
3. Avoid placing the unit on or next to metal plates.
4. If possible, place the unit next to a window.
Signalreceptionis greatly decreased when located
inclosed areas like basements or metalbuildings.
5. Do not start reception in moving vehiclesortrains.
TIME AND CALENDAR MANUAL SETTING
If you are out of reach of the Radio Controlled sensor
orif the reception is not reachable, thetime and calendar
can be set manually. As soon as the signal of sensor
is received again, the clock will automatically
synchronize with the exact time and calendar.
1. In normal time mode, press “SET CLOCK” key
once to enter the time setting mode.
2. Press “+/CHANNEL” or “-/MIN.MAX.” key to
change the settings.
3. Press“SET CLOCK” to confirm. The setting order
is: 12/24-hr format, time, time zone offset, year,
day/month format, date.
4. Press “SET CLOCK” key to save and exit the
setting mode.
Note
1. During the setting period, press and hold
“+/CHANNEL” or “-/MIN.MAX.” key to speed up
the change of settings.
2. The time zone indicators are abbreviated as
below: P=Pacific, M=Mountain, C=Central,
E=Eastern.
ALARM TIME SETTING
1. In normal time mode, press “SET ALARM” key
once to enter the alarm time setting mode.
No signal Weak signal
Excellent signal
12/24 Hr setting Time setting
Time zone setting
Year setting
MD/DM setting
Month-Date setting
Indoor / Outdoor Thermometer
with Radio-Controlled Alarm Clock and Ice Alert
Model: EW92
USERMANUAL
Thank you for your purchase of this Indoor /Outdoor
Thermometer. Please read these instructions carefully
and keep the manual well for future reference.
The receiver unit has a clear and easy-to-read display
that shows the indoor temperature, time, the maximum
& minimum temperature records in the past 24 hours
as well as the outdoor temperature measured and
transmitted from the remote sensors. It is able to
receive and display readings from up to 3 remote
sensors.
The 433 MHz technology means no wire installation is
required and you can place the sensors within 30m
(100ft) from the main (indoor) unit.
This product is designed to synchronize its date and
time automatically once it is within range of the WWVB-60
signal from the atomic clock in Fort Collins, Colorado.
10
9
4
5
6
7
811
13
14
12
1
2
3

2. Press “+/CHANNEL” or “-/MIN.MAX.” key to set
hour/minute.
3. Press “SET ALARM” key to save and exit the
setting mode. “ ” indicates alarm is ON.
Note
1. The alarm will be automatically turned on when
you set the alarm time.
2. During the alarm time setting period, press and
hold “+/CHANNEL”or “-/MIN.MAX.” key tospeed
up the change of settings.
USING ALARM FUNCTION
1. Follow the directions above to set the alarm
time.
2. In normal time mode, press “ALARM ON/OFF”
key once to display the current alarm time.
3. Press it again to turn alarm ON/OFF.
TO SILENCE THE ALARM
1. Press “SNOOZE/LIGHT” to silence the alarm
for 8 minutes. The “ ” will be flashing.
2. Press any other key to turn the alarm off and
activate it again after 24 hours.
3. If no key is pressed within 120 seconds, the
alarm will be turned off and be activated again
after 24 hours.
READINGINDOOR AND OUTDOOR TEMPERATURE
RECORDS
Slide“ºC/ºF”switchtoselectbetweenCelsiusandFahrenheit.
Note
1. If no signals are received or the transmission is
interfered, “--” will appear on the display.
2. Replace the batteries if the batteries are low,
relocate the sensor or main display unit away
from electronic devices, or hit the reset buttons
on the main display unit and sensor.
VIEWING THE MINIMUM AND MAXIMUM
TEMPERATURE RECORDS
1. In normal mode, press “-/MIN.MAX.” key twice to
show the minimum indoor & outdoor temperature
records in the past 24 hours.
2. Press it again to show the maximum temperature
records.
3. Press it again to exit.
Note Press and hold it for 3 seconds to delete the
minimum and maximum temperature records.
USING ICE ALERT FUNCTION
If the outdoor temperature range is -2.0ºC ~ 3.0ºC
(28.4ºF ~ 37.4ºF), the ice alert indicator light will be
turned on and flash.
BATTERY REPLACEMENT
If the low battery icon turns on next to the outdoor
temperature reading, replace the sensor’s battery with
2 AAA batteries.
If the low battery icon turns on next to the indoor
temperature reading, replace the sensor’s battery with
2 AA batteries.
Note
Attention! Please dispose of the used unit or batteries
in an ecologically safe manner.
MAX.temperature records
MIN.temperature records
Low battery indicator
Normal time mode
Alarm time setting mode
PLACEMENT OF MAIN UNIT AND SENSOR
For the sensor, place the screw on the desired wall and
hang the sensor by the recessed hole in the back of it
or simply place it on the desktop.
For the main unit, you can just place it on the table by
itself.
SPECIFICATIONS
Note We recommend that you use alkaline batteries
with this product for longer usage and lithium batteries
in temperatures below freezing.
PRECAUTIONS
•Do not subject the unit to excessive force,
shock, dust, temperature or humidity.
•Do not cover the ventilation holes with any items
such as newspapers, curtains etc.
•Do not immerse the unit in water. If you spill liquid
over it, dry it immediately with a soft, lint-free cloth.
•Do not clean the unit with abrasive or corrosive
materials.
•Donottamper with the unit’s internal components.
This invalidates the warranty.
•Only use fresh batteries. Do not mix new and old
batteries.
•Images shown in this manual may differ from
the actual display.
•When disposing of this product, ensure it is
collected separately for special treatment and
not as normal household waste.
•Placement of this product on certain types of
wood may result in damage to its finish for which
Oregon Scientific will not be responsible. Consult
the furniture manufacturer’s care instructions for
information.
•The contents of this manual may not be reproduced
without the permission of the manufacturer.
•Donot dispose old batteries as unsortedmunicipal
waste. Collection of such waste separately for
special treatment is necessary.
•Please note that some units are equipped with a
battery safety strip. Remove the strip from the
battery compartment before first use.
Note The technical specifications for this product
and the contents of the user manual are subject to
change without notice.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products. If you’re in the
US and would like to contact our Customer Care
department directly, please visit:
www2.oregonscientific.com/service/support
For international inquiries, please visit:
www2.oregonscientific.com/about/international
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference,
and (2)This device must accept any interference
received, including interference that may cause
undesired operation.
WARNING Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
Note This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment
and receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio / TV
technician for help.
DESCRIPTION
81 x 38 x 137 mm
(3.19 x 1.5 x 5.39 in)
433 MHz
-5°C to 50°C (23)°F to 122°F
0.1°C (0.2)°F
3°C to -2°C
(37)°F to 28°F
2 x AA 1.5V batteries
58 x 23 x 100 mm
(2.28 x 0.9 x 3.94 in)
433 MHz
-20°C to 60°C (-4)°F to 140°F
2 x AAA 1.5V batteries
3
TYPE
MAIN UNIT
L x W x H
Signal frequency
Temperature
range
Temperature
resolution
Ice alert
temperature range
Power
REMOTE UNIT (EW-99)
L x W x H
Signal frequency
Temperature range
Power
Number of channel
Transmission range 30 m (98 ft) unobstructed
Weight
Weight
184g
52g
DECLARATION OF CONFORMITY
The following information is not to be used as contact
for support or sales. Please visit our website at
www2.oregonscientific.com/service/support for all
inquiries.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th AVe., Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
Declare that the product
Product No.: EW92
Product Name: Indoor / Outdoor Thermometer
with Radio-Controlled Alarm
Clock and Ice Alert
and ICE alert
Manufacturer: IPM Concepts Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1,41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful
interference.
2) This device must accept any interference
received, including interference that may cause
undesired operation.
C 2009 Oregon Scientific. All rights reserved
