Origin Effects Cali76-TX User manual

Key Features:
• 100% Class-A discrete signal path
• Ultra-fast “FET” response
• Attack & Release presets
• Studio-grade “discrete” preamplifier
• Rugged VU-style meter
• Low-noise electronics
• Optimised for guitar but also great for
processing recorded instruments
• 50 hrs from 9V cell in non transformer mode
• Traditional Through-Hole PCB
• 100% Class-A discrete output-amplifier
• Custom-designed transformer driving a pair
of outputs
• Unbalanced instrument output
• Balanced line output
• Ground-lift function
• Signal-pad for DI (balanced output only)
• Gain-switch adjusts level through
transformer circuitry, for increased saturation
• Voltage sensing circuitry shuts down
transformer circuitry when powered from a
battery or low-voltage supply
The Cali76 is a premium-quality, 1960s-style
FET compressor, inspired by the legendary
Urei 1176. The idea behind this design was to
bring the sonic properties of this revered
studio-classic into the scope of the average
guitar-geek…
The topology of the design was kept true to the
original, whilst the actual circuitry was
carefully condensed. In this way it has been
possible to retain the much-loved dynamic-
response of the original, whilst at the same
time permitting a smaller, more stage-friendly
format!
Origin have also included a studio-grade 1960s-
style discrete preamp, to work as an interface
between your guitar and the compressor. The
preamp provides gain as well as the optimum
conditions for signal transfer.
The transformer output stage works in
conjunction with the pedal to provide the user
with additional tone-options and connectivity.
A custom-designed transformer sits at the
heart of the output stage. The core-size and
material have been selected to contribute
harmonics when driven by the Class-A,
transistor-based, output amplifier.
The Cali76 is a great performance tool, but is
by by no means limited to this task. Recording
guitarists will find the unit highly useful for
post-processing drums, bass and vocals.
Example Settings for Electric Guitar
"FET"BASED STUDIO-STYLE LIMITING AMPLIFIER
INSTRUCTIONS / INFORMATION
Figure 1: Useful Settings: (a) subtle compression; (b) percussive compression;
(c) spongy compression (try "popping" strings when soloing).

Input/Comp Control
The Cali76 features a very nice studio-grade input
preamplifier. This works as an interface between the guitar
and the compressor section. In exactly the same way a studio-
engineer will first amplify a dry guitar signal before applying
additional processing.
The "INPUT/COMP" control allows the user to vary the gain of
this preamplifier. Turning this control clockwise increases the
overall gain of the pedal. This also increases the amount of
compression. The guitar will become increasingly more touch-
sensitive. Too much gain and the preamplifier will clip and
distort.
Compression is greatly reduced at lower gain settings as much
of the signal entering the compressor section falls below the
compressor's internal threshold. Signal level must exceed this
threshold in order to initiate gain-reduction. In this scenario
only the signal-peaks are compressed.
Output
The Output control simply varies the level of signal present at
the pedal's output jack. This can be set in order to keep the
overall effected-level close to the, dry (bypass) signal.
Alternatively, the level can be increased to help project a
guitar solo.
Attack & Release
Attack & Release controls are all too often misunderstood,
which is unfortunate as they are instrumental in achieving a
usable sound. In most cases Attack & Release parameters
should be adjusted to optimise the compressor's dynamic
response to that of a particular instrument. However, they can
also be adjusted to create strong dynamic effects.
The Attack control determines the time taken for the
compressor to react to the presence of a signal, i.e. the delay
from the instant when you play the note, to the moment the
compressor actually reduces the gain. The longer the Attack-
time/delay, the more pronounced the beginning of each note
will sound.
In the context of the guitar - you may make the following
observations when adjusting Attack settings:
Increasing Attack-time highlights the percussive "snap" of
strongly picked notes.
Reducing Attack-time may impart a "spongy" feel to the
character of the compressor - especially when "digging-in" to
single notes!
Reducing the Attack-time to a very short time will result in
undesirable distortion being generated - this will be heard to a
greater extent when playing bass notes.
The Release control determines the duration of any gain
reduction. This would be measured from the time that
compression is triggered to the point that the compressor has
returned to its idle state. For maximum effect when processing
guitar, the Release must be set so that the compressor
responds fully to every note played. If so, the release time
must be short enough for the compressor to fully recover in the
short time between one note ending and the next note
beginning.
Ratio
The Ratio control allows the user to adjust the amount of gain
reduction applied for any given increase in guitar signal. At
the lowest ratio-setting, doubling the input signal (an increase
of 100%) will result in the output increasing by 19%. At the
highest ratio-setting, the output would rise by only 3.5%, for
the same increase in input signal. The latter case represents
"Limiting".
As was the case in the Urei 1176, changing the ratio setting
also varies the threshold level of the unit. This helps to keep
the output at a consistent level, regardless of settings.
Example Settings
Figure 1 presents some useful starting points, intended for use
with guitar. Figure 4 consists of some more examples for use
in processing various recorded instruments.
Bypass Mode (Internal Selection)
In non-transformer mode, i.e. when powering from a battery or
9V supply, the bypass mode can be selected internally by
changing the positions of four internal jumper-
connectors."True-Bypass" can be obtained with all four
jumpers in the lower-position. A low impedance, or buffered-
bypass, mode can be selected by moving all four jumpers to the
upper-position. In buffered-bypass, the pedal will ensure that
signal integrity is preserved even when driving long cable
runs.
Jumpers can be simply pulled away and pushed back into
place. Spare jumpers can be easily obtained if required.
When actively engaged, through the use of an 18V supply, the
transformer-board effectively buffers the signal at all times,
even when the unit is bypassed. For an optimum input
impedance of 1.1MOhms, please get the jumpers to the
buffered position.
Please note that any saturation/overdrive experienced with
the "GAIN" switch set in the "HIGH" position, will also be
audible with the unit set to bypass - just like driving a Urei
1176 with the compression bypassed/defeated. If this proves to
be a problem, you may want to consider purchasing an
external bypass-looper in order to fully bypass the Cali76.
Using an external bypass-looper would give you three useful
pre-sets: dry signal; transformer-coloured dry signal; and
lastly, compressed signal also with transformer colouration.
Figure 2: J4, J5, J6, J7: Bypass Jumper-Connectors.

Input Sensitivity / Jumpers
The latest version of the Cali76 features a set of jumpers that
give the user control over the sensitivity of the unit.
Should you prefer to have the input/gain control set very low,
it could be worth experimenting with the jumper arrangement
shown in figure 3. This will almost certainly help users to
obtain more rotational resolution in a pro-audio set-up, where
signals are relatively large.
Moving the jumper progressively right will result in more
input attenuation and less sensitivity.
Power Requirements:
Battery vs. Supply Operation
The transformer-circuitry consumes a relatively large amount
of supply-current and makes battery operation simply not
viable. For this reason a unique battery-mode of operation
shuts down the transformer circuitry to preserve battery life.
In transformer-mode, the extra current is put to use by the
Class-A transistor output-stage, in order to drive problematic
loads with ease (such as long cable runs as well as the low-
impedance inputs of some vintage studio equipment).
Just as importantly, the extra current-drive can be used to
push the output-transformer into saturation. This generates
frequency-dependant harmonics and subtle overdrive.
Unfortunately, a standard 9V battery just couldn't supply this
level of current for long enough to be practical, as the user
would need to change batteries every few hours to maintain
optimum results. For this reason we decided to opt for an
automatic system that shuts-down the transformer board
when a low-voltage supply is detected and so this applies to
external supplies as well as internal battery-usage.
At low voltages, the signal is "diverted" around the
transformer circuitry via a high-quality relay.
The transformer automatically switches in and out around
12V. Using a supply with a voltage in this region should be
avoided as it may result in the pedal intermittently switching
between transformer-enabled and transformer-bypass modes.
Power Requirements:
General Considerations
The internal 9V battery will provide good-quality operation for
approximately 50 hours. After this time the user may choose
to fit a fresh battery. This can be done easily by removing the
four screws from the base of the enclosure. From here the
new battery just clips into place. Be careful not to knock any
of the components on the circuit-board.
Alternatively, an external supply can be used. A high quality
regulated supply should be chosen to avoid damage from
voltage-surges and other over-voltage conditions. The
connector should be the 2.1mm type with the centre-pin
"Wired-Negative".
For best performance, the pedal should be powered from an
18V supply. This will increase the headroom, allowing cleaner
processing of conventional guitar signals. This will also permit
the use of hotter source signals, such as active guitar pickups.
A PSU with a current rating of at least 200mA is preferable,

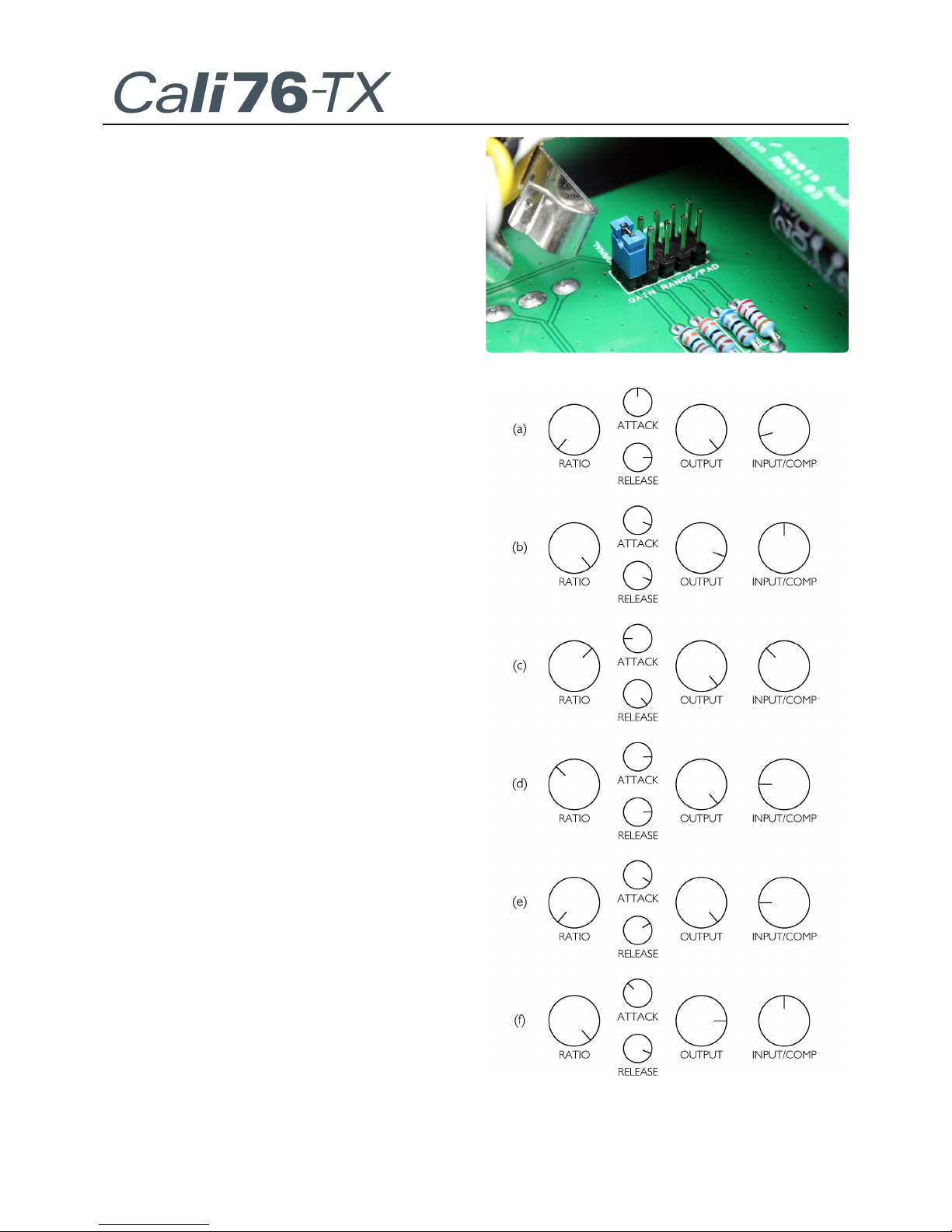

Figure 4: Useful Settings: (a) vocals - subtle compression;
(b) vocals - limiting; (c) acoustic guitar / piano; (d) bass;
(e) drums - subtle compression (famous Dr.Pepper
Setting); (f) drums - "pumping" hard compression.
Note: All source signals normalised to -10dBV.
Figure 3: Input sensitivity jumpers on Cali76TX.

due to the ability to supply sufficient in-rush current to ensure
a clean start-up. Some low current supplies will intermittently
shut-down due to protection circuitry, which results in an
audible relay "flutter".
It's unnecessary to remove the battery when using an external
supply. There is no risk of damage to either the battery,
supply or pedal. However, as is the case with all battery
powered goods, old batteries are prone to leaking and so
should not be left installed for prolonged periods of time.
Output Connections
The standard Cali76 features a single medium-impedance
output. This can be used to connect the pedal to any high-
impedance input, such as the input of a guitar/bass amplifier.
In contrast, the transformer-enabled pedal offers two ultra-
low-impedance outputs.
The "AMPLIFIER" output provides an unbalanced signal
referenced to ground. This is ideal for connecting to your
guitar/bass amplifier.
The "LINE/DI" output provides a fully balanced signal via a
TRS output socket, and can be used to connect to recording
consoles, mixers, sound-cards, mic-preamplifiers etc... Please
note that output signal level does not conform to the +4dBm
professional studio convention, and so some additional
amplification may be required.
The "PAD" switch can be used to drop the signal by around
28dB, and this should give the user enough range to be able to
plug into both line-level, and mic-level inputs.
The "GND" switch (ground-lift) can be used to cure annoying
hums and other ground-loop-related issues.
Usefully, the "LINE/DI" output can be used to feed the input
of a second guitar/bass amplifier by simply using a standard
mono guitar lead. The ground-lift function is a must here as it
will dispense with the ground-loop related hum normally
generated when "Y-connecting" amplifier inputs (especially
true when connecting the inputs of high-gain amplifiers).
Headroom Adjustments: "GAIN" Switch
This switch changes the gain of the output amplifier (i.e. the
amplifier driving the primary of the output transformer).
The "LOW" setting is the "stock/normal" setting. Using the
"HIGH" setting boosts the internal gain by around 9dB.
The "LOW" setting is clean and dynamic. However, when
using the "HIGH" setting, you'll notice that the output-
amplifier and transformer begin to run out of headroom.
Overall the sound is richer in harmonics, becoming "edgy"
sounding and ultimately clipping!
The change in gain can be clearly heard when using the
"LINE/DI" outputs. Using the "GAIN" switch will therefore
require small level-adjustments to be made on any connected
mixing consoles etc...
In contrast, the "AMPLIFIER" output remains at a consistent
level, due to a variable passive-attenuator network that
perfectly counter-acts the level-shifting effects of the "GAIN"
switch. This allows you to monitor the shifting tonal-effects
through your guitar/bass rig, without having to tweak your
amplifier's volume control.
Transformer Options
The Cali76-TX is available with a choice of two transformers.
An iron-core transformer is fitted as standard. The core is
designed to subtly saturate at high levels.
A studio-grade transformer, manufactured by Lundahl, offers
greater linearity and flatter phase response. Often the
preferred choice for studio-use.
About Origin Effects
Origin Effects is the brainchild of Simon Keats, a guitarist,
electronic engineer and analogue circuit designer who has
worked for the likes of Vox, Focusrite and Trident Audio.
Having built bespoke effects for professional musicians and
producers for many years, he launched the Origin Effects
brand in 2012 to bring his exceptional designs to a wider
audience.
His first two pedals - the 1176-inspired Cali76 compressor and
the unique SlideRIG, which chains two 1176-style compressors
together for near-infinite clean sustain - have been widely
recognised as the best pedal compressors ever made. Users
range from guitarists and bass players like David Gilmour,
Pino Palladino and Steve Lukather to Grammy Award-
winning producers like Paul Epworth, Ross Hogarth and
Terry Britten.
In July 2015 Origin introduced five brand-new compressor
pedals. The Origin Compact Series fits the same discrete
Class-A circuitry and peerless 1176-style FET compression
found in the Cali76 and SlideRIG pedals into five compact
stompboxes. The new pedals retain the high-current, low-noise
circuitry and discrete Class-A signal path of the originals,
while adding a host of new features designed with the player
in mind.
Please note that Simon Keats & Origin Effects are in no way
affiliated with Urei or Universal Audio.
T: [phone] E: [email protected]
Origin Effects Limited, First Floor Office, Unit C6 Station
Yard, Thame, Oxfordshire, OX9 3UH, UK.
www.origineffects.com
Figure 5: Transformer comparison: Iron-Core on left; Lundahl
on right.
