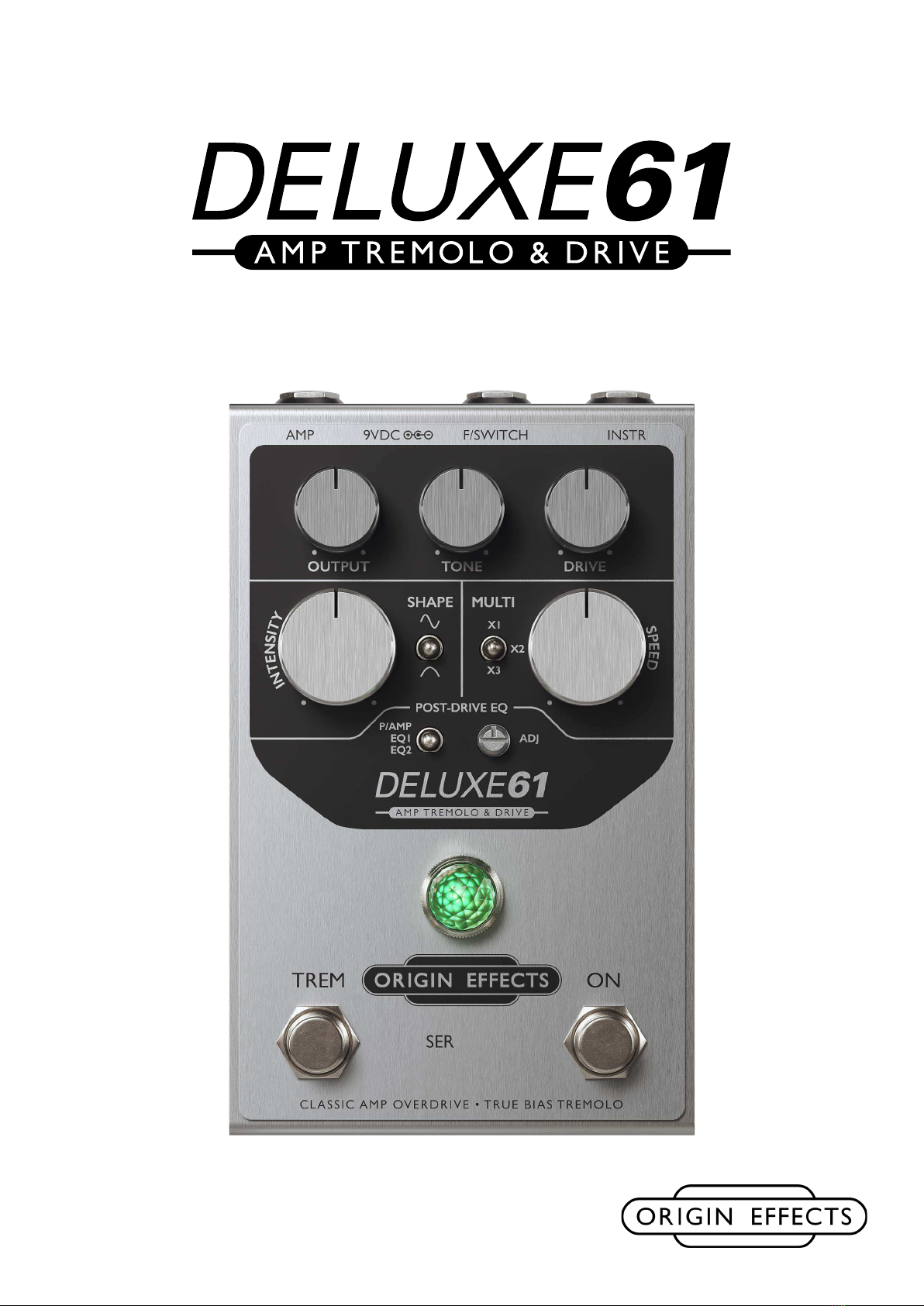

Origin Effects DELUXE61 User manual

OWNER’S MANUAL
Version 1.0

Origin Effects DELUXE61
2
www.origineffects.com
ORIGIN EFFECTS®is a registered trademark of Origin Effects Limited.
All other product names and trademarks are the property
of their respective owners and are hereby acknowledged.
MARSHALL® is a registered trademark of Marshall Amplication PLC.
Origin Effects has no afliation with Marshall Amplication PLC.
BOSS®is a registered trademark of the Roland Corporation.
Origin Effects has no afliation with the Roland Corporation.
FENDER®is a registered trademark of Fender Musical Instruments Corporation.
Origin Effects has no afliation with Fender Musical Instruments Corporation.
No part of this publication may be reproduced in any form or by any means, whether
mechanical or electronic, without the written permission of Origin Effects Limited.
Origin Effects Limited reserves the right to change the features and specications described
herein without notice or obligation. Origin Effects Limited cannot be held responsible for any
loss or damage arising directly or indirectly from any error or omission in this manual.
PLEASE READ ALL INSTRUCTIONS, PAY ATTENTION TO SAFETY WARNINGS.
Document version 1.0
© Origin Effects Limited 2021
IMPORTANT:
This product is designed to be powered from a 9VDC, >100mA
power supply with 2.1mm centre-negative barrel connector.

Origin Effects DELUXE61
3
Contents
Introducing the DELUXE61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting the DELUXE61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Main Controls: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
POST-DRIVE EQ Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting Your POST-DRIVE EQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Sample Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Appendix A: Physical Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Appendix B: Performance Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Appendix C: Connector Pin Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Appendix D: Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix E: Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4
Origin Effects DELUXE61
Introducing the DELUXE61
The DELUXE61 is an all-analogue amp recreation which captures the thick overdrive tones and beautiful bias
tremolo of the revered Fender®Brown Deluxe amp. We have gone to great lengths to recreate every detail
of this iconic amplier, bringing you the tones, feel and response of this classic combo in one industrial-grade
pedal.
First released in 1961, this modest, little amp is still one of history’s most sought-after guitar tones, thanks
largely to its tremolo circuit. Bias tremolo is considered by many to be the most musical of all the tremolo types
due to its natural, pulsating character. Because the tremolo acts on the amp’s output valves, overdriven sounds
will let you “play through” the tremolo. The eect disappears when you pick hard, slowly fading back in as the
note dies away – you can control the tremolo eect with your picking dynamics or your guitar’s volume knob!
The DELUXE61’s circuit includes an entire push-pull output stage, complete with an output transformer and
reactive load, which means this pedal’s tremolo is every bit as responsive as the real thing – but with the added
versatility of tap tempo and a speed multiplier switch.
With our powerful Post-Drive EQ, the warm cleans and gritty overdrive of the DELUXE61 will always sound
their best, whether it’s plugged into an amp, a at power amp or direct to a recording interface or PA.
Key Features:
All-Analogue Amp Recreation
Including:
• Rich clean tones and growly overdrive voiced
after the 1961 Fender®Brown Deluxe
• True bias tremolo with authentic, touch-sensitive
dynamic response
• Complete valve amp-style signal path
using discrete, transistor-based circuitry
Flexible, Intuitive Controls:
• Footswitch input jack for tap tempo and eects
swither integration
• Powerful tone-shaping POST-DRIVE EQ
Peerless Build Quality:
• High-current, low-noise electronics
• Ultra-high input impedance
• High-quality buered bypass
• Advanced power supply ltering and
protection
• Premium components throughout
• Designed and built in England

5
Origin Effects DELUXE61
Connecting the DELUXE61

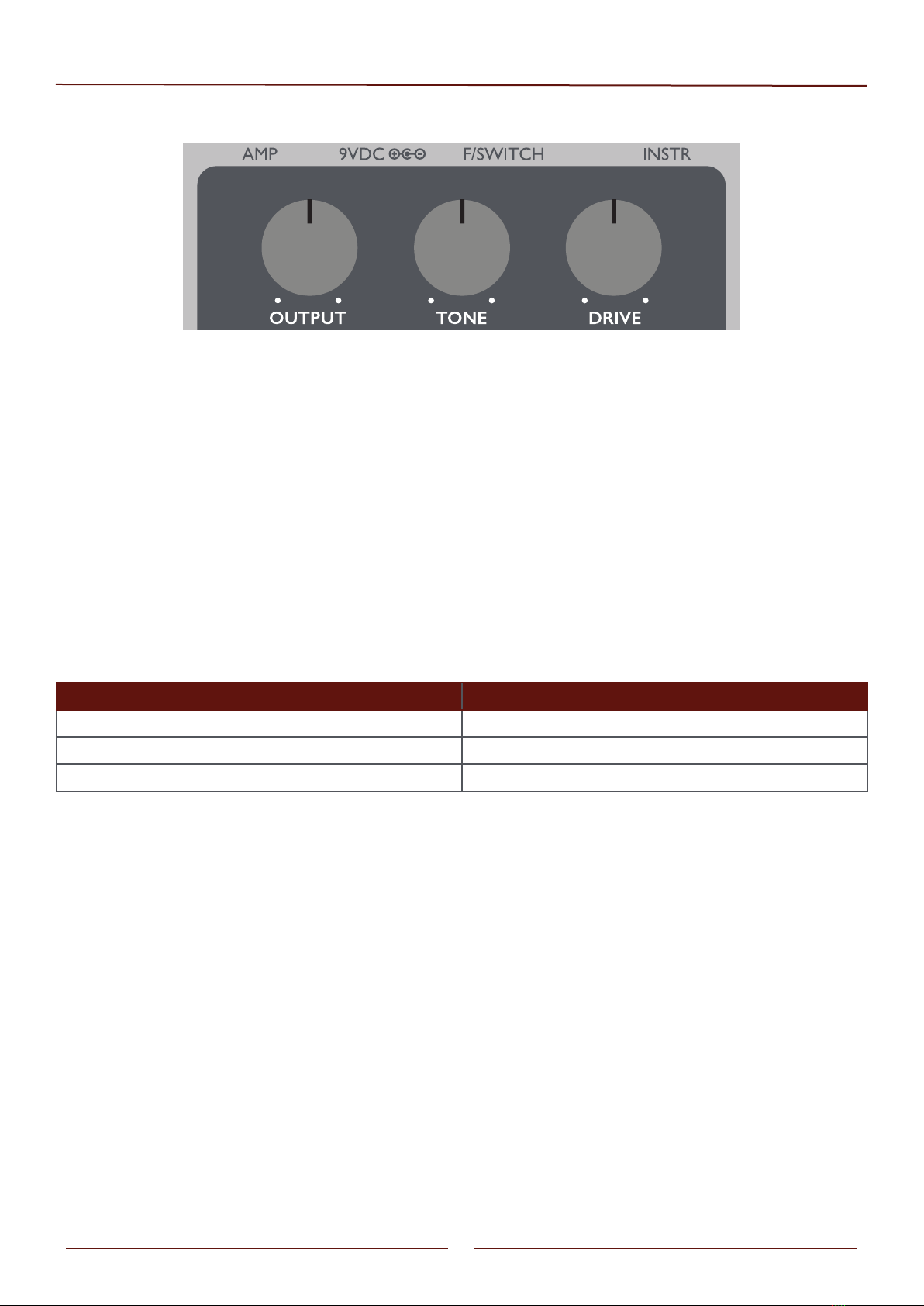

9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 100mA).
INSTR: Connect to your guitar, bass or other instrument.
AMP OUT: Connect to your amp or power amp.
F/SWITCH: Connect to an external footswitch or eects switching system to allow control over the following:
Tap Tempo - this sets the tremolo speed remotely by sensing the time between two pulses. The tap
rate will be multiplied by the setting of the MULTI toggle switch.
TREM - the tremolo enable function can be switched from the F/SWITCH jack as well as from the
stomp switch, allowing recall over a range of sounds.
The F/SWITCH input is wired as follows:
CONNECTOR PIN FUNCTION
Tip Tap Function
Ring Tremolo Enable
Sleeve Ground
The Tap Tempo function can also be used by connecting a momentary footswitch via a TS jack.
Effects Switching Systems: When connecting eects switching systems such as the Boss®ES-8 or
The GigRig G2 using a TRS lead, the tip should be congured for momentary operation to send tempo pulses, while
the ring should be set for latching operation. Both functions are activated by shorting the respective pin to the sleeve
(ground) pin.

6
Origin Effects DELUXE61
Main Controls
ON (footswitch): Turns the pedal on and o. When the pedal is engaged, the LED will illuminate. When
the tremolo is active, the LED will ash green (at the tremolo speed). When the tremolo is bypassed, the
LED will light up red. Please note: as the tremolo is part of the emulated amp circuitry, it cannot be activated
independently.
DRIVE: The DRIVE control behaves like the volume knob on a vintage non-master-volume guitar amplier.
Set anticlockwise for clean sounds, or turn it up for more overdrive.
TONE: Turn the TONE knob clockwise for a brighter sound. Turn anticlockwise to tame highs. True to the
simple but eective tone controls found on small Fender® amps from the Tweed and Brown eras, the DRIVE
and TONE controls are highly interactive. At lower DRIVE settings, the TONE knob will boost high frequen-
cies above the 12 o’clock poisition and cut highs below 12 o’clock. With DRIVE pushed past 12 o’clock, the
TONE control progressively loses the ability to boost until, with DRIVE at maximum, it’s essentially a high cut
control.
OUTPUT: The output control sets the pedal’s overall output level. This control comes after the pedal’s
simulated valve amp circuitry, meaning that you can adjust output level without aecting the tone or character
of the overdrive.
SPEED: Turn clockwise to increase the rate of the tremolo eect. The range of the SPEED control is set by
the three-position MULTI switch.
INTENSITY: The INTENSITY knob controls the depth of the tremolo – in other words, how much the
tremolo will vary the amplitude of the signal. Turn clockwise to increase the depth of the eect.

7
Origin Effects DELUXE61
POST-DRIVE EQ Controls
The POST-DRIVE EQ ensures compatibility with a wide range of ampliers. Instead of altering your amp or
its tone controls to suit the DELUXE61, set your amp for the desired clean sound then use the EQ controls
to tailor the pedal’s output accordingly.

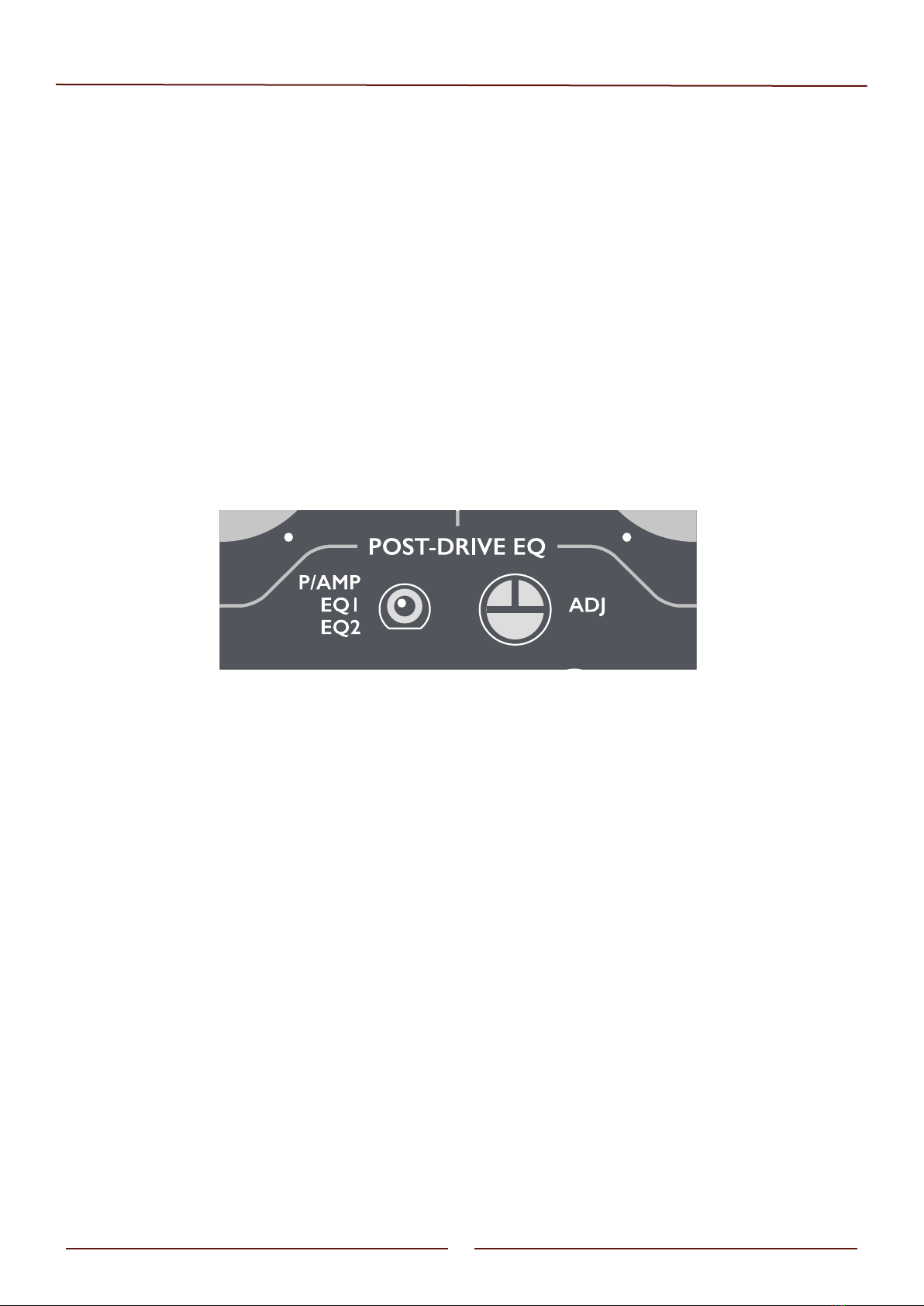

POST-DRIVE EQ switch: This switch oers a choice of three dierent output lters.
P/AMP: Use this setting when plugging into a at-response power amp, mixer or recording interface. Select-
ing the P/AMP setting disengages the ADJ variable lter control (see below).
EQ1: Designed to suit the response of a Black Panel Fender®-style amp, EQ1 applies a low-pass lter to roll
o excessive highs. Use this setting when plugging into a bright-voiced guitar amp.
EQ2: Voiced for connecting to a Marshall®-style amp, EQ2 applies a high shelf cut to gently rein in high fre-
quencies. Use this setting when plugging into a fuller-sounding, mid-rich amp.
MULTI: The MULTI switch multiplies the tremolo speed set by the SPEED knob (x1, x2 or x3). This is par-
ticularly useful when using an external tap tempo footswitch, letting you set tremolo speeds much faster than
your foot can tap.
SHAPE: The SHAPE switch allows you to choose between two dierent LFO waveforms.
SINE WAVE (up) – This is the classic bias tremolo sound – ultra-smooth, rounded and musical.
FULL WAVE (down) – This setting uses an asymmetrical waveform with a ‘choppier’ feel. This
more obvious tremolo sound can be useful at slower speeds or when playing with more overdriven
sounds.
Main Controls (continued)

8
Origin Effects DELUXE61
SettingYour POST-DRIVE EQ
Use the tables below to help you set up the DELUXE61 for the rst time with a new guitar amplier or
at-response device. Working through Steps 1 and 2 allows you to “set-and-forget” the POST-DRIVE EQ
controls and move on to having fun dialling in your ideal tone with the main controls.
Step 1: Set POST-DRIVE EQ switch for the connected amp or device.
AMPLIFIER OR CONNECTED DEVICE POST-DRIVE EQ SWITCH POSITION
Power amp & guitar speaker
Mixing desk & cabinet simulation
Recording interface & cabinate simulation
P/AMP
Bright, mid-scooped guitar amplier EQ1
Dark or mid-rich guitar amplier EQ2
Step 2: Fine-tune the POST-DRIVE EQ with the ADJ control*
HOW IS THE DELUXE61’s TONE? ADJ CONTROL POSITION
Too bright or thin Clockwise
Too dark or woolly Counterclockwise
Just right! Leave in this position and enjoy using the pedal!
*Please note: the ADJ control is not active when the POST-DRIVE EQ switch is in the P/AMP position.
ADJ: When EQ1 or EQ2 is selected, the ADJ knob lets you ne-tune the pedal’s output to suit the individ-
ual response of your amp and the way its controls are set. As you turn the ADJ knob counterclockwise, this
proprietary lter design gradually rolls o bass and adjusts the high shelf response. The end result is a very
powerful and intuitive control. If your amp sounds too bright or thin with the DELUXE61 engaged, turn the
ADJ control clockwise. If it sounds too dark and wooly, turn the ADJ control counterclockwise.
POST-DRIVE EQ Controls (continued)

9
Origin Effects DELUXE61
Sample Settings
Dynamic Deluxe
Inspired by our original 1961 Brown Deluxe. These
settings deliver a harmonically rich, dynamically
responsive tone. Set the SHAPE switch to the sine
position and the MULTI switch to X2 for an
authentic ‘60s American Tremolo eect.
On the Edge
These settings lend themselves to the interactive
drive tones of the DELUXE61. Vary your playing
dynamics to achieve both expressive cleans and
edge of breakup tones. The full-wave shape pro-
vides a less symmetrical, chopping tremolo eect.
Classic Tremolo
The DELUXE61 cleans up nicely, just like an amp!
In order to achieve a clean tremolo setting, dial
back the DRIVE control and compensate for any
loss of volume with the OUTPUT control. These
specic tremolo settings will deliver a slow, pulsat-
ing eect.
Deluxe Drive
Pure Texas blues rock overdrive. Pushing up the
DRIVE control introduces a harmonically rich,
driven tone that’s almost fuzz-like. Recreate that
‘cranked combo’ feel for chewy rhythm tones and
creamy leads.

10
Origin Effects DELUXE61
Measurement Unboxed Boxed
Weight 870g (30.7oz) 973g (34.3oz)
Length 147mm (5.7”) 160mm (6.2”)
Depth 93mm (3.6”) 115mm (4.5”)
Height 60mm (2.3”) 95mm (3.7”)
Measurement Value
Input impedance 1M Ω
Output impedance 1k Ω
Current draw 100mA
Power supply requirements 9VDC 2.1mm centre negative connector
Pin Description
Tip Signal
Sleeve Ground
Appendix A: Physical Specication
Appendix B: Performance Specication
Footswitch 1/4” TRS socket:
Instrument & Amplier 1/4” TS Sockets:
Pin Description
Tip Tap Function
Ring Vibe Enable
Sleeve Ground
Appendix C: Connector Pin Out

11
Origin Effects DELUXE61
Appendix D: Safety Notices
General Safety
Keep these instructions and heed all warnings. Do not use this apparatus near water. Clean only with
a dry cloth. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including ampliers) that produce heat. Refer all servicing to qualied service personnel.
When using an external power supply, use only attachments/accessories specied by Origin Effects.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus. Do not defeat the safety purpose of the polarised or
grounding-type plug. A polarised plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet. Unplug this apparatus during lightning storms or when unused for long periods of time.
CAUTION! No user-servicable parts inside. In the event of damage to the unit service or
repair must be done by qualied service personnel only.
This Product is CE compliant.
This product is UKCA compliant.
FCC Certication
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

12
Origin Effects DELUXE61
Appendix D: Safety Notices (continued)
The crossed out wheely bin symbol indicates this product is classied as Waste Electrical
and Electronic Equipment (WEEE) in the European Union and should not be discarded
with household waste. Other territories may vary. Contact your local authority or Origin
Effects for more information.
This product conforms to the European Union’s directive 2011/EU on Restrictions of
Hazardous Substances (RoHS).
WARNING: This product can expose you to chemicals including nickel, which is known to
the State of California to cause cancer. For more information, go to
www.P65Warnings.ca.gov
Evaluation of apparatus based on altitude not exceeding 2000m. There may be some
potential safety hazard if the apparatus is operated at altitude exceeding 2000m.
Evaluation of apparatus based on temperate climate conditions only. There may be some
potential safety hazard if the apparatus is operated in tropical climate conditions.
Appendix E: Warranty
This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to
original purchasers who have bought their product from an authorised Origin Effects dealer or directly from
Origin Effects.
All returns or servicing should be arranged through the original dealer. Proof of original ownership may be
required in the form of a purchase receipt.
For full warranty details visit www.origineffects.com/warranty.
<2000m
RoHS
