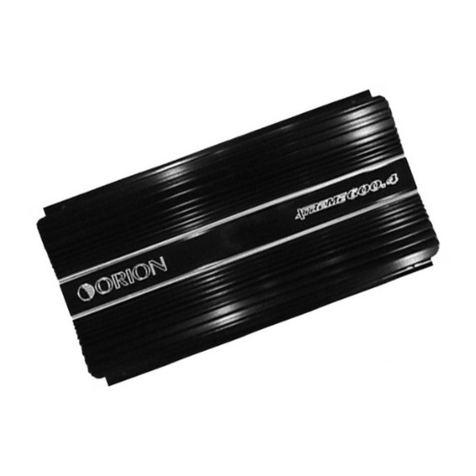

Orion XTREME 600.4 User manual

Orion

Orion XTREME 600.4 User manual

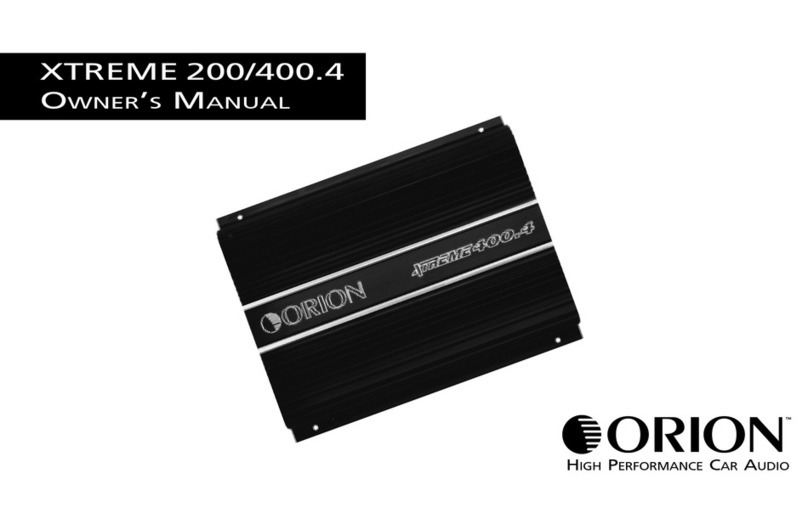

Orion XTREME 400.4 User manual

Orion

Orion XTREME 400.4 User manual

Orion HCCA25001 User manual

Orion

Orion HCCA25001 User manual

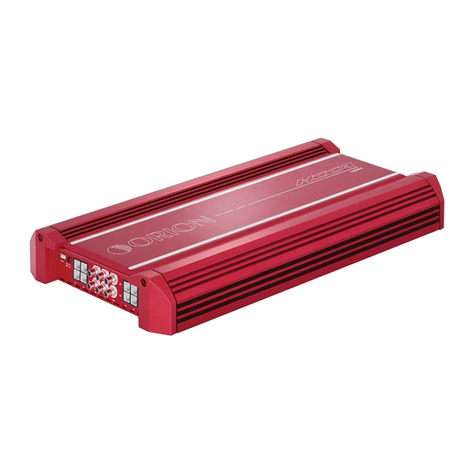

Orion HCCA10002 User manual

Orion

Orion HCCA10002 User manual

Orion COBALT CB3000.4 User manual

Orion

Orion COBALT CB3000.4 User manual

Orion Cobalt CO500.1 User manual

Orion

Orion Cobalt CO500.1 User manual

Orion HP-2300 User manual

Orion

Orion HP-2300 User manual

Orion Cobalt CO800.1 User manual

Orion

Orion Cobalt CO800.1 User manual

Orion HCCA10002 User manual

Orion

Orion HCCA10002 User manual

Orion HCCA12200.2 User manual

Orion

Orion HCCA12200.2 User manual

Orion Cobalt CO300.2 User manual

Orion

Orion Cobalt CO300.2 User manual

Orion CO2400.1D2 User manual

Orion

Orion CO2400.1D2 User manual

Orion ORION D5000 User manual

Orion

Orion ORION D5000 User manual

Orion 425 HCCA User manual

Orion

Orion 425 HCCA User manual

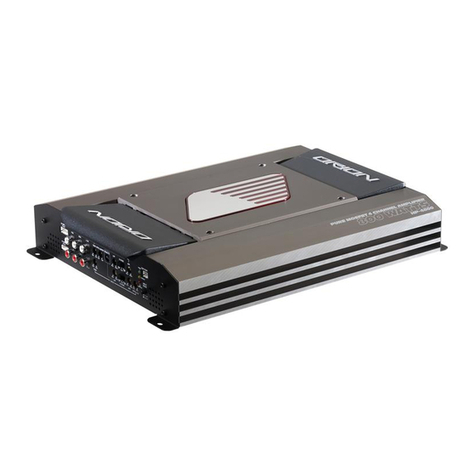

Orion HP-2800 User manual

Orion

Orion HP-2800 User manual

Orion ORION WCC 1600.2 User manual

Orion

Orion ORION WCC 1600.2 User manual

Popular Car Amplifier manuals by other brands

Boss Audio Systems US140 user manual

Boss Audio Systems

Boss Audio Systems US140 user manual

Boss Audio Systems FNX2000 user manual

Boss Audio Systems

Boss Audio Systems FNX2000 user manual

Pioneer GM-D8500M owner's manual

Pioneer

Pioneer GM-D8500M owner's manual

MTX Thunder Marine TM904 user guide

MTX

MTX Thunder Marine TM904 user guide

MTX Thunder TA Super TA92001 Connection guide

MTX

MTX Thunder TA Super TA92001 Connection guide

Lanier 480-0239 Material safety data sheet

Lanier

Lanier 480-0239 Material safety data sheet

Kenwood KAC-642 instruction manual

Kenwood

Kenwood KAC-642 instruction manual

Sony XM-405EQX Marketing Specifications Product guide

Sony

Sony XM-405EQX Marketing Specifications Product guide

Jensen XA4150 owner's manual

Jensen

Jensen XA4150 owner's manual

Audiopipe AQX-660.2 owner's manual

Audiopipe

Audiopipe AQX-660.2 owner's manual

Clarion APA2001  APA2001 APA2001 Owners & installation manual

Clarion

Clarion APA2001 APA2001 APA2001 Owners & installation manual

Cyfre CHACDMA-819 installation manual

Cyfre

Cyfre CHACDMA-819 installation manual

Sony XM-7547 Service manual

Sony

Sony XM-7547 Service manual

Alpine PDX11000 - Amplifier Review guide

Alpine

Alpine PDX11000 - Amplifier Review guide

Steg Qx Mos 105.4x user manual

Steg

Steg Qx Mos 105.4x user manual

Jensen PS1220M Installation & operation manual

Jensen

Jensen PS1220M Installation & operation manual

Kenwood KAC-8105D instruction manual

Kenwood

Kenwood KAC-8105D instruction manual

Pioneer GM-5000T owner's manual

Pioneer

Pioneer GM-5000T owner's manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Technical Brief : Revised Manual
300 PSW in-dash pre-amplifer /
equalizer
For questions on this or any other Orion Products, call Technical Support at 1-480-705-5600.
The 300PSW is a 1/2 din
preamplifier and 3 band
parametric equalizer with a fader
control and seperate subwoofer
output. It has an RCA input and
can be run off of phantom power
through the din cable or can be
wired directly. The Subwoofer
output has level and crossover
frequency adjustments.
Outer Knobs
Front/Rear
Fade
Sub woofer
X-over freq Adjust Center Frequencies
(30hz-90hz) (100hz-500hz) (4.5khz-12.5khz)
Illumination
Wires
Back View
RCA Input Front RCA
Output
Rear RCA
Output
Sub woofer
RCA Output Front DIN
Output Power Wires
Setting the Gains (On top of 300PSW)
Left Gain
Right Gain
Specifications
Input Voltage
Output Voltage
Sub Woofer Crossover Frequencies
Low Frequency EQ Band
Mid Frequency EQ Band
High Frequency EQ Band
Signal to Noise
THD
Stereo separation
Input Impedance
Output Impedance
Dimensions
Up to 3v RMS
Up to 9V RMS
35Hz to 200Hz
Sub Woofer Crossover Slope 12dB per Octave
35Hz to 90Hz
100Hz to 500Hz
4.5kHz to 12.5kHz
Boost/Cut on EQ Bands +/- 12dB
0.03%
98dB
10Kohms
100ohms
80dB
7" Wide
1" High
4 3/4" Deep
Inner Knobs
Volume Subwoofer
Volume Cut or Boost Controls +/- 12dB
Low Mid High
Description
Technical Information
-Main Volume control effects all outputs
-Subwoofer volume effects volume of
sub out only.
-For the Three EQ Controls, the outer knobs
offer frequency adjustments and inner
knobs offer +/- 12dB of boost/cut.
-The gain controls on the top of the PSW
adjust the input sensitivity.
