Orion MIS-4220 User manual
Thank you for purchasing our MPDP.
Please read through this user's manual for safety before installing this product.
This product is manufactured for Multi Plasma display model only.
• 2008.03.05
A revolutionary MPDP
Infinitely Expandable MPDP
User’s Manual
MIS-4220 / MIS-4220R
MIS-4230
A revolutionary MPDP
Infinitely Expandable MPDP
Address: 257, Gongdan-dong, Gumi-si, Gyeongsangbuk-do, Korea
Tel : +82-2-6678-8523, Fax: +82-2-6678-8599
ORION PDP CO.,LTD.
www.oriondisplay.net
Downloaded From TV-Manual.com Manuals
1
Infinitely Expandable
Wall mounting Unit
(refer to page 11)
Stand Unit
(refer to page 10)
RS-232C Distributor
Necessary for connecting more
than 10 units.
Remote Controller
Receiver Set
1 Input, 6 Output
User's Manual Multi-Screen Control
System(MSCS) Guide Pin(4pcs) Handle (2 pcs)
RS232 Cable Bolt (4 pcs)
DVI-D Cable Power Cable
Supplied Accessories
Optional Accessories
..............................................................2
..................................................................................................6
..............................................................................................................8
..............................................................................................14
....................................................................................16
4.1. Connection of one set MPDP .................................................................................16
PC & DVI Connection .............................................................................................16
VCR Connection ......................................................................................................18
DVD Player & DTV Set top box connection .........................................................20
4.2. Connection of Multi-screen MPDP ........................................................................22

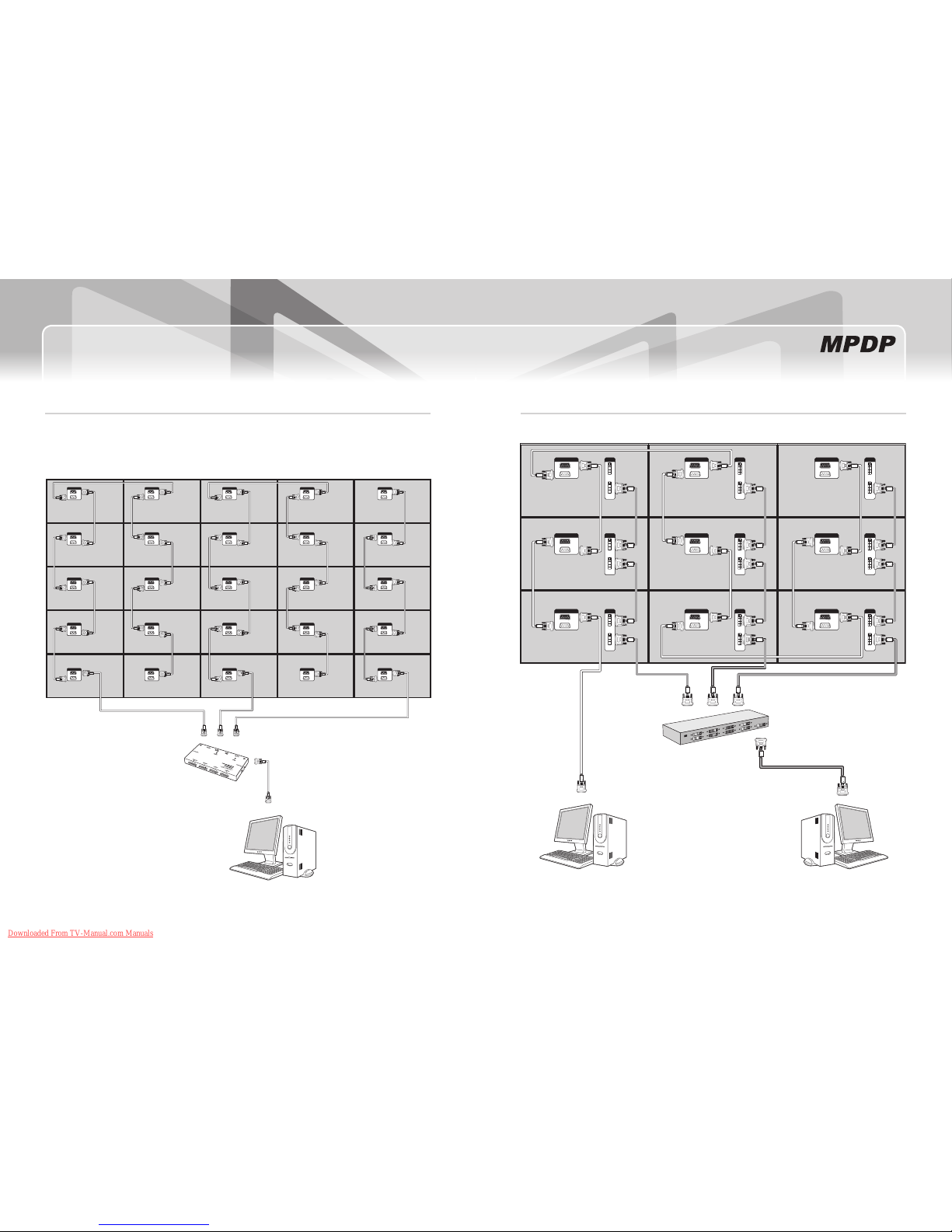

4.3. Connection of RS-232C Cable ..............................................................................24
4.4. Connection of 3 x 3 MPDP .....................................................................................25
4.5. ID setting of X x Y MPDP .......................................................................................26
................................................27
5.1. Installation .................................................................................................................27
5.2. MSCS 실행하기 .........................................................................................................28
5.3. Setting 'Com Port' ....................................................................................................29
5.4. "New design/Last design" setting ..........................................................................29
5.5. Setting 'Multi-Screen' Configuration .......................................................................30
5.6. MSCS Instruction ....................................................................................................31
5.7. ID Setting ..................................................................................................................31
5.8. Configuration of various modes .............................................................................32
5.9. Setting multi screens at a time ...............................................................................33
5.10. Slide Control ...........................................................................................................34
5.11. Screen Control .......................................................................................................36
5.12. PC Tracking ..........................................................................................................37
5.13. BIC Control (MIS-4230 only) ................................................................................38
Burn-In-Compensation Control Method ...............................................................41
BIC Intervals and effect ...........................................................................................41
5.14. Orion PDP Home Page logon and Version information .....................................42
.......................................................................................................43
※Attachment : ASCII to HEX Conversion Table ..................................................51
※Hex code value according to Set ID ................................................................51
....................................................................................................................52
7.1. Before calling for service ........................................................................................52
7.2. About Plasma display panel ...................................................................................53
................................................................................................54
8.1. DVD / DTV ...............................................................................................................54
8.2. PC & DVI...................................................................................................................54
(MIS-4220/4220R/4230) ..............................................................55
If you fail to comply with the regulations for safety and proper use,
fire or injury may be caused.
Warning
Features of MPDP
▶Enjoy a wide flat screen with high brightness and high quality.
▶Easy to install and move due to its thin design
▶ Enjoy your favorite programs with various split-screen features simultaneously presenting
several programs.
Thank you for purchasing our MPDP monitor.
This manual describes how to use the product and notes in use.
Please read the manual carefully before using it.
After reading this manual, please retain for future reference.
If you have any questions or a problem occurs, please contact either the company you purchased this
product from or an authorized service center.
※Displaying static picture for an extended period of time may cause an burn-in effect.
Notice to users
Class A digital device
It is a device designed for business purpose with a safety certificate for electromagnetic interference, which
user should be mindful of.
MAIN FRAME
(refer to page 12~13)
PWR
DVD
CVBS
Y/C
B.CA
T.P.
STB
PC
DVI
DTV
Downloaded From TV-Manual.com Manuals
2
MIS-4220 / MIS-4220R / MIS-4230
3
Infinitely Expandable
-Shock/Impact on the set's sides will result in
internal circuit damages.
-The edge/bottom of the panel are fragile.
Use shock-absorbing pads or rugs for laying
down the product.
Please do not stand PDP•
alone. It may fall or slip
off and Panel can be
broken or damaged.
If you need to stand PDP, •
you must use handles on
the back and lean over
the PDP to avoid panel
touches ground or floor.
Please do not lean over•
the PDP. It may damage
the bottom part of the
PDP.
If you need to lay down•
PDP as face down
position, please use
shock-absorbing pads
under the PDP.
Please do not lean over the•
PDP toward the edge part.
It may damage the edge
part of the PDP.
If you need to lay down•
PDP as face up position,
please be cautious for
falling objects on the
surface of the PDP.
PANEL PANEL PANEL
PANEL
CUSHION
PANEL
- This product can be damaged even with minor
impact for its nature.
Please keep following instruction to carry or
store the products.
Downloaded From TV-Manual.com Manuals
4
MIS-4220 / MIS-4220R / MIS-4230
5
Infinitely Expandable
Please do not touch the panel with your hand.
PANEL
MASTER FRAME
MIS-4220•
MIS-4230•
MIS-4220R•
It has to be handled with
care, because the panel
glass substrate is exposed
without side cover.
Although Panel is protected
with a Side cover, it is still
sensitive to the impact or
shock from outside.
Downloaded From TV-Manual.com Manuals
6
MIS-4220 / MIS-4220R / MIS-4230
7
Infinitely Expandable
Do not poke the front screen with sharp•
material. It may damage the screen and
may cause malfunction of the product.
Do not lean against the product or keep•
it leaned. It may cause injury or failure.
Do not put it at any place with much•
humidity, dust, oil, smoke or steam. It
may cause failure.
If you do not want to use the product•
for a long time, keep the power plug
unplugged to save electricity.
The socket-outlet should be installed•
near the equipment and be easily
accessible.
Do not put any heavy object on it.•
It may cause failure.
Do not pull out or hang down the•
connection cable. It may damage the
cord to cause fire or electric shock.
Pull out the power plug by holding the•
plug. Otherwise, it may damage the
power cord to cause fire or electric
shock.
Do not ride or step on the product It may•
cause breakage when fallen down.
When moving it, disconnect the•
connecting cable. Otherwise, it may
damage the cable to cause fire or
electric shock.
Install the product on safe and flat•
surface.
Do not put candles on the product. If the•
liquid flows inside the product. It may
cause electric shock or fire.
Do not touch product’s front surface with•
hand. Otherwise, the image quality can
be lowered.
If it operates abnormally, stop using it•
immediately.
Please refer to a specialized•
construction company for installing stand
or wall mount unit. Otherwise, damage
or injury may be caused.
Avoid any action to damage the power•
cord or power plug. It may cause fire or
electric shock.
Do not alter (or disassemble) the•
product. It may cause electric shock
since high voltage is flowing inside.
Do not place any liquid-containing•
container on it. If the inside is wet, it
may cause electric shock or fire.
Do not touch the device when lightning•
strikes.
Do not pull out the power plug with a wet•
hand. It may cause electric shock.
Do not install the product where it may•
be exposed to direct sunlight or near
any heating device. It may shorten the
product's life span or cause failure.
Do not put any foreign material into•
the product. It may cause a failure or
shorten the life span.
Do not install in an unstable location•
It may cause injury.
Do not exceed ratings of AC outlet•
or extension cords. It may cause failure.
Make sure the product is not covered•
with any object. If the ventilation hole is
blocked, the inside temperature may rise
to cause overheating resulting in fire.
Downloaded From TV-Manual.com Manuals
8
MIS-4220 / MIS-4220R / MIS-4230
9
Infinitely Expandable
Install this set only at a location where adequate ventilation is available. y
※ Please check front and rear side before you cut the bag to prevent any damages
on panel or set.
Please hold the handles in the back and the front bottom part at the same time.
- Please do not grab the panel, but grab bottom of master frame when you carry or install the products.
- Please use gloves when you carry or install the products.
※
-Please make sure to use panel protection when you move, carry or rent MPDP.
Handles
Packing Bag
[Figure 1]
[Figure 3]
[Figure 2]
[Figure 4]
Panel protection
Panel protection
Panel
Master frame
MPDP
Handles
Panel protection
Downloaded From TV-Manual.com Manuals
10
MIS-4220 / MIS-4220R / MIS-4230
11
Infinitely Expandable
Please secure minimum clearance as shown in the picture for adequate ventilation and technical service.
The set can be installed as shown below. y
(For further information, refer to the optional 'Stand Installation and Setup Guide'.)
The set can be installed on the wall as shown below. y
(For further information, refer to the optional 'Wall Mounting Bracket Installation and Setup Guide'.)
Please secure minimum clearance as shown in the picture for adequate ventilation and technical service.
Please do not install our product at following locations to protect the product and y
prevent possible malfunction.
- Places of vibration or shock: PDP set may fall and damaged
- Next or near to Sprinkler sensors: The sensors may detect heat from a set and sprinkler can be activated.
- Around high voltage power lines: Noise from the power line may affect screen images
- Around heating apparatus: PDP set may be overheated and damaged.
Please check the ystability of wall.
If the wall is not strong enough, reinforce the wall before installation.
Please connect all the cables to proper ports in a set before installation. y
Hanger
Hanger Bolt
PDP
Hanger
Guide Pin
Hanger Bolt
PDP
Stand Stand
Guide Pin
Downloaded From TV-Manual.com Manuals
12
MIS-4220 / MIS-4220R / MIS-4230
13
Infinitely Expandable
Please secure minimum clearance as shown in the picture for adequate ventilation and technical service.
The set can be installed as shown below. y
(For further information, refer to the optional 'MAIN FRAME Installation and Setup Guide'.)
The set can be installed on the wall as shown below. y
(For further information, refer to the optional 'MAIN FRAME Installation and Setup Guide'.)
Please secure minimum clearance as shown in the picture for adequate ventilation and technical service.
Please do not install our product at following locations to protect the product and y
prevent possible malfunction.
- Places of vibration or shock: PDP set may fall and damaged
- Next or near to Sprinkler sensors: The sensors may detect heat from a set and sprinkler can be activated.
- Around high voltage power lines: Noise from the power line may affect screen images
- Around heating apparatus: PDP set may be overheated and damaged.
Please check the ystability of wall.
If the wall is not strong enough, reinforce the wall before installation.
Please connect all the cables to proper ports in a set before installation. y
Hanger
Hanger Bolt
PDP
MAIN
FRAME
WALL BRACKET
Guide Pin Guide Pin
Hanger
Hanger Bolt
PDP
MAIN
FRAME
Downloaded From TV-Manual.com Manuals
14
MIS-4220 / MIS-4220R / MIS-4230
15
Infinitely Expandable
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FA N
❶
❷
❸
❹
❺
❻
❼
❽
1. RS-232C
MPDP Control, Firmware Upgrade, 9pin D-sub
2. Video
Composite Signal
NTSC, PAL, SECAM
3. S-Video
S-Video Signal
NTSC, PAL, SECAM, 4pin Mini Din
4. Component
DVD Signal
DTV - YPbPr Signal
5. PC
Computer RGB Analog Signal, D-sub 15pin
6. DVI-D
TMDS Signal
7. ID Switch
Set ID Switch
8. AC Input
AC 100V ~240V, 50/60Hz
Example of ID Switch setting y
- You can set ID with 2 rotary switches as shown in the following figure.
[PDP ID 01]
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
[PDP ID 15]
10 digit single digit
10 digit single digit
y
LED ON OFF
LED Indication Description
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
M-ON
M-STB
FAN
S-ON No Power.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
M-ON
M-STB
FAN
S-ON Internal System Check after Power on.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
M-ON
M-STB
FAN
S-ON System ready.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
M-ON
M-STB
FAN
S-ON
Power ON by MSCS Program.
(M-ON and S-ON LED will sequentially blink
with 1 second interval.)
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
M-ON
M-STB
FAN
S-ON
Power Off by MSCS Program.
(System ready).
Remark)
M-ON(Master-ON) : IP Board Master Power On.
FAN : FAN POWER ON, IF Red LED on IP board is turned on, please check FANs.
M-STB(Master- Stand By) : IP Board Master Ready
S-ON(Slave-ON) : IP Board Slave Ready
Downloaded From TV-Manual.com Manuals
16
MIS-4220 / MIS-4220R / MIS-4230
17
Infinitely Expandable
MPDP and PC should be connected; a Com Port in a PC and RS-232C IN port in a y
MPDP is connected with supplied RS-232C cable.
MPDP On/Off or Screen adjustment can be controlled by MSCS (Multi-Screen Control y
System).
ID setting on the backside of MPDP must be identical with the ID setting in MSCS to y
control MPDP with a PC.
If you do not have Com Port, you need to use an USB converter for RS-232. Depending y
on manufacturers or models, converters may cause malfunction.
PC
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FAN
[PDP ID 1]
ID switch must be set as ID 1 y
for one set use.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
PC (MSCS) to control MPDP
RS-232C (Maximum 15m)
PC- analog connection (Maximum 5m)
DVI connection (Maximum 5m)
※ If you need longer connection, please use
DVI boosters or DVI fiber-optic cable.
Downloaded From TV-Manual.com Manuals
18
MIS-4220 / MIS-4220R / MIS-4230
19
Infinitely Expandable
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FAN
PC(MSCS) to control MPDP
VCR
RS-232C (Maximum 15m)
S-Video connection (Maximum 5m)
Video connection (Maximum 5m)
[PDP ID 1]
ID switch must be set as ID 1 y
for one set use.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
Downloaded From TV-Manual.com Manuals
20
MIS-4220 / MIS-4220R / MIS-4230
21
Infinitely Expandable
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FAN
In case input source is DVD, select DVD/SD in MSCS main screen. y
In case input source is DTV, select HD in MSCS main screen. y
PC(MSCS) to control MPDP
DVD Player & DTV Set top box
RS-232C (Maximum 15m)
Component connection (Maximum 5m)
[PDP ID 1]
ID switch must be set as ID 1 y
for one set use.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
• According to manufacturers, the indication
of DVD Component output port may vary; “Y,
PB, PR”, “Y, B-Y, R-Y” or “Y, CB, CR.”
• Component Input ports
You can get better image quality by
connecting DVD player to component input
ports as below.
Component ports of
the set Y Pb Pr
Video output ports
of DVD player
Y Pb Pr
Y B-Y R-Y
Y Cb Cr
• Caution for Component connection
In case component cables are not properly
connected, you may have bluish or redish
screen or even no screen images.
Downloaded From TV-Manual.com Manuals
22
MIS-4220 / MIS-4220R / MIS-4230
23
Infinitely Expandable
Recommended maximum set connection for Multi setting is shown in table below. y
If you need to connect more than described in the table, you have to use distributors.
Image quality can be affected by cable or signal quality. y
DVI 1600 x 1200 x 60HZ 5 sets
PC PC & DVI Resolution Reference 1 sets 54 page
DTV 720p, 1080i 4 sets
DVD 480i, 480p, 576i, 576p 6 sets
VIDEO/S-VIDEO NTST, PAL, SECAM 6 sets
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FAN
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FAN
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FAN
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FAN
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
RS-232C VIDEO
IN OUT
IN
OUT
S-VIDEO
IN OUT
COMPONENT
IN OUT
Y
Pb
Pr
DVI-D PC
IN
IN
OUT
OUT
ID SELECT
M-ON
M-STB S-ON
FAN
RS-232C
S-VIDEO
DVI
PDP1 PDP2 PDP3 PDP4 PDP5
PC (MSCS) to control
MPDP
Downloaded From TV-Manual.com Manuals
24
MIS-4220 / MIS-4220R / MIS-4230
25
Infinitely Expandable
Maximum use of RS-232 with Daisy Chain connection is y or less.
If you need additional connection, use RS-232 distributor.
ID 1
ID 6
ID 11
ID 2
ID 7
ID 12
ID 3
ID 8
ID 13
ID 4
ID 9
ID 14
ID 5
ID 10
ID 15
ID 16
ID 21
ID 17
ID 22
ID 18
ID 23
ID 19
ID 24
ID 20
ID 25
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C Distributor
RS-232C control PC
ID 1
ID 4
ID 7
ID 2
ID 5
ID 8
ID 3
ID 6
ID 9
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
RS-232C
IN
OUT
DVI-D
OUT
IN
DVI-D
OUT
IN
DVI-D
OUT
IN
DVI-D
OUT
IN
DVI-D
OUT
IN
DVI-D
OUT
IN
DVI-D
OUT
IN
DVI-D
OUT
IN
DVI-D
OUT
IN
RS-232C control PC DVI
DVI Signal Distributor
(UXGA : UP TO 250MHz)
Downloaded From TV-Manual.com Manuals
26
MIS-4220 / MIS-4220R / MIS-4230
27
Infinitely Expandable
Identity number (ID) indicates the location of each MPDP. y
When you look at the MPDP screens in front of MPDP. y
Recommended ID of X x Y screens
ID 1 ID 2 ID 3 ID 4 ID 5
ID 6 ID 7 ID 8 ID 9 ID 10
ID 11 ID 12 ID 13 ID 14 ID 15
ID 16 ID 17 ID 18 ID 19 ID 20
ID 21 ID 22 ID 23 ID 24 ID 25
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
PDP ID
1
PDP ID
2
PDP ID
3
PDP ID
4
PDP ID
5
PDP ID
6
PDP ID
7
PDP ID
8
PDP ID
9
PDP ID
10
PDP ID
11
PDP ID
12
PDP ID
13
PDP ID
14
PDP ID
15
PDP ID
16
PDP ID
17
PDP ID
18
PDP ID
19
PDP ID
20
PDP ID
21
PDP ID
22
PDP ID
23
PDP ID
24
PDP ID
25
MSCS Installation start screen.
Insert the Installation CD. y
You can see following installation start screen. y
Select proper version for your product and star installation y
y®®
Downloaded From TV-Manual.com Manuals
28
MIS-4220 / MIS-4220R / MIS-4230
29
Infinitely Expandable
Main Image of MSCS (Multi Screen Control system)
MSCS is an application program needed to control MPDP. y
When you execute MSCS (v 4.0) for your product at the installation screen, it will create a new folder y
at C:\Program File\MSCS (v4.0) and an icon on your computer screen.
By double clicking the MSCS (v 4.0) icon, the initial screen image of MSCS (v 4.0) will be y
displayed as shown in the picture.
※
※
Com Port connects or disconnects the communication between PC and MPDP. y
Connect MPDP to PC Com Port via RS-232C cable. y
Go to MSCS Menu → Communication and set Com Port. Click 'Connect' using mouse or press 'Ctrl+C' y
using keyboard.
In order to disconnect communication, click 'Disconnect' using mouse or press 'Ctrl+D' using keyboard. y
When you use USB-to-RS232C converters, you need to set Com Port again, because MSCS uses one y
of Com Port no. 1 to 30.
When Com Port is successfully connected, pop-up window for "New design/Last design" appears.
Click "Open New Design" to prepare new configuration. y
Click "Open Last Design" to go to last design before closing. y
New/Last Design Set
Communication Setting
Downloaded From TV-Manual.com Manuals
30
MIS-4220 / MIS-4220R / MIS-4230
31
Infinitely Expandable
XnumberrepresentsthenumberofMPDPcolumnsandYnumberrepresentsthenumberof-
MPDProws.
TherangeofXandYis1to15.-
MPDPformatimagewillbedisplayedabout1secondafterselectinginputXnuberandY-
number.
Click"PLAY"buttonafterselectinginputsourceandthenumberofXandY,thenselectedscreen-
configurationisdisplayedasMPDPlikefollowingfigurebelow.
Info:youcancheckselectedresolution.Itisdisplayedlowerrightcorneroftheproduct.-
Screen Configuration Setting
1
2
3
PC
PC
PC
PC
PC
PC
PC
PC
PC
Check "ALL PDP" to send data to all connected MPDP regardless of ID. y
In order to control power of specific MPDP, use "Power On/Off" button after selecting the specific MPDP. y
ID of MSCS(Multi Screen Control System) is set automatically. y
In order to transmit data to chosen MPDP, ID of Screen Configuration must be selected. y
Select ID using right button of mouse. Selected ID is displayed with red square box. y
Example of MPDP ID Setting
(InputsignalisDVI,Configurationis3by3)
MPDP Control - Power On/Off
ID 1 ID 2 ID 3
ID 4 ID 5 ID 6
ID 7 ID 8 ID 9
Downloaded From TV-Manual.com Manuals
32
MIS-4220 / MIS-4220R / MIS-4230
33
Infinitely Expandable
Ex)Select"DVI"in"SelectInput"-
Clicktheleftmousebuttononthescreenthatyouwanttochange.Screenwillbeturnedinto-
DVIinputscreen.
SelectedscreenwouldbeconvertedintoDVD.-
1
2
3
You can configure various input sources as you want. y
DVI
PC
PC
PC
PC
PC
PC
PC
PC
DVI
PC
PC
PC
DVD
PC
PC
PC
DVD
※ Click 'Play' button on the main image of MSCS or scroll using mouse to return to initial image.
Select"DVI"in"SelectInput".-
1
2
3
You can select multi screens at a time as you want. y
PC
PC
PC
PC
PC
PC
PC
PC
PC
DVI
DVI
PC
DVI
DVI
PC
PC
PC
PC
Downloaded From TV-Manual.com Manuals
34
MIS-4220 / MIS-4220R / MIS-4230
35
Infinitely Expandable
MPDP configuration that users set is displaying repeatedly. y
To use Slide Control, go to MSCS Menu → Control → Slide Control or press "Ctrl+S" using Keyboard. y
Click"Add"buttontosaveconfiguration.-
Therangeof"DisplayTime"isfrom10secondsto1hour.-
1
2
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
-Savedscreenconfigurationsaredisplayingforpresettime.
4
3
5
※To view the slide form, click 'List Box' of saved slide.
※To transmit saved slide protocol command, double click 'List Box' of saved slide.
6
PC
PC
PC
DVI
DVI
DVI
DVI
DVI
DVI
DVI
DVI
PC
DVI
DVI
PC
PC
PC
PC
Downloaded From TV-Manual.com Manuals
36
MIS-4220 / MIS-4220R / MIS-4230
37
Infinitely Expandable
Register values related to display of MPDP can be changed. y
Click "Picture Control" of "Control" menu bar or enter "Ctrl+P" in order to run "Picture Control" window. y
In order to control display values, input values directly in "Edit Box" and press Enter key. y
Or click -/+ button using mouse.
Click "Exit" button or press "Ctrl+X" using keyboard to close "Picture Control" window. y
Color Temp. y
Normal:Initialsetting.Properfornormalvideoimageview.-
Studio:LowColortemperature.Properforbroadcastingpurpose.-
Picture Control
Go to "Control" in menu bar → PC Tracking → Auto in order to run "Tracking Auto" window. y
In case alignment doesn't work through "Tracking Auto" command, y
users can tune finely through "Tracking Manual". Go to "Control" of
menu bar → PC Tracking → Manual or press "Ctrl+M" using keyboard.
"Tracking Manual" window enables users to set Frequency, Phase, y
LineStart and PixelStart.
When "Tracking Manual" window is on display, users cannot display y
"Picture Control" window.
Even when "Tracking Manual" window is on display, selecting 'ID' is y
available by clicking right button of mouse.
(Refer to "5.5 PDP ID Setting".)
Detail adjustment steps are as follows. y
1) Tune "Phase" until the vertical lines are clearly adjusted..
2) Tune "LineStart" to adjust vertical alignment. "PixelStart" for horizontal alignment.
3) Adjust "Frequency" if alignment is still wrong.
If you adjust "Frequency", repeat step 1) and 2) to fit alignment.
Adjustable range is as follows
-The range of "Frequency" you can adjust is -50 to 50
-The range of "Phase" you can adjust is 0 to 31
-The range of "Linestart" you can adjust is -23 to 10
-The range of "Pixelstart" you can adjust is -50 to 40
Click "Exit" button or press "Ctrl+X" using keyboard to close "Tracking Manual" window. y
Alignment adjustment is available when input source is PC. y
Tracking Manual Window
Downloaded From TV-Manual.com Manuals
Other manuals for MIS-4220
1
This manual suits for next models
2
Table of contents
Other Orion Flat Panel TV manuals
