Orla KX10 Piano Accordion Installation and operating instructions

1
KX10
PianoAccordionKeyboard
User Manual Addendum

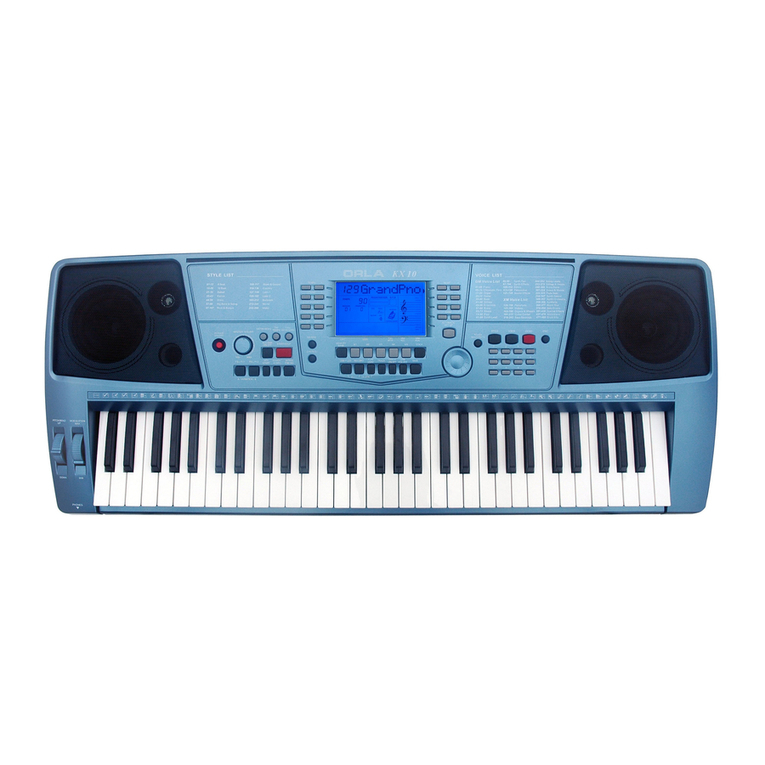

The KX10 Piano Accordion keyboard is the accordionist version ( 96 Basses and 37 Piano Keys )of the KX10
portable keyboard with 61 keys.
Some of the keyboard’s operation buttons are not available on the accordion keyboard version:
TOUCH-The touch sensitivity is determined by combinations of some of the Chord and Treble and keyboards.
MIDI IN -To provide a simple midi interface to the instrument, the MIDI IN page has been fixed.
TOUCH SENSITIVITY ON/OFF
It is possible to independently control the Touch Sensitivity ON/OFF of the Treble and Chord keyboards.
Treble Keyboard Touch sensitivity ON D -key of the Treble keyboard
Treble Keyboard Touch sensitivity OFF E -key of the Treble keyboard
Chord Keyboard Touch sensitivity ON L -key of the Chord keyboard
Chord Keyboard Touch sensitivity OFF M -key of the Chord keyboard

2
Follow the example to set theTouch Sensitivity OFF on the Treble keyboard:
-Press and hold theXand Ykeys at the same time.
-Switch On the instrument.
-After power up the instrument allows 3 seconds to press the Ekey to select Chord Touch Sensitivity OFF.
-After 3 seconds from the selection of the new system the instrument confirms the programming playing one note.
-The Treble Keyboard is now set with Touch Sensitivity OFF
Follow the example to set theTouch Sensitivity ON on the Treble keyboard:
-Press and hold theXand Ykeys at the same time.
-Switch On the instrument.
-After power up the instrument allows 3 seconds to press the Dkey to select Chord Touch Sensitivity ON.
-After 3 seconds from the selection of the new system the instrument confirms the programming playing one note.
-The Treble Keyboard is now set with Touch Sensitivity ON
Follow the example to set the Touch Sensitivity OFF on the Chord keyboard:
-Press and hold theXand Ykeys at the same time.
-Switch On the instrument.
-After power up the instrument allows 3 seconds to press the Mkey to select Chord Touch Sensitivity OFF.
-After3 seconds from the selection of the new system the instrument confirms the programming playing one note.
-The Chord Keyboard is now set with Touch Sensitivity OFF.
Follow the example to set theTouch Sensitivity ON on the Chord keyboard:
-Press and hold theXand Ykeys at the same time.
-Switch On the instrument.
-After power up the instrument allows 3 seconds to press the Lkey to select Chord Touch Sensitivity ON.
-After 3 seconds from the selection of the new system the instrument confirms the programming playing one note.
-The Chord Keyboard is now set with Touch Sensitivity ON.
