OSD Audio Dayton Audio BK-SRT4 User manual

Model: BK-SRT4 User Manual
BK-SRT4 4-ZONE WI-FI
SMART STREAMER
SOURCE SOURCE SOURCE SOURCE
ZONE 1 ZONE 2 ZONE 3 ZONE 4
BK-SRT4
4-ZONE WI-FI SMART
STREAMER
POWER

2
Thank you for purchasing the Dayton Audio BK-SRT4 4-Zone Wi-Fi Smart Streamer. This multi-zone pre-amp is ideal for
commercial and residential applications. The BK-SRT4 is compatible with the Hi-Fly app for convenient control over all your
zones individually or all zones together in multi-room audio mode.
Package Contents:
• BK-SRT4 4-Zone Wi-Fi Smart Streamer
• 12VDC 1.5A Power Supply
• 2 x Removable Rack Ears
• Manual
BK-SRT4 Features:
7.
WPS button (Zone 1-4): Press to connect to WPS
enabled network
8.
USB Input (Zone 1-4): Read U disk function, does not
support USB charging
9.
10. DC In: 12V/1.5A

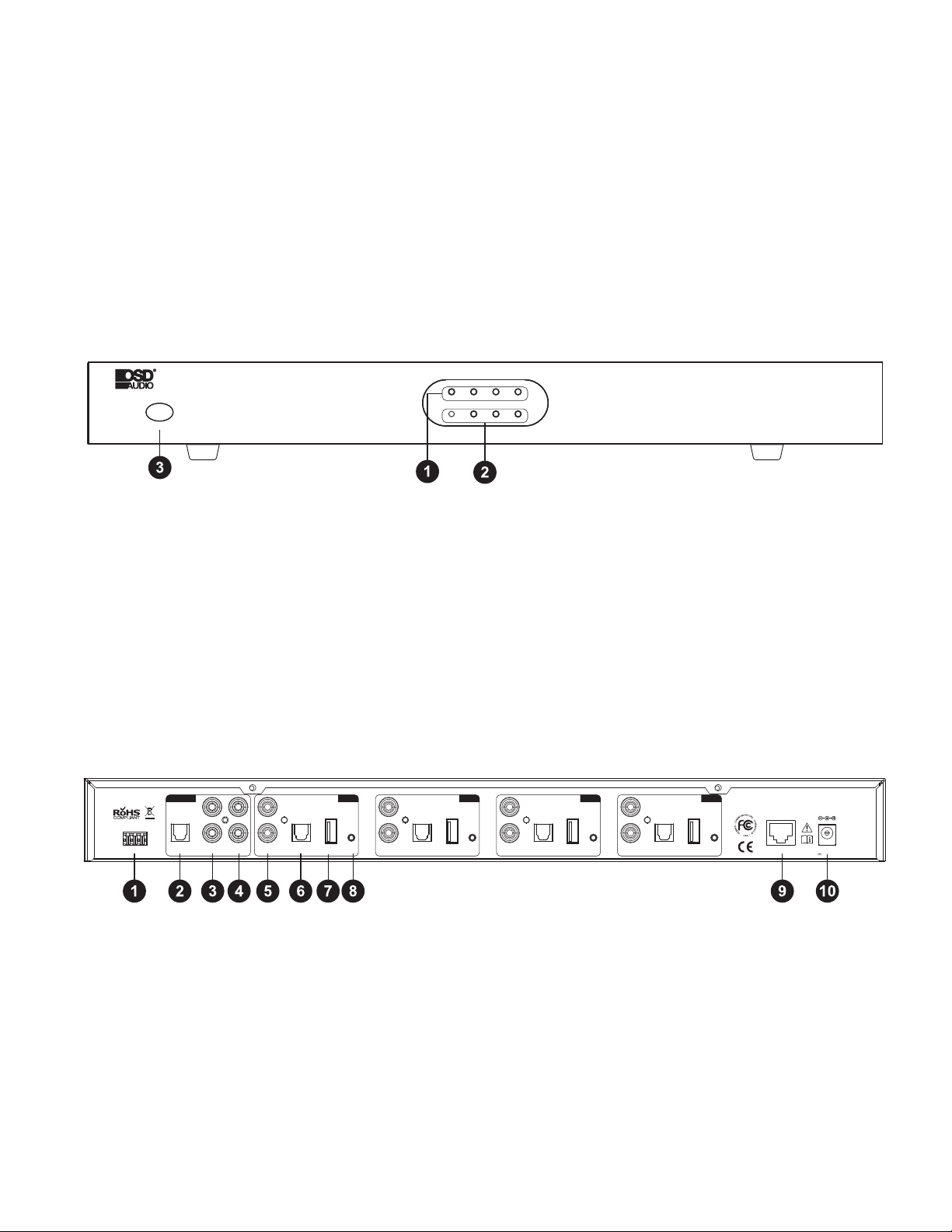

Rear panel:
1. RS-485: RS-485 Connect
Ethernet: LAN input
2. Digital In (Bus Input): Digital optical input
3.
Line Out (Zone 1-4): RCA stereo output
4. Line In 2 (Bus Input): RCA stereo input
Line In 1 (Bus Input): RCA stereo input
5.
6. Digital Out (Zone 1-4): Digital optical output
Front Panel:
1. Zone Audio Source Indicators
-Blue/Wi-Fi
-Red/Line-In
-Purple/USB
2. Zone Power Indicators
3. Power Switch
SOURCE SOURCE SOURCE SOURCE
ZONE 1 ZONE 2 ZONE 3 ZONE 4
BK-SRT4
4-ZONE WI-FI SMART
STREAMER
POWER
ETHERNET
RS-485 DIGITAL IN
L
R
WPSLINE OUT DIGITAL OUT USB INPUT
ZONE 1
L
R
WPSLINE OUT DIGITAL OUT USB INPUT
ZONE 2
L
R
WPSLINE OUT DIGITAL OUT USB INPUT
ZONE 3
L
R
WPSLINE OUT DIGITAL OUT USB INPUT
ZONE 4BUS INPUT
LINE IN 1 LINE IN 2
L
R
L
R
DC IN
12V/1.5A
MODEL: BK-SRT4

3
Getting Started
Remove the BK-SRT4 from the box and inspect the device to make sure it is free of any damage and that all package con-
tents are accounted for. Place the BK-SRT4 in your desired location and plug the included power supply into the BK-SRT4
and an available outlet. The next step is to connect the BK-SRT4 to your network for streaming and control of each zone
using the Hi-Fly app.
Wi-Fi connectivity: Wireless Multi-Room Audio
1. Download and install the Hi-Fly app by scanning the QR code or search “Hi-Fly” in the appstore/Google Play store.
2. Follow the setup instructions in the Hi-Fly app to connect to your Wi-Fi network.
Each zone will need to be connected the Wi-Fi router individually, repeat setup instructions for zone 1-4.
LAN connectivity:
1. Download and install the Hi-Fly app by scanning the QR code or search “Hi-Fly” in the app store/Google Play store.
2. Connect the BK-SRT4 to your router using the RJ45 Ethernet port on the rear panel.
3. LAN connection will automatically setup all zones. Ensure your mobile device is connected to the same network and
open the Hi-Fly control app.
See below for a wire diagram and connection options.

All OSD AUDIO electronics have (2) year Limited Warranty against defects in materials and workmanship. Proof of purchase
must accompany all claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in
workmanship without charge for either parts or labor.
OSD AUDIO may replace returned electronics with a product of equal value and performance. In such cases, some
Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In
these cases, repairs will be made on the basis of the retail value of the parts and labor. To return for repairs, you must email
customer service at [email protected] for a Returned Merchandise Authorization (RMA) number then the unit must
be shipped to OSD AUDIO at the owner’s expense, along with a note explaining the nature of service required. Be sure to
pack the product(s) in a corrugated container with at least 3 inches of resilient material to protect the unit from damage in
transit.
This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation).
altered, defaced or removed. Normal wear and maintenance.
WARRANTY
OSD Audio | Brea, CA | osdaudio.com
