OSKAR SPB-1500 User manual

SPB-1500
OSKAR Portable Blower
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing
all safety information. Failure to comply with instructions could result in personal injury
and/or property damage! Retain instructions for future reference.
www.oskarsales.com
SMT-080818
General Safety Information
MACHINE WARNING SIGNS
Indicates an imminently
hazardous situation which,
if not avoided, will result in
death or serious injury.
Indicates a potentially
hazardous situation which,
if not avoided, could result
in death or serious injury.
Indicates a potentially
hazardous situation which,
if not avoided, may result
in minor or moderate
injury.
Used without the safety
alert symbol ( ) indicates
potentially hazardous
situation which, if not
avoided, may result in
property damage.
Warning of electric shock
Do not expose the
equipment to rain or use in
damp locations.
Do not use the equipment
around flammable
products, if not avoided,
sparks can ignite vapors
from flammable products.
Read and understand all
warnings and operating
instructions before using
this equipment. Failure to
follow all instructions may
result in electric shock, fire,
and/or serious personal
injury or property damage.
Figure 1

SPB-1500
OSKAR Portable Blower
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing
all safety information. Failure to comply with instructions could result in personal injury
and/or property damage! Retain instructions for future reference.
www.oskarsales.com
SMT-080818
TABLE OF CONTENT
MACHINE WARNING SIGNS...................................................................................................1
Specifications............................................................................................................................2
ADDITIONAL BLOWER SAFETY RULES................................................................................4
Assembly...................................................................................................................................5
Installation................................................................................................................................5
ELECTRICAL INSTALLATION .................................................................................................5
Operation ..................................................................................................................................6

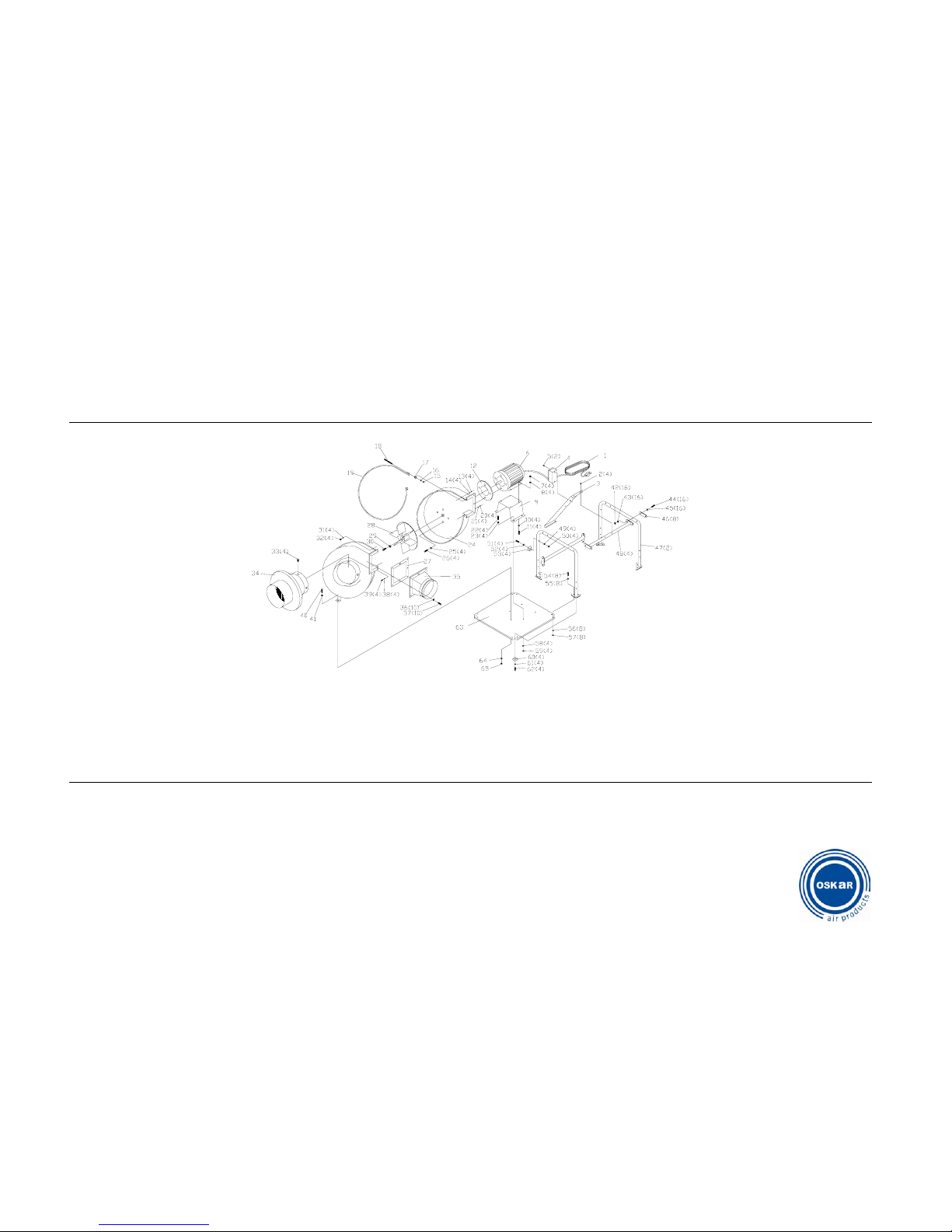

Repair Parts Illustration ..........................................................................................................9
Repair Parts List.....................................................................................................................11
Appendix .................................................................................................................................14
Specifications
Motor ……………………………………….………………………………….…2 HP (1492 W)
Air Volume (C.F.M.) ………………………………………… 1500 Ft³/Min (42.4 M3/Min)
Suction Port Size ………………………………………………… Ø7” x 1 hole (175 mm)
Packing Size (L x W x H) ……………..… 24.8” x 24.8” x 28.7” (63 x 63 x 73 cm)
Net Weight ………………………………………………….……………… 114.6 lbs (52 kgs)
Gross Weight …………………………………………………………………. 119 lbs (54 kgs)

SPB-1500
OSKAR Portable Blower
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing
all safety information. Failure to comply with instructions could result in personal injury
and/or property damage! Retain instructions for future reference.
www.oskarsales.com
SMT-080818
General Safety Information
(Continued)
Use this product
carefully to
effectively avoid any possible danger.
Observe the following safety
regulations to avoid bodily injury due
to electrocution during use.
Read this Manual carefully before operating
the product and preserve the Operation
Manual properly.
1. Keep work area clean and organized.
yA disorderly working environment will
cause inconvenience and danger
during operation.
2. Check if the working environment is
suitable for using the product.
yDo not use the product in a humid
environment.
yUse the product in a good working
environment to reduce risks.
yDo not use the product in a flammable
gas or liquid environment to avoid
danger.
3. Keep other persons away from the
product, except for the operator, to
avoid danger.
yDo not let children get close to the
product. All wires used by the product
shall be in a safe location to prevent
children from touching them.
4. All tools shall be safely stored.
yWhen the tools are not used, please
store them in a dry place safely
beyond the reach and access of
children.
5. If the machine breaks down, contact a
service technician. Do not attempt to
repair and possibly damage the machine.
6. When using the product, be sure to put
on a welding suit and mask.
7. Use the electrical wires correctly.
yDuring use, do not drag the electrical
wires forcefully. Do not use these
wires if fraying or current leakage
occurs to avoid injury to the operator.
8. Before replacing parts, shut off power to
the machine.
yCheck that the switch is in “on” or
“off” position. Do not attempt the
replacement when the machine is
running. To replace parts or filter
material, make certain that the switch
is “off”.
9. Use the power cord correctly. The total
length of power cord shall not exceed 10
feet to avoid low power due to a drop in
voltage and to prevent a possible hazard.

SPB-1500
OSKAR Portable Blower
4
www.oskarsales.com
When connecting
the product,
always follow the instructions in the
Operation Manual to avoid injuries.
10. Care and Maintenance:
yConfirm that the parts/accessories
have been fully assembled and will
not adversely affect the machine
operation.
yCheck if the machine is operated
properly.
yReplace damaged parts or accessories
according to the instructions of the
Manual. If the said instructions are
not specified in the Manual, have a
professional technician carry out the
maintenance or replacement.
yCheck that the electrical specifications
of this machine meet safety
requirements, and that the
maintenance is carried out by a
professional technician. Use original
manufacturer’s parts and accessories
to avoid injury.
yIf a problem occurs, contact your
dealer immediately.
ADDITIONAL BLOWER SAFETY
RULES
The blower can be dangerous if it is
operated incorrectly. Therefore, the product
must be used cautiously to avoid causing a
hazard or damage. Unnecessary injuries
may occur by failing to follow the
instructions of the Safety Rules Manual. Be
sure to put on protection equipment or suit
that can protect your body, such as helmet
and eye mask to avoid injuries from
occurring. If any doubts or any unfitness
occurs during use, be sure to stop the
operation immediately. Keep in mind that
the user shall be liable for using according to
the specified safety rules and for operating
the machine correctly.
1. Read this Manual carefully before
operating the product.
2. Be sure to follow local electrical and
safety regulations and observe the
electrical safety standards practiced in
the relevant area. All electrical wire
connections and installation shall be
carried out by a professional technician.
3. Do not operate the product near
flammable materials, as sparks may
ignite these materials and cause an

SPB-1500
OSKAR Portable Blower
5
www.oskarsales.com
explosion. Please confirm there aren’t
any flammables near the working site to
avoid hazard.
4. This product is suitable for collecting
smoke and welding oil gas. Do not use it
in collecting iron chips and dust at the
same time to avoid producing sparks.
5. Before replacement of parts or any
materials, be certain that the switch is
disconnected.
6. Do not kink the power cord and keep it
away from oil, chemicals or flammables.
7. Check that the voltage, phase count and
grounding wire match the machine
requirements.
8. When the fan blades are operated at
high speed, do not reach hand near
these blades to prevent finger from
breaking or clothes/necktie from getting
caught. Do not put the hand or foreign
matter into the air inlet to avoid getting
caught in the high-speed rotation of fan
blades.
9. When not in use, all air inlets of blower
shall be covered.
Assembly
Do not connect the
blower before the
assembly is finished and you have read
and understood all of the precautions
stated in the Manual.
NOTE: For correct assembly, refer to the
Illustrations and Parts List on pages 12-15.
Installation
MOVING AND TRANSPORTATION
The net weight of this machine is about
143.4 lbs. It CANNOT be handled and
transported without the help of lifting tools.
For your safety, read all instructions
carefully.
Do not move
without the help of
others to avoid causing danger.
ELECTRICAL INSTALLATION
POWER CONNECTION
1. Confirm that the power is properly
connected under normal power supply
condition. It is recommended to provide
manual shutdown device before
connecting power.
2. It is recommended to protect the control
equipment with suitable grade of fuse
and the length of fuse and power cord
shall not be over 10 feet.
SHUTDOWN
1. Disconnect power by manual method.

SPB-1500
OSKAR Portable Blower
6
www.oskarsales.com
2. When stopping operation, check if the
switch is under off status.
EARTHING WIRE
Connect yellow/green wires to the earthing
wire power jack. Confirm that the earthing
wire has been properly connected before
connecting main power cord to the machine
at all times.
Do not disconnect
the wiring jack
before cutting off power!
POWER INSTALLATION AND STORAGE
The electrical power is configured as
following. If conditions are beyond the scope
stated below, then it is required to ensure
that the power is well arranged and safe.
yAmbient temperature: Between 41°F
and 131°F. If the time is over 24
hours, then the ambient average
temperature shall not be over 122°F.
yHumidity: Between 30% and 95%
yAltitude: 3,280 feet
yMoving and Storing: -13°F to 131°F.
For short-time storage (less than 24
hours), the storage temperature can
be up to 158°F.
Operation
PRIOR TO START UP
Purpose: The blower is specially suitable for
treating the smoke generated during
ordinary welding processing work, which can
effectively collect the smoke, dusts and chips
resulting from the welding work in
maintaining the air quality of the working
environment.
yBefore starting the machine, be sure
to read this Manual carefully.
yBefore starting the machine, check if
relevant safety protection measures
have been taken according to the
Manual.
yBefore starting the machine, watch
the motor turning direction according
to the instruction of arrow direction.
START UP
1. To ensure satisfactory performance for
the blower, please confirm the air
volume and power.
2. Connect power according to electrical
installation procedure after installing the
blower. Disconnect power according to
electrical installation procedure when the
machine is not used.
T1
98
2T1
A1
1L1
R
MOTOR
T3
R
O
ManAuto
97 96
R
95
6T3
4T2 14NO
A2
17
3L2 5L3
ST
A2
13NO
T2

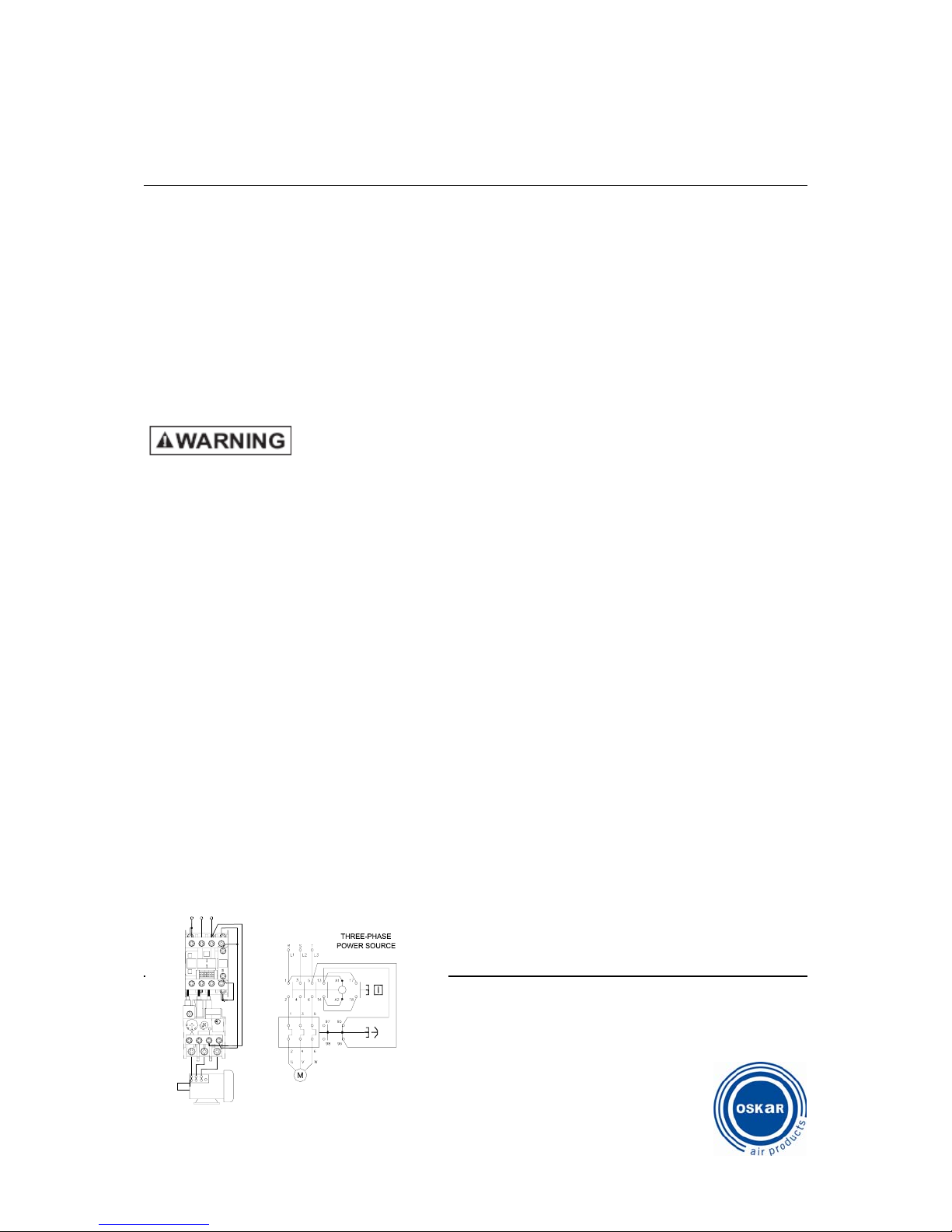

Figure 2 – Electrical Circuit Diagram

SPB-1500
OSKAR Portable Blower
7
www.oskarsales.com
3. The blower shall be turned on and off by
pushing I/O button. Under normal
operation status, use such I/O button.
Unpacking
The machine should be unpacked carefully.
Check if the machine and components are
consistent with those indicated in the Parts
List. If any doubt arises or when the
components are incomplete, contact your
dealer.

SPB-1500
OSKAR Portable Blower
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
www.oskarsales.com
SMT-080818

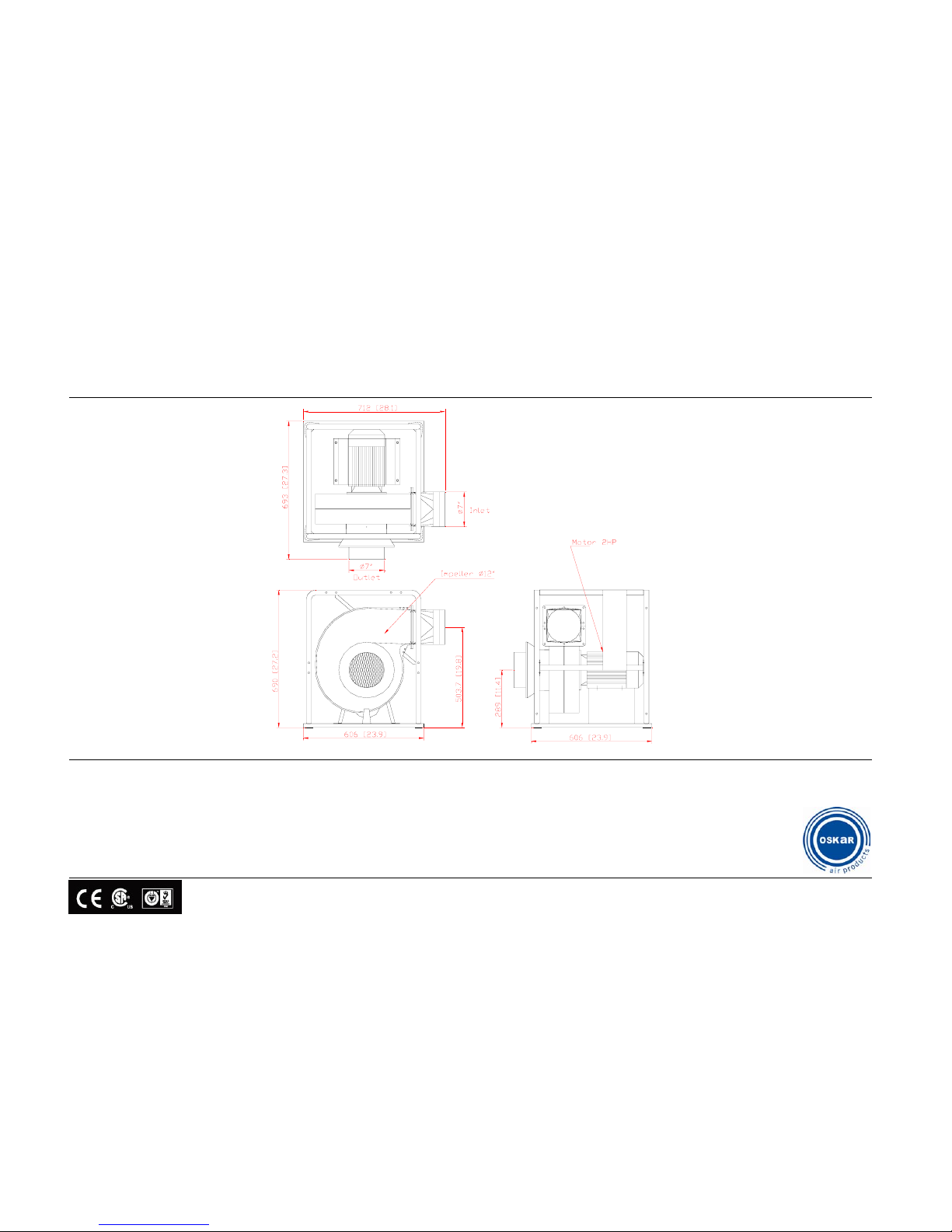

Dimensions (in mm / inch)

SPB-1500
OSKAR Portable Blower
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
www.oskarsales.com
SMT-080818
Repair Parts Illustration
For Repair Parts
Please provide following information:
-Model number
-Serial number (if any)
-Part description and number as shown on parts list

SPB-1500
OSKAR Portable Blower
10
www.oskarsales.com
Figure 3

SPB-1500
OSKAR Portable Blower
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing
all safety information. Failure to comply with instructions could result in personal injury
and/or property damage! Retain instructions for future reference.
www.oskarsales.com
SMT-080818
Repair Parts List
Repair Parts List for Blower
Referenc
e Number Description Part Number Quantity
1 POWER CORD OSKAR-3000B-1 1
2 M4.2 x 12mm PAN HD SCREW OSKAR-3000B-2 4
3 SWITCH PLATE OSKAR-3000B-3 1
4 SWITCH OSKAR-3000B-4 1
5 M4.2 x 12mm PAN HD SCREW OSKAR-3000B-5 2
6 MOTOR OSKAR-3000B-6 1
7 3/8" HEX NUT OSKAR-3000B-7 4
8 3/8" FLAT WASHER(OD 23mm) OSKAR-3000B-8 4
9 MOTOR BASE OSKAR-3000B-9 1
10 3/8" FLAT WASHER(OD 28mm) OSKAR-3000B-10 4
11 3/8" x 1-1/4" HEX HED SCREW OSKAR-3000B-11 4
12 MOTOR GASKET OSKAR-3000B-12 1
13 1/4" LOCK WASHER OSKAR-3000B-13 4
14 1/4" HEX NUT OSKAR-3000B-14 4
15 5/16" HEX NUT OSKAR-3000B-15 1
16 5/16" LOCK WASHER OSKAR-3000B-16 1
17 BLOWER CLAMP BUTTON OSKAR-3000B-17 1
18 5/16" x 3" HEX HED SCREW OSKAR-3000B-18 1
19 BLOWER CLAMP OSKAR-3000B-19 1
20 1/4" LOCK WASHER OSKAR-3000B-20 4
21 1/4" HEX NUT OSKAR-3000B-21 4
22 5/16" x 5/8" HEX HED SCREW OSKAR-3000B-22 4
23 5/16"LOCK WASHER OSKAR-3000B-23 4
24 BLOWER HOUSING (RIGHT) OSKAR-3000B-24 1

SPB-1500
OSKAR Portable Blower
12
www.oskarsales.com
Referenc
e Number Description Part Number Quantity
25 3/8" FLAT WASHER(OD 28mm) OSKAR-3000B-25 4
26 3/8" x 1-1/4" HEX HED SCREW OSKAR-3000B-26 4
27 OUTLET GASKET OSKAR-3000B-27 1
28 Ø12" IMPELLER OSKAR-3000B-28 1
29 SPECIAL WASHER OSKAR-3000B-29 1
30 SPECIAL SCREW OSKAR-3000B-30 1
31 1/4" LOCK WASHER OSKAR-3000B-31 4
32 1/4" x 5/8" HEX HED SCREW OSKAR-3000B-32 4
33 M4.2 x 12mm PAN HD SCREW OSKAR-3000B-33 4
34 INLET OSKAR-3000B-34 1
35 OUTLET OSKAR-3000B-35 1
36 5/16" LOCK WASHER OSKAR-3000B-36 10
37 5/16" x 5/8" HEX HED SCREW OSKAR-3000B-37 10
38 1/4" LOCK WASHER OSKAR-3000B-38 4
39 1/4" x 5/8" HEX HED SCREW OSKAR-3000B-39 4
40 BLOWER HOUSING (LEFT) OSKAR-3000B-40 1
41 5/16" x 5/8" HEX HED SCREW OSKAR-3000B-41 1
42 5/16" FLAT WASHER(OD 23mm) OSKAR-3000B-42 1
43 5/16" LOCK WASHER OSKAR-3000B-43 16
44 5/16" HEX NUT OSKAR-3000B-44 16
45 5/16" x 1-3/4" HEX HED SCREW OSKAR-3000B-45 16
46 5/16" LOCK WASHER OSKAR-3000B-46 16
47 SUPPORT PLATE OSKAR-3000B-47 8
48 U TYPE SUPPORT OSKAR-3000B-48 2
49 TRANSVERSE SUPPORT OSKAR-3000B-49 4
50 5/16"LOCK WASHER OSKAR-3000B-50 4

SPB-1500
OSKAR Portable Blower
13
www.oskarsales.com
Referenc
e Number Description Part Number Quantity
51 5/16" HEX NUT OSKAR-3000B-51 4
52 5/16" x 1-3/4" HEX HED SCREW OSKAR-3000B-52 4
53 5/16" FLAT WASHER(OD 18mm) OSKAR-3000B-53 4
54 RUBBER FOOT OSKAR-3000B-54 4
55 5/16" x 5/8" HEX HED SCREW OSKAR-3000B-55 8
56 5/16" LOCK WASHER OSKAR-3000B-56 8
57 5/16" FLAT WASHER(OD 23mm) OSKAR-3000B-57 8
58 5/16" HEX NUT OSKAR-3000B-58 8
59 5/16" FLAT WASHER(OD 23mm) OSKAR-3000B-59 4
60 5/16" HEX NUT OSKAR-3000B-60 4
61 RUBBER FOOT OSKAR-3000B-61 4
62 5/16" FLAT WASHER(OD 23mm) OSKAR-3000B-62 4
63 3/8" x 1" HEX HED SCREW OSKAR-3000B-63 4
64 BASE OSKAR-3000B-64 1
65 5/16" FLAT WASHER(OD 23mm) OSKAR-3000B-65 1
66 5/16" HEX NUT OSKAR-3000B-66 1

SPB-1500
OSKAR Portable Blower
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing
all safety information. Failure to comply with instructions could result in personal injury
and/or property damage! Retain instructions for future reference.
www.oskarsales.com
SMT-080818
Appendix
T1
98
2T1
A1
1L1
R
MOTOR
T3
R
O
ManAuto
97 96
R
95
6T3
4T2 14NO
A2
17
3L2 5L3
ST
A2
13NO
T2
Electrical Circuit Diagram
