Webb WEEBV2800 User manual

Sales & Support: 01793 333212
Before use please read & understand this manual; paying particular attention to the safety instructions.
The manufacturer reserves the right to change the product specifi cation and livery according to continues product improvements.
v
en - Original Instructions
2800w Electric Garden
Blow & Vacuum
WEEBV2800
1938199001

30 Nov 2018
Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without
written permission from Handy Distribution.
In all cases this copyright notice must remain intact.
Instruction Manual

Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without
written permission from Handy Distribution.
In all cases this copyright notice must remain intact.
Instruction Manual
CONTENTS
SAFETY INSTRUCTIONS
SPECIFICATIONS
COMPONENTS
ASSEMBLY
OPERATION
MAINTENANCE, CLEANING & STORAGE
TROUBLE SHOOTING

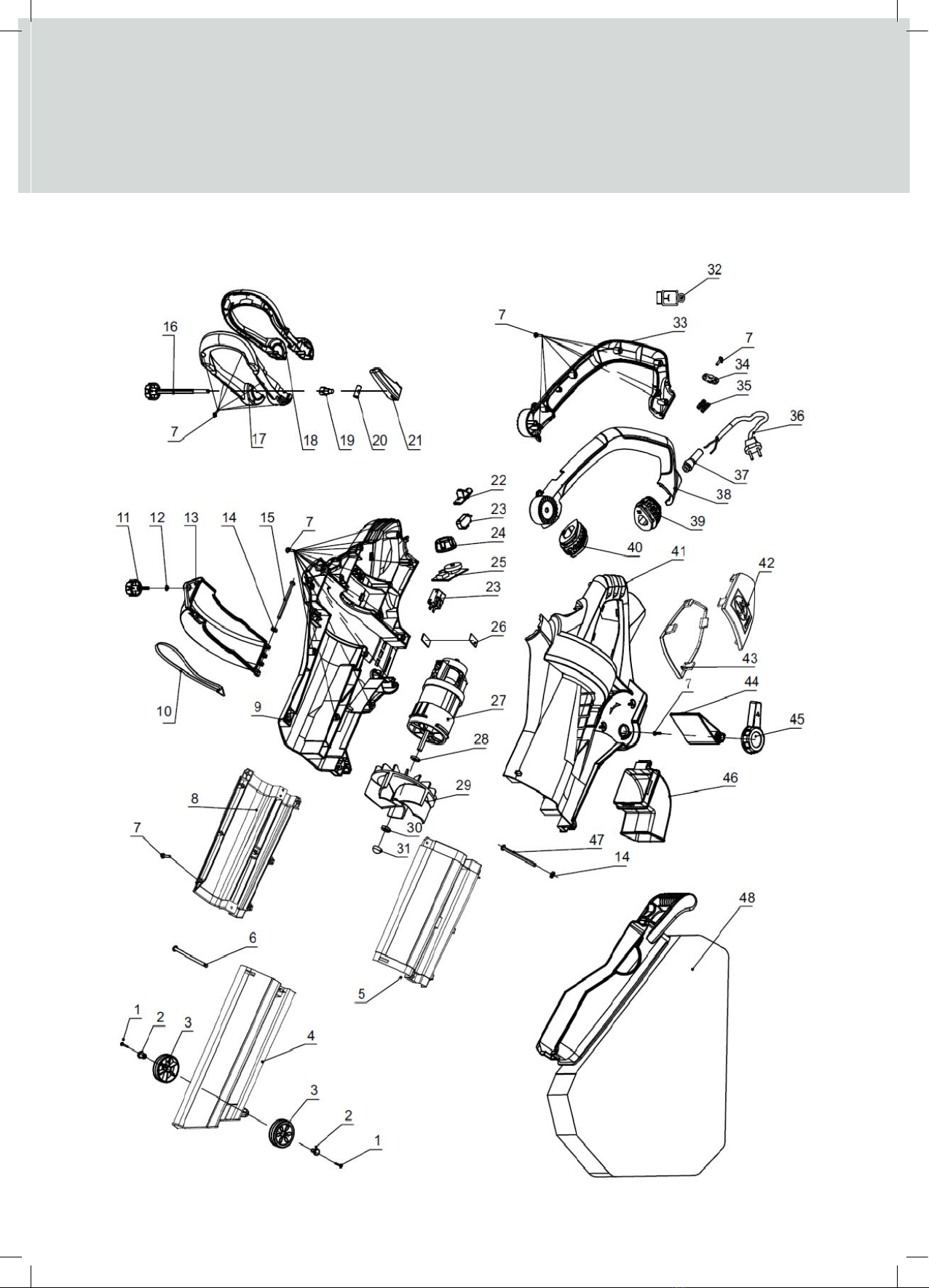

PARTS DIAGRAM & LIST
DECLARATION OF CONFORMITY
WARRANTY
ASSEMBLY IS REQUIRED
This product requires assembly before use. See the “Assembly” section for instructions.
Please check that all parts required for the assembly of this spreader are included. If for any reason you
believe a part for the assembly is missing or damaged, please contact us.
INTENDED USE
This device is suited solely for the vacuuming and blowing of light and DRY materials such as leaves,
garden waste, grass, small branches, and small pieces of paper.
The device is intended for private use on private land only.
This product is not intended for commercial use. Generally acknowledged accident prevention
regulations and enclosed safety instructions must be observed.
Only perform work described in these instructions for use. Any other use is improper. The manufacturer
will not assume responsibility for damage resulting from such use.

Instruction Manual
SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the machine. Learn its application and
limitations as well as the specific potential hazards. Retain these instructions for future reference. The
operator is responsible for following the warnings & instructions in this manual and on the product.
SYMBOLS
Read & understand operator’s
manual before using the
machine. Failure to follow
instructions could result in
death or serious injury.
This graphic and when
accompanied by WARNING or
DANGER, calls attention to
actions which could lead to
SERIOUS INJURY
Always wear eye and ear
protection
It is advisable to wear a face
mask to stop debris from
entering your body.
Always wear gloves to protect
your hands.
Always wear appropriate close-
fitting clothing, to avoid
suction into the machine
Always TURN OFF THE MOTOR
& REMOVE ELECTRICAL PLUG
FROM SOURCE, ensuring the
machine has stopped, before
cleaning, removing or making
adjustments.
15m
Keep all bystanders & animals
at least 15 metres away from
the machine during operation.
If approached, stop the
machine immediately.
Moving Parts
Rotating parts can contact or
entangle hands, feet, hair,
clothing or accessories.
Traumatic amputation or
severe laceration can result
Safety alert symbol. Used to alert you to potential personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in serious injury
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION
Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may
result in property damage.

Instruction Manual
ELECTRICAL
1. The Blow Vac is an electrical appliance using
fast moving parts & as such can be dangerous
if handled irresponsibly.
2. We recommend the use of a Residual Current
Device (R.C.D) with a tripping current of not
more than 30mA. Even with a R.C.D installed
100% safety cannot be guaranteed and safe
working practice must always be followed.
Check the R.C.D every time you use it.
3. Before use, examine the cable for signs of
damage or ageing. If the cable is found to be
defective, the product to an Authorised
Service Centre and have the cable replaced.
4. Do not use the product if the cable is
damaged or worn.
5. Immediately disconnect from the mains
electricity supply if the cable is cut, or the
insulation is damaged. Do not touch the
electrical cable until the electrical supply has
been disconnected. Do not attempt to repair
the cable and seek assistance of an Authorised
Service Centre.
6. Coiled cables can overheat and reduce the
efficiency of the product.
7. Do not pull the cable around sharp objects.
8. Always switch off at the mains before
disconnecting any plug, cable connector or
extension cable.
9. Switch off, remove plug from mains and
examine electric supply cable for damage or
ageing before winding cable for storage. Do
not repair a damaged cable, replace it with a
new one. Use only genuine replacement
cable.
10. Never carry the product by the cable.
11. Never pull on the cable to disconnect the
electrical plug.
12. Always wind the cable carefully, avoiding
kinking.
13. Use only on AC mains supply voltage shown
on the product label
PREPERATION
1. Always wear suitable clothing, gloves and
shoes. Do not wear open toe footwear.
2. The use of eye protection is recommended
3. The use of ear protection is recommended
4. To prevent dust irritation, the wearing of a
face mask is recommended.
5. Do not wear loose clothing or jewellery that
can be drawn into the air inlet
6. Do not wear clothing with attachments, i.e.
toggles or drawstrings that can be drawn into
the air inlet
7. Do not use if any part is damaged or broken or
if any of the screws are loose. Have it repaired
at an Authorised Repair Centre.
8. Always check your product is in a safe
operating condition before use.
9. Inspect the collection bag regularly. If the
collection bag is damaged or worn, replace
immediately
USE
1. The Blow Vac is only suitable for domestic use
and can be used only for processing light, DRY
garden waste materials such as leaves, grass
cuttings, clippings, small twigs and pieces of
paper.
2. Never use to vac, blow or shred heavy, sharp
or flammable materials such as metal, stones,
branches, fir cones, glass, barbecue coals,
cigarette ends, dust, gravel, soil or liquids.
3. We recommend that customers use both
functions of the machine when collecting. You
should blow all the dry garden waste to a safe
area clear of stones, gravel etc., before
vacuuming up the waste. Damage caused to
the fan, tubes, bag or casing by vacuuming
any inappropriate material will not be covered
by the warranty.
4. Never insert your hands into the openings
whilst the unit is running or connected to the
mains electricity supply.
5. Use the product only in daylight or good
artificial light
6. Do not use the product when it is raining or in
damp and wet areas.
7. Know how to stop the product in an
emergency
8. On slopes, be careful of your footing and wear
non-slip footwear
9. Walk, do not run
10. Keep all bystanders at a safe distance when
using your product.
11. Keep loose clothing & jewellery away from the
air inlet.
12. Do not attempt to use the product without
the fully assembled collection bag fitted.
13. Never blow debris in the direction of
bystanders.
14. Store is a cool, dry place and out of reach of
children. Do not store outdoors.

Instruction Manual
STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect
your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand.
Be aware of what you are doing at all times. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Cluttered areas invite injuries.
Keep your work area clean with sufficient light. Keep area around the machine clear of obstructions, stones,
sticks, wires and other debris or foreign bodies which could cause damage to the machine.
DO NOT SMOKE, whilst using the machine.
INSPECT YOUR MACHINE
Check all bolts, nuts, and screws for tightness before each use, especially those securing guards and drive
mechanisms. Vibration during use may cause these to loosen.
Replace damaged, missing or failed parts before using.
Warning labels carry important information.
Replace any missing or damaged warning labels.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches), which can be caught in
moving parts.
ALWAYS wear protective eye and ear wear. Appropriate gloves are also recommended.
Wear protective hair covering to contain long hair, preventing it from getting caught in machinery.
DO NOT use whilst barefoot or wearing open toed footwear.
KEEP BYSTANDERS AND CHILDREN AWAY
Keep unauthorised persons or animals a minimum distance of 15 metres away from the machine. Do not allow
children to handle, use, or climb on the machine.
DO NOT OVERREACH
Keep proper footing and balance, particularly if using on slopes. The machine should not be used on steep
slopes and always be sure of footing.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands out of the way of moving parts, particularly the engine and rotating cutting tool.
DO NOT FORCE TOOL
Always work within the rated capacity. Do not use the machine for a purpose for which it was not intended.
Always use the correct handles and shoulder straps provided with the machine.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately after use. Keep the machine clean to ensure it operates to its full and safest
performance. When maintaining this machine, only the manufacturer’s original replacement parts should be
used. The use of non-original manufacturer parts may invalidate your warranty.
STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry location. Keep the machine away from children and
others not qualified to use it.

Instruction Manual
SPECIFICATIONS
Model WEEBV2800
Product Number 1938199001
Motor Voltage 230-240V~50Hz
Nominal Output 2800W
Protection Class II –Double Insulated
Max Blow Speed Km/h 260
Idle Speed min-1 8000-13000
Mulch Ratio 10:1
Noise pressure level (LPA)* 93 dB(A) (K = 3 dB(A))
Sound power level (LWA)* 104 dB(A) (K = 3 dB(A))
Vibration** < 4,31 m/s² (K = 1,5 m/s²)
Collection Bag Capacity (ltr) 45
Electrical Cord Length (m) 10
Dimensions (mm) L-580, W-355, H-370
Weight (kgs) N.W 4.5 - G.W 5.3
*) The specified values are emission values and do not necessarily represent safe workplace values. Although there is a correlation between emission and emission levels, this
cannot be used to infer whether additional safety measures are necessary or not. Factors which affect the current emission levels at the workplace, include the type of
room, other sources of noise,
e.
g. the number of machines operating and other processes taking place in the vicinity. Permitted workplace values can differ from country to country. This information is
designed to help the user to better assess the dangers and risks.
**) The specified vibration emission value was measured in accordance with a normed test procedure and can be used in order to compare one tool with another. The
specifiedvibration emission value can also be used for an introductory evaluation of the exposure. The vibration emission value may fluctuate from the specified value
during actual use of the power tool. These fluctuations will depend on the way in which the power tool is used. Try to keep vibrations to a minimum. One method of
reducing the vibration load is, for example, limiting the length of time you work with the tool. All parts of the operating cycle must be considered for this purpose (for
example, also including times in which the power tool is switched off and times in which it is switched on but is running without load).
The manufacturer reserves the right to change the product specification and livery according to continued product
improvements.
This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead
it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
For more detailed information about recycling of this product, please contact your local council office, your household
waste disposal service or shop where you purchased the product.

Instruction Manual
COMPONENTS
A. Wheels
B. Blower Nozzle
C. Suction Tube
D. Front Handle
E. On/Off Switch
F. Speed Regulator
G. Rear Handle
H. Blow/Vac Selector Lever
I. Collection Bag
I
A
D
C
B
E
F
G
H
1
2
3
CASING
TUBE

Instruction Manual
14
13
12
11
10
14
13
Image used for information purposes only
and may not represent the actual product

Instruction Manual
ASSEMBLY
Remove the machine and contents from the carton. Be sure the carton is empty before discarding.
If you require any assistance with regards to the contents of the machine, contact us:
Tel: 01793 333212 - Monday –Friday 8.00am –5.30pm (excl. Bank Holidays)
Email: customerservice@webbgardenpower.co.uk
VACUUM ASSEMBLY
1. Attach the lower suction pipe to the top suction tube, ensuring the tabs are secured in the holes and fasten using
the long self-tapping screw (1).
2. Remove the two screws from the machine casing (2) and insert the top suction pipe into the machine. Refit the
two screws into the casing and screw into place, ensuring they are fully tightened.
3. Hook the shoulder strap onto the device (3).
ATTACHING THE COLLECTION BAG
1. Hook the collecting bag to the machine as shown and fold up at the handle (10 & 11).
2. Ensure that the bag is positioned into place securely.
ELECTRICAL CABLE SAFETY
1. Feed the electrical cable through the strain relief mechanism (12) as shown. This will shorten the amount of cable,
capable of entering the working zone.
OPERATION
DANGER
All Blowers can throw small stones, metal or small objects as well as other material. Do not allow anyone to enter the
operating DANGER ZONE with you. The danger zone is an area 15 metres in radius.
Insist that persons in the RISK ZONE beyond the danger zone wear eye protection from thrown objects. If the unit must
be used where there are unprotected people, operate at a low throttle speed to reduce the risk of thrown objects.
WARNING
EXCESSIVE VIBRATION OF THE MULCHING FAN INDICATES IT HAS BEEN DAMAGED. CONSULT YOUR LOCAL APPROVED
DEALER FOR ASSISTANCE
GENERAL USE
WARNING
Prior to using the machine, ensure all hardware (bolts, screws & nuts) are securely tightened.
•Operate with the machine on your right side, with your right hand holding the rear handle & hold the front handle with
your left hand.
WORKING PLAN
•Blow material to a safe collection point, away from stones and other hard debris, which could damage the mulching fan
within the machine.
•Limit the amount of time the product is used continuously to a maximum of 30 minutes per session.
•Leave the machine to rest between sessions for between 5-10 minutes.
•Total amount of work performed per day with the machine, should be limited to 120 minutes’ maximum.
•Continuous use of the machine can cause “Repetitive Stress Injury (RSI)”. If you feel discomfort, redness or swelling of
your hands and fingers or any other body part, consult your doctor.
•Check local regulations for sound level and hours of operation constraints.

Instruction Manual
USING THE VACUUM
•When using the vacuum, ensure the bag is not damaged to ensure debris is not thrown at the user or bystanders.
•Ensure only light, DRY garden waste materials such as leaves, grass cuttings, clippings, small twigs and pieces of paper.
•When the bag is full, remove the bag and tip the contents into a recycling bin or compost heap.
•Adjust the speed of the blower, by adjusting the speed regulator (6). Lower speeds can prevent collection of stones or
other hard/heavy debris.
USING THE BLOWER
•Always be aware of the strength and direction of the air stream.
•Never direct the blower towards people or animals.
•Adjust the speed of the blower, by adjusting the speed regulator (6).
SELECTING THE OPERATING MODE
•Set adjustment lever (8) to vacuum or blow
•When using as a vacuum: Insert the collection bag (9) as shown into the device and ensure that it clicks into place.
SETTING THE BLOWER OR VACUUM SPEED
•Set the speed regulator (6) to the required blowing or vacuuming speed.
SWITCHING ON AND OFF
•Set the On/Off switch to position [1] to switch the appliance on.
•Set the On/Off switch to position [0] to switch the appliance off.
MAINTENANCE & CLEANING
WARNING
Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer
performance. Store in a dry area, away from direct sunlight.
DANGER
Risk of injury! Switch off the product and disconnect the mains plug before all cleaning and maintenance work. Wait till
all moving parts are completely stopped.
MAINTENANCE
•Before each use, check all nuts & bolts to be sure they are sufficiently tightened.
•We recommend only manufacturer original parts are used when maintaining this machine. Failure to do so could
invalidate your manufacturer’s warranty.
•The motor must be switched off, with the electrical plug removed from the power source, before the machine is
unassembled, cleaned, serviced or maintained.
CLEANING
Keep your machine clean.
Thoroughly clean the machine at the end of each use.
•Brush off coarse dirt.
•Wipe down the device with a slightly damp cloth.
SUCTION & BLOWER TUBES
•It is advisable to remove the tubes from the machine regularly for cleaning.
•Use soapy water to remove any dirt or grime.
COLLECTION BAG
•Push the unlocking button (11) and fold the handle (10) downwards.
•Shake out the collection bag thoroughly, turn inside out and brush the bag out.
•You may wash the bag with a very mild detergent BY HAND, but ensure it is completely dry before attaching to the
machine and use.
•Regularly check the bag for rips, tears or holes and replace immediately if damaged.

Instruction Manual
CLOGGING
•Release the locking screw (13).
•Fold down the housing cover (14) and remove any blockage within the fan housing.
•Once happy the fan can rotate, close the housing cover and fully tighten the locking screw. The housing cover is fitted
with a safety switch, which prevents the machine from operating if the locking screw is not completed secured.
STORAGE & TRANSPORT
DANGER
RISK OF INJURY! Make sure unauthorised persons do not have access to this machine!
STORAGE
•For years of trouble free service, make sure the machine is clean and dry before storing.
•Before storing, clean the machine thoroughly as indicated within the Cleaning section of this manual.
•Store indoors, in a safe, locked protected area during severe weather and winter months. Keep away from direct
sunlight.
TRANSPORT
•Secure the device against slipping
TROUBLE SHOOTING
DANGER
RISK OF INJURY! Incorrectly performed repairs can lead to the device not functioning safely. This endangers yourself and
your environment.
Malfunctions are often caused by minor faults. You can easily remedy most of these yourself. Please consult the following table
before contacting the manufacturer or selling retailer. You will save yourself a lot of trouble and possibly money too.
If you can’t fix the fault yourself, contact us Tel: 01793 333212 or Email: customerservice@webbgardenpower.co.uk.
Please be aware that any improper repairs will invalidate the warranty and additional costs may be incurred.
Fault
Cause
Resolution
Will not start
No mains power (power failure).
Check fuse
Motor or switch defect.
The cable should be checked and
replaced if necessary by a qualified
electrician or approved service dealer.
Material is not being
vacuumed properly
Suction tubes clogged or blocked.
Switch to blow mode and clear the
blockage.
Collection bag is full
Empty the collection bag.
Extension cable, if used, is too long, or
the cable cross section is too small.
Use a shorter extension cable with a
cross section the same size or larger
than the standard cable on the machine.
Machine is vibrating abnormally
The fan has become unbalanced due to
the impact of a foreign object e.g. a
stone or gravel.
The fan needs to be replaced by an
approved service dealer. Please note
that this will not be covered under the
warranty, as the warranty does not
cover wear and tear or machines that
are damaged by the user.

Instruction Manual
PARTS DIAGRAM - WEEBV2800

Instruction Manual
PARTS LIST –WEEBV2800
Item
No
Part No Description Qty
Item
No
Part No Description Qty
1 WE123-104030424 Bolt ST4.2×25 2 25 WE123-102080466 Conductor 1
2 WE123-301013190 Axle 2 26 WE123-105020001 Rubber Mat 2
3 WE123-301013148 Wheel 2 27 WE123-4070175 Motor Assembly 1
4 WE123-301019379 Lower Tube 1 28 WE123-103990525 Ring 1
5 WE123-301019377 Left Upper Tube 1 29 WE123-301019007 Fan 1
6 WE123-104030205A Bolt St4.2×50 1 30 WE123-104020020 Locknut M8 1
7 WE123-104030161 Bolt St4.2×15 37 31 WE123-301019010 Insulation Cap 1
8 WE123-301019378 Right Upper Tube 1 32 WE123-301015023 Cable Hook 1
9 WE123-301019153 Right Housing & Nut 1 33 WE123-301019162C Right Handle 1
10 WE123-105990200 Shoulder Harness Assembly 1 34 WE123-301990135 Pressing Line Plate 1
11 WE123-301019160C Knob & Insert 1 35 WE123-1029901010 Double Terminal 1
12 WE123-104050021 Clamp Spring 1 36 WE123-102070609 Electric Cable 1
13 WE123-301019159-1D Fan Cover 1 37 WE123-301041076 Cable Sheath 1
14 WE123-104020017 Locknut 3 38 WE123-301019163C Left Handle 1
15 WE123-104040103 Screw M5×60 1 39 WE123-301019164 Rear Vibration Sleeve 1
16 WE123-301019157C Lock Knob & Insert 1 40 WE123-301019165 Front Vibration Sleeve 1
17 WE123-301019155C Upper Adj Handle 1 41 WE123-301019154C Left Housing 1
18 WE123-301019156C Lower Adj Handle 1 42 WE123-301019146 Left Decorative Cover 1
19 WE123-103990566 Lock Knob Connector 1 43 WE123-301019147 Right Decorative Cover 1
20 WE123-103990565 Lock Pin 1 44 WE123-301019168 Adjustable Shield 1
21 WE123-301070606B Adj Handle Lock Knob 1 45 WE123-301019169 Blow & Suction Switch 1
22 WE123-301019158C On/Off Switch 1 46 WE123-301019170 Leaf Exit 1
23 WE123-102020111 Micro Switch 3 47 WE123-104040097 Screw M5×25 2
24 WE123-301019161C Speed Control Knob 1 48 WE123-4990115B Collection Bag Assembly 1

EC DECLARATION OF CONFORMITY
We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product:
Designation: Electric Blower & Vacuum
Model(s): WEEBV2800
Product Number: 1938199001
Motor Voltage: 230-240V~50Hz
Nominal Output: 2800w
Max Air Speed: 260km/h
Type/Serial No. As per rating label on machine
Complies with the following directives:
Machinery Directive 2006/42/EC
The conformity assessment procedure followed was in accordance with
EN 50636-2-100:2014, EN 60335:2012+A11:2014, EN 62233: 2008
Measured Sound Pressure Level: LPA = 93dB(A) (K = 3 dB(A))
Measured Sound Power Level: LWA = 104dB(A) (K = 3 dB(A))
Vibration Level: < 4,31 m/s² (K = 1,5 m/s²)
Notified Body:
Intertek Testing Services Shanghai
Addresses:
Building No. 86, 1198 Qinzhou Road (North), Caohejing Development Zone, Shanghai 200233, P.R.C
Authorised signatory and technical file holder
Date: 29/11/2018
Signature:
Name: Mr Simon Belcher
Position: Chairman
Company: Handy Distribution Ltd
Address: Murdock Rd, Swindon, Wiltshire, SN3 5HY.
Instruction Manual

Notes
Instruction Manual

Notes
Instruction Manual

1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser, is not transferable and covers faulty parts and the labour involved in
replacing and repairing those parts, which are of original manufacture.
2. Period of Warranty
Webb (excludes Electric Handheld) & Webb Pro, 2 year conditional warranty from the original date of sale to the
fi rst domestic user.
Webb Electric Handheld & Dynamic, Legacy & Heritage 1 year warranty from the original date of sale to the fi rst
domestic user.
90 days from the original date of sale to the professional/commercial or for hire user.
Engine warranty as per the engine manufacturer’s warranty, which will be supplied with the machine.
90 days from the original date of sale for Replacement Spare Parts
All machines’ must be serviced within the fi rst 14 months from the original date of purchase, to qualify for a second
year parts & labour warranty, details of the service must be recorded in the service record within this manual.
A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear and in
normal use, will need replacement or adjustment.
These items are chargeable after 90 days of ownership.
Filters
Tyres / Wheels
Drive chains and belts
Brake & clutch friction components
Control cable & starter cords
Fluids & lubricants
Spark plugs
Blades (Lawnmowers & Brushcutters)
Cutter bars (Hedgecutters)
Drive & clutch cable surfaces
Nylon Lines (Line Trimmers)
Carburettor cleaning
Bearings
Bushes
Electric cable
Grass collectors
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion,
lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operators manual, or service parts replacement which would include oil, fi lters, tyres, belts, brake
linings, fuses, blades, seals and other service parts unless it can be proven that the item has evidence of faulty
manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being modifi ed
without the written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been fi tted and as a result damage has
occurred to the unit.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of the
merchantability or the fi tness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of
This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and
enable you to take advantage of the conditional manufacturer domestic warranty*.
Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is
required.
The booklet is applicable to the following products, in the UK only:
Ride On Lawn Tractors
Cylinder Lawnmowers
Petrol Rotary Lawnmowers
Petrol Hand Held Range
Please register your machine using the following pages or at www.webbgardenpower.co.uk. By registering your
machine, you agree to maintain the machine in accordance with the service schedules specifi ed in this manual and
services duly recorded. (Not applicable for Webb electric handheld machines). You may be asked to produce this
booklet as proof of servicing in the event of a claim. Proof of purchase should also be kept as a reference.
Ensure you have the following information available from your machine product label. The two examples below can
be found on your machine:
1
2
1. Model Number
2. Serial & Product Number
Please complete using BLOCK CAPITALS.
Sections marked* must be completed to validate Warranty.
Instruction Manual

1. Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser, is not transferable and covers faulty parts and the labour involved in
replacing and repairing those parts, which are of original manufacture.
2. Period of Warranty
Webb (excludes Electric Handheld) & Webb Pro, 2 year conditional warranty from the original date of sale to the
fi rst domestic user.
Webb Electric Handheld & Dynamic, Legacy & Heritage 1 year warranty from the original date of sale to the fi rst
domestic user.
90 days from the original date of sale to the professional/commercial or for hire user.
Engine warranty as per the engine manufacturer’s warranty, which will be supplied with the machine.
90 days from the original date of sale for Replacement Spare Parts
All machines’ must be serviced within the fi rst 14 months from the original date of purchase, to qualify for a second
year parts & labour warranty, details of the service must be recorded in the service record within this manual.
A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear and in
normal use, will need replacement or adjustment.
These items are chargeable after 90 days of ownership.
Filters
Tyres / Wheels
Drive chains and belts
Brake & clutch friction components
Control cable & starter cords
Fluids & lubricants
Spark plugs
Blades (Lawnmowers & Brushcutters)
Cutter bars (Hedgecutters)
Drive & clutch cable surfaces
Nylon Lines (Line Trimmers)
Carburettor cleaning
Bearings
Bushes
Electric cable
Grass collectors
3. Not covered by this warranty
(a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion,
lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
(b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operators manual, or service parts replacement which would include oil, fi lters, tyres, belts, brake
linings, fuses, blades, seals and other service parts unless it can be proven that the item has evidence of faulty
manufacture.
(c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being modifi ed
without the written approval of GJ Handy & Co Ltd.
(d) The warranty policy will not cover the unit if non-genuine parts have been fi tted and as a result damage has
occurred to the unit.
(e) The warranty policy is non-transferable and is only applicable to the original purchaser.
4. Disclaimer
(a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of the
merchantability or the fi tness for a particular purpose.
(b) No person is authorised to make any warranties, representations or promises, expressed or implied, on behalf of
This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and
enable you to take advantage of the conditional manufacturer domestic warranty*.
Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is
required.
The booklet is applicable to the following products, in the UK only:
Ride On Lawn Tractors
Cylinder Lawnmowers
Petrol Rotary Lawnmowers
Petrol Hand Held Range
Please register your machine using the following pages or at www.webbgardenpower.co.uk. By registering your
machine, you agree to maintain the machine in accordance with the service schedules specifi ed in this manual and
services duly recorded. (Not applicable for Webb electric handheld machines). You may be asked to produce this
booklet as proof of servicing in the event of a claim. Proof of purchase should also be kept as a reference.
Ensure you have the following information available from your machine product label. The two examples below can
be found on your machine:
1
2
1. Model Number
2. Serial & Product Number
Please complete using BLOCK CAPITALS.
Sections marked* must be completed to validate Warranty.
Instruction Manual SERVICE BOOK

Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions
have been completed.
PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK.
1st Service
This must be stamped by an approved service dealer to
qualify for a free second year warranty.
(Excluding the Webb Electric Handheld machines)
24 Months
Date Date
36 Months
12 Months
Date
Warranty
GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any way.
(c) Neither GJ Handy & Co Ltd nor any company affi liated with GJ Handy & Co Ltd shall be liable in any event or
manner whatsoever for incidental or consequential damages or injuries, including, but not limited to, loss of crops,
loss of profi t, out of pocket expenses or profi ts, rental of substitute equipment or other commercial losses.
5. General
(a) Most warrantable failures show up within the fi rst few weeks of use. These failures are usually straightforward
and warranty assessment is relatively easy.
(b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be
straightforward. Look for damage to blades and pulleys especially when the cutter belt or blade boss have snapped
or cracked as this could be due to impact damage.
(c) Customers should always refer to the operator/instruction manual when any disputed problem arises, you will
fi nd most areas covered within the manual.
Protecting your machine
Maintenance
Regular maintenance of your Webb machine is essential to ensure it operates, safely, effi ciently and therefore
reducing the environmental impact.
It is the owner’s responsibility to ensure that their Webb machine is maintained at specifi c intervals. Any approved
Webb service dealer can undertake a service, which are specialised in our products and will be aware of your
particular machine and any technical updates which will save valuable time & money.
If you are using your machine in dry, dusty or high temperatures, you will need to service the machine more
regularly.
Fuel (if applicable)
Due to ongoing eff orts by fuel companies to reduce emissions, unleaded petrol will oxidize & deteriorate in storage
overtime, leaving residue from detergent components.
Fuel deterioration problems may occur when petrol is stored for over 30 days. If you are planning to store fuel for
over 30 days, we recommend you add Handy Parts Sure-Start fuel stabilizer to fresh fuel after purchasing. Sure-
Start cannot reconstitute stale fuel.
Storage
When storing your machine for an extended period, we do recommend that you follow the instructions of engine
instruction manual.
Always store the fuel in a clean, approved and sealed container. If the container is steel, ensure it is not corroded.
If the container is not fi lled to its recommended capacity, air can accelerate fuel deterioration.
Always store fuel away from direct sunlight, in a dark, cool environment.
Instruction Manual
This manual suits for next models
1
Table of contents
Other Webb Blower manuals
