OSNA LG 100 Installation instructions

Ver.16-08
Original Operating Manual

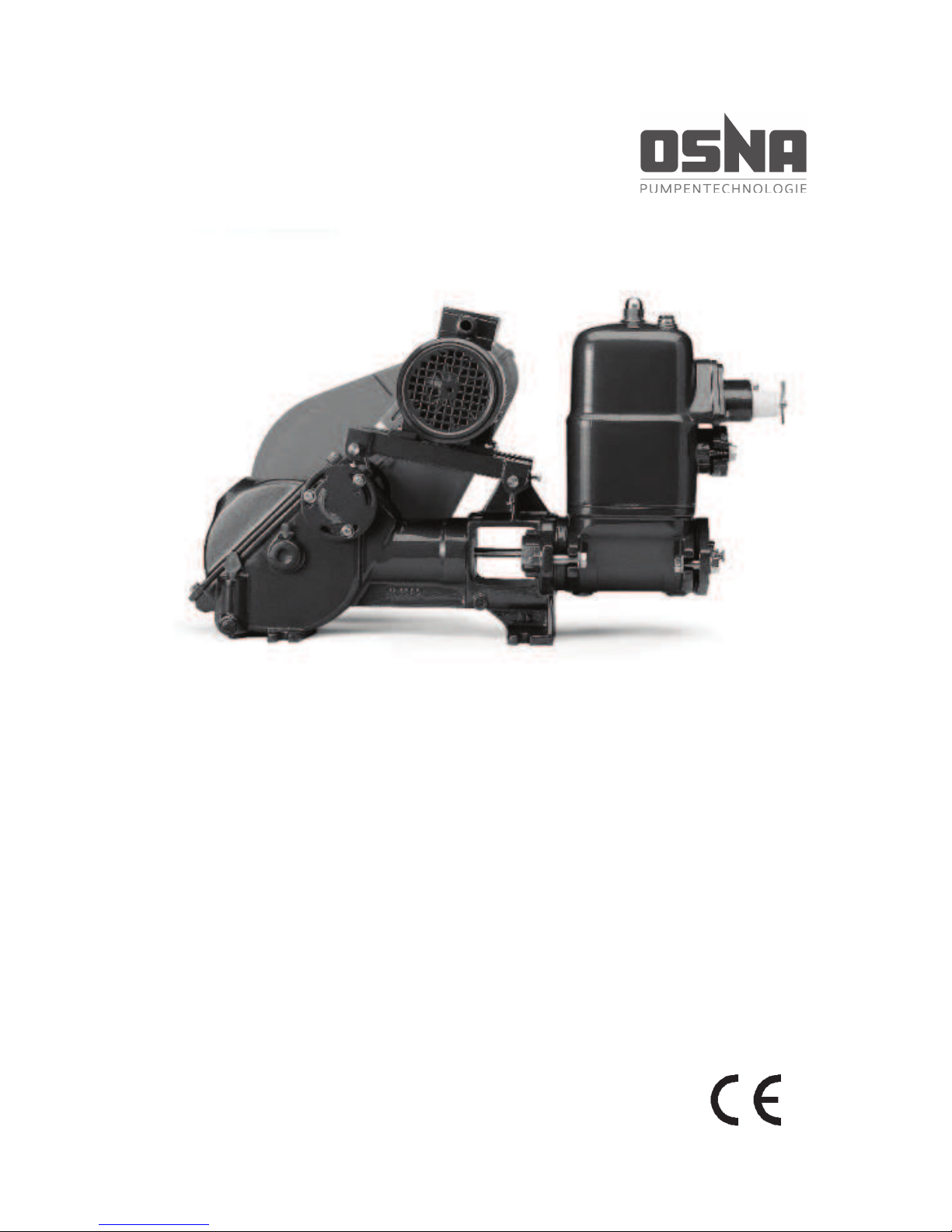

LG Piston Pump
OSNA-Pumpen GmbH
Brückenstrasse 3
49090 Osnabrück, Germany
Phone: [phone] - 0
Fax: [phone] - 220
Internet: http://www.osna.de
E-mail: [e-mail]

LG Piston Pump 1
Contents
1 GENERAL ...................................................................................................................................5
1.1 About this operating manual..................................................................................................5
1.2 Target groups .......................................................................................................................5
1.3 Other valid documents ..........................................................................................................5
1.4 Warning notices and symbols................................................................................................6
1.5 Copyright/changes ................................................................................................................6
2 SAFETY ......................................................................................................................................7
2.1 Correct and proper use .........................................................................................................7
2.2 General safety instructions....................................................................................................8
2.2.1 Product safety................................................................................................................8
2.2.2 Duties of the system owner ............................................................................................8
2.2.3 Duties of personnel ........................................................................................................9
2.3 Dangers of non-observance of the safety instructions..........................................................10
2.4 Unauthorized conversion and production of spare parts.......................................................10
2.5 Unauthorized modes of operation........................................................................................10
2.6 Special hazards ..................................................................................................................10
2.6.1 Explosion area .............................................................................................................10
2.6.2 Hazardous pumping media...........................................................................................10
2.6.3 Noise emissions...........................................................................................................10
3 LAYOUT AND FUNCTION ........................................................................................................11
3.1 Labeling..............................................................................................................................11
3.2 Scope of delivery, type LG piston pump ..............................................................................11
4 TRANSPORT AND INTERMEDIATE STORAGE.......................................................................13
4.1 Transport ............................................................................................................................13
4.1.1 Unpacking and checking the delivery condition.............................................................13
4.1.2 Lifting...........................................................................................................................13
4.2 Storage...............................................................................................................................13
4.3 Intermediate storage ...........................................................................................................14
4.4 Disposal..............................................................................................................................14
5 LAYOUT AND MODE OF OPERATION ....................................................................................15
5.1 Mode of operation ...............................................................................................................15
5.2 Functional and operating elements......................................................................................15
5.3 Layout of the piston pump with pressurized container..........................................................16
5.4 Technical data ....................................................................................................................17
6 ASSEMBLY AND INSTALLATION............................................................................................18
6.1 Preparing for installation......................................................................................................18

2 LG Piston Pump
6.1.1 Checking the surrounding conditions............................................................................18
6.1.2 Preparing the installation location.................................................................................18
6.1.3 Preparing the base surface and foundations.................................................................18
6.2 Installation ..........................................................................................................................18
6.2.1 Installing the pump.......................................................................................................18
6.2.2 Electrical connection ....................................................................................................19
6.2.3 Water connection .........................................................................................................19
6.2.4 Assembling the piston pump with additional pressurized container ...............................20
6.3 Installation ..........................................................................................................................21
6.3.1 Installing the V-belt.......................................................................................................21
6.3.2 Belt guard ....................................................................................................................22
6.3.3 Installing the snifter valve .............................................................................................24
7 COMMISSIONING/ DECOMMISSIONING ................................................................................25
7.1 Preparing for commissioning ...............................................................................................25
7.1.1 Determining the pump configuration .............................................................................25
7.1.2 Filling the drive casing with oil ......................................................................................25
7.2 Commissioning ...................................................................................................................26
7.2.1 Filling the pump............................................................................................................26
7.2.2 Checking direction of rotation .......................................................................................27
7.2.3 Starting the piston pump ..............................................................................................27
7.3 Decommissioning................................................................................................................29
7.4 Recommissioning................................................................................................................30
8 MAINTENANCE AND REPAIR..................................................................................................32
8.1 Maintenance .......................................................................................................................32
8.1.1 Oil level........................................................................................................................32
8.1.2 V-belt...........................................................................................................................33
8.1.3 Adding air ....................................................................................................................33
8.1.4 Stuffing box..................................................................................................................34
8.2 Maintenance service ...........................................................................................................34
8.2.1 Oil change....................................................................................................................35
8.2.2 Sending the pump to the manufacturer.........................................................................35
8.3 Safety valve ........................................................................................................................35
9 FAULTS AND TROUBLESHOOTING........................................................................................37
10 APPENDIX.............................................................................................................................39
10.1 Service, spare parts, accessories ....................................................................................39
10.2 Individual parts of the LG piston pump .............................................................................40
10.3 Motor assembly ...............................................................................................................44
10.4 Declaration of Conformity as per EC Directive 2006/42/EC, Annex IIA .............................46
10.5 Clearance Certificate .......................................................................................................47

LG Piston Pump 3
List of Tables
Table 1: Target groups and their tasks ................................................................................................5
Table 2: Other valid documents and their purposes ............................................................................5
Table 3: Warning notices and consequences of non-observance.........................................................6
Table 4: Symbols and their meanings..................................................................................................6
Table 5: Starting torques...................................................................................................................12
Table 6: Technical data.....................................................................................................................17
Table 7: Measures in the event of operational interruption................................................................29
Table 8: Measures depending on the behavior of the pumping medium.............................................29
Table 9: Measures following longer shut down time...........................................................................31
Table 10: Measures for return ...........................................................................................................35
Table 11: Selection of SIOS valves ...................................................................................................36
Table 12: Fault causes......................................................................................................................38
Table 13: Parts list for the LG 100-400 piston pump ..........................................................................41
Table 14: Parts list for the LG 500-750 piston pump ..........................................................................43
Table 15: Motor assembly parts list for LG 100-400...........................................................................44
Table 16: Motor assembly parts list for LG 500-750...........................................................................45

4 LG Piston Pump
List of Images

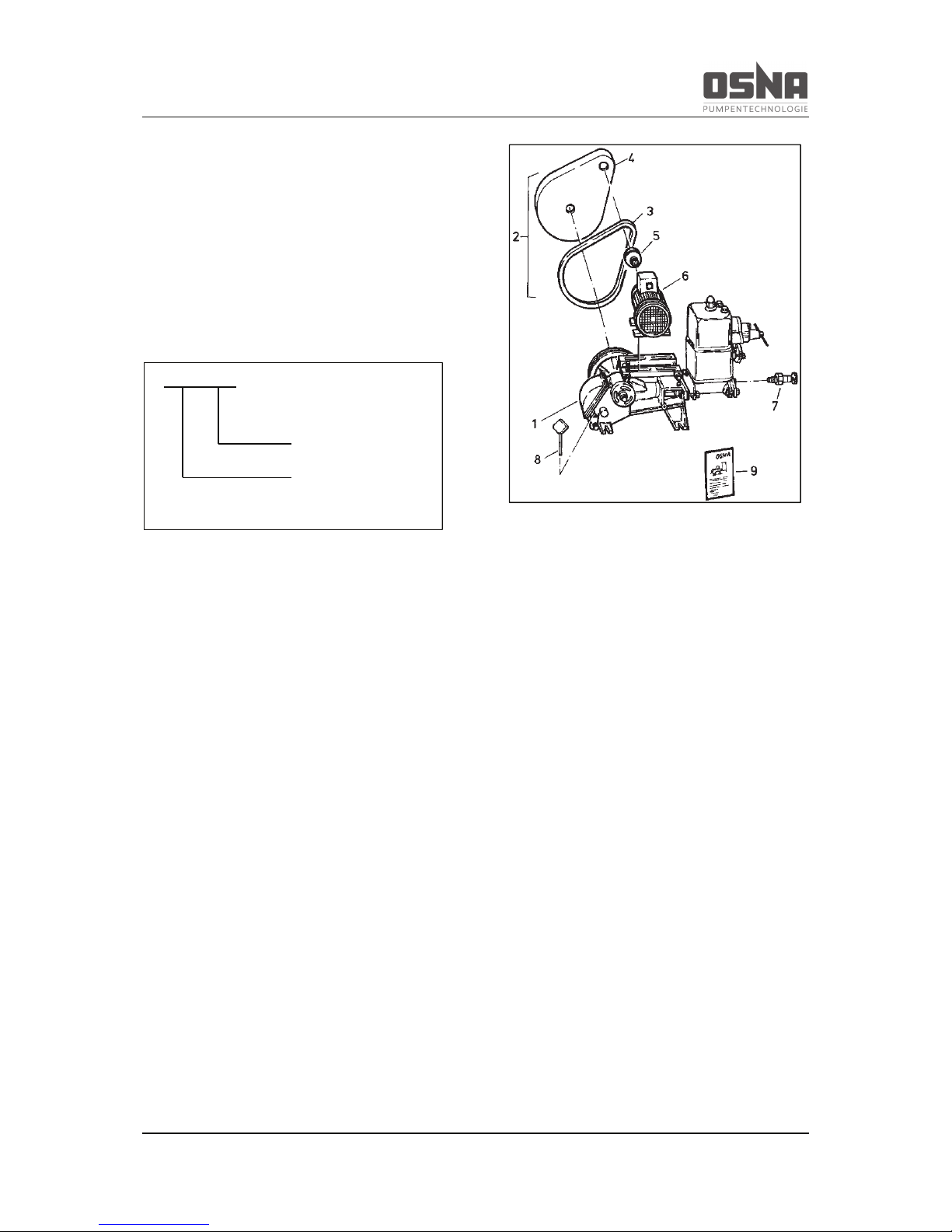

Figure 1: Model code ........................................................................................................................11
Figure 2: Scope of delivery for type LG..............................................................................................11

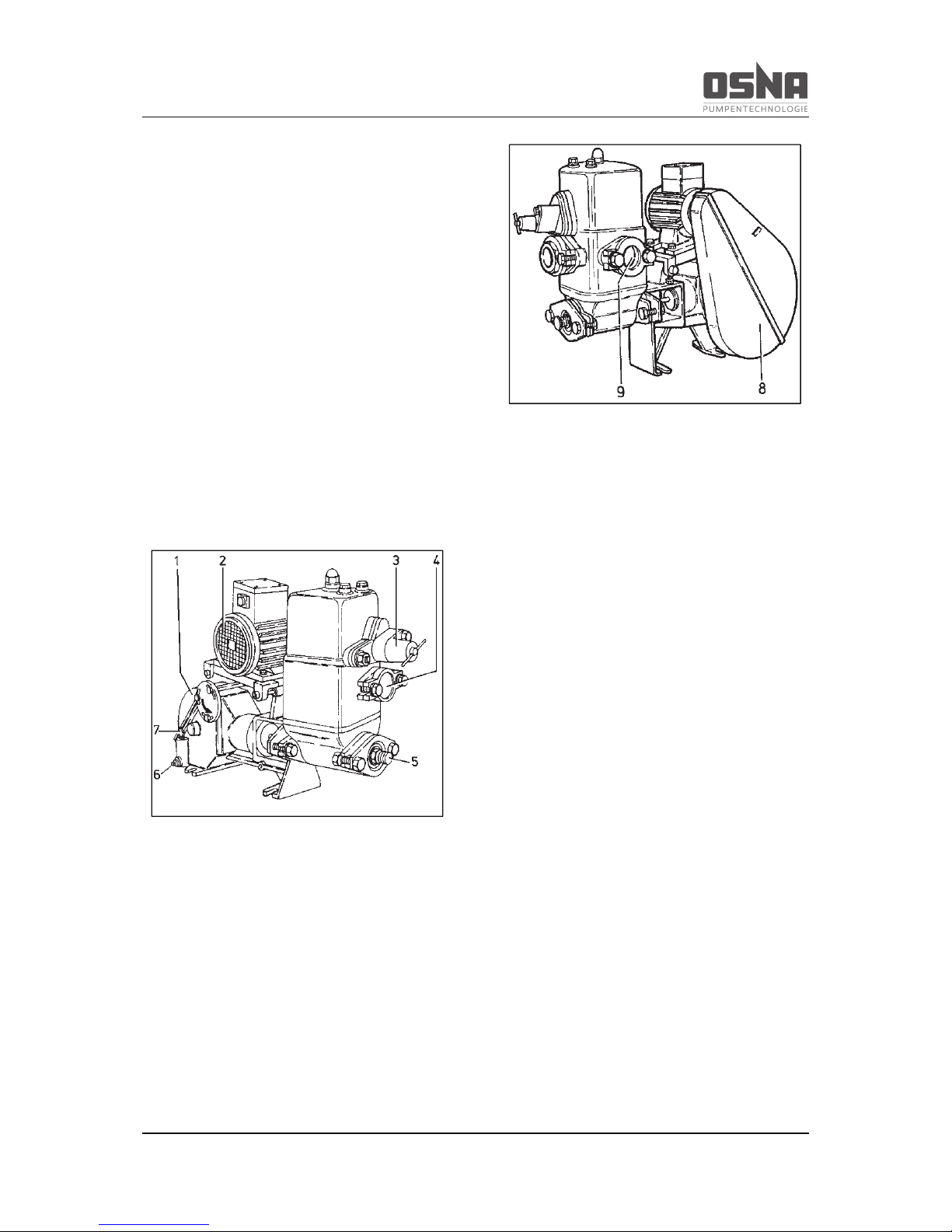

Figure 3: Functional elements 1 ........................................................................................................15
Figure 4: Functional elements 2 ........................................................................................................15

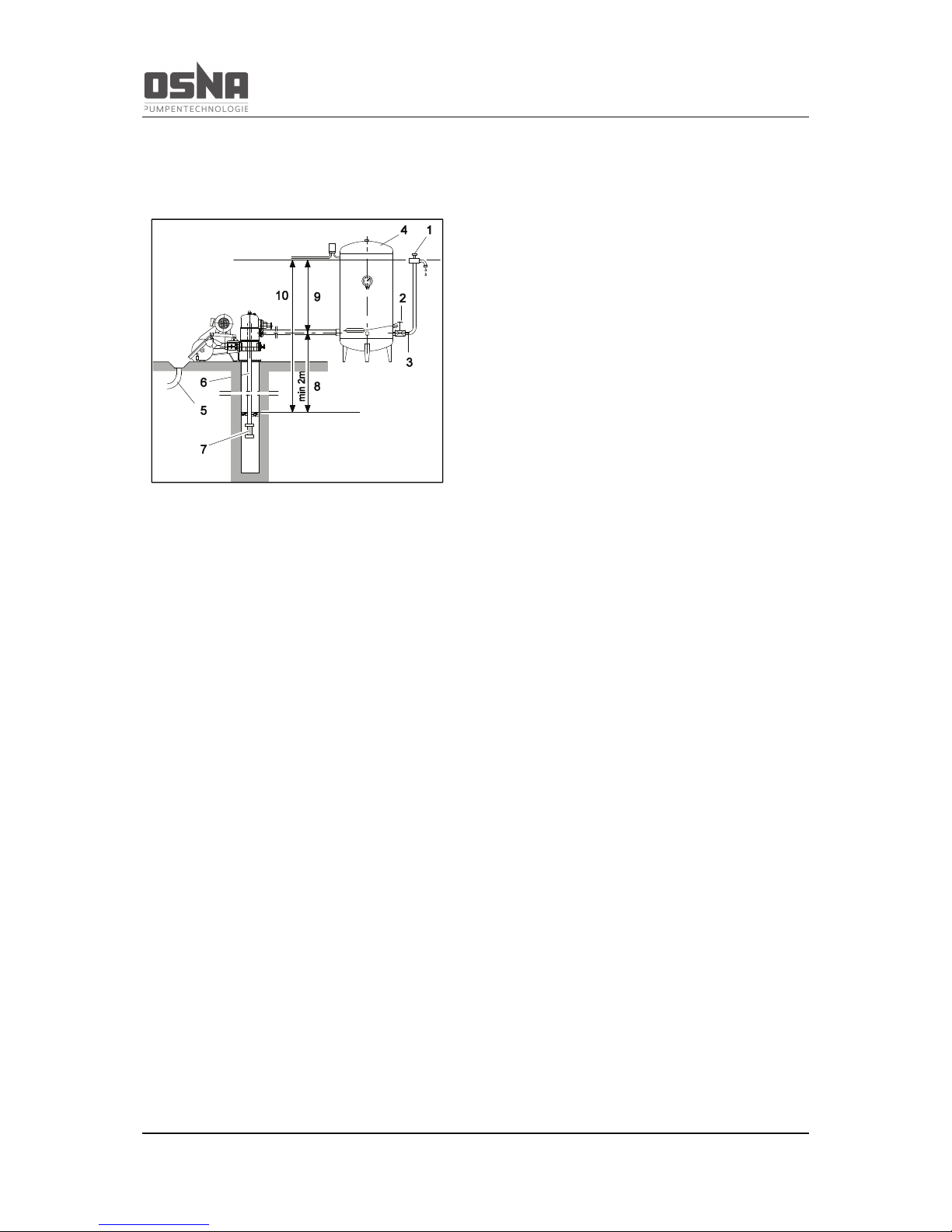

Figure 5: Layout with pressurized container.......................................................................................16
Figure 6: Dimensions in front view.....................................................................................................17
Figure 7: Dimensions in side view .....................................................................................................17
Figure 8: Installation area side view...................................................................................................19
Figure 9: Installation area front view..................................................................................................19
Figure 10: Motor protection switch.....................................................................................................19
Figure 11: Water connection .............................................................................................................20
Figure 12: Assembly with pressurized container................................................................................20
Figure 13: Assembly with pressurized container................................................................................21
Figure 14: Tensioning the V-belt........................................................................................................21
Figure 15: Belt guard for LG 100 - 400 ..............................................................................................22
Figure 16: Assembling the belt guard for LG 500 and 750 ................................................................23
Figure 17: Removing the belt guard for LG 500 and 750....................................................................24
Figure 18: Snifter valve .....................................................................................................................24
Figure 19: Drive casing .....................................................................................................................25
Figure 20: Water side........................................................................................................................26
Figure 21: Starting the piston pump...................................................................................................28
Figure 22: Draining the pump............................................................................................................30
Figure 23: Oil level ............................................................................................................................32
Figure 24: V-belt guard .....................................................................................................................33
Figure 25: Adding air.........................................................................................................................33
Figure 26: Stuffing box ......................................................................................................................34
Figure 27: Oil change........................................................................................................................35
Figure 28: Safety valve .....................................................................................................................36
Figure 29: Explosion diagram of the LG 100-400 piston pump...........................................................40
Figure 30: Explosion diagram of the LG 500-750 piston pump...........................................................42
Figure 31: Explosion diagram of the LG 100-400 motor assembly .....................................................44
Figure 32: Explosion diagram of the LG 500-750...............................................................................45

1 General
LG Piston Pump 5
1 General
1.1 About this operating manual
This operating manual contains important in-
structions that must be observed during instal-
lation, operation and maintenance. For this
reason, ensure that it is read by specialist per-
sonnel and the responsible operator/owner
prior to assembly and commissioning. The
manual must be available at all times at the lo-
cation where the system is used.
Please observe the safety instructions de-
scribed in this operating manual, along with the
relevant national accident prevention regula-
tions and any internal work, operational and
safety specifications of the operator. We as-
sume no liability for damages and operational
interruptions resulting from non-observance of
this operating manual.
WARNING
Pay particular attention to section 2 "Safety in-
structions" during commissioning and all
maintenance work.
Section 2 also provides an explanation of the
symbols used in this manual. Knowledge of
this operating manual is essential to preventing
errors and ensuring safe and uninterrupted
operation.
The operating specification does not take local
safety regulations into account. The owner
bears full responsibility for compliance with
these, including on the part of the assembly
personnel used.
This operating manual:
•is part of the pump
•is valid for all type series mentioned
•describes safe and proper use in all
phases of operation
1.2 Target groups
Target group Task
System owner ►Ensure that this manual is
available at the location
where the system is used,
including for later reference.
►Ensure that personnel
read and observe this operat-
ing manual and the other val-
id documents, in particular
the safety and warning infor-
mation.
►Observe additional sys-
tem-related regulations and
specifications.
Specialist person-
nel, assembly staff
►Read, observe and follow
this operating manual and
the other valid documents, in
particular the safety and
warning information.
Table 1: Target groups and their tasks
1.3 Other valid documents
Document Purpose
Installation diagram Installation dimen-
sions, connection di-
mensions, etc.
Spare parts list Ordering spare parts
Clearance certificate Returning the pump
Declaration of conformity Conformity with
standards, content of
the declaration of con-
formity
Table 2: Other valid documents
and their purposes

1 General
6 LG Piston Pump
1.4 Warning notices and symbols
Warning notice Hazard
level
Consequenc-
es of non-
observance
DANGER
Immediate
hazard
Death, severe
physical injury
WARNING
Potential
hazard
Death, severe
physical injury
CAUTION
Potentially
dangerous
situation
Minor physical
injury
NOTICE Potentially
dangerous
situation
Material dam-
age
Table 3: Warning notices and consequences of non-
observance
Symbol Meaning
Safety sign
►Follow all instructions
identified with safety signs
in order to avoid death or
injuries.
►Instruction
1. , 2. , …Instruction with multiple
steps
Condition
Reference
Information, note
Table 4: Symbols and their meanings
1.5 Copyright/changes
The intellectual property and all copyrights re-
lated to this technical documentation remain
exclusively with OSNA-Pumpen GmbH. All
rights reserved, in particular the right to repro-
duction and distribution of this documentation,
including translations thereof.
No part of this documentation may be repro-
duced in any form (print, photocopy, microfilm
or any others process), stored, processed, re-
produced or distributed using electronic sys-
tems without written permission.
Editorial changes reserved exclusively by
OSNA-Pumpen GmbH.
Any violation is punishable and subject to
compensation.
OSNA GmbH reserves the right to change the
contents of this documentation without notice.

2 Safety
LG Piston Pump 7
2 Safety
The manufacturer shall not bear any liability
for damages caused as a result of non-
observance of this documentation.
2.1 Correct and proper use
•Only use this pump for the purposes of
conveying the agreed pumping media.
•Comply with operating limits.
•The water may not contain any abra-
sive or long-fibered components that
may damage the pump materials.
Consult the manufacturer if using other
media.
•Ensure that the pump is only commis-
sioned with pumping medium and is
not operated without it.
•Open the suction-side fitting, and do
not use it to control the flow rate.
•Never operate the pump when the ar-
mature on the delivery side is closed.
•To avoid damaging the motor, observe
the permitted number of times per
hour that the motor can be switched
on (→Manufacturer information).
•Any other use must be agreed with the
manufacturer.
•The temperature of the pumping me-
dium must not exceed 40 °C.
Avoiding obvious misuse (examples)
•Observe the operating limits of the
pump for temperature, pressure, flow
rate and speed.
The main areas of use are:
•Water supply to single-family and mul-
tiple-family homes
•Water supply to businesses and agri-
culture
•Sprinkling and irrigation of gardens
and other usable areas
The pump is self-priming after being filled
once with water.
Do not operate the pump without water. Dry
running can lead to damage to the pump.
Ensure that the foot valve is in the water at all
times.
WARNING
Any use that goes beyond the purposes
described above shall be considered im-
proper use. OSNA shall bear no liability for
any resulting damages. The owner bears
full risk for improper use.

2 Safety
8 LG Piston Pump
2.2 General safety instructions
Please observe the following specifications
before performing any activities.
2.2.1 Product safety
This pump is constructed according to the lat-
est state of the art and accepted safety rules.
Nevertheless, risks to life and limb for the user
or third parties are still possible when using the
pump, as are impairments to the pump and
other material assets.
•Only use the pump in a technically
perfect state and for the intended pur-
pose. Ensure compliance with this op-
erating manual and be aware of the
hazards and safety issues during op-
eration.
•Keep this operating manual and all
other valid documents in a complete
and legible state, and store in a loca-
tion that is accessible at all times to
personnel.
•Do not permit any activity that endan-
gers personnel or uninvolved third par-
ties.
•In the event of a safety-relevant fault,
stop the pump immediately and have
the fault rectified by responsible per-
sonnel.
•In addition to this documentation, en-
sure compliance with the statutory or
other regulations for safety and acci-
dent prevention, as well as the rele-
vant standards and specifications of
the respective country.
•Do not remove any technical stickers.
2.2.2 Duties of the system owner
Safety-conscious work
Observe the safety specifications detailed in
this operating manual, along with the occupa-
tional safety regulations and all additional in-
ternal safety regulations.
•Only use the pump in a technically
perfect state and for the intended pur-
pose. Ensure compliance with this op-
erating manual and be aware of the
hazards and safety issues during op-
eration.
•Ensure compliance and monitoring:
-correct and proper use
-statutory or other safety and acci-
dent prevention regulations
-safety specifications for handling
hazardous substances
•Provide personal protective equip-
ment.
•Do not remove contact protection dur-
ing operation.
•Prevent any dangers from electrical
energy (for details, please refer to the
specifications of the VDE and the local
energy supplier).
•Switch off the motor during all assem-
bly and maintenance works, and se-
cure against reactivation.
•Only work on the system when the
pump is at a standstill.

2 Safety
LG Piston Pump 9
Personnel qualification
The owner of the system must ensure that the
personnel tasked with working on the pump
have read and understood this operating man-
ual and all other valid documents before be-
ginning work, in particular information on safe-
ty, maintenance and repair.
Work of any kind on the machine may only be
performed when it has been completely de-
commissioned. Reinstall and reactivate all
safety mechanisms after work.
Before restarting the machine, ensure that all
necessary commissioning steps have been
completed (→7.2 Commissioning, pg 26).
•Determine responsibilities, tasks and
monitoring for personnel.
•Only allow work of any kind to be per-
formed by specialist technical person-
nel:
-assembly, maintenance and repair
work
-work on the electrical systems
•Only allow personnel undergoing train-
ing to perform work on the pump under
the supervision of specialist technical
personnel.
Safety mechanisms
•Provide the following safety mecha-
nisms and ensure that they function
correctly:
-for moving components: contact
protection for the pump, installed
by the customer
-for potential electrostatic charges:
provide appropriate earthing
Guarantee
•Please consult the manufacturer be-
fore carrying out any conversions, re-
pairs or changes during the guarantee
period.
•Only use original parts or parts ap-
proved by the manufacturer.
2.2.3 Duties of personnel
•Observe the information on the pump
and ensure it is legible (e.g. direction
of rotation arrow, fluid connection indi-
cators).
•Do not remove the contact protection
for moving parts during operation.
•Use personal protective equipment if
necessary.
•Only work on the system when the
pump is at a standstill.
•Switch off the motor during all assem-
bly and maintenance works, and se-
cure against reactivation.
•Reinstall the safety mechanisms after
working on the pump according to
specifications.

2 Safety
10 LG Piston Pump
2.3 Dangers of non-observance of
the safety instructions
•Non-observance of the safety instruc-
tions can lead to hazards to personnel,
the machine and the environment.
•Non-observance of the safety instruc-
tions can also lead to the loss of any
damage claims.
•In particular, non-observance can lead
to the following dangers:
-failure of important system func-
tions
-electrical and mechanical hazards
to personnel
2.4 Unauthorized conversion and
production of spare parts
Conversions or changes to the machine are
only permitted following consultation with the
manufacturer. Original spare parts and acces-
sories authorized by the manufacturer help en-
sure safety. The manufacturer bears no liability
for the consequences of the use of other parts.
2.5 Unauthorized modes of opera-
tion
The operational safety of the machine is only
guaranteed when it is used for the intended
purpose according to the operating manual (→
2.1 Correct and proper use, pg 7).
Never exceed the limit values indicated in the
technical data
.
2.6 Special hazards
2.6.1 Explosion area
•Do not use the pump in areas where
there is a risk of explosion.
2.6.2 Hazardous pumping media
•Observe the safety regulations for
handling hazardous substances (e.g.
toxic, hazardous to health).
•Use personal protective equipment
when performing work on the pump.
2.6.3 Noise emissions
The maximum continuous sound pressure lev-
el for a correctly installed and commissioned
LG piston pump is 70 dB(A).

3 Layout and function
LG Piston Pump 11
3 Layout and function
3.1 Labeling
This operating manual applies to pumps of the
LG 100 to LG 750 series.
Model code:
Figure 1: Model code
3.2 Scope of delivery, type LG pis-
ton pump
The customer can order the pump:
•in a preassembled state, i.e. delivery
without motor, accessories enclosed
unassembled. The motor is installed
by the customer.
•in a fully assembled state, i.e the
pump is fitted with motor ex-works.
The scope of delivery corresponds to the
scope indicated in the order. Please check that
the delivery is complete upon receipt. Notify
the delivery company of any transport damage
immediately. Please also refer to our condi-
tions of sale and delivery. If using other motor
brands, please ensure that the motors have
the following drive torques as a multiple of the
nominal torque.
Figure 2: Scope of delivery for type LG
Key:
1 Pump
2 Accessories (includes items 3 to 9, fully as-
sembled in complete version)
3 V-belt
4 Belt guard with holder and clamping set
5 V-role pulley key for motor shaft with lock
screw
6 Motor with motor fastening set
7 Snifter valve
8 Oil dipstick
9 Assembly and operating manual
LG 100
Size
OSNA - piston
pump with gear unit

3 Layout and function
12 LG Piston Pump
Motor power
Starting torque ratio
[kW]
Ms/Mn
Mn [Nm]
0.37 1.9 2.5
0.55 1.7 3.7
0.75 1.6 5.0
1.1 2.0 7.3
1.5 2.3 9.9
2.2 2.6 14.6
3.0 2.8 20.0
Table 5: Starting torques
M s = Starting torque
M
n = Nominal torque
kW = Kilowatt
Nm = Newton meter
List applies only to three-phase motors.

4 Transport and intermediate storage
LG Piston Pump 13
4 Transport and intermediate
storage
4.1 Transport
Weight information (→Other valid docu-
ments)
NOTICE
Transport the pumps carefully and secure
them to prevent damage.
Avoid applying pressure to the pump-side
V-role pulley key.
4.1.1 Unpacking and checking the de-
livery condition
1. Check that the delivery is complete
upon receipt.
2. Unpack the pump/unit upon delivery
and check for transport damage.
3. Notify the delivery company of any
transport damage immediately.
4. Dispose of the packaging material in
line with the applicable local regula-
tions.
4.1.2 Lifting
DANGER
Risk of death or crushed limbs from falling
transported goods!
Choose lifting equipment that is suitable for
the total weight to be transported.
Do not stand under suspended loads.
4.2 Storage
NOTICE
Material damage due to incorrect storage!
Ensure that the pump is correctly stored.
1. Close all openings with blank flanges,
blind plugs or plastic covers.
2. Ensure that the storage area meets
the following conditions:
–dry
–free of frost
–free of vibrations
3. Move the piston rod once per month.

4 Transport and intermediate storage
14 LG Piston Pump
NOTICE
Damage to bearings due to high water
pressure or splashing water!
►Do not use water jets or steam jet cleaners
to clean the bearing areas.
NOTICE
Damage to seals due to incorrect cleaning
agent!
►Ensure that the cleaning agent does not
corrode the seals.
1. Choose the cleaning agent according
to the area of use.
2. Dispose of preservatives in line with
the applicable local regulations.
3. When storing for longer than 6
months:
–Check all elastomers (round seals,
shaft seal rings, gaskets and gland
packing) for elasticity, and replace
if necessary.
4.3 Intermediate storage
Ensure during intermediate storage that the
pump is not exposed to any weather conditions
for a long period of time. If the pump is de-
commissioned for a longer period of time (ap-
proximately 2 to 3 months), ensure that it is ful-
ly drained. ( 7.3 Decommissioning, pg 29)
4.4 Disposal
Plastic parts may be contaminated by toxic
or radioactive pumping media. If this is the
case, cleaning is not sufficient.
WARNING
Risk of poisoning and environmental dam-
age from pumping medium!
►Use personal protective equipment when
performing work on the pump.
►Before disposing of the pump:
–Collect the oil and dispose of it in
line with the applicable local regu-
lations.
–Neutralize any pumping medium
residues in the pump.
►Dispose of the pump in line with the appli-
cable local regulations.

5 Layout and mode of operation
LG Piston Pump 15
5 Layout and mode of opera-
tion
5.1 Mode of operation
The OSNA piston pump is a double-acting,
self-priming piston pump that has proven itself
thanks to its quiet running, long service life and
good suction performance.
The OSNA piston pump can be used together
with a pressurized container for household wa-
ter supply.
5.2 Functional and operating ele-
ments
Figure 3: Functional elements 1
Figure 4: Functional elements 2
Key:
1 Piston pump
2 Motor
3 Safety valve (SIOS valve, checked by TÜV)
4 Discharge nozzle
5 Snifter valve
6 Oil drain plug
7 Oil dipstick
8 Belt guard
9 Suction nozzle

5 Layout and mode of operation
16 LG Piston Pump
5.3 Layout of the piston pump with
pressurized container
Figure 5: Layout with pressurized container
Key:
1 Consumer
2 Shut-off valve with water outlet
3 Delivery pipe
4 Pressurized container
5 Leakage fluid outlet
6 Suction pipe
7 Foot valve
8 Suction head
(Minimum suction head 2 m or ≈-0.2 bar)
9 Check valve
The items listed here are not included in deliv-
ery with the piston pump.

5 Layout and mode of operation
LG Piston Pump 17
5.4 Technical data
Figure 6: Dimensions in front view
Figure 7: Dimensions in side view
Please check the pump type on the type
plate to determine the correct gap.
* Motor output for AC motors available upon request
1) Without pipe losses
2) The total delivery head is comprised of the suction head, the geodetic delivery head and friction losses
Table 6: Technical data
Pump type LG 100 LG 200 LG 400 LG 500 LG 750
Flow rate Liters/hour 1500 2500 4000 5000 7000
Pump pressure bar 4/6 4/6 4/6 4/6 4/6
Motor power, output * kW 0.37 (0.55) 0.55 (0.75) 0.75 (1.1) 1.1 (1.5) 1.5 (2.2)
Motor speed rpm 1450 1450 1450 1450 1450
Pump pipe connections suction + deliv-
ery Inches 1 1 1/4 1 1/2 2 2
Cylinder - ø mm 55 75 90 100 100
Electrical connection Volt 230/400 230/400 230/400 230/400 230/400
Dimensions a [min] mm 85 93 93 114 114
b [min] mm 170 193 193 232 232
B [min] mm ≈350 ≈350 ≈350 ≈420 ≈420
c [min] mm ≈735 ≈758 ≈758 ≈870 ≈870
d [min] mm 14 14 14 17 17
e [min] mm 80 95 95 180 180
f [min] mm 300 300 300 395 395
g [min] mm 470 470 470 588 588
H [min] mm 399 440 450 554 554
h [min] mm 232 243 253 304 304
i [min] mm 140 140 140 170 170
k [min] mm 40 40 40 38 38
M [min] mm 110 110 110 142 142
Suction head min 1) m 2 2 2 2 2
Suction head max 1) m 8 8 8 8 8
Total delivery head 2) (4/6 bar) m 40/60 40/60 40/60 40/60 40/60

6 Assembly and installation
18 LG Piston Pump
6 Assembly and installation
NOTICE
Material damage due to contamination!
►Only remove covers, transport caps and
sealing caps immediately before connecting
the pump to the pipelines.
6.1 Preparing for installation
6.1.1 Checking the surrounding condi-
tions
1. Ensure that the required surrounding
conditions are met ( 6.2 Installation,
pg 18).
2. Please consult the manufacturer when
installing at altitudes over 1000 m
above mean sea level.
6.1.2 Preparing the installation loca-
tion
►Ensure that the installation location meets
the following conditions:
–pump is freely accessible from all
sides
–sufficient space for installing/removing
piping, as well as for maintenance and
repair work, in particular for in-
stalling/removing the pump and motor
–no effects from external vibrations on
the pump (bearing damage)
–protection against frost
6.1.3 Preparing the base surface and
foundations
►Ensure that the base surface and founda-
tions meet the following conditions:
–level
–clean (no oils, dust or other contami-
nations)
–foundations can support the weight of
the pump unit and all operating forces
–stability of the pump unit ensured
6.2 Installation
6.2.1 Installing the pump
Prior to installation, remove the packaging (if
present) and check the pump for any transport
damage. Ensure that the installation area is
dry and free of frost.
CAUTION
Do not operate the pump in areas where
there is a risk of explosion. Ensure that the
pump is installed and connected in line
with the local regulations.
We recommend installing the pump on a
noise-insulating base, in order to prevent
transmission noises to parts of the building.
