Oursson IP1210T User manual
Induction plate IP1210T
User manual
Congratulations on your purchase induction plate OURSSON!
IntroductIon
3
The induction cooker works on the basis of an electromagnet that creates a powerful, high-frequency
electromagnetic field. When cookware consisting of magnetic material (e.g. iron) is placed on the
induction cooker, the electromagnetic field transfers energy to the bottom of the cookware, which
causes the cookware and the food inside it to become hot. The amount of heat generated in the
cookware is controlled by varying the strength of the electromagnetic field. When the strength of the
electromagnetic field is changed, the temperature of the cookware changes instantly.
Read this user manual carefully before you use the appliance and save it for future reference.
• Safe: the induction cooker does not make use of an open flame or fire. It also has a number of
safety features, which allow you to enjoy cooking with your family whenever you want.
• Fast: in induction cooking, the cookware serves as the heat source. This results in much
faster and more even heat transfer, shortening the cooking time by more than 1/3 compared to
conventional cooking.
• Versatile: the induction cooker has 2 preset cooking modes, each with its own optimal heating
pattern. These modes allow you to prepare a great variety of nutritious meals.
• Very user friendly: the simple and interactive control panel and display allow you to easily adjust
the settings at the touch of a button.
• Comfortable: the induction cooking process is smoke-free and produces less grease.
Moreover, the cooker and the surrounding area stay cool. This allows you to cook in a cool and
comfortable environment.
• Portable: the induction cooker has a compact design and the cooking plate stays cool. This
means the appliance is always safe to use and allows you to cook anywhere in your home.
• Never immerse the appliance in water or rinse
it under the tap.
• Do not cover any part of the cooking plate with
aluminium foil to prevent the risk of electric
shock, short circuiting or fire.
IntroductIon
4
• Check if the voltage indicated on the appliance
corresponds to the local mains voltage before you
connect the appliance.
• The temperature of accessible surfaces may be high
when the appliance operates.
• Only connect the appliance to an earthed wall socket.
Always make sure the plug is inserted firmly into the
socket.
• Do not use the appliance if the plug, the mains cord or
the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced
by Oursson, a service centre authorised by Oursson or
similarly qualified persons in order to avoid a hazard.
• If the surface of the cooking plate is cracked, switch off
the appliance and do not use it anymore to prevent the
risk of electric shock.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• Keep the mains cord out of the reach of children. Do not
let the mains cord hang over the edge of the table or
worktop on which the appliance stands.
• Make sure the cooking plate is clean and dry before you
switch on the appliance.
• Do not cover the air outlet while the induction cooker is
operating.
• Do not plug in the appliance or operate the control panel
with wet hands.
• Do not touch the cooking plate after cooking, as it retains
heat from the cookware.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the cooking plate since they can
get hot.
10A
220 ´
IntroductIon
5
• Never use any accessories or parts from other
manufacturers or that Oursson does not specifically
recommend. If you use such accessories or parts,
your guarantee becomes invalid.
• Do not expose the induction cooker to high
temperatures, hot gas, steam or damp heat. Do not
place the induction cooker on or near an operating or
still hot stove or cooker.
• Always switch off the appliance before you unplug it.
• Always unplug the appliance and let it cool down
before you clean it.
• This appliance is intended for indoor household
use only. If the appliance is used improperly or for
professional or semi-professional purposes or if it
is not used according to the instructions in the user
manual, the guarantee becomes invalid and Oursson
will not accept liability for any damage caused.
• Place the induction cooker on a stable, horizontal and
level surface and make sure there is at least 10cm
free space around it to prevent overheating.
• Do not operate the appliance on a plastic tablecloth.
• Do not place anything between the cookware and the
cooking plate.
• The maximum weight that can be put on the induction
cooker is 7kg.
• Beware of hot steam that comes out of the cookware
during cooking or when you remove the lid.
• Do not lift and move the induction cooker while it is
operating.
• Never put empty cookware on the switched-on
induction cooker, as this could cause the cookware
to become distorted or the heating coil to become
damaged.
• Do not store flammable materials and liquids near or
on the induction cooker.
• Avoid hard contact between the cookware or other
objects and the cooktop.
• Always place the cookware on the cooking zone
10A
10A
10A
IntroductIon
6
during cooking.
• Never connect this appliance to an external timer switch or remote control system in order to
avoid a hazardous situation.
• Do not use cookware with a bottom diameter of more than 16cm to deep-fry food, as this
causes the appliance to malfunction.
The appliance is equipped with automatic shut-off. It switches off automatically:
If there is no cookware or unsuitable cookware on the cooking place when you press the start button
or if you remove cookware from the cooking plate during cooking, the cooker beeps continuously, the
display shows ‘----’. The cooker automatically switches off after 1 minute unless you put the cookware
back onto the cooking plate within this minute.
This Oursson appliance complies with all standards regarding electromagnetic fields (EMF). If
handled properly and according to the instructions in this user manual, the appliance is safe to use
based on scientific evidence available today.
Remove all packaging material from the induction cooker.
1. Place the appliance on a dry, stable and level surface.
2. Make sure there is at least 10cm free space around the appliance to prevent overheating.
3. Always place the cookware on the cooking zone during cooking.
4. Make sure you use cookware of the correct type and size (see the tables below).
IntroductIon
7
Tip: When you cook in the manual mode, you can use cookware with a bottom diameter of 12-20cm.
Tip: To deep-fry food, we advise you to use cookware with a bottom diameter of 12-16cm.
Use only the cookware suitable for induction plates.
Cookware with a bottom made of iron or magnetic
stainless steel
Cookware with a bottom made of non-iron metal,
glass, aluminium and copper
Cookware with a flat bottom Cookware with a concave or convex bottom
Cookware with a bottom diameter of 12-20cm,
depending on the cooking mode(see tips below)
Cookware with a bottom diameter of less than 12cm
Cookware with a weight of up to 7kg (including
contents)
Cookware with a weight over 7kg (including
contents)
IntroductIon
8
Mains cord
Air outlet
Cooktop
Cooking zone
Control panel
Air inlet
6
5
Do not touch the cooking plate after
cooking, as it retains heat from the
cookware.
6
5
4
3
2
1
General description
9
Do not touch the cooking plate after
cooking, as it retains heat from the
cookware.
Mains switch
Power light
The power adjustment slider
light
and buttons
mode button
mode light
mode button
1
6
2
7
3
8
4
5
Timer mode light
Display
Power heating level lights
button
Preheating mode light
Temperature mode light
Stir frying mode light
11
12
13
9
14
10
15
10
11
12
13
14
9
15
8
1
6
3
2
7
4
5
General description
10
Use this button to switch the main power of the induction plate.
Use this
and buttons to adjust the power hearting level or temperature, or to set the cooking
timer.
Use the power adjustment power to set the power hearting level or temperature.
Use button to cook with maximum power hearting in any time.
Use this button to use mode.
Use this button to switch the induction plate between three modes:
• Preheating
• Temperature mode indication
• Frying.
Only use cookware that is suitable for induction cooking (see chapter ‘Preparing for use’).
Note: Always place and use the appliance on a dry, stable and level surface.
60°C 100 Watt
80°C 200 Watt
100°C 300 Watt
120°C 400 Watt
140°C 500 Watt
160°C 600 Watt
170°C 700 Watt
180°C 800 Watt
190°C 1000 Watt
200°C 1300 Watt
220°C 1600 Watt
240°C 2000 Watt
General description
11
You can simply operate the appliance manually
You can simply operate the appliance manually
You may use two ways to set and adjust the heating temperature:
• Put the mains plug in the wall socket, the appliance produce a 2-second beep. shows and blink on
the display. The induction plate goes to the stand-by mode.
• Touch the button to switch the induction plate, display shows.
Tip: The induction plate automatically switch to the stand-by mode if you don’t touch any key after less
1 minute. The appliance produce a 2-second beep.
• Place the cookware on the cooking zone
• Press the and or use the slider control to set the power heating level.
• After setting power hearting level the induction plate start to heat automatically.
• Touch the button to switch the induction plate after you finish cooking. The induction plates
switch to the stand-by mode, display shows . After less 1 minute the cooling fan will switch off.
Tip: If no any cookware on the induction plate in a cooking mode, the induction plate don’t hearting and
produce 1-second beep. After 1 minute the induction plate automatically switch in to stand-by mode.
• Touch the and buttons to set the power level. During you touch buttons, the power heating
lights goes on by rotation.
• Touch the or buttons, then use the slider by touching from left to right and back to set
and adjust the power heating level. The power heating lights goes on by rotation.
Any time you touch the buttons the induction plate produce 1-second beep signal.
• After switch the induction plate and setting the power hearting level, touch the button two times,
to choose temperature mode. The induction plate produce 1-second beep and the display shows the
temperature 160°C, power heating level lights goes on and the temperature mode light goes on too.
• Touch the and buttons to set the temperature. During you touch buttons, the display shows
temperature from 60°C to 240°C. Choose the temperature and the induction plate automatically start
heating
• Use the slider by touching from left to right and back to set and adjust the temperature heating. The
display shows temperature from 60°C to 240°C. Choose the temperature and the induction plate
automatically start hearting
General description
12
After setting power level, you should touch button 1 time to choose the preheat
mode. The preheat mode light goes on. The display shows the temperature 60°C, power hearting level
lights shows 100 Watt. These values are set by default. Your induction plate is in preheat mode.
After setting power level, you should touch button 3 time to choose the stir frying
mode. The stir frying mode light goeson. The display shows the temperature 160°C, power hearting
level lights shows 600 Watt. These values are set by default. Your induction plate is in stir frying mode.
You may use the and buttons to adjust the power heating level or the temperature.
Tip: You can’t to adjust the power level and temperature in a preheat mode.
Note: You may use BOOST mode during cooking after setting the power heating level.
• Touch the button one time during the cooking mode, the cooking time light goes on. The
induction plate is in stand-by mode to set the cooking time. Set the cooking time by using the
and buttons. When you press the and buttons, riefly, the time increases or decreases by
1 minute. When you press the buttons longer, the time increases or decreases by 10 minutes. You may
set the cooking tome from 0 to 180 minutes. After you stop to set the cooking time, the display shows
preset cooking time. The countdown starts automatically.
• If you set preheat or stir fry mode with cooking timer mode together, the display shows the value of
each modes by rotation.
• After the cooking time finish countdown the induction plate stops heating and switch on to stand-by
mode.
• The default value of cooking timer is 1 hours.
• If you need the maximum power of heating level in any time during cooking, please touch the
button one time. The induction plate automatically switch to the maximum power heating
level 2100 Watt, the boost mode light goes on.
• To stop the mode, touch the button again one time, the boost mode light goes
OFF and the induction plate back to the preset heating power level.
• You may stop BOOST mode also by touch button.
General description
13
Note: Unplug the appliance after use.
• Use this function to lock the control panel operation. Touch the and buttonstogether longer few
seconds. Child lock light goes on. You may operate only by button, all other buttons locked.
• To unlock the control panel touch and buttons together longer few seconds. Child lock light
goes off.
Never immerse the appliance in water nor rinse it under the tap.
Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to
clean the appliance.
Do not put vinegar on the cooktop.
1. Unplug the appliance and let it cool down.
2. Clean the appliance with a damp cloth and if necessary, with some mild cleaning agent.
Do not place heavy objects on the cooktop as it is breakable.
Do not store the appliance in a hot place, for example near a cooker.
If you are not going to use the appliance for a longer period of time, we advise you to store the appliance
in a dry and safe place.
Improper use can lead to scratches on the cooking plate.
To avoid discolouring and scratches, use the appliance
according to the instructions in this user manual and always
clean the appliance and cookware properly after use.
10A
TroubleshooTing
14
The power-on light does
not go on.
There is a connection problem.
• Check if the induction cooker is connected to the
mains and if the plug is inserted firmly into the wall
socket.
• Check if the power cord have no damaged.
The power on lights on
the panel goes on, but
the induction plate don’t
heating.
• Check if the using cookware are suitable for induction
plates.
• Check if the bottom size no less then 12cm.
• Take the appliance to your Oursson dealer or a
service centre authorised by Oursson.
The induction plate stops
heating during cooking
mode.
• Check if the air outlet do not cover while the induction
cooker is operating.
• Check if the cooking timer is finished countdown.
• Automatic protection system of induction plate switch
on. Disconnect the power cord from the wall socket.
Wait a few minutes, connect the power cord into the
wall socket, touch button.
• Take the appliance to your Oursson dealer or a
service centre authorised by Oursson.
If your induction cooker does not function properly or if the cooking quality is insufficient, consult the
table below. If you are unable to solve the problem, contact a Oursson service centre or the Customer
Care Centre in your country.
TroubleshooTing
15
The induction plate inside
parts are over heated.
• Automatic protection system of induction plate switch
on. Disconnect the power cord from the wall socket.
Wait a few minutes, connect the power cord into the
wall socket, touch button.
• Check if the air outlet do not cover while the
induction cooker is operating.
• Take the appliance to your Oursson dealer or a
service centre authorised by Oursson.
Unstable voltage in power
supply network
• Check if the voltage in your home is suitable for the
induction cooker
• Take the appliance to your Oursson dealer or a
service centre authorised by Oursson.
OTHER
16
Model name IP1210T
Power consumption, Watt 2000
Voltage ~ 220 V; 50 Hz
Protection class I
The storage and delivering temperature from –25°C till +35°C
Operation temperature from +5°C till +35°C
Air humidity 15-75%
Net weight 2,8 kg
Dimensions, mm 375х290х62
Table of contents
Other Oursson Hob manuals
Popular Hob manuals by other brands
SCHOLTES

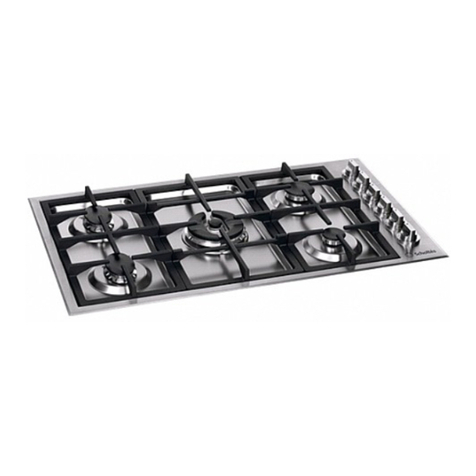

SCHOLTES SH09PGWAX operating instructions
Electrolux
Electrolux EHS 6691 Installation and operating instructions
AEG
AEG 119 DK Instructions for installation and operation
Whirlpool
Whirlpool AKM 460 Service manual
Bosch
Bosch PKK6..N series instruction manual
ZANKER
ZANKER ZKM3024KX instruction manual
