Outsider FHTA80078A User manual

GRILL CABINET FOR CHAR-BROIL
MEDALLION 5B BUILT-IN GRILL
Questions, problems, or missing parts?
Before returning to the store, call Customer Service.
8am - 5pm, PST Monday - Friday
Model No. FHTA80078A/FHTA80078FC
B A R B E C U E S
FHTA80078A/FHTA80078FC OUTSIDERBARBECUES.COM866-292-8800
RETAIN THIS MANUAL FOR FUTURE USE.
ASSEMBLY INSTRUCTIONS
INSTRUCTIONS DE MONTAGE
G U Í A D E L P R O D U C T O
(Lowe’s Item #1139076 MFG Model #463277519)

I M P O RTA N T
If you have any problems with this product (missing or damaged parts, assembly issues, etc.),
P L E A S E D O N O T R E T U R N T O T H E R E TAI L E R / S T O R E
from where you purchased the product.
Please call our Toll-Free Customer Service Hotline at:
1-866-292-8800
To expedite any future warranty claims, please retain the instruction sheet and
receipt for future use.
SAFETY INSTRUCTIONS
SAFETY SYMBOLS
IMPORTANT: RETAIN F O R F U T U R E R E F E R E N C E , AN D R E A D C A R E F U L L Y .
THIS PRODUC T IS F O R O U T D O O R U S E O N L Y .
C A U T I O N DANGER
Indicates a potentially
hazardous situation or
unsafe practice which, if not
avoided, may result in minor
or moderate injury.
Indicates a imminently
hazardous situation which, if
not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially
hazardous situation which,
if not avoided, could result
in death or serious injury.
OUTSIDERBARBECUES.COM866-292-8800FHTA80078A/FHTA80078FC

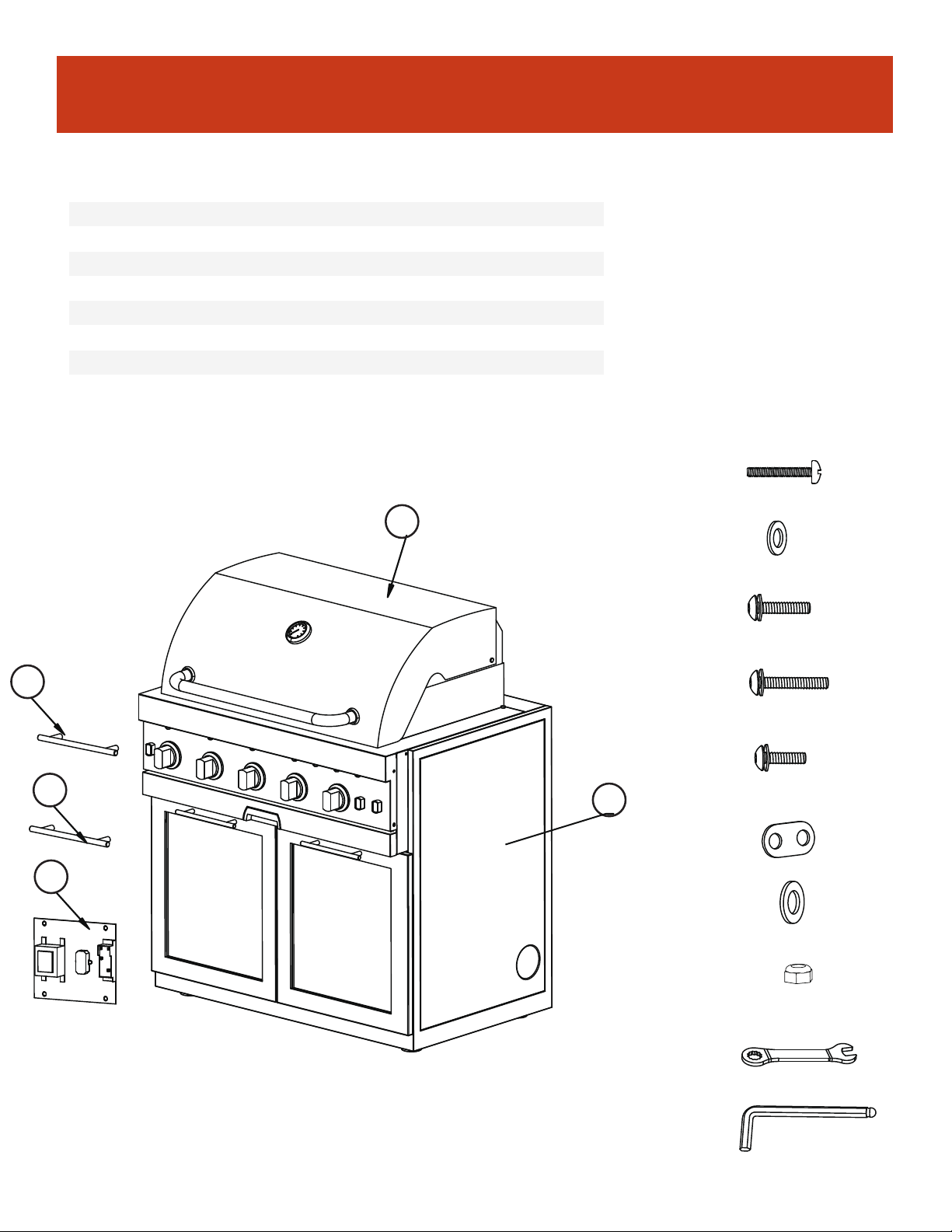

PARTS L I S T
Key Qty Description
AA
4 M4*30
BB 4 Washer-1
1 1 Grill (not included)
2 1 Cart Body
3 2 Door Handle
4 1
OUTSIDERBARBECUES.COM866-292-8800
2
1
3
4
3
AA
BB
CC
DD
EE
x 4
x 4
x 4
x 2
x 4
FF
GG
HH
I I
J J
x 2
x 4
x 8
x 1
x 1
M4*30
Washer
M6*20
M6*35
M6*15
Washer-2
-1
Washer-3
Nut
Wrench
Allen wrench
CC 4 M6*20
DD 2 M6*35
EE
Key Qty Description
4 M6*15
FF 2 Washer-2
GG 4 Washer-3
HH 8 Nut
II 1Wrench
JJ 1Allen Wrench
Control Panel (not included)
FHTA80078A/FHTA80078FC

LEVELING THE CABINETS
I M P O RTANT:
Leveling the cabinets is the most important part of installation, to ensure doors align properly and
countertop sets evenly. Cabinets need to be level and square. Each cabinet features levelers at
the corners that can be adjusted to acheive a perfectly level countertop. Turn levelers clockwise
to raise the height of the cabinet, and counter-clockwise to reduce the height.
L E V E L I N G Y O U R CABINETS
Be sure to level your cabinets in all three directions:
1. Front to Back
2. Vertically
3. Horizontally
2
3
1
OUTSIDERBARBECUES.COM866-292-8800FHTA80078A/FHTA80078FC

ASSEMBLY
S T E P 1
Requires: CC, DD, GG, HH,
A T T A C H T H E G R I L L
Attach the grill (1) to the cart body (2) using M6*35 (DD), washer-3 (GG), nut (HH) and M6*20 (CC).
1
2
HH
OUTSIDERBARBECUES.COM866-292-8800
GG
DD CC
HH
GG
FHTA80078A/FHTA80078FC
1, 2

Refer to Char-Broil assembly manual for instructions on connecting the control panel to the
grill and to power source.
ASSEMBLY
S T E P 2
Requires: 2, 4
ATTACH THE CHAR-BROIL MEDALLION 5B BUILT-IN GRILL CONTROL PANEL
Attach the control panel (4) to the cart body (2) using M6*15 (EE) and nut (HH).
OUTSIDERBARBECUES.COM866-292-88 0
2
EE
4
HH
FHTA80078A/FHTA80078FC 0

ASSEMBLY
S T E P 3
Requires: 2, 3

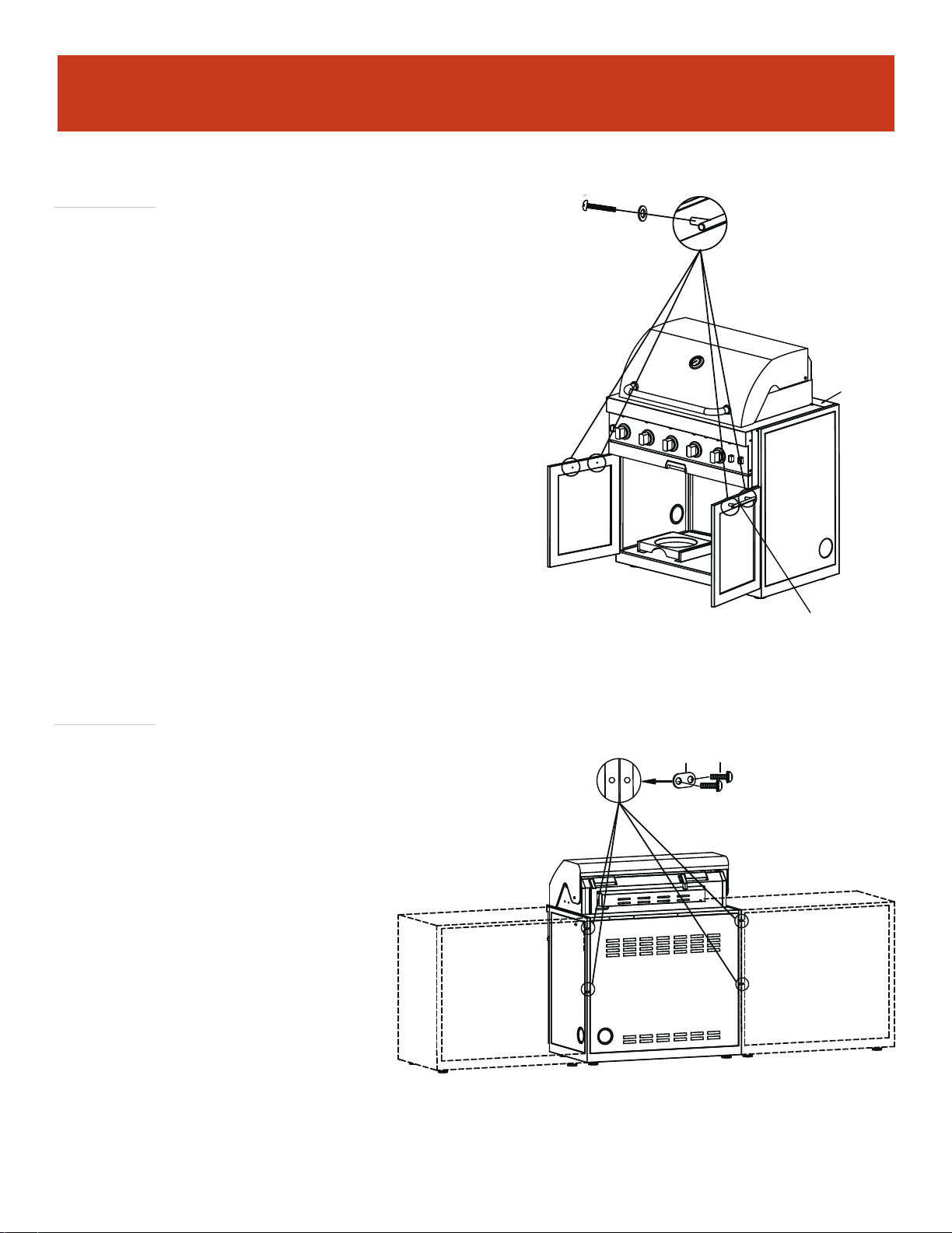

A T T A CH T H E H A ND L E
Attach the handles (3) to the door using M4*30 (AA)
and washer-1 (BB).
3
2
OUTSIDERBARBECUES.COM866-292-8800
S T E P 4
Requires: 2, CC, FF
Connect two cabinets together using washer-2 (FF)
and M6*20 (CC).
BB
AA
CC
FF
FHTA80078A/FHTA80078FC

ASSEMBLY
S T E P 5
OUTSIDERBARBECUES.COM866-292-8800
Your cabinets include ports for running electrical or plumbing. Installation of either is required to
be completed by licensed professionals. Each port has a cover that can be removed for access.
FHTA80078A/FHTA80078FC

DOOR ALIGNMENT
DOO R ALIGNM E N T

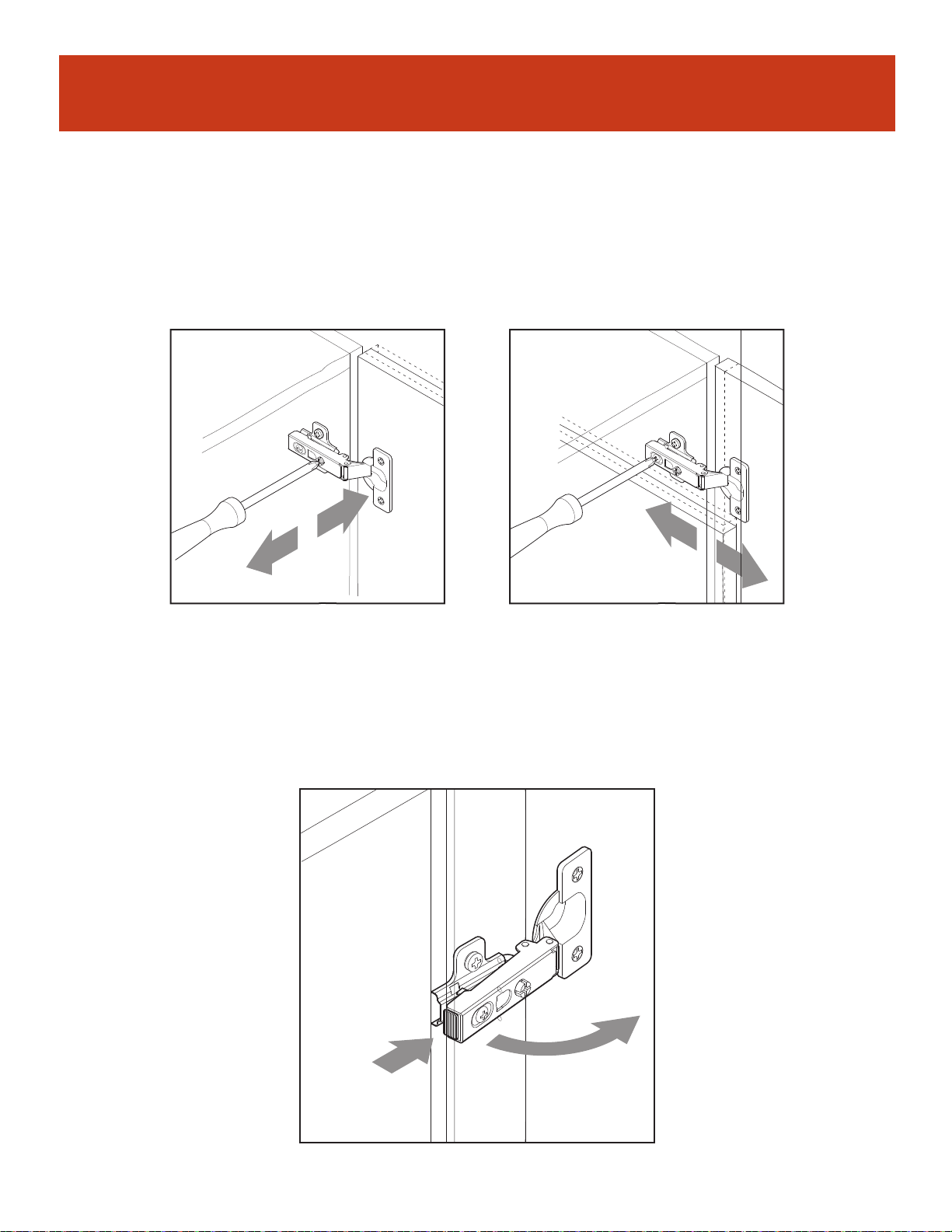

Outsider Barbecues cabinets feature a 6-way adjustable hinge that will allow you to adjust and align
all the doors after installation
1. The center screw face will adjust the door from side to side
2. The top and bottom screws allow adjustment up and down
3. The back screw face will adjust the door in and out
REMOVING DOORS
INST A L L ATION INSTR U C TIONS
Hinges can be removed from the hinge plate by simply pressing in the release button on the
end of the hinge, and pulling away from the cabinet. They are re-attached by hooking the hinge
to the plate and snapping the pressure release into place.
1
2
OUTSIDERBARBECUES.COM866-292-8800FHTA80078A/FHTA80078FC

CARE AND MAINTENANCE
CLEANING & MAINTENANCE
FHTA80078 A/FHTA80078 FC OUTSIDERBARBECUES.COM 866-292-8800

WARRANTY
LIMITE D WARRANTY P R O G R A M
The Manufacturer will either repair or replace defective components in accordance with this Limited
Warranty, according the scope and period below:
SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
dna,gnirutcafunam,noitarofrePsraey)net(01srenruBsselniatS
material defects only.
Firebox, Hood, Cooking Grates 3 (three) years
Cabinet Frames (not including
countertops and hardware)
5 (five) years
Chair Frames and Fabric 5 (five) years
All other parts 1 (one) year
This warranty is between the Manufacturer and the original purchaser and is valid only when
accompanied by the original purchaser’s sales receipt showing original date of purchase and location of
purchase. Replacementsunder this warranty revert back to the date of original purchase for future
warranty.
The Manufacturer or its authorized dealer can accept or reject warranty claims based on its findings.
This warranty applies in normal residential use only and is not intended for commercial use. The
Manufacturer can make substitutions as required of materials, components, and sub-components of
comparable value and utility. This warranty is limited to product repair or replacement (to be
determined solely by the Manufacturer). Warranty return is limited to only the single affected
component.
This limited warranty covers only manufacturing defects and does not cover normal wear and tear,
damage due to acts of nature (such as, but not limited to freezing or high winds), abuse or misuse,
including chemical damage from suntan oil or other chemicals, exposure to extreme heat or cold,
abrasion or excessive weight. This product is intended to be used in standard installations only. This
warranty is void if the product is not used for itsintended purpose. The Manufacturer disclaims liability
for any aspect of installation and any inconvenience caused by a defective part of a component.
Certain items are not covered by this warranty. These include, but are not limited to the following:
1. Components subjected to abuse, including abuse intended to simulate failure.
2. Damages caused by retailer, shipper or installation crew (such as scratches, dents, tears, chips, etc.).
3. Any part which merely exhibits normal wear yet functions essentially as new, including chips,
scratches or stretching of materials and stitching.
4. Tears, punctures, scratches or any damage caused by improper installation or use.
5. Damage to frames/welds resulting from improper assembly or exposure to water and/or sub-freezing
temperatures is not covered. General frame rusting is not covered.
6. Fading and/or discoloration of fabrics/cushions/straps/wicker resulting from exposure to the
elements, chemicals, oils, fluids or any other cause are not covered.
7. Umbrella bases are not covered under any circumstances.
8. Items sold ‘‘as is’’ or floor models.
To make a claim, call the toll-free number below. Please have available a copy of the original sales
receipt along with a brief description of the problem. Please also provide your email address and
daytime telephone or cell phone number. All items may be charged actual freight costs plus $15 for
handling. Repairs or replacement will be made at the Manufacturer’s option. Sales and use taxes, plus
shipping and handling charges are the responsibility of the consumer.
THIS IS THE ENTIRE EXCLUSIVE EXPRESS LIMITED LIABILITY. THE MANUFACTURER NEITHER MAKES NOR
IS RESPONSIBLE FOR ANY OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING THOSE OF
RETAILING DEALERS. THIS EXCLUSIVE REMEDY IS LIMITED TO RECEIPT OF A CREDIT IN CONNECTION
WITH THE REPAIR OR REPLACEMENT OF ANY PRODUCT OR COMPONENT DEEMED TO BE DEFECTIVE
UNDER THE TERMS AND CONDITIONS AS STATED IN THIS WARRANTY. NEITHER THE PRODUCT
MANUFACTURER NOR ITS AGENTS SHALL BE LIABLE IN ANY CASE FOR INCIDENTAL, INDIRECT, SPECIAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY
BREACH OF THIS
WARRANTY OR NEGLIGENCE EVEN IF IT HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES,
EXCEPT AS OTHERWISE MAY BE REQUIRED BY LAW, THERE ARE NO OTHER EXPRESS OR IMPLIED
WARRANTIES OTHER THAN THE WARRANTY DESCRIBED HEREIN, AND ALL OTHER WARRANTIES,
INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE
EXPRESSLY DISCLAIMED.
FHTA80078A/FHTA80078FC OUTSIDERBARBECUES.COM866-292-8800
