EnergyComplete™Spray Gun
Manual No:
For use with EnergyComplete Spray Foam with Flexible Seal Technology.
Not for use in explosive atmospheres or with flammable materials.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
256998 EnergyComplete Spray Gun with Static Mixer Assembly
3500 psi (24.2 MPa, 242 bar) Maximum Fluid Working Pressure
80-130 psi (0.55-0.9 MPa, 5.5-9.1 bar) Air Inlet Pressure Range
200°F(94°C) Maximum Fluid Temperature
313294D

2313294D
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Overall View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keep A and B Components Separate . . . . . . . . . . 6
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Piston Safety Lock
(Trigger Lock) . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Loss of Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . 7
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . 10
Optional Configurations . . . . . . . . . . . . . . . . . . . . 11
Optional Fluid Manifold Position . . . . . . . . . . . . 11
Optional Hose Position . . . . . . . . . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Supplied Tool Kit . . . . . . . . . . . . . . . . . . . . . . . . 13
Compatible Solvents . . . . . . . . . . . . . . . . . . . . . 13
Keep Gun Clean . . . . . . . . . . . . . . . . . . . . . . . . 13
As Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Daily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Weekly to Monthly . . . . . . . . . . . . . . . . . . . . . . . 13
Flush Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Clean Outside of Gun . . . . . . . . . . . . . . . . . . . . 14
Clean Air Cap . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Clean Spray Tip . . . . . . . . . . . . . . . . . . . . . . . . 14
Clean Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Clean Fluid Manifold . . . . . . . . . . . . . . . . . . . . . 14
Clean Mixer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Clean Slip-Fit Polycarballoy Mix Module . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Disassemble Front End . . . . . . . . . . . . . . . . . . . 18
Reassemble Front End . . . . . . . . . . . . . . . . . . . 19
Slip-Fit Polycarballoy Mix Module . . . . . . . . . . . 20
Rear Rod Seal . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Adjust Rear Rod Seal . . . . . . . . . . . . . . . . . . . . 21
Check Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Piston and Purge Rod . . . . . . . . . . . . . . . . . . . . 23
Piston Safety Lock . . . . . . . . . . . . . . . . . . . . . . . 24
Air Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Static Mixer Assembly . . . . . . . . . . . . . . . . . . . . 25
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Gun Repair Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Check Valve Filter Screen Kits (10 per kit) . . . . . 28
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 30
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 30

Warnings
313294D 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNINGWARNINGWARNING
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not spray without tip guard.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns, do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.

Warnings
4313294D
WARNINGWARNINGWARNING
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-
facturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and
cause serious injury.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids
containing such solvents in pressurized aluminum equipment. Such use can cause serious chemical
reaction and equipment rupture, and result in death, serious injury, and property damage.

Overall View
313294D 5
Overall View
Key:
A A Side Fluid Valve (white)
B B Side Fluid Valve (red)
CAirCap
D Air Line Quick Coupler
EMuffler
F Fluid Housing
G Gun Fluid Manifold
H Handle
J Optional Air Inlet
K Cleanoff Air Valve
L Piston Safety Lock
M Static Mixer Adapter
N Optional Fluid Inlets (A Side Shown)
P Lock Ring
R Fluid Inlet Swivels (A Side Shown)
S Trigger
T Gun Air Whip Hose
U Air Valve
V Static Mixer
WRACtip
r_256998_313294_7b
A
W
BG
S
JE
H
N
R
U
D
T
L
P
K
F
C
M
V

Keep A and B Components Separate
6313294D
Keep A and B
Components Separate
Grounding
Check your local electrical code and proportioner man-
ual 313221 for detailed grounding instructions.
NOTICE
• To prevent cross-contamination of the gun’s wet-
ted parts, do not interchange A component
(white fluid) and B component (red fluid) parts.
The gun is shipped with the A side on the left.
The fluid manifold, fluid housing, side seal car-
tridge, check valve cartridge, and mix chamber
are marked on the A side.

Piston Safety Lock (Trigger Lock)
313294D 7
Piston Safety Lock
(Trigger Lock)
Engage piston safety lock whenever you stop spray-
ing, to avoid accidental triggering.
To engage piston safety lock: push knob in and turn
clockwise. If engaged, gun will not actuate.
To disengage piston safety lock: push knob in and
turn counterclockwise until it pops out. There will be a
gap between knob and gun body.
Loss of Air Pressure
In event of loss of air pressure while gun is triggered,
gun will continue to spray. To shut off gun, do one of the
following:
• Push hard or hit end of safety lock, to engage piston
safety lock.
• Close fluid valves A and B.
FIG. 1
FIG. 2
Engaged
TI3850A
TI3849A
Disengaged
TI5003A
A
B
r_256998_313294_1b

Setup
8313294D

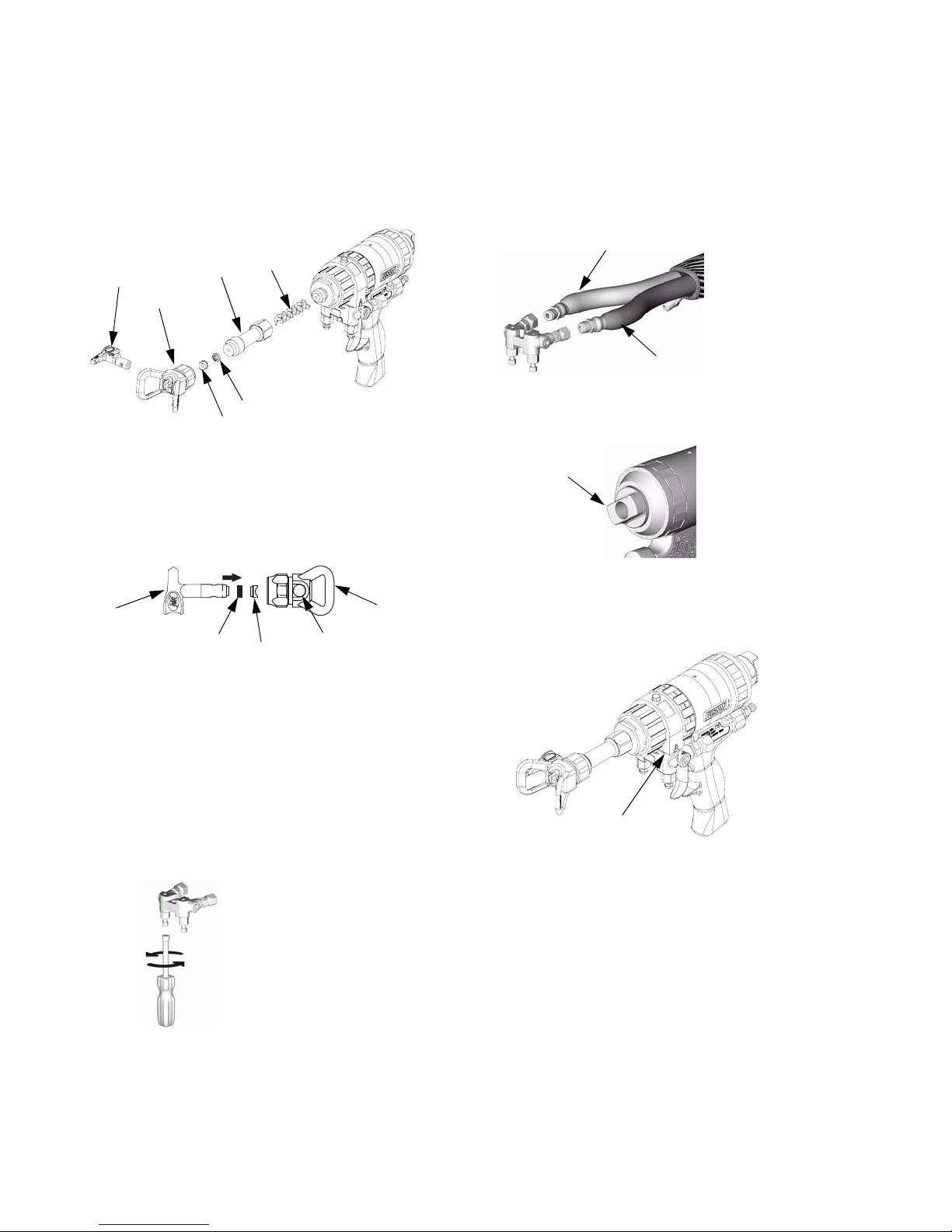

Setup
1. Assemble static mixer housing (60) and mix element
(62) on front end of gun.
2. Assemble RAC tip and guard (64, 65) assembly.
a. Use end of tip (65) to press gasket and seat into
guard (64), with curve matching tip bore (T).
b. Insert RAC tip (65) into tip bore (T).
c. Screw guard (64) onto static mixer housing (60)
with wrench to properly seat gasket.
d. Loosen guard (64) with wrench and tighten
hand tight.
3. Close fluid valves A and B.
4. Connect A (white) and B (red) fluid hoses to fluid
manifold.
5. Engage piston safety lock, page 7.
6. Connect gun air whip hose and air valve to main air
hose. Attach fluid manifold (M) to gun.
64
62
65
seat
gasket
60
r_256998_313294_2b
65
seat gasket T
64
TI2411A
A (White)
B (Red)
TI2417A
TI3850A
Engaged
r_256998_313294_1b
M

Shutdown
313294D 9
7. Connect quick coupler (D). Turn on air. Open air
valve connected to whip hose. Air valve (K) should
be screwed tight. There is no clean off air to adjust
on the mechanical purge gun.
NOTE:
To use optional air inlet, see Optional Hose Position
on page 12.
8. Adjust Purge Rod Position, see page 23.
9. Turn on proportioner.
10. Open B (red fluid) fluid valve (about three half
turns). Then open A (white fluid) fluid valve.
11. Disengage piston safety lock, page 7.
12. Turn RAC tip (65) to spray position.
13. Test spray onto cardboard. Adjust pressure and
temperature to get desired results.
14. Apply layer of lubricant over front of gun and lock
ring, or use gun cover to prevent overspray buildup
and ease disassembly. See Accessories on page
28 to order lubricant and gun cover.
15. Gun is ready to spray.
Shutdown
1. Follow Pressure Relief Procedure, page 10.
2. Flush Gun, page 14.
r_256998_313294_1b
D
K
B fluid valve A fluid valve
r_256998_313294_1b
TI3849A
Disengaged
NOTICE
Air supply is required for gun actuation. Do not dis-
connect gun air supply until fluid pressure is relieved,
page 10.
65 exp1008A

Pressure Relief Procedure
10 313294D
Pressure Relief Procedure
1. Engage piston safety lock, page 7.
2. Close fluid valves A and B. Leave air valve con-
nected to whip hose open.
3. Disengage piston safety lock, page 7.
4. Ensure RAC tip (65) is in spray position.
5. Trigger gun onto cardboard or into waste container
to relieve pressure.
If you suspect spray tip or hose is clogged or that pres-
sure has not been fully relieved after following the steps
above, VERY SLOWLY loosen tip guard retaining nut or
hose end coupling to relieve pressure gradually, then
loosen completely. Clear hose or tip obstruction.
6. Engage piston safety lock, page 7.
Relieve pressure before cleaning or repairing gun.
NOTICE
Air supply is required for gun actuation. Do not dis-
connect gun air supply until fluid pressure is relieved.
TI3850A
Engaged
A
B
r_256998_313294_1b
TI3849A
Disengaged
Fluid in the hose and proportioner is still under pres-
sure. Follow the Pressure Relief Procedure in the pro-
portioner manual.
To relieve pressure in the hose after the gun is
removed, place the fluid manifold over containers, fac-
ing away from you. Very carefully open the fluid
valves. Under high pressure, fluid will spray sideways
from the fluid ports.
65 exp1008A
TI3850A
Engaged
TI2484A

Optional Configurations
313294D 11
Optional Configurations
Optional Fluid Manifold Position
Fluid manifold is mounted to bottom of gun, with A side
on left, viewed from operator’s position at back of gun. If
desired, manifold may be moved to top of gun. Doing
this will reposition A side parts (fluid inlet, check valve,
and fluid housing A side) to right.
1. Follow Pressure Relief Procedure, page 10.
2. Disconnect air hose from quick disconnect (D) and
remove fluid manifold (G).
3. Unscrew lock ring (P) until front end of gun is loose.
4. Rotate fluid housing (F) 180° and retighten lock ring
very securely.
5. Attach fluid manifold. Connect air. Return gun to
service.
NOTICE
To prevent cross-contamination of gun’s wetted
parts, do not interchange A component (white) and B
component (red) parts.
r_256998_313294_1b
D
G
P
F

Optional Configurations
12 313294D
Optional Hose Position
Fluid inlet swivels and air quick disconnect fitting point to
rear. If desired, these positions can be changed so
hoses travel downward.
Fluid Hoses
1. Follow Pressure Relief Procedure, page 10. Also
relieve system pressure and flush both fluid hoses,
see proportioner manual.
2. Disconnect air hose from quick disconnect (D) and
remove fluid manifold (G).
3. Disconnect fluid hoses from inlet swivels (A, B).
Remove swivels. Remove plugs from optional inlets
(N).
4. Apply thread sealant to plugs (42c), elbows (AA),
and male threads of swivels (42e, 42f). Install
elbows (16) in optional inlets (N), facing down.
Install swivels (A, B) in elbows. Be sure to install A
swivel (larger) in A side. Install plugs (42c) where
swivels had been. Torque all parts to 235-245 in-lb
(26.6-27.7 N•m).
5. Connect appropriate hoses to A and B swivels.
Air Hose
1. Remove quick disconnect fitting (D) and plug (J).
Reverse positions. Apply thread sealant and torque
to 125-135 in-lb (14-15 N•m).
2. Attach fluid manifold (G). Connect air. Return gun to
service.
NOTICE
To prevent cross-contamination of gun’s wetted
parts, do not interchange A component (white) and B
component (red) parts.
r_256998_313294_1b
D
G
A (White)
B (Red)
TI2417A
N
42c
AA
42e
N42f
r_256998_313294_8b
J
r_256998_313294_1b
D
G

Maintenance
313294D 13
Maintenance
Supplied Tool Kit
• Hex Nut Driver; 5/16
• Screwdriver; 1/8 blade
• #66 and #77 drill bits.
• 117661 Pin Vise; dual reversible chucks
Compatible Solvents
Use the following solvents for cleaning and flushing A
and B fluid.
Keep Gun Clean
Keep gun clean with accessory gun cover 244915.
Applying a light coat of lubricant will make cleaning eas-
ier. Lubricate threads and outside of lock ring (11) to
ease disassembly. Use Fusion Gun Lubricant (29).
As Needed
1. Clean Outside of Gun, page 14.
2. Clean Air Cap, page 14.
3. Clean Muffler, page 14.
4. Clean Fluid Manifold, page 14.
5. Clean Slip-Fit Polycarballoy Mix Module, page 15.
Daily
1. Follow Shutdown, page 9.
2. Clean Check Valves, page 22. Check o-rings and
screens.
Weekly to Monthly
Check that piston safety lock threaded connection is
tight, page 24.
A and B Fluid Compatible Solvent
A side (white) Water
B side (red) Owens Corning B-Side Cleaner
TI3864a
Reversible
Reversible

Maintenance
14 313294D
Flush Gun
If it is necessary to flush the mix module, use following
procedure.
1. Follow Pressure Relief Procedure, page 10.
2. Flush with a compatible solvent.
3. Flush into a grounded metal pail, holding a metal
part of fluid manifold firmly to side of pail. Use the
lowest possible fluid pressure when flushing.
Clean Outside of Gun
Wipe off outside of gun with compatible solvent.
Clean Air Cap
Soak air cap in compatible solvent. If necessary, clean
gently with stiff brush.
Clean Spray Tip
Clean spray tip with a solvent soaked brush. Clean front
of tip frequently to reduce fluid build up. Clean tip and tip
guard at the end of each work day.
Clean Muffler
A partially plugged muffler (51) will slow gun actuation.
Remove and clean muffler with compatible solvent.

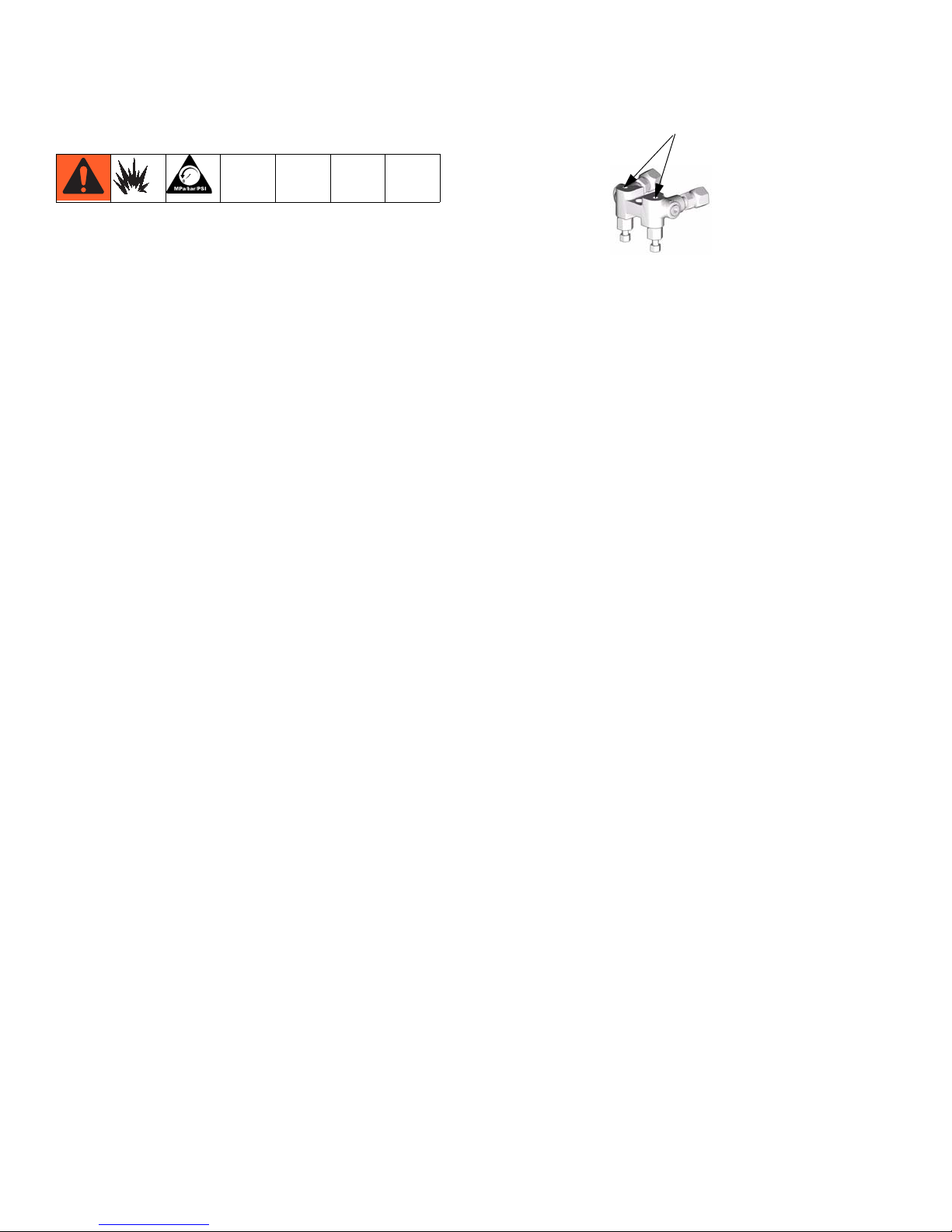

Clean Fluid Manifold
Clean fluid manifold sealing faces with compatible sol-
vent and a brush whenever removed from gun. Be sure
to clean the two fluid ports (AB) in the top mating sur-
face. Do not damage the flat sealing surfaces. Cover
with Fusion Lubricant (29) if left exposed, to seal out
moisture.
Clean Mixer
The center mix element can be pressed out, front to
back, even if fully cured. The mix element can then be
cleaned with a wire brush.
AB
TI2411-1

Maintenance
313294D 15

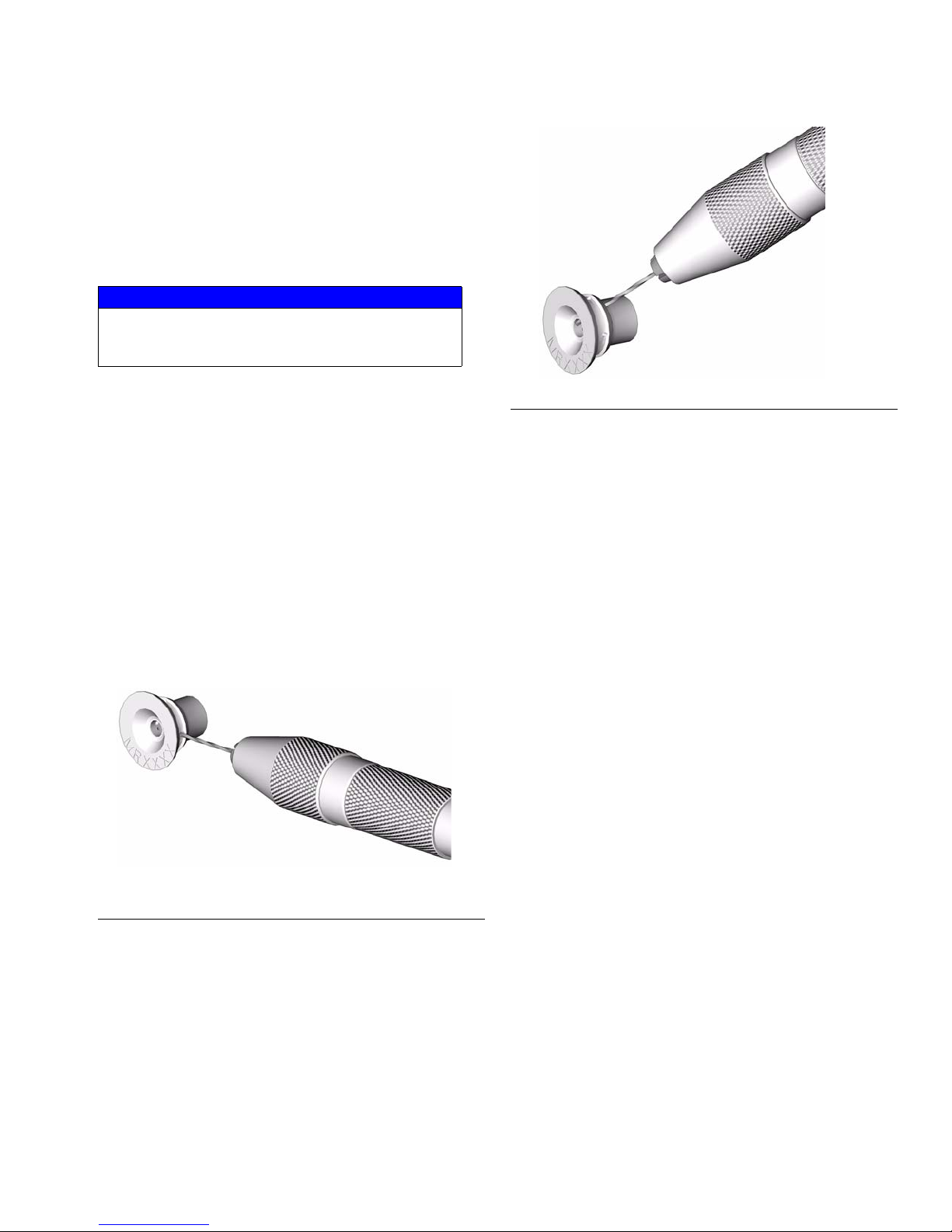

Clean Slip-Fit Polycarballoy Mix
Module
1. Follow Pressure Relief Procedure, page 10.
2. Flush Gun, page 14.
3. Remove mix module, page 20.
4. See FIG. 3 and FIG. 4. Clean mix module impinge-
ment ports (IP) with appropriate size drill (supplied).
See identification chart under Accessories, page
28.
NOTE:
• Component B (red) impingement ports, at rear of
mix module, are angled toward front of gun. See
FIG. 4.
• When cleaning do not scratch the sealing edges
and ports.
5. Reassemble, page 20.
NOTICE
To avoid damaging mix module, do not force drill bits
when cleaning impingement ports. Some ports are
offset or angled.
FIG. 3: Cleaning Component A (White) Ports
TI3863a
FIG. 4: Cleaning Component B (Red) Ports
TI3862a

Troubleshooting
16 313294D
Troubleshooting
1. Follow Pressure Relief Procedure, page 10,
before checking or repairing gun.
2. Check all possible problems and causes before dis-
assembling gun.
NOTICE
To prevent cross-contamination of the gun’s wetted
parts, do not interchange A component (white) and B
component (red) parts.
PROBLEM CAUSE SOLUTION
Gun does not fully actuate when trig-
gered.
Piston safety lock engaged. Disengage piston safety lock, page 7.
Plugged muffler (51). Clean, page 14.
Damaged air valve o-rings (24). Replace, page 15.
Fluid does not spray when gun is fully
actuated.
Closed fluid valves (42b). Open.
Plugged impingement ports. Clean, page 15.
Plugged check valves (36). Clean, page 22.
Gun actuates slowly or with delayed
action.
Plugged muffler (51). Clean, page 14.
Damaged piston o-rings (45, 48). Replace, page 23.
Dirty air valve, or damaged o-rings
(37d).
Clean air valve or replace o-rings,
page 24.
Mix module nut (54) too tight. Loosen nut, then retighten, page 20.
Loose lock ring (37b). Tighten, use tool if necessary.
Purge rod will not actuate. No air pressure. Connect air supply.
Low air pressure. Set air pressure above 80 psi (0.56
MPa, 5.6 bar).
Buildup on purge rod (34). Clean purge rod.
Pressure imbalance. Plugged impingement ports. Clean, page 15. Reinstall mix mod-
ule, page 20.
Plugged check valves (39). Clean, page 22.
Viscosities not equal. Adjust temperature to compensate.

Troubleshooting
313294D 17
Fluid does not shut off when fluid
valves are closed.
Damaged fluid valves (42b). Replace.
Air leakage around fluid housing. Damaged or missing o-ring (49). Replace.
Air leakage from piston safety lock. Damaged or missing o-rings (47). Replace, page 23.
Burst of air from muffler when gun is
triggered.
Normal. No action required.
Steady air leakage from muffler. Damaged air valve o-rings (37d). Replace, page 24.
Damaged piston o-rings (45, 48). Replace, page 23.
Air leakage from front air valve. Damaged air valve o-rings (37d). Replace, page 24.
Component B (resin) leak from fluid
housing.
Worn rear rod seal. Adjust Rear Rod Seal, page 21.
Cross Contamination of A and B
components.
Worn out mix module. Replace.
Sealing surface OD not clean. Clean sealing surface on fluid hous-
ing.
Air leakage from holes on solvent
purge assembly.
Cleanoff air valve open. Close cleanoff air valve tightly. Clea-
noff air valve should never be open
when using solvent purge gun.
Fluid leakage from holes on solvent
purge assembly.
Mix module nut is only handtight. Tighten mix module nut 1/12 with
wrench.
PROBLEM CAUSE SOLUTION

Repair
18 313294D

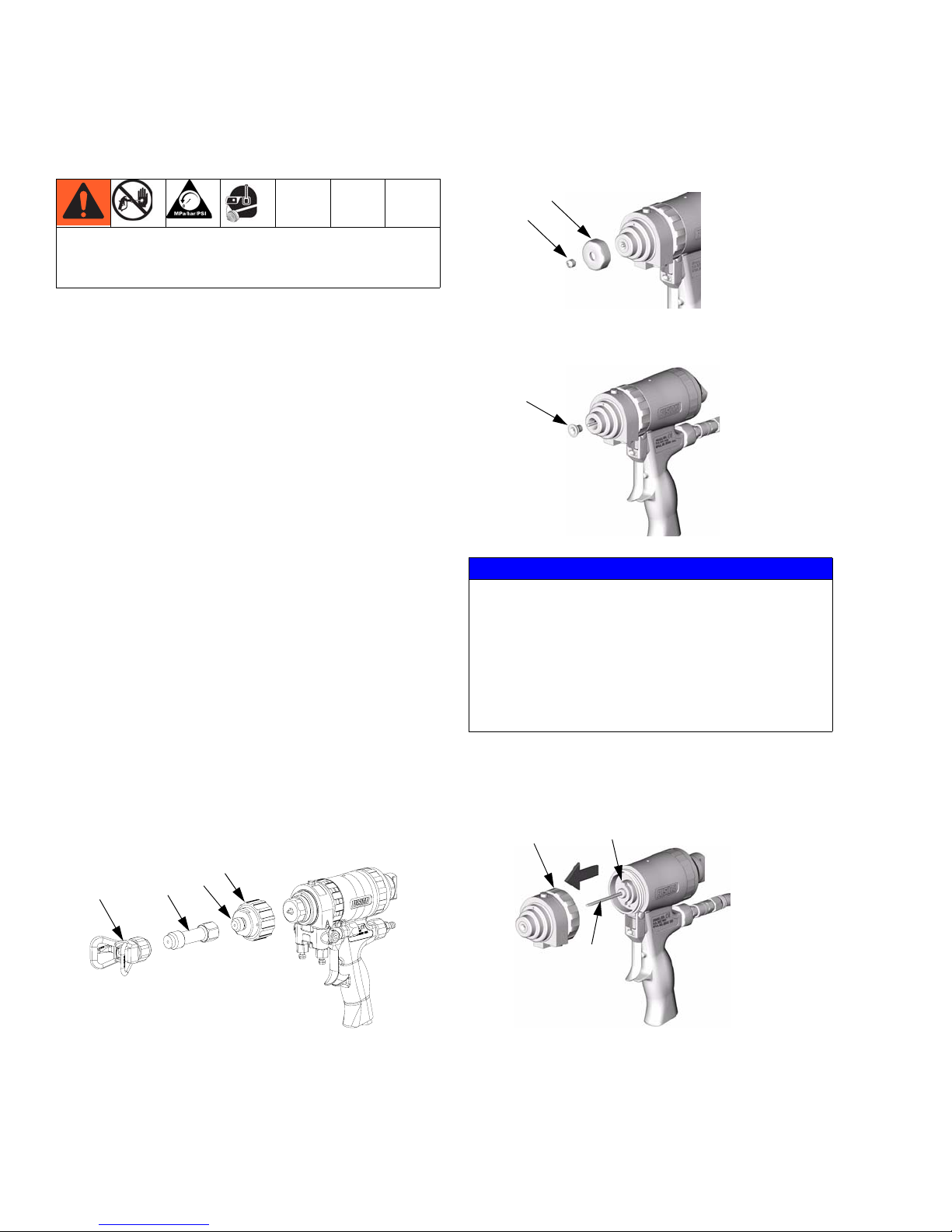

Repair
Tools Required
Tools needed for complete gun repair:
• adjustable wrench
• flat head screwdriver (included)
• channel-lock pliers (2 pair)
• 5/16 hex nut driver (included)
• o-ring pick
• medium-strength Loctite®
• solvent or alcohol
Lubrication
Liberally lubricate all o-rings, seals, and threads with
Fusion Gun Lubricant (29). Lubricate threads and out-
side of lock ring (11).
Disassemble Front End
1. Follow Pressure Relief Procedure, page 10.
2. Flush Gun, page 14.
3. Remove RAC guard and tip (64, 65), static mixer
housing (60), mixer element (62) from fluid head
(59).
4. Loosen air cap (61) and remove from gun.
5. Remove mix module nut (54), using a wrench.
Remove front seal (2).
6. Remove mix module (66).
7. Unscrew lock ring (37b) to remove front end and mix
module. Pull front end straight off handle.
Proper attachment of front end is critical. Do not oper-
ate gun if front end is loose or lock ring is not snug
against handle.
64, 65 62 61
r_256998_313294_3b
59
NOTICE
• If lock ring (37b) is stuck due to material buildup,
do not force it by turning entire front end. Locat-
ing tabs (Z) may break off. Soak front of gun in
solvent to soften cured material and free lock
ring.
• To prevent damage to purge rod (34), always pull
front end straight off handle (1).
2
54
TI4986a
Ti3846a
66
TI3865b
37b
34
Z

Repair
313294D 19
Reassemble Front End
1. Check that o-rings (37e, 49) are in position. Liberally
lubricate o-rings, threads of lock ring (37b) and han-
dle (1), and outside of lock ring.
2. Orient front end as required for desired fluid mani-
fold mounting (bottom mounting shown). Align slots
(Y) to engage tabs (Z).
3. Carefully slide front end straight onto purge rod (34).
Screw lock ring (37b) onto handle (1) as far as pos-
sible by hand. Push on front end to ensure it is prop-
erly seated. Continue screwing lock ring onto handle
until tightened very securely. When properly assem-
bled, lock ring is snug against handle.
4. Push mix module (66) onto rod (34) as far as possi-
ble.
5. Lubricate all threads and reassemble mix module
nut (54) fingertight. Tighten additional 1/12 turn
with wrench. Install front seal (2) on rod (34).
6. Reinstall air cap (61) and fluid head (59). Lubricate
all threads. Install mixer element (62), static mixer
housing (60,) and RAC tip and guard (64,65).
Tighten with wrench.
NOTICE
To prevent damage to purge rod (34), always slide
front end straight onto purge rod.
TI3871a
37b
37e
TI3873a
TI3871a
Z
Y
49 NOTICE
Do not overtighten mix module nut (54). Overtighten-
ing can deform impingement holes and cause slow
gun actuation.
TI3866a
37b 1
34
37a
66
37 TI3845a
34
1/12 Turn
TI4986a
2
54
34
64, 65 62 61
r_256998_313294_3b
59

Repair
20 313294D
Slip-Fit Polycarballoy Mix
Module
1. Follow Pressure Relief Procedure, page 10.
2. Flush Gun, page 14.
3. Remove fluid manifold (G). Leave air connected.
4. Unscrew air cap (61) to remove RAC tip and guard
(64, 65), static mixer housing (60), mixer element
(62) and fluid head (59) from gun.
5. Remove mix module nut (54), using a wrench.
Remove front seal (2).
6. Disengage piston safety lock (L), page 7. Trigger
and detrigger gun once to release mix module (66)
from fluid housing (37). Remove mix module.
Engage piston safety lock.
NOTE:
If mix module (66) does not protrude from fluid housing
(37), slightly loosen then retighten lock ring (37b), to
allow gripping of edge for removal.
7. Push mix module (66) onto rod (34) as far as possi-
ble.
8. Lubricate all threads and reassemble mix module
nut (54) fingertight. Tighten additional 1/12 turn
with wrench. Install front seal (2) on rod (34).
r_256998_313294_1b
G
64, 65 60, 62 61
59
r_256998_313294_4b
TI3843a
2
54
NOTICE
Do not overtighten mix module nut (54). Overtighten-
ing can deform impingement holes and cause slow
gun actuation.
66
37
TI3845a
37b L
66
37
TI3845a
34
TI4986a
1/12 Turn
2
54
