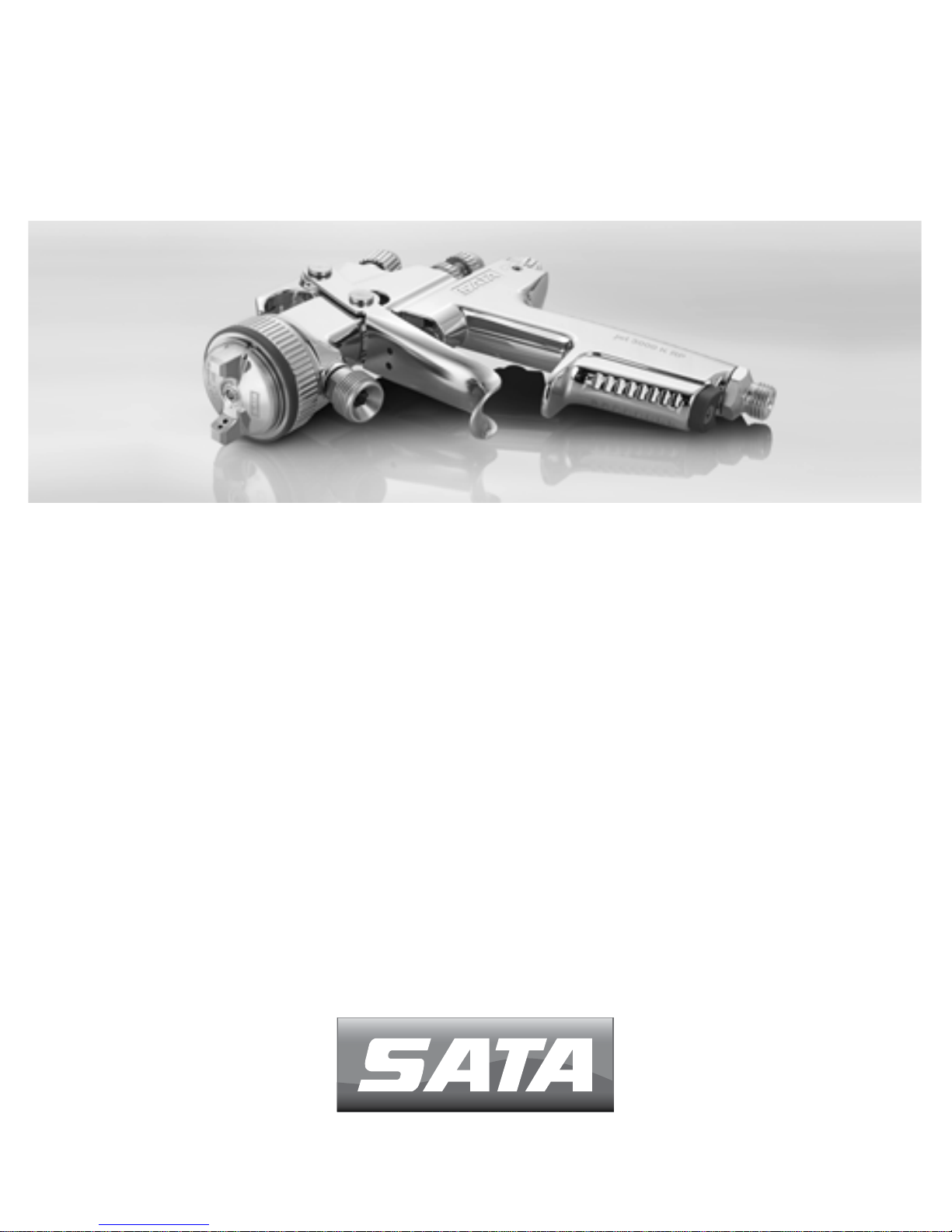

SATA SATAJET 3000 K RP/HVLP User manual

SATAjet® 3000 K RP®/HVLP
Betriebsanleitung | Упътване за работа | 使用说明书
Návod k použití | Betjeningsvejledning | Kasutusjuhend | Operating
Instructions | Instrucciones de servicio | Käyttöohje | Mode d'emploi |
Οδηγίες λειτουργίας | Üzemeltetési utasítás | Istruzione d'uso | Naudo-
jimo instrukcija | Lietošanas instrukcija | Gebruikershandleiding | Bruks-
veiledning | Instrukcja obsługi | Instruções de funcionamento | Manual de
utilizare | Руководство по эксплуатации | Bruksanvisning | Navodilo za
obratovanje | Návod na použitie | Kullanım talimatı | Operating Instructions

[1]
US 7.018.154
US 6.845.924
[1-4] [1-6]
[1-7]
[1-8]
[1-9]
[1-10]
[1-1]
[1-2]
[1-5]
[1-11]
[1-12]
[1-3]

[2]
[2-2] [2-1]
[2-4]
[2-3]
[2-5]
[2-6] [2-7]
[2-9]
[2-8]
[2-10]

91
EN
Operating Instructions SATAjet 3000 K RP/HVLP Operating Instructions SATAjet 3000 K RP/HVLP
Content [Original Version: German]
1. Symbols..................................91
2. Technical data ........................91
3. Scope of Delivery ...................92
4. Design of the Spray Gun........92
5. Intended Use..........................93
6. Safety Instructions..................93
7. Use.........................................95
8. Cleaning of the Spray Gun.....97
9. Maintenance...........................98
10. Trouble-shooting...................100
11. Disposal................................101
12. After Sales Service...............101
13. Warranty / Liability................101
14. Spare Parts ..........................102
15. EC Declaration of
Conformity............................103
1. Symbols
Warning! Risk which could cause heavy injuries or death.
Attention! Risk which could cause damage.
Explosion risk! Warning against risk which could cause
heavy injuries or death.
Notice! Useful tips and recommendations.
2. Technical data
Recommended spray gun inlet pressure
RP 2.5 bar
HVLP 2.5 bar
Compliant > 2.5 bar (air cap pressure > 0.7 bar)
Compliant legislation Lom-
bardy/Italy
< 3.0 bar (air cap pressure < 1.0 bar)
Recommended spraying distance
RP 17 cm - 21 cm
HVLP 10 cm - 15 cm
HVLP Lombardy/Italy 10 cm - 15 cm
Max. spray gun inlet pressure
10.0 bar
Air consumption at 2.5 bar spray gun inlet pressure
[EN] Operating Instructions | english

92
EN
Operating Instructions SATAjet 3000 K RP/HVLP
2. Technical data
RP 430 Nl/min
HVLP 560 Nl/min
Max. material temperature
50 °C
Compressed air connection
G 1/4 male thread
Material connection
G 3/8 male thread
Weight
570 g
3. Scope of Delivery
• Spray gun with nozzle set RP/HVLP
• Operating Instructions
• Tool kit
• CCS clips
4. Design of the Spray Gun [1]
[1-1] Spray gun handle
[1-2] Trigger
[1-3] Material connection
[1-4] Nozzle set consisting of air
cap, uid tip (not visible),
paint needle (not visible)
[1-5] Round/at spray control
[1-6] M a t e r i a l  o w c o n t r o l s c r e w
[1-7] Material ow control counter
nut
[1-8] Air micrometer (aif ow con-
trol knob)
[1-9] Air micrometer (air ow con-
trol) locking screw
[1-10] Air piston (not visible)
[1-11] Compressed air connection
[1-12] ColorCode-System (CCS)

93
EN
Operating Instructions SATAjet 3000 K RP/HVLP Operating Instructions SATAjet 3000 K RP/HVLP
5. Intended Use
The paint spray gun has been designed for the application of paint, lac-
quer and other sprayable media by means of compressed air on suitable
substrates and surfaces.
6. Safety Instructions
6.1. General Safety Instructions
Warning! Attention!
• Before using the spray gun, please read all safety and the operating
instructions carefully. Safety instructions and indicated safety meas-
ures are mandatory.
• Please keep all enclosed documents and make sure that the spray
gun is handed over only together with these documents.
6.2. Specic Safety Instructions for Spray Guns
Warning! Attention!
• Local safety, accident prevention, work and environment protection
regulations are mandatory!
• Never direct a paint spray gun at human beings or animals!
• Use, cleaning and maintenance by skilled personnel only!
• People whose ability to react is impaired by drugs, alcohol, medication
or for other reasons are not allowed to use a spray gun!
• Never use a spray gun when damaged or when components are
missing! Use only when locking screw is rmly tightened [1-9]!
• Before use, the spray gun should always be checked and repaired, if
necessary!
• Put spray gun immediately out of operation when damaged, discon-
nect it from the compressed air circuit!
• Never manipulate or technically modify the spray gun!
• Use original SATA spare parts and accessories only!
• Exclusively use spray gun washing machines recommended by SATA!
Please observe the operating instructions!
• Never spray materials containing acid, lye or benzine!

94
EN
Operating Instructions SATAjet 3000 K RP/HVLP
Warning! Attention!
• Alyways keep the spray gun away from ignition sources, such as open
re, burning cigarettes or non-explosion-proof electronic devices!
• When working with the spray gun, always limit solvents, paints or
other coating media to the quantities which are required for the paint
job! Excessive material must be returned to the designated storage
areas afterwards!
6.3. Personal Protection Equipment
Warning!
• When using, cleaning or maintaining the spray gun, always wear
approved breathing and eye protection equipment as well as suitable
protective gloves, overalls and safety boots!
• When using the spray gun, noise levels of 85 dB(A) may be exceed-
ed. Wear suitable hearing protection!
The painter is not exposed to vibrations while using the spray gun. Repul-
sive forces are minimal.
6.4. Use in Explosive Areas
Ex-sign Equipment cat-
egory
Device category Gas category Temperature level
6.4.1 General
The spray gun is approved for the use / storage in explosive areas of Ex-
Zone 1 and 2.
Warning! Risk of explosion!
• The following applications and operations lead to the loss
of the explosion protection and are, therefore, prohibited:
• Use of the spray gun in explosive areas belonging to ex-zone 0!

95
EN
Operating Instructions SATAjet 3000 K RP/HVLP Operating Instructions SATAjet 3000 K RP/HVLP
Warning! Risk of explosion!
• Do not use solvents and cleaning agents based on halogenised
hydrocarbons! Chemical reaction which may occur when using these
substances may be explosive!
7. Use
Warning! Risk of explosion!
• Use only solvent-resistant, antistatic, undamaged and technically
awless compressed air hoses with a permanent pressure resistance
of minimum 10 bar, e.g. Art. No. 53090!
Note!
The following requirements must be fulfilled:
• Use a compressed air connection G 1/4 male thread or a suitable
SATA connection nipple.
• Ensure minimum compressed air volume (air consumption) and pres-
sure (recommended spray gun inlet pressure) according to chapter 2.
• Clean compressed air, e.g. with SATA lter 100 Art. No. 148247,
outside the spray booth or SATA lter 484, Art. No. 92320 in-
side the spray booth
• Use an air hose with minimum 9 mm internal diameter (see warnings),
e.g. Art. No. 53090.
1. Check if all screws [2-1], [2-2], [2-3], [2-4] and [2-5] have been
tightened rmly. Tighten uid tip [2-1] rmly by hand (14 Nm) accord-
ing to [7-4]. Check if locking screw [2-5] has been rmly tightened
according to [10-1]. Tighten, if necessary.
2. Adjust air cap: vertical spray fan [2-6], horizontal spray fan [2-7].
3. Connect material hose [2-8] of tank or pump, resp. to spray gun ma-
terial connection.
4. Screw connection nipple [2-9] onto the air inlet.
5. Connect compressed air hose [2-10].

96
EN
Operating Instructions SATAjet 3000 K RP/HVLP
7.1. Adjustment of the Spray Gun Inlet Pressure
Note!
• Pull the trigger fully and adjust the spray gun inlet pressure (see
chapter 2) following instructions of one of the followig sections ([3-1],
[3-2], [3-3] to [3-4]), then release the trigger.
• With [3-2], [3-3] and [3-4], the air micrometer [1-8] must be fully
opened/in vertical position.
• If the required spray gun inlet pressure is not reached, the pressure
at the compressed air circuit has to be increased; too high pressure
results in too high trigger forces.
[3-1] SATA adam 2 (accessory / accurate method).
[3-2] Separate gauge with control device (accessory).
[3-3] Separate gauge without control device (accessory).
[3-4] Pressure regulation at the compressed air circuit (most
inaccurate method): rule of thumb: pressure at the pressure re-
ducer must be set 0.6 bar higher than the recommended spray gun
inlet pressure per every 10 m of air hose (inner width 9 mm).
7.2. Adjustment of the Material Flow [4-1], [4-2], [4-3]
und [4-4] - material flow control fully opened
Note!
With the material ow control fully opened, the wear of the uid tip and
paint needle is reduced to a minimum. Please select the correct nozzle
size depending on the material to be applied and the required applica-
tion speed.
Fully pull trigger and adjust required material supply pressure, e.g. at
pressure tank.
7.3. Adjustment of the Spray Fan Pattern
• Adjust at fan (factory setting) [5-1].
• Adjust round fan [5-2].
7.4. Painting
Fully pull trigger for painting [6-1]. Operate spray gun according to [6-2].
Maintain spray distance as described in chapter 2.

97
EN
Operating Instructions SATAjet 3000 K RP/HVLP Operating Instructions SATAjet 3000 K RP/HVLP
8. Cleaning of the Spray Gun
Warning! Attention!
• Prior to cleaning, please disconnect the spray gun from the compressed air
circuit!
• Risk of injury due to unexpected leakage of compressed air or mate-
rial!
• Empty spray gun completely, dispose of paint material appropriately!
• Disassemble and install components very carefully! Exclusively use
included special tools!
• Use neutral cleaning solution (pH value 6 to 8)!*
• Do not use acids, lyes, bases, pickling agents, unsuitable
regenerates or other aggressive cleaning solutions!*
• Do not soak spray gun in cleaning solution!*
• Drillings are to be cleaned with SATA cleaning brushes or SATA nozzle
cleaning needles only. The use of other tools may cause damage or
may affect the spray pattern. Recommended accessory: cleaning kit
Art. No. 64030.
• Exclusively use spray gun washing machines recommended by SATA!
Please observe the operating instructions!
• The air passages have to be pressurised with clean compressed air
during the entire cleaning process!
• Nozzle head has to point downwards!
• Remove the spray gun from the gun washing machine right
after the cleaning process!*
• Never use ultrasonic cleaning devices - leads to damage of noz-
zle components and gun surfaces!
• After cleaning, the spray gun, the material passages, the air
cap including thread have to be blown dry with clean com-
pressed air!*
* otherwise risk of corrosion
Note!
• Check spray pattern after cleaning the nozzle set!
• Further tips concerning cleaning can be found at www.sata.com/TV.

98
EN
Operating Instructions SATAjet 3000 K RP/HVLP
9. Maintenance
Warning! Attention!
• Prior to maintenance, disconnect spray gun from the compressed air
circuit!
• Disassemble and install components very carefully! Exclusively use
included special tools!
9.1. Replacing the Nozzle Set [7-1], [7-2], [7-3], [7-4], [7-5]
and [7-6]
Every SATA nozzle set consists of "paint needle" [7-1], "air cap" [7-2]
and "uid tip" [7-3] and has been hand-adjusted to provide a perfect
spray pattern. Therefore, always exchange the complete nozzle set. After
installation, please adjust material ow according to chapter 7.2.
9.2. Replacing the Air Distribution Ring Steps: [7-1],
[7-2], [7-3], [8-1], [8-2] [8-3], [7-4], [7-5] und [7-6]
Attention!
• Remove air distribution ring with SATA extraction tool only.
• Do not apply force to avoid damage of sealing surfaces.
Note!
Check sealing surfaces inside the spray gun [8-2] after disassembly,
clean them, if required. Should the sealing surfaces be damaged,
please contact your SATA dealer. Align new air distribution ring with the
help of the marking [8-3], (pin must be located in the drilling) and press
in with even force. Adjust material ow according to chapter 7.2 after
installation.
9.3. Replacing the Paint Needle Sealing Steps: [9-1], [9-2]
und [9-3]
When paint material leaks from the self-tensioning paint needle packing, it
needs to be replaced. Remove trigger according to [9.2]. After disassembly,
check if paint needle is damaged or replace the nozzle set, if required. Ad-
just material ow according to chapter 7.2 after installation.

99
EN
Operating Instructions SATAjet 3000 K RP/HVLP Operating Instructions SATAjet 3000 K RP/HVLP
9.4. Replacing the Air Piston, Air Piston Spring
and Air Micrometer Steps: [10-1], [10-2] and [10-3]
Warning!
• Disconnect paint spray gun from the compressed air circuit!
When air leaks from the air cap or the air micrometer without the trigger
being pulled, they need to be replaced. After disassembly, grease the air
micrometer and spring with SATA high performance grease (Art. No.
48173), insert them together with the air piston and tighten the locking
screw [10-1]. Adjust material ow according to chapter 7.2 after installa-
tion.
Warning!
• Check if locking screw [1-9] has been rmly tightened! Air micrometer
[1-8] could shoot out from the spray gun uncontrolled!
9.5. Replacing the Sealing (air side)
Warning!
• Disconnect paint spray gun from the compressed air circuit!
Steps: [9-1], [9-2], [10-1], [10-2], [10-3], [10-4] and [10-5]
Replacing the self-tensioning sealing [10-5] is required when air leaks
from under the trigger.
1. After disassembly, please check air piston rod [10-4] and clean it, if
required. If damaged (e.g. if scratched or bent), replace it and grease
with SATA high performance spray gun grease (Art. No. 48173) and
insert. Please observe correct order of installation!
2. Lubricate air micrometer (air ow control) and spring as well, insert
together with air piston and tighten the locking screw.
After installation, please adjust material ow according to chapter 7.2.
Warning!
• Check if locking screw [1-9] has been rmly tightened! Air micrometer
[1-8] could shoot out from the spray gun uncontrolled!

100
EN
Operating Instructions SATAjet 3000 K RP/HVLP
9.6. Replacing the spindle of round/flat spray con-
trol Steps: [11-1], [11-2], [11-3] [11-4]
It needs to be replaced when air leaks from the control knob or when at/
round control does not work. After disassembly, apply some sealant on
thread of the spindle, e.g. Loctite 242 [11-4].
10. Trouble-shooting
Malfunction Cause Corrective Action
Fluttering/spitting
spray fan or air bub-
bles appearing in the
gravity ow cup
Fluid tip has not been
properly tightened
Tighten uid tip [2-1]
with universal spanner
[7-4]
Air distribution ring is
damaged or clogged.
Replace air distribu-
tion ring, as it will be
damaged during disas-
sembly
Spray pattern is too
small, crooked, lop-sid-
ed or splitting
Clogged air cap drill-
ings
Clean air cap, observe
chapter 8
Damaged uid tip (uid
tip aperture)
Check if uid tip is
damaged, replace the
nozzle set, if neces-
sary, chapter 9.1
No function of round/
at spray control - con-
trol knob can still be
turned
Air distribution ring has
not been positioned in
correct location (pin is
not located in the drill-
ing) or damaged
Replace air distribution
ring making sure it has
been positioned cor-
rectly when inserting it,
chapter 9.2
Round/at spray con-
trol cannot be regu-
lated
Control has been turned
too much in counter-
clockwise direction;
spindle has loosend
inside the spray gun
thread
Remove control with
single head spanner;
rectify or replace com-
pletely, chapter 9.6
Spray gun does not
shut-off air
Clogged air piston seat
or worn air piston.
Clean air piston seat
and/or replace air pis-
ton, air piston packing,
chapter 9.4

101
EN
Operating Instructions SATAjet 3000 K RP/HVLP Operating Instructions SATAjet 3000 K RP/HVLP
Malfunction Cause Corrective Action
Corrosion on air cap
thread, inside material
passages (material
connection) or on
spray gun body
Cleaning solution
(water-based) remains
inside/on the spray
gun for too long.
Cleaning, observe
chapter 8, get a
replacement spray
gun body.
Unsuitable cleaning
solutions
Material leaks from
behind the paint nee-
dle sealing
Defective or missing
paint needle sealing.
Replace / insert paint
needle sealing, chap-
ter 9.3
Clogged or damaged
paint needle.
Replace nozzle set,
chapter 9.1; replace
paint needle sealing, if
necessary, chapter 9.3
Spray gun leaks from
the uid tip ("uid tip
aperture")
Contamination be-
tween paint needle tip
and uid tip
Clean uid tip and
paint needle, observe
chapter 8
Damaged nozzle set. Replace nozzle set,
chapter 9
11. Disposal
Recycle the completely empty spray gun. To protect the environment, bat-
teries and residual paint have to be disposed in an appropriate way and
separately from the spray gun. Please observe local legislation!
12. After Sales Service
Please ask your SATA dealer for accessories, spare parts and technical
support.
13. Warranty / Liability
The SATA General Conditions of Sale and Delivery and further contractual
agreements, if applicable, as well as the valid legislation at the time apply.
SATA cannot be held liable especially in the following cases:
• When the operating instructions are disregarded.
• When the product is used in other than the intended ways of usage.
• When untrained staff are employed.
• When no personal protection equipment is worn.
• When no original accessories and spare parts are used.

102
EN
Operating Instructions SATAjet 3000 K RP/HVLP
• When the product is manipulated, tampered with or technically modi-
ed.
• In case of normal wear and tear.
• In case when the product has been exposed to untypical shockloads
and impacts during usage.
• Assembly and disassembly
14. Spare Parts [13]
Art.
No. Description
6395 Pack of 4 CCS clips (green, blue, red, black)
15438 Paint needle packing
9050 Tool kit (consisting of: extraction tool for air distribution ring,
cleaning brush, internal hexagonal spanner with spanner siz-
es 2 and 4 and universal spanner)
91959 Air piston rod
92056 Trigger kit
92619 Material ow control with counter nut
92742 Round/at spray control, cpl.
93526 Material connection
93559 Insert, cpl.
97824 Pack of 3 air distribution rings
133926 Trigger sleeve kit
133942 Seal retainer (air side)
133959 Spring set consisting of 3x paint needle and 3x air piston
springs each
133967 Pack of 3 locking screws for SATA air micrometer (air ow
control knob)
133991 Pack of 3 air piston heads
134098 Air connection
139964 Air micrometer (aif ow control knob)
Accessories
Art.
No. Description
6981 Pack of 5 connection nipples G 1/4 female thread

103
EN
Operating Instructions SATAjet 3000 K RP/HVLP Operating Instructions SATAjet 3000 K RP/HVLP
Accessories
Art.
No. Description
13623 SATA quick coupling G 1/4 male thread
38265 SATA strainer 60 msh, G 3/8
91140 Material coupling G 3/8 male thread with plug-in nipple G 3/8
female thread
91157 Material coupling G 3/8 male thread with plug-in nipple G 3/8
female thread and strainer 60 msh
92031 SATA paint tube G 3/8 female thread - G 3/8 male thread
147504 SATA hose pair 9 x 9 mm, 15 m, with braided cover, G 3/8 and
G 1/2 (material), G 1/4 (air), female thread
147512 SATA hose pair 9 x 9 mm, 10 m, with braided cover, G 3/8 and
G 1/2 (material), G 1/4 (air), female thread
147520 SATA hose pair 9 x 9 mm, 6 m, with braided cover, G 3/8 and
G 1/2 (material), G 1/4 (air), female thread
Included in repair kit (Art. No. 92767)
Included in air piston service kit (Art. No. 92759)
15. EC Declaration of Conformity
Manufacturer:
SATA GmbH & Co. KG
Domertalstrasse 20
D-70806 Kornwestheim
We hereby declare that the product named in the following, on the basis
of its conception, construction and type of construction in the model we
have brought on the market, corresponds to the fundamental safety re-
quirements of the 94/9/EC guideline, EC Directive 2014/34/EC including
the changes applicable at the time of this declaration and can be used
according to EC-Directive 94/9/EC, EC Directive 2014/34/EC in explosion
hazard areas (ATEX), appendix X, B.
Product description: ................................................. spray gun
Type description: ...............................SATAjet 3000 K RP/HVLP
ATEX classification: .................................................... II 2 G T4

104
EN
Operating Instructions SATAjet 3000 K RP/HVLP
Relevant EU directives:
• EU machinery directive 2006/42/EG
• EC Directive 2014/34/EC Devices and protection systems for intended
use in explosion hazard areas
Applied harmonised norms:
• DIN EN 1127-1:2011 "Explosion control part 1: Basics and methodology"
• DIN EN 13463-1:2009 "Non-electronic devices for the use in explosive
areas - Part 1: Basics and Requirements"
• DIN EN ISO 12100:2011; "Machine safety, general requirements"
• DIN EN 1953:2013 "Spray and application devices for coating materials
- safety requirements"
Applied national norms:
• DIN 31000:2011 "General guidelines for the safety-compliant design of
technical products"
The documents required according to guideline 2014/34/EC appendix VIII
are led for 10 years in the named location number 0123 with the docu-
ment number 70023722.
70806 Kornwestheim, 18.04.2016
Albrecht Kruse
President
SATA GmbH & Co. KG
