OXE Gepard User manual

User Manual
OXE Gepard

Introduction
Thank you for choosing thiscamera. Thecamera isspeciallyused to
record activities of wild animals.For your easier useofit, the user
manualcontainsfull specifications ofoperation.Please carefullyread
the manualbefore using,and keep itata safeplacefor future
reference.
The compilation of the user manual referstothelatestinformation.
The manual quotescaptured screen displays and graphics, with the
aimto introducethe digitalcamera through detailedand direct
methods. Due tothe differences oftechnical R&D and production
batch,those captured screen displays and graphicsindicated inthe
manual maybedifferent from thatof actualdigital camera.

Precautions
Instructions for usingthe memorycard
In caseofa newlypurchased memory card forthe firsttime use,or
data available inthe memory card unrecognized for the cameraor
image captured byother cameras,please ensure to firstly formatthe
memorycard;
Before pluggingin or outthe memory card,pleasefirstlydisconnect
power supplyofthecamera;
Afterusingfor manytimes, performance ofthe memorycard will be
lowered. In case oflowered performance,a new memory card is
needed to purchase;
The memorycardisa preciseelectronic device.Pleasedon’tbend it
and keep it awayfromfallingor heavy load;
Don’t keep the memory card inthe environmentwith strong;
electromagneticor magneticfield, like the place near speakeror
receiver of TV;
Don’t use or keep the memorycard in environment with over high or
lowtemperature;
Keep the memorycard clean and awayfromcontacting liquid.In
caseof contacting liquid,pleasedryit with softcloth;
In caseofkeepingthe memory card idle, place itinto the card
sleeve;
Pleasenotethatthe memory card will get hotafter long-term use,
and thisis normal;

2
Don’t use the memorycard having used onother digital cameras.If
to memory card on thiscamera, please firstlyformatitwith the
camera;
Don’t use the memorycard having formatted on other camera or
card reader;
In caseofone ofthefollowings with the memory card,the recorded
data maybedamaged:
- Improper use ofthe memory card;
- Disconnectpower supplyor take the memorycard out during
recording, deleting (formatting)or reading;
Appearance (OXE Gepard) Appearance (OXE Gepard)

3
1. Lens
4. MIC
7. SETUP
10. DC jack
13. Battery slot
16. Replay
19. Shot
22. Bracket hole
2. Infrared LEDS
5. PIR MotionSensor
8. OFF
11. AV jack
14. MENU
17. OK
20. LCD
3. Indicatorlight
6. ON
9. USB jack
12. Speaker
15. Left
18. Right
21. Catch block

4
KeyFunctions and Indicators
Keys Functions
MENU Key Open or exit frommenu
PLAYKey Reviewphotos and videos
Left Key 1. IntheSettingsmenu,settheup key
2. switch previousfile
Right key 1. IntheSettingsmenufor the down key.
2. switch Photo mode
SHOT Videorecording/capturing;
OK 1. OKkey2. switch video mode
Getting started
1. Battery/Adapter
Please make sure toplace batteries inthe camerabefore using.
1.1 Findthe batteryboxof thecamera, putintothe4x1. 5vaa battery,
and ensure thecorrect polarityof the battery
1.2 Whenusingthepower adapter (optional),findtheDCsocketatthe
bottomofthe camera or the rubbersealring and open it, then connect
the power adapter to the power supply

5
2. Insertingmemorycard
2.1 Insertthe memory card asindicated by the icon into the slotuntil
the cardtotallyinside.
2.2 To removethe memory card, gentlypressthe edge ofthe memory
card untilit pops out.
Note: The camera doesn’thave built-in memory.Amemorycard must
be insertedintothe camerabefore using.After inserting the memory
card, makesure toformatthe memory card on the camera first.
System settings
1. Poweron and off/ System settings
Afterthe batteryis put into the battery, push the modeswitch tothe
“SETUP” mode andset it.Inthetest mode,theinfrared lampis
closed.
1.1 To put theoperating mode selector switch from “OFF” to “SETUP”,
the camera is on.
1.2 Switch between photo and video mode bypressingthe okkeyor

6
right-click
1.3 PresstheMENU keyto opensettingsmenu.Press OKto confirm
the setting changes.
1.4 PresstheMENU keyone more timetoreturn to previous menu or
exit the menu settings.
1.5 Putthe operator mode selector switchto “OFF” to power off the
camera.
2. Working modes
There are three working modes in the camera: Photo mode, Video
mode,Photo+Video mode.
2.1 Photo mode
Select aphoto size:1MP,3MP, 5MP, 8MP, 12MP,16M. The larger the
file size is, moredetailed the photos are.However, the larger size files
take more memoryspace tostore.
2.2 Video mode
Selectthe video resolution:1920X1080.1280X720.720X480.640X480.
The higher theresolution is, more detailed thevideos are. However,
the larger size filestake more memory spaceto store.
2.3 Photo+Video mode
In Photo+Video mode,the camerafirsttakesa photoand thenstarts
filming video.
Note: when the machine isworking in "setup"mode, and has not
operated the machinefor morethan a certain period of time, in order
to save electricity,the machine automatically shuts down, theuser
can clickanykeytoopen thescreen, restore thedisplay.

7
3. Video length
The video lengthisoptionalbetween 1-60seconds or 1-10 minutes.
The longer therecording timeselected,theshorter the operating time
is. Thepresetvideo lengthis 5 seconds.
4. Shot lag
The shot lagtime can be selected between 5S-60 minutes.During the
selected interval, the camera will not record any imagesor videos.It
prevents the memory card frombeing filled up with too many
recordings ofthe sameevent.
5. Sensitivity of the motionsensors
The sensitivityof the main motion sensor issethere.For interior areas
and environments with little interference, select “High”.Select
“Medium” for exterior areas andenvironmentwith a normalamount of
interference,and select “Low” for a environment with a highlevel of
interference.
6. Target recording time
Here is to setthe target recording timeof the camera.Press“MENU”
to find “Target recording time”. Press“OK”, and then select “ON” to set
the startingworking and ending working time.After finishingsetting,
the camera onlyworks duringthe setting timeeveryday. Beyond the
period, the cameraisin standby.
7. Timelapse
Here to set Timelapseshooting. Press“MENU” to find “Timelapse”.
Press “OK”, then select “ON” to set thetime interval, andsetthe
values ofHr, Min andSec. For example, ifthe process of flowers

8
blooming hastoberecorded, timelapsecanbe used.The camera
automatically takes picturesin everysetting timeinterval.

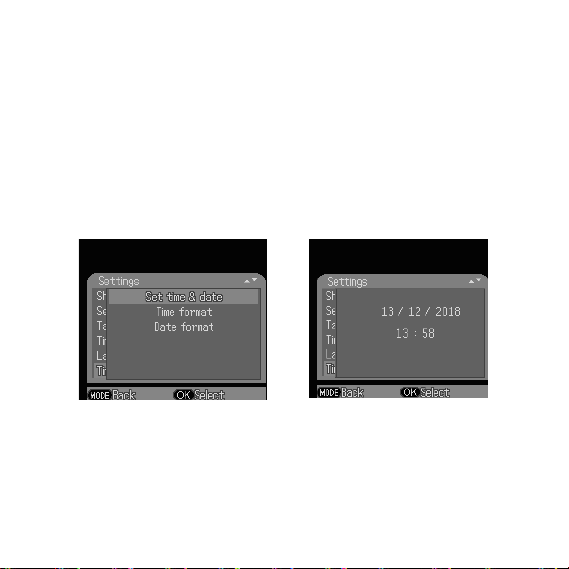

8. Time&Date
Open menu keytoselect timeand date,then press"OK"Key to set
Set the timeand dateformat:adjustthe corresponding timedate
according tolocaltime,pressleft/right to modifythe size of the value,
press the "ok" keytoswitchtothe next location to be modified, and
press the "menu"key to exit after setting up
Timeformat:12/24hr
Date format:dd/mm/yyyy,yyyy/mm/dd,mm/dd/yyyy
9. Passwordprotections
Set the camera bootpassword, open the menuto select password
protection, and then press the "OK" key. thenset a4-digitcombination
password between digit 0-9. Ifyou forget the bootpassword, when the
camera is off,,press andhold "menu"& "replay" button together, then
setthe mode keyto"test"mode, the camera will beunlocked.

9
10. Serialnumbers
To seta uniqueserialnumber for the camera,open the menutothe
serial numberand pressthe "OK" key,switch to setthe“on”, seta
serial numberof the 4-digitcombination of0-9 or the letter.
11. Playback
Take down the camera from whereit’s fixed. Slide the operating mode
selector switch tothe “SETUP” position. Press playbackkeyand
Left/Rightkeytoreviewthe photos/videos.While reviewing photos,
press Left/Rightkey to page up/down. While reviewing videos,press
OK keytostartplaying, pressOK one more time to stop.Press
Playback keytoreturn into standby.

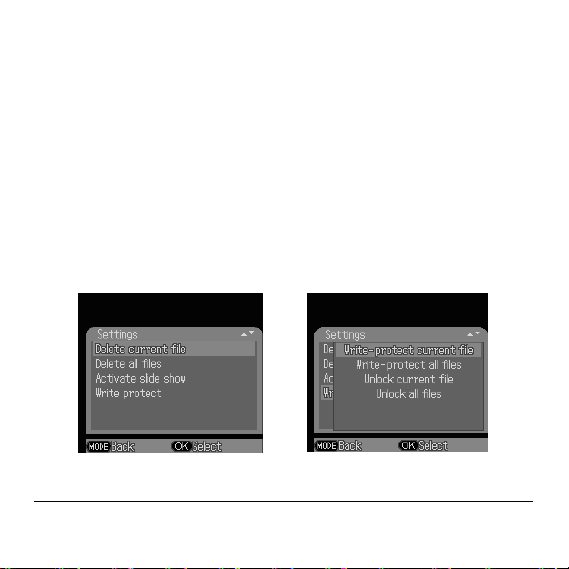

11.1 deletecurrentfile
Using thisfeature, you can delete the currentlyselectedpicture or
video fromthe camera memory card. Inplayback mode, pressthe
"MENU" key,select"deletethe curren document",press okto confirm,
press rightkeytoselect "Delete"again, pressthe "OK" keytoconfirm
the deletionofthefile
11.2 deleteall file
Withthisfeature, you can delete all picturesor videosfrom the
camera memory card. In playbackmode, press the menu key,select
"Delete alldocuments", press ok to confirm,and right-click"Delete" to
confirm thedeletionofthefile again bypressing theokkey
11.3 Activateslide show
Thisfunction can beusedtoplay backthe photosstored on the
memorycard automatically.Each photo is shown for about 2 seconds.

0
To stop the slide showand keep the current image permanentlyon the
screen,pressthe OK button.
11.4 Writeprotection
Thisfunction can beusedtoprotectindividual recordings of all saved
recordings fromaccidentaldeletion.
Select “Write-protectcurrent file” to protectthe currentlyselected
recording from accidentaldeletion.
Select “Write-protect allfiles”to protectallsaved recordings from
accidental deletion.
Select “Unlockcurrentfile”toremove the write protection for the
currentlyselected recording.
Select “Unlockall files” to removethe write protection for all saved
recordings.
Operating Principle
1. Aligning thecamera

In test modeyou canwork out the optimum exposure angle and the
range of the motion sensor.
1.1 During alignmentconsider whether the use ofthe side motion
sensorsmaybe useful for attaining the desired observation results.
1.2 Alignthecamera asfollows:
Fastenthecamera toatree orsimilar objectataheightof1-2meters
and align the camera in the desired direction.Then moveslowlyfrom
one side ofthetarget area to the other side. Whiledoing this,monitor
the motion display.
1.2.2 Ifthislights up in blue, you have been detected byone of the
activatedside motion sensors.If itlightsup inred, you have been
detectedbythefront motion sensor. In this way, you can work outthe
best alignmentfor the camera.
1.2.3 The motion displayonlylights up when operating modeselector
switch is in the TEST position and one ofthe motionsensorshas
detected movement. During normal operation,there will be noLED
displayinthis area.
1.2.4 Toensure that the camera doesn’t make unwanted recordings of
irrelevant movements,itshouldnot be set up ina sunnylocation or
closetobranches. The detecting range of the sensorsis 80°.And the
recording angle ofthecamera is about 90°.
2. Normalworking mode
In this mode,recordingsare triggered via the motionsensors.
To setlivemode, slidethe operating mode selector switch to the “ON”
position.After15 seconds,the LED of motiondisplaywill go off.

2
Then the camera will starttooperate independentlyand will gointo
standby mode.As soon as anywild animals or similar enter the
detecting range of the side motion sensors,the camera will be
activatedand detectthe motion. If the wild animal keepsmovingto the
detecting range of the central sensor zone, the camerawill start
capturing photos and/or videos(depending on the configuration).
Afterthe wild animal moves out of the detectingrange ofside motion
sensors,the camera switches off and goes backintostandby mode.
3. Night workingmode
3.1 During nightexposures the infrared LEDs onthefrontofthe
camera provide therequired lightfor takingpictures.The range of the
LEDs makes the camerato shooting pictures within 3m-20m.However,
reflective objects can cause overexposure.
3.2 Please note that pictures taken in nightexposures are blackand
white. Whenrecording avideo for a long time,thelowvoltage may
have great influence on the stability of the camera.Soin case of the
lowvoltage, itbetternot torecord in the evening.
Videos/photos/datesoutput
1. TVconnections
The camera cantransfer the videosignaltoan external monitor or the
video input ofatelevision set.Please also followthe instructions of
the respective playbackdevice.
1.1 Open the TV,connectthe TV with the camera through date cable

3
1.2 Open the camera,and slide the operating modeselectorswitchto
“SETUP”
1.3 After connecting,the cameraenters the modeofplaybackand the
LCD turns off.Whatthe camera captured would be shown on the TV.
2. Transferringrecordings toa computer
Connect the camera with thecomputer through thecable. After
successful connection,there would appear a newdriver named mass
storage on the computer.Photosand videos can be found in
“DCIM/100MEDIA” in the massstorage and can becopiedto the
computer.
Note: In caseofdata loss,pleasedon’t disconnectthe cable or
take outthe memorycardwhen copying photos/videos.

4
Technical Specifications
Image sensor 2MPCMOS sensor
Function modes Videorecording/Photo/Playback
Lens F2.3 f=3.8mm
LCD 2.0 inch LCD
Photo resolution 16M(4068x3456),12M(4000 x3000), 8M
(3264 x2448), 5M(2592 x1944), 3M(2048 x
1536),1M(1280 x960)
Videoresolution 1920x1080，1280X720,
720X480,640X480
Memorytype TF card(up to 32GBmax)
Format JPEG,AVI
USB connection USB 2.0
Power supply 6V
language English/French/Spanish/German/Portuguese/I-
taly/Chinese
OS Windows XP/Vista/7/8, Mac10.2
Dimension 108.5x75.5x46mm
Note: Specificationcouldbe subjectto modification due to updating.
Pleaseregard the actualproductasthe standard form.

Contact: [e-mail]
Web sites:www.oxe.cz
Importer:
Stasanet DOO
Vojvode Hrvoja28
Beograd
Srbija
www.stasanet.rs
Declaration of conformity with Directive1999/5/ EC
The manufacturerhereby declaresunder his responsibility that
this productis in full compliance with the requirements and
requirements of Directive1999/5/ EC.
CE and RoHS certification protocols areavailable
from thedistributor.
