User Manual
USER MANUAL Model No: 3219
Electric Trolling Motor

This product is not a toy, and is only to be used for its designated purpose.
Never carry out any alterations or modifications to this product.
This product is intended for use in large bodies of water only.
This product is for personal use only. It is not intended for professional use.
Do not attempt to grab or touch the power propeller when it is in use.
Never fully submerse the product. If the product is accidentally submersed be sure
to safely disconnect the battery and leave to dry if this happens.
The recommended battery types are either a 12-volt Deep Cycle battery or Marine
battery (24-volts for 86lbs). The battery should have at least a 50amp an hour
rating or higher. Run time can be extended using an addition battery.
This product is not intended for use by persons (including children) with reduced
physical, sensory and mental capacities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
product by persons responsible for their safety.
Leaving the product outside exposed to weather, especially direct sun, rain and
salt air, will speed the weathering process. This can be slowed by removing the
product from these conditions, or covering it with a suitable cover.
Clean only with a damp cloth. Do not use strong industrial cleaning substances or
abrasive materials as these will damage the product. Make sure the product is off,
disconnected from a battery and been left to dry to remove the risk of electrical
shock.
If the product is damaged or has any defects, please contact [e-mail]
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot
guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold
on this condition, which no representative of the company can waive or change.
USER MANUAL Model No: 3219

USER MANUAL Model No: 3219

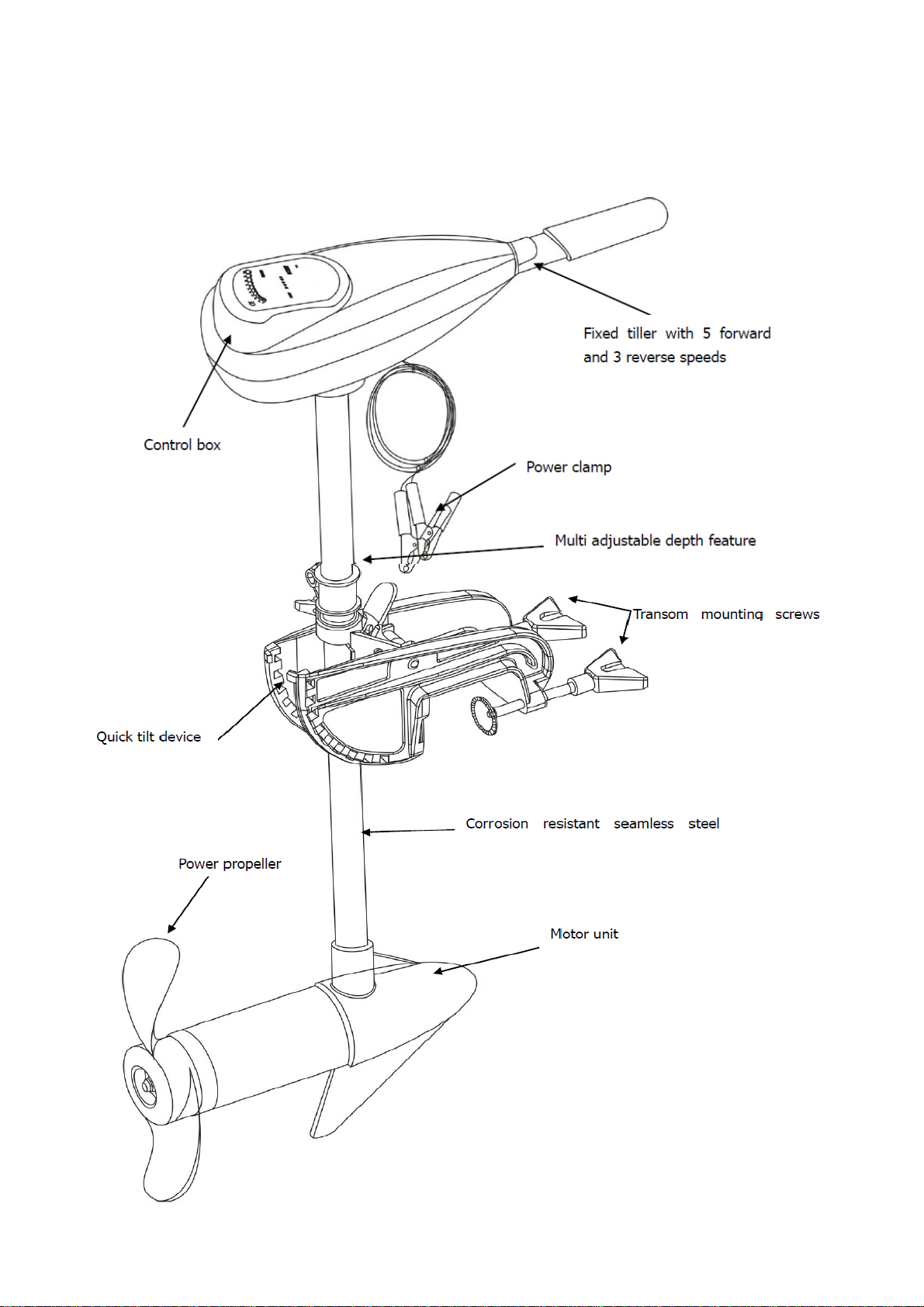

Operating Instructions

First Time Running

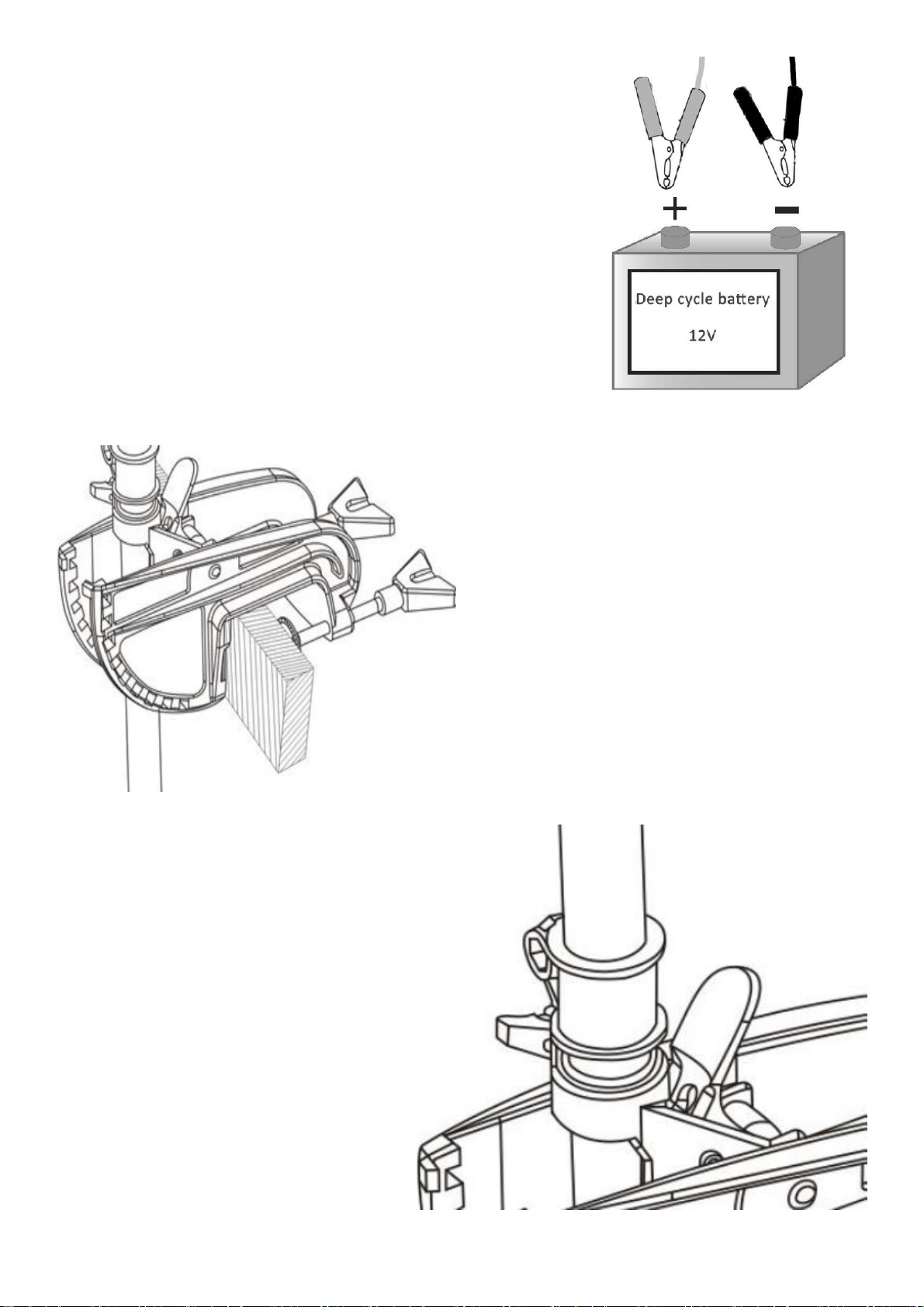

Battery Connection Method
Before connecting the motor’s cables to the battery terminals,
ensure all switches are in the OFF position and stand clear of the
propeller. Connect the red cable to the positive terminal (marked
with a + symbol on the battery) and the black cable to the negative
terminal (marked with a –symbol on the battery). Ensure that the
terminals are clean before doing so. A clean connection will
minimize power wastage and provide the best power usage from
the battery. Keep the battery in a well-ventilated location. Please
see the picture to the right for visual help.
Attaching the Motor to your Boat
Attach the motor to the stern of the boat and
tighten both mounting bolts securely while taking
care not to over-tighten. To adjust the angle of the
motor after attachment, hold the motor head with
one hand and depress the positioning pin at the
top of the mounting bracket with your other hand.
Press and hold the positioning pin until the desired
angle has been reached next release the pin and
ensure the mechanism locks securely. Please see
the image to the left.
Warning: Before the installation, Make sure the
area between column and bracket is clear.
Depth Adjustment
Hold the motor shaft with one hand,
loosen the depth adjustment screw and
set the motor to the desired depth, then
retighten the adjusting screw securely.
Please see the image to the right.
USER MANUAL Model No: 3219

USER MANUAL Model No: 3219

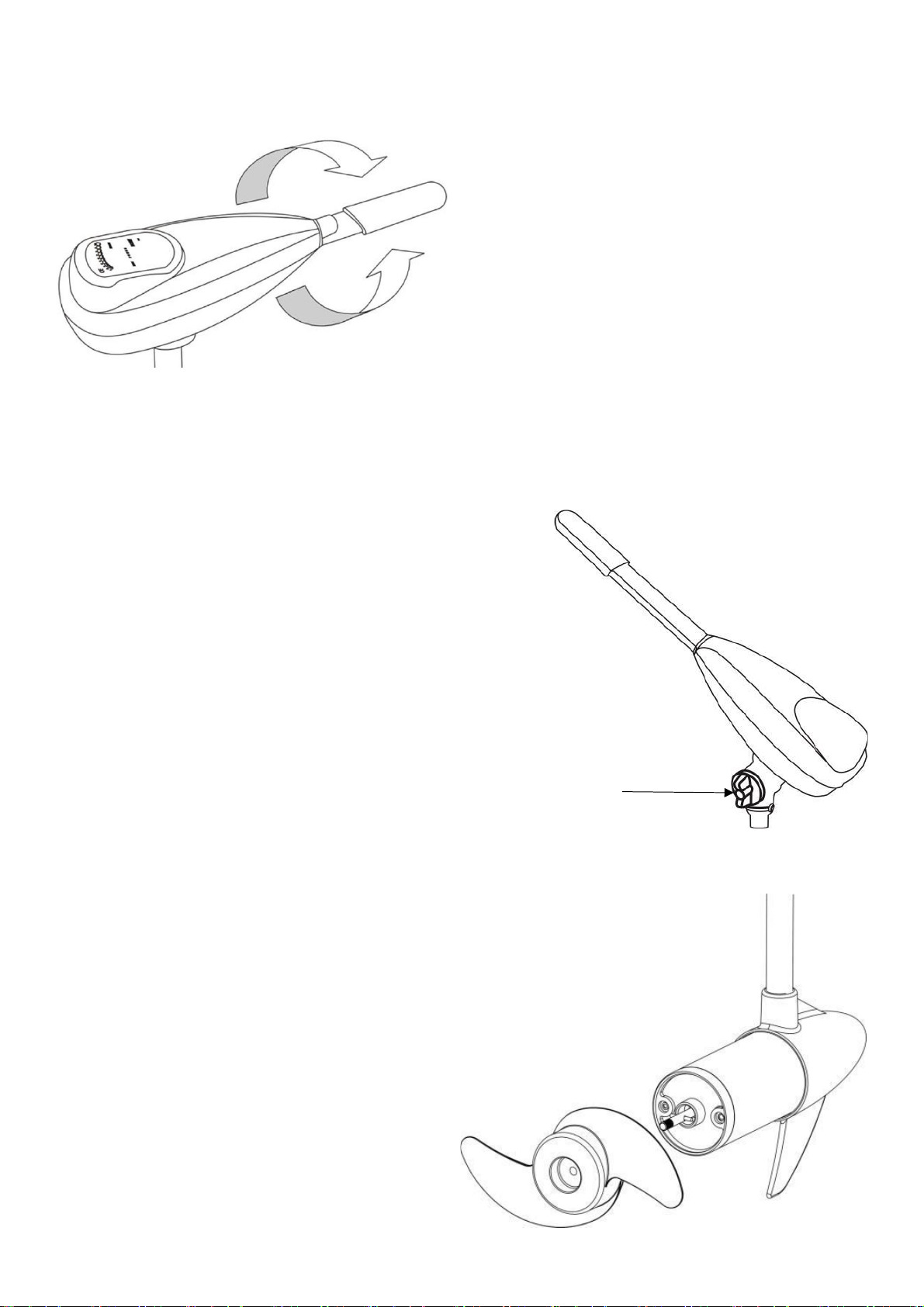

Speed Control
The speed control, featuring five forward and three
reverse speeds, is integrated into the handle. Turn
the handle clockwise to move forward and anti-
clockwise to go backwards. When you don’t want to
move, set the handle into neutral. No power will be
used in this setting. Please see the image to the
right.
Warning: Remember to always disconnect batteries
once the motor leaves the water as a rotating
propeller can cause personal injury. Remember to
wash the motor using a fresh water after use in salt
water as this can greatly reduce the possibility of
corrosions.
Adjustment
Screw
Angle Adjustment
The motor found on the product is able to be adjusted by
way of the handle to make it more comfortable for the user
to control. Follow the steps below to make adjustments:
1. Loosen the adjustment screw (marked on the image to
the left). This will enable you to move the handle up and
down freely.
2. Keep the handle at the desired angle, ensuring that the
angle is suitable and will still allow control.
3. Tighten the adjustment screw to finish adjusting.
Warning: The adjustment range of the motor is 60°. DO
NOT exceed this limit as forcing the handle to rotate
How to replace the Propeller
Loosen the propeller knob found on the propeller
pin (this is where the propeller will be found).
This should allow you to pull the propeller off. If
the propeller gets stuck, grab one of the blades
and table on the opposite blade lightly with a
rubber mallet until the propeller comes off. If the
propeller pin (this is what holds the propeller in
place) is bent, replace it. Align the new propeller
with the propeller pin. Place the propeller knob
back onto the propeller bin and secure it into
place.

Maintenance
Once you have finished using the product, wipe it down with a damp cloth and then rinse with a light spray from a
hose. Always check that the propeller is clear of line or weed, regularly check all nuts, bolts and screws and lubricate
all moving parts with an aerosol lubricant. Clean terminal connections regularly and check for frayed wires or loose
connections.
Storage
When storing the motor; lubricate all moving parts and screws and store in a well-ventilated, dry area. Do not leave
the motor outside in winter for long periods, as this will damage the permanent magnet in the unit.
Warning:
Make sure that the motor has been disconnected from any batteries before replacing the propeller. Do not
strike the propeller bin with any object in an attempt to remove it. Damage caused this way would not be
covered by warranty.
Troubleshooting
Possible Cause/Solution
Speed loss
Check for fishing line or weeds on the propeller.
Check battery status.
Check terminals on the battery.
Motor noise/Shake
Check for fishing line or weeds on the propeller.
Check to see if the propeller is secure and not
damaged.
Check the shaft to see if it is not bent. Detach the
propeller and run the motor to see if this reduces
shaft shaking. If the shaft is damaged, contact the
retailer.
Loss of speed setting
Check all the wiring connections
The switch within the motor may be burnt out, if so
contact the retailer.
Tight steering
Loosen the counterforce screw, apply lubricant and
then readjust.
USER MANUAL Model No: 3219

USER MANUAL Model No: 3935
Please retain a copy of all instructions for future
consultation.
