Ozito Cdl-5010 User manual

CORDLESS

DRILL

DRIVER

18V Li-ion

INSTRUCTION MANUAL

SPECIFICATIONS

Input: 18V

Chuck Size: 10mm Keyless

No Load Speed: 0-580/min

Torque Setting: 17

Max. Torque: 16Nm

Drilling Capacity: 15mm Wood

8mm Metal

Battery: 1.3Ah Li-ion

Charge time: 3 - 5 hours

Weight with Battery: 0.95 kg

CDL-5010

WHAT’S IN THE BOX

Cordless Drill Driver

ozito.com.au

Drill Bits x 4

Driver Bits x 2

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to

the online manual.

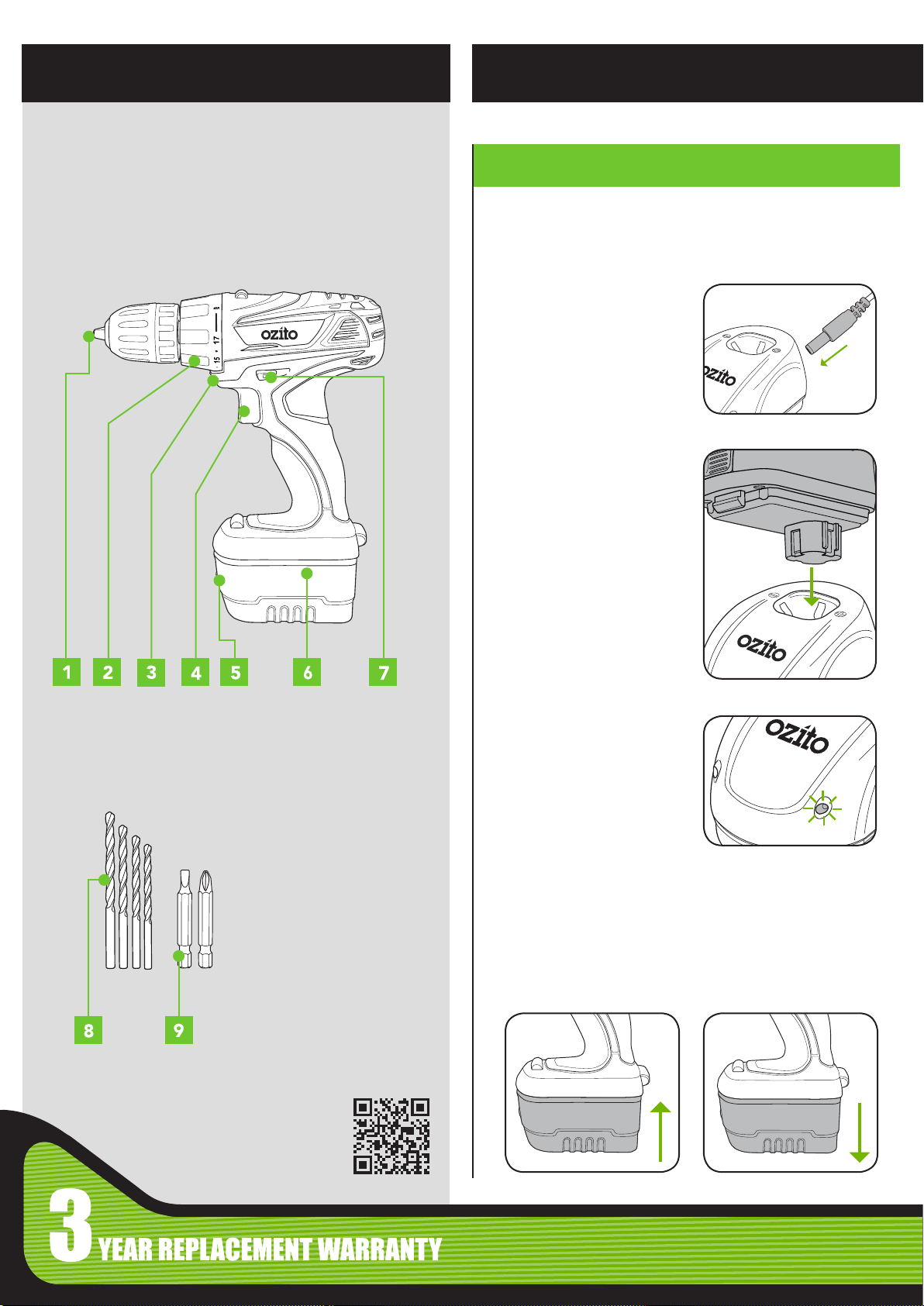

KNOW YOUR PRODUCT SETUP & PREPARATION

1. BATTERY

Note: On the initial charge, the battery requires 5 hours of charging.

Subsequent charging only requires 3-5 hours. It will take 4-5 charging

cycles before the battery reaches optimum charge and run time.

1 Keyless chuck

2 Torque adjustment collar

3 LED Worklight

4 Variable speed trigger

5 Battery release button

6 18V Battery

7 Forward/reverse lever

CORDLESS DRILL DRIVER

Installing and Removing

2. Insert battery into charger.

The red and green lights will

illuminate when battery is

properly connected.

Slide the battery into the drill

base until it clicks into place.

1. Plug charging jack into the

charger. The green light will

illuminate when properly

connected.

Charging

Hold down the battery release

buttons and slide the battery out.

8 Drill bit x 4

9 Driver bit x 2

3. The red light will extinguish

when battery is fully

charged.

This charger is recommended for use with a residual current

device with a rated residual current of 30mA or less.

ACCESSORIES

FWD

REV

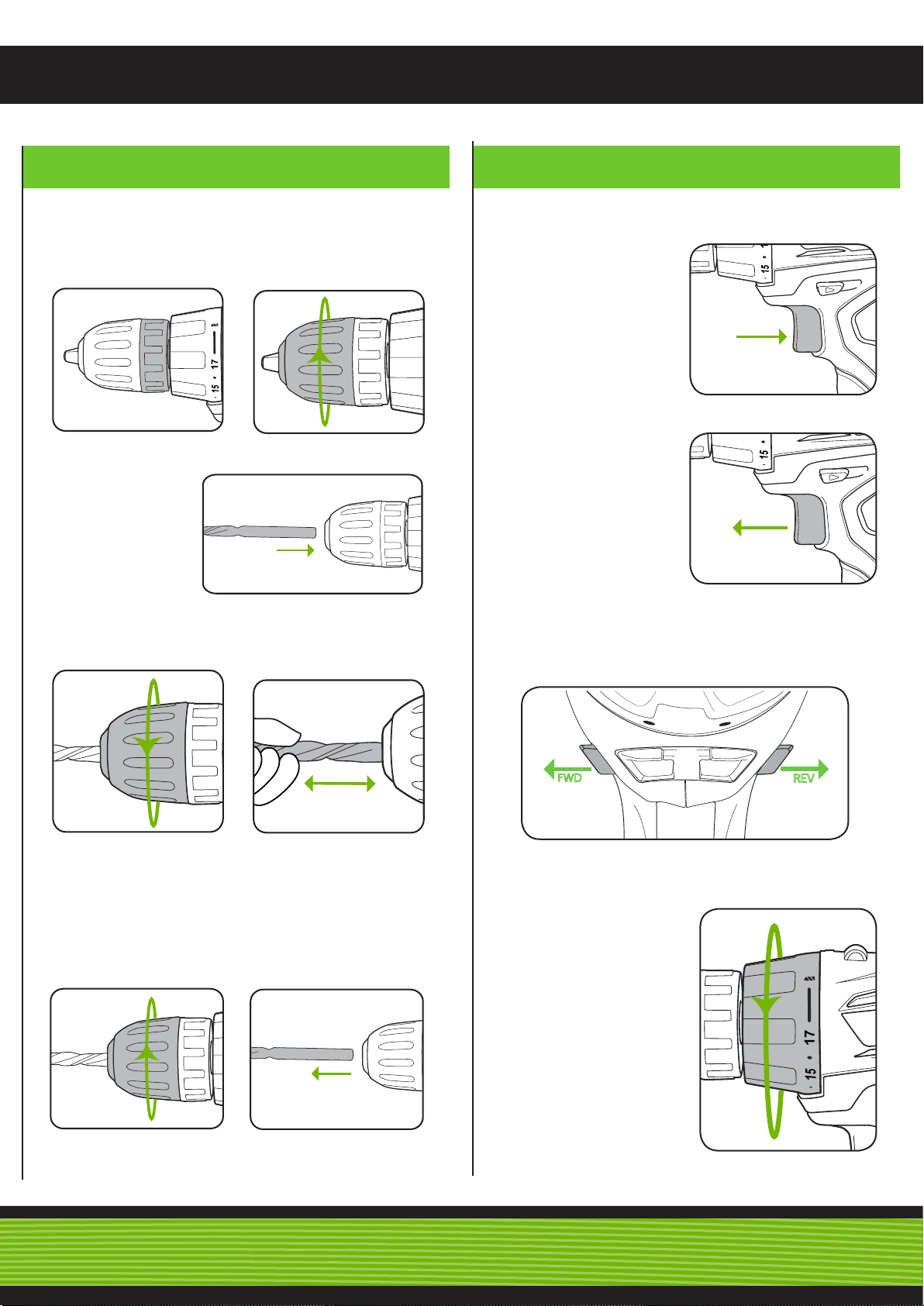

2. KEYLESS CHUCK 3. CONTROLS

1. To start drilling squeeze

the variable speed

trigger.

2. To stop drilling release

the trigger.

1. Hold the back sleeve of

the chuck with one hand.

4. Ensurethebitisrmlyin

place.

3. Tighten the chuck jaws.

2. Insert the drill bit,

making sure it is

centred in the jaws.

OPERATION

Variable Speed Trigger

Forward/ Reverse Lever

Installing Drill Bit

1. For forward rotation, push the lever hard left. For reverse rotation

push lever to the right.

Adjusting Torque

Removing Drill Bit

1. Hold the back sleeve while

turning the front sleeve

clockwise to open chuck.

Caution: Do not handle drill bits or other accessories without

gloves as they are sharp and can become hot after use, this can

cause personal injury.

Turn torque ring to the desired

setting. Refer to Helpful Tips for

determing desired setting.

2. With the other hand, turn

therstchucksleeveanti-

clockwise.

2. Remove the drill bit.

CDL-5010

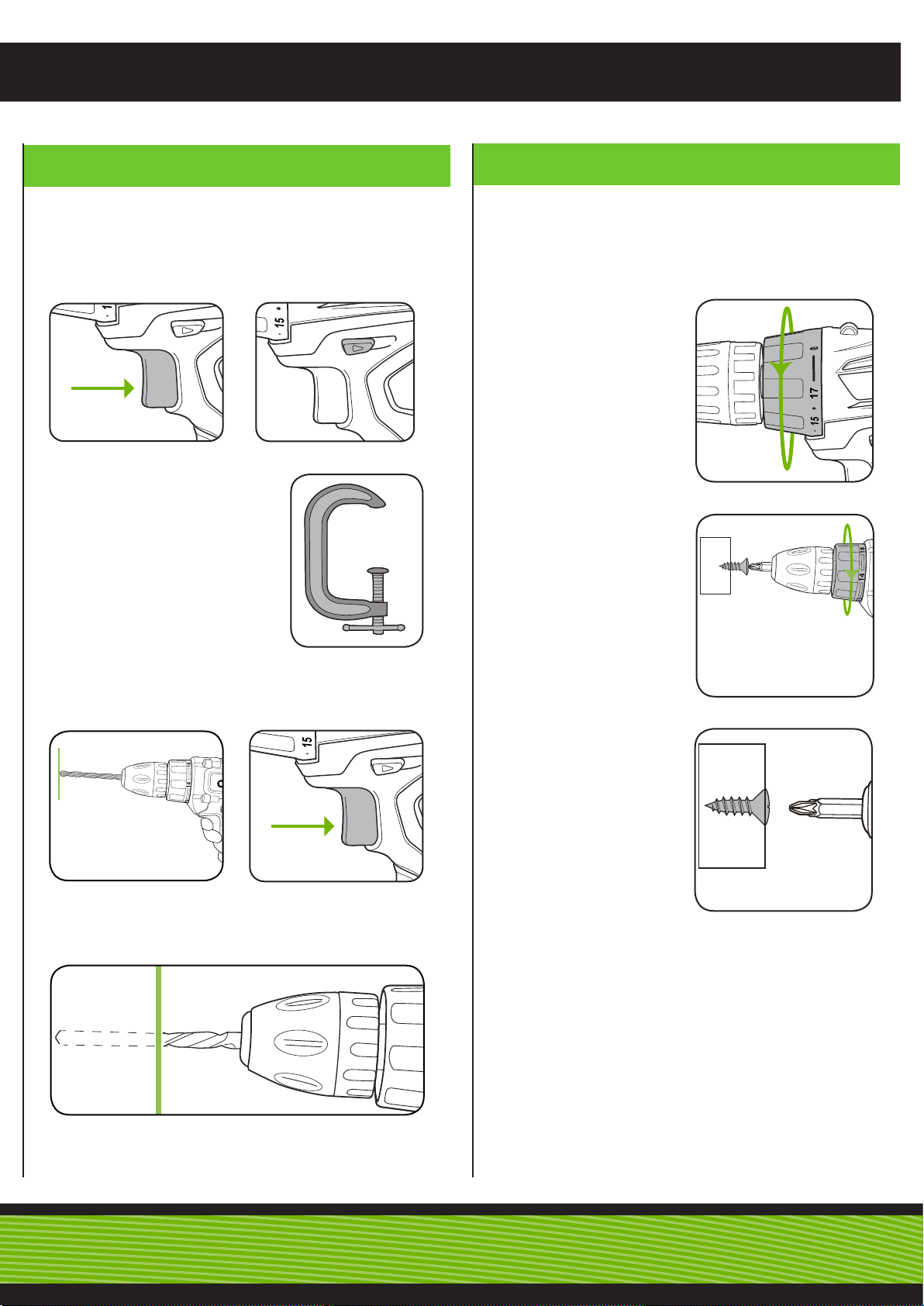

4. DRILLING 5.

HELPFUL TIPS

1. Depress and release the

variable speed trigger to

ensure it is not locked on.

3. Secure the

material to be

drilled in a vice

or clamp to stop

it turning whilst

drilling.

5. Holdthedrillrmlyand

place the bit at the point to

be drilled.

2. Check the forward/reverse

lever is on desired setting.

6. Depress the variable speed

trigger to start the drill.

7. Move the drill bit into the workpiece.

Note: Do not force the drill or apply side pressure to elongate the

hole. Let the drill do the work.

When drilling hard, smooth surfaces, use a centre punch to mark

the desired hole location. This measure will prevent the drill bit

from slipping off centre as you start the hole. However, the variable

speed feature allows you to start holes without centre punching. To

accomplish this, operate the drill at a low speed until you start the

hole.

When drilling metals, use light oil on the drill bit to keep it from

overheating. The oil will prolong the life of the bit and increase

drilling action.

If the bit jams in the work piece or if the drill stalls, stop the tool

immediately. Remove the bit from the work piece and determine the

reason for jamming.

Drilling to a pre-set depth - Torque Settings

Torque settings can alter the depth to which you can drill or drive

into a surface. To determine the torque setting required to drive a

screwperfectlyushtotheworksurface,followthebelowsteps.

1. Set the torque collar to

lowest setting and tighten

therstscrew.

2. If the clutch rachets and

makes a clicking sound

beforescrewisush,

increase the collar setting

and continue tightening.

3. Repeat until you reach the

correct setting/ screw depth.

Use this setting for the

remaining screws.

Power tools that are no longer usable should not be disposed of

with household waste but in an environmentally friendly way. Please

recycle where facilities exist. Check with your local council authority for

recycling advice.

Recyclingpackagingreducestheneedforlandllandrawmaterials.

Reuse of recycled material decreases pollution in the environment.

Please recycle packaging where facilities exist. Check with your local

council authority for recycling advice.

MAINTENANCE

DESCRIPTION OF SYMBOLS

CARING FOR THE ENVIRONMENT

TROUBLESHOOTING

WARNING! Wear ear protectors when impact drilling Exposure to noise

can cause hearing loss.

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause

personal injury.

Hold power tool bi insulated gripping surfaces, when performing an operation

where the cutting accessory may contact hidden wiring or its own cord. Cutting

accessory contacting a “live” wire may make exposed metal parts of the power tool

“live” and could give the operator an electric shock.

Before drilling into walls, ceilings etc, ensure that there are no concealed power

cables or pipes in the cavity.

Keep the cord clear of the drill accessory, do not wrap the cord around your arm or

wrist.

WARNING! Some dust created by power sanding, sawing, grinding,

drilling and other construction activities contain chemicals known to

cause cancer, birth defects or other reproductive harm. Some examples of

these chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks and cement and other masonry products

• Arsenic and chromium from chemically treated timber

Your risk from exposure to these chemicals varies, depending on how often you

do this type of work. To reduce your exposure to these chemicals: work in a well

ventilated area and work with approved safety equipment, such as dust masks that

arespeciallydesignedtolteroutmicroscopicparticles.

1. When not in use, the drill should be stored in a dry, frost free

location, keep out of children’s reach.

2. Keep ventilation slots of the drill clean at all times and prevent

any from entering.

3. If the housing of the drill requires cleaning, do not use solvents

but cloth only.

4. Blow out the ventilation slots with compressed air periodically .

Note: Ozito Industries will not be responsible for any damage or

injuries caused by repair of the drill by an unauthorised person or by

mishandling.

Spare parts can be ordered from the Special Orders Desk

at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit

www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [email protected]

SPARE PARTS

DRILL DRIVER SAFETY WARNINGS

Warning Read instruction manual

ø Diameter

mA Milliamperes

Recycle battery Do not put in the rubbish

Polarity

Do not incinerate Do not get battery wet

Thermal cut-out protection

Transformer Energy

Rating (MEPS)

Double insulated

/min Revolutions or

reciprocation per minute

Ah Amp hour

Indoor use only

Lithium Ion battery Do not use or store battery in

temperatures exceeding 50ºC

Electrical Emissions

Conformity (EMC)

IPM Impacts per minute Nm Newton Meters

no No load speed

V Volts Hz Hertz

ac/~ Alternating current W Watts

Direct current

dc/

LED lights do not illuminate on charger

Check the charging adaptor is securely plugged into the wall out let.

Checkthebatteryisrmlyconnectedtothechargingcradle.

Check that the charging jack is securely connected to the charging cradle.

The battery has a short run time

Ensure the battery is properly charged. It will take 4-5 charging cycles

before the battery reaches optimum charge and run time. On the initial

charge, the battery requires 5 hours of charging. Subsequent charging

only requires 3-5 hours.

Variable speed trigger is locked

Ensure that the forward / reverse lever is in the correct position; pressed

left for forwards direction, pressed right for backwards direction. If it is in

between the two settings the variable speed trigger will be locked.

The drill is stripping the screw head

Ensure you are not applying to much force to the screw. Hold the drill

more lightly against the screw and lower the torque setting.

Drill has cut out during use

Usethebatteryindicatorbuttontocheckifthebatteryhasgoneat.Ifthe

indicator does not work or indicates that the battery still has charge, it is

likely that the battery’s themal voltage protection has been activated. This

can happen when the drill has been used for extended periods or worked

hard with large drill bits or accessories.

Place the battery on the charging cradle for 3-5 hours. It will need this

time to cool down and for the protection circuits to be reset.

Sparking visible through the housing air vents

A small amount of sparking may be visible through the housing vents.

This is normal and does not indicate a problem.

18V Li-ion Battery Pack SPCDL018-37

Charging Stand SPCDL018-38

Charging Adaptor SPCDL5010-34

SPARE PARTS Tool: Cordless Combo Kit

Model No. CKL-8000

Item

No. Description Part No.

How To Order

18V Li-ion Battery Pack

Charging Stand

Charging Adaptor

SPCDL018-37

SPCDL018-38

SPCDL5010-34

Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any

further questions, please contact Ozito Customer Service on:

Australia: 1800 069 486

New Zealand: 0508 069 486

[email protected]

The following is a list of spare parts carried by Ozito.

Please contact Customer Service for any parts not

listed.

Item

No. Description Part No.

WARNING! When using mains-powered tools, basic safety precautions, including the

following, should always be followed to reduce risk of re, electric shock, personal injury

and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before

operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

The electric motor has been designed for 230V and 240V only. Always check that the power supply

corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

This tool is double insulated in accordance with AS/NZS 60745-1;

therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid

a hazard.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The

insulation system is for added protection against injury resulting from a possible electrical insulation failure

within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the

extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not

suitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofreandelectric

shock.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and

instructionsmayresultinelectricshock,reand/orseriousinjury.

Save all warnings and instructions for future reference. The term “power tool” in the

warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose

control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatching

outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock

if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the

risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase

the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable

for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)

protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do

not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A

moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce

personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power

source and/or battery pack, picking up or carrying the tool. Carryingpowertoolswithyourngeron

the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result

in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the

power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away

from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these

are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool

will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before

making any adjustments, changing accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the

power tool or these instructions to operate the power tool. Power tools are dangerous in the hands

of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and

any other condition that may affect the power tool’s operation. If damaged, have the power tool

repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking

into account the working conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardous situation.

5. Battery tool use and care

a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one

 typeofbatterypackmaycreateariskofrewhenusedwithanotherbaterypack.

b. Use power tools only with specically designated battery packs. Use of any other battery packs may

 createariskofinjuryandre.

c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,

keys, nails, screws or other small metal objects, that can make a connection from one terminal to

another. Shortingthebatteryterminalstogethermaycauseburnsorare.

d. Under abusive conditions, liquid may be ejected from the battery; aviod contact. If contact

accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid

ejected from the battery may cause irritationor burns.

6. Service

a. Have your power tool serviced by a qualied repair person using only identical replacement parts.

This will ensure that the safety of the power tool

is maintained.

b. If the supply cord is damaged, it must be replaced by the manufacturer,

itsserviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.

GENERAL POWER TOOL SAFETY WARNINGS

ELECTRICAL SAFETY

BATTERY AND CHARGER SAFETY WARNINGS

THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR

BATTERY CHARGER.

1. Before using the charger read all instructions and cautionary markings on the charger, battery pack

and the product using the battery pack.

1. This charger is not intended for any uses other than charging rechargeable batteries. Any other use

mayresultinriskofre,electricshockorelectrocution.

2. Do not place any object on top of the charger or place the charger on a soft surface that may result

in excessive internal heat. Place the charger in a position away from any heat source.

3. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when

disconnecting the charger.

4. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected

to damage or stress.

5. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord

couldresultintheriskofre,electricshockorelectrocution.

6. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in

any way. Have it checked by an electrician or power tool repairer.

7. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is

required.Incorrectreassemblymayresultinariskofelectricshock,electrocutionorre.

8. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning.

Removing the battery pack will not reduce this risk.

9. Never attempt to connect 2 chargers together.

10. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed

40ºC (such as inside sheds or metal buildings in summer).

11. The charger is designed to operate on standard household electrical power (240 volts). Do not at-

tempt to use it on any other voltage!

12. The battery pack is not fully charged out of the carton. First read the safety instructions and then

follow the charging notes and procedures.

13. The longest life and best performance can be obtained if the battery pack is charged when the air

temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC

or above 40ºC. This is important and will prevent damage to the battery pack.

14. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery

canexplodeinare.

15. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks

or cracks, immediately discontinue use and do not recharge.

16. During charging, the battery must be placed in a well ventilated area.

IN ORDER TO MAKE A CLAIM UNDER THIS

WARRANTY YOU MUST RETURN THE PRODUCT

TO YOUR NEAREST BUNNINGS WAREHOUSE WITH

YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY

PLEASE TELEPHONE OUR CUSTOMER SERVICE

HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

WARRANTY

TO ENSURE A SPEEDY RESPONSE PLEASE

HAVE THE MODEL NUMBER AND DATE OF

PURCHASE AVAILABLE. A CUSTOMER SERVICE

REPRESENTATIVE WILL TAKE YOUR CALL

AND ANSWER ANY QUESTIONS YOU MAY

HAVE RELATING TO THE WARRANTY POLICY

OR PROCEDURE.

OZITO Australia/New Zealand (Head Ofﬁce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.

The beneﬁts provided under this warranty are in addition

to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded

at law. You are entitled to a replacement or refund for a major

failure and for compensation for any other reasonably foreseeable

loss or damage. You are also entitled to have the goods repaired

or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

Generally you will be responsible for all costs associated with

a claim under this warranty, however, where you have suffered

any additional direct loss as a result of a defective product you

may be able to claim such expenses by contacting our customer

service helpline above.

0913

3 YEAR REPLACEMENT WARRANTY

Your product is guaranteed for a period of 36 months from

the original date of purchase and is intended for DIY (Do It

Yourself) use only. If a product is defective it will

be replaced in accordance with the terms of this warranty.

Warranty excludes consumable parts, for example: drill bits etc.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other

than that speciﬁed on the tool.

• If the tool shows signs of damage or defects caused

by or resulting from abuse, accidents or alterations.

• Failure to perform maintenance as set out within the

instruction manual.

• If the tool is disassembled or tampered with in any way.

• Professional, industrial or high frequency use.

CORDLESS

DETAIL

SANDER

18V Li-ion

INSTRUCTION MANUAL

SPECIFICATIONS

Input: 18V

No Load Speed: 9500/min

Pad Size: 140 x 140 x 90mm

Paper Fitment: Hook & Loop

Battery: 1.3Ah Li-ion

Charge time: 3 - 5 hours

Weight with Battery: 1.10kg

DSL-2000

WHAT’S IN THE BOX

Cordless Detail Sander

ozito.com.au

Sand Paper

Dust Bag

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to

the online manual.

KNOW YOUR PRODUCT SETUP & PREPARATION

1. BATTERY

1 Hook & Loop Backing Pad

2 On/Off Switch

3 Dust Extraction Chute

4 Battery Release Button

5 Battery 18V

CORDLESS DETAIL SANDER

Installing and Removing

To insert, push the battery into

the base of the detail sander

until it clicks into place.

This charger is recommended for use with a residual current

device with a rated residual current of 30mA or less.

Charging

To remove, press & hold the

battery release button and pull

the battery out.

6 Dust Bag 7 Sanding Paper

ACCESSORIES

2. Insert battery into charger.

The red and green light will

illuminate when battery is

properly connected.

1. Plug charging jack into the

charger. The green light will

illuminate when properly

connected.

3. The red light will extinguish

when the battery is fully

charged.

2. ASSEMBLY 3. CONTROLS

OPERATION

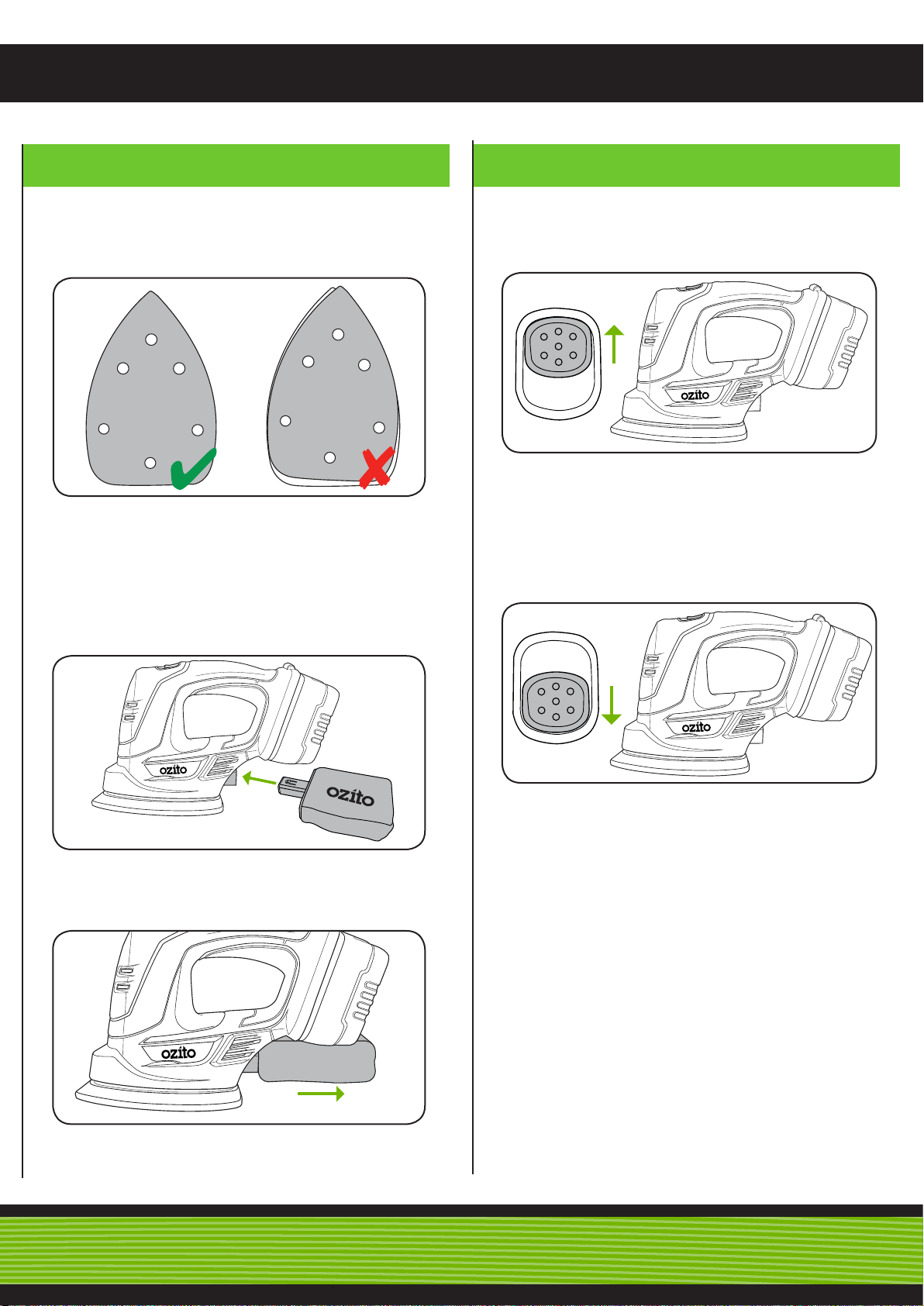

Attaching Sandpaper

1. Align the sanding sheet with the sanding pad and press on.

2. Replace the sanding sheet when it is worn.

1. With the notch on the dust bag facing up, push into dust

extraction chute until secured.

Fitting the Dust Bag

2. To turn off, push the slide lock-on switch backwards to “O”

position.

1. To turn on, push the slide lock on switch forward to “I” position.

On / Off Switch

2. To remove, pull the dust bag away from the dust extraction chute.

Note: For optimum dust extraction, empty dust bag when 1/3 full.

DSL-2000

4. SANDING 5. SANDING TIPS

1. Secure the material to be

sanded where possible.

2. Witharmgrasponthesander,turnthesanderon.

3. Gradually lower the sander onto the workpiece with a slight

forward movement.

4. For optimum results, use either of these strokes.

Never force the sander. The weight of the sander supplies adequate

pressure, allowing the sandpaper to do the work. Applying additional

pressure will slow the motor, rapidly wear the sandpaper, and

greatly reduce the sander speed. This will slow the removal rate and

produce an inferior quality surface.

CAUTION: Excessive pressure will overload the motor, causing

possible damage to the sander by overheating the motor; or

damage to the workpiece.

Be sure to check your workpiece often. The sander is capable of

removing material rapidly, especially with coarse paper.

The orbital action of your sander allows you to sand with the grain,

oratanyangleacrossitformostsandingjobs.Inthenalstagesa

betternishwillbeachievedbysandingwiththegrain.

Do not sand on one spot for too long. The sander’s rapid action may

remove too much material, creating an uneven surface.

Side to Side

Backward/ Forward

Power tools that are no longer usable should not be disposed of

with household waste but in an environmentally friendly way. Please

recycle where facilities exist. Check with your local council authority for

recycling advice.

Recyclingpackagingreducestheneedforlandllandrawmaterials.

Reuse of recycled material decreases pollution in the environment.

Please recycle packaging where facilities exist. Check with your local

council authority for recycling advice.

MAINTENANCE

DESCRIPTION OF SYMBOLS

CARING FOR THE ENVIRONMENT

TROUBLESHOOTING

1. When not in use, the detail sander should be stored in a dry,

frost free location, keep out of children’s reach.

2. Keep ventilation slots of the detail sander clean at all times and

prevent anything from entering.

3. If the housing of the detail sander requires cleaning, do not use

solvents. Use of a cloth only is recommended.

4. Blow out the ventilation slots with compressed air periodically .

Note: Ozito Industries will not be responsible for any damage or

injuries caused by repair of the detail sander by an unauthorised

person or by mishandling.

Spare parts can be ordered from the Special Orders Desk

at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit

www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [email protected]

SPARE PARTS BATTERY AND CHARGER SAFETY WARNINGS

THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR BATTERY

CHARGER.

1. Before using the charger read all instructions and cautionary markings on the charger, battery pack and

the product using the battery pack.

1. This charger is not intended for any uses other than charging rechargeable batteries. Any other use may

resultinriskofre,electricshockorelectrocution.

2. Do not place any object on top of the charger or place the charger on a soft surface that may result in

excessive internal heat. Place the charger in a position away from any heat source.

3. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when discon-

necting the charger.

4. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to

damage or stress.

5. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could

resultintheriskofre,electricshockorelectrocution.

6. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any

way. Have it checked by an electrician or power tool repairer.

7. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is

required.Incorrectreassemblymayresultinariskofelectricshock,electrocutionorre.

8. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning.

Removing the battery pack will not reduce this risk.

9. Never attempt to connect 2 chargers together.

10. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed 40ºC

(such as inside sheds or metal buildings in summer).

11. The charger is designed to operate on standard household electrical power (240 volts). Do not attempt to

use it on any other voltage!

12. The battery pack is not fully charged out of the carton. First read the safety instructions and then follow

the charging notes and procedures.

13. The longest life and best performance can be obtained if the battery pack is charged when the air tem-

perature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC or above

40ºC. This is important and will prevent damage to the battery pack.

14. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery can

explodeinare.

15. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or

cracks, immediately discontinue use and do not recharge.

16. During charging, the battery must be placed in a well ventilated area.

Warning Read instruction manual

ø Diameter

mA Milliamperes

Recycle battery Do not put in the rubbish

Polarity

Do not incinerate Do not get battery wet

Thermal cut-out protection

Transformer Energy

Rating (MEPS)

Double insulated

/min Revolutions or reciprocation per minute

Ah Amp hour

Indoor use only

Lithium Ion battery Do not use or store battery in

temperatures exceeding 50ºC

Electrical Emissions

Conformity (EMC)

Nm Newton Meters no No load speed

VVolts Hz Hertz

ac/~ Alternating current WWatts

Direct current

dc/

18V Li-ion Battery Pack SPCDL018-37

Charging Stand SPCDL018-38

Charging Adaptor SPCDL5010-34

LED lights do not illuminate on charger

Check the charging adaptor is securely plugged into the wall out let.

Checkthebatteryisrmlyconnectedtothechargingcradle.

Check that the charging jack is securely connected to the charging cradle.

The battery has a short run time

Ensure the battery is properly charged. It will take 4-5 charging cycles

before the battery reaches optimum charge and run time. On the initial

charge, the battery requires 5 hours of charging. Subsequent charging

only requires 3-5 hours.

Sparking visible through the housing air vents

A small amount of sparking may be visible through the housing vents.

This is normal and does not indicate a problem.

Sandpaper Selection

Selecting the correct grit of sandpaper is an important step in achieving

optimum results. Coarse grit will remove the most material. Finer grit will

produceasmoothernish.Theconditionoftheworkpiecewilldeterminethe

gritofthesandpapertobeused.Thehigherthegritnumber,thenerthe

grade of sandpaper.

If the surface is rough, start with a coarse grit and sand until the surface is uniform.

Medium grit may then be used to remove scratches left by the coarser grit. Finer

gritisthenusedtonishthesurface.Alwayscontinuesandingwitheachgradeof

sandpaper until the surface is uniform.

MATERIAL APPROPRIATE GRIT

Coarse Sanding Fine Sanding

Paintwork 180 400

Wood: Softwood 60 240

Hardwood 60 180

Veneer 240 320

Note: If intermediate sanding is required, choose a grit rating between coarse and

ne.Theabovetableisintendedasaguideonly.Toensureasatisfactoryresult,

asmall,inconspicuousareashouldrstbetestedtoensurethegritofsandpaper

chosenissuitableforthedesirednish.

SPARE PARTS Tool: Cordless Combo Kit

Model No. CKL-8000

Item

No. Description Part No.

How To Order

18V Li-ion Battery Pack

Charging Stand

Charging Adaptor

SPCDL018-37

SPCDL018-38

SPCDL5010-34

Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any

further questions, please contact Ozito Customer Service on:

Australia: 1800 069 486

New Zealand: 0508 069 486

[email protected]

The following is a list of spare parts carried by Ozito.

Please contact Customer Service for any parts not

listed.

Item

No. Description Part No.

WARNING! When using mains-powered tools, basic safety precautions, including the

following, should always be followed to reduce risk of re, electric shock, personal injury

and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before

operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

The electric motor has been designed for 230V and 240V only. Always check that the power supply

corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

This tool is double insulated in accordance with AS/NZS 60335-1;

therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid

a hazard.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The

insulation system is for added protection against injury resulting from a possible electrical insulation failure

within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the

extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not

suitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofreandelectric

shock.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and

instructionsmayresultinelectricshock,reand/orseriousinjury.

Save all warnings and instructions for future reference. The term “power tool” in the

warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose

control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatchingoutletswill

reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the

risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase

the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)

protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do

not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A

moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce

personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power

source and/or battery pack, picking up or carrying the tool. Carryingpowertoolswithyourngeron

the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may result in personal injury.
