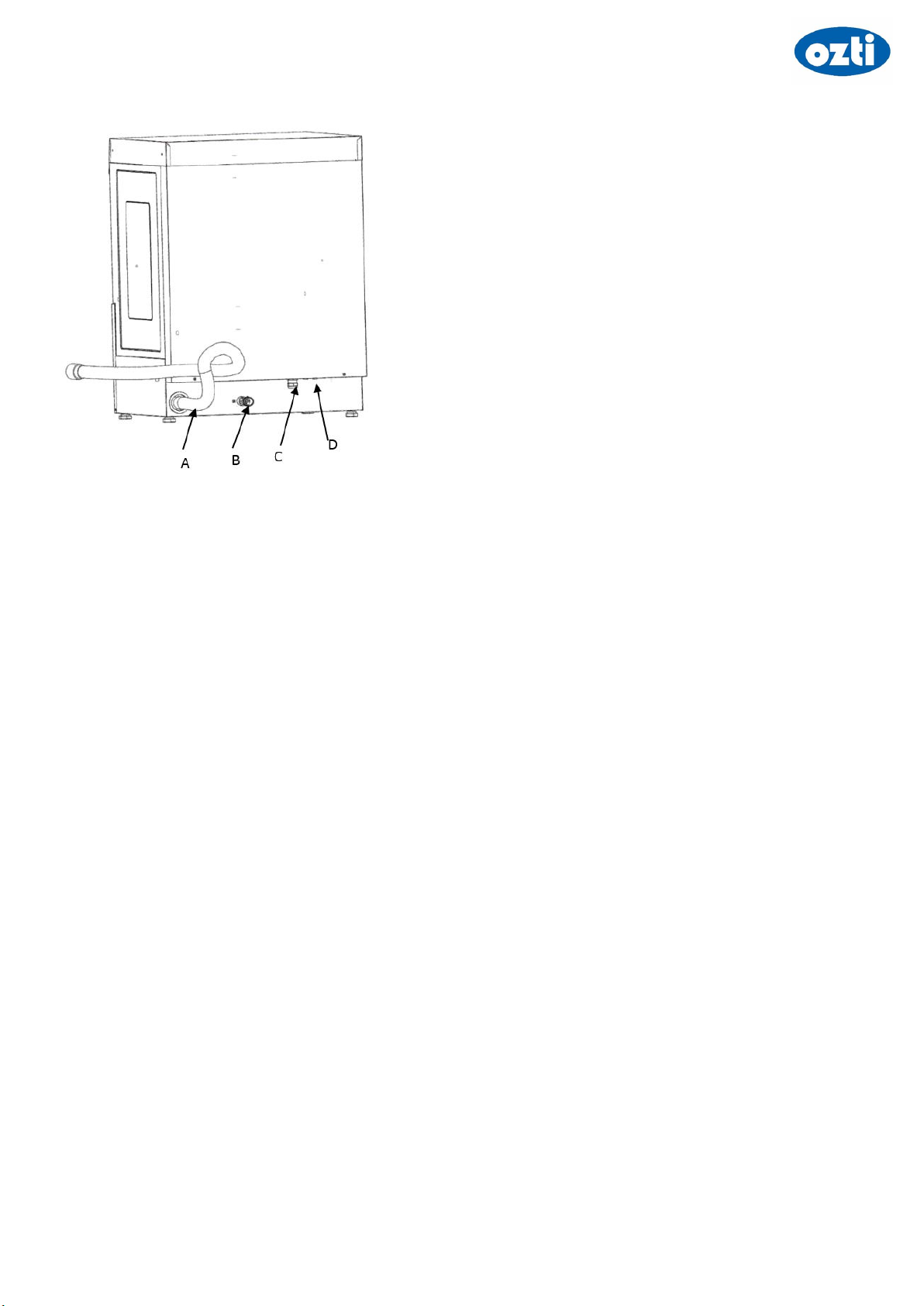

All connections are made from the back of the product.
A: Drain hose connection
B: Fresh water inlet connection
C: Electrical supply cable
D: Detergent/Rinse-aid hose connections
4.3 Electrical Connections:
All electrical connections must be made by authorized service personnel in accordance with local and national
standards and directives.
All products must be connected to the residual current device of 30mA.
Use the power socket and an appropriate connector to connect the appliance. Power socket is on the side.
This connection is additional to existing grounding.
Before connection, make sure that rated voltage on the name plate matches the mains voltage. Furthermore,
also the fuse rating should match product specifications.
If power cable is damaged, please obtain a replacement from Öztiryakiler or authorized service.
Electrical ratings are marked on the product’s name plate.
4.4 Water Connection:
A 3/4” water inlet hose is provided with the appliance. Use this hose for water connection and check water
tightness on connections and the hose.
When installing the appliance, use the new hose provided. Avoid using old damaged hoses.
Washing performance of the product depends on external conditions such as water inlet temperature,
pressure, hardness and chemicals used (detergent, polisher). To increase the service life and washing
performance of the appliance, supply water should have proper hardness. Otherwise, use a water softening
device.
Caution! Any damage resulting from the use of hard water will not be the manufacturer’s or dealer’s liability, and voids
the product warranty.
4.5 Limits in Water Connection:
Water inlet temperature: 4-50°C.
Inlet pressure of flowing water:A rinsing pump is needed if pressure is 0-2 bars. A pressure of 2-4 bars is
appropriate. If pressure exceeds 4 bars, adjust the pressure using the pressure regulator.
If these conditions cannot be satisfied, appliance’s washing performance would decline.
