Pacific Currents Palladian Gazebo PC-10053 User manual

PC-30053
Assembly Instrucons and
Owner’s Manual
Item Numbers: PC-10053 and PC-30053
(Actual canopy top color and panel design may vary - available in
taupe and chocolate)
Palladian Gazebo
Agora Outdoor LivingTM
Design and Manufacture by
Pacific Currents Inc.

2PC-10053
First, compare the parts in the box with the parts list on the following pages and
make sure that none are missing. If you discover any missing parts, please visit
www.pacificcurrentsinc.com or call 888-474-2770.
Save your sales receipt as you
will need this to obtain service.
Choose and measure the final locaon where you would like to place the prod-
uct and ensure that it will fit a 10’ x 10’ rectangle with 11’ height clearance. Then,
choose an assembly area as close as possible to this final locaon and large enough
to layout and pre-assemble all the parts for this Gazebo.
It is highly recommended that you cover the work surface with a tarp or other fabric
to prevent scratches to the finish during assembly.
You will need these addional tools: a ladder and an adjustable wrench.
You may also need these addiontal tools (oponal): work gloves, waterproofing
spray.
Prepare the work area:
General Notes:
Pre-Assembly Steps
Thank you for choosing a Pacific Currents Product.
Please make sure you have carefully read and understood
these assembly instructions before you begin.
1. You will need the help of another person to assemble this product. Please ask a
friend or neighbor for assistance!
2. Once a unit has been pre-assembled in each step, please set it aside unl further
instrucons.
3. For all customers, we highly recommend that you remove your canopy top in
cases of severe inclement weather such as thunderstorms. Unfortunately, damage
due to acts of nature are not covered in the warranty.
4. You do not need to disassemble the gazebo during winter months. However, to
prevent damage to the frame and canvas top due heavy snow loads, remove the
canvas top and store it in a dry locaon unl spring.

PC-10053 3
Parts Idenficaon
B
C
D
H
E
A
G
O
(Note: Not drawn to Scale)
x 4
x 4
x 4
x 1
x 4
x 4
x 8
x 4

4PC-10053
Jx 4
F
Addional Parts (Sold Separately)
Bug Screen Sunshade
Kx 4
x 16
x 4
I
***Important***
For missing or defecve parts, Do NOT return to the place of purchase. Call our toll free
number below or visit www.pacificcurrents.com. Please have your sales receipt ready
when you call.
888-474-2770

PC-10053 5
Hardware Idenficaon
[x 16]
2-1/16” (52 mm) Length Bolt
Bolt Set
L
[x 76]
[x 8]
1-1/4” (32 mm) Length Bolt
1-1/4” (42 mm) Length Bolt
Bolt Set
Bolt Set
R
Q
How to use Hardware
Bolt and Washer Assembly
(Part S)
Bolt and Washer Assembly
(Parts L, Q, R)
Snap on Bolt Cover
Washer
Washer Washer

6PC-10053
Assembly Instrucons
Step 1
Assemble the Four Gazebo Corner Legs [x 4]
[x 8]
[x 4] [x 4]
Q
A B
Q
B
A

PC-10053 7
Step 2
Assemble the Four Cross Bar Connectors [x 4]
[x 16]
R
[x 4] [x 4] [x 4]
G H E
R
H
E
G

8PC-10053
Step 3
Assemble the Roof Corner Bars [x 4]
[x 8]
R
R
[x 4] [x 4]
J K
K
J
Step 4
At this point, place all the gazebo legs in an upright position over the final
location you have chosen for the gazebo and gather the remaining assembled
pieces from steps 2-4.
*Remember, please do not tighten any of the nuts all the way as this will hin-
der the final assembly.
Gather the pre-assembled parts

PC-10053 9
[x 4] [x 4] [x 4]
A+B G+H C
A+B
G+H
A+B
Step 5
Aach Gazebo Legs to Cross Bar Connectors
[x 8]
L
L
C
C

10 PC-10053
Step 6
Aach Canopy Corner Bars (J+K) to Top Connector (D)
R
R
R
[x 12]
D
J+K J+K
J+K
J+K
[x 1] [x 4]
D J+K

PC-10053 11
R
R
Step 7
Aach the center support bars to the canopy frame [x 8]
R[x 24]
D
OO
[x 8]
O

12 PC-10053
Step 8
Aach the canopy vents to roof frame
R[x 16]
I
RR
RR
[x 4]
I

PC-10053 13
F
If the final locaon for your gazebo is a sosurface, you may secure it by
driving the provided stakes (part F) through holes at the boom of each
gazebo leg panel (parts A and B)
NOTE: Your gazebo should now resemble the image below.
Please check to make sure all parts are in their respecve
locaons.
NOTE: Lawn stakes for use only on natural surfaces (grass
or dirt) and not meant to permanently secure gazebo to the
ground in high winds.

14 PC-10053

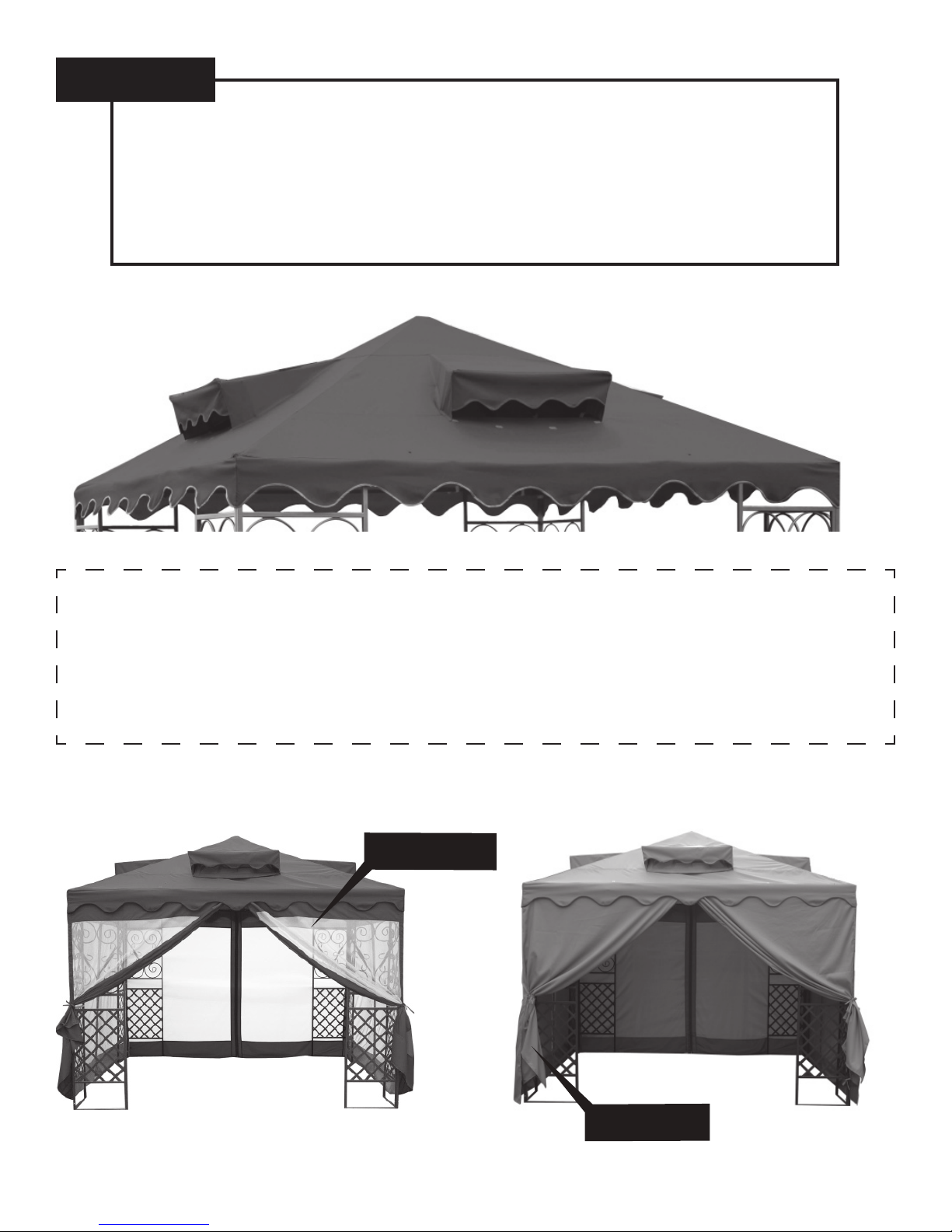

Step 9
Aach canopy top to frame.
(Oponal) Install bug screen and/or sun shade (Sold
Separately).
Aach Bug Screen and Sunshade using velcro straps (Sold Separately)
NOTE: Carefully pull the canvas top over the gazebo roof frame and slide the vent bars into each
respecve vent opening in the canvas.
The fit will be very snug. You may need to reposion the gazebo legs slightly in order to pull the canvas
top into posion. Use the velcro straps to secure the canvas top to the gazebo frame.
Sunshade
Bugscreen

PC-10053 15
FAQ (Frequently Asked Quesons)
Q: Will the gazebo frame ever rust?
A: The powder coated finish of the metal frame prevents rusng so long as the metal itself is
not exposed. Exposure of the metal may occur due to accidental scratches or long-term wear
and tear. Occasional touch ups to affected areas with weatherproof paint will ensure many
years of connued enjoyment from your gazebo.
Q: Can I use grills or barbecues inside the gazebo?
A: No, we do not recommend this. While the canopy top is fabricated using a fire resistant
material, our gazebos are not designed to accomodate an open flame. Please refrain from
using your grill inside the gazebo.
Q: Will the gazebo move or blow away in strong winds?
A: Several features of our design were considered to allow the gazebo to remain very stable
across a range of weather condions. The four vents in the canopy top help to allow low to
medium winds to pass through the covering.
However, if you install the gazebo in an area where strong winds are persistent, it is advisable
to take further steps to fasten the gazebo to the ground. If the gazebo is installed over a so
natural surface (grass or dirt), you may drive metal stakes (included) through the holes located
at the boom of the panels and into the ground. If the gazebo is installed over a hard surface
(wooden decks or concrete paos) it will be necessary to separately purchase screws or bolts
and nuts to affix the frame to your installaon surface. Please visit your local Mills Fleet Farm
Store for more opons.
Q: I like being outdoors, but cannot stay for long because of mosquitoes. Are bug screens
available for my gazebo?
A: Yes! Bug screens for all gazebo models are available separately for purchase as an
accessory.

16 PC-10053
Care Instructions:
Canvas Top
The polyester top (Canvas Top) can be machine washed using a small amount of detergent. Do not
machine dry or use bleach for the Top. Top may also be spray-rinsed while attached to Gazebo and
lightly scrubbed with a soft broom. DO NOT use any hard abrasives to scrub.
The canvas top is not waterproof. However, a waterproofing spray (not included) may be used to
prevent rain water infiltration.
The canvas top MUST be removed and stored in a dry location in the event of snow fall. Accumulated
snow WILL severely damage your gazebo if the canvas top is not removed.
Gazebo Frame
Any rust on the frame as a result of scratches on the surface can be cleaned with soap and water
and wiped down with a soft cloth. DO NOT use any hard abrasives to scrub. Touch-up paint is not
available but the colors can be matched at your local Mills Fleet Farm store.
All metal parts may be sprayed with a clear laquer finish to maintain the attractiveness of your gazebo
over time and allow you to enjoy your gazebo for as long as possible.
IMPORTANT: Winter storage - If you live in an area that experiences snow in the winter,
remove the canvas top and store it in a location that is dry and free of moisture.
1 Year Limited Warranty:
Purchaser assumes all risk in the assembly and use of this unit.
All components carry a one year limited warranty from date of purchase against defects in material and
workmanship arising under normal use. This warranty does not cover wear and tear, nor weathering due
to climate and other environmental factors, nor does it cover failure resulting from accident, misuse,
neglect , mishandling, modification, or damage that is attributed to acts of nature. This warranty does
not cover incidental or consequential damages resulting from use of product, or losses arising out of any breach
of this warranty. Fulfillment of this warrant shall only include direct replacement of or defective allowance with
place of purchase of parts damaged inside original packaging while in transit to be arranged at the discretion of
Pacific Currents Inc.
This warranty only extends to the original purchaser. Proof of purchase (such as sales receipt) will be required
before warranty performance is rendered.
Please contact us should you have any questions concerning assembly, care information, warranty
coverage, and missing or defective parts.
Customer Service:
888-474-2770
Email: info@pacificcurrentsinc.com
Website: www.pacificcurrentsinc.com
Enjoy your new gazebo and thank you for
choosing a Pacific Currents Inc. product!
