Palsonic PAL800TT User manual

Before using your washing machine, please read this
manual carefully and keep it for future reference.
Read This Manual
Inside you will find many helpful hints on how to
use and maintain your properly.
Just a little preventative care on your part can
save you a great deal of time and money over the
life of your . You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
troubleshooting tips first, you may not need to call
for service.
washing machine
washing machine
OWNER’S MANUAL
Twin Tub Washing Machine
PAL800TT

Safety Precaution
Do not spray water directly to
the machine.
Avoid s prayi ng wate r
Do not install the machine in
damp or rainy environment to
avoid electric shock, fire,
machine failure,or deformation.
Avoid d ampne ss
Do not dismantle the machine
by yourself.
Forbi d disma ntlin g
Do not insert or unplug the plug
with wet hands to avoid electric
shock.
Forbi d wet han ds
To avoid electric shock
resulting from electric leakage,
please connect grounding wire
of the plug properly.
Groun ding
Do not place inflammable
materials like burning candle,
mosquito incense, cigaret etc.
or heating source like electric
stove, calorifier etc. on the
machine.
Forbi d
Wipe off dirty and dust on the
plug often to prevent poor
contact with power supply.
+
Do not exceed the max. water
level to avoid water overflowing
and machine failure.
Forbi d
+
Make sure that the water inlet
hose is connected and the tap
is opened before washing.
Unplug the plug from socket
after use.
Unplu g the plu g
Do not put hands into the tub
before it stopping running.
Forbi d putti ng into
Do not wash clothes that are
stained with kerosene, petrol,
alcohol, and other flammable
substance.
Forbi d
Do not damage the power cord
and plug to avoid electric
shock , short circuit or fire.
Forbi d
Do not let baby climb to the
machine or play near running
tub to avoid accident.
Forbi d
If use warm water, the water
temperature should not
exceed 50℃.
Forbi d
Do not replace power cord by
yourself.
Forbi d
Do not let baby sit on it or place
heavy things on it.
Forbi d
Do not pull the cord when
unplug the plug.
Do not wash down-filled coat,
raincoat or similar clothes.
wate rproo f
Forbi d
Insert the plug tightly when
use.
Be sure to comply with the following to prevent damage to body and property of you and others:
The sign stands for “pay attention” , and the picture of specific items needs attention shows in .
The sign stands for “forbid”, and the picture of specific items forbidden shows in .
The sign stands for “must do”, and the picture of specific items must be done shows in .
-1-
SAFETY PRECAUTIONTABLE OF CONTENTS

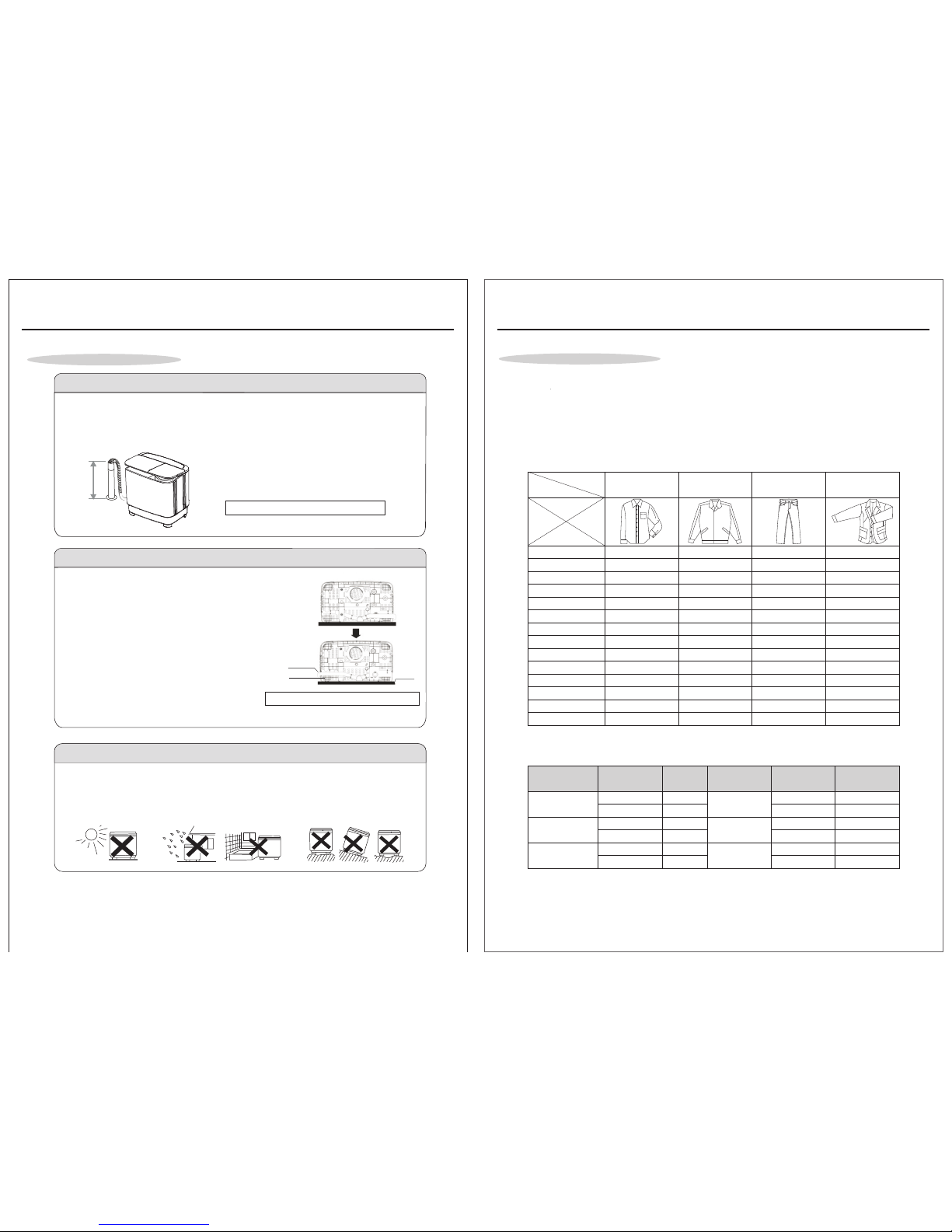

Attention To Installation
Lay upper drain hose
Change the position of the drain hose
Installation site
Preparation Instructions
Reference of laundry quantity
corresponding to different capacities
Laundry volume and detergent
dosage reference
Name Of Parts
Accessories
Introduction Of Control Panel
Quick Start
Washing Method
Rinsing Method
Spinning Method
Efficiency Program
Special Features
Soak function
Buzzer function
The dual voltage
Attention To Maintenance
Cabinet maintenance
Cleaning the lint filter
Anti-freezing protection
Operation when objects are
dropped into outside of the spin tub
Notes
Main Technical Parameters
Safety Precaution
1
2
2
2
2
3
3
3
4
4
4
5
5
5
6
7
7
7
7
7
8
8
8
8
8
8
9

●
● Lay down the lower drain hose and connect it to the sewer , or lay the upper drain hose to places as
indicated in page 2.
● Check that there are no objects such as coins, hairpins, mud or sand in the pocket.
● Strings should be knotted in advance to prevent entanglement.
● Clothes can be classified for washing according to the texture, dirty
● For small pieces (e.g.,stockings) or fluffy clothes, put them into a nylon net
Plug in power and connect the water inlet hose.
degree and color.
for washing.
Preparation Instructions
●The dosage of washing detergent varies according to dirty degree and texture of laundries.
Attachment :Laundry volume and detergent dosage reference
Attachment: Reference of laundry quantity corresponding to different capacities
Attention To Installation
Lay upper drain hose
FOR UPPER DRAIN SYSTEM ONLY
●
●
Needs a drain hose with minimum diameter 3 cm, and minimum carry away capacity of
40 liters per minute.
For upper drain system, the drain hose must be placed at least 86 cm(30 inches) from the
bottom of washer , but not higher than 100 cm.
of
86cm<H<100cm
Change the position of the drain hose
FOR LOWER DRAIN SYSTEM ONLY
Front
Drain hose
Buckle Blanket
hose is located the spin side . According to the
installation site, the drain hose can also be installed
at the wash side of the machine . The method is
as follows:
The ex-factory installation position of the drain
at
Unplug the power cord and empty water in the drain
hose completely.
Spread a piece of soft cloth on the floor (e.g. a blanket)
and place the washing machine on it gently.
Take the drain hose out from the buckle at the
spin side, and put it into the buckle at the wash side.
Hang up the drain hose kit.
①
②
③
④
Installation site
in the following places:
In order to avoid electrical failure, discoloration and deformation, do not install the machine
Locations exposed to rain
or snow
●
● Locations exposed
to direct sunlight
Locations with uneven
or unstable ground
●
-3--2-
Usage methodInstallation
Water
level
Fabric type Laundry
capacity(kg)Water flow Wash time
(minutes)
Detergent
amount(g)
Synthetics,silk,
Delicate fabrics
Cotton or linen
Heavy soils
0-5.0
5.0-6.5
0-6.5
6.5-8.0
0-6. 5
6.6-8.0
Low
Mid
Mid
High
Mid
High
Gentle
Gentle
Normal
3
3-5
7
7-10
10
10-35(soak 20)
About
About
About
About
About
About
50
61
61
77
61
77
●The figure above is for reference only, specific weights are subject to actual clothes.
2.0kg Capacity about 4 pcs. about 3 pcs. about 2 pcs. about 1 pcs.
3.0kg Capacity about 6 pcs. about 4 pcs. about 3 pcs. about 1 pcs.
3.6kg Capacity about 7 pcs. about 5 pcs. about 4 pcs. about 2 pcs.
5.0kg Capacity about 10 pcs. about 7 pcs. about 5 pcs. about 3 pcs.
6.0kg Capacity about 12 pcs. about 9 pcs. about 6 pcs. about 3 pcs.
7.0kg Capacity about 14 pcs. about 10 pcs. about 7 pcs. about 4 pcs.
7.5kg Capacity about 15 pcs. about 11 pcs. about 8 pcs. about 4 pcs.
8.5kg Capacity about 17 pcs. about 12 pcs. about 9 pcs. about 5 pcs.
10.0kg Capacity about 20 pcs. about 15 pcs. about 10 pcs. about 6 pcs.
4.6kg Capacity about 9 pcs. about 6 pcs. about 5 pcs. about 2 pcs.
12.0kg Capacity about 24 pcs. about 18 pcs. about 13 pcs. about 7 pcs.
8.0kg Capacity about 16 pcs. about 11 pcs. about 8 pcs. about 4 pcs.
Capacity
Laundry
...... ...... ...... ...... ......
Jacket
about 1600 g
Shirt
about 500 g
Uniform
about 650 g
Jeans
about 900 g
5.5kg Capacity about 11 pcs. about 8 pcs. about 6 pcs. about 3 pcs.

Accessories

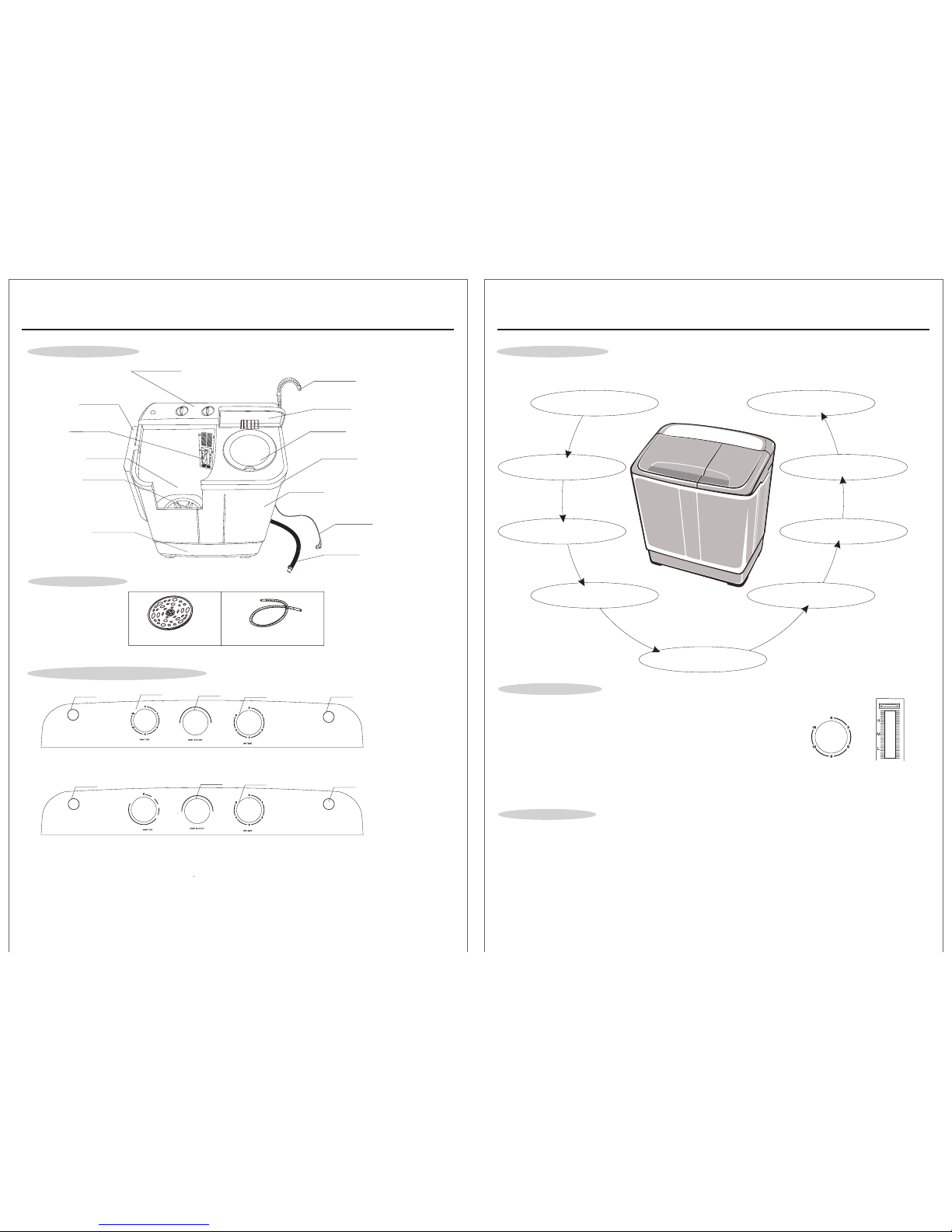

Name Of Parts
Inner spin cover Water inlet hose
Introduction Of Control Panel
※ he drawing above is for reference only, specific drawing is subject to actual models.T
●
●
●
● Wash-Drain selector: For washing or rinsing, select “ Gentle”or“ Normal”. For Draining ,select “Drain”.
Water inlet: be used to inject water.
Wash timer: be used to select required washing time.
Spin timer: be used to select required spinning time.
Quick Start
Washing Method
water to the wash tub
2.
3. Set wash program “Gentle” or “Normal” as per amount and texture of laundries.
4. Turn the wash timer knob to set wash time.
1. Insert the inlet hose into the , and choose injectingwater water inlet mouth
.
Put the laundry into the wash tub, and add detergent into it.
When fill water to half of the desired water level, turn off the
water tap and let laundries soak in the solution for minutes,
then fill water to desired water level.
5. After washing, set the wash drain selector to “Drain” position for draining.
Wash timer
Rinsing Method
A. Spraying rinse (rinse in the spin tub)
①
②
③
④
Put the laundry into the spin tub after washing.
Turn on the water tap, choose to fill water into the spin tub for 3-4 minutes, and then turn off the water tap.
The above steps can be repeated.
Set the spin timer for 2-5 minutes for rinsing.
Note: If there is red rust in water, do not choose spraying rinse, for the rust is easy to adhere to
laundries.
Ensure that do not fill water into spin tub when spinning.
①
②
-5--4-
1. Install the washing machine
2. Load the laundry
3. Add detergent and water
into the wash tub
4.
to set wash time
Turn the wash timer knob
5.
“Drain” position after washing
Set the wash drain selector to
7. Move the laundry into the spin
tub and close the spin cover
8.
to set spin time
Turn the spin timer knob
6. Repeat the steps 3-5 for rinsing
9.
the spin tub
Take out the laundry from
Usage methodStructure Instruction
Control panel
Wash cover
Lint filter
Pulsator
Base
Spin cover
Cabinet
Drain hose
Safety cover
Frame
(For lower drain only)
Drain hose
(For upper drain only)
Wash tub
Power plug
Wash timer
Wash-Drain selector
Spin timer
Gentle
Drain
Water inlet
Normal
Wash timer
Wash-Drain selector
Spin timer
Gentle
Drain
Water inlet
Normal
Soak
35
15
10
5
Water inlet
Water inlet
Water level indicator

①To save time, water and energy, can do pre-spinning before rinsing.
②Put laundries which have already been dehydrated into the wash tub.
③After filling water to the desired level, turn off the water tap to save water.
④Turn the “Wash selector” knob to the "Gentle” or “Normal”.
⑤Set the “wash timer”to the desired time (about 3-5 minutes)for rinsing.
⑥After rinsing, put the washing materials into the spin tub to spin for 1 to 5 minutes.
⑦Drain out the rinsing water in the wash tub.
⑧The above steps can be repeated.
Spin timer
B. Common rinse (rinse in the wash tub)
The appliance can not be used by children or persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
The new hose supplied with the appliance are to be used and that old hose should not be used.
When choosing the water inflowing to wash tub or spin tub , please do not move the water inlet valve
during the process of water inflowing.
If strong vibration occurs in time of spinning, open the spin cover immediately. Make sure that the washing
machine is placed on a flat and stable floor ,and then adjust washing materials, distribute them evenly.
To do spinning and draining together, please spin for 1 minute before draining.
Do not wash or spin waterproof clothes or clothes that float easily to avoid abnormal vibration or damage
to the clothes.

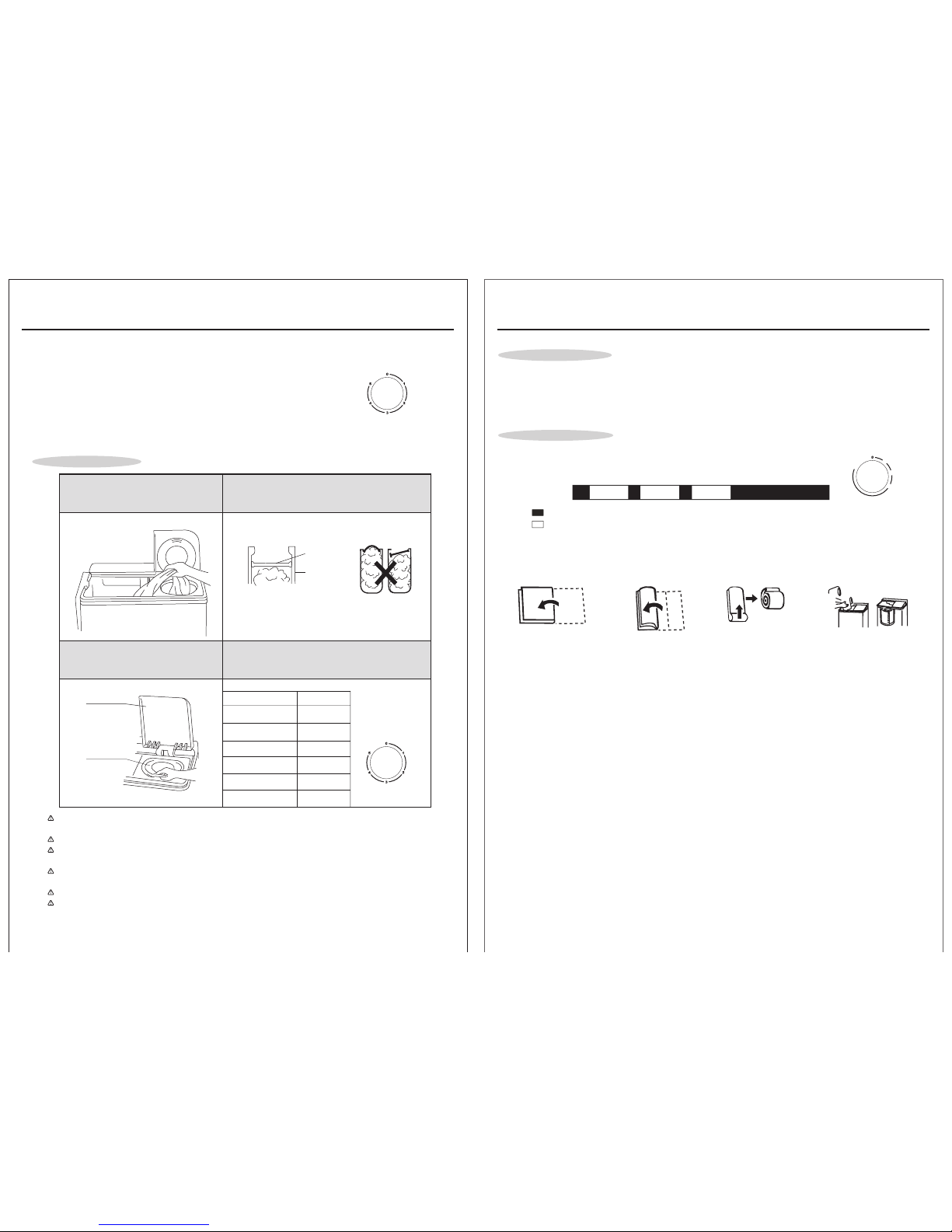

Spinning Method
Correct Incorrect
Spin cover
Safety cover
Spin timer
1.Shake out the laundry and put
them into the spin tub.
2.Put the inner spin cover on .
Confirm the inner spin cover is placed
horizontally.
the laundry
3.Close the safety cover and the
spin cover.
Inner
spin cover
Spin tub
4.Refer to the following table to select
spinning time.
Washing materials
Silk
Light clothes
(fiber/blended)
Knitwear (fiber)
Underwear
(cotton)
Slipover
(cotton/linen)
Toweling coverlet
(cotton)
About 50
seconds
About 1
minute
About 1～2
minutes
About 2～3
minutes
About 3～4
minutes
About 5
minutes
Spin time
-7--6-
Usage methodUsage method
B.Buzzer function (For machines having buzzer function only)
● Fold in half along
the long edge
● 1/3 fold in the
same direction
Roll up the blanket● Put into the tub with
blanket edge facing down
●
Dilute detergent with water (below 50℃), then pour the solution into
Fold the blanket as shown in the figure, and into the wash tub.
①adequate the wash tub.
②put it
This machine can wash blended blanket (less than 3 kg) marked with the "hand washing"
label.Washing method is as follows:
Wash timer
Soak
35
15
10
5
Work time
about 5 about 5 about 5
Total: 35 (mins)
about 1.5 about 1.5
about 2
Static time
For seriously stained clothes, Soak wash is useful to achieve better wash result.
15-35 minutes of the wash timer is for soak wash:(illustrate as follows)
35 15
(unit：)mins
Special Features
A.Soak function (For machines having soak function only )
Function of the buzzer is to alarm finish of washing,and it is helpful to control wash process.
● Buzzer will alarm the completion of washing.
The dual voltage washing machine can work at the voltage of 220V or 127V to meet needs of different
countries and areas.
Unplug the washing machine plug to cut off the power supply.
Remove the back cover.
Take down the nylon clip, and remove the plastic bag.
Connect the Wash127V of the terminal connector with “Wash”, “Spin127V” with “Spin” , then the voltage
can be converted to “127V60Hz”.
Put the wires in order, wrap them in the plastic bag, and refix the back cover. Then the washing machine
can be powered for operation.
If convert the voltage from 127V60Hz to 220V60Hz:
Steps - are the same as above
Connect the “Wash 220V” of the terminal connector with “Wash”, “Spin 220V” with “Spin” to convert the
voltage to .
The step is the same as above
In the step above, should connect the terminal connectors of both wash and spin, and make sure to
connect correctly.
*The factory-set voltage is 220V60Hz . Users can chose the voltage according to the regional voltage range.
● convert the voltage from 220V60Hz to 127V60Hz :
①
②
③
④“ ”
⑤
●
①② ③ ① ③
④
220V60Hz
⑤ ⑤
④
“ ”
C.The dual voltage (For machines having the dual voltage function only)
(For efficiency program only )
Efficiency Program
The tests were carrid out under program Normal. Below is the detail for test seting and steps;
1. Main wash: 30 min., H water level, wash temperature 40 ℃;
2.Spin: 3 min., 2 times; 4 kg test load for one turn;
3. Rinse: 3 min., L water level, water temperature 20 ℃;
4. Spin: 3 min., 2 times; 4 kg test load for one turn.

●
Be sure to use plug that is properly grounded.
The maximum gradient of the supporting surface for the washing machine should not exceed 2º.
Do not tear down electrical wires and components in the machine by yourself.
There are holes on the base for ventilation. These holes should not be blocked by foreign objects
(carpets, etc.).
Never connect the grounding wire with the live wire, or it may lead to an electric shock.
If the power cord is damaged, it must be replaced by a qualified person to avoid a hazard.
●Do not connect to the hot water supply.
●
●
●
●
●
●
After using, be sure to unplug the power plug.
If the following symptoms occur, please disconnect the power plug and perform the
following checks:
After you use the washing machine, never forget to do the following two things:

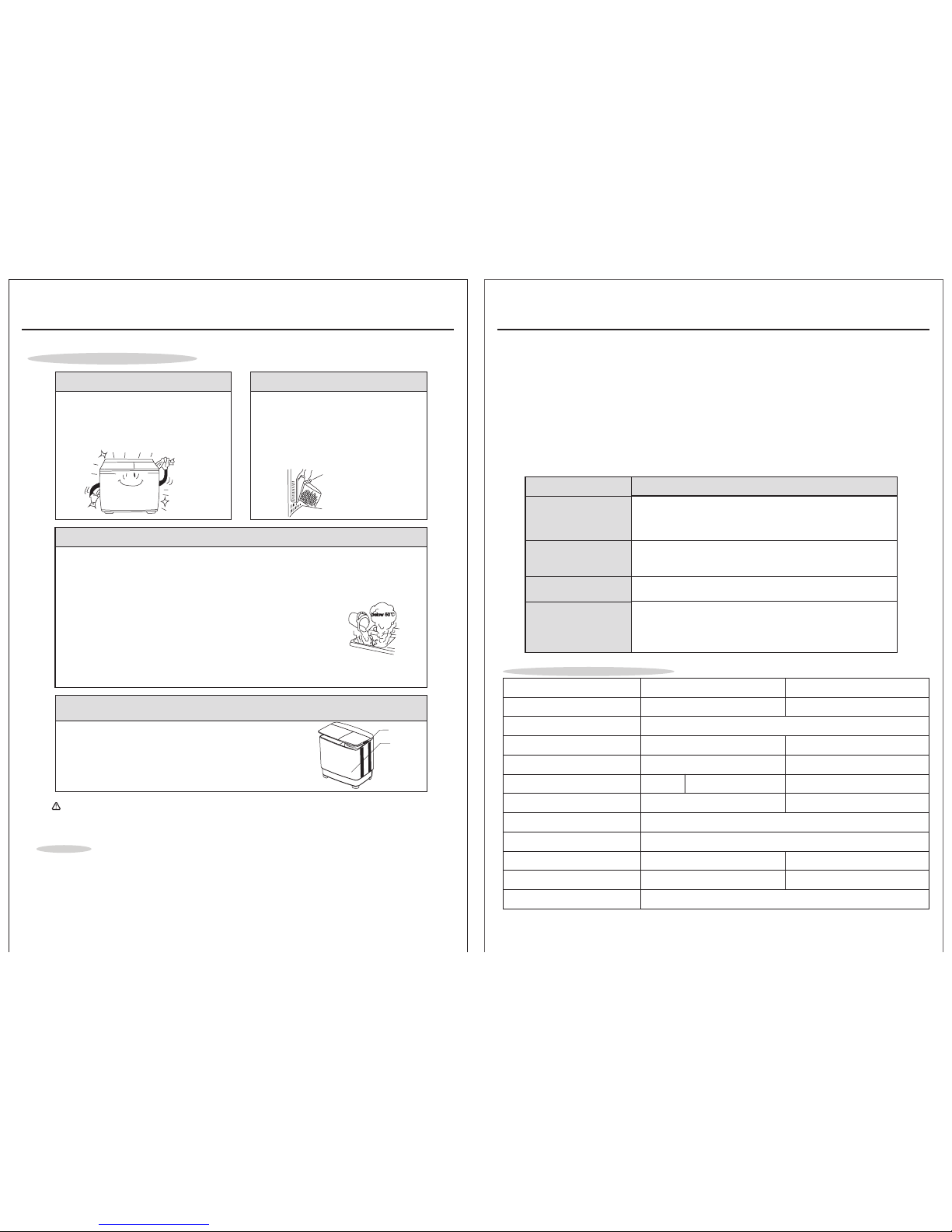

Attention To Maintenance
Cabinet maintenance Cleaning the lint filter
After using the washing machine,wipe
the moisture and stain on it with a piece
of soft cloth.To avoid damage to the
surface,do not use corrosive or volatile
chemicals.
Anti-freezing protection
▲ To prevent from freezing:
▲ If the water is frozen, please take the following steps:
Cabinet
Frame
◆
◆
◆
◆
Press the button head, and
pull the lint filter out.
Turn the filter net inside out, and rinse it
in water.
After inserting the claw, press the button
to insert it into place.
A sound of “ba” means proper installation.
Button head
Claw
hose completely.
Lay the drain hose and turn the drain selector knob to the "Drain”position to
empty the water in the tub.
①water inlet
②
Turn off the water tap, remove the water inlet hose and empty water in the
Keep about 2 liters of warm water below 50℃ in the wash tub for
about 10 minutes. and then lay the drain hose and turn the
wash drain selector knob to the "Drain”position to empty the water .
Fit the water inlet hose and turn on the water tap to
confirm water filling and draining work properly.
①
②
③
Put the water inlet hose into warm water of about 50℃.
Operation when objects are
dropped into the outside of the spin tub
①Remove all screws on the frame with a screw driver and
loosen the connector of the brake belt .
②Pull up the frame with both hands and turn it backwards.
③Take out the clothes dropped into the outside of the spin tub.
④Fasten the connector of the brake belt ,Press the frame to
reset and tighten screws.
2. Remove the water inlet hose.
1. Disconnect the power plug.
Check that the power supply is in good condition.
Check that the power plug is inserted properly.
●
●
● Check that the wash timer knob or the spin timer knob is not
in the "0" position.
Check that the drain hose is not laid too high.
Check that the drain hose is not frozen.
Check that the drain hose is not blocked by foreign matter.
●
●
●
Check that there are no coins or any other foreign objects
dropped into the wash tub.
●
Check that the washing machine is placed on flat, stable floor.
Check that clothes are evenly distributed in the spin tub.
Check that there are no washing materials or foaming debris
dropped into the outside of the spin tub.
●
●
●
The washing
machine does
not work.
The drain hose
does not work.
There is abnormal
noise during washing.
There is abnormal
noise and violent
vibration during
spinning.
Symptom Reason
-9-
-8-
MaintenanceMaintenance
-8-
Notes
The washing machine employs alternative current with rated voltage and frequency . When voltage fluctuates
between -10% and 10% of the rated voltage, the machine can work normally.
Connection mode of the power cord of this machine is Y-shaped connection.Users
reconnect the wire by themselves. please contact the designated service center.
should not detach or
If this part needs to be repaired,
Main Technical Parameters
Capacity (dry Clothes)
Power Supply
Input Power (lower drain)
Input Power (upper drain)
Maximum Time
Water volume
Maximum water pressure
Overall dimension
Net weight
Pump Input Power
Wash
8.0 kg
400W
400W
15 min. 35 min.(soak wash)
HI:77L H: 72L M: 61L L: 50L
Spin
4.6kg
135W
135W
5 min.
/
0.6Mpa
870x512x944(mm)
23kg
23.5kg
30W
240V/50Hz
Lower Drain System
Upper Drain System
